Солнечная панель Jinko цена 570 Вт 575 580 585 двойные стеклянные двухфазные фотоэлектрические солнечные модули Pv

Сохранить в закладки 1600991440685:


Цена:0,11-0,13 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

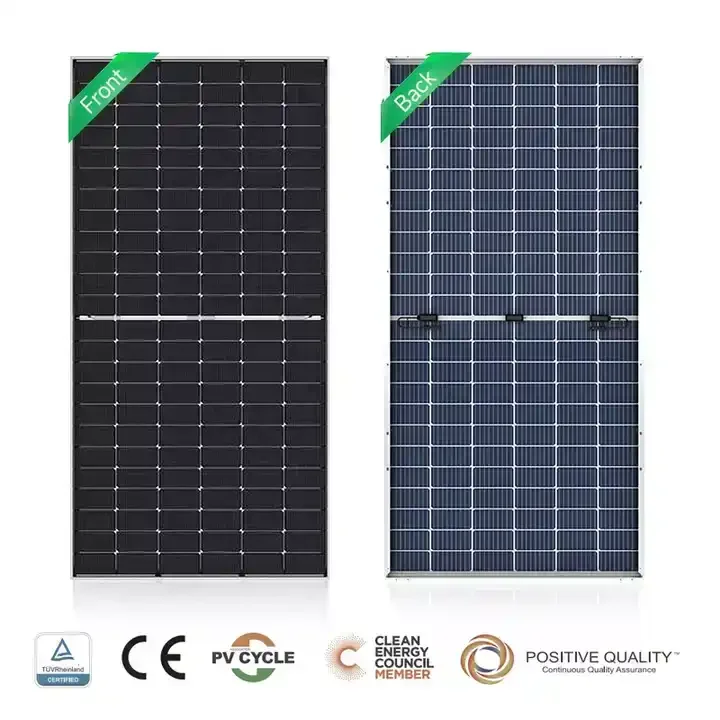

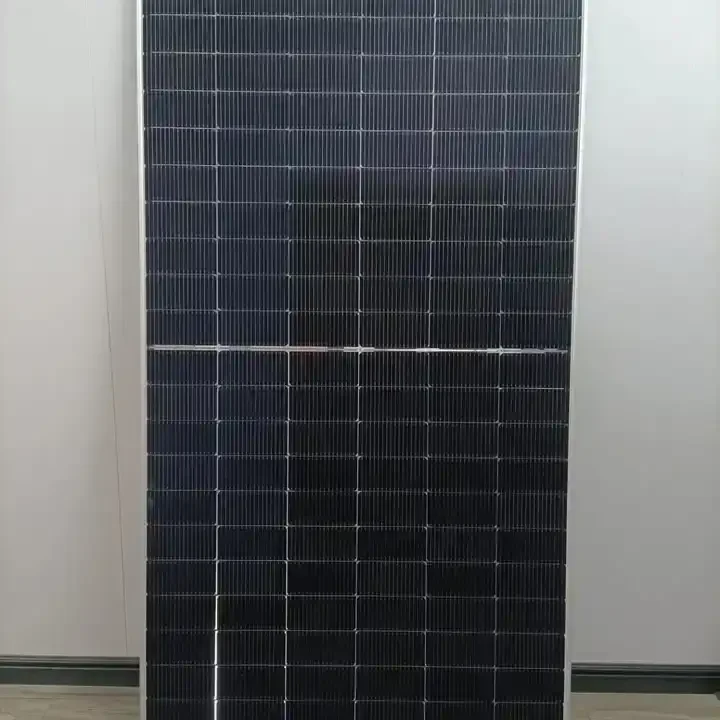

Product Description




Specification


Mechanical Characteristics
Cell Type
N type Mono-crystalline
No. of cells
144 (2×72)
Dimensions
2278×1134×30mm (89.69×44.65×1.18 inch)
Weight
31kg
Front Glass
2.0mm, Anti-Reflection Coating
Back Glass
2.0mm, Heat Strengthened Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TUV 1×4.0mm2
(+): 400mm , (-): 200mm or Customized Length


Module Type
JKM570N-72HL4-BDV
JKM575N-72HL4-BDV
JKM580N-72HL4-BDV
JKM585N-72HL4-BDV
JKM590N-72HL4-BDV
STC NOCT
STC NOCT
STC NOCT
STC NOCT
STC NOCT
Maximum Power (Pmax)
570Wp 430Wp
575Wp 433Wp
580Wp 437Wp
585Wp 441Wp
590Wp 445Wp
Maximum Power Voltage (Vmp)
43.58V 40.56V
43.73V 40.73V
43.88V 40.89V
44.02V 41.05V
44.17V 39.81V
Maximum Power Current (Imp)
13.08A 10.59A
13.15A 10.64A
13.22A 10.69A
13.29A 10.74A
13.36A 10.79A
Open-circuit Voltage (Voc)
52.10V 39 .60V
52.30V 39.75V
52.50V 39.90V
52.70V 40.05V
52.90V 40.20V
Short-circuit Current (Isc)
13.83A 11.16A
13.89A 11.21A
13.95A 11.26A
14.01A 11.31A
14.07A 11.36A
Module Efficiency STC (%)
22.07%
22 26%
22.45%
22 65%
22.84%
Operating Temperature(°C)
-40°C- +85°C
Maximum system voltage
1500VDC (IEC)
Maximum series fuse rating
30A .
Power tolerance
0~+3%
Temperature cofficients of Pmax
-0.29%/℃
Temperature coefficients of Voc
-0.25%/°C
Temperature coefficients of Isc
0.045%/°C
Nominal operating cell temperature (NOCT)
45±2°C


Material




Factory








Company Profile




Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D,production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The company is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world.We are world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems.Covering an area of 46000 square meters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over the
world.
The advanced production system and excellent quality control have enabled us to win the trust and support of our customers.We have got certificates of TUV,CE,etc.At present, PINERGY has established a global sales network covering 70 countries/regions.Mainly covering Europe, Asia and South America, customers all over the world.PINERGY has a complete PV product system: solar cells, PV modules and PV systems, etc.
The goal of PINERGY is to create a new first-class PV product brand, provide clean energy to the world, and assume future responsibility.
Excellent quality, PINERGY manufacturing!

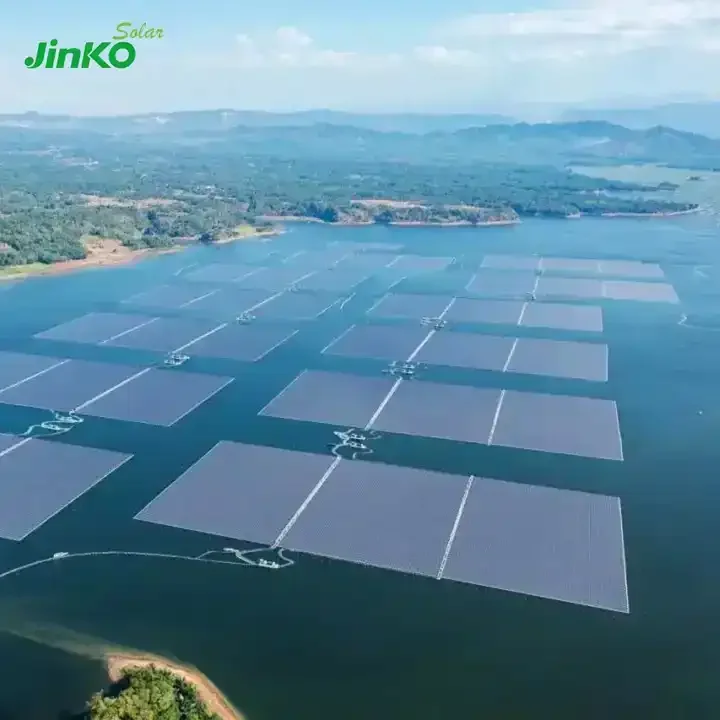

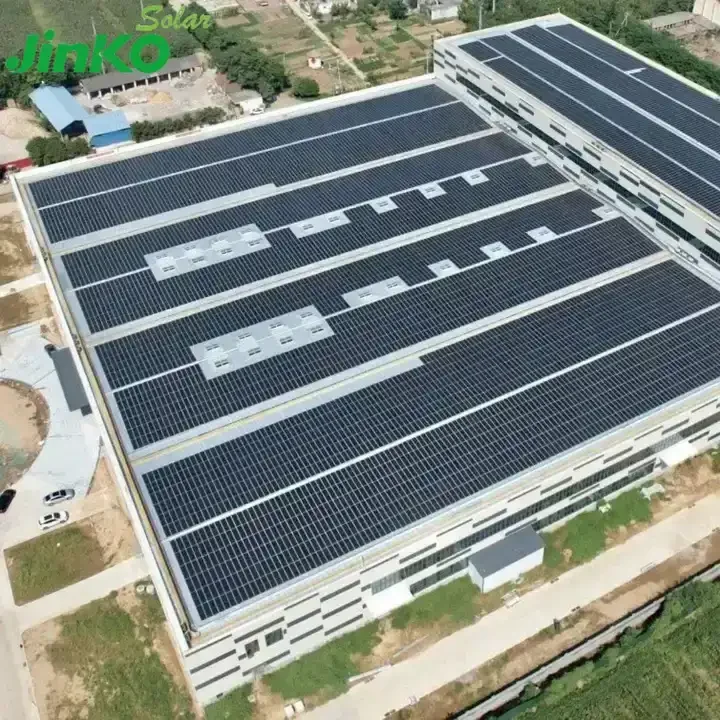

Project Cases




Package and Delivery














FAQ.
1.What can you buy from us?
Solar Panel,Solar System,Battery,Inverter,Wi Fi RTU

2. Why should you buy from us not from other suppliers?
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.

3.When is the lead time?
We will deliver around 5-7 working days if on stock.
