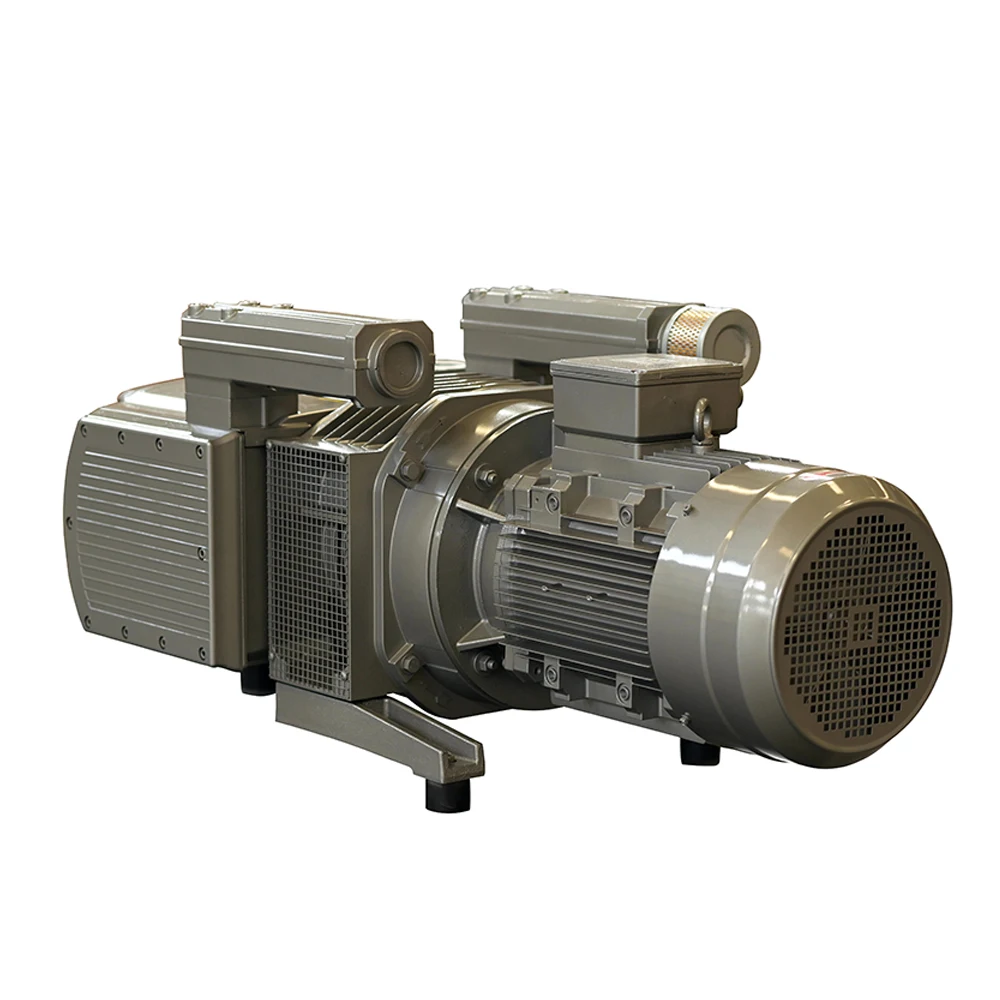

Высокостабильный двухступенчатый роторный пластинчатый вакуумный насос (масляный насос) TXR eco series
- Категория: >>>
- Поставщик: Xiamen Mibay Technology Co. Ltd.
Сохранить в закладки 1600993630224:
Описание и отзывы
Характеристики
Dry scroll pump TVPS150
Product description:
TVPS oil free scroll vacuum pump is constructed with pump head assembly, crank pin assembly, bracket assembly, air flush assembly,and exhaust valve assembly. Two spiral cylinders, one offset and orbiting against the other fixed with an offset of 180° to form several crescent-shaped pockets of different sizes. By means of an eccentric drive, the orbiting scroll is made to orbit about the fixed scroll, reducing the volume of the pockets and compressing gas from outside towards the inside thereby pumping the gas from vacuum chamber.
Dry Scroll Pump GWSP150
Technical Specifications:
Model | TVPS150 | ||||
Displacement | 50Hz | cfm | 5.7 | ||
m3/h | 9.4 | ||||
l/s | 2.6 | ||||
l/min | 156.0 | ||||
60Hz | cfm | 6.8 | |||
m3/h | 11.1 | ||||
l/s | 3.1 | ||||
l/min | 187.0 | ||||
Ultimate Pressure | Torr | ≤7.5*10-2 | |||
psi | ≤1.5*10-3 | ||||
mbar | ≤1.0*10-1 | ||||
Pa | ≤10 | ||||
Noise Level | dB(A) | ≤61 | |||
Leakage | mbar·l/s | 1*10-7 | |||
Max. Inlet/Exhaust Pressure | MPa | 0.1 / 0.13 | |||
Ambient Operation Temp. | ℉ | 41~104 | |||
Cooling Type | Air cooled | ||||
Inlet/Exhaust Flange | KF25/KF16 | ||||
Motor 1 phase | Power | kW | 0.55 | ||
Voltage | V | 110~115 (60Hz), 200~230 (50Hz) | |||
Speed | rpm | 1425 (50Hz),1725 (60Hz) | |||
Plug | North America, Europe, UK/Ireland, India | ||||
Motor 3 phase | Power | kW | 0.55 | ||
Voltage | V | 200~230 or 380~415 (50Hz), 200~230 or 460 (60Hz) | |||
Speed | rpm | 1425 (50Hz),1725 (60Hz) | |||
Dimensions | 1 phase | mm | 510*265*275 | ||
3 phase | mm | 510*265*275 | |||
Net Weight | 1 phase | kg | 22 | ||
3 phase | kg | 21 | |||
Performance curves:
Safety Precautions
Be sure the inlet gas temperature must be lower than 122℉.
Features and Benefits
Oil free clean vacuum
No oil back-diffusion, no oil mist exhaust,
provide clean vacuum environment
Wide product lineup
Pumping speed covers 1.8~35.4cfm, limited vacuum level 7.5*10-3~6.0*10-2Torr
Suitable for all type of power supply around the world
110/220/380/460V, 50/60Hz for choose
Low vibration, low noise
57~63 dB(A), smooth operation
High efficiency, ease of maintenance
No water cooled, no oil lubricated, daily maintenance free
No oil back-diffusion, no oil mist exhaust,
provide clean vacuum environment
Wide product lineup
Pumping speed covers 1.8~35.4cfm, limited vacuum level 7.5*10-3~6.0*10-2Torr
Suitable for all type of power supply around the world
110/220/380/460V, 50/60Hz for choose
Low vibration, low noise
57~63 dB(A), smooth operation
High efficiency, ease of maintenance
No water cooled, no oil lubricated, daily maintenance free
Applications
Semiconductor industry
Vacuum sputtering machine.
IC plasma cleaning machine.
IC plasma polishing machine.
IC packaging machine.
IC transmission chamber.
Photoelectric industry
LED vacuum annealing furnace.
Load lock/transfer chambers.
Glove box.
LED packaging machine.
Liquid crystal injection and packaging.
Material industry
Vacuum annealing furnace.
Vacuum diffusion oven.
3D metal printing.
Single crystal growth furnace.
Microwave drying machine.
E-beam/Laser melting.
Vacuum degassing.
Vacuum gas substitution.
Food and drug industry
Freezing dryer.
Vacuum storage.
Medical equipment
Low temperature plasma sterilizer.
Vacuum storage.
Dental equipment.
Energy industry
SF6 Gas recovery machine.
Lithium battery drying and packaging machine.
Analyzing instrument and device
Spectroscopy/scanning electron microscopy
Space environment simulation machine
Helium Leak detector
Mass spectrometer
Cryopump regeneration
Accelerators/synchrotrons
Vacuum equipment
Oil free ultrahigh vacuum unit
Oil free vacuum unit
Vacuum sputtering machine.
IC plasma cleaning machine.
IC plasma polishing machine.
IC packaging machine.
IC transmission chamber.
Photoelectric industry
LED vacuum annealing furnace.
Load lock/transfer chambers.
Glove box.
LED packaging machine.
Liquid crystal injection and packaging.
Material industry
Vacuum annealing furnace.
Vacuum diffusion oven.
3D metal printing.
Single crystal growth furnace.
Microwave drying machine.
E-beam/Laser melting.
Vacuum degassing.
Vacuum gas substitution.
Food and drug industry
Freezing dryer.
Vacuum storage.
Medical equipment
Low temperature plasma sterilizer.
Vacuum storage.
Dental equipment.
Energy industry
SF6 Gas recovery machine.
Lithium battery drying and packaging machine.
Analyzing instrument and device
Spectroscopy/scanning electron microscopy
Space environment simulation machine
Helium Leak detector
Mass spectrometer
Cryopump regeneration
Accelerators/synchrotrons
Vacuum equipment
Oil free ultrahigh vacuum unit
Oil free vacuum unit
Exhibition
Contact us
FAQ
1. How should i pay for my order ?
what is the procession of this purchase ? We accept TT by bank or other methods. You can do 30%prepayment at first, then we will start to make production.When the machine is ready , we will take pictures to you, and then youcan do the balance. I will send the machine to you after we got your payment.
2. How about your service after sales ?
can your Engineer speak fluent english ? We offer the service from you got the machine, including how to install the machine,how to use machine, how to let machine work.,and so on. Usually ,we will teach you how to do by email or by skype our engineer who has many years of experience for cnc machine service . he can speak fulently in english .so he can slove the problem in short time.
3. Are you a factory or trading company?
We are the manufacturer . As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory.
4. How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client s specific requirements, it would be 10 to 20 days. 5. How about the documents after shipment? Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
