Products Description

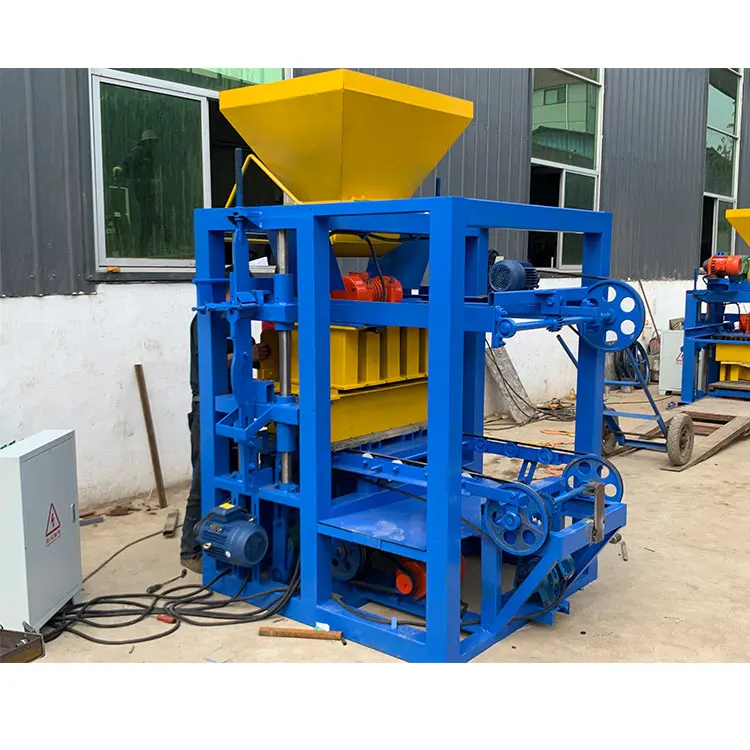

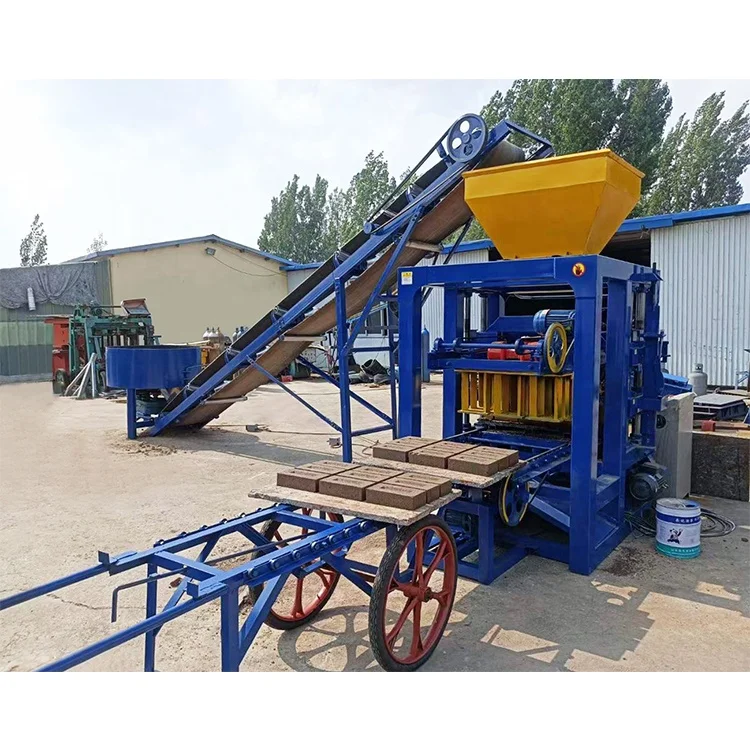

QTJ4-26 SEMI AUTOMATIC BLOCK MACHINE

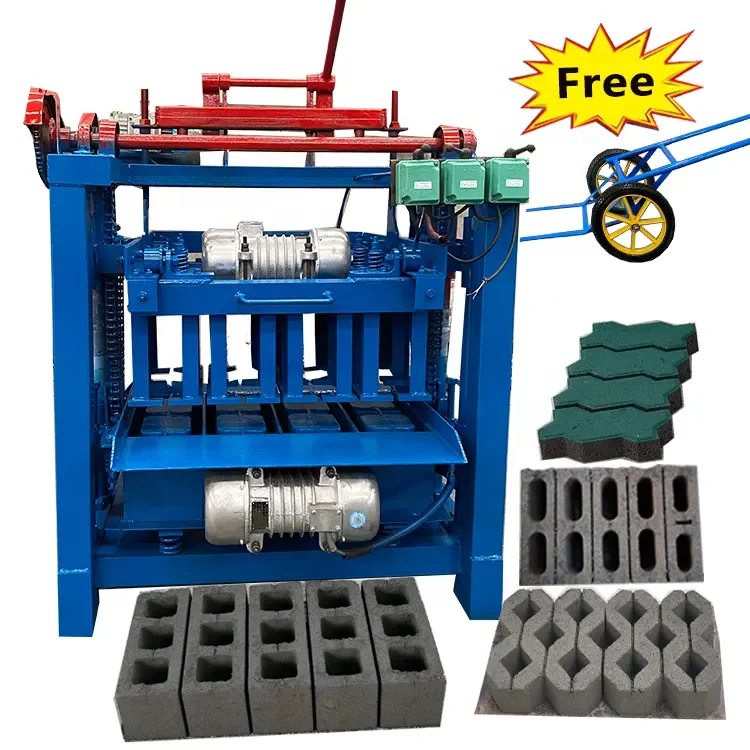

YOUJU Business Idea With Small Investment QTJ4-26 Semi Automatic Cement Paver Hollow Block Brick Making Machines With Free Molds
QTJ4-26 type block forming machine is made up of machine frame, elevating system, vibrating system, mold , material storing device, delivering device and electronic controlling part.

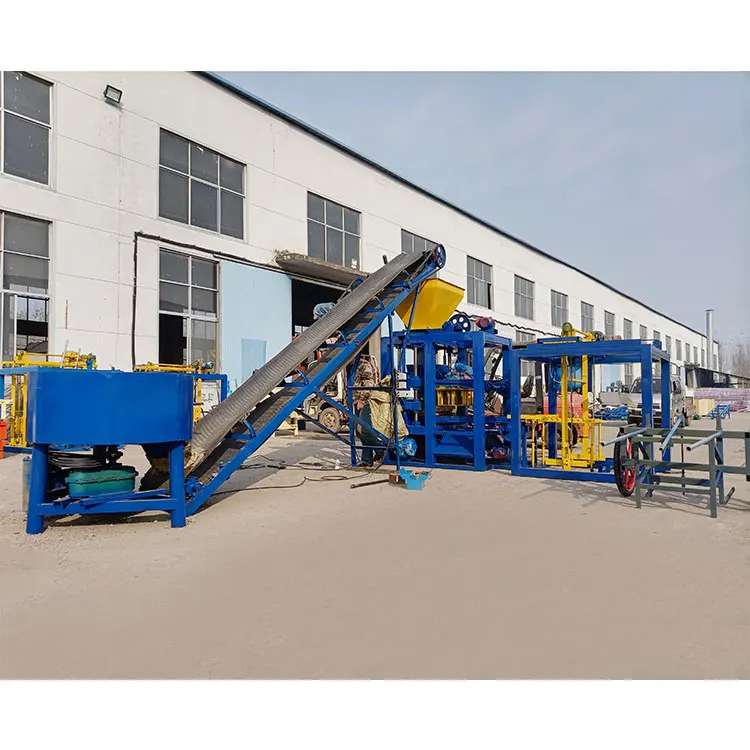

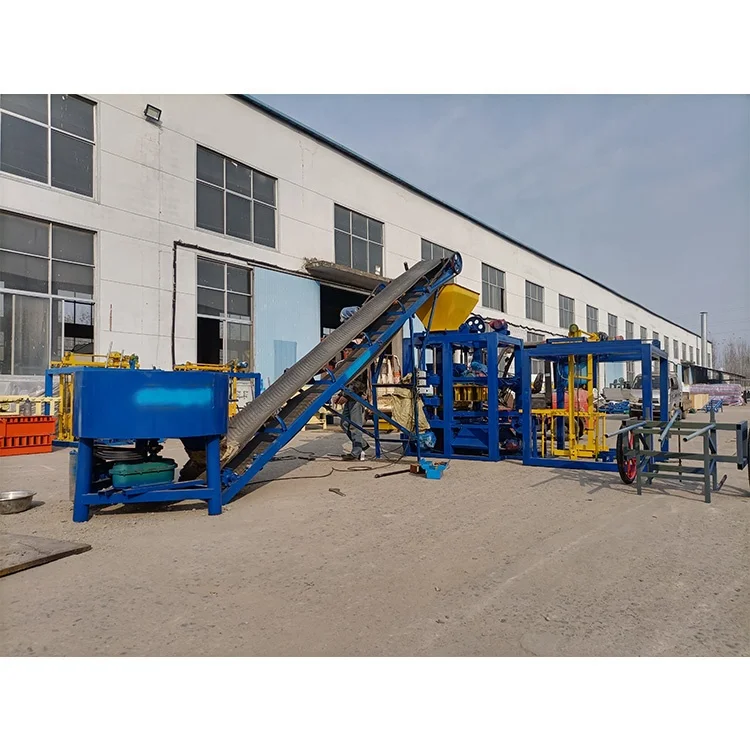

QTJ4-26 together with JQ350 mixer and 6m belt conveyor, makes a simple production line.
QTJ4-26 type block forming machine, belongs to small size, is in stationery style with platform vibration. It adopts combination of being mechanical and electronic to finish kinds of action. The operation and maintenance are both easy and dependable.
Block making applies platform vibrating feeding and up-down vibrating forming, which is fast and make the density and strength better.
Pushing-pulling mold is automatic with electricity, which saves labor and raises the efficiency. Customers can have their own choice to either use automatic or manual material releasing way.
The mold going up and down, the forming process, and vibration starting are all controlled by combination of electricity and machine, which makes the operation accurate and reduces the damage due to mis-operation.
QTJ4-26 type block forming machine, belongs to small size, is in stationery style with platform vibration. It adopts combination of being mechanical and electronic to finish kinds of action. The operation and maintenance are both easy and dependable.
Block making applies platform vibrating feeding and up-down vibrating forming, which is fast and make the density and strength better.
Pushing-pulling mold is automatic with electricity, which saves labor and raises the efficiency. Customers can have their own choice to either use automatic or manual material releasing way.
The mold going up and down, the forming process, and vibration starting are all controlled by combination of electricity and machine, which makes the operation accurate and reduces the damage due to mis-operation.
YOUJU Business Idea With Small Investment QTJ4-26 Semi Automatic Cement Paver Hollow Block Brick Making Machines With Free Molds
Machine frame
The frame is dragon gate style and it is made of super steel, carrying strong resistance to vibration and being dependable. Four vertical shafts is wear-resisting, which can guarantee the accurate position for the mold .
Elevating system
The elevating system is made up of cone-shape motor, JZQ250 speed reducer, elevating arm, sliding sleeve, hang pin, position pin and so on.
When working, the motor drive speed reducer through V-shape triangle belt, so the lower mold lifts by elevating arms beside speed reducer shaft and then drives upper mold to lift in the way that lower mold sliding sleeve pulls upper mold sliding sleeve.
When working, the motor drive speed reducer through V-shape triangle belt, so the lower mold lifts by elevating arms beside speed reducer shaft and then drives upper mold to lift in the way that lower mold sliding sleeve pulls upper mold sliding sleeve.
Vibrating system
There are two parts in this vibrating system, lower platform vibration and upper platform vibration. Lower platform vibration uses two high speed motors whose power is both 3kw to drive a vibration box with same excitation force to vibrate vertically. Upper vibration uses an attached vibration device whose power is 1.5kw. When molding happens, lower platform and upper vibrator work at the same time, making the density of concrete as much as possible.
MOLD
Mold is made up of mold box and upper mold . Upper mold and beam is located in the hole by hang pin and balance pin, making upper mold separate from mold box smoothly. Upper mold , beam and sliding sleeve are all connected with bolts.
Lower mold is connected with lower sliding sleeve through bolts, nuts and springs.
Lower mold is connected with lower sliding sleeve through bolts, nuts and springs.
Material storing device
It is made up of material releasing hopper and material storing hopper. Material releasing hopper is fixed on the top of machine frame by bolts while material storing hopper is fixed below releasing hopper by bolts. When material feeding happens, the material releasing handle can be pulled manually or by motor, which drops material into mold box and finishes feeding.
Delivery device
Delivery device is made up of cycloidal pin wheel speed reducer, chains, v-shape triangle belt, delivery wheel, self-conveying frame and so on. cycloidal pin wheel speed reducer drives v-shape triangle belt to move in cycle through delivery device. When blocks crowd out of mold box, it uses lifting shaft to lift v-shape conveying belt and delivery blocks out from vibration platform.
Technical parameters
YOUJU Business Idea With Small Investment QTJ4-26 Semi Automatic Cement Paver Hollow Block Brick Making Machines With Free Molds | ||
Overall Dimension | 3600mm×1700mm×2560mm (working state) | |
Total Mass | 1750kgs | |
Molding Type | Platform Vibration | |
Pallet Size | 850mm×450mm | |
Overall Power | 14.25KW | |
Molding | 390mm×190mm×190mm 4 pcs/mold 240mm×115mm×53mm 21 pcs/mold | |
SUPPORT EQUIPMENT
QTJ4-26 block machine production line Basic Equipment- concrete mixer JQ350 pan mixer
It mix the raw materials for the blocks production, one of basic items for the production line.
QTJ4-26 block machine production line Basic Equipment- 6m belt conveyor
It transfer the raw material from mixer to the machine material hopper.
QTJ4-26 block machine production line Optional Equipment- Auto stacker
It stack the blocks layer by layer, one pallet at one time, 3-6layer according to the blocks height.
You can choose or not according to your requirement.

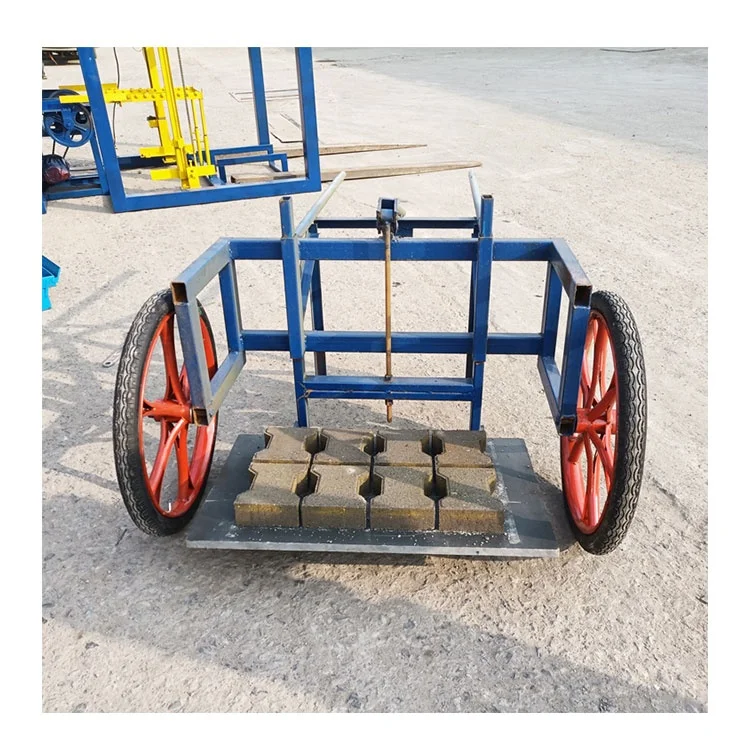

QTJ4-26 block machine production line Basic Equipment- Trolley
It is free as gift to our client, it is used for take the blocks layer by layer to the curing yard.
It is different if without stacker.
There are also other related equipment for the blocks production, like the block clamper, diesel generator, wheel loader, forklift, etc. You can choose or not according to your project. We can customize them for you.
YOUJU Semi Automatic Hollow Cement Brick Making Machinery QTJ4-26 Concrete Mixing Block Making Machine

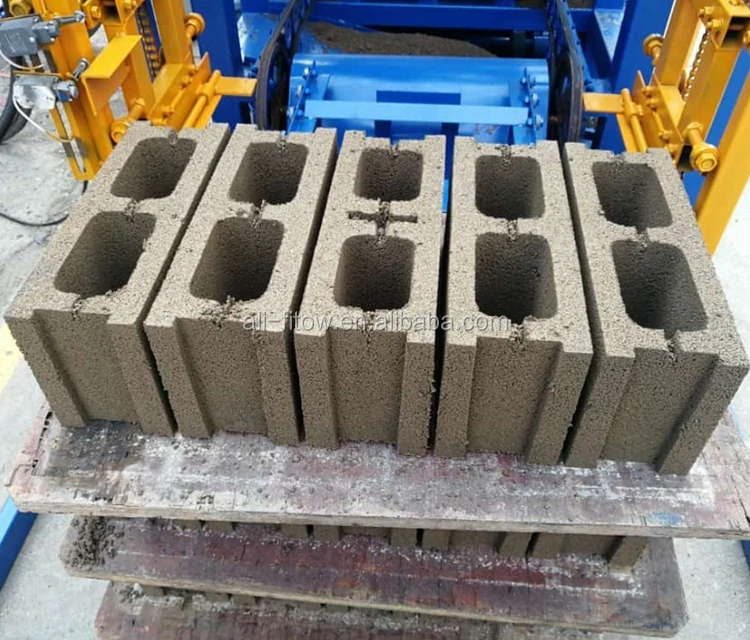

Block Samples
Packing & Delivery
Company Profile
Recommend Products
VR
Похожие товары
Qtj4-24 полых цементов машина по производству Бетонных блоков в Танзании с асфальтоукладчик paing кирпичный пресс-формы
438 593,60 ₽ - 603 066,20 ₽
Бетоноукладчик
1 370 605,00 ₽ - 1 425 429,20 ₽
Сжатая машина 4-35A для ввода данных
153 507,76 ₽

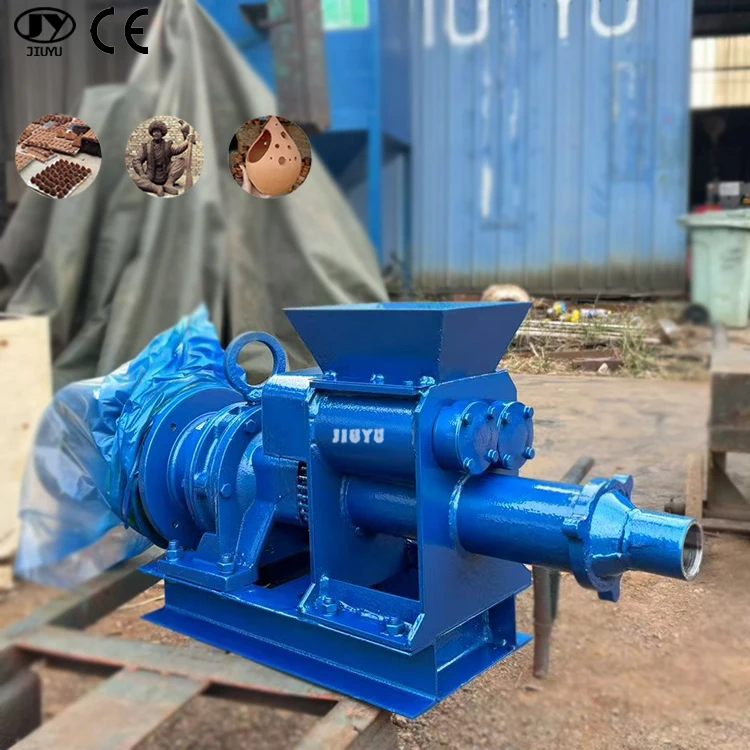

Производитель JIUYU глиняная машина небольшой однофазный керамический шиловый экструдер бытовая мопс-мельница
