Мокрый лоток мельница завод в Китае 1200 1400 1500 1600 для золота

Мокрый лоток мельница завод в Китае 1200 1400 1500 1600 для золота

Категория: >>>
Поставщик: Ganzhou Eastman Technology Co. LtdGanzhou Ltd

Цена:3 600,00-4 180,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Wet pan mill full name is wet grinding machine,according to the different operating methods, devided into roller gold machine,mixed mercury grinding, grinding machine,electric milling.
For a variety of ferrous metals,non-ferrous metals,non-metallic mineral grinding operations,as well as dilute precious metals,gold and silver grinding,selection,processing operations is the majority of small and medium-sized concentrator milling plant the best first grinding equipment.

Working principle

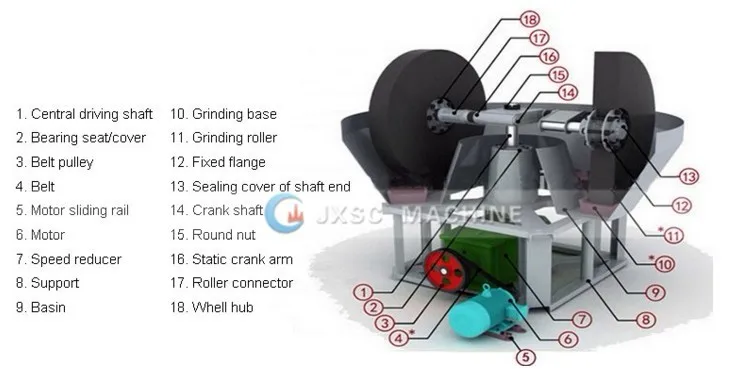

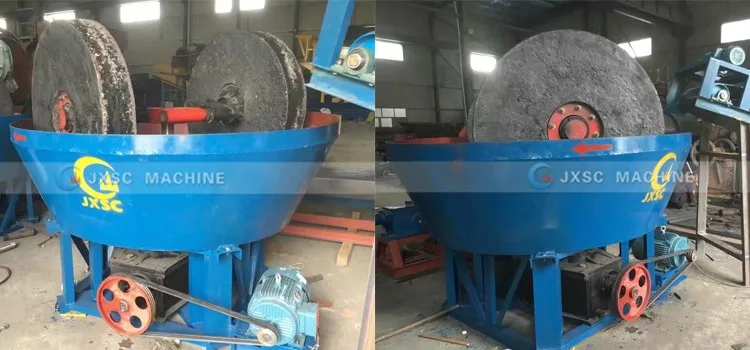

This equipment adopts the working mode of wheel-driven grinding: firstly, the motor drives the power to the reducer, and under the drive of the reducer, the torque is transferred to the horizontal shaft abovethrough the big vertical shaft, and then the torque is transferred to the roller through the pull rod installed on both ends of the horizontal shaft, so that the roller generates driving force and rotates counterclockwise along the horizontal axis.The roller can rotate around the big vertical axis of the wet roller and rotate around the center axis of the roller.The added mineral material is crushed thoroughly after repeated extrusion,kneading and grinding by the extrusion pressure brought by the weight of the roller itself and the huge friction generated by the roller during its revolution and rotation.

Technical Data

Technical Parameter of Wet Pan Mill

INQUIRY US NOW

Model	Specifications	Input size	Rotate speed	Power	Machine weight
1600A	1600×400/2100×500*180±20mm	<30mm	18-20	37KW	16.3
1500A	1500×400/2100×500*180±20mm	<30mm	18-22	30KW	13.5
1500B	1500×350/2050×450*150±20mm	<30mm	18-22	22KW	12.3
1500C	1500×300/2050×400*150±20mm	<30mm	18-22	22KW	11.3
1400B	1400×250/2050×350*150±20mm	<30mm	18-22	15kw	8.5
1400A	1400×300/2050×400×150±20mm	<30mm	18-21	18.5kw	9.6
1300B	1300×250/2000×350×150±20mm	<30mm	18-22	11kw	7.5
900A	900×170/1700×220×45±10mm	<30mm	11-13	3kw	2.9
900B	900×140/1700×170×45±10mm	<30mm	11-13	3kw	2.6
1200A	1200×200/1800×250×100±10mm	<30mm	11-19	7.5kw	5.5

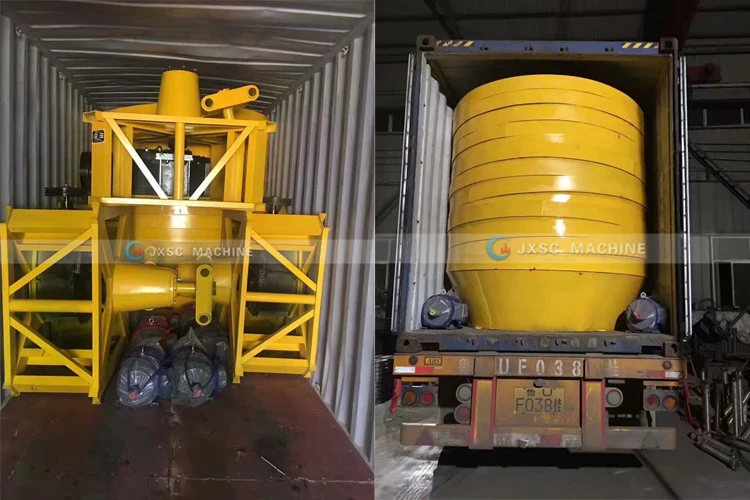

Packing&Shipping

Packing

1. Standard parts packed in the wooden cases.
2. The whole machine is loaded in the container.

Shipping

1 .By sea freight.
2. MSK/MSC/APL/EMC/WANHAI/KLINE

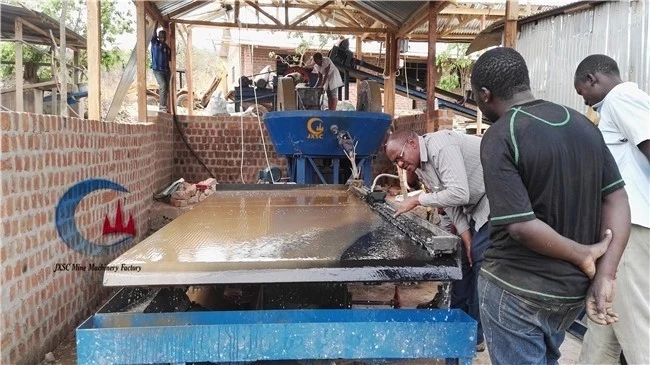

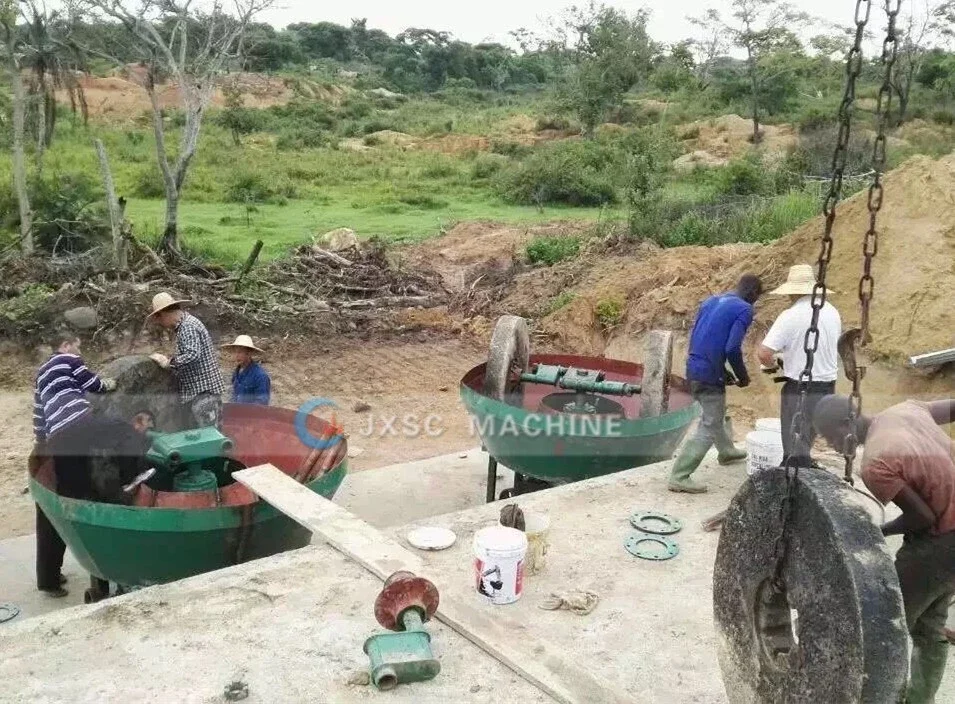

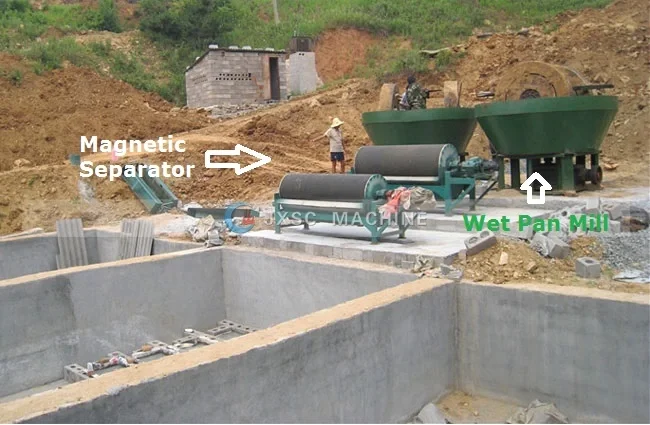

Application On Site

Wet Grinding Mill Application area:
Wet pan mill is a good best replacement for the ball mill, it is very popular adopted in the grinding circuit of the middle, fine particle processing plant. Statistically, over 80% of gold mines are placing pan mill s in an important position.
Materials:
silver, gold, iron, zinc, lead, antimony, tungsten, etc. Types of pan mill According to the structure, the pan mills divide into single roller mill, double roller mill, and three roller mill. according to the application, it also can be divided into the gold mill, mercury mixing mill, iron mill, and electric mill.

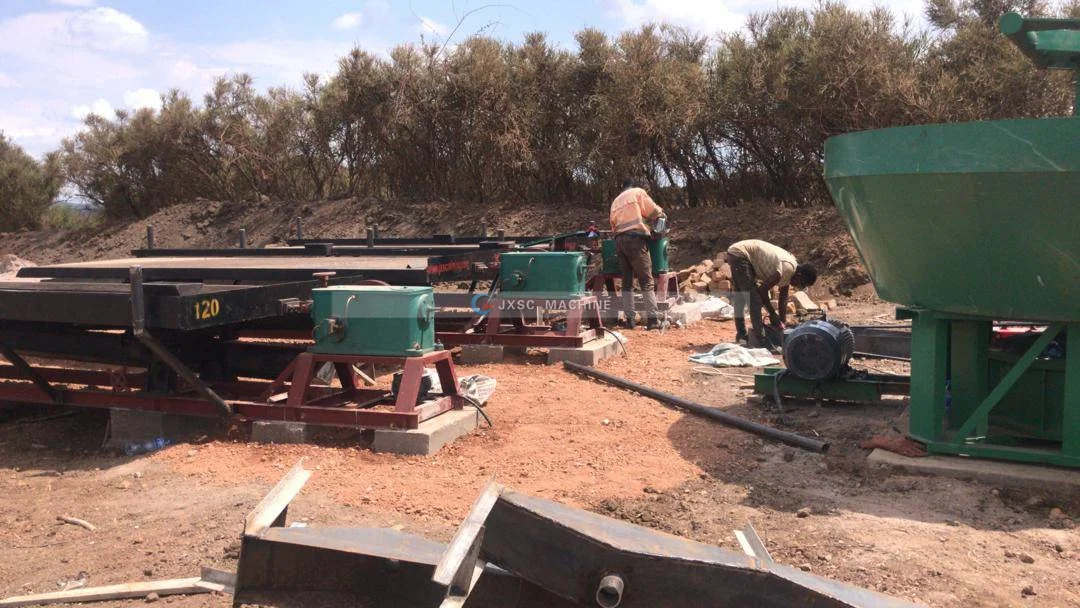

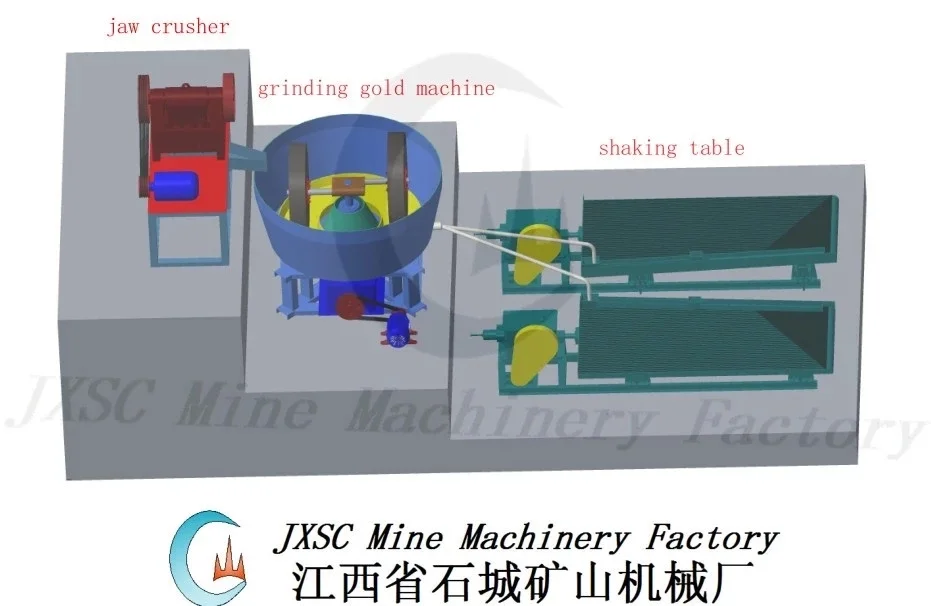

Mineral:1-2tph hard rock gold processing plant
Other machines: Crusher,wet pan mill, shaking table etc

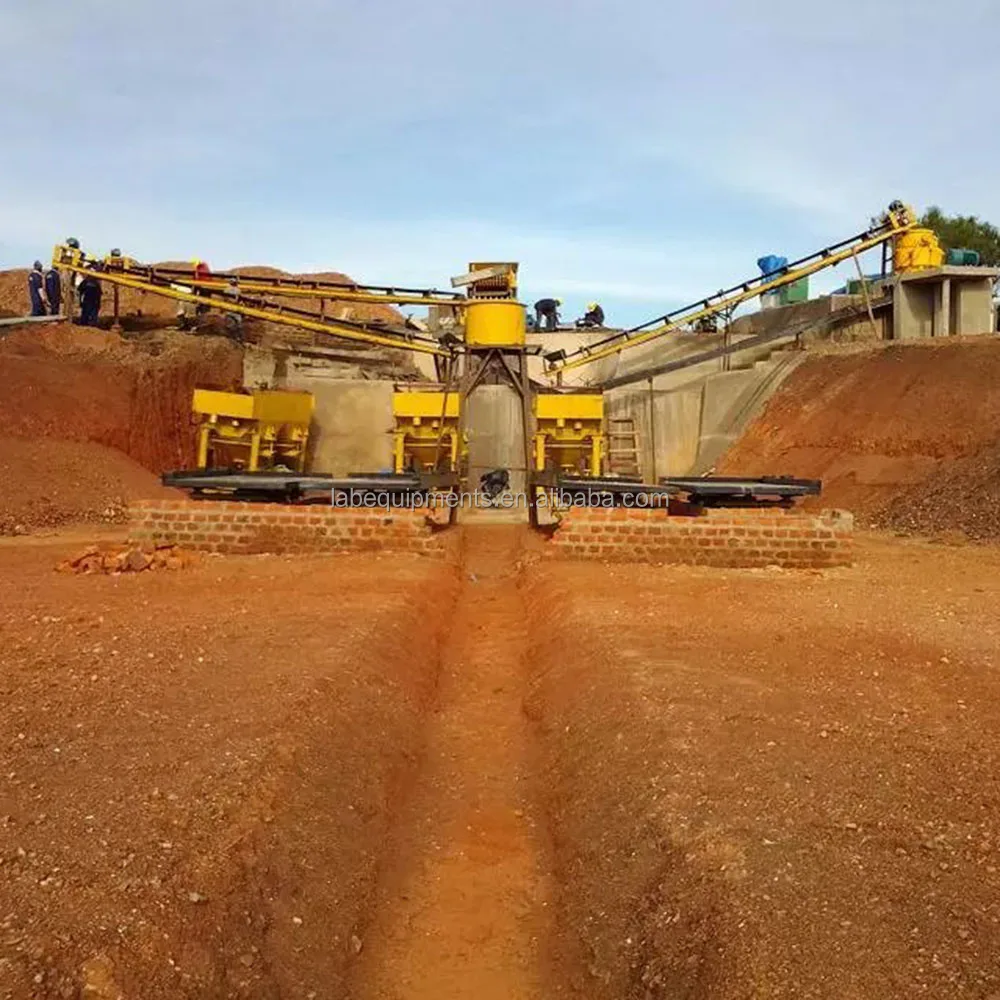

Mineral: 5tph Rock Stone Gold
Other machines: Crushers, magnetic separators, shaking tables etc
Our Factory Designed & offered the whole plant. also engineer services there for installtation, commissioning

Why Choose Us

FAQ

If you are interested in our products, please don't hesitate to contact us. You can tell me the following questions, so that we can send you accurate quotation soon, including extra discounts!

1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, jig separator, shaking table, stone crusher, jaw crusher, impact crusher, etc. EPC service also available.

2. What is your raw material plan to process? like gold ore, diamond ore, tantalite ore, chrome, silica sand, tantalum niobium, tin, titanium, tungsten, coltan, manganese, ziron, rutile, monazite or iron ore, etc.

3. The capacity you need? Like 100 tons per hour or 2000 tons per day.

4. Your contact information? Both Email and phone number are essential, we can contact you easier.
