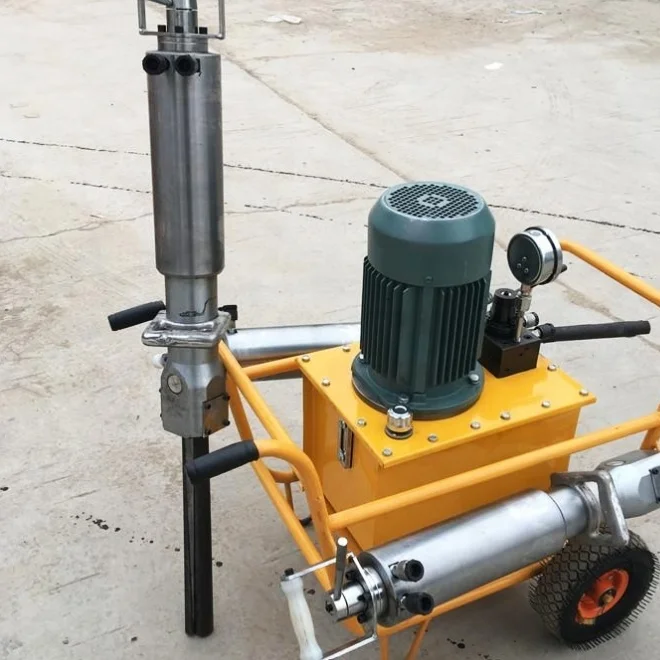

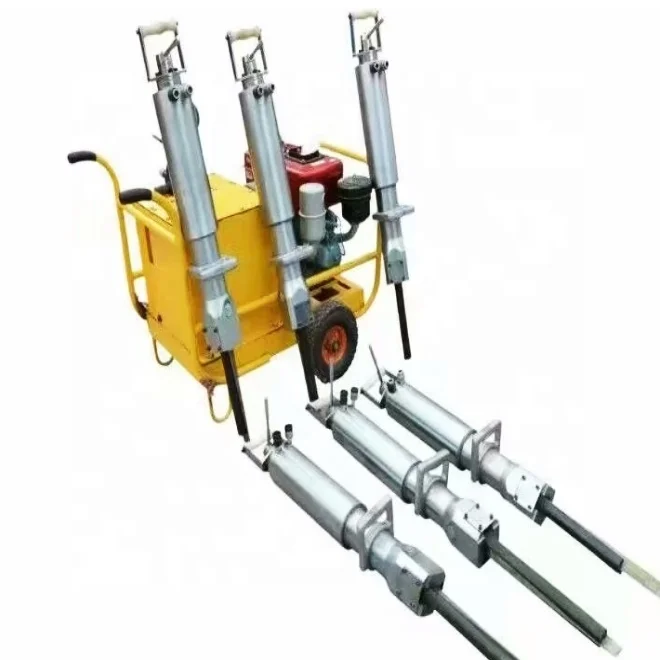

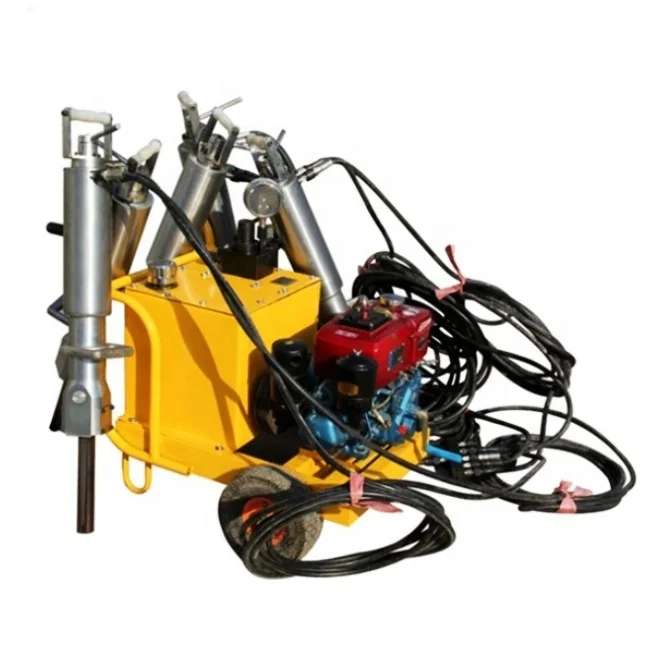

Model250/350/450 Darda гидравлический сплиттер для горных работ и проектов по добыче твердых пород
- Категория: >>>
- Поставщик: Zhengzhou Vantage Machinery Co. Ltd.
Сохранить в закладки 1600996849945:
Описание и отзывы
Характеристики
Product Overview

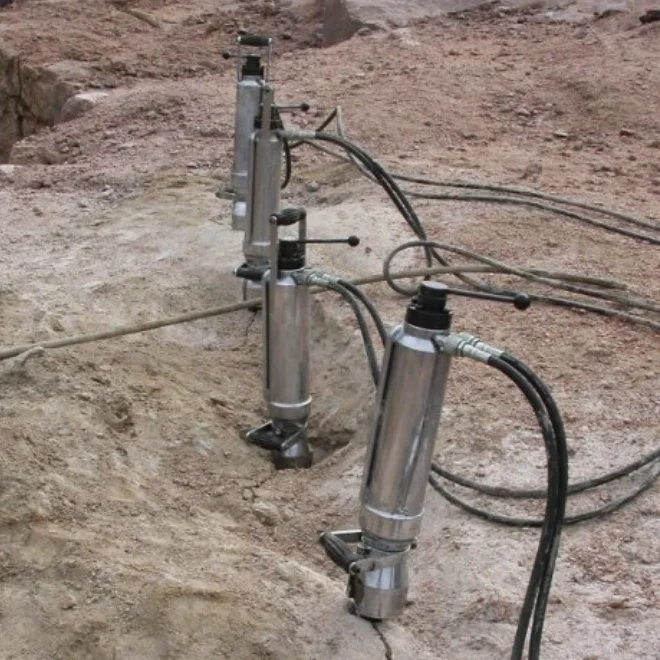

Hydraulic rock splitting machine is mainly used for building stone mining operations,secondary multiple disintegration of bulk ore (metallic ore, non-metallic ore); Partial and total demolition of concrete components (cement pavement, machine tool foundations, Bridges and building components)
05-Unlike most traditional dismantling methods and equipment, the hydraulic splitter can determine the splitting direction and splitting shape in advance.
The characteristics are:
01-It is controllable work in static hydraulic environment. Therefore, it will not produce as much as blasting and other impact demolition and rock drilling equipment, avoiding the creation of potential dangers, no need to take complex measures.
01-It is controllable work in static hydraulic environment. Therefore, it will not produce as much as blasting and other impact demolition and rock drilling equipment, avoiding the creation of potential dangers, no need to take complex measures.
02-When working, it will not produce vibration, impact, noise, dust, flying chips, etc., and the surrounding environment will not be affected. Even in dense populated area, work can be carried out without interference in the area or indoors.
03-The splitting process can be completed in a few seconds and can work continuously without interruption, with high efficiency; Its operation and maintenance carbonic acid is very low; There is no Isolation or other time-consuming and expensive measures are required as in blasting operations.
04-The humanized use and durable structural design of the hydraulic splitter ensure that its use method is simple and easy to learn, and only one person is required to operate; Convenient maintenance; Long service life;
05-Unlike most traditional dismantling methods and equipment, the hydraulic splitter can determine the splitting direction and splitting shape in advance.
PRODUCT SPECIFICATIONS
Model | VA-250 | VA-350 | VA-450 |

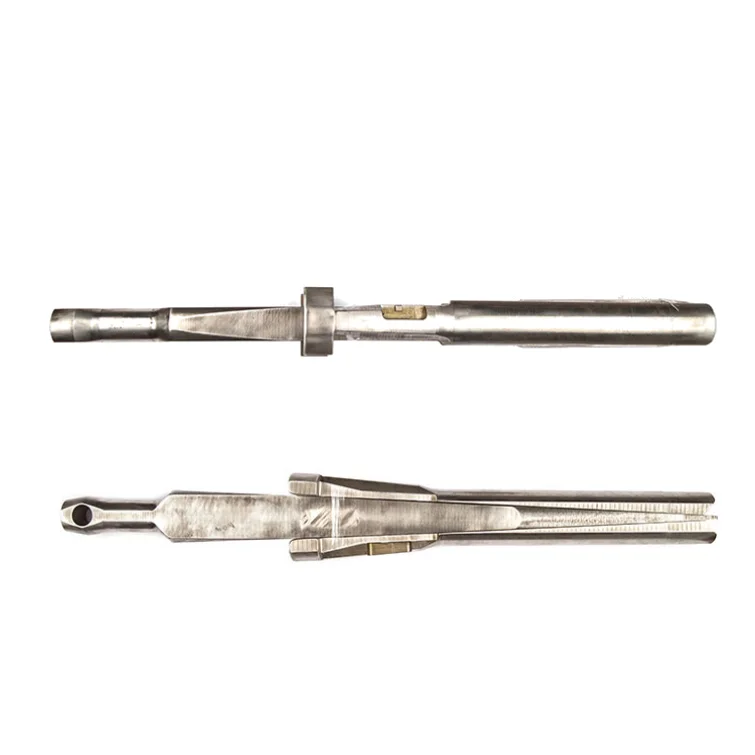

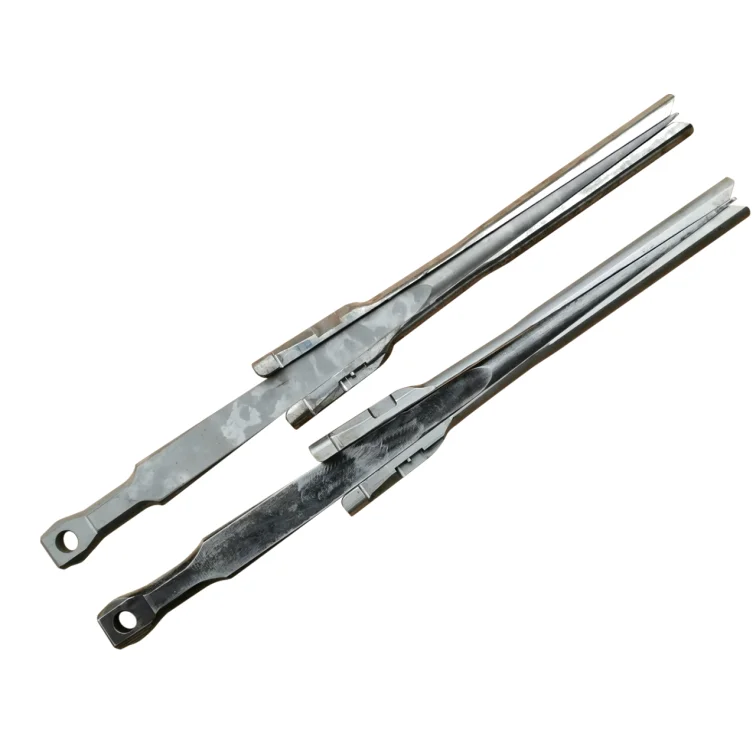

Wedge Length | 250mm | 350mm | 450mm |
Piston Stoke | 90/220mm | 90/220mm | 90/220mm |
Drill Hole Dia. | 40mm | 42mm | 50mm |
Drill Hole Depth | 500mm | 600mm | 700mm |
Splitting Time | 6-20 seconds | 6-20 seconds | 6-20 seconds |
Splitting Force | 500ton | 500ton | 500ton |
Weight | 30kg | 32kg | 35KG |

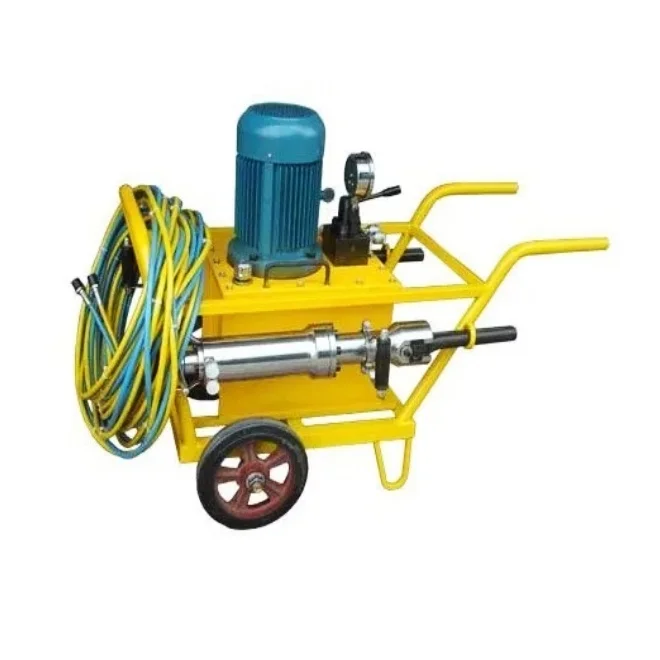

Technical Parameters of Hydraulic Station | ||||||||||||||||
Engine Type | Power | Fuel Tank Capacity | Working Medium | Working Pressure Mpa | Work Flow（L/Min.） | Compatiable Splitter Numbers | Specifications（mm） | Weight （kg） | ||||||||
Elecric Type | 4KW | 30L | 46/68 Wear-resistant hydraulic oil | 100-120 | 2-13 | 1-6 | 384x280x260 | 75 | ||||||||
7.5KW | 100L | 100-120 | 4-16 | 1-6 | 1150x1050x980 | 135 | ||||||||||
Diesel Type | 8HP | 40L | 100-120 | 2-13 | 1-6 | 1200x1170x800 | 120 | |||||||||
18HP | 100L | 100-120 | 4-16 | 1-6 | 980x830x1250 | 3445 | ||||||||||
FEATURES AT A GLANCE
ABOUT US
Established in 2020, Zhengzhou Vantage Machinery Co., ltd can trace its history back to 2007 when the founder began to engage equipment and resources in several key hydro and civil projects in Zimbabwe, Nigeria, Sri Lanka and other countries.
Now our company has evolved and become a comprehensive enterprise by integrating research with the manufacture of mining equipment, DTH Drill Rigs, Rock Splitter and tools.
Our Purpose is to provide customer-centric solutions with the widest range of quality products with our competitive price policy backed with the professional service.
Now our company has evolved and become a comprehensive enterprise by integrating research with the manufacture of mining equipment, DTH Drill Rigs, Rock Splitter and tools.
Our Purpose is to provide customer-centric solutions with the widest range of quality products with our competitive price policy backed with the professional service.
CUSTOMER CASES

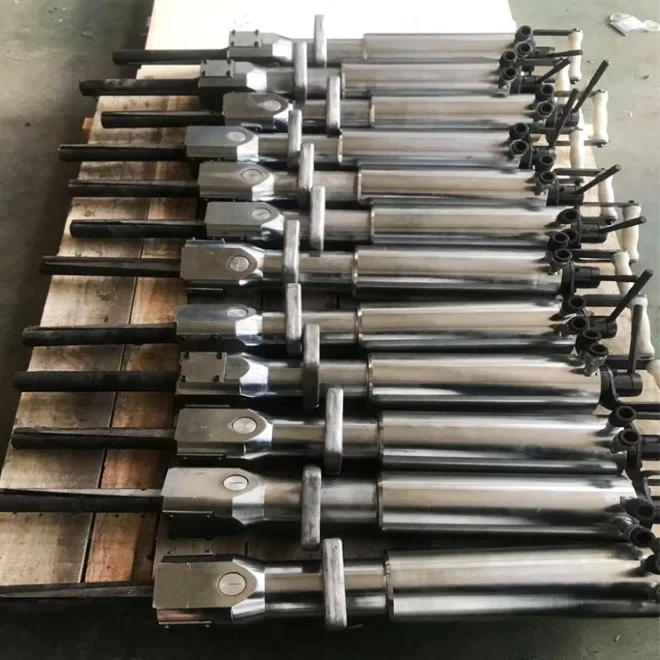

PACKING AND DELIVERY
FAQ
Q1: What are the requirement of the drill hole size and depth for matching your rock splitter?
A1: Drill hole size 40mm, 42mm,46mm, Drill Length 500mm-700mm
Q2: Can I use the rock splitter for areas where blasting method is not allowed？
A2: Yes, our piston splitter features less vibration, shock wave, low-noise, dust, flying debris, etc. during operation.
Whether in densely populated areas or indoors, it can operate without interference.
Q3: How about the safety of this type of piston splitter？
Compared with traditional blasting with the use of detonator and explosives, impact demolition or rock drilling equipment, the splitting method is safer and requires less complicated precautions.
Q4: What about your delivery period?
It depends on the quantity; we have stock available due it is fast moving these days. so 5-10 days maximum.
Q5: Can you supply spare parts with the machine？
We are giving common wearable spares like O-ring and seals. For extra parts like plunger and 120MPA switch valve, we are giving on very best price.
Q6: How long are the hydraulic hoses equipped with the machine?
First, you need select how many piston splitters 1-6 pcs, the hose comprises the main hose and branch hoses, the length shall be decided by the site conditions. Normally, 10mx2 for the main hose, 5meter for each splitter unit.
Q7: What about your payment terms?
T/T, Alibaba Trade Assurance, West Union
Customized Order is also accepted and well made.
JUST send your inquiry.
