Products Description
What is Magnetic Levitation
Magnetic levitation (maglev) or magnetic suspension is a method by which an object is suspended with no support
other than magnetic fields. Magnetic force is used to counteract the effects of the gravitational force and any
other forces
other than magnetic fields. Magnetic force is used to counteract the effects of the gravitational force and any
other forces
What is Linear Motor
A linear motor is an electric motor that has had its stator and
rotor "unrolled", thus, instead of producing a torque (rotation),
it produces a linear force along its length. However, linear
motors are not necessarily straight. Characteristically, a linear
motor's active section has ends, whereas more conventional
motors are arranged as a continuous loop.
rotor "unrolled", thus, instead of producing a torque (rotation),
it produces a linear force along its length. However, linear
motors are not necessarily straight. Characteristically, a linear
motor's active section has ends, whereas more conventional
motors are arranged as a continuous loop.

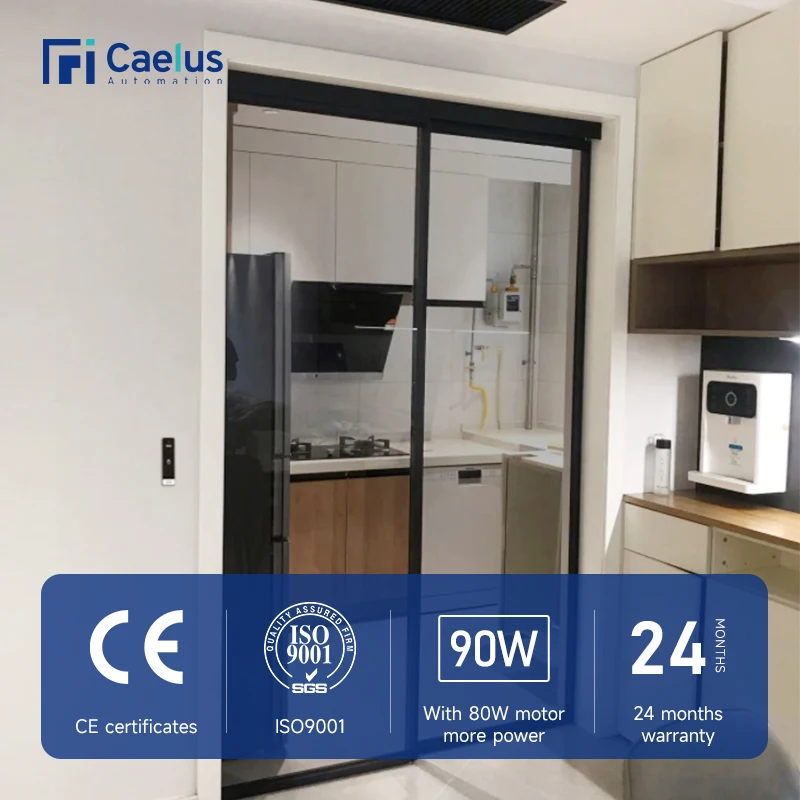

Caelus Automatic Sliding Door System Function
The Caelus is a low energy automatic Maglev sliding door opener that is activated by wireless handicap buttons.This system operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy
operation for handicapped or pedestrians.
operation for handicapped or pedestrians.
This system is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well.

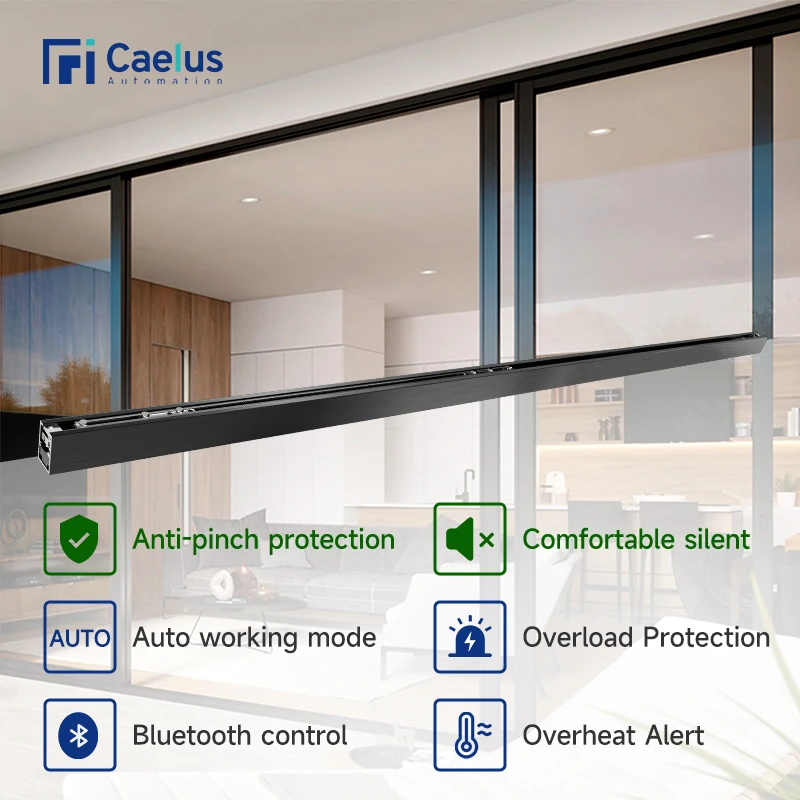

★Overload protection ★Bluetooth control ★Overheat alert
Maglev Automatic Sliding Door Includes
★1 pcs Linear Motor
★pcs Moving Track
★1 pcs Track(Monorail without splicing)
★1 pcs Linear Motor
★pcs Moving Track
★1 pcs Track(Monorail without splicing)
★1 pcs power supple
★1 pcs power cable
★1 pcs Junction Block
★1 pcs Junction Block
★1 pcs Cable fixed board
★1 pcs stopper
★Black and white manual
★US plug
★Black and white manual
★US plug

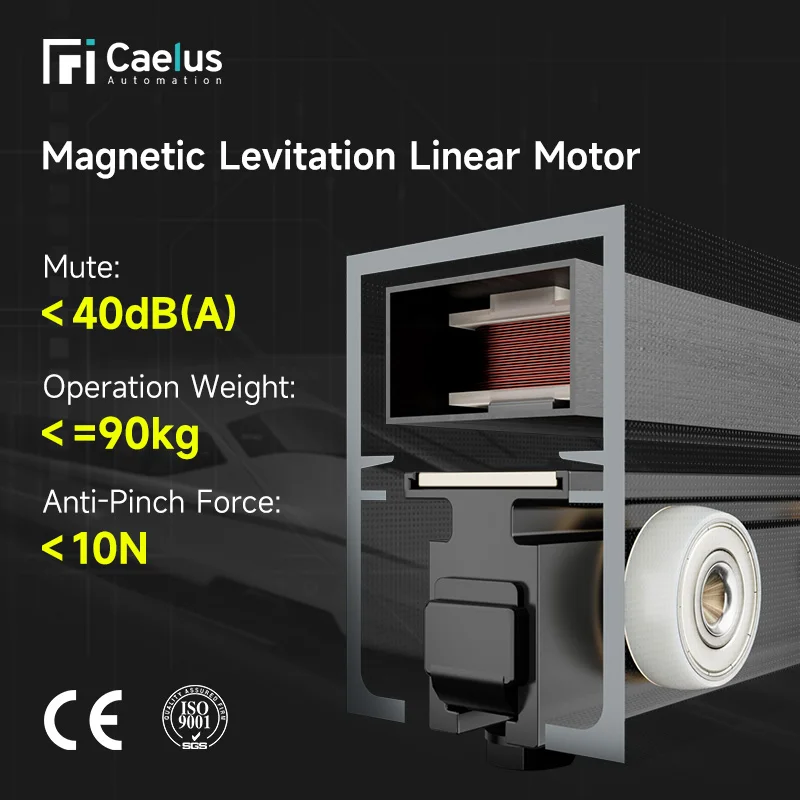

Linear Motor (Drive unit, Control unit and Blue tooth unit included)
Non-contact magnetic linear drive, longer service life; main controlunit adopts vector control algorithm, smooth operation,resistancerebound; standard intelligent Bluetooth module, support mobileAPP control; high appearance level aluminum shell packagingclassic appearance design.
Mute<=90kg

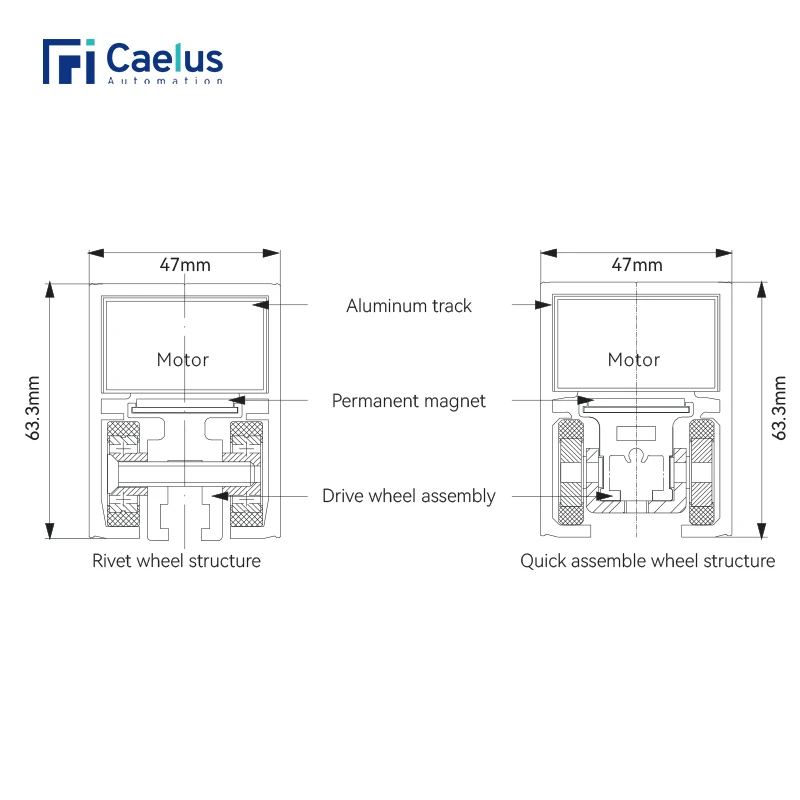

Moving Track
High-end aluminum, performance magnet and highquality roller,perfectly paired，which haspassed300000 wear-resistant tests to achieve extremesilence and smooth operation.
Track(Monorail without splicing)
Adopting high-end quality aluminummaterial, heavy-duty reinforced andthickened engineering outer rail, withhigh load-bearing grade
Junction Block
Digital input/output reserved to meet varies scene.support various intelligent opening methods suchas switches,remotes. infrared sensors. radarsensors, passwords/card access control, fingerprintrecognition. face recognition. intelligent voice.Bluetooth etc.
Safety
★ Safety anti-pinch，Vector control algorithm, microcomputer control system for precise monitoring, quick response, and rebound whe
encountering obstacles. Anti-shear force in place
encountering obstacles. Anti-shear force in place
＜10N
Mute
Caelus Maglev automatic door：< 40dB(A)(comfortable and quiet environment for human body)
Traditional automatic door：Reducer box buzzing noise, motor wear noise, etc.
Traditional automatic door：Reducer box buzzing noise, motor wear noise, etc.
A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.
model | E40s Full Set | ||||||
brand | Caelus Automation | ||||||
Application scenarios | Home/Commercial/Industrial | ||||||
design style | Modern | ||||||
Operation Weight | ＜＝90KG | ||||||
Speed | 0.2-0.5m/s | ||||||
Average Power Consumption | 40W | ||||||
Standby power | ＜5W | ||||||
Door opening speed | 250-450mm/S (adjustable) | ||||||
Closing speed | 250-450mm/S (adjustable) | ||||||
Manual opening and closing force | ＜10n | ||||||
Running noise | ≤40Db | ||||||
Door opening dwell time | 0~30s | ||||||
Motor length | 1312mm | ||||||
Function | Comfortable silent Safety anti-pinch Auto working mode Overload Protection Overheat Alert Bluetooth control | ||||||
Caelus Maglev automatic door | Traditional automatic door | |
principle | Non-contact magnetic drive, between motor and moving rail There is a 1.5-2mm gap between. | traditional rotating motor, After deceleration through the reduction box, it is driven by the belt. |
volume | Exquisite linear structure takes up little space. | The motor acceleration and reduction gearbox has a complex structure and occupies big space. |
life | Non-contact magnetic drive, no wear, use Longer life | The gears of the reduction box are very easy to wear and the maintenance cost is high. The motor has a limited number of times and a short service life. |
Install | ① Whole rail installation is easier . ② Self-learning and adapting to the best state when power is turned on. Fool-proof .installation is easier | ① The mechanical hardware structure is complex and the installation steps trouble ② The installation and debugging procedures are cumbersome and technically difficult |
Energy saving | ★Small mechanical friction★ low loss ★low power ★ high energy efficiency | ★Mechanical friction is large ★ power and loss are high ★Low energy efficiency |
Caelus Maglev automatic door | Traditional automatic door | |
Function | ★ Supports rich personalized settings such as operating speed, door opening and closing time, etc. ★Supports free switching between automatic, inching, fully open, fully closed and other modes | The functional system is limited and backward, and the function settings are relatively Less, inconvenient to operate |
Safety | ★Anti-pinch systemincluded ★High-performance power supply to prevent short circuit, overvoltage and overcurrent faults and eliminate hidden dangers | Old-fashioned square wave control is insensitive and kinky Force driven, anti-pinch function may cause loss of control and injury. |
Stablize | ★ Vector control system, smooth operation ★ Tens of thousands of aging tests, low failure rate, 1 million+ times of cycle operation without failure Adaptive and self-adjusting operating curve keeps the door in optimal operating condition. | ① Old-fashioned square wave control has poor accuracy and is easy to Stuttering occurs ② Complex structure and many fault points ③Mechanical wear and long-term use are prone to transportation problems. line error, requiring frequent manual adjustment and maintenance |
How many switches can be used to control
Supports various switches, remote controls, sensors, password/card access control, fingerprint recognition, face
recognition,smart voice, mobile phone Bluetooth, remote control and other smart opening methods
recognition,smart voice, mobile phone Bluetooth, remote control and other smart opening methods
Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A: We have more than 20 years’ experience in automatic door R&D and manufacturing Our factory is in Changsha. Welcome to our factory.
Q2: How long is your warranty?
A: 1 years.
Q3: What is your minimum order quantity (MOQ)?
A: The MOQ is 1 set.
Q4: What are your terms of payment?
A: We accept T/T, Western Union, PayPal, Alipay, Credit card and Cash.
Q5: What is your way of packing?
A: Carton and wooden packing, they are strong, safe and reliable.
Q6: Do you have the products in stock?
A: Most standard automatic door system and parts are in stock.
Q7: How long is your delivery time?
A: Standard product about 3-5 days after payment. Customized products depend on agreement.
Q8: How about the quality of your product?
A: Our maglev products is the most advanced in the world. Not only in terms of duration,but also in performance.Easy installation,easy maintenance
Q9: What are your main products?
A: C3000 is our best seller. It's a life changing hi-tech product, which can provide you extreme silent and smooth experience with max working load over 200kg. Meanwhile, it also has a slim size--40mm*23mm, length customizable.
Q10: Can you accept customization?
A: Yes. We have professional R&D team. we will offer complete solution according to customer' requirements to customize whole set door for project.
A: We have more than 20 years’ experience in automatic door R&D and manufacturing Our factory is in Changsha. Welcome to our factory.
Q2: How long is your warranty?
A: 1 years.
Q3: What is your minimum order quantity (MOQ)?
A: The MOQ is 1 set.
Q4: What are your terms of payment?
A: We accept T/T, Western Union, PayPal, Alipay, Credit card and Cash.
Q5: What is your way of packing?
A: Carton and wooden packing, they are strong, safe and reliable.
Q6: Do you have the products in stock?
A: Most standard automatic door system and parts are in stock.
Q7: How long is your delivery time?
A: Standard product about 3-5 days after payment. Customized products depend on agreement.
Q8: How about the quality of your product?
A: Our maglev products is the most advanced in the world. Not only in terms of duration,but also in performance.Easy installation,easy maintenance
Q9: What are your main products?
A: C3000 is our best seller. It's a life changing hi-tech product, which can provide you extreme silent and smooth experience with max working load over 200kg. Meanwhile, it also has a slim size--40mm*23mm, length customizable.
Q10: Can you accept customization?
A: Yes. We have professional R&D team. we will offer complete solution according to customer' requirements to customize whole set door for project.
