Heat Insulation Rigid Polyurethane Foam Sandwich Panels Flame Retardant Sandwich Panels For Warehouse




Product Description

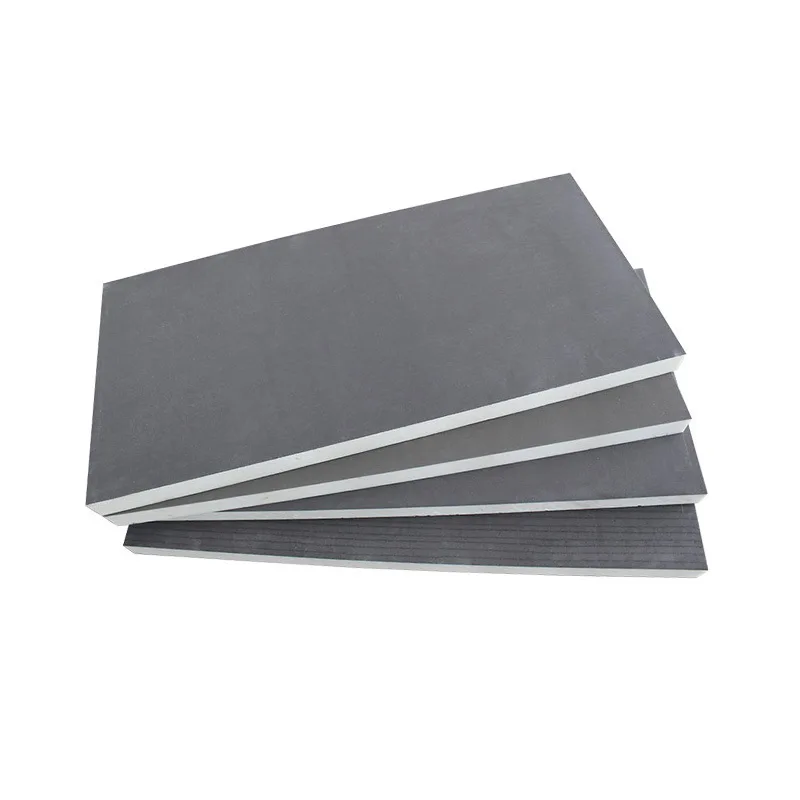

The core of BFT wall panels is rigid polyurethane foam. It is also a polyurethane insulation wall panel. are a popular choice for building insulation due to their many advantages. These panels consist of metal sheets sandwiched around a polyurethane foam core with aluminum foil cloth to form durable and effective insulation. Polyurethane insulation panels are used for wall insulation in a variety of buildings, including warehouses, cold storage facilities, and residential homes.






Product Advantage


Advantage
The foam core of polyurethane insulation panels provides excellent insulation properties, with a low thermal conductivity ranging from 0.02 to 0.05 W/mK. This makes PU panels an effective thermal barrier, preventing heat loss in winter and heat gain in summer. Additionally, the foam core is water-resistant, preventing moisture buildup and condensation. PU panels also have good sound insulation properties, reducing noise pollution from outside the building.
Rigid polyurethane foam is fireproof, flame retardant,and high-temperature resistant. After adding a flame retardant, polyurethane is a kind of flame retardant self-extinguishing material. Its softening point can reach more than 250 degrees Celsius, and it will decompose only at higher temperatures: in addition, polyurethane will burn in its foam when it burns. A carbon deposit forms on the surface, which helps insulate the foam below. Can effectively prevent the spread of flames. Moreover, polyurethane does not produce harmful gases at high temperatures.
Polyurethane insulation panels are a cost-effective and efficient insulation material used in a variety of buildings. Their excellent insulation properties, durability, water resistance, and low maintenance make them popular in the construction industry. Additionally, their versatility means they can be used for both roof and wall insulation, providing a high level of thermal and sound insulation. The installation of PU panels is relatively simple and can be completed quickly, reducing installation time and costs. Overall, polyurethane insulation panels are an excellent option for building insulation, providing long-lasting protection against the elements.




Product Paramenters


Product name
polyurethane insulation panels
Certificate
ISO9001,CE
Thickness
16mm/20mm,
5/8inch,25/32inch
Fire resistance level
B1/B2
Width
383mm,15 5/64 inch
Size Tolerance
-/+2mm
Steel alloy composition
Aluminum 55%,Zinc 43.5%, Silicon 1.5%,ect.
Package
10 pieces/cartons
Steel coating
HDP,>30um
Package Size
4010mm*41mm*170mm(10 pieces/carton)
Core material
Polyurethane,40kg/m3
OEM
Logo and panel size
Closed cell rate
90%~95%
Container load
20GP:1600sqm(panel length 1.82m)40HC/HQ : 3800 sqm (panel length:3.8m).40NOR:3300 sqm(panel length:3.8m).
Bottom material
Aluminum foil glass fiber
Warranty
5 years
Thickness of the bottom material
0.26mm
After-sale Service
Online traing, online technical support
Panel weight
3.5~3.7kg/m2
Port
QINGDAO\\Ningbo\\Tianjin
R-VALUE
0.55 m2*k/w
Payment
L/C\\Western Union\\D/P\\D/A\\T/T\\MoneyGram
Heat conductivity
0.024 w/m*k(in theory)
Brand
BFT

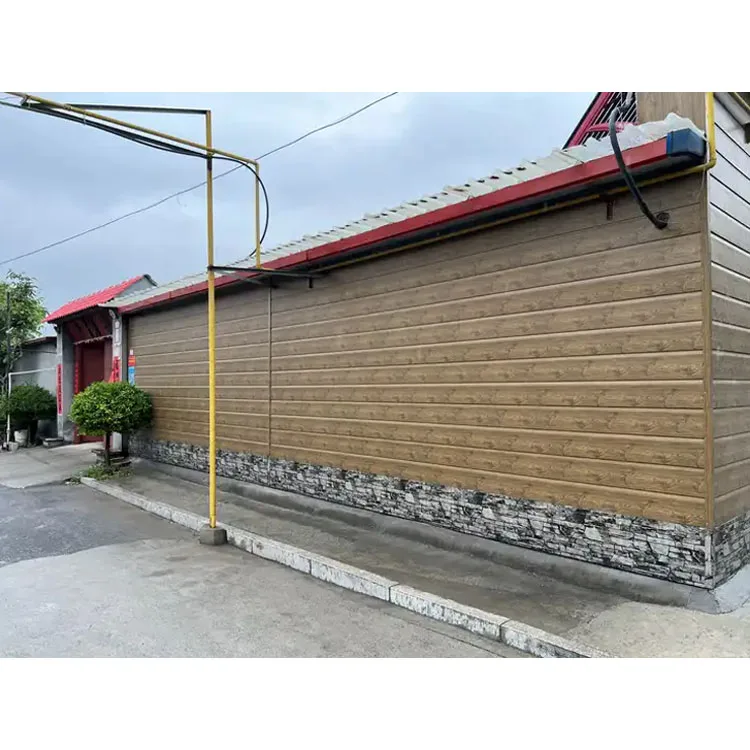

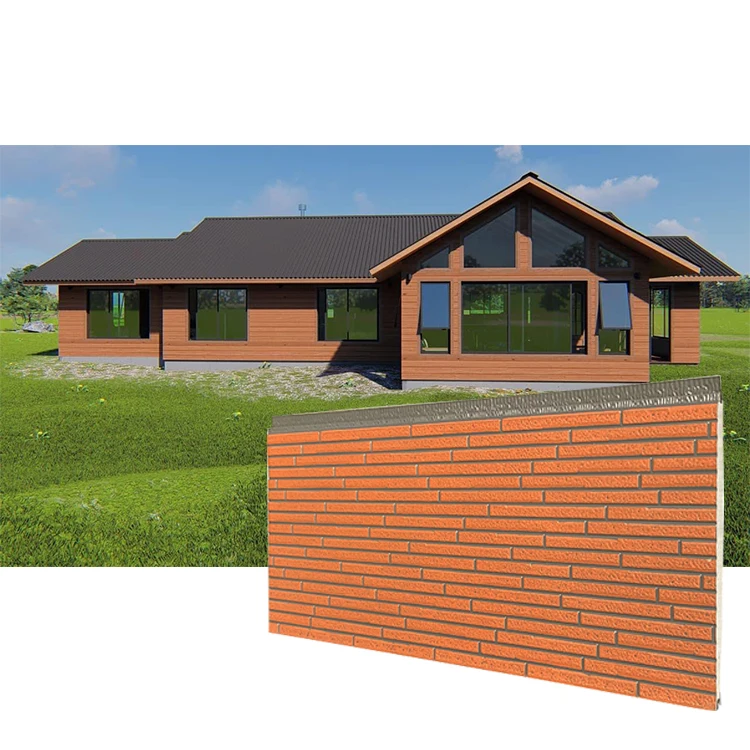

Visual Effect






(1) Board cabinet size:
It is generally required to be 5.8m for a 20-foot cabinet,
According to the needs of customers, the total length of a 40-foot cabinet is less than 11.8 meters
(2) Loading information:
The size and specification of the 20-foot small cabinet are about 5.898 × 2.352 × 2.385m, and the assembly level is about
1300(excluding spare parts space)
40 large cabinets (high cabinet): 12.032 × 2.352 × 2.69M, about 3300 flat (excluding spare parts space)


Accessories






Product Intallation






The installation of polyurethane insulation panels is relatively straightforward, with the following steps:
1. Site preparation:The site must be prepared by clearing any debris, marking out panel locations, and ensuring the building structure is sound.
2.Panel placement: Panels are then placed onto the structure and secured using screws and fasteners.
3. Panel joints: Panel jointsare sealed using adhesive tape or specialized sealing materials, ensuring a water-tight seal.
4. Flashings: Flashings are addedaround the panel edges to prevent water ingress.
5. Finishing: Once the panels are installed, any finishing touches, such as guttering, can be added to complete the installation.

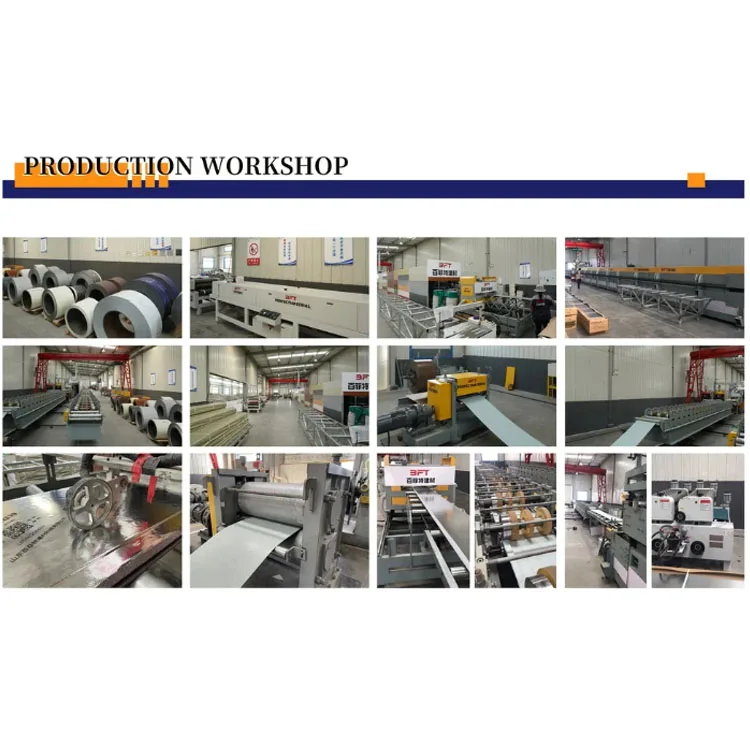

Company Profile
















1. Q: Are you a manufacturer or a trading company?
A: We are the manufacture factory. You are welcome to visit us at any time.
2. Q: What is your minimum order quantity?
A:1000 square meters.
3. Q: delivery date?
A: According to your quantity. Taking 40HQ as an example, the goods will be delivered within 15 days after the advance payment.
4. Q: Are samples available, are they free?
A: Yes, the samples are free, but you need to pay for shipping. If you order products from us, the shipping cost will of course be
refunded to you.
5. Q: What if we still need accessories?
A: U-shaped groove base, inner and outer corners, aluminum profiles, and other accessories can be provided.
6. Q: What are your payment terms?
A: T/T performs an invoice that has a 30% deposit, and the balance before shipment is 70%.

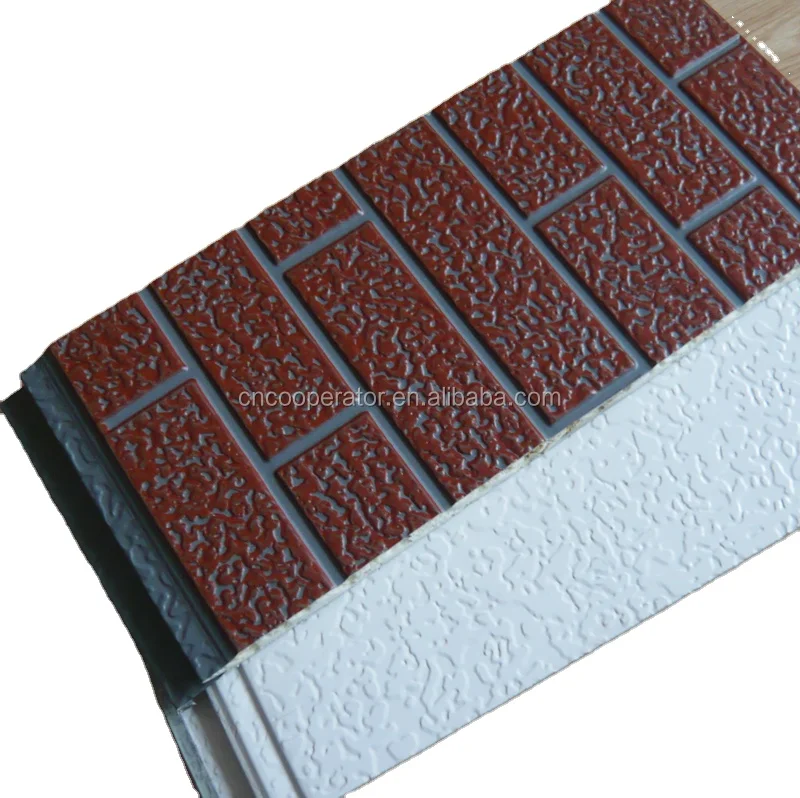

7. Q: What are the main pattern options?
A: Brick pattern, elastic paint pattern, granite pattern, stone pattern, mosaic pattern, tile pattern, long stone pattern, marble
pattern, flat pattern, wood pattern and etc.
