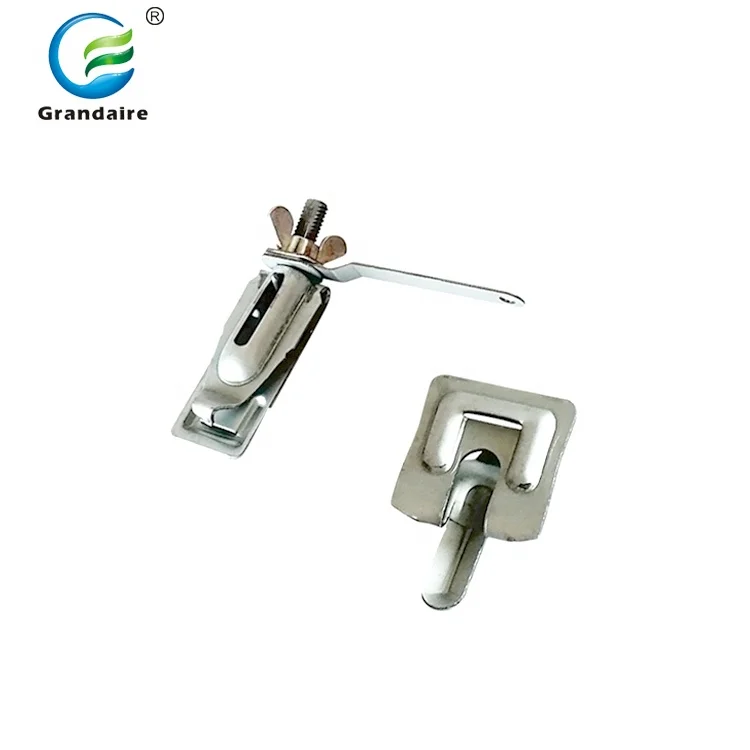

Hvac Оцинкованная Сталь демпфер быстрого набора воздуховодов регулятора наборы и демпфер оборудования для круглого демпфера
1 093,94 ₽
Прямая Продажа с завода система вентиляции свежего воздуха 20000 м3/ч промышленная рекуперации тепла
- Категория: >>>
- Поставщик: BROAD CLEAN AIR TECHNOLOGY CO. LTD
Сохранить в закладки 1600997926552:
Описание и отзывы
Характеристики

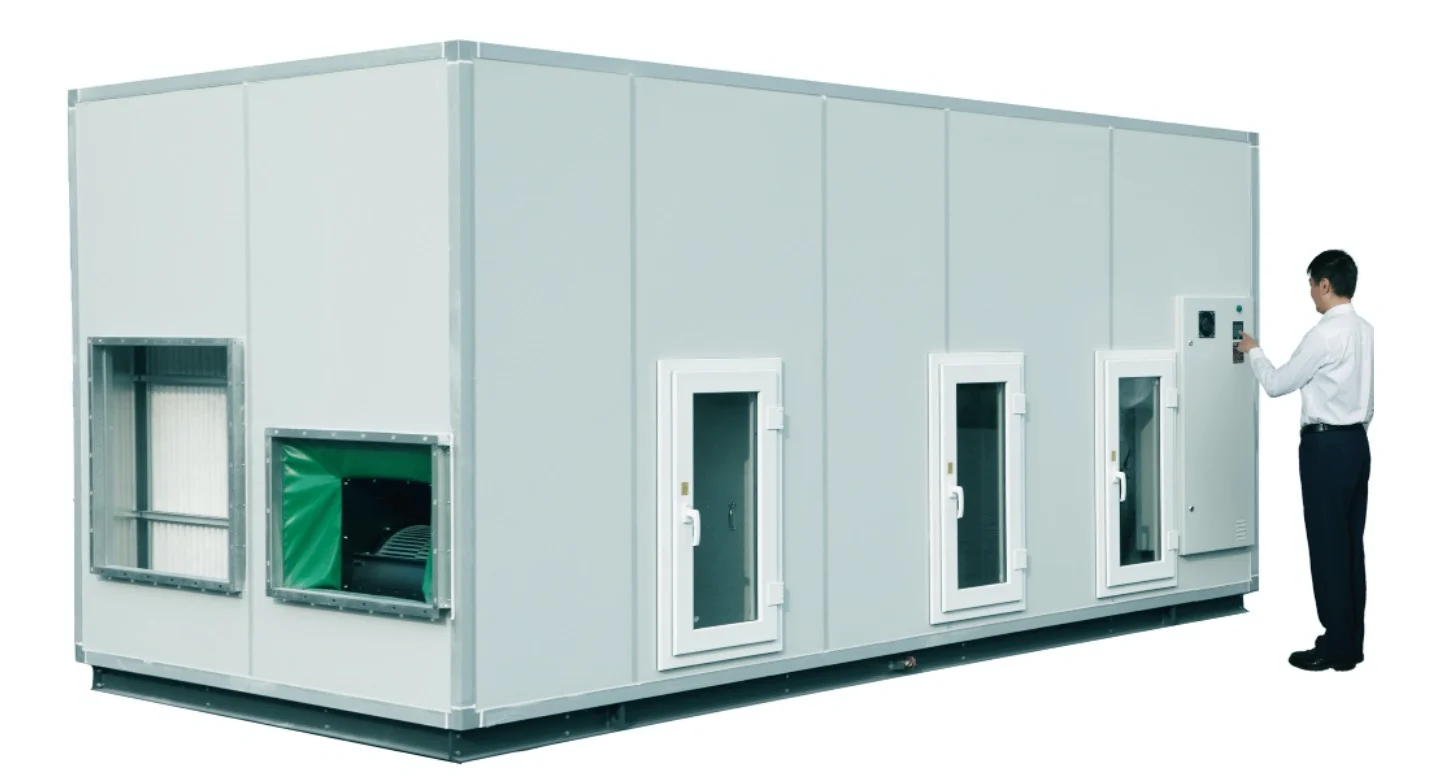

factory direct sale price fresh air ventilation system 20000m3/h industrial heat recovery ventilation system
Office supermarket hotel workshop industrial building fresh air HRV heat recovery ventilator to recover energy
The industrial HRV fresh air ventilation system adopts electrostatic dust cleaning technology to absorb tiny dust particulars as small as 0.01 μm, and 6000V high voltage static electricity of electrostatic precipitator instantly kill bacteria and viruses, prevent the spreading of various airborne diseases.
The electrostatic filter, heat recovery unit are washable.
Model | SQ2.0 |
Air volume m3/h | 20000 |
Rated power W | 0.8-15kw |
Function | Air purification + Air sterilization + Air ventilation + Energy recovery |
Filter type | G4 Coarse filter * 4pcs + F7 Fine filter * 2pcs + Metal Electrostatic precipitator * 12pcs + H13 hepa filter * 6pcs |
Whole machine PM2.5 Filtration efficiency | 99.9% |
Heat recovery | HRV energy recovery unit (Heat pipe) *1pc |
Heat recovery efficiency | 80% |
Flow direction | Bidirectional |
Noise Db(A) | 40-62 |
Applicable room size m2 | 4000-8000 |
Installation method | Floor standing |
Size MM | 5000*2200*2500 |
Weight KG | 2600 |
Speed | Stepless adjustment |
Shell material | Metal +Forrest insulation material |
Motor | AC |
Controller | LCD |
Control method | Touch screen + Remote controller + APP control |
Sensor | Temperature sensor + CO2 sensor + Human body sensor |
Design life | 40 years |
Warranty | 2 years |
Product Description
Models of HRV/ERV fresh air ventilation systems for residential and commercial use

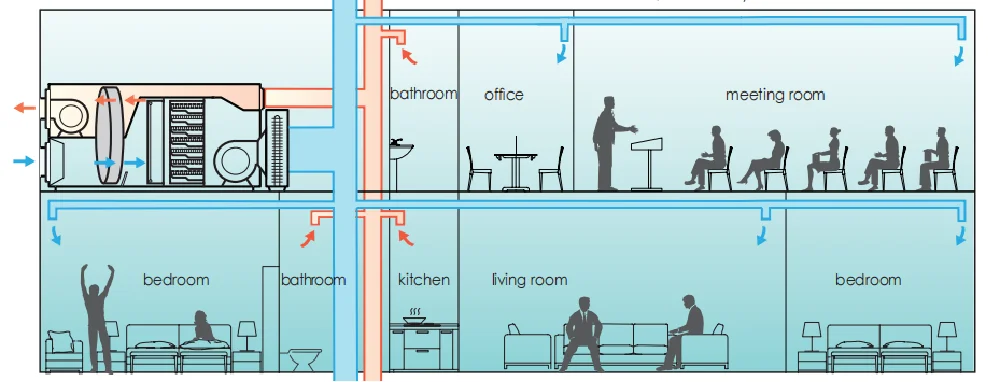

Duct will be installed to introduce clean air to every room
Model | Rated Airflow （m³/h） | Rated E.S.P（Pa） | Noise （dB(A)) | Power input (W) | Size(mm) | N.W(Kg) |
SH260 | 260 | 40 | 39 | 112 | 580*280*1200 | 40 |
SQ260 | 260 | 40 | 39 | 112 | 530*260*1100 | 37 |
SQ500 | 500 | 53 | 41 | 243 | 540*470*1650 | 91 |
SQ1000 | 1000 | 100 | 47 | 600 | 800*620*1900 | 215 |
SQ1500 | 1500 | 200 | 47 | 940 | 1100*700*1950 | 265 |
SQ3000 | 3000 | 200 | 48 | 1900 | 1400*930*2380 | 385 |
SQ1.0 | 10000 | 300 | 60 | 6000 | 4200*2100*2200 | 2050 |
SQ2.0 | 20000 | 300 | 62 | 15000 | 5000*2200*2500 | 2600 |
EMD300 | 300 | 120 | 48 | 165 | 900*700*230 | 36 |
EMD400 | 400 | 150 | 53 | 300 | 900*700*250 | 40 |
EMD550 | 550 | 100 | 55 | 450 | 1000*750*250 | 47 |
EMD1000 | 1000 | 200 | 67 | 800 | 1540*878*392 | 84 |

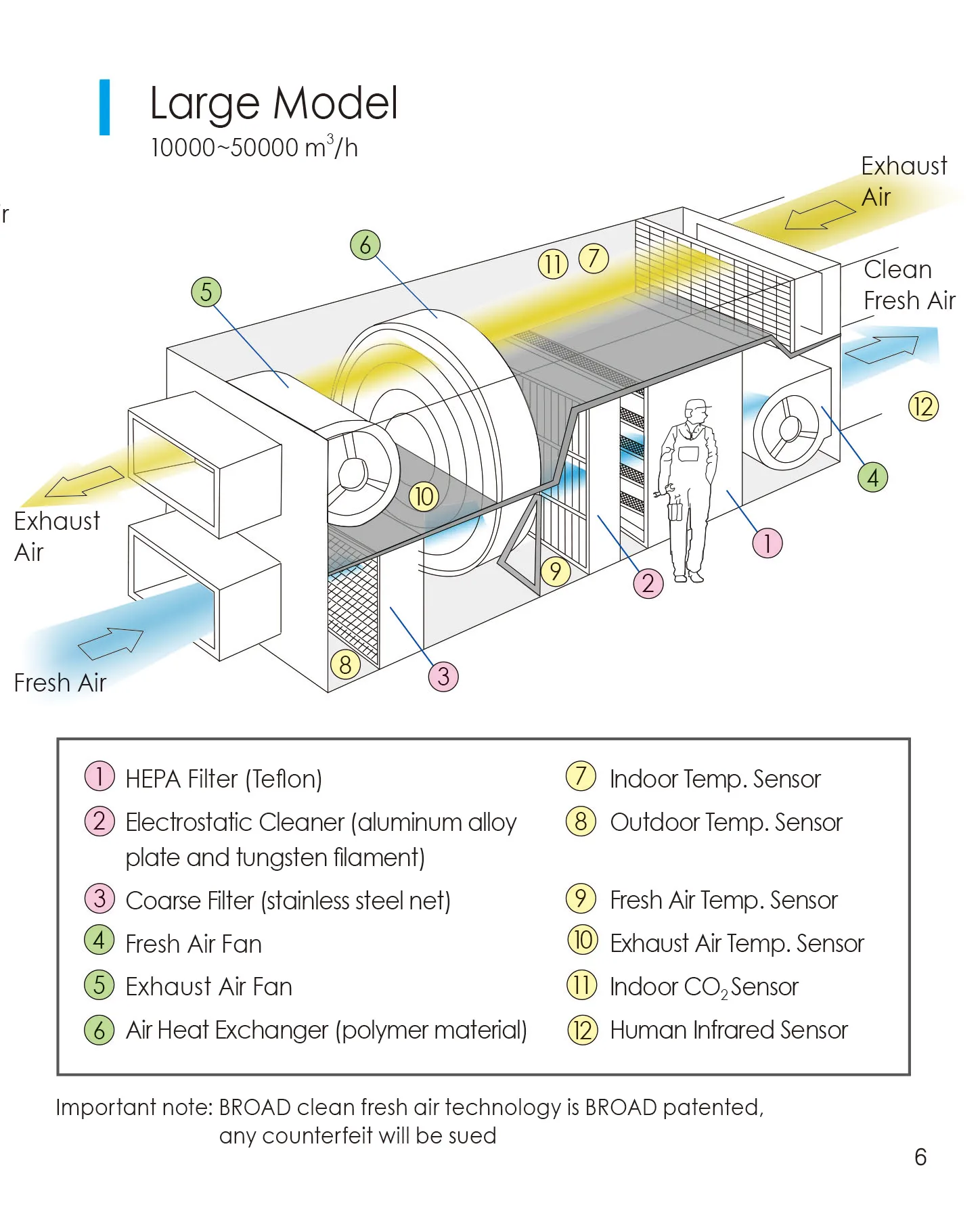

Technology Introduction
1. High purification and sterilization efficiency
---BROAD ERV/HRV ventilation system uses our patented electrostatic dust collection
technology, which has the function of over 99% air purification and sterilization efficiency, it guarantees the indoor air in safe
2. Low power cost
technology, which has the function of over 99% air purification and sterilization efficiency, it guarantees the indoor air in safe
2. Low power cost
--- BROAD ERV/HRV ventilation system introduces 100% fresh air without return air to avoid the cross-infection, at the same time, the power consumption is well controlled so that the whole machine running at low power cost
3. Low consumable cost
3. Low consumable cost
--- BROAD ERV/HRV fresh air ventilation system uses 3 filters for intake air, and 1 filter for exhaust air, you can check the filters size and materials of them, quality is much higher and size is much bigger; For 2 filters are stainless steel, washable and durable, no need to replace; Only the HEPA filter to be replaced in 1-2 years (the material is PTFE/Glass fiber so that the service life is long, the unfolded size is the biggest among the market so that the dust collection capacity is the biggest, the first 2 filters already filter 98% dust, the burden of HEPA filter is only 2%); Hence, the consumable cost is extremely low. The heat recovery unit is nano-polymer +ABS material or Tube Air Exchanger, washable and durable
4. Saving AC cost
4. Saving AC cost
--- The machine heat recovery efficiency is about 70% (other products may declare much higher heat recovery
efficiency, that is because there is big internal air leakage, there is big cross-infection risk), it can recovery lots of energy,
we have finished many energy management contracts (including hospitals), all these projects are profitable, as our ERV can help save at least 10-20% A/C cost.
5. Long service life
efficiency, that is because there is big internal air leakage, there is big cross-infection risk), it can recovery lots of energy,
we have finished many energy management contracts (including hospitals), all these projects are profitable, as our ERV can help save at least 10-20% A/C cost.
5. Long service life
--- All the BROAD ERV/HRV ventilation system shell use thick steel with armaflex thermal insulation, all the structure are well designed to avoid air mixing and leaking. The design life is over 20years. For other products, the structure is not strong, some use foam inside for thermal, which is not fireproof, there is a safety hazard
Company Profile
BROAD Clean Air Technology Co., LTD. established in 2005, a wholly-owned subsidiary of BROAD Group, provides not only fresh air machines that make indoor air 100 times cleaner than that outdoors but also a complete series of clean air products and air
monitoring devices for commercial and domestic use and wearable for personal use. BROAD Clean Air has more than 180 patents, and has set up a professional air quality R & D Center. BROAD products with certification of CE, CB & FCC have sold well in more than 80 countries. The fresh air machine filtering 99.9% PM2.5 has won the AWE Environmental Award which is the Oscar Prize in home appliances. BROAD has always rewritten human history with disruptive and original technologies.
honor

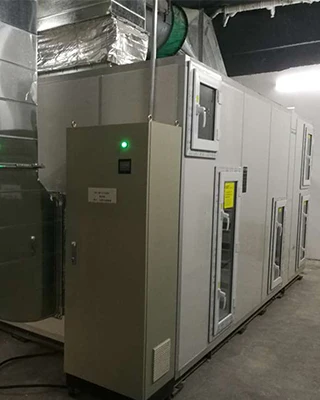

Customer Photos
Certifications
Marketing Campaign
FAQ
Q: About HEPA filter lifetime？
A: The lifetime will vary depending on the hours of usage, air quality and location of the air purifier.
Q: Are you a factory?
A: Yes, we are a ISO9001-certified factory devoting to the developing, manufacturing and sales of air purifiers.
Q: I need your price list of all products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it's impossible to mark all of their
price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products,please feel free to contact us. We will send offer to you soon!
Q: Are you a factory?
A: Yes, we are a ISO9001-certified factory devoting to the developing, manufacturing and sales of air purifiers.
Q: I need your price list of all products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it's impossible to mark all of their
price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products,please feel free to contact us. We will send offer to you soon!
Q: Can you provide samples ?
A: Yes, we can provide samples for test or quality checking.
Q : How to ship my order？ Is it safe?
A: For samples, we will send it by Express.That's a Door to Door service. For bulk orders, we will send them by air or By sea. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
Q: Do you have a guarantee of your product quality?
A: We have a guarantee of 1~2 years(depending on the product specification).
Q: Can I become an Agent / Dealer of Agcen products?
A: Welcome! But please let me know your country/area first, We will have a check and then talk about this. If you want any other kind of cooperation, do not hesitate to contact us.
A: For samples, we will send it by Express.That's a Door to Door service. For bulk orders, we will send them by air or By sea. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
Q: Do you have a guarantee of your product quality?
A: We have a guarantee of 1~2 years(depending on the product specification).
Q: Can I become an Agent / Dealer of Agcen products?
A: Welcome! But please let me know your country/area first, We will have a check and then talk about this. If you want any other kind of cooperation, do not hesitate to contact us.
Recommend Products
Похожие товары

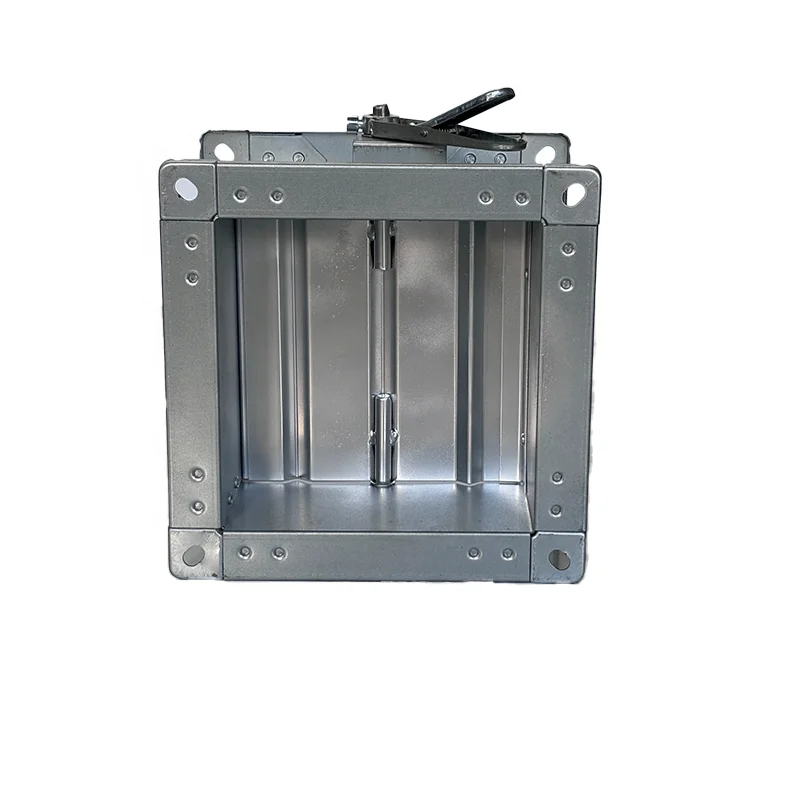

Ручной воздушный демпфер 350 мм controled 150 мм 200 мм
278,96 ₽

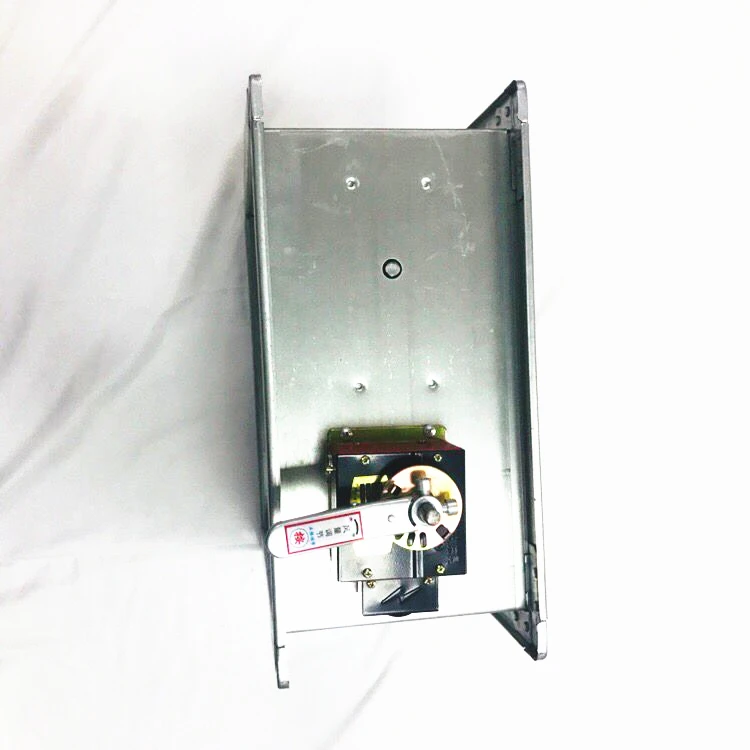

Хорошо распродажа оцинкованный листовой привод контроллер Противопожарный клапан
1 093,94 ₽ - 2 187,87 ₽

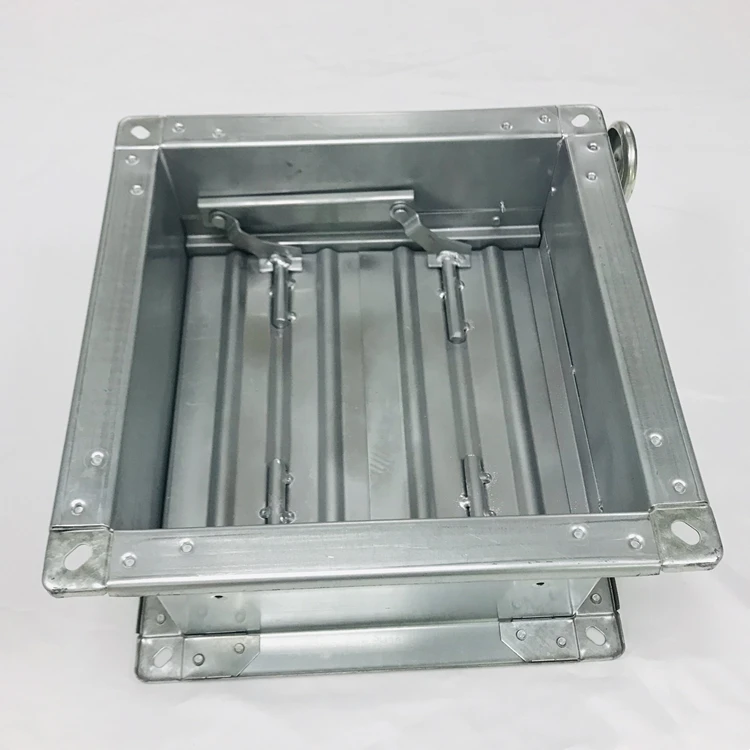

Высококачественная цена ОВКВ ручной металлический оцинкованный стальной круглый воздушный воздуховод регулятор громкости
278,96 ₽

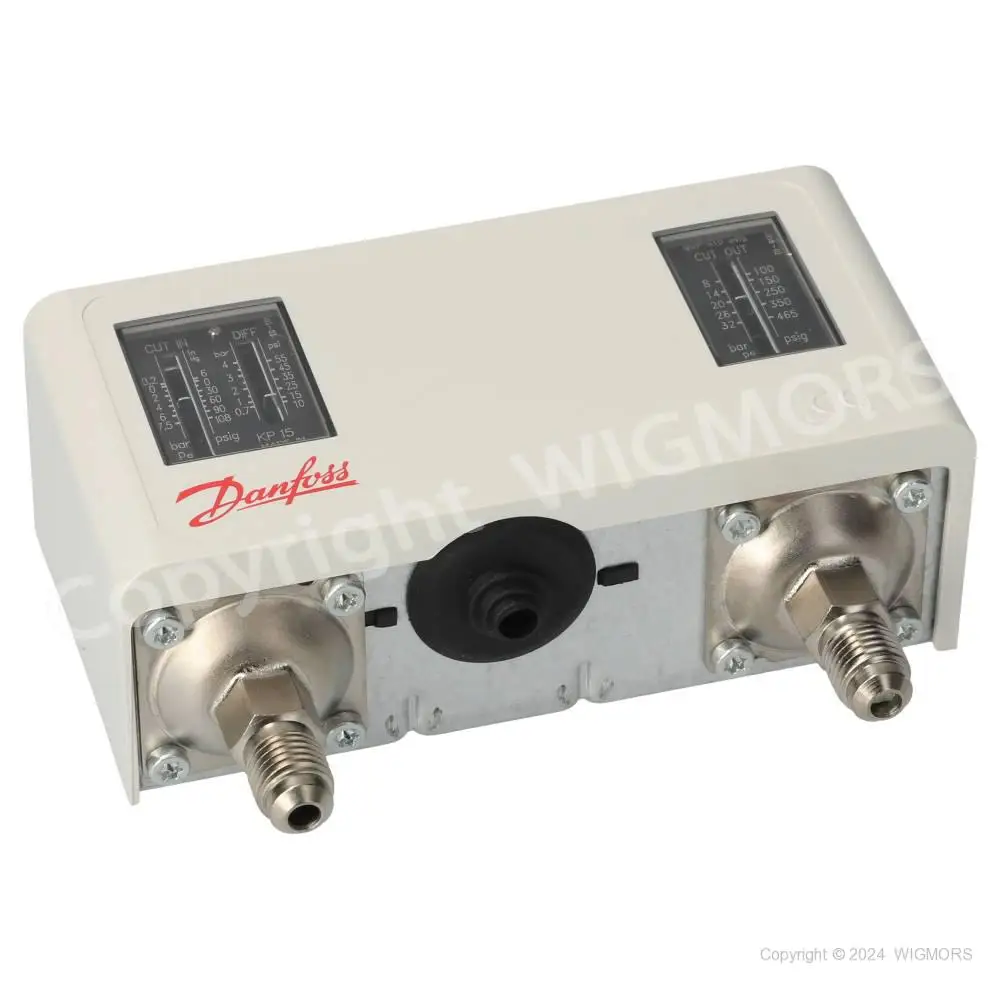

Danfoss переключатель давления, KP15, 060-124166
9 531,45 ₽ - 19 061,80 ₽

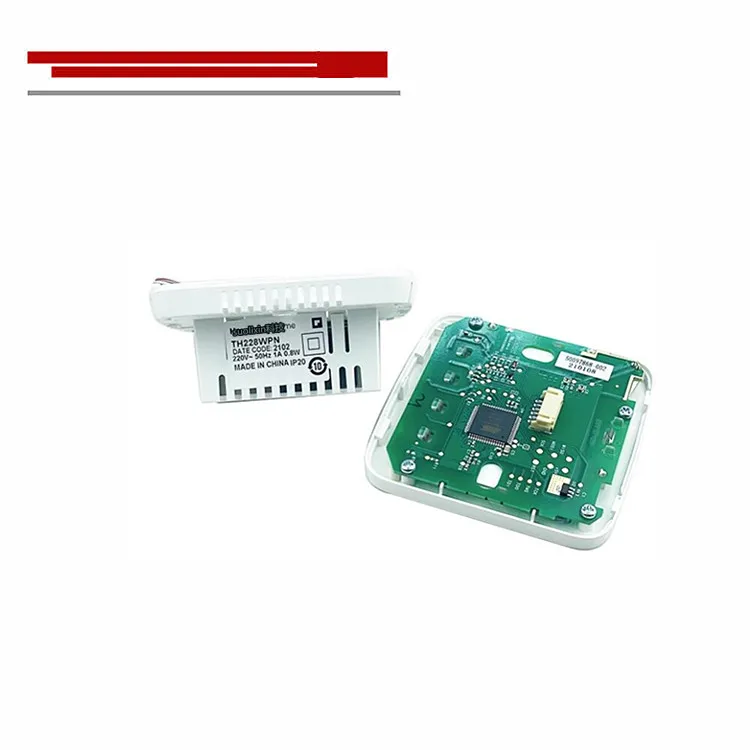

TF228WN термостатическая панель TF428DN/U TF428WNM/U TF428WNM/U TF428WN
Msthermic центральная система охлаждения кондиционера умный дом Google Alexa 24 В термостат температура Tuya цена
1 640,91 ₽ - 2 428,54 ₽

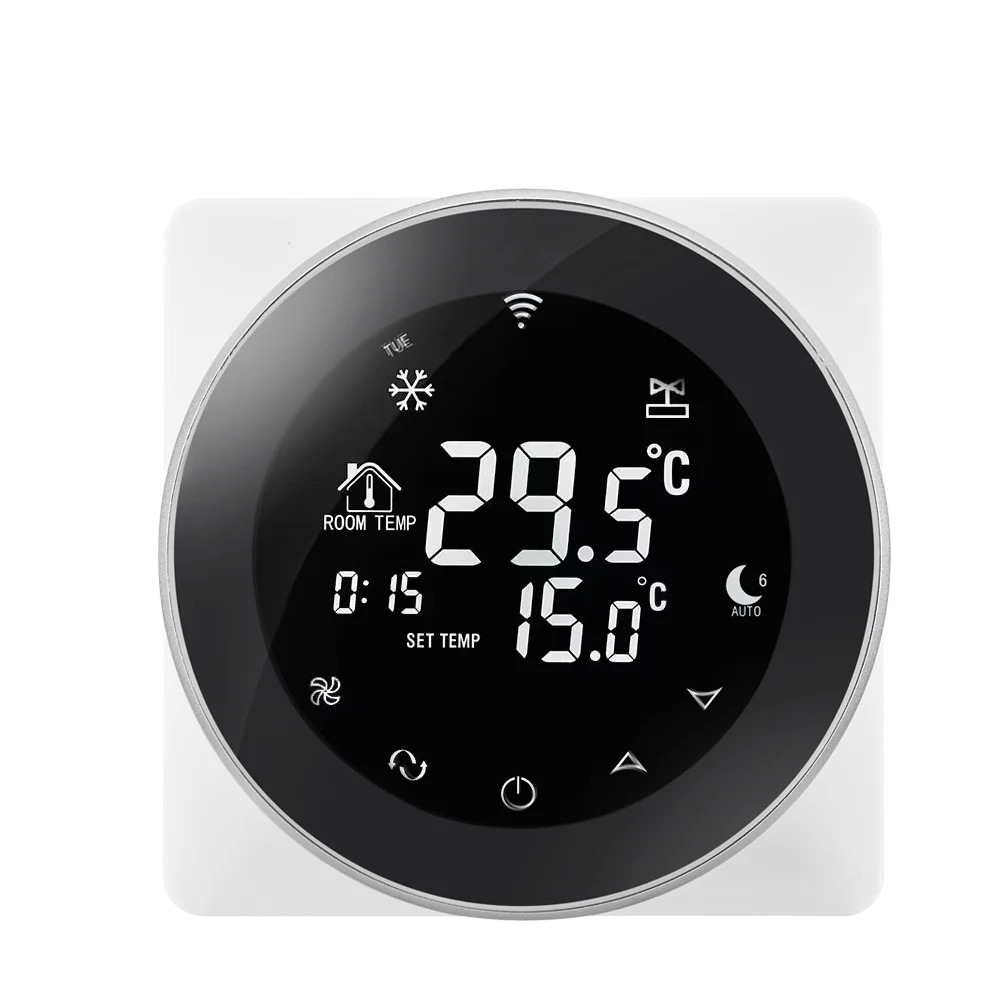

Система HVAC FCU Отопление/охлаждение центральный кондиционер умный дом круглый сенсорный экран термостат
