Product Description
CHENGHAO HIGH FREQUENCY TARPAULIN WELDING MACHINE
High Frequency PVC Tarpaulin Tent Canvas Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting.
High Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.
High Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.
Main Features:
1. HF Power ranges from 8-35KW to meet any welding bar size.
2. HF emission protection design.
3. PLC/HMI touch screen - quick, easy parameter input and adjustment.
4. Deep trough creating ample space behind the electrode for easy material handling.
5. The Welding bar length & width & shape can be customized, fast changeover capable.
6. European-model square high frequency vibration cavity, more reliable and stable in output
7. Single line or two lines continue welding, welding length can be ordered as special need.
8. Easier material placement and better visualization of weld with built in LED illumination
9. Customized work table dimensions, electrode holder dimensions
10. Laser Guide Projectors–laser lines (easy for operator's eyes) for quick material guidance on the work table
11. High sensitive anti-spark tube to protect the welding bar and welding products.
12. Solid-steel structure design can last for multiple decades.
2. HF emission protection design.
3. PLC/HMI touch screen - quick, easy parameter input and adjustment.
4. Deep trough creating ample space behind the electrode for easy material handling.
5. The Welding bar length & width & shape can be customized, fast changeover capable.
6. European-model square high frequency vibration cavity, more reliable and stable in output
7. Single line or two lines continue welding, welding length can be ordered as special need.
8. Easier material placement and better visualization of weld with built in LED illumination
9. Customized work table dimensions, electrode holder dimensions
10. Laser Guide Projectors–laser lines (easy for operator's eyes) for quick material guidance on the work table
11. High sensitive anti-spark tube to protect the welding bar and welding products.
12. Solid-steel structure design can last for multiple decades.
Model | CH-8KW | CH-12KW | CH-15KW | ||
Power | 8KW | 12KW | 15KW | ||
Voltage | 220V/380V 3P 50/60Hz | ||||
Size of Mould Holder | 50*800mm | 50*1000mm | 50*1500mm | ||
Working Table Size | 350*900mm | 350*1100mm | 350*1600mm | ||
Oscliation Frequency | 27.12MHz | 27.12MHz | 27.12MHz | ||
OScillation Tube | 7T69RB | E3130 | 8T85RB | ||
Anti-Spark System | NL-5557 | NL-5557 | NL-5557 | ||
Digital Temperature Control | √ | √ | √ | ||
Machine Size | 1000*1350*2000mm | 1200*1350*2000mm | 1700*1480*2000mm | ||
Machine Weight | 500KG | 600KG | 800KG | ||
Machine Application
APPLICATION OF HIGH FREQUENCY CANVAS WELDING MACHINE
Tents, awning, trucks covers, Membrane Curtains, Swimming pool covers, Temporary shelters, billboards, sunshades, oil booms, army tents, tents, structural membranes, pool-liners, water cisterns, TPU water tanks, canopy, painting canvas, sun shades canvas, film curtain, etc

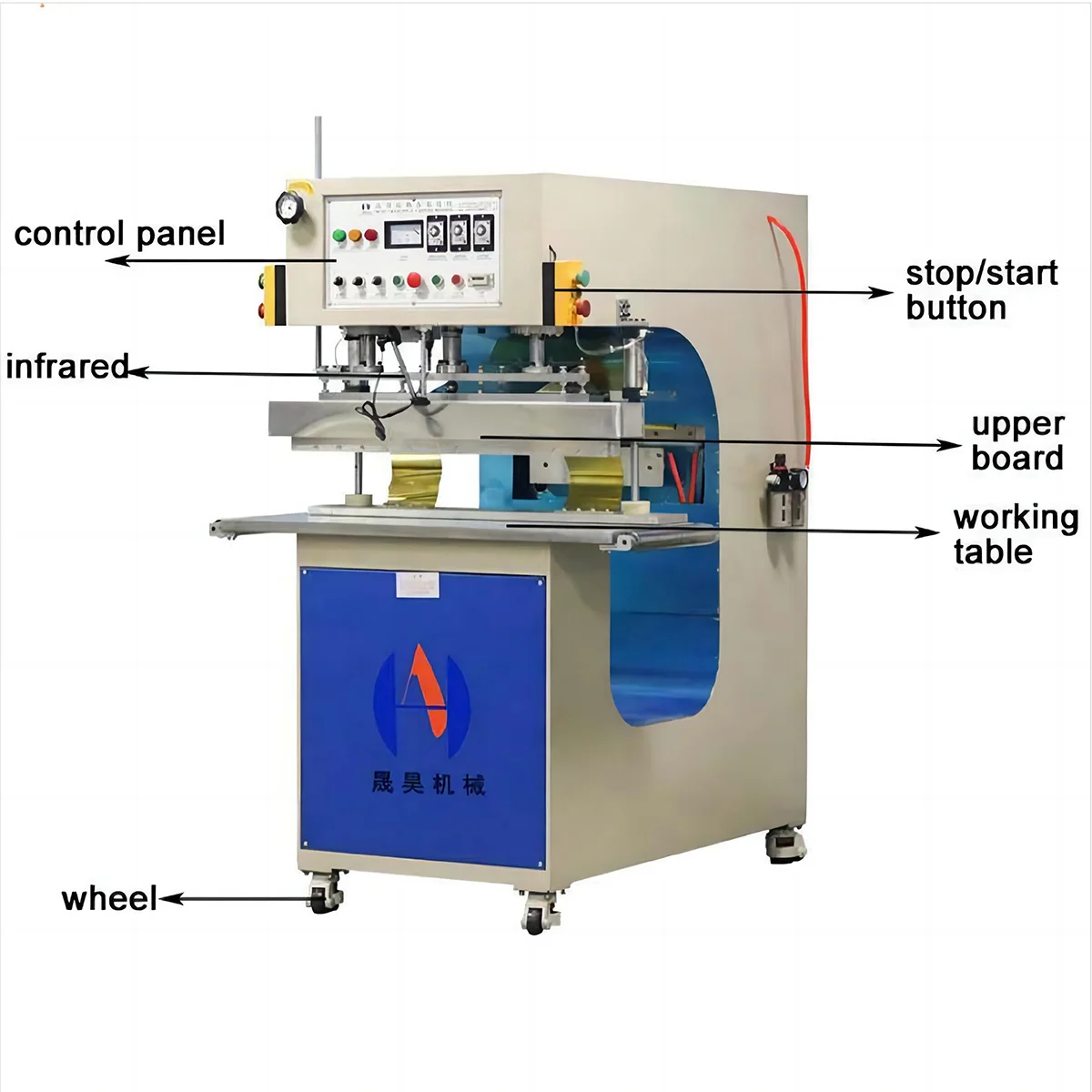

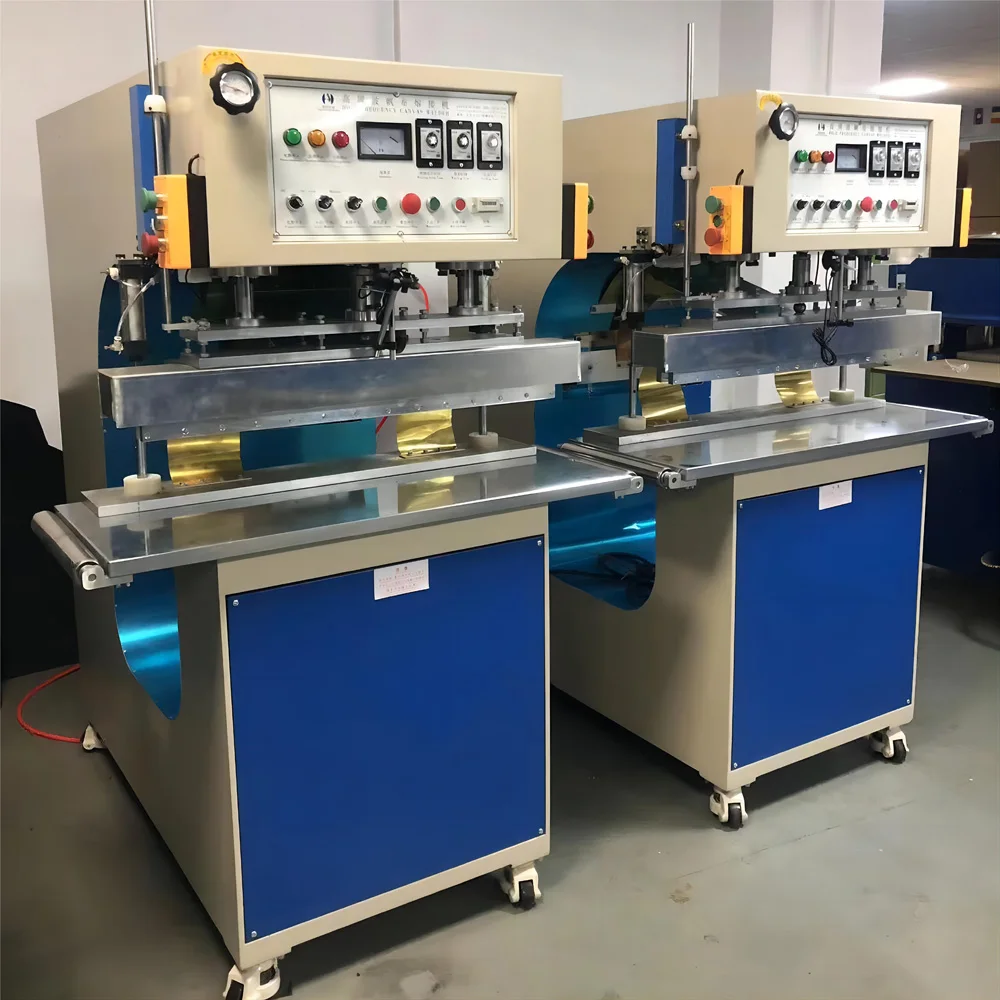

Machine Display
Packing & Delivery
Packaging | ||
Size | L*W*H=1750*1530*2200MM | |
Weight | 850KG | |
Packaging Details | The normal package is standard export plywood box. The wooden box(solid wooden if any) will be fumigated. If container is too tight, we will use pe film for packing or pack it according to customers special request. | |
Certification
CHENGHAO Factory
Factory strength
（1）24 years' machine production, 18 years' machine export, quality assurance, export worry-free.
（2）Provide factory video inspection, welcome to visit our factory.
（3）Factory ISO, CE certification, high-tech technology certificate.
（4）Special showroom, stock 3 day delivery; standard machine 15 days delivery; customized machine 20 days delivery
（5）Have machine workshop and mould workshop, supporting production, better price.
（6）Free samples to ensure the machine production quality.
（6）Free samples to ensure the machine production quality.
（7）More than 30 employees, 6 sets parts processing machines, 8 sets molds CNC machines, ensure delivery time.
（8）1 year machine warranty.
Похожие товары

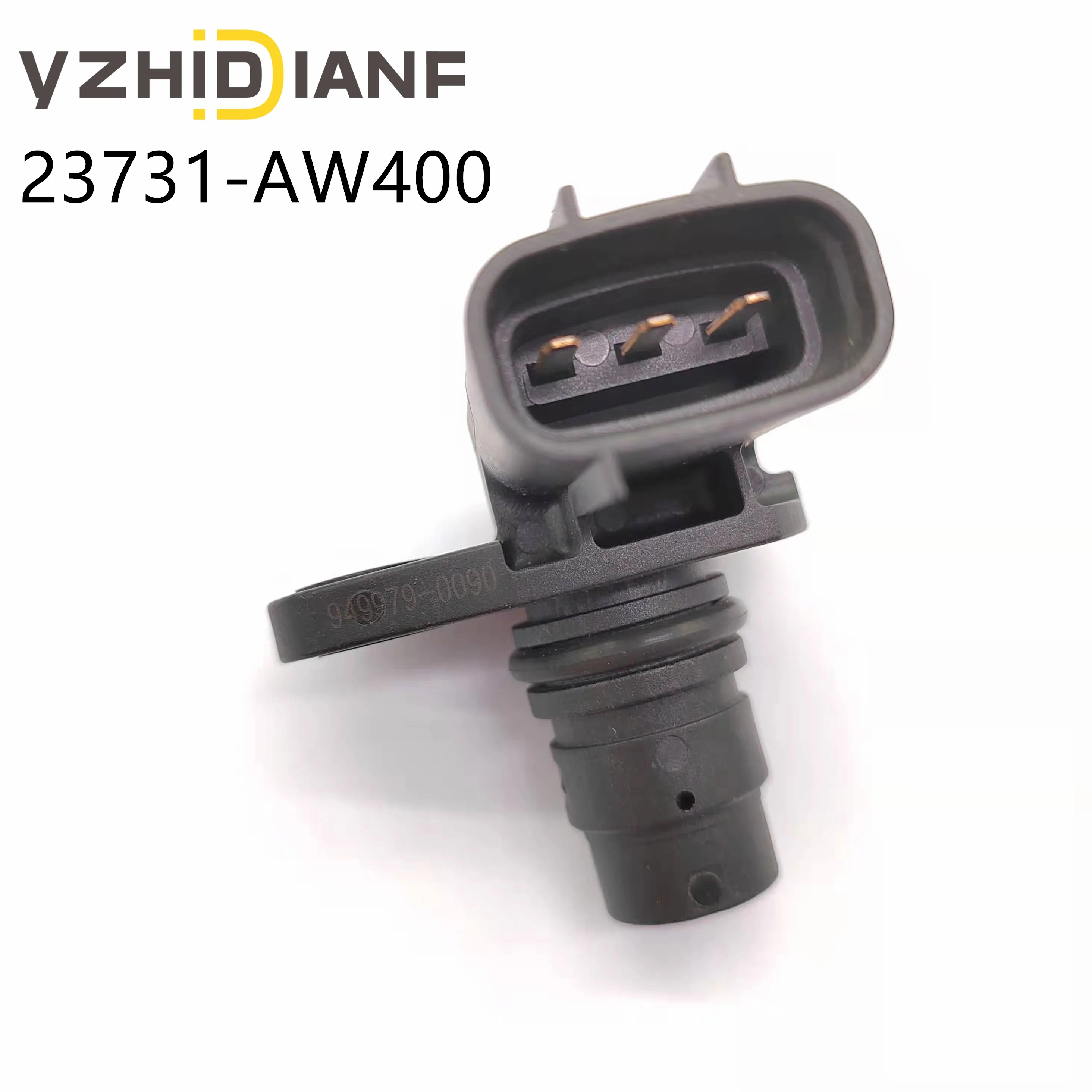

Датчик положения коленчатого вала 23731-AW400 23731AW400 949979-0090 для X-Trail T30 Primera WP12 P12 2,2 dCi/Di
4,00 $ - 5,50 $

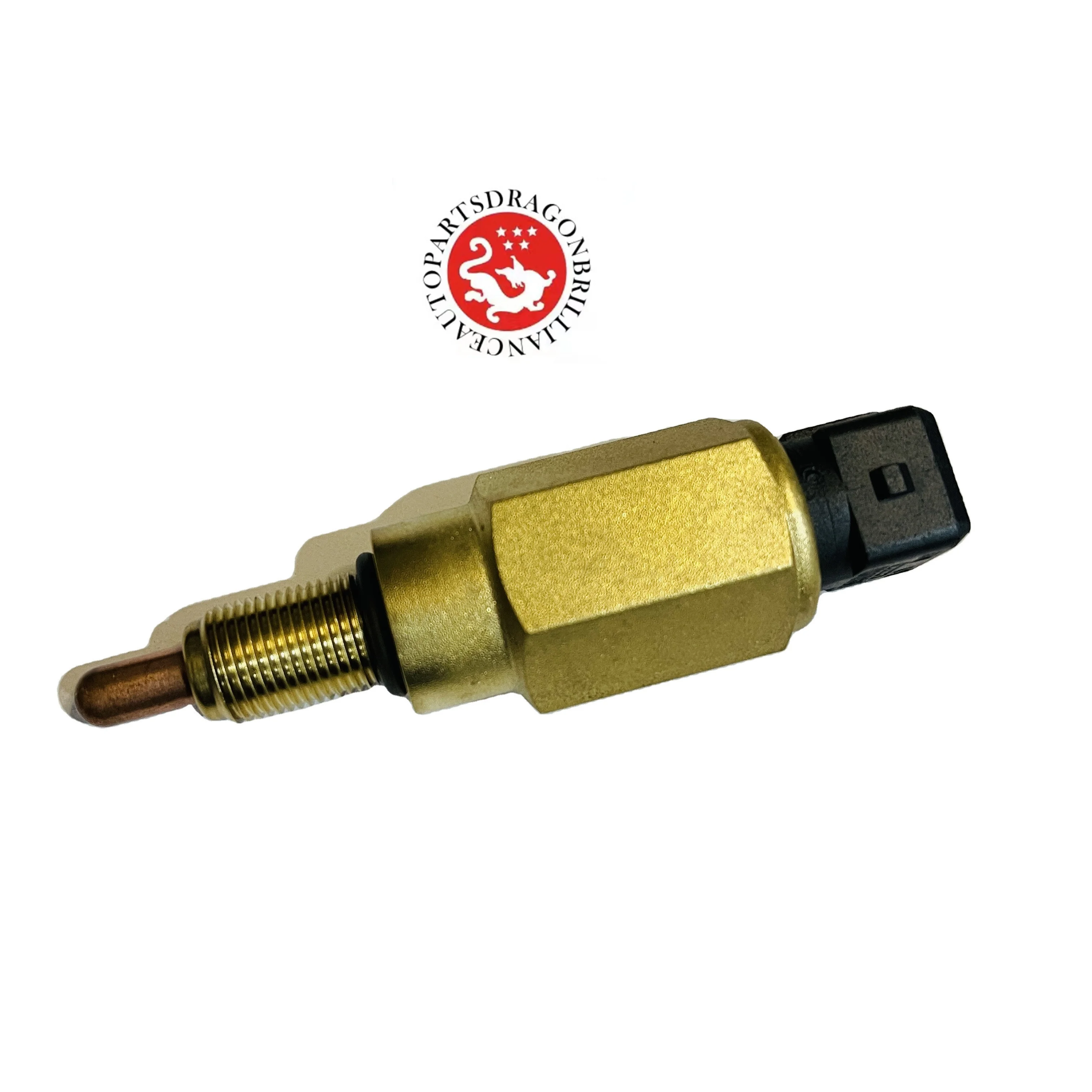

Для MINI CABRIO R52 Новый переключатель запуска трансмиссии двигатель OEM 24357518731 ZF CFT25 VT1 02-up SW8208 481453 высокого качества
Высококачественная уличная мебель, подвесное кресло-качели, кресло-гамак
Свадьба, новый год, фейерверк, Пузырьковая машина, электрическая пузырьковая машина с звуком фейерверков

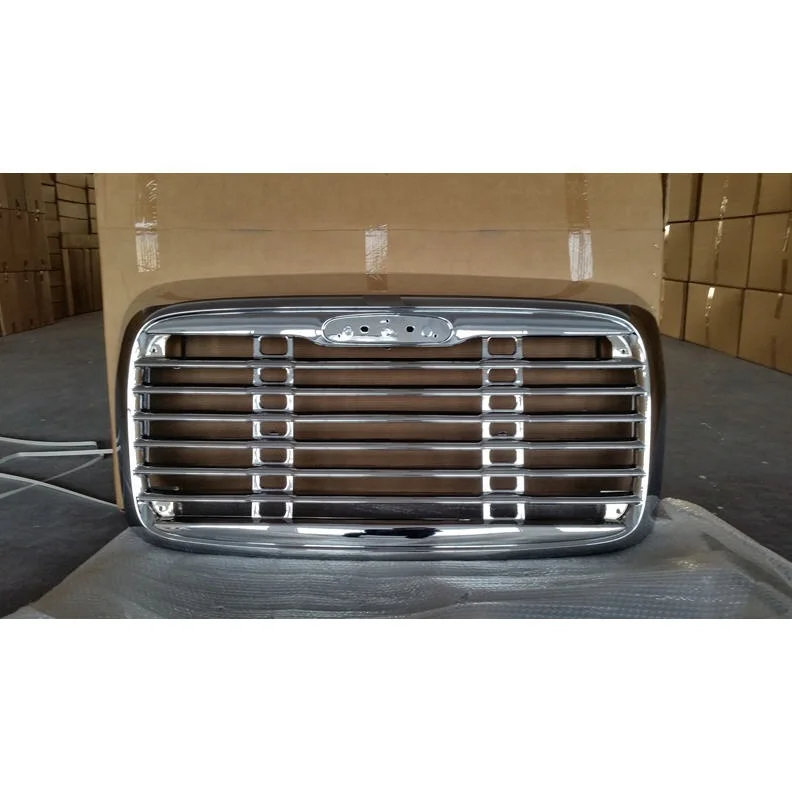

A17-15251-003 хромированная решетка с противотуманным экраном для моделей Freightliner Колумбия
Amazon active бесплатный образец водонепроницаемый замок латунный цилиндр алюминиевый

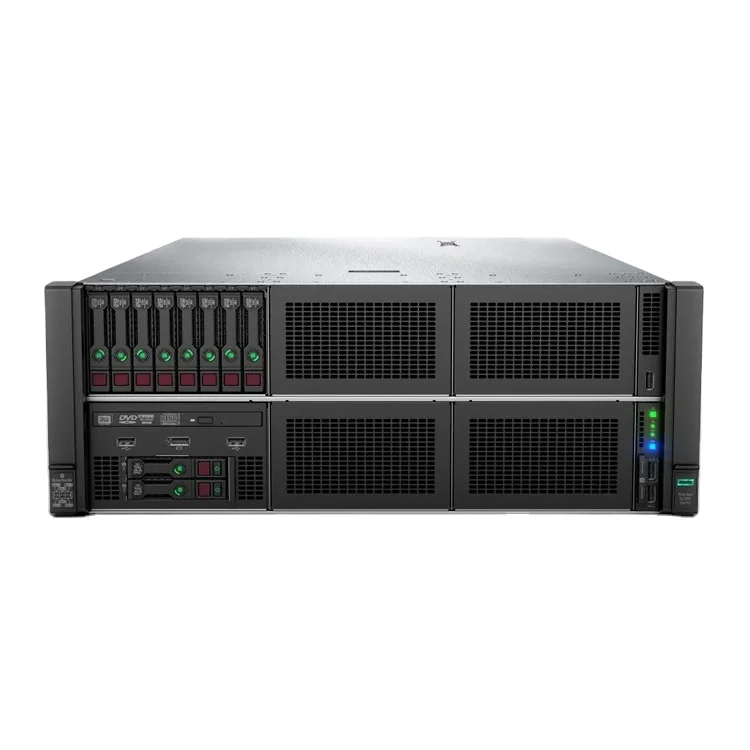

Высококачественный Производитель 4 H pe 1200 Вт Платиновый 94% горячий источник питания H pe Dl580 g10 сервер
