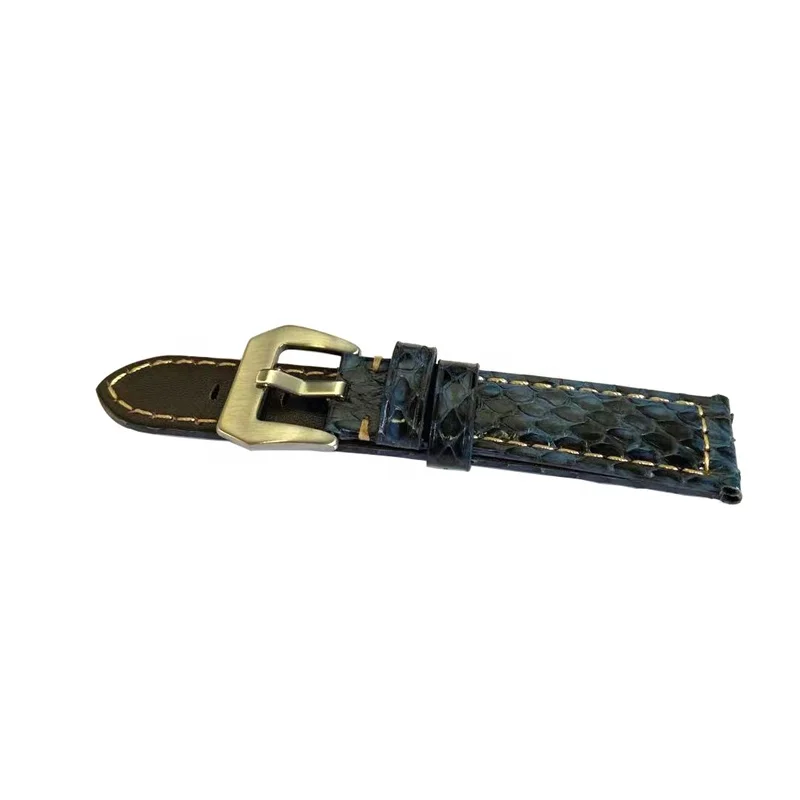

Высококачественная удобная 22 мм Замена Мода разные цвета со змеиным рисунком кожи питона кожаный ремешок для часов
7,00 $ - 8,50 $
Высокоскоростной одностенный трубный экструдер для быстрого производства выпускных труб кондиционера
- Категория: >>>
- Поставщик: Qingdao Fullwin Plastic Machinery Co. Ltd.
Сохранить в закладки 1600998654766:
Описание и отзывы
Характеристики
Production Description
Our company's meticulously designed high speed single wall corrugated pipe production line from the SJFW series.
This production line utilizes a gear rotation module and a series of water cooling modules, achieving the dual benefits of water circulation cooling and air cooling. As a result, the corrugated pipes produced exhibit rapid shaping, consistent corrugation, smooth inner and outer surfaces, and no misalignment in the closing seam.
Production speed :20-30m/min.
Machine Details
NO. | Name | QTY |
1 | Vacuum feeder and hopper dryer | 1 sets |
2 | Single Screw Extruder | 1 sets |
3 | New Design Die head | 1 sets |
4 | Mouth mould、core bar、gas nose and pull rod | 1 sets |
5 | Corrugated pipe forming mould | 1 sets |
6 | Corrugated pipe forming machine | 1 sets |
7 | Double station winding machine | 1 sets |
1. Vacuum Feeder and Hopper Dryer
The base of the feeding machine adopts a water jacket water cooling system. Its material is Q235-A.

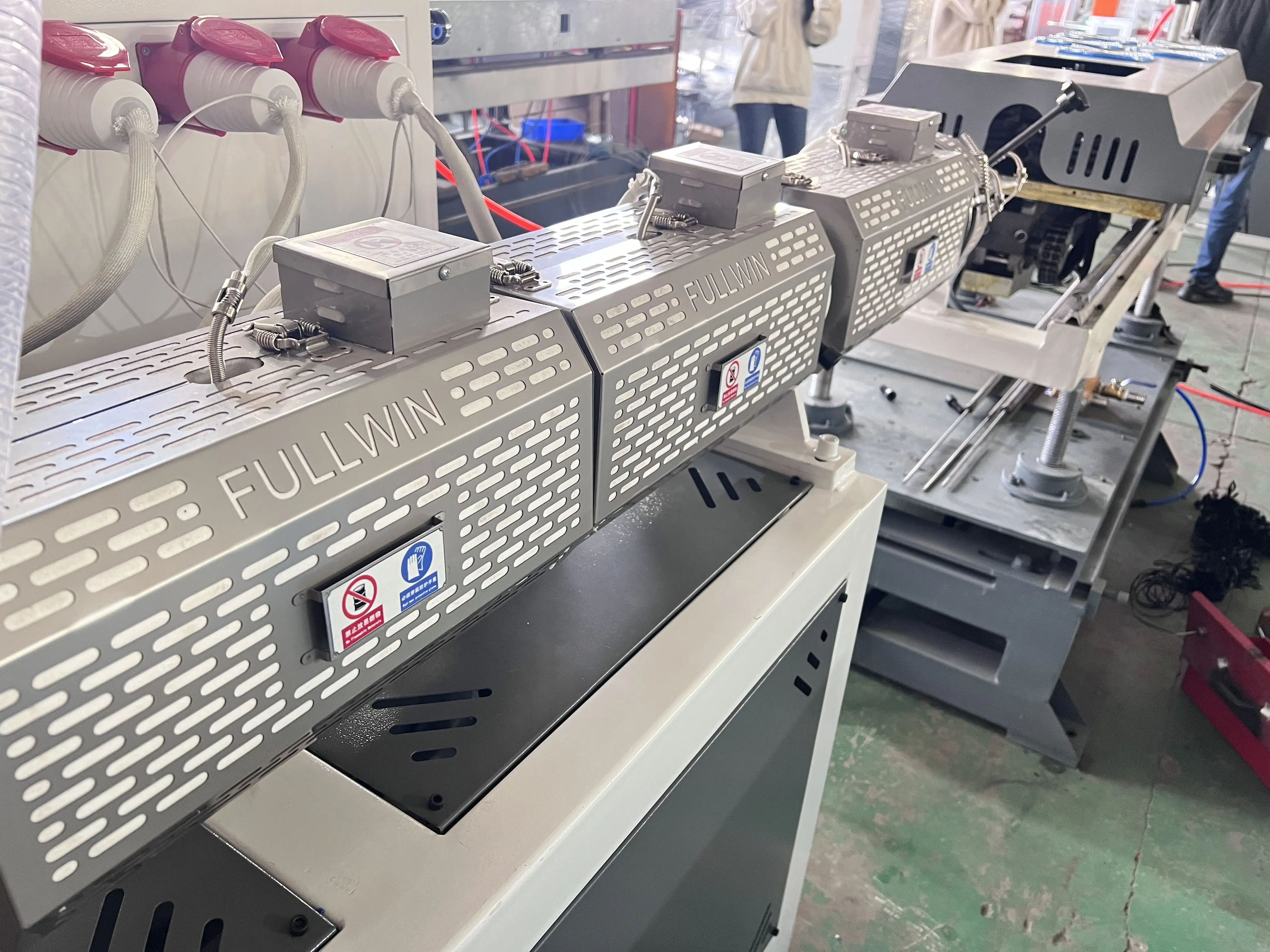

2. Single Screw Extruder
(1) This machine uses a screw with a diameter of 65 mm and a screw L/D ratio of 30:1. It is made of 38CrMoAI and the surface treatment is nitriding and polishing.

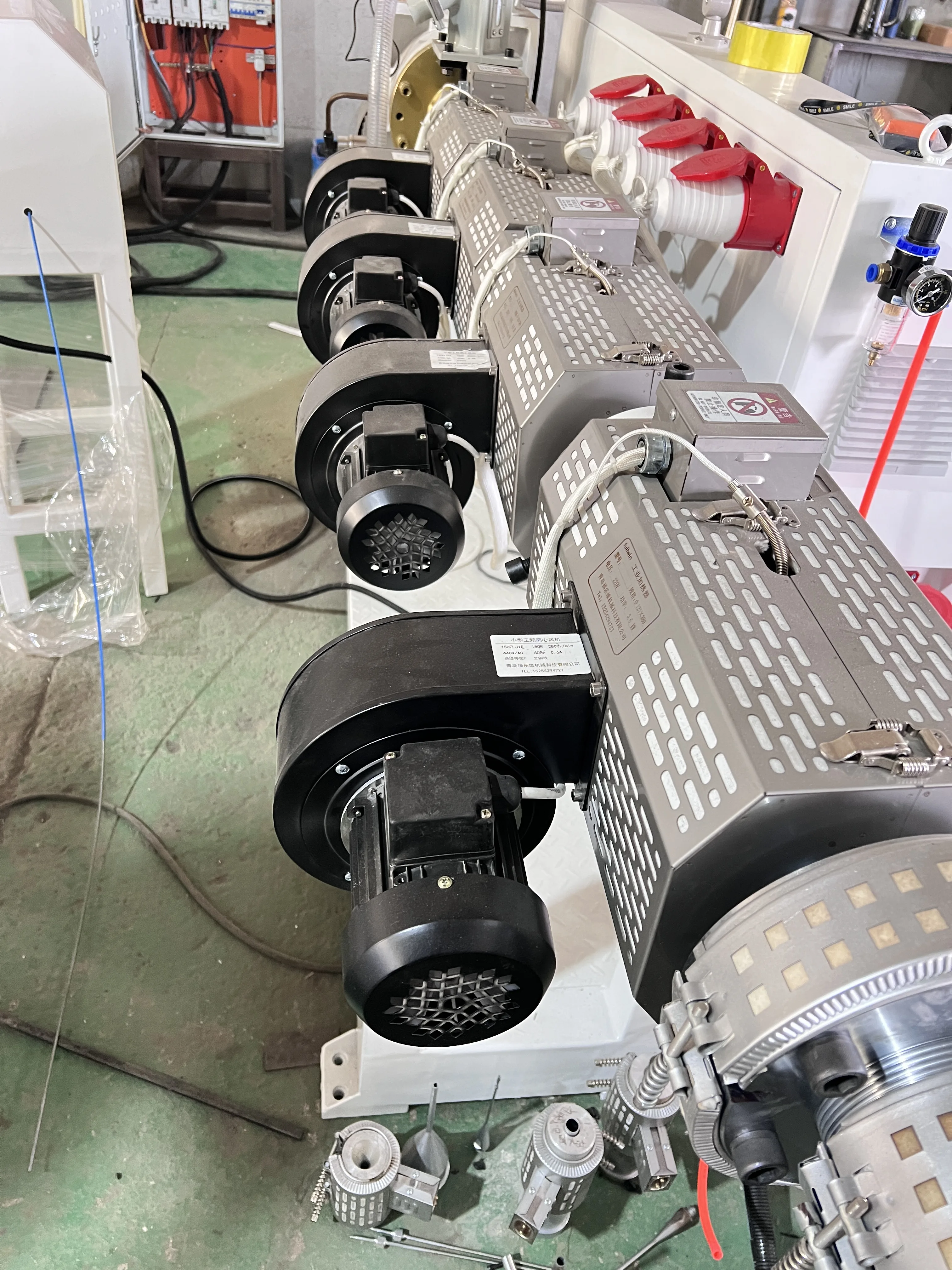

(2) The barrel material of this machine is the same as the screw material, and the internal surface treatment is nitriding and honing. It is heated by a ceramic heating collar and cooled by fans with a heating power of 12.8 KW. There are a total of 4 heating zones, each with a power of 0.18 KW.
(3) The gearbox is made of HT200, with bevel gears made of 20CrMnTi, and the surface treatment is tooth surface quenching. The cooling method of the gearbox is internal cycle water cooling cooler.

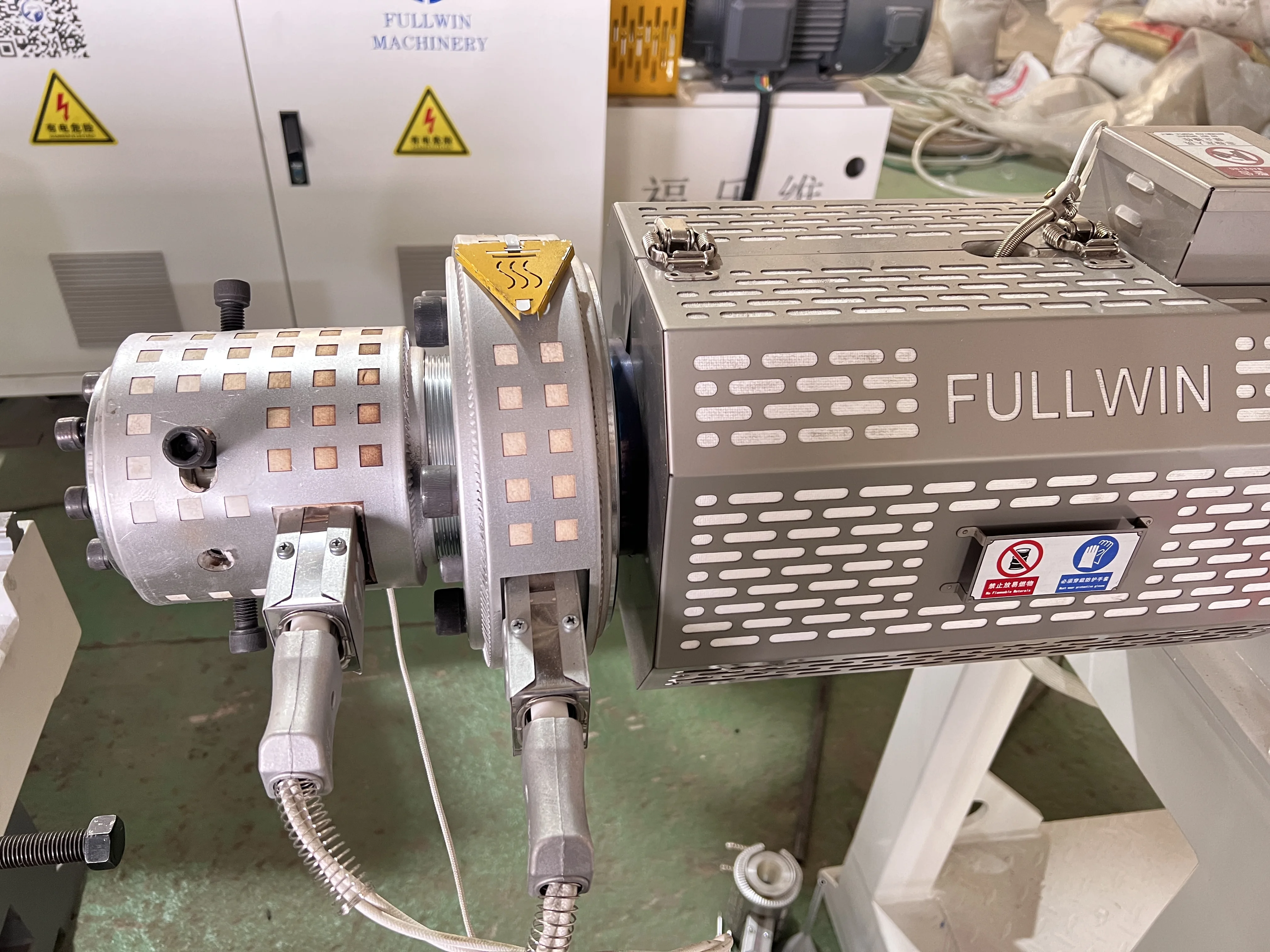

3. Die Head
Fullwin has incorporated a die head featuring an innovative thermal insulation material known as rockwool. This material offers
efficient insulation while simultaneously reducing electricity consumption by up to 30%.
efficient insulation while simultaneously reducing electricity consumption by up to 30%.
4.Mouth mould and core bar
We have adopted a newly developed combined mouth mold and core bar. The key distinction from the previous design is that, when changing the pipe diameter, you only need to replace the entire unit. This innovation results in a time-saving of at least 1.5 hours, as it eliminates the need to remove the mold, clear the material, and heat it again.
Customisable Quantity
5. Corrugated pipe forming mould
The modules within the forming machine line are constructed using the same material as the steel plates, with a hardness rating of
63.4 HRC. This primary benefit lies in the significant reduction of machine wear and tear, consequently extending its operationallifespan.

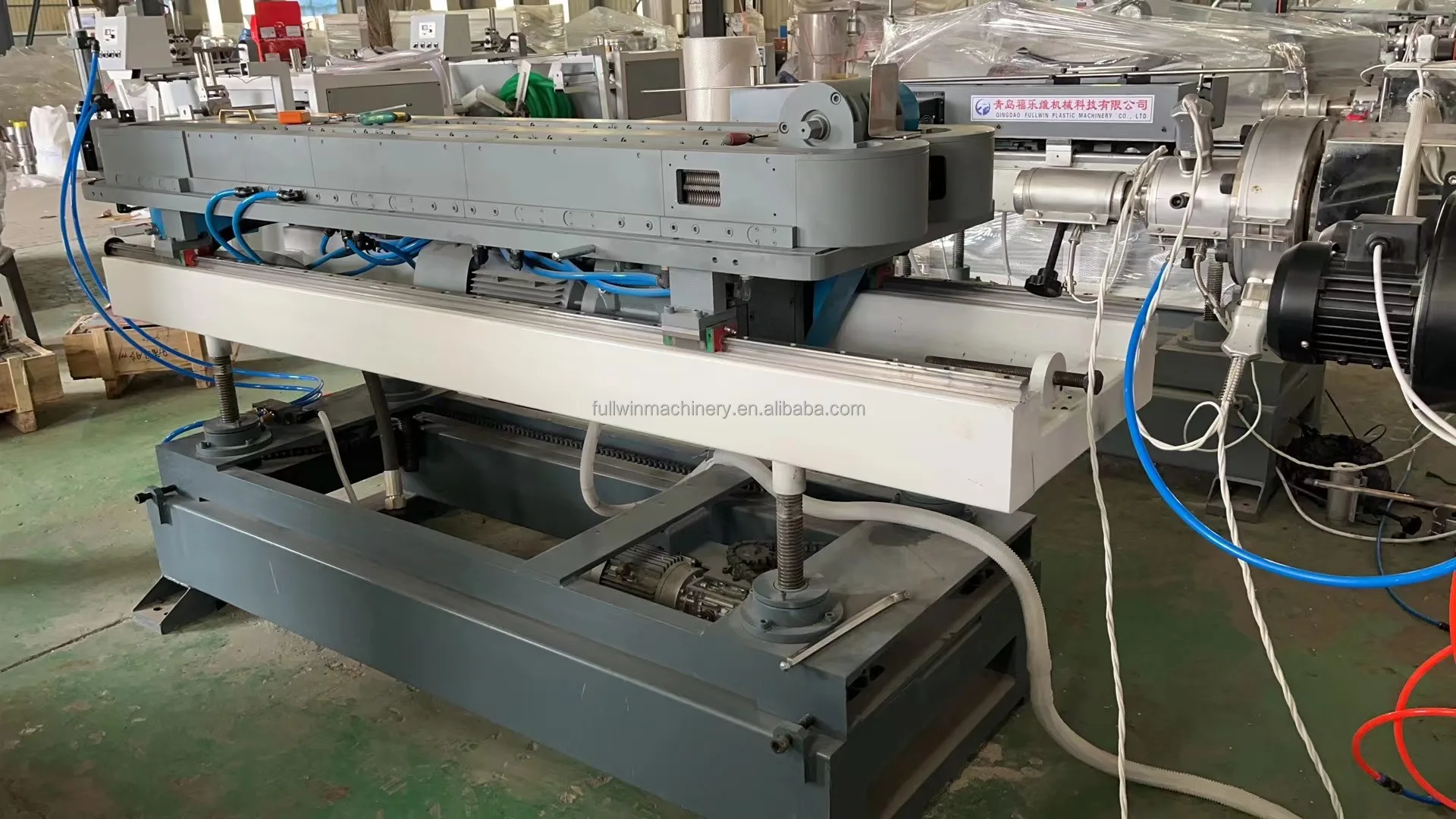

6.Corrugated pipe forming machine
(1) The plate of the moulding machine is made of the same material as the module, with a hardness 63.4 HRC, which can effectively reduce wear and tear and have a longer service life compared with 45# steel.
(2) The forming machine has a large water-cooled side plate, which provides an even better cooling effect. This greatly improves the speed of the corrugated pipe and guarantees the quality of the pipe.
(3) Up and down movement can be adjusted by electric motor, left and right movement can be adjusted manually, and the moving distance of the platform is 800mm.
(4) The forming machine is blow moulding with pneumatic cutting and is controlled by PLC.

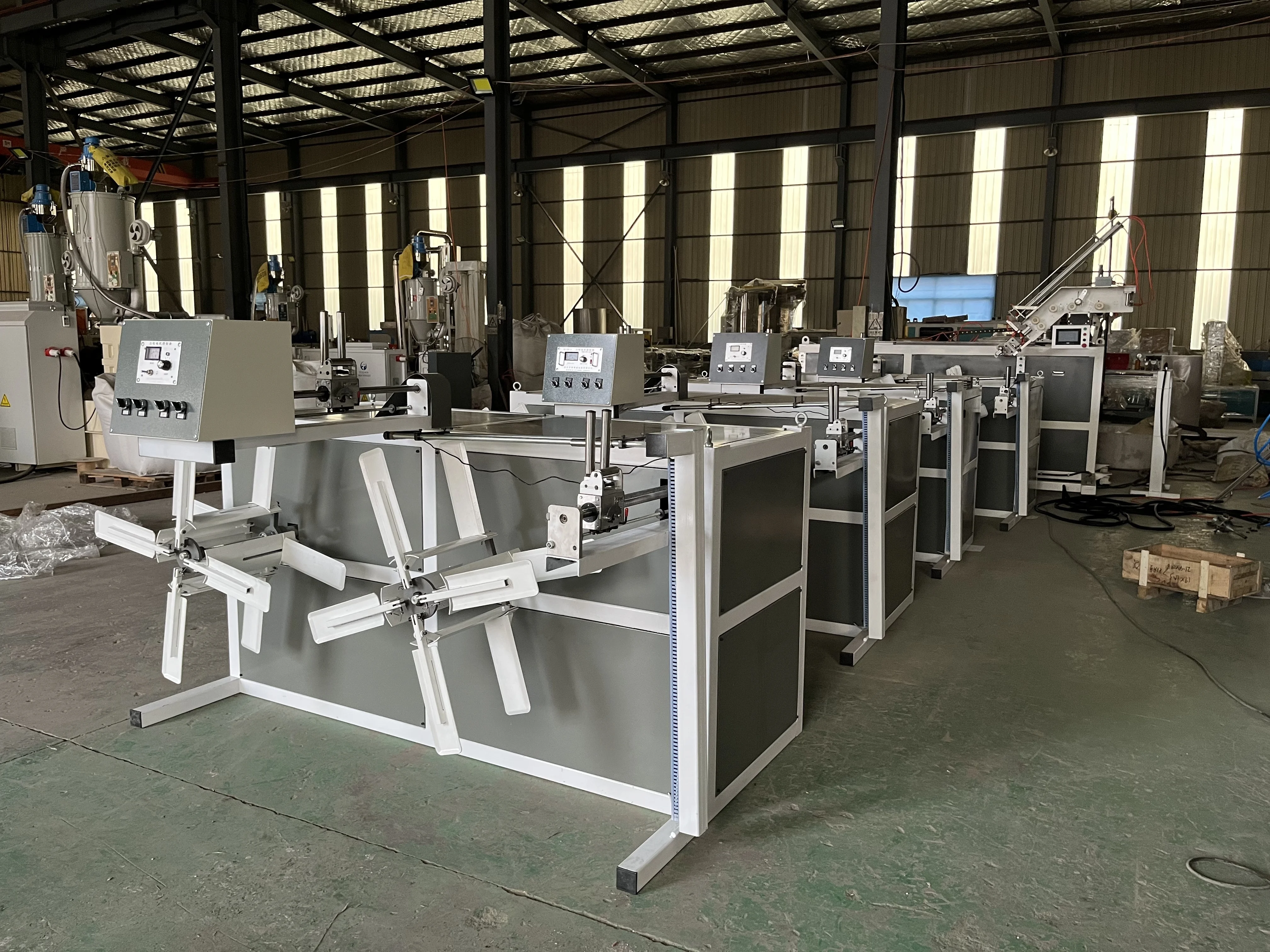

7.Double station winding machine
The main operation of the winder is spindle speed tracking with frequency controlled traverse. It uses a pneumatic self-locking
switch.In addition, the machine is equipped with a counter to adjust the winding speed inductively.Final products
Corrugated pipes are widely used in life as well as in business. It is particularly suitable for wiring harnesses in high-grade automobiles, threading pipes and the production of disposable watersmoking pipes, among other scenarios.
About us
Our company is located in the beautiful Jiaozhou Bay of Qingdao, which is a manufacturer that focus on plastic extrusion machines. The company has gathered the first-class scientific research talents in China. Since the establishment of the factory, the company takes the market as the guidance, based on science and technology, and develops the high-end science and technology products vigorously. We also co-operate with key universities in Qingdao to transform the results of scientific and technological knowledge into high-tech products. At present, our company has successfully researched and developed a variety of plastic machinery production lines and ancillary equipment, including single-wall and double-wall corrugated pipe production lines, PVC and PP water supply pipe production lines, carat pipe production lines, profile and sheet production lines, PVC fibre-reinforced pipe production lines and so on. Among them, the corrugated pipe production line has been awarded a number of invention patents.
FAQ
Q1. How to ensure quality?
The company produces prototypes and tests them before mass-producing the equipment. Must make sure that each machine is free of problems before it is shipped.
Q2.What can you buy from us?
Single Wall Corrugated Pipe Machine, Double Wall Corrugated Pipe Machine, PVC/ PP Water Supply Pipe Machine, WPC/PVC Profile and Sheet Profile Machine, PVC Fiber Reinforced Pipe Machine, etc.
Q3. Why should you buy from us instead of other suppliers?
1. We have a professional production team and advanced technical support.
The company produces prototypes and tests them before mass-producing the equipment. Must make sure that each machine is free of problems before it is shipped.
Q2.What can you buy from us?
Single Wall Corrugated Pipe Machine, Double Wall Corrugated Pipe Machine, PVC/ PP Water Supply Pipe Machine, WPC/PVC Profile and Sheet Profile Machine, PVC Fiber Reinforced Pipe Machine, etc.
Q3. Why should you buy from us instead of other suppliers?
1. We have a professional production team and advanced technical support.
2. It ensures better quality at the appropriate price and timely delivery.
3. Our sales team is able to feedback within 24 hours to resolve issues in a timely basis.
4. Professional after-sales service team. Engineers are always ready to go to your factory to solve technical problems.
Q4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency: USD, EUR;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Language Spoken: English, Chinese, Spanish
3. Our sales team is able to feedback within 24 hours to resolve issues in a timely basis.
4. Professional after-sales service team. Engineers are always ready to go to your factory to solve technical problems.
Q4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency: USD, EUR;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Language Spoken: English, Chinese, Spanish
Packing and delivery
Contact us
Recommend Products
Похожие товары

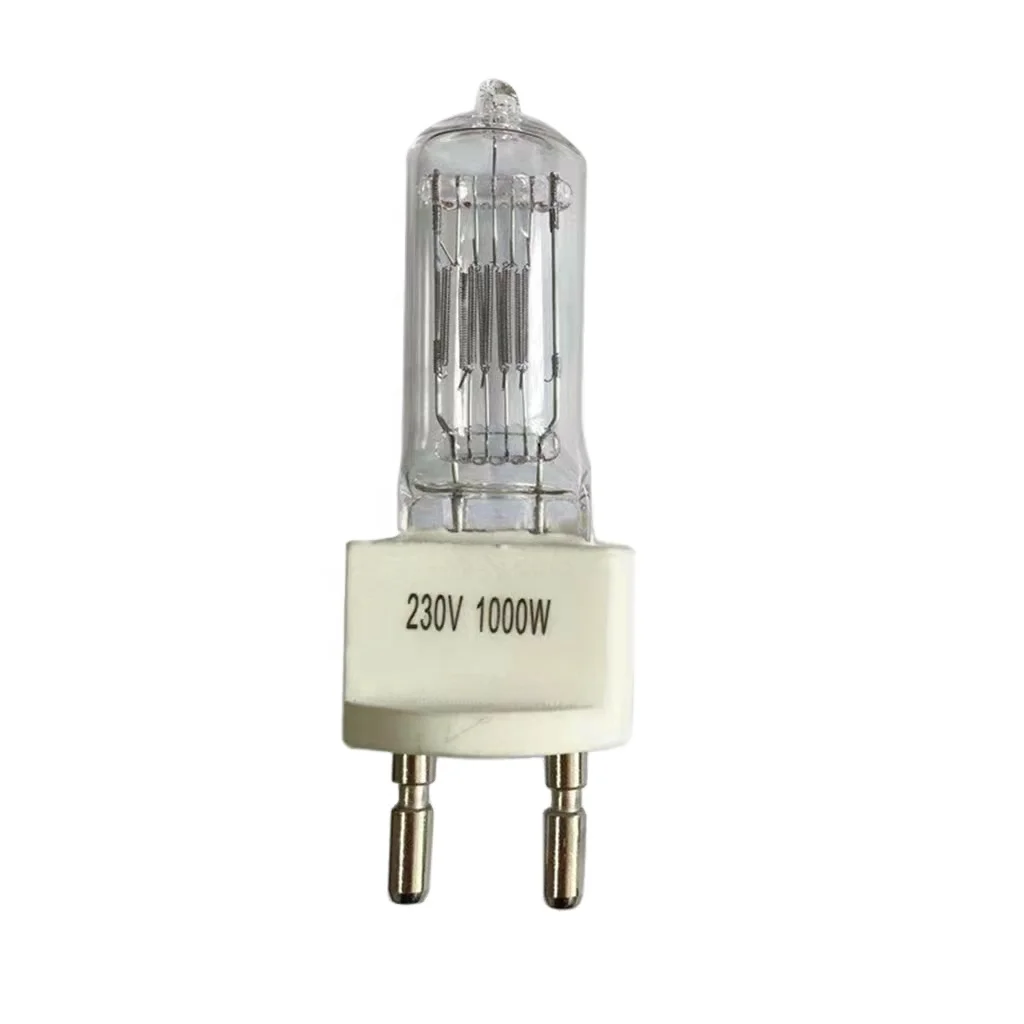

Roccer CP71 G22 FKJ галогенная лампа 1000 Вт для сценической лампы
1,00 $

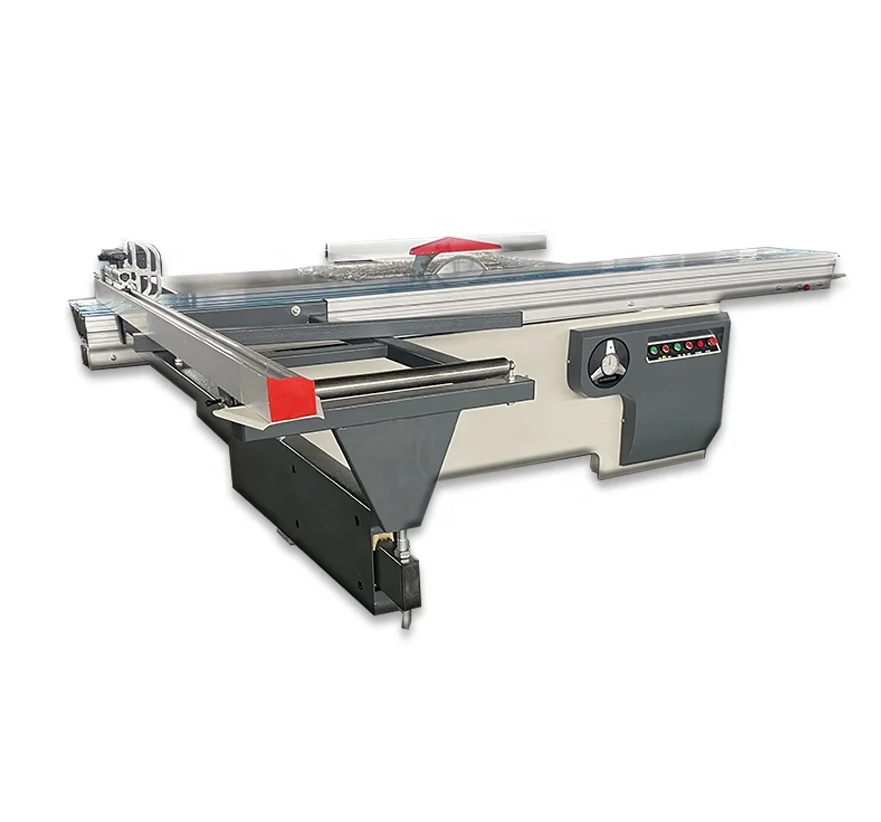

Сентябрьский фестиваль покупки, деревообрабатывающее оборудование, 3200 мм, Настольная пила, деревянная ДВП, скользящая панельная пила
1 500,00 $ - 2 200,00 $
Цилиндрический роликовый подшипник NUP204 EM от производителя OEM по низкой цене

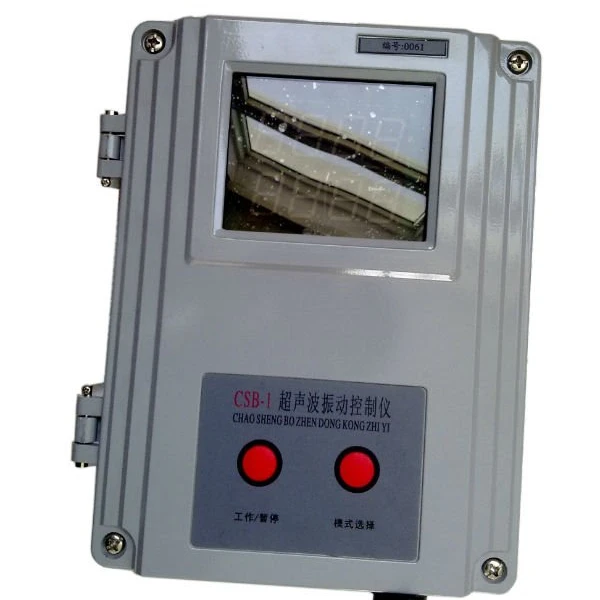

Высококачественный ультразвуковой просеивающий преобразователь и генератор для вибрационной машины/Запчасти
950,00 $ - 1 000,00 $
EC-Mart SIM808 модуль GSM GPRS SMS макетная плата IPX с GP антенной
Станок для формовки листового металла Pittsburgh lock/станок для формовки ЗАМКА Pittsburgh lockformer/станок для формования замка
1 150,00 $ - 1 250,00 $

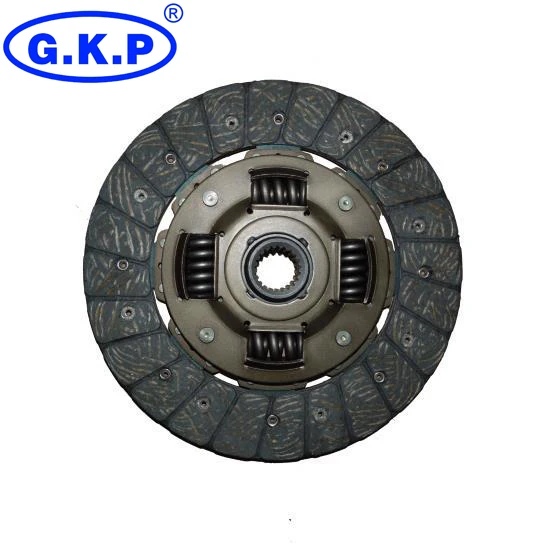

Комплект сцепления для автомобиля 30100-D0100/накладка в
