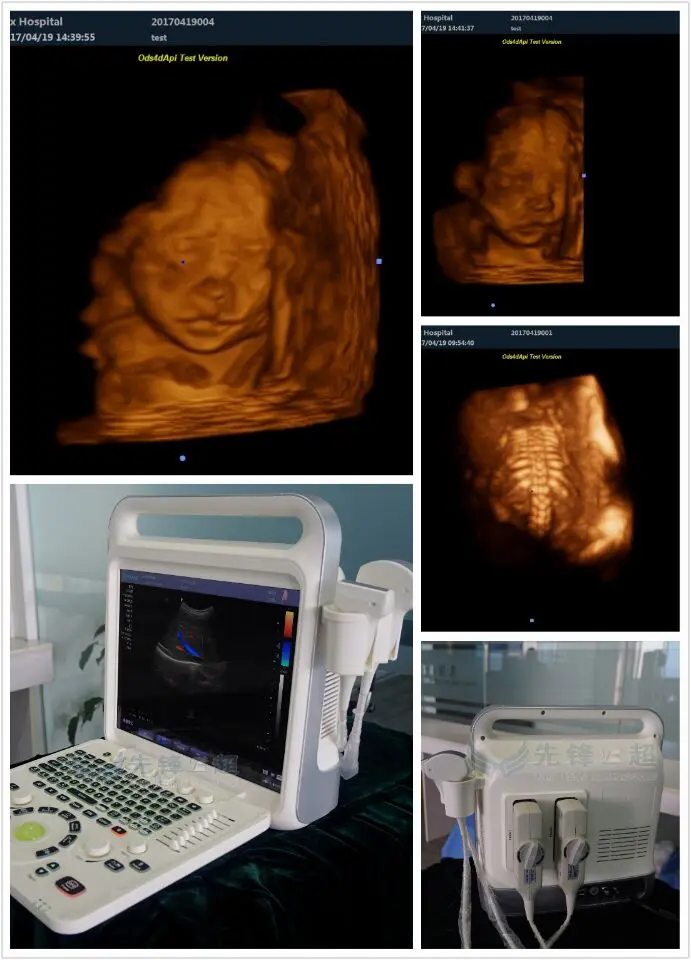

SZMIQU 15 дюймов HD дисплей ноутбук цветной многоязычный Портативный Цветной Допплер ультразвуковой допплер 3D 4D

Model

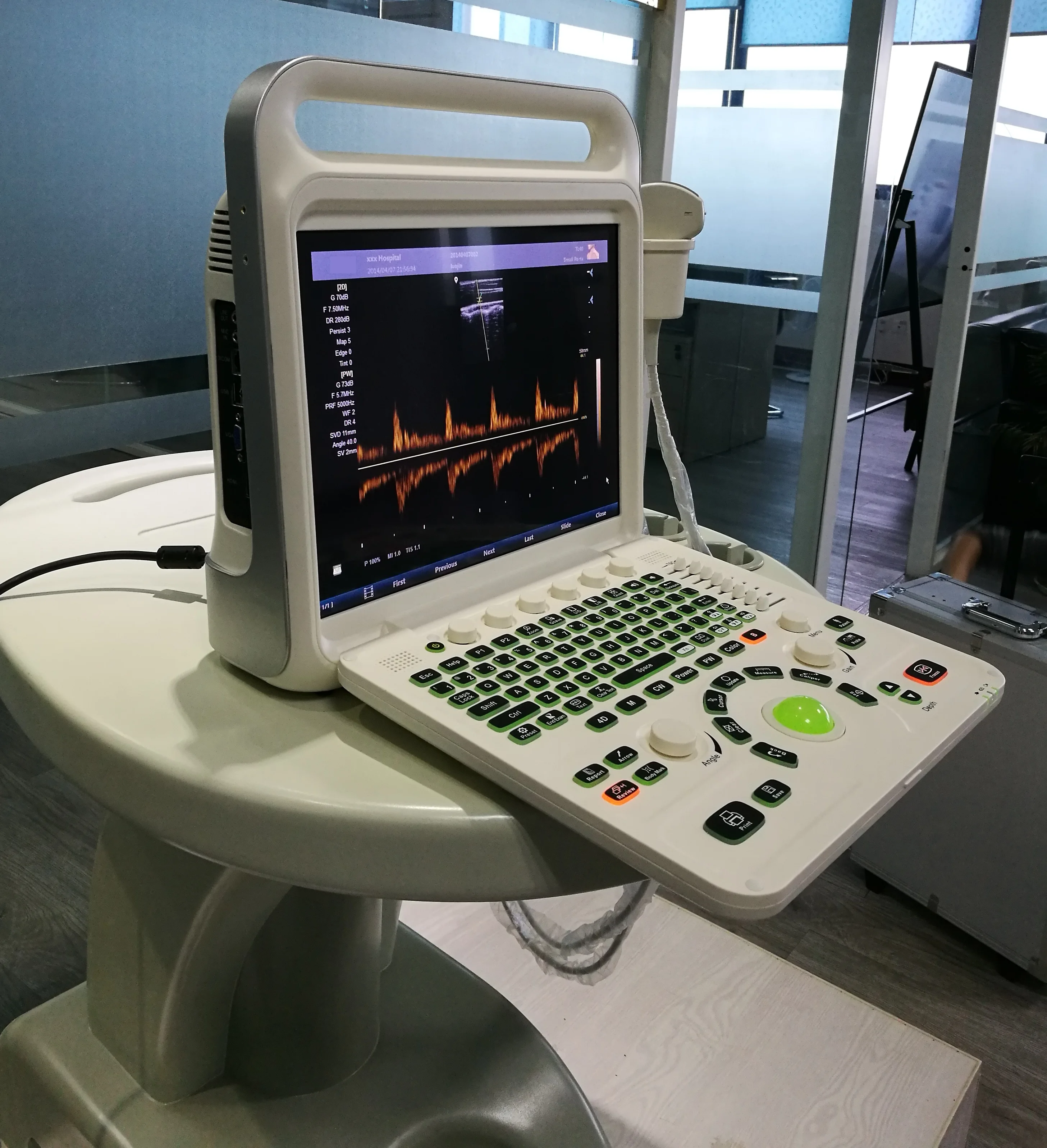

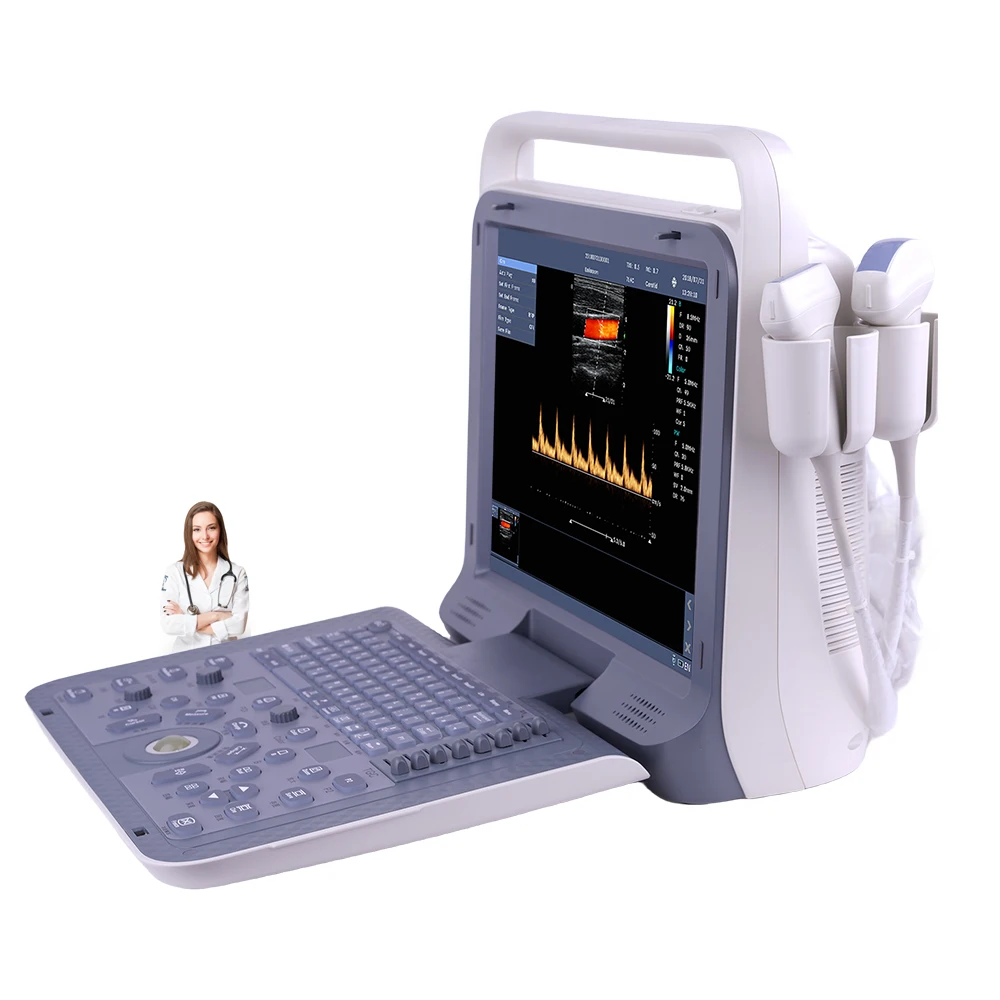

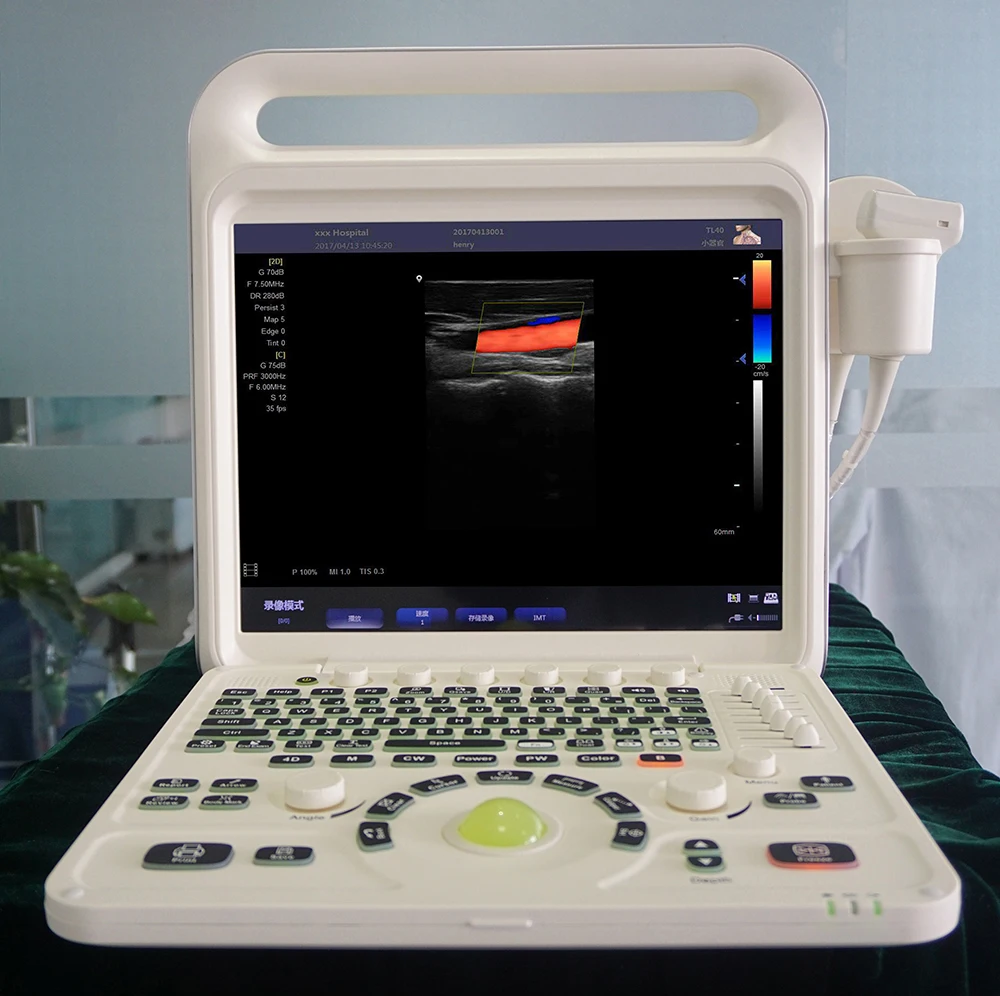

E60 Portable Color Doppler Ultrasound Scanner

Application

Abdomen/Cardiac/Obstetrics/Gynecology/Urology/Andrology/SmallParts/Vascular/Pediatrics/Musculoskeleta.

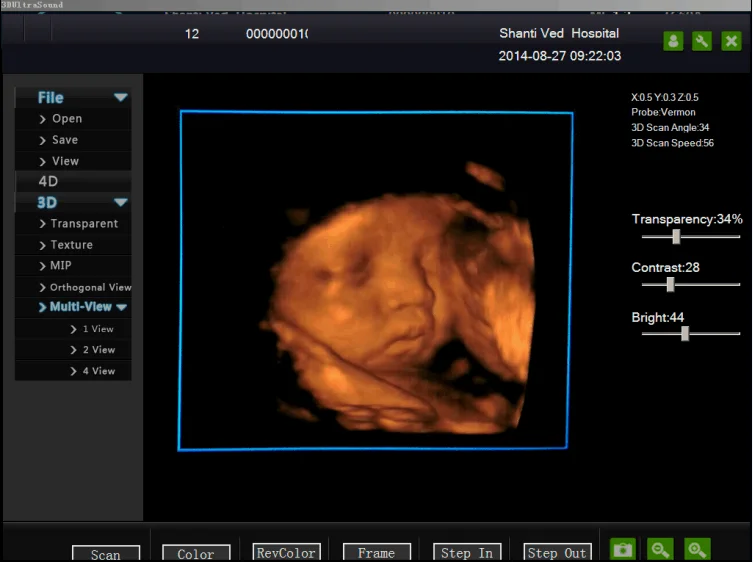

Scanning mode: Convex array,Trans vagina, high-frequency linear array, Micro-convex;3D software;4D array;
Dynamic range: 0~120dB adjustable;
Display mode: B、B/B、M、B/M、CFM、CFM/B、PDI、B/PW, total eight mode;

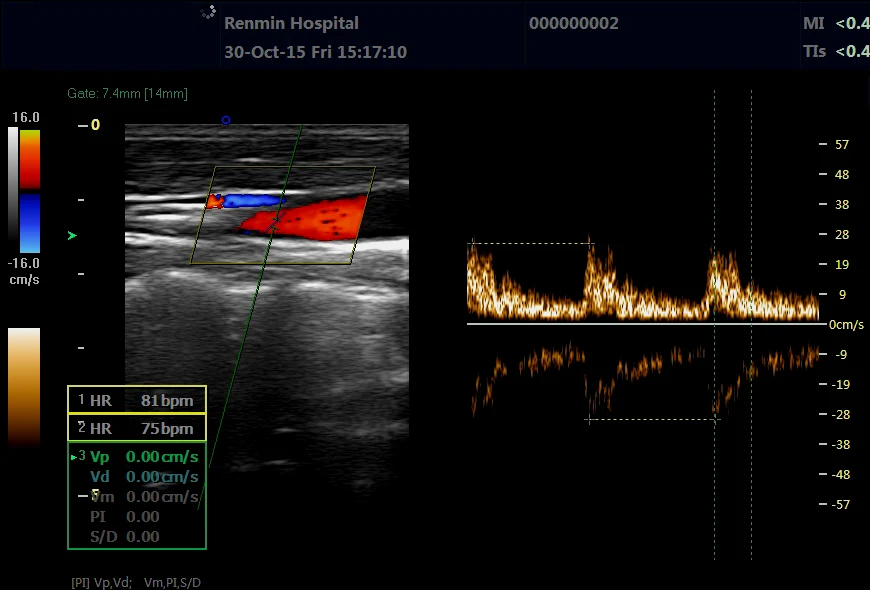

Color mode: CFM Color doppler mode/CFM + B mode/PDI energy doppler mode/PDI + B mode, PW pulse doppler double sync/three-sync
display
B/D dual-purpose:linear array: B/PWD; convex array: B/PWD;Pseudo color processing:16 kinds of pseudo color encoding can optional;
Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;
Image magnification: picture in picture zoom in and zoom part function;
Image processing: Edge enhancement: Multilevel adjustable
Frame average: Multilevel adjustable
Line average: Multilevel adjustable
Focus Optimization: Multilevel adjustable
Gray Restrain: Multilevel adjustable
Gamma correction: Multilevel adjustable
Contrast: Adjustable
Brightness: Adjustable
Self-motion optimize function: Built-in multiple check type, according to different in spection organs, preset best image check
condition, reduce the adjusting operation keys;
One-click optimization function: preset several parameters adjusting focus on a Key, a key to realize image fast optimization;
Measurement and calculation: B mode routine measurement:Distance, circumference,
area, volume, angle, ratio, and stenos rate.M mode routine measurement: Heart rate,
time, distance, speed, ratio, etc. Gynecology measurement: Uterus, cervix, endometrial,
ovary, follicular. Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
Cardiology measurement: LV measurement. Urology measurement: Prostate volume, displacement volume, bladder capacity, and residual
urine output. PW measurements: Time, speed, Heart Rate, RI, PI, etc. Other measurement: Slice volume measurement, hip joint angle
measurement.
Image storage: Image storage, video storage, cine loop,
disk storage capacity≥160G;
Patient data: Medical record management, report inquiry and printing, image video output（ HDD 、USB、Optional DVD-RW）、built-in
ultrasound workstation;
Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English editor;

ElectricalPower

Voltage:100V~240V

Power:DC19V10A

Frequency:50 or 60Hz

Physical Specifications

Equipmentsize:369mm(Length)x380mm(Width)x161mm(Height)

Equipment weight:7kg

Conditions

Operating Temperature:5℃~40℃

Humidity:≤80%

Pressure:700hPa~1060hPa

Storage Temperature:-5°C~40°C

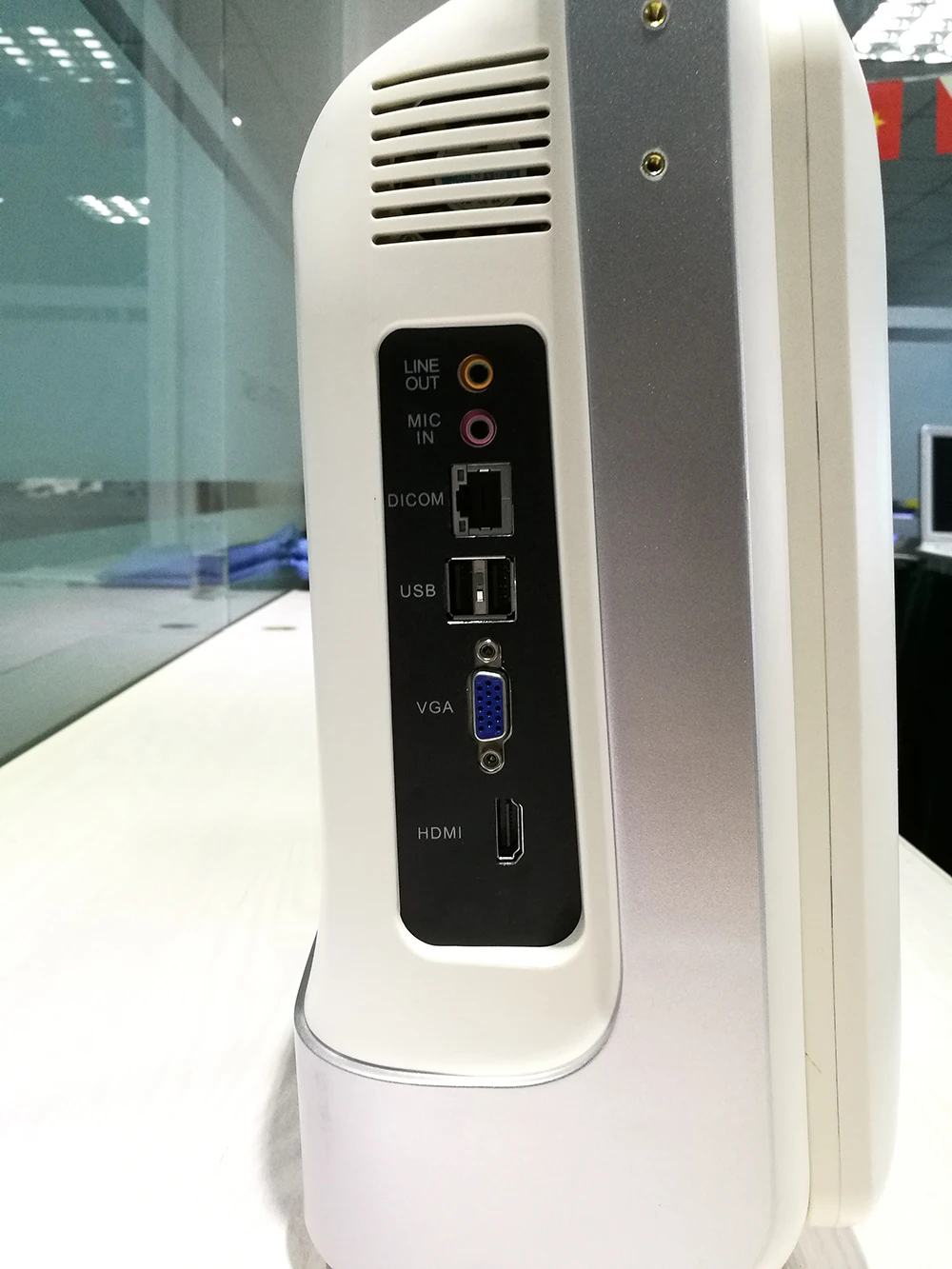

Connectivity/Media/Peripherals

Transducer Ports:2

USB Ports:1

Hard Disc:120GB(SSD),120G/256GBSSD(Optional)

Foot switch:USB

External Display:VGA,HDMI

USB Printer

Digital Laser Printer

Digital B/W Thermal Printer

Cine/ImageMemory

Cine Memory:512 frames

Cine Review Speed:1,2,4,8

Cine Review Loop

Cine Capture Function

DICOMConnectivity

DICOM 3.0 Compliant

ImageStorage

Storage Format:PNG,AVI,BMP,JPEG,DICOM

Export Video Format:AVI

Export Image Format:PNG,JPEG,BMP

DICOM

USB Flash Drive
