SG25CX P2 инвертор Sungrow 110 кВт солнечный на сетке трехфазный SG25CX SG30CX с Wi Fi цена

Сохранить в закладки 1601000107631:


Цена:699,00-750,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

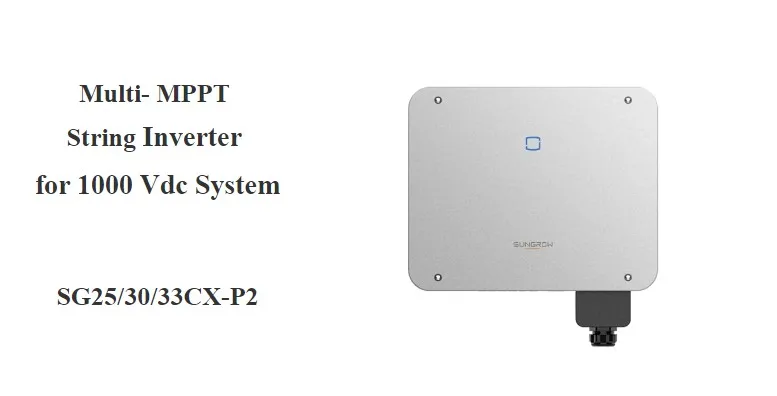

Sungrow Inverter SG25CX-P2 On-grid 25KW
HIGH YIELD

DC 15A current input, compatiable with
over 500W+ PV module
Dynamic shading optimization mode
Built-in PID recovery function

LOWER INVESTMENT

Reduced inverter 34% weight and save more
man-hours
Plug and Play with Buckle Design

SMART O&M

Key component diagnosis and protection
Smart IV Curve Diagnosis
Grid fault record function, easy for remote
O&M

PROVEN SAFETY

IP66 protection and C5 Anti-corrosion
DC Type I+II SPD, AC Type II SPD
Support AFCI 2.0 function

Sungrow Power Supply Co. Ltd. (“Sungrow”) is the world’s most bankable inverter brand with over 224 GW installed worldwide. Sungrow is a leader in the research and development of solar inverters offering PV inverter solutions and energy storage systems for utility-scale, commercial & industrial, and residential application as well as internationally recognized floating PV plant solutions.
With a strong 25-year track record in the PV space, Sungrow products power installations in over 150 countries.



Technical Parameters






Technical parameters
SG25CX-P2
SG30CX-P2
SG33CX-P2
Maximum efficiency
98.4%
98.5%
98.5%
Maximum DC input voltage
1100V
Start voltage
160v / 200v
Max. number of PV strings per MPPT
2
2
2
Max. PV input current
90 A
90A
90 A
Max. DC short-circuit current
120 A
120 A
120 A
Feed-in phases / connection phases
3 / 3
Max. efficiency / European efficiency
98.4% / 98.2 %
98.5% / 98.3 %
98.5% / 98.3%
Power factor at nominal power / Adjustable power factor
> 0.99 / 0.8 leading – 0.8 lagging
Rated output voltage
230Vac/400Vac,3W/N+PE
Output voltage frequency
50HZ/60HZ
Maximum total harmonic distortion
<3%
Max. AC Output power
125 kVA
110 kVA
75 kVA
Rated AC output apparent power
125 kVA
110 kVA
75 kVA
Max. AC output current
181.1 A
167.1 A
113.9 A
Rated AC output current(at 230V)
181.1 A
159.4 A
108.7 A
Rated AC voltage
3 / N / PE, 230 / 400 V
3 / N / PE, 220 / 380 V, 230 / 400 V
AC voltage range
320 – 480V
304 - 456V (380V) / 320 - 480 V (400V)
Rated grid frequency
50 Hz / 60 Hz
Grid frequency range
45 – 55 Hz / 55 – 65 Hz
Harmonic (THD)
< 3 % (at rated power)
Power factor at rated power / Adjustable power factor
> 0.99 / 0.8 leading – 0.8 lagging
Feed-in phases / connection phases
3 / 3-N-PE
Efficiency
Max. efficiency / European efficiency
98.5% / 98.3%
98.6% / 98.3%
General Data
Dimensions (W*H*D)
1020 * 795* 360 mm
Mounting Method
Wall-mounting bracket
Weight
87 kg
82 kg
Topology
Transformerless
Degree of protection
IP66
Corrosion
C5
Night power consumption
< 5 W
Operating ambient temperature range
-30 to 60 ℃
