2025 BT30 CNC фрезерный и сверлильный центр для дверей окон
46 300,00-47 143,00 $

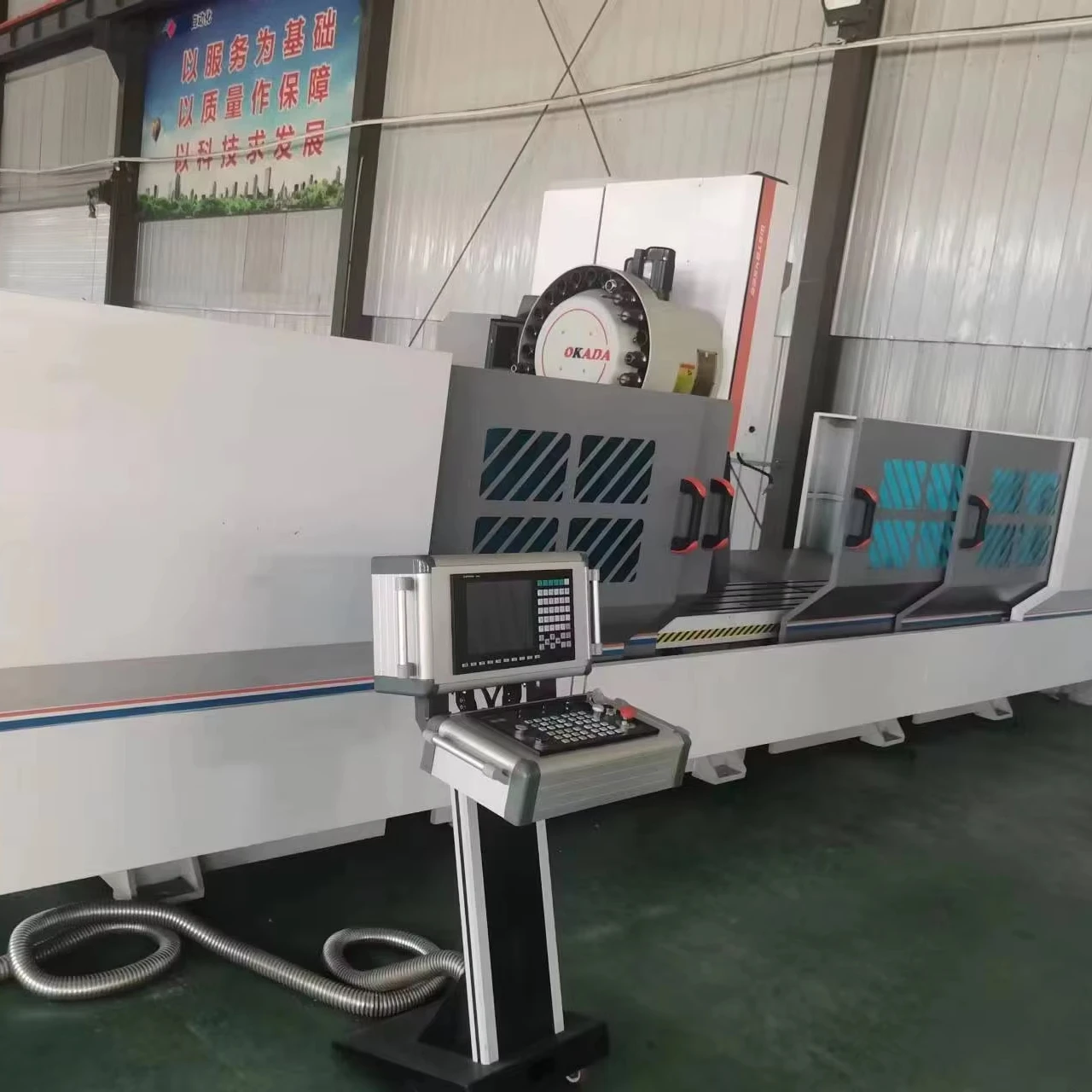

CNC 5 Aixs обрабатывающий центр для алюминиевого профиля алюминиевый профиль фрезерный станок JGZX5 CNC 3000
- Категория: >>>
- Поставщик: Jinan Mag Group Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601000354868:
Описание и отзывы
Характеристики
Product Overview

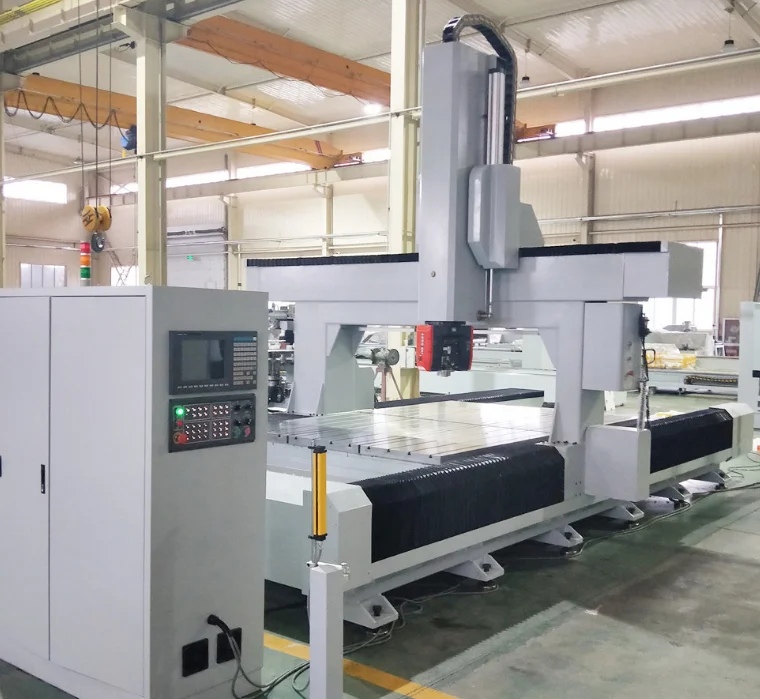

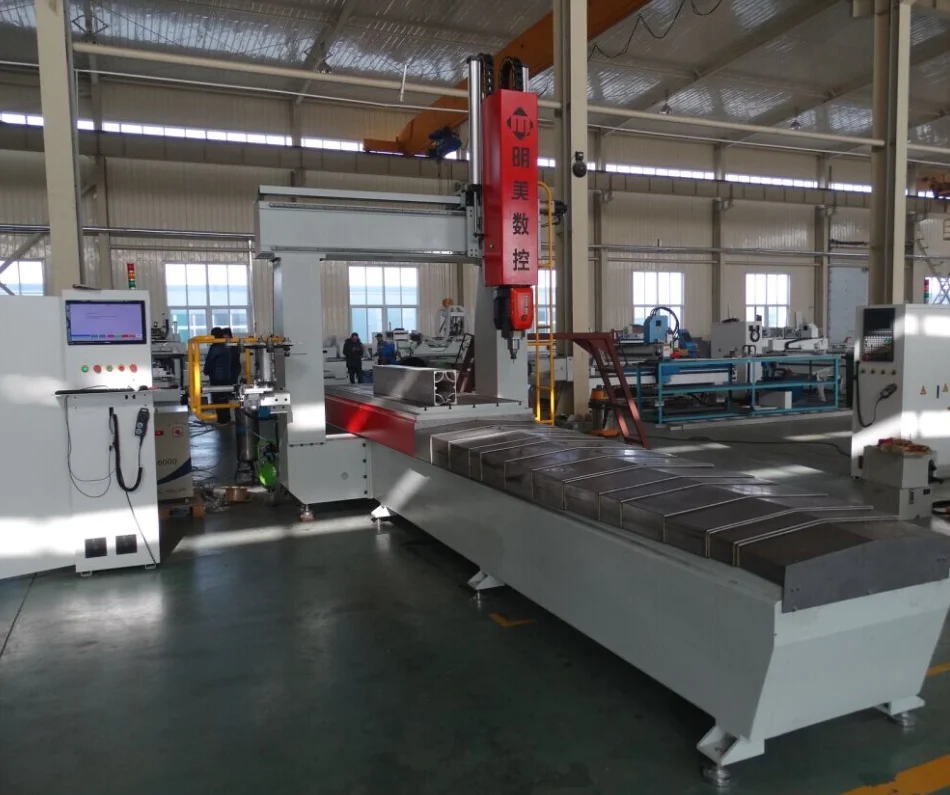

5 Axis Machining Center JGZX5-CNC-3000
1.1 This machine is specially for cutting, hole drilling, groove milling processing on all kinds of aluminum profile, plastic steel.
1.2 It is widely used on process of mold, casting, ceramic sanitary, ship, aerospace chemical industry, rail transportation, photovoltaic, aluminum doors and windows, high speed rail motor car track aluminum alloy, top grade hotel restaurant revolve door, etc

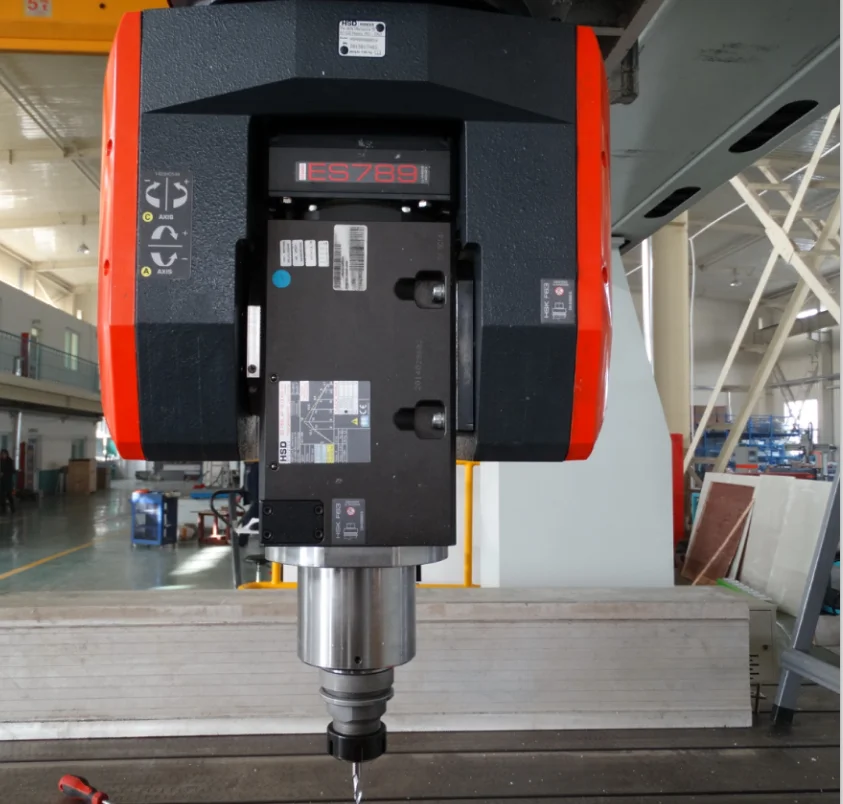

1.3 Adopt Taiwan Syntec five-axis cnc control system, with Italy HSD imported high power five-axis head, easily implement stereoscopic five-side processing one time.
1.4 Machine transmission adopt Japan Yaskawa servo motors and Japan SHIMPO high performance reducer. Taiwan ball screw, fast speed, low noise , high precision , long use life etc advantages.
1.5 Diversification control, can control the processing speed, blank space speed, the cutting speed, improve the quality and efficiency of processed products.
1.6 Unique saw blade cutting function, can realized high precision cutting in different orientation and degrees.
1.7 Self-developed system software, easy to operate and can meet different requirements of processing.
1.2 It is widely used on process of mold, casting, ceramic sanitary, ship, aerospace chemical industry, rail transportation, photovoltaic, aluminum doors and windows, high speed rail motor car track aluminum alloy, top grade hotel restaurant revolve door, etc
1.3 Adopt Taiwan Syntec five-axis cnc control system, with Italy HSD imported high power five-axis head, easily implement stereoscopic five-side processing one time.
1.4 Machine transmission adopt Japan Yaskawa servo motors and Japan SHIMPO high performance reducer. Taiwan ball screw, fast speed, low noise , high precision , long use life etc advantages.
1.5 Diversification control, can control the processing speed, blank space speed, the cutting speed, improve the quality and efficiency of processed products.
1.6 Unique saw blade cutting function, can realized high precision cutting in different orientation and degrees.
1.7 Self-developed system software, easy to operate and can meet different requirements of processing.
FEATURES AT A GLANCE
safety frame
more supermatic
high accuracy
easy to operate
PRODUCT SPECIFICATIONS
Brand | MAG |
Model | JGZX5-CNC-3000 |
Power supply | 380v 50Hz |
Air pressure | 0.5~0.8MPa |

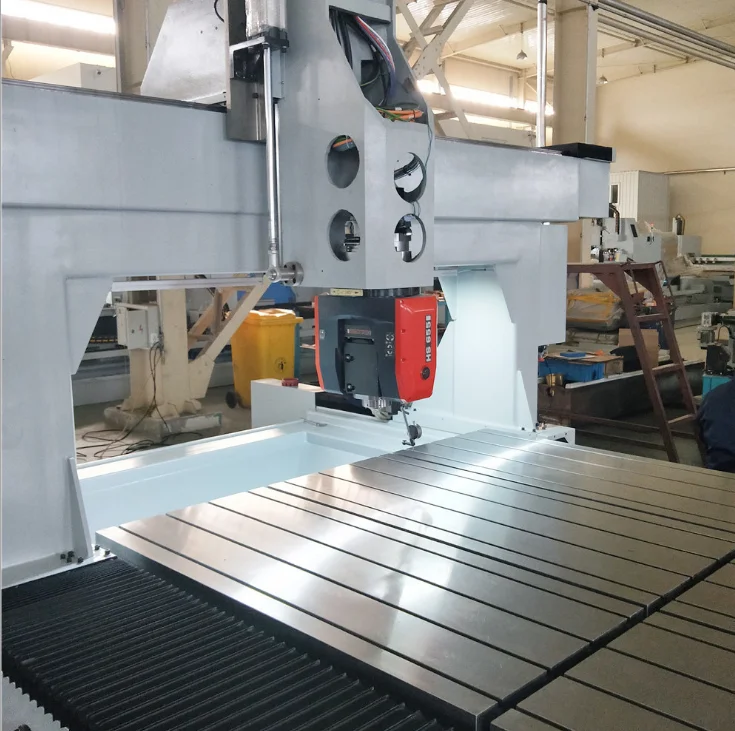

Main Spindle | HSD Model HS655 |
Output power of spindle | 15KW |
Max rotary speed | 24000R/min |
Saw blade rotary speed | 4000rpm |
Max. Diameter of the saw blade | 300mm |
Profile Processing range | X: 1000mm Y:6000mm |
Z-axis journey | 500mm C ±240° A ±120° |
X-axis Speed | 20000mm/min |
Y-axis Speed | 30000mm/min |
Z-axis Speed | 15000mm/min |
Re-positioning accuracy | ±0.05mm |
Overall dimension | 8500x2500x3000mm |
Total weight | 6000kg |
MAIN PARTS BRAND
Servo system | YASKAVA servo system |
Inverter | Delta inverter |

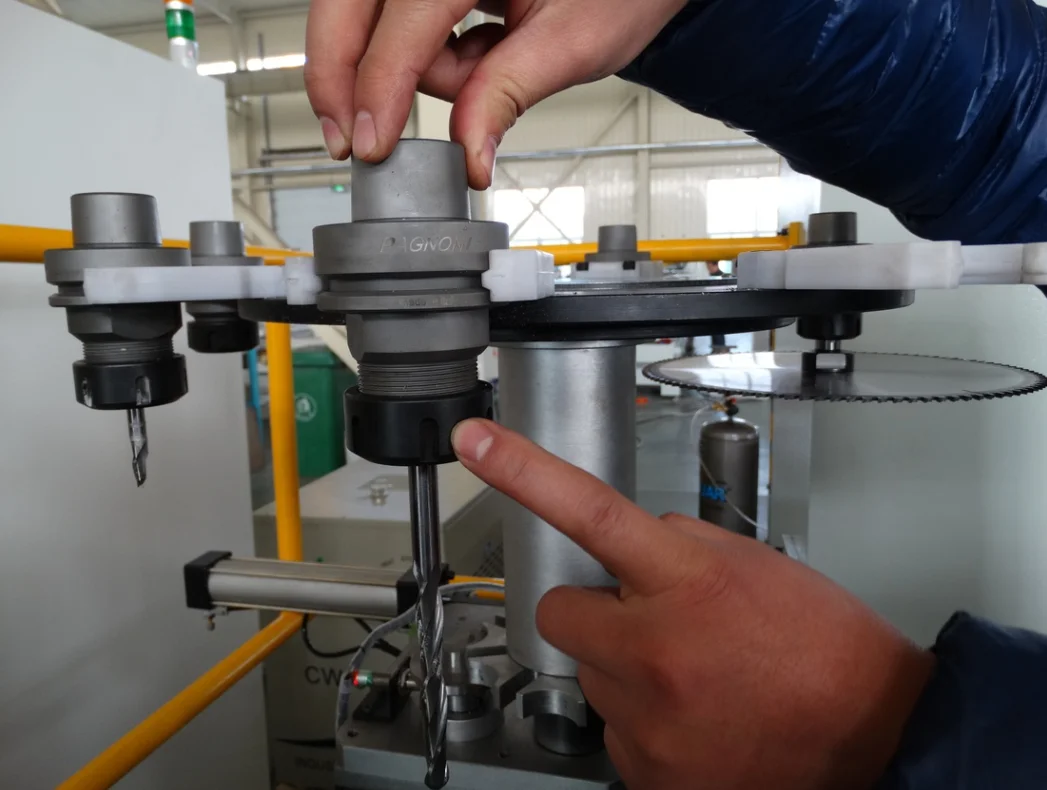

Tool magazine | Carousel tool magazine (8 positions) |
Tool holder specifications | HSK.F63.ER40 |
Control system | Taiwan Syntec 200MA, G code |
CERTIFICATIONS
CUSTOMER SHOW
COMPANY PROFILE
Jinan Mag Group Co., Ltd. is one professional window solution supplier in Shandong province, China. Our products cover CNC processing machine, Aluminum window making equipment, insulating glass machine, Upvc window machine, curtain wall processing equipment, insulating glass and related insulating glass materials, etc.
With the progress of internationalization and globalization, we have 5 subsidiaries, 4 major production bases and Mingmei CNC, Hengdi brand names. At present, our products have been sold to more than 50 countries and regions. Relying on the sales centers of various countries, we also established service centers to provide customers with products and services efficiently.
Technology innovation is the vitality of an enterprise. We always keep continual innovation and development, following global scientific research results. Mag Group embraces a R&D institute with over 20 scientific researchers and scientific research platforms equipped with advanced devices.
We achievements are successfully awarded the access to National Torch Plan projects, National Key New Product, Scientific Achievements Promotion Projects in National Construction Industry, Scientific Achievements Promotion Projects by Ministry of Construction and Government Green Procurement List.
Also, we has been awarded many honorary titles, such as National Hi-Tech Enterprise, Leading China Enterprise with Independent Innovation in Construction Technology, Shandong Provincial Government Quality Award, Leading Enterprise in Intellectual Property.
With the progress of internationalization and globalization, we have 5 subsidiaries, 4 major production bases and Mingmei CNC, Hengdi brand names. At present, our products have been sold to more than 50 countries and regions. Relying on the sales centers of various countries, we also established service centers to provide customers with products and services efficiently.
Technology innovation is the vitality of an enterprise. We always keep continual innovation and development, following global scientific research results. Mag Group embraces a R&D institute with over 20 scientific researchers and scientific research platforms equipped with advanced devices.
We achievements are successfully awarded the access to National Torch Plan projects, National Key New Product, Scientific Achievements Promotion Projects in National Construction Industry, Scientific Achievements Promotion Projects by Ministry of Construction and Government Green Procurement List.
Also, we has been awarded many honorary titles, such as National Hi-Tech Enterprise, Leading China Enterprise with Independent Innovation in Construction Technology, Shandong Provincial Government Quality Award, Leading Enterprise in Intellectual Property.
PACKING AND DELIVERYING
Похожие товары

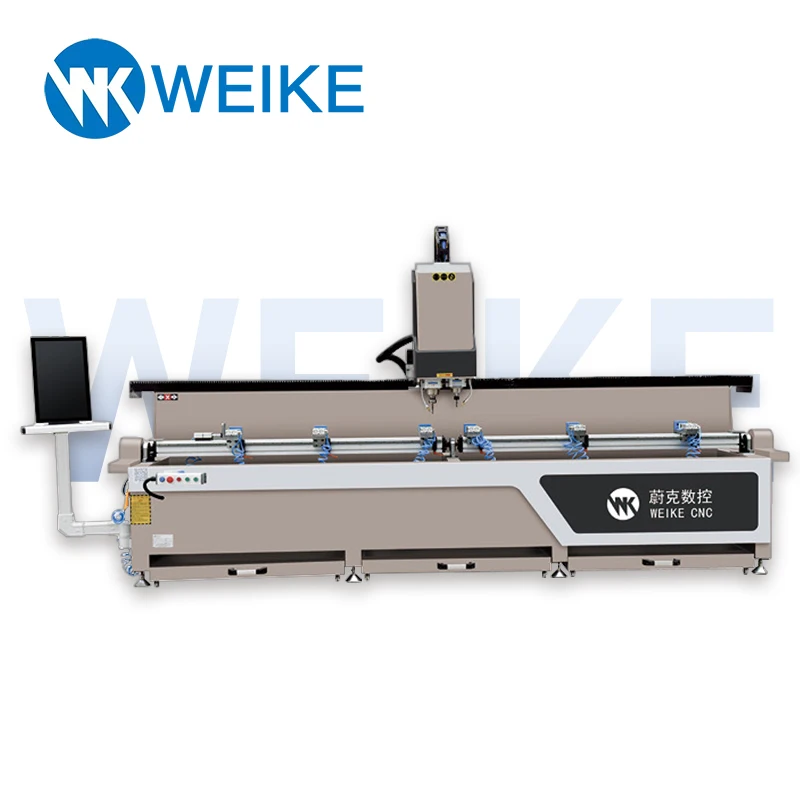

WEIKE алюминиевый профиль CNC сверлильный и фрезерный станок оконный 3000 центр
6 940,00-7 140,00 $
Windows maching Center CNC козловой центр для алюминиевого профиля/сверлильный станок/фрезерный станок
11 392,50-11 550,00 $
ЧПУ 4 оси сверлильно-фрезерный станок алюминиевый обрабатывающий центр с
52 000,00-54 000,00 $
Высокоскоростной обрабатывающий центр для обработки сверления и фрезерования с ЧПУ алюминиевых профилей большой ход высокая точность
11 025,00-11 550,00 $
Алюминиевый CNC сверхдлинный сверлильный и фрезерный станок китайский центр для алюминиевого профиля
Алюминиевый профиль CNC обрабатывающий центр сверлильный фрезерный станок 4 оси
72 857,00 $

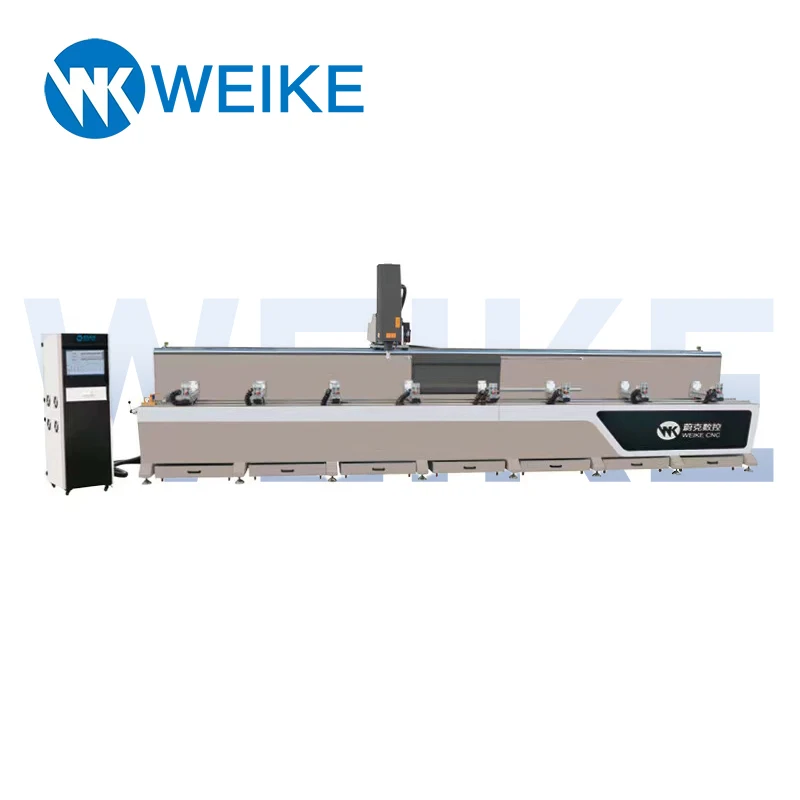

WEIKE ЧПУ 3-осевой обрабатывающий центр с подвижной козловой структурой для сверлильного фрезерного станка окон и дверей
