Китай Топ бренд гидравлическая роторная буровая установка SR155

Китай Топ бренд гидравлическая роторная буровая установка SR155

Категория: >>>
Поставщик: Richmchn Machinery Engineering (Shanghai) Co. Ltd.Richmchn Ltd.

Цена:230 000,00-280 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Contact Way

Alune Xie —— Sales Manager

Mobile/Wechat/WhatsApp: +86 193-1332-9653
Email: alune@richmchn.com

Products Description

Rotary Drilling Rig SR150

SR150 Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.Technical Characteristics:

* The machine adapt single row rope for main winch to figure out the wear of steel rope. and extend the life-span.

1. With infrared camera for observing main winch, Manipulator can observe the state of steel rope at day and night in cab.

2. Optional configuration according to customers' requirement Excellent expansibility.

3. Adopting the imported supercharged engine with European III effluent standard. Meet environmental rotection and energy conservation.

4. With the hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation.

5. The patented parallelogram articulated structure actualizes a wider work range. The highly strengthened box-type steel structure design makes the mast of highly-rigidity and anticontored, therefore the drill accuracy is heightened.

6. The complete machine has passed CE certification of TuV Rheinland group.

7. Standard centralized lubricating system, allowing easier maintenance.

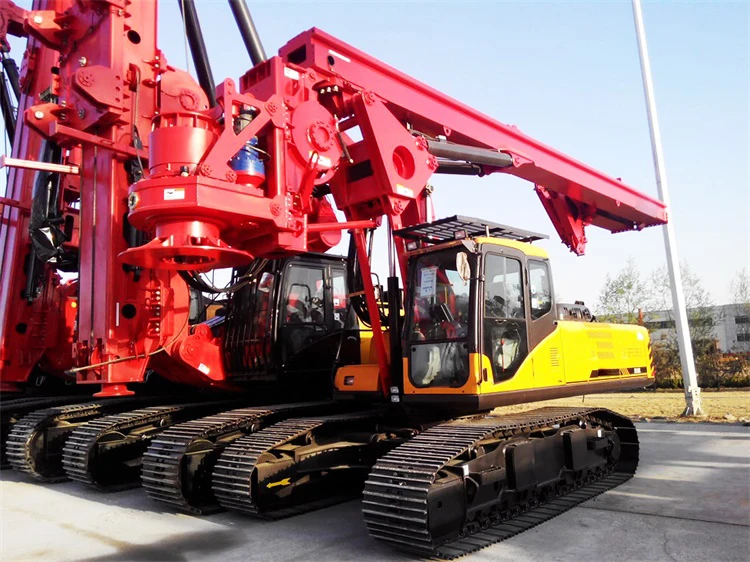

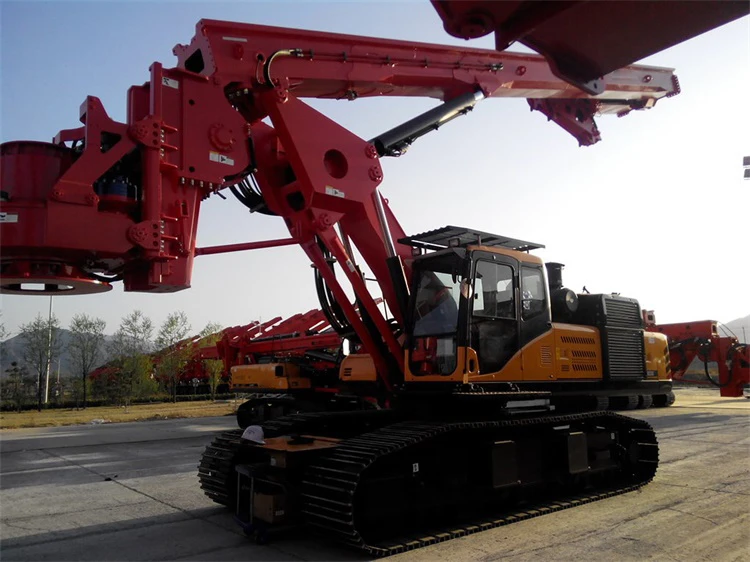

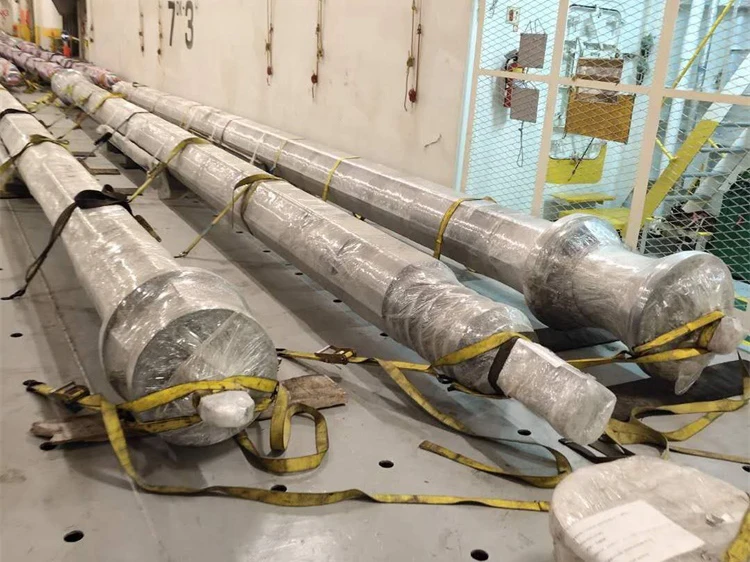

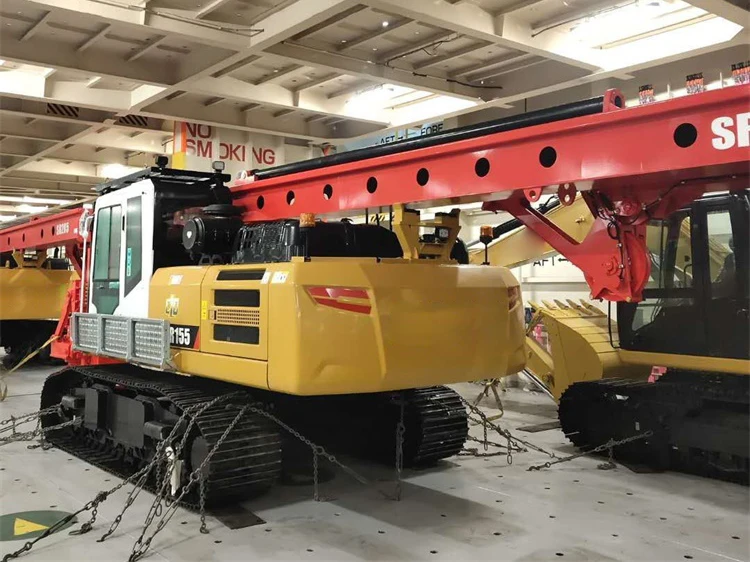

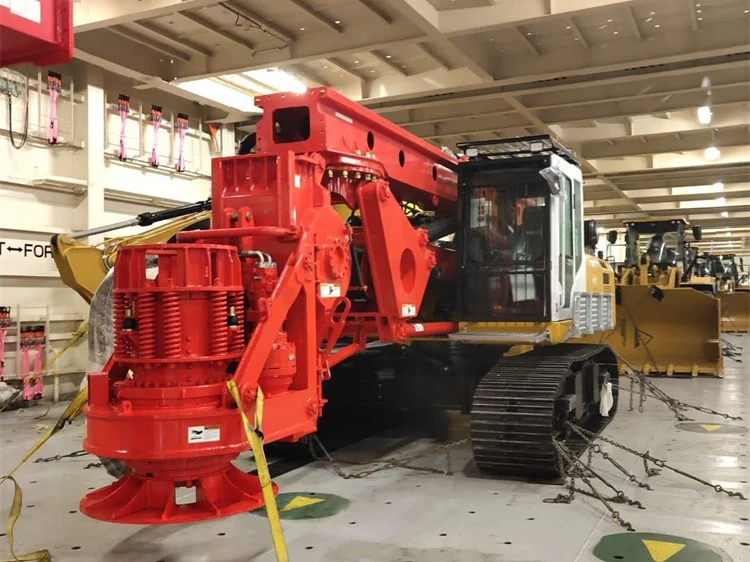

Details Images

Product Paramenters

SR150C	Unit	Parameters
Max.Drilling Dia.	mm	1500
Max.Drilling Depth	m	55
largest torque	kN.m	150
Speed of rotary drive totation	rpm	7-14
Max.push	kN	150
Max.pull	kN	160
Crowd stroke	mm	4250
Mast sideward	.	(+/-)5
Mast forward	.	5
Main winch pull(1st layer)	kN	160
Main winch wire rope dia.	mm	28
Max.main winch line speed	m/min	70
Aux.winch pull(1st layer)	kN	60
Aux.winch wire rope dia.	mm	14
Rotary table slewing angle			°
