Product Overview
Magnetic drive pump Series
Micro Magnetic Chemical Pump is generally designed for no shaft seal, completely avoids defects of pollution after corrosion caused by liquid leakage, which exists in traditional mechanical shaft seal pump. It is the optimum liquid transport pump on the industrial equipment. Magnetic drive pump compact structure, small size, low noise, smooth operation, is widely used in chemical, pharmaceutical, petroleum, electroplating, food, scientific research institutions, national defense industry and other units pumping acid and alkali, oil, rare precious liquid, venom, volatile liquid, as well as circulating water equipment supporting, filter supporting, especially easy to leak flammable, explosive liquid pumping, choose magnetic pump more ideal.
FEATURES AT A GLANCE
LOW NOISE
SMALL SIZE
HIGH EFFICIENCY
COMPACT STRUCTURE
PERFECT ANTI-CORROSION
SMOOTH OPERATION
WIDE RANGE OF APPLICATION
PRODUCT SPECIFICATIONS
Model | Steel Beer Pump MP 40RM |
Material | 304 stainless steel + Food grade high temperature resistance polypropylene+ Ceramic+Ternary ethylenepropylene rubber(EDM) |
Size | 250 L*120 W*130 H |
Interface | Thread interface Out-inlet 3/4inch |
Max. Head | 4.6/6.5 m |
Max. Capacity | 45/52 L/min |
Output | 65 w |
Work Temperature | 0℃~140℃(32F~284F) |
Applications | Use to dispense beer, treat water, transfer hot water from your kettle to a mash tun, or recirculate mash wort and sparge and transfer to a brew kettle |
Features | 1. This pump is full-sealed structure, avoids liquid leakage. 2. High working temperature, the maximum working temperature is 140℃ 3. Allow long-time working. 4. This pump is not a self-priming pump, it cannot suction itself. When starting to run the pump, the pump head must be filled with liquid, so that the impeller will work normally to transfer. Do not empty transport. |
Model ----------------------- Steel Pump -----Beer----- | Tube interface(mm) | Spiral interface(inch) | Max.Capacity | Max.Head | Power | Voltage | ||||||||||
Entrance | Outlet | Entrance and exit | Live pipe | 50/60Hz (L/min) | (m) | 50/60Hz (w) | (v) | |||||||||
MP-10R(M) | 14 | 14 | G 1/2 | G 1/2 | 11/12 | 1.5/2.1 | 6 | 110/220 | ||||||||
MP-15R(M) | 16 | 16 | G 1/2 | G 1/2 | 16/19 | 2.7/3.4 | 10 | 110/220 | ||||||||
MP-20R(M) | 18 | 18 | G1/2 | G1/2 | 27/32 | 3.1/4.3 | 15 | 110/220 | ||||||||
G3/4 | G3/4 | |||||||||||||||
MP-30R(M) | 20 | 20 | G 3/4 | G 3/4 | 33/38 | 3.8/5.4 | 25 | 110/220 | ||||||||
MP-40R(M) | 20 | 20 | G 3/4 | G 3/4 | 45/52 | 4.6/6.5 | 65 | 110/220 | ||||||||
MP-55R(M) | 26 | 26 | G 1 | G 1 | 60/70 | 5.6/8.2 | 90 | 220/380 | ||||||||
MP-70R(M) | 26 | 26 | G 1 | G 1 | 86/97 | 6.7/9.7 | 150/180 | 220/380 | ||||||||
MP-100R(M) | 26 | 26 | G 1 | G 1 | 120/130 | 8.6/11.6 | 250/265 | 220/380 | ||||||||
R represents tube interface type RM represents thread interface type(BSP&NPT spiral) | ||||||||||||||||
Flange type available, Flange out diameter is 50.5mm normally | ||||||||||||||||
PRODUCT CONFIGURATION
Certifications
SIMILAR PRODUCTS
Our Service
Samply available: 7~10days. Sample is provide with full total price. Oversea Service could be provided, but you have to bear the
freight charge.
Qty: 1pc, only pump head is provided.
Price: US$500~5500
OEM is welcome
OEM expierence: more than 20 years.
Countries: Germany, U.S.A, Spain, Italy, United Kingdom etc
Warranty: the whole pump is guaranteed within 1 year, the pump's spare parts are guranteed for 3 months from the date of delivery.
If our pump is broken within 3 months, we will provide the new one to you without any delay.
For more information, please do not hesitate to contact me.
freight charge.
Qty: 1pc, only pump head is provided.
Price: US$500~5500
OEM is welcome
OEM expierence: more than 20 years.
Countries: Germany, U.S.A, Spain, Italy, United Kingdom etc
Warranty: the whole pump is guaranteed within 1 year, the pump's spare parts are guranteed for 3 months from the date of delivery.
If our pump is broken within 3 months, we will provide the new one to you without any delay.
For more information, please do not hesitate to contact me.
Packing & Delivery
Packing Details : Plywood Case, with dash and corner steel frame, 1set/case
Delivery Details : 7-30 days after order of all kinds of products
FAQ
The information should be including inquiry as following:
1.Pump's flow rate
2.Pump's Head (Pressure)
3.Driven Mode: By electric motor or diesel engine or bare shaft etc
4.Power and rotary speed
5.Suction lift for self priming pump
6.Temperature of liquid if you can provide
Upon the receipt of the pump's parameter, we can send our quotation to you within 24 hours.Or the condition of pump station would
be provided.
1.Pump's flow rate
2.Pump's Head (Pressure)
3.Driven Mode: By electric motor or diesel engine or bare shaft etc
4.Power and rotary speed
5.Suction lift for self priming pump
6.Temperature of liquid if you can provide
Upon the receipt of the pump's parameter, we can send our quotation to you within 24 hours.Or the condition of pump station would
be provided.
FAQ
1. Q: Can I know more about your products?
A: Pls view our website: www.chinalancopump.com
2. Q: What's your MOQ of this item?
A: 1~2PCS
3. Q: What is the lead time?
A: normally,5-7 days after receiving your payment, it depends on pumps.
4. Q: What is the payment term?
A: Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card
5. Q: what is the product's warranty?
A: The whole pump is warrantee for one year, while the spare parts or wetting parts about pump will be warrantee for 3 months from
the date of delivery.
6. Q: Are you a manufacturer or trading company
A: We are a manufacturer specialize in water pump and other pumps more than 20 years.
A: Pls view our website: www.chinalancopump.com
2. Q: What's your MOQ of this item?
A: 1~2PCS
3. Q: What is the lead time?
A: normally,5-7 days after receiving your payment, it depends on pumps.
4. Q: What is the payment term?
A: Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card
5. Q: what is the product's warranty?
A: The whole pump is warrantee for one year, while the spare parts or wetting parts about pump will be warrantee for 3 months from
the date of delivery.
6. Q: Are you a manufacturer or trading company
A: We are a manufacturer specialize in water pump and other pumps more than 20 years.
Похожие товары
Электрическая смазка из нержавеющей стали Китай производитель ZXB самовсасывающий насос для полива
300,00-1 200,00 $
Китай Интеллектуальный постоянный магнит переменной частоты постоянного давления самовсасывающий центробежный насос
Электрический погружной многоступенчатый насос высокого давления для нагнетания водопроводной трубы из нержавеющей стали и на заказ
310,00-325,00 $

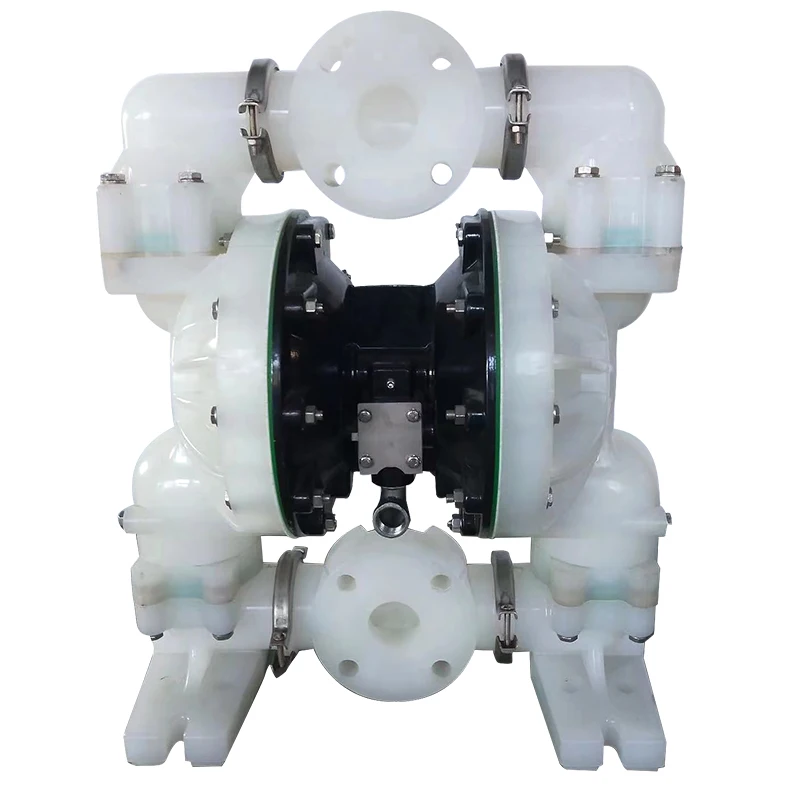

Натуральная электрическая пневматическая мембранная помпа из алюминиевого сплава нержавеющая сталь пластиковая PTFE самовсасывающий пневматический мембранный насос
99,00 $
Высококачественный индивидуальный Магнитный насос из нержавеющей стали пластиковый Электрический источник питания 75 кВт центробежный высокого давления пищевой промышленности
92,00-98,00 $

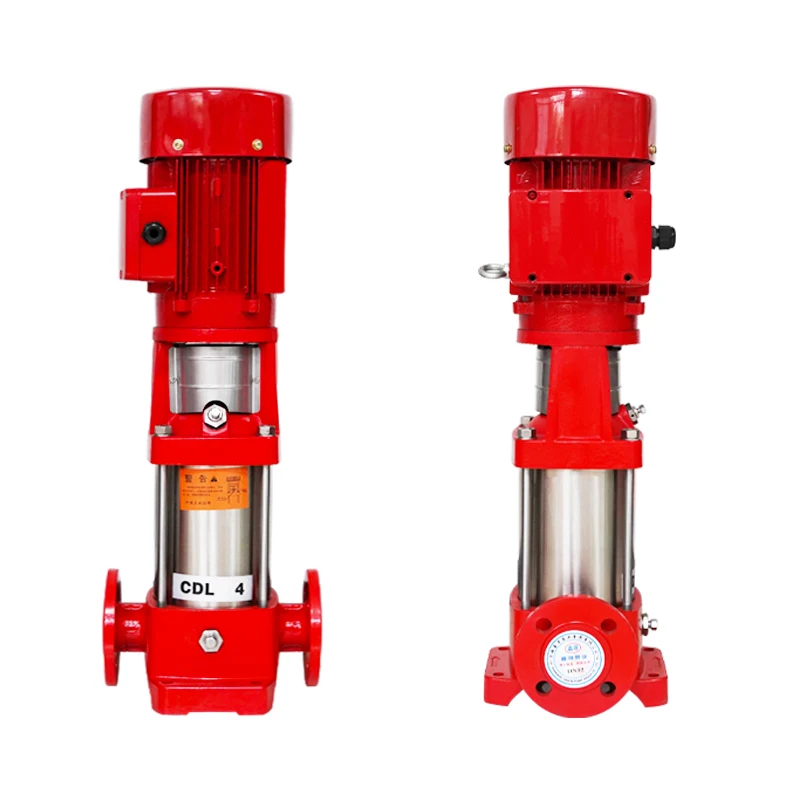

CDL/CDLF вертикальный из нержавеющей стали многоступенчатый водяной насос бустер для зданий
