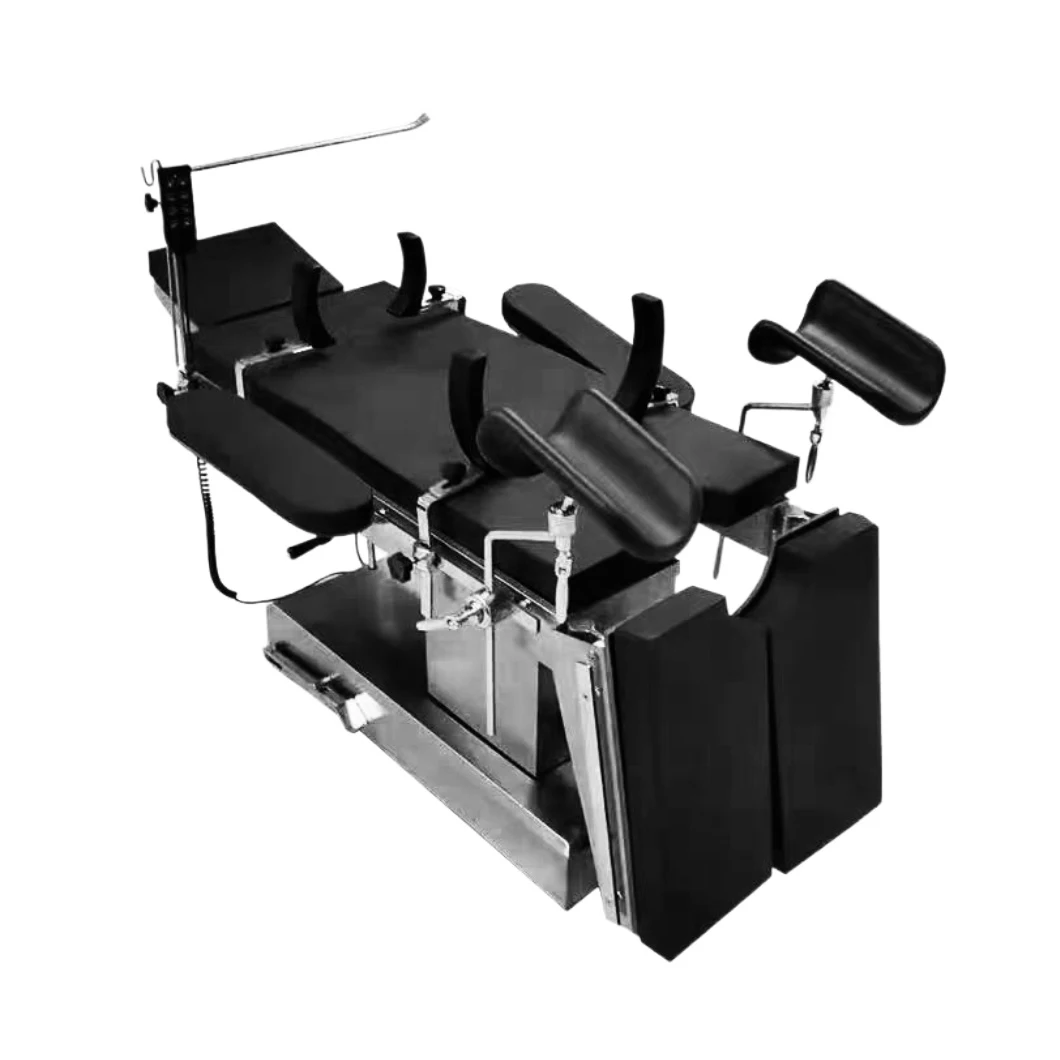

HDS 5000 медицинский многофункциональный стол для хирургической операции из нержавеющей стали
- Категория: >>>
- Поставщик: Nanjing Healicom Medical Equipment Co. Ltd.
Сохранить в закладки 1601001196958:
Описание и отзывы
Характеристики
Products Description

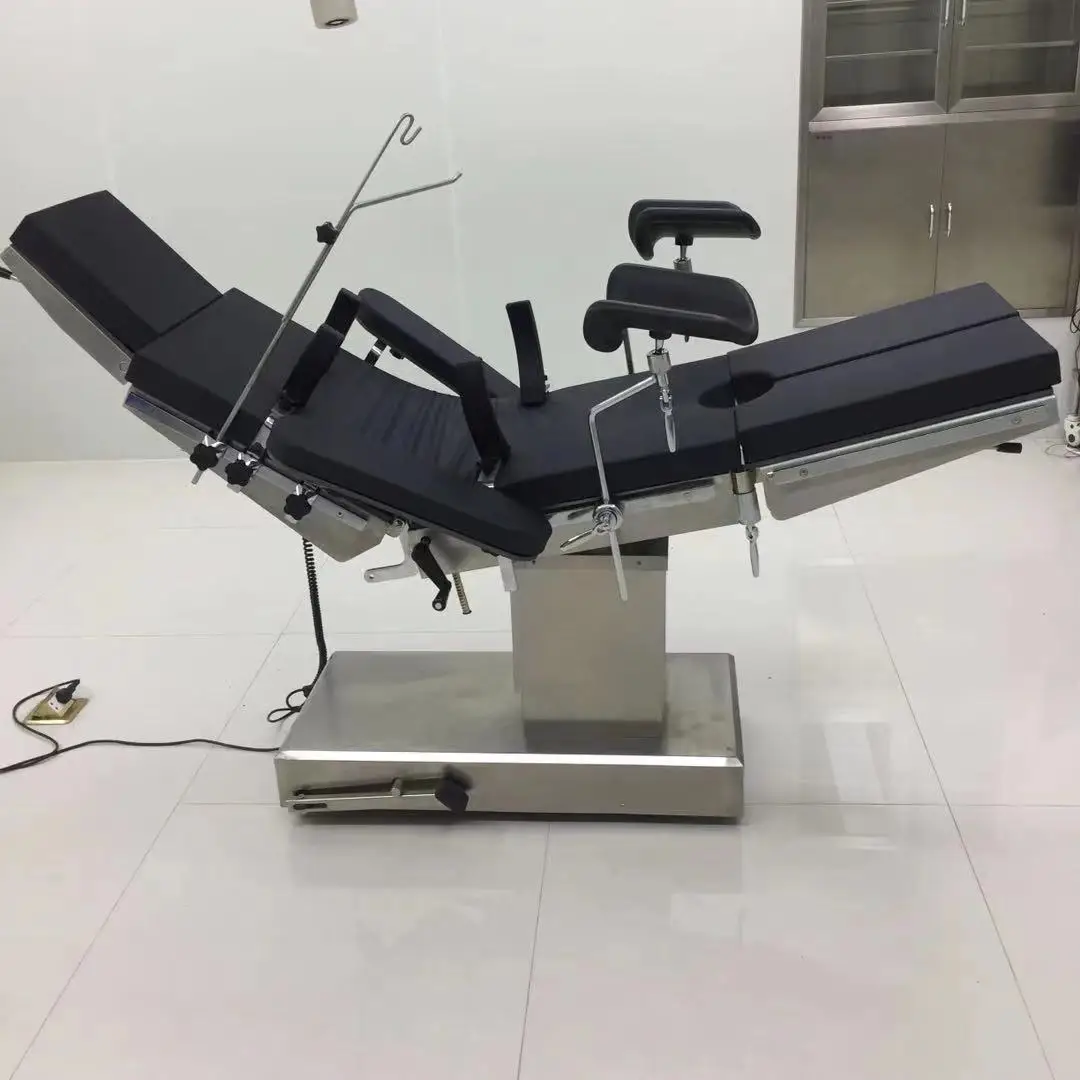

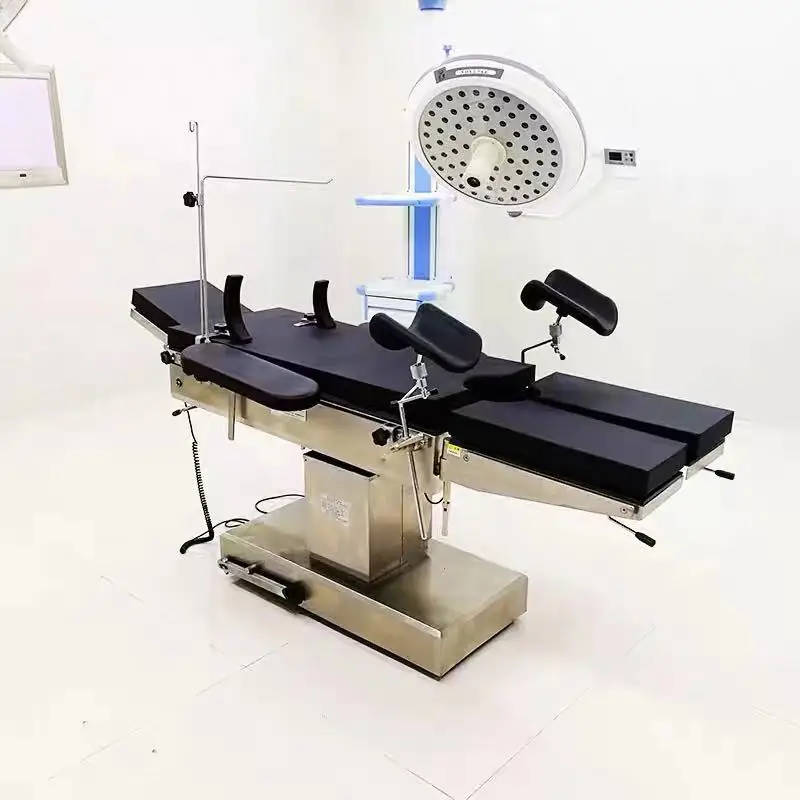

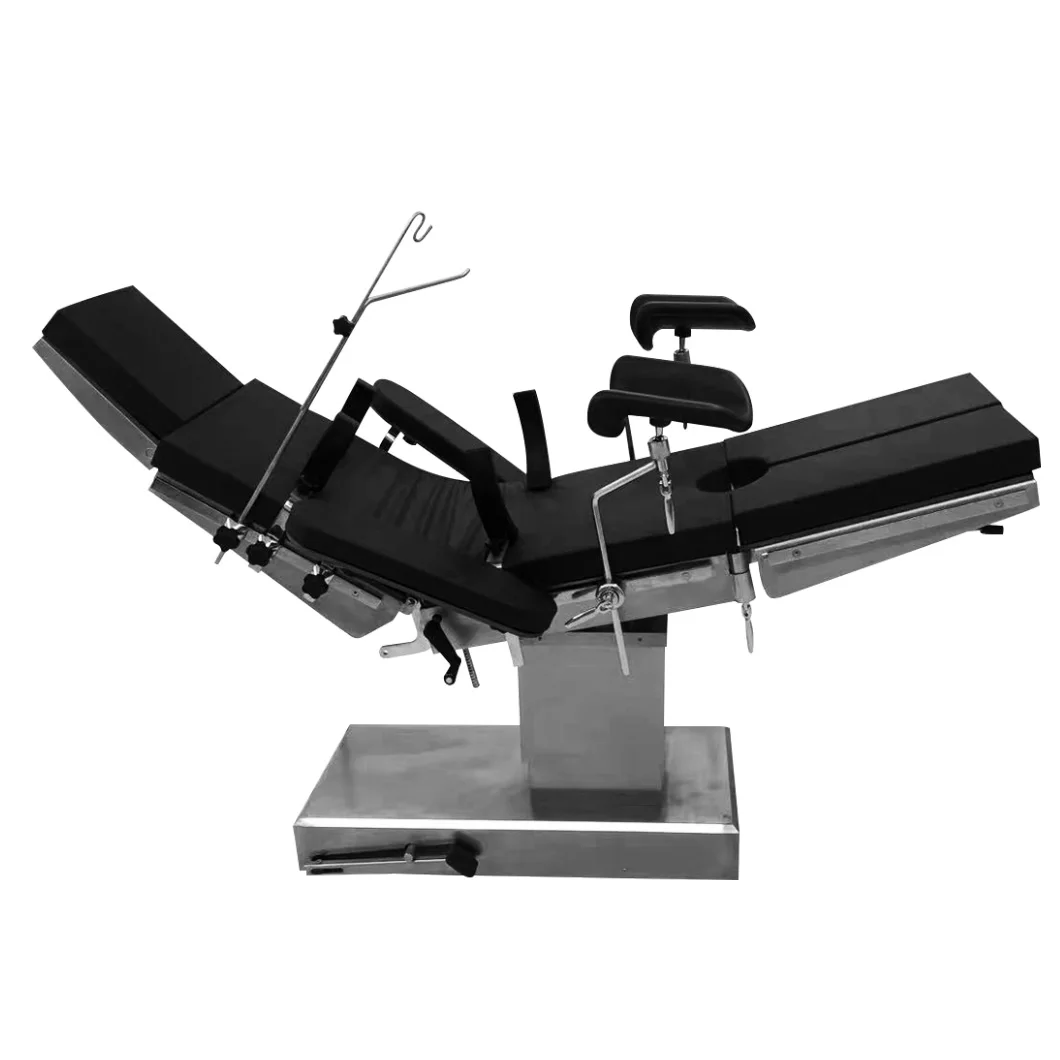

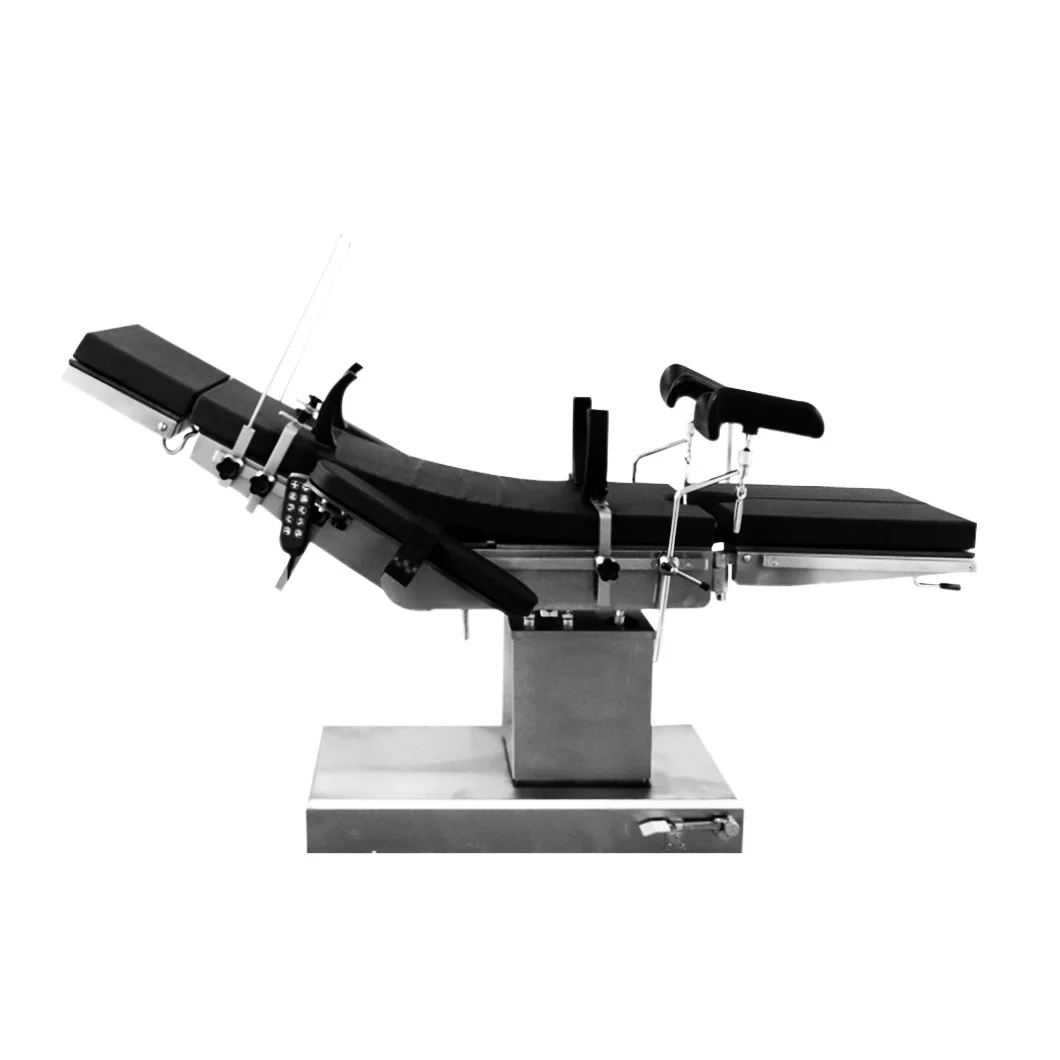

HDS-5000 Multifunction Medical Electric Operating Table
Product introduction:
The electric comprehensive operating table is used for comprehensive operations in thoracic, abdominal surgery, brain surgery, ophthalmology, ENT, obstetrics and gynecology, urology, orthopedics, etc. It can be used with C-arm X-ray machine
The product has unique advantages:
1. The main body position adjustments such as table top lifting, forward and backward tilt, left and right tilt, translation, back plate turning, etc. are all realized by button operation and electric push rod transmission;
2. The table can be moved longitudinally, and can be usedwith C-arm for radiographic examination or filming;
3. The countertop is made of high-quality acrylic board, and the mattress is made of slow-rebound memory foam to evenly share the pressure of the load. It has the advantages of corrosion resistance, acid and alkali resistance, air permeability, and easy cleaning. It can be naturally shaped according to the patient' s body temperature. Effectively prevent bedsores from patients;
4. The leg plate can be detached, manually rotated, abducted, folded down, easy to adjust, very convenient for urological surgery;
5. The head and leg plates are detachable for easy operation and provide more flexible operation space;
6. The handheld manipulator uses 24V DC voltage, which is easy to operate, safe and reliable;
7. The operating table is made of medical grade 304 stainless steel, and the surface is treated with special matt, which is more modern and more convenient to clean;
8. High-strength stainless steel bottom cover, strong pressure resistance, anti-corrosion, and easy to clean;
9. The base of the operating table has the function of fixing or moving, with wheels on the bottom, which can moveflexibly and be fixed reliably;
10. The table can be equipped with a built-in lumbar bridge to provide convenience for bile, kidney and other operations;
11. The main actions of the operating table: the table top is raised and lowered, the front of the table is tilted, the table is tilted left and right, the back plate is turned, and the bed body is translated using an electric device, which is composed of a controller, an electric push rod, etc.; head plate turning, leg plate The turning is controlled by a gas spring; the lumbar rises mechanically.
12. The electric control part is mainly composed of a power supply, a control button box, etc. The power supply used in this operating table is: the external 220V alternating current is transformed into 24V direct current through the power supply to drive the motor.
Technical parameters | ||||||||
Table length and width | 2020(±20)×500(±20)mm | |||||||
Table height | Minimum 730(±20)---Maximum 1030(±20)mm(electric) | |||||||
Left and right tilt of the table top (side tilt) | ≤20° (electric) | |||||||
Rated load | 135kg | |||||||
Longitudinal translation of the table | 300mm | |||||||
Tilt in front of the platform ≤25°, tilt back ≤20°(electric) | ||||||||
Folding on the back panel: ≤75°Folding down: ≤15°(electric) | ||||||||
Folding on the head plate ≤30°, folding down ≤90°(manual) | ||||||||
Fold down the leg plate: 90° shaft type can be expanded and 180° detachable (manual) | ||||||||

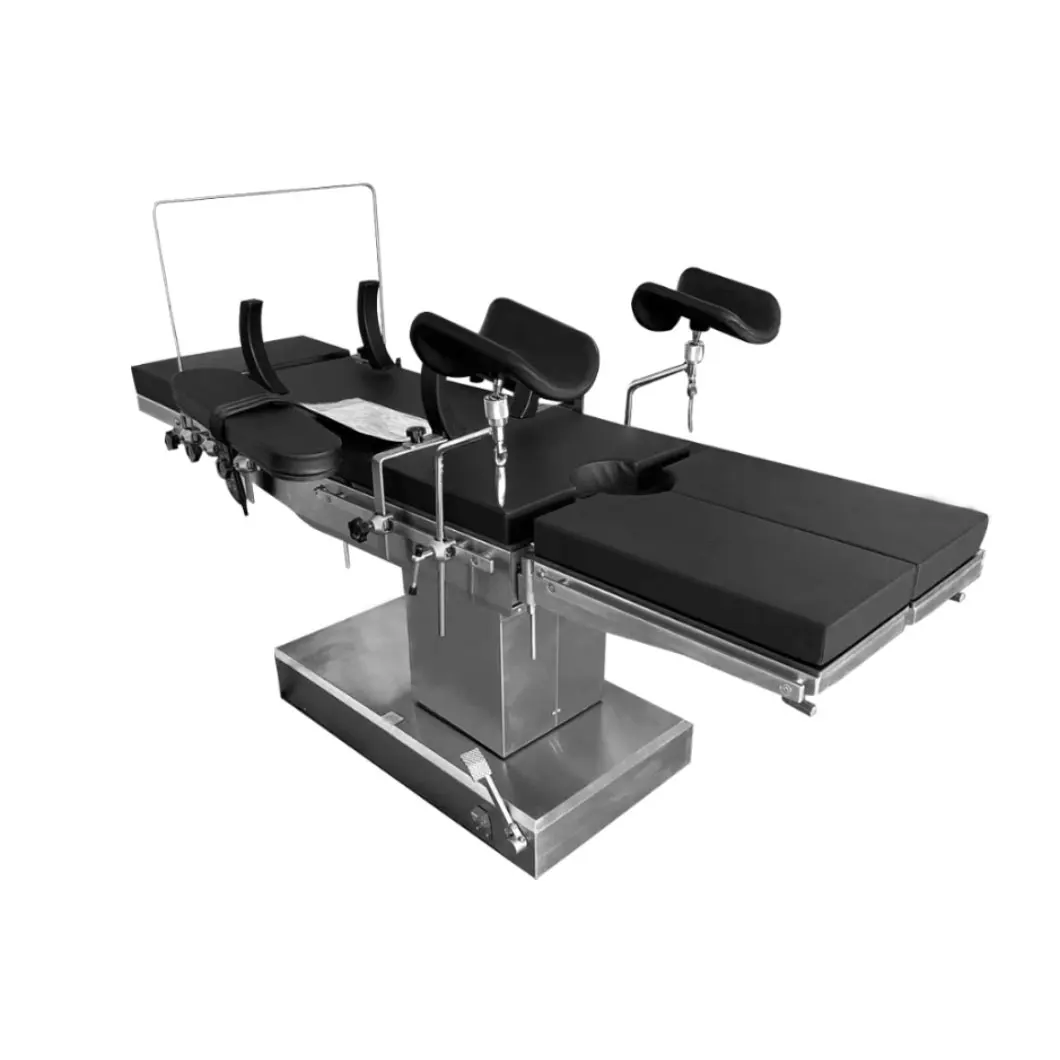

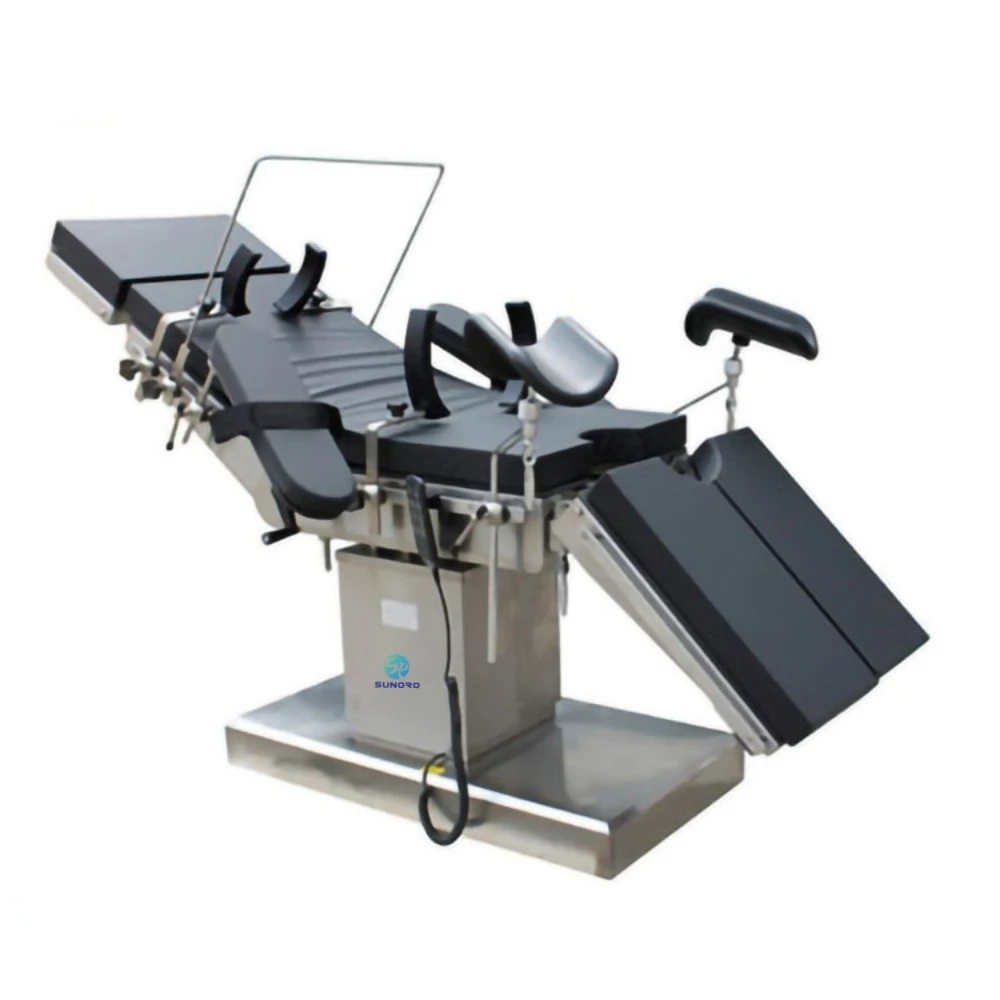

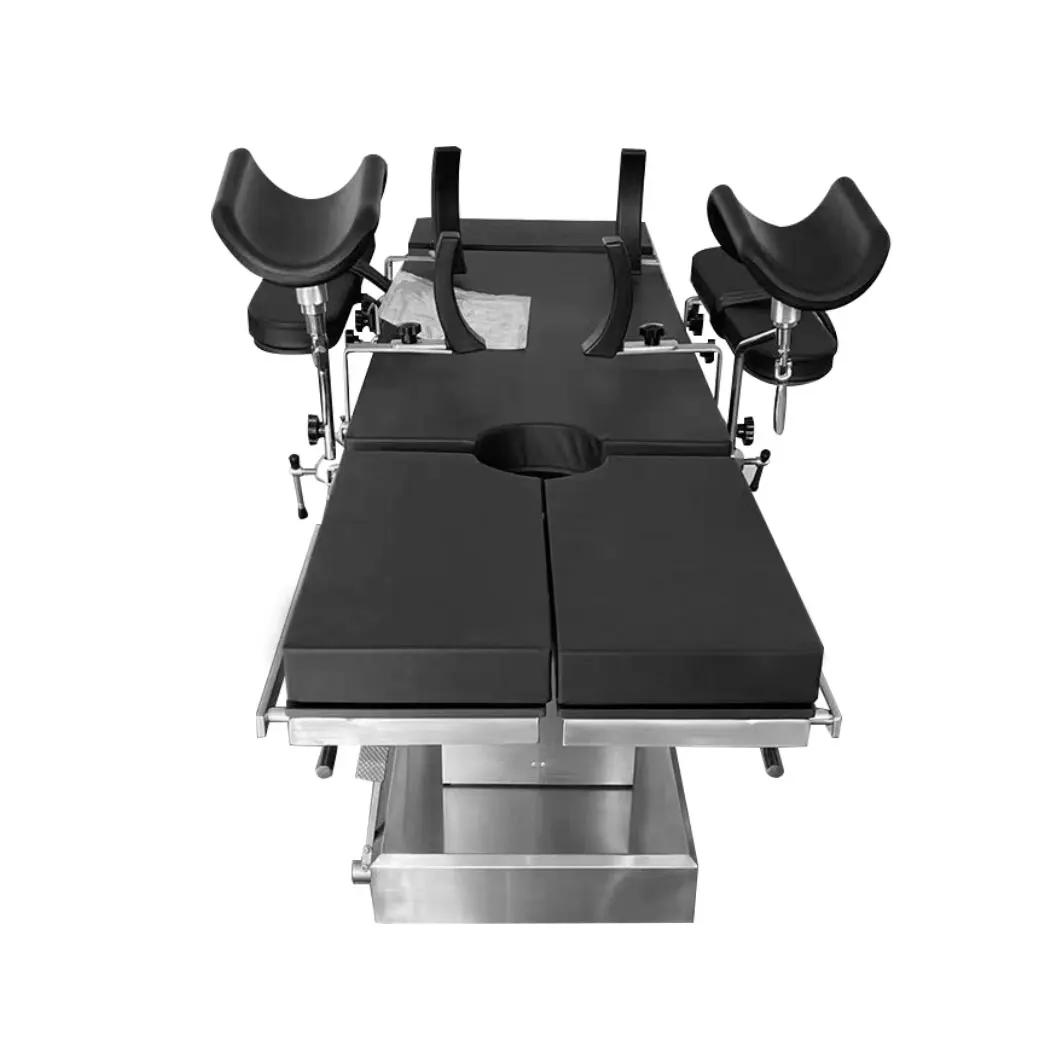

Product Image
Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
Похожие товары

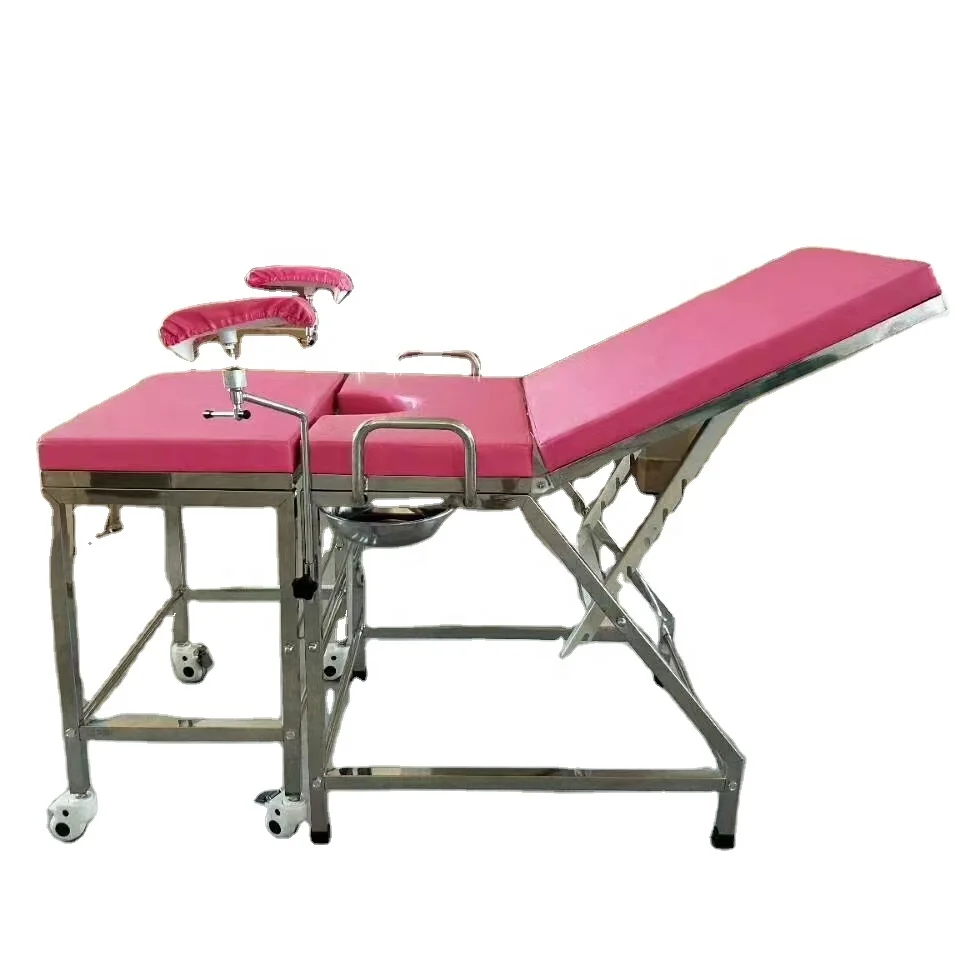

3-функциональный гинекологический операционный стол
136 737,67 ₽ - 149 099,37 ₽
Эксперт медицинский многофункциональный мобильный универсальный операционный хирургический стол ортопедической хирургии Amsco
227 715,39 ₽ - 314 464,11 ₽

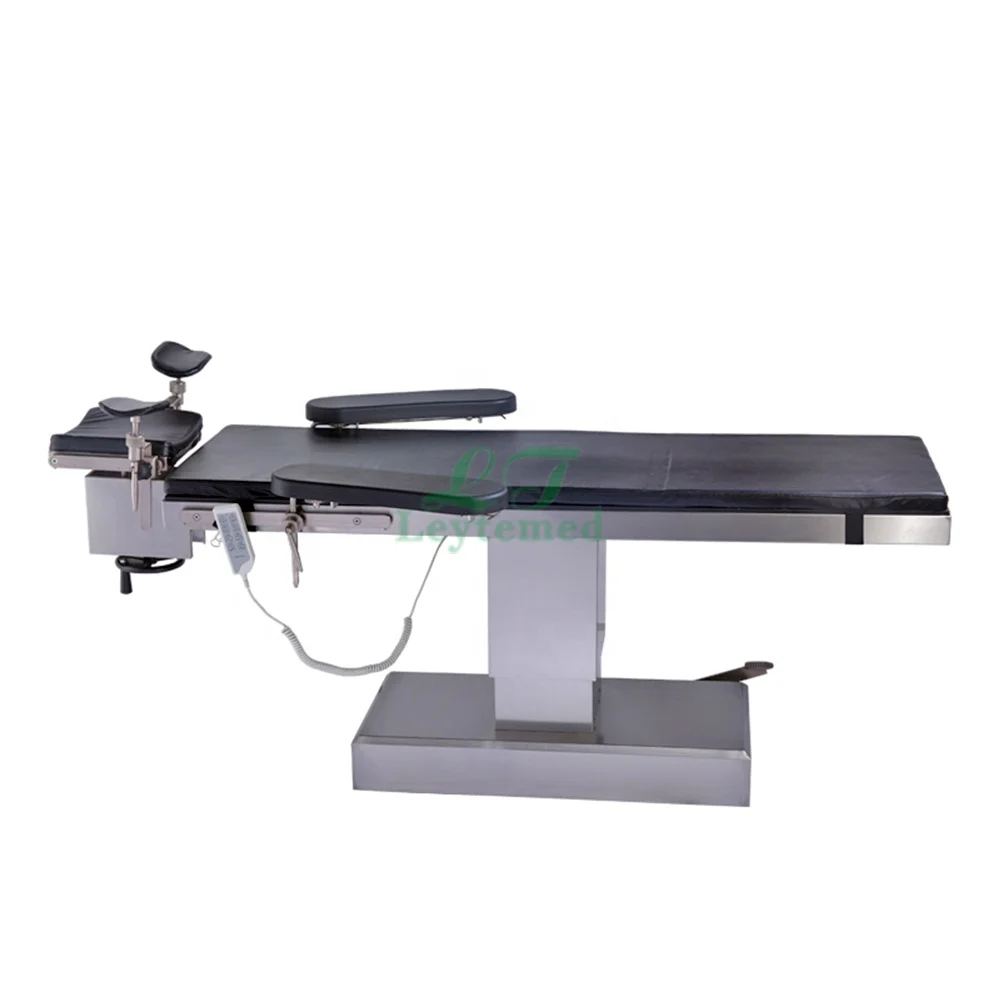

Электрическая офтальмологическая Операционная Таблица LTST05, производство Китай
