Полностью автоматический трансформатор и обмотка корпуса реактора цена производителя

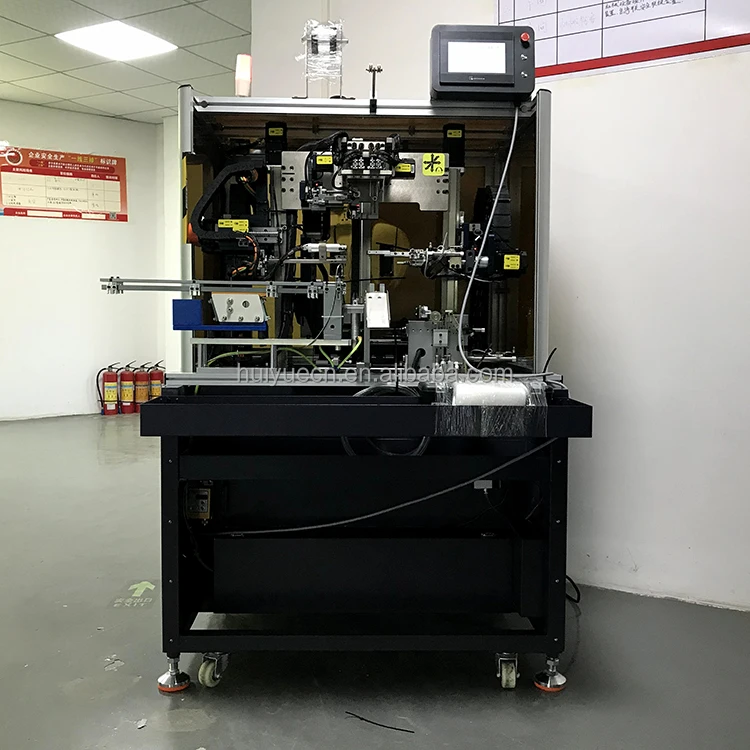

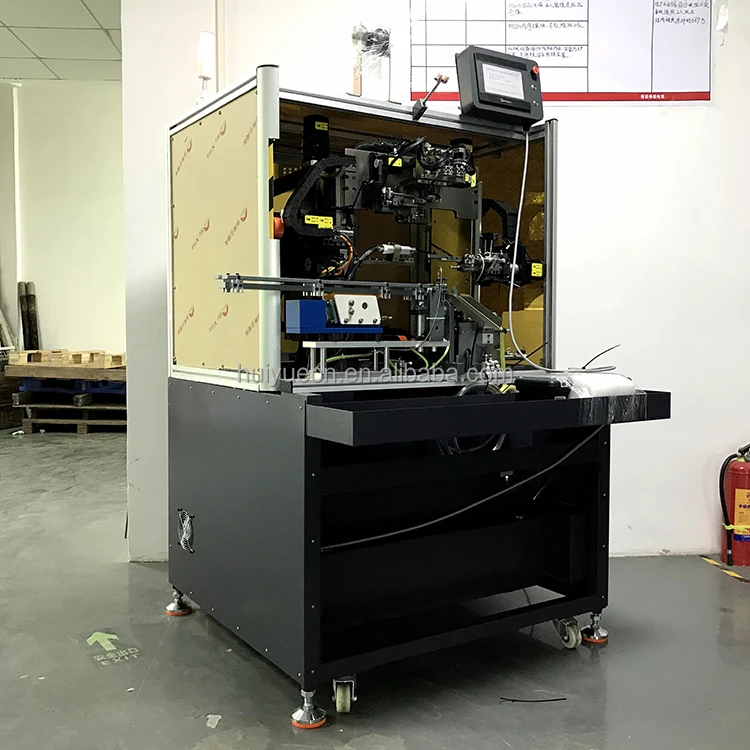

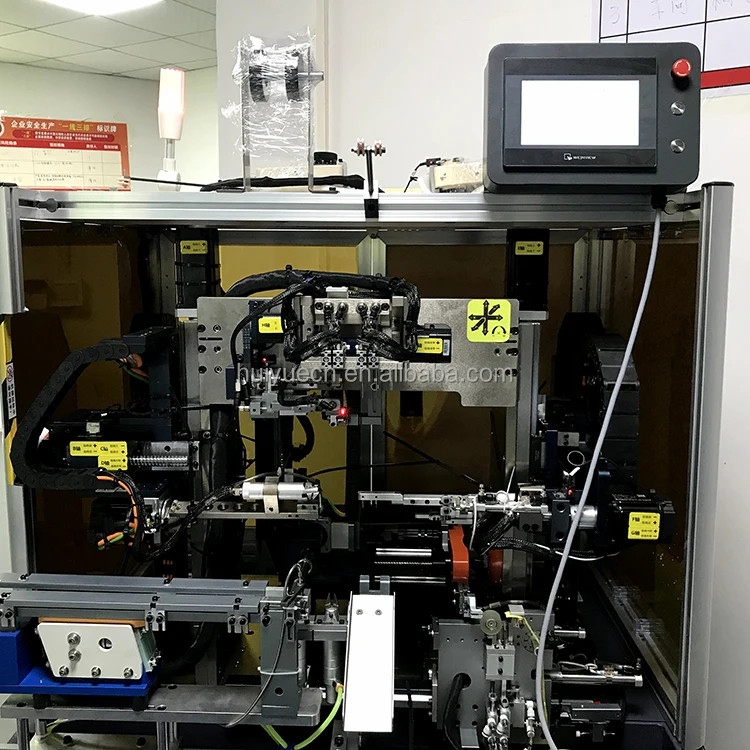

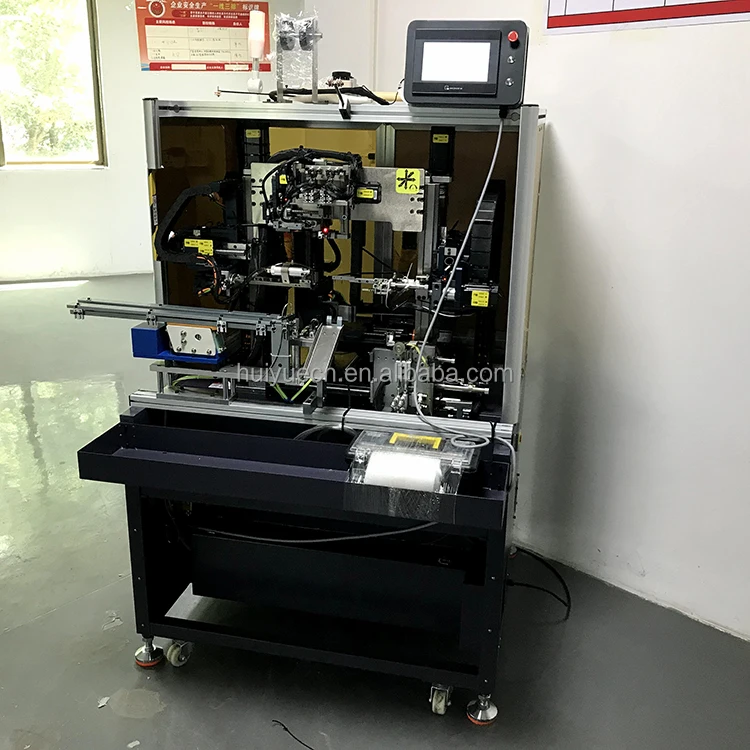

HY-R200 Full automatic transformer and reactor casing winding machine manufacturer price



qualification:
1) Scope of application: PQ series, EE series, EF series and other conventional transformer products and some special-shaped products
2) Skeleton size range: 10 series- -40 series
3) Scope of application of copper wire: 0.10mm—0.9mm enameled wire, 0.15mm—0.75mm insulated wire
4) Winding mode is applicable: single line, double line, and multiple strands, stranded line
5) glue wrapping method: winding and glue wrapping at the same time, can be positive and reverse glue wrapping requirements
6) retaining wall wrapping mode: wire wrapping is completed at the same time, can be positive and reverse wrapping requirements
7) Application scope of casing: monochrome casing, two-color casing, single casing, double casing, no casing
8) Accuracy of the thread casing: 0.05mm

Use / application area
In order to adapt to the development of all kinds of electronic products, transformer (mainly high frequency transformer, intermediate frequency transformer, electronic transformer, reactor, transformer) to small volume high power progress, lead to further improve the safety requirements, which need the use of isolation casing, the quality of the factory control and efficiency is a serious challenge. After a long time of verification and improvement, our company integrates the casing piercing and winding into the automatic winding machine during the transformer production, so that the machine can complete all the winding production, and improve the quality stability and efficiency.

Equipment model	HY-R200
Single machine size	880mm * 900mm *1600mm
Overall power	≤3.0KW
Rated voltage	power frequency 220V ± 10%
Ambient temperature	0℃ ~ +40℃
Scope of application of copper wire	0.10mm—0.9mm enameled wire, 0.15mm—0.75mm insulated wire
Skeleton size range	10 series-40 series
Winding mode is applicable	single line, double line and multiple strands, stranded line
aRubber wrapping mode	wire wrapping is completed at the same time, which can be positive and reverse wrapping requirements
Scope of application of casing	monochrome , two-color , single casing, double casing, no casing
Accuracy of wire piercing casing	≥ 0.05mm
Standard machine weight	300KG
