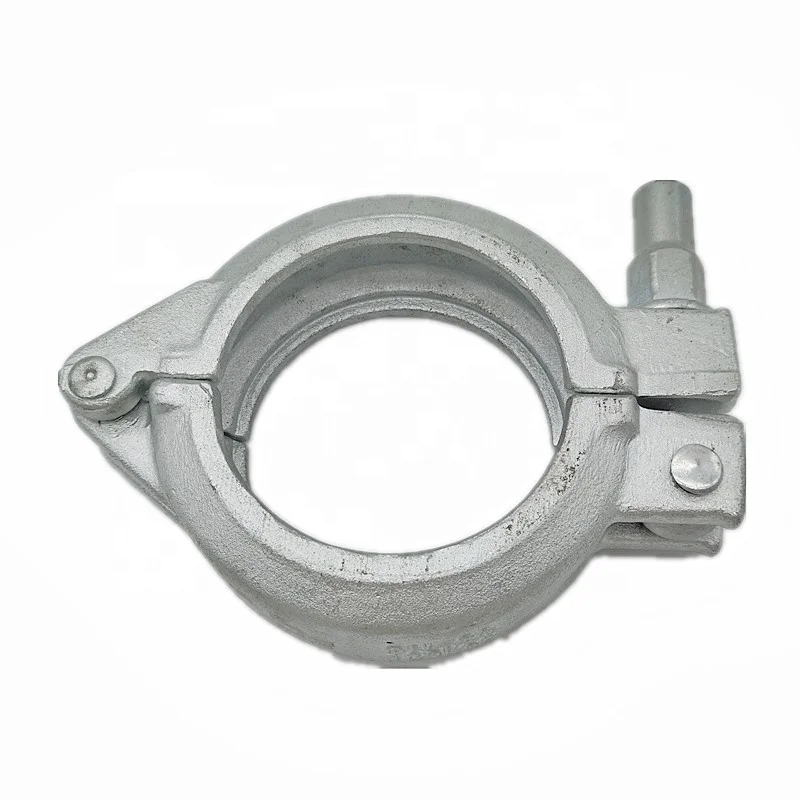

Кованый ДН 80 сплав зажим для болтов соединительная линия муфта бетонных насосов хомуты и муфты продуктов шлангов упакованные в коробку фитинги
11,48-13,99 $
Заводская распродажа различные промышленные Al2o3 глинозема керамические трубки рукав производитель
- Категория: >>>
- Поставщик: Shanxi Huazhan Wear-Resistant Material Technology Co. Ltd.Shanxi Ltd.
Сохранить в закладки 1601002041066:
Описание и отзывы
Характеристики

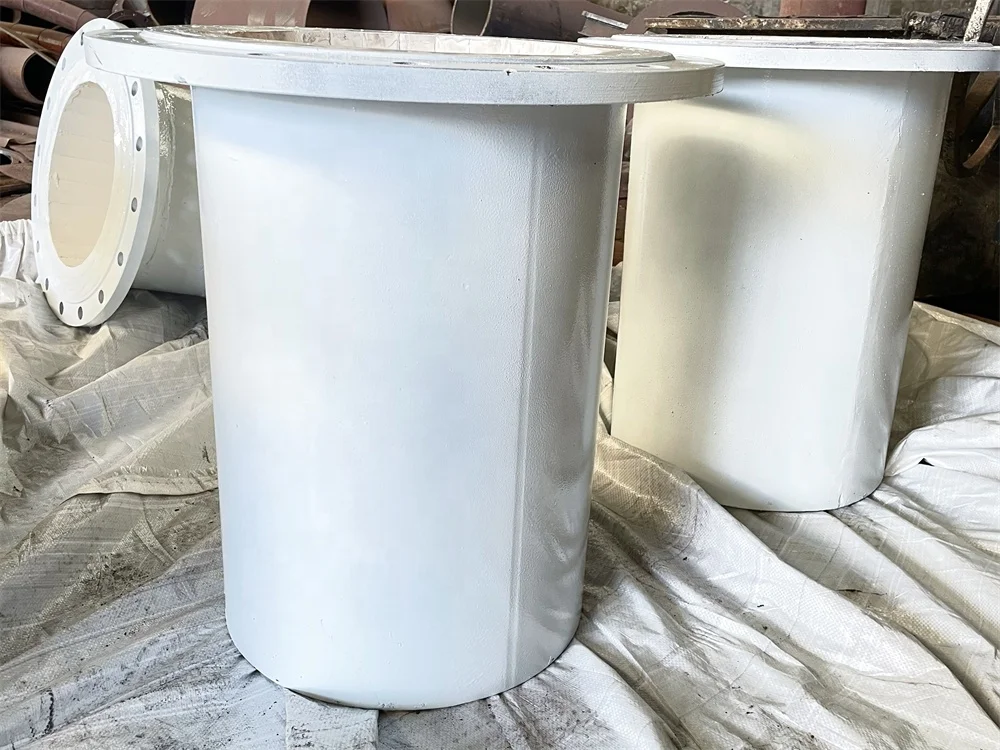

Huazhan Ceramic Patch Wear-resistant Straight Tube
Products Description
Alumina ceramics is a ceramic material with more than 95% AL2O3 as the main raw material and corundum (α-AL2O3) as the main crystal phase.
It has high mechanical strength, high hardness, high insulation resistance at high temperature, chemical corrosion resistance and thermal conductivity. Good and other excellent comprehensive technical performance, high density, low wear, impact resistance product performance characteristics, smooth surface and convenient construction, mainly used in
wear-resistant linings of equipment in coal, coal preparation, steel, mines, thermal power plants and other industries, especially suitable It is widely used in heavy medium coal conveying pipelines of coal preparation plants, conveying channels of mines and wharves, discharge ports of spiral pipes of falling troughs and dust equipment, etc.
wear-resistant linings of equipment in coal, coal preparation, steel, mines, thermal power plants and other industries, especially suitable It is widely used in heavy medium coal conveying pipelines of coal preparation plants, conveying channels of mines and wharves, discharge ports of spiral pipes of falling troughs and dust equipment, etc.
Specification | Outer diameter | Inside diameter | Wall thickness | Steel pipe thick | ||||
DN80 | 112~132 | 80 | 10~14 | 6~12 | ||||
DN100 | 132~152 | 100 | 10~14 | 6~12 | ||||
DN125 | 157~177 | 125 | 10~14 | 6~12 | ||||
DN150 | 182~202 | 150 | 10~14 | 6~12 | ||||
DN200 | 236~264 | 200 | 10~20 | 6~12 | ||||
DN250 | 286~314 | 250 | 10~20 | 6~12 | ||||
DN300 | 336~364 | 300 | 10~20 | 6~12 | ||||
DN350 | 386~414 | 350 | 10~20 | 6~12 | ||||
DN400 | 436~464 | 400 | 10~20 | 6~12 | ||||
DN450 | 486~514 | 450 | 10~20 | 6~12 | ||||
DN500 | 542~584 | 500 | 15~30 | 6~12 | ||||
DN600 | 642~684 | 600 | 15~30 | 6~12 | ||||
DN700 | 742~784 | 700 | 15~30 | 6~12 | ||||
DN800 | 842~884 | 800 | 15~30 | 6~12 | ||||
DN900 | 942~984 | 900 | 15~30 | 6~12 | ||||
DN1000 | 1046~1088 | 1000 | 15~30 | 8~14 | ||||
DN1200 | 1246~1288 | 1200 | 15~30 | 8~14 | ||||
DN1400 | 1446~1488 | 1400 | 15~30 | 8~14 | ||||
DN1600 | 1646~1688 | 1600 | 15~30 | 8~14 | ||||
DN1800 | 1846~1888 | 1800 | 15~30 | 8~14 | ||||
DN2000 | 2046~2088 | 2000 | 15~30 | 8~14 | ||||
Note: customized according to customer needs. | ||||||||
Application:
Pulverized coal conveying system of thermal power plant, dry ash conveying pipe ,Coal coal system of thermal power plant,Other powder pneumatic conveying systems Hydraulic slag conveying system and slurry transportation with large particle size.

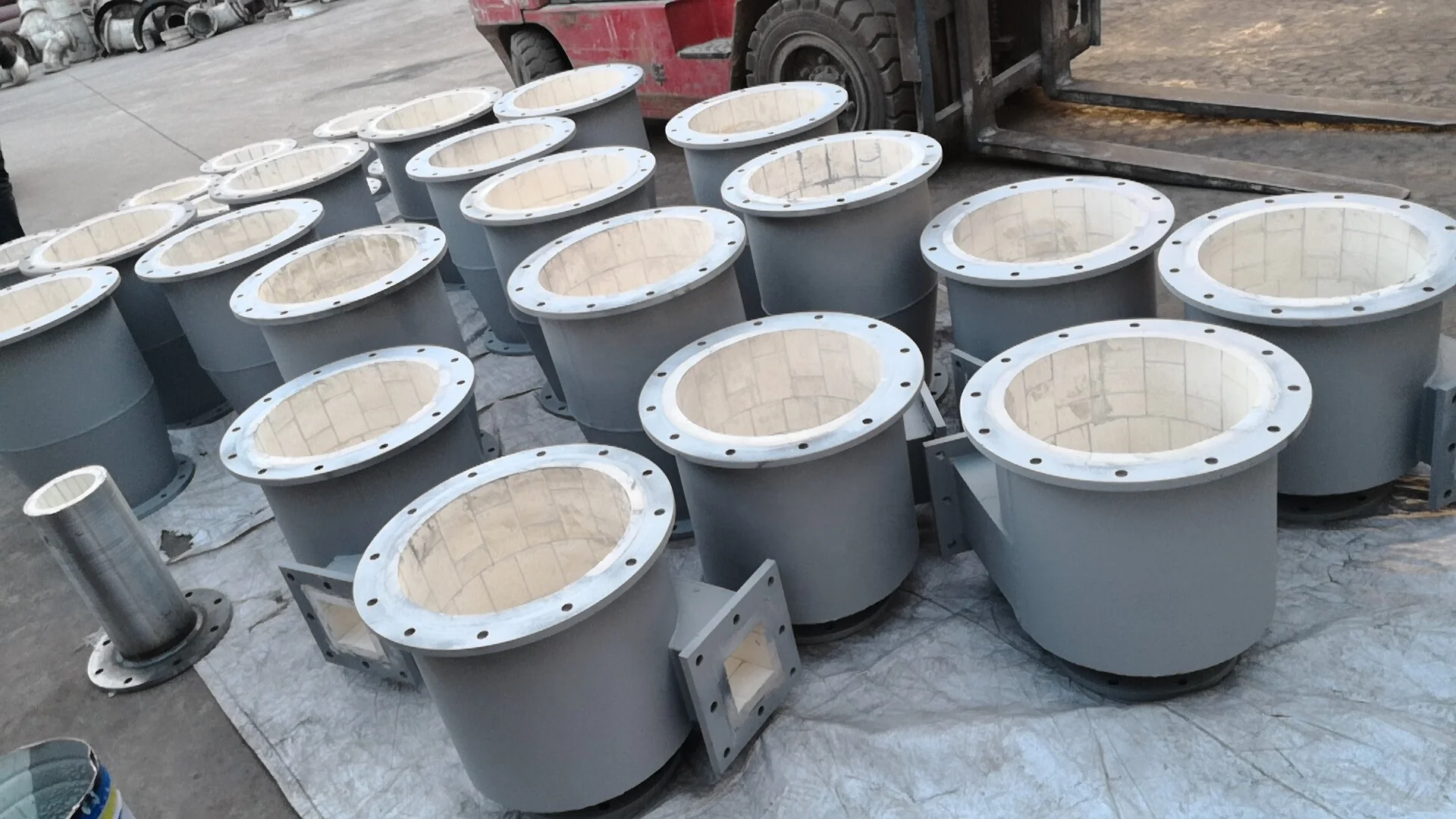

Projects

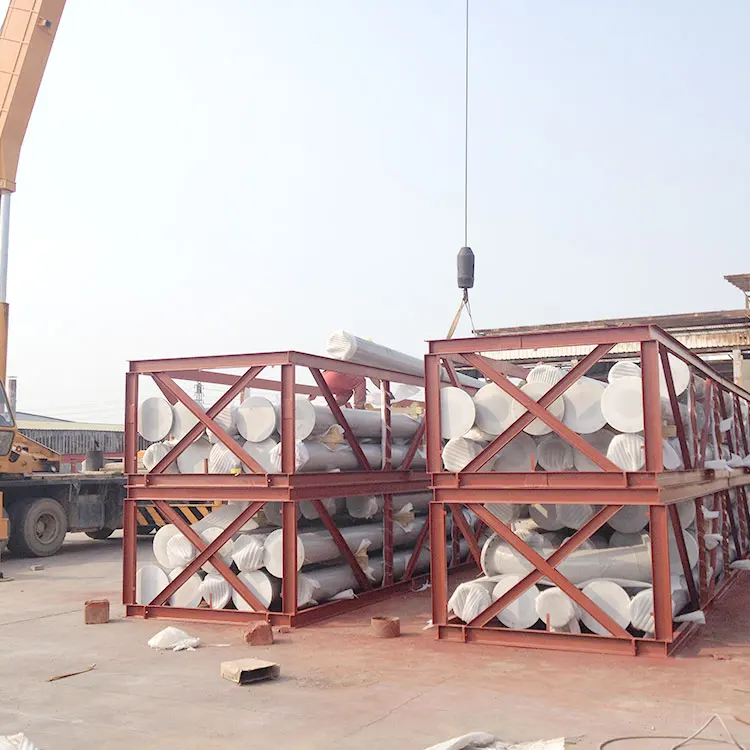

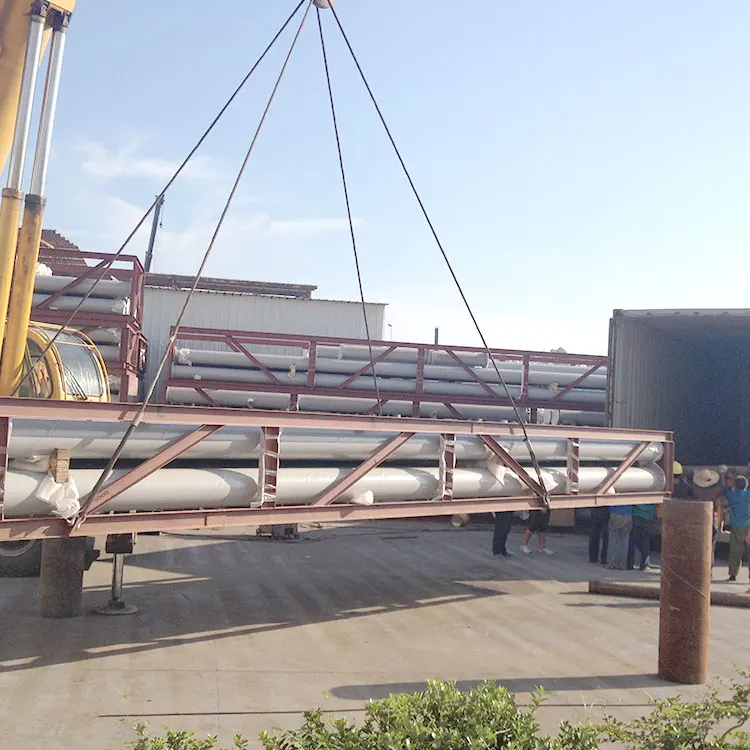

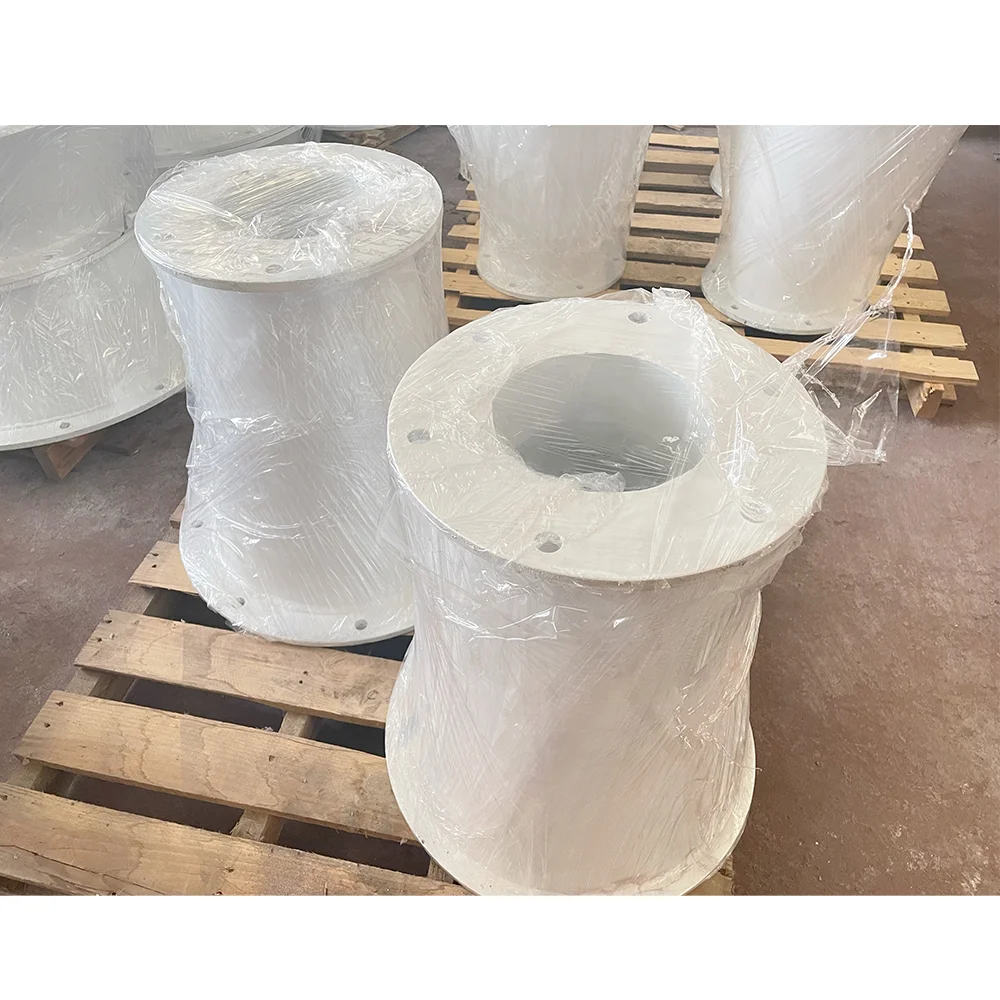

Product Packaging
Company Profile
Shanxi Huazhan Wear-resistant Material Technology Co., Ltd. is located in Gudan Industrial Park, Taiyuan City, Shanxi Province. Covering an area of 25,000 square meters, there are more than 80 engineering and technical personnel.
In the past 20 years, we have been committed to the customization, production and service of wear-resistant steel products, professionally providing solutions for wear-resistant products in industries such as electric power, metallurgy, mining, steel mills, petrochemicals, and new energy. A major breakthrough has been made; advanced production technology has been introduced, the monthly output of wear-resistant pipes is 1,300 tons, and advanced testing equipment is equipped. Our products involve more than 110 varieties in 12 categories, and we are currently the largest manufacturer of wear-resistant pipe fittings in China.
The company has an independent research and development design team, 70% of the front-line employees have 10 years of casting experience, the products have passed the ISO9001 quality system certification, and have a number of invention patents.
The company has an independent research and development design team, 70% of the front-line employees have 10 years of casting experience, the products have passed the ISO9001 quality system certification, and have a number of invention patents.
Huazhan has always pursued the enterprise management policy of "quality first, reputation first", strictly controlled quality, and formed a strict quality control mechanism and a reliable quality assurance operation system. Because of reliable product quality, honest business philosophy, and scientific technical effects, it has won the trust of users, and the scale of the enterprise is developing rapidly. The products are sold to engineering projects in 31 regions across the country, and are widely used in mines, power generation, chemicals, etc. project.
Certification:
Service:
* Provide 7 * 24-hour service. Feel free to contact us by phone, email, instant messaging and social media.
* After receiving your inquiry, reply within 8 hours, and provide the price plan within 24 hours.
* After receiving your inquiry, reply within 8 hours, and provide the price plan within 24 hours.
* Review and monitor project details and progress at no cost by a professional team of sales, engineers
and QC personnel.
* In the cost, production, inspection, packaging, delivery and other aspects to provide a full range of intimate services.
* Provides professional support and assurance at all stages of sales.
and QC personnel.
* In the cost, production, inspection, packaging, delivery and other aspects to provide a full range of intimate services.
* Provides professional support and assurance at all stages of sales.
Sale And Service Network:
Похожие товары
Быстрый фторированный надувной латунный шарнир для кондиционирования воздуха холодильника морозильника обслуживание утолщенный материал игольчатый клапан

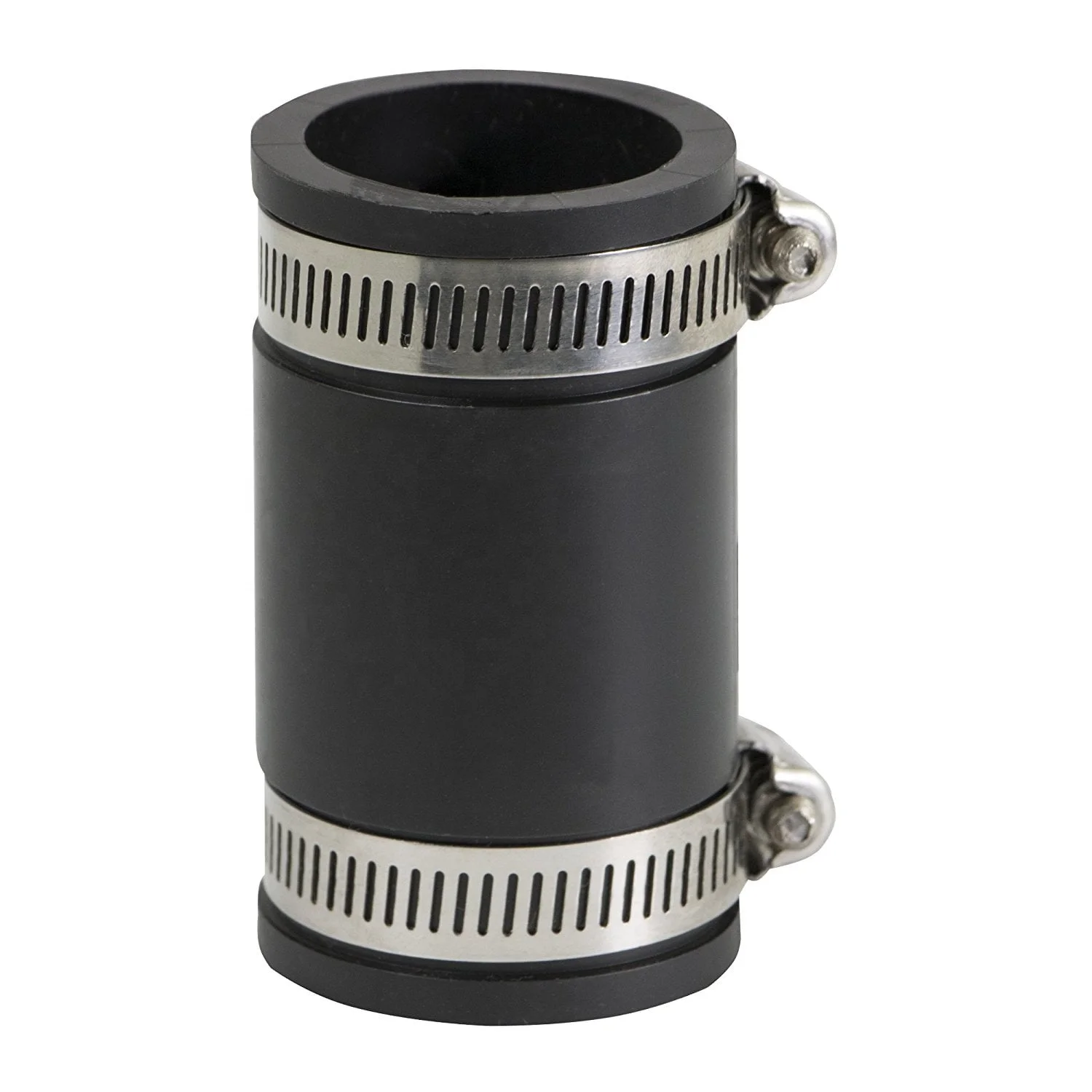

Оптовики соединители трубы зажимы из нержавеющей стали резиновые гибкие муфты
1,50 $
Быстроразъемные фитинги
Настраиваемые фланцы 304/316L из углеродистой стали или нержавеющей ANSI B16.5-SW BW THD стили для универсальных соединений труб
18,80-19,90 $
Низкий минимальный заказ от производителя горячая распродажа нержавеющая сталь 304 вакуумные фланцы металлические соединительные сильфоны
8,00-10,00 $

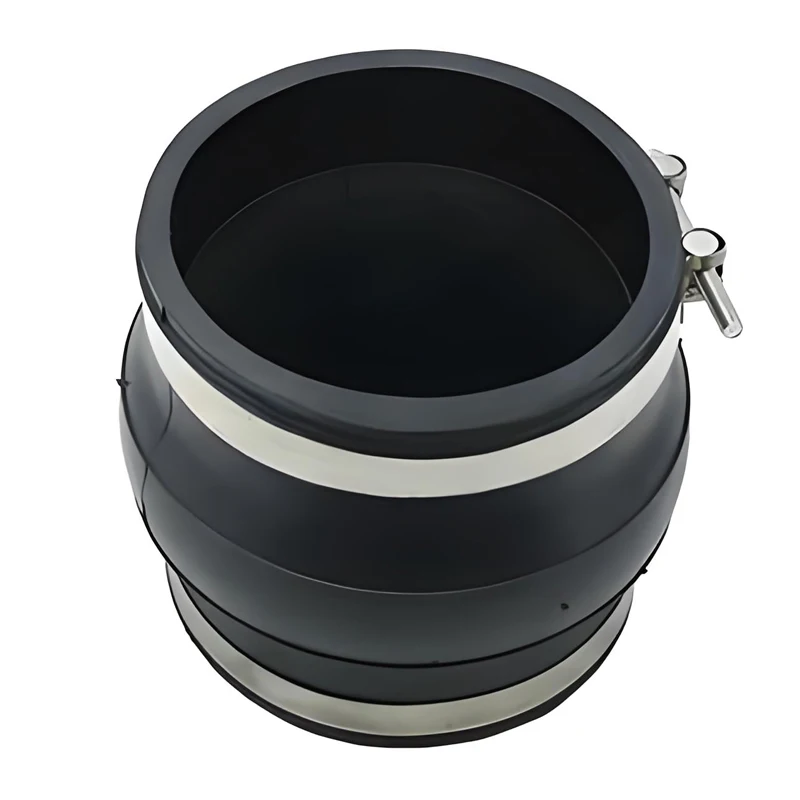

4-дюймовый Ss304 хлоропреновый резиновый гибкий компенсатор Epdm типа зажима резинового расширительного соединения
10,00-12,00 $

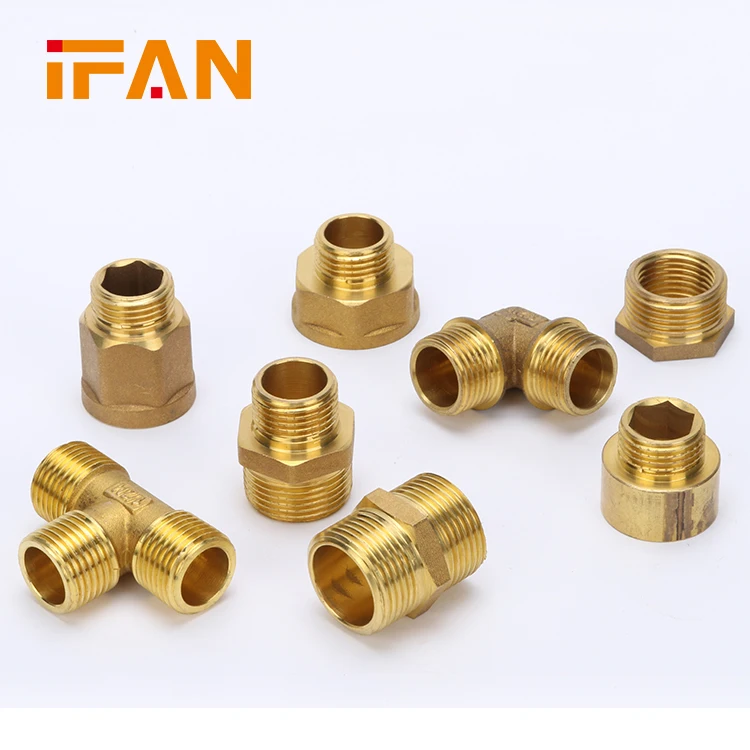

IFAN, Китай, заводская цена, высокое качество, полноразмерные латунные фитинги, Мужская муфта, фитинги для нагрева воды, латунный адаптер, угловой тройник
