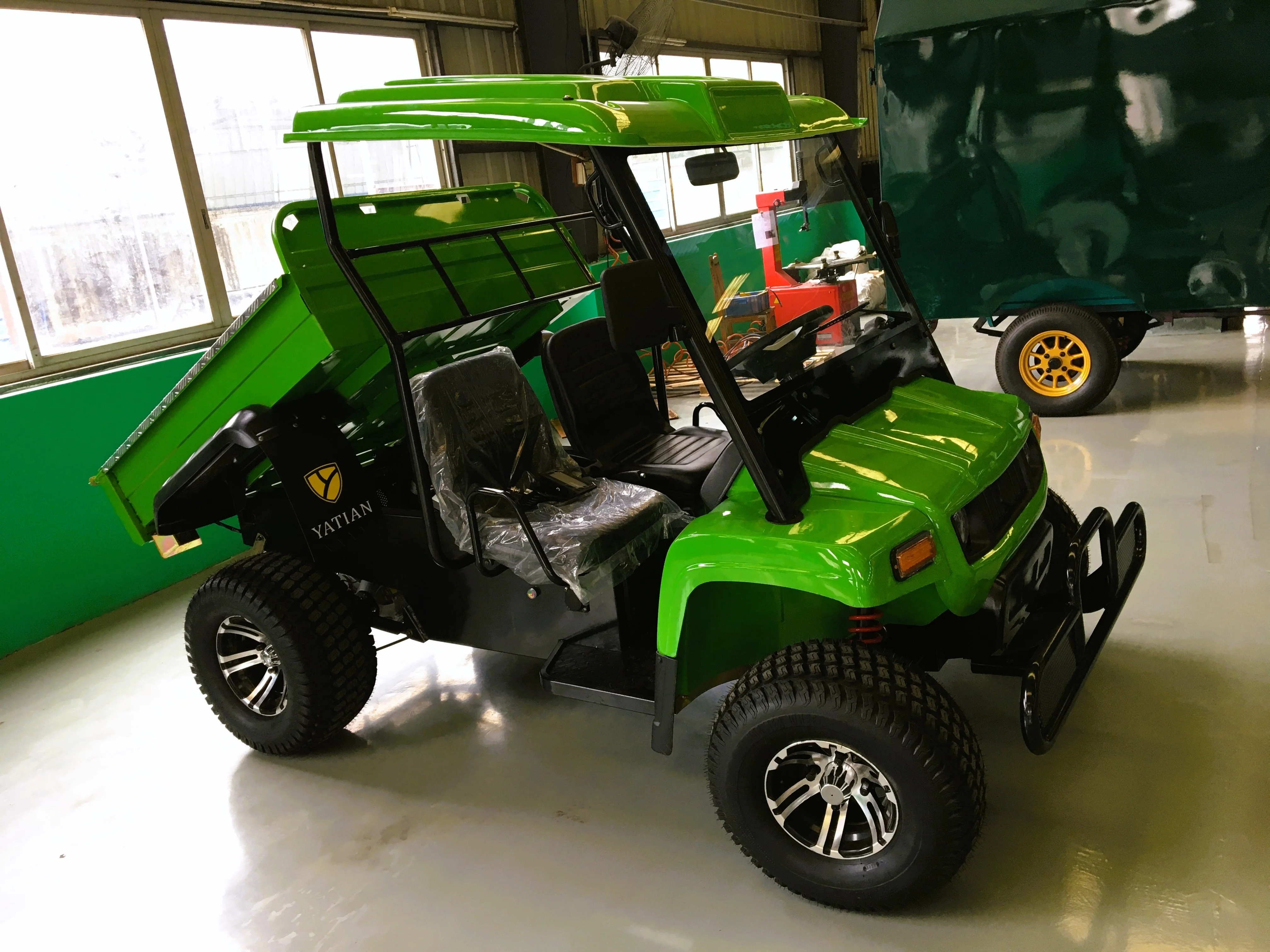

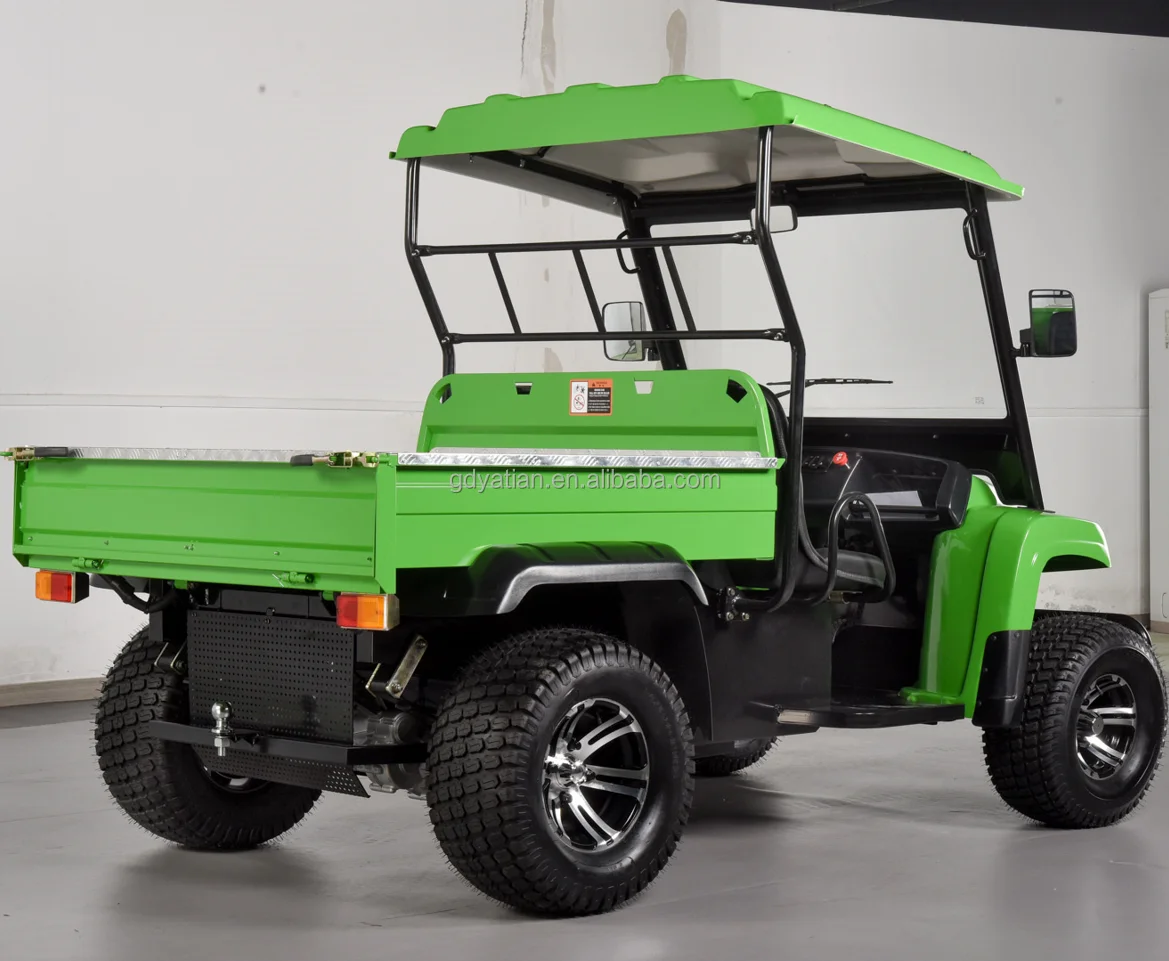

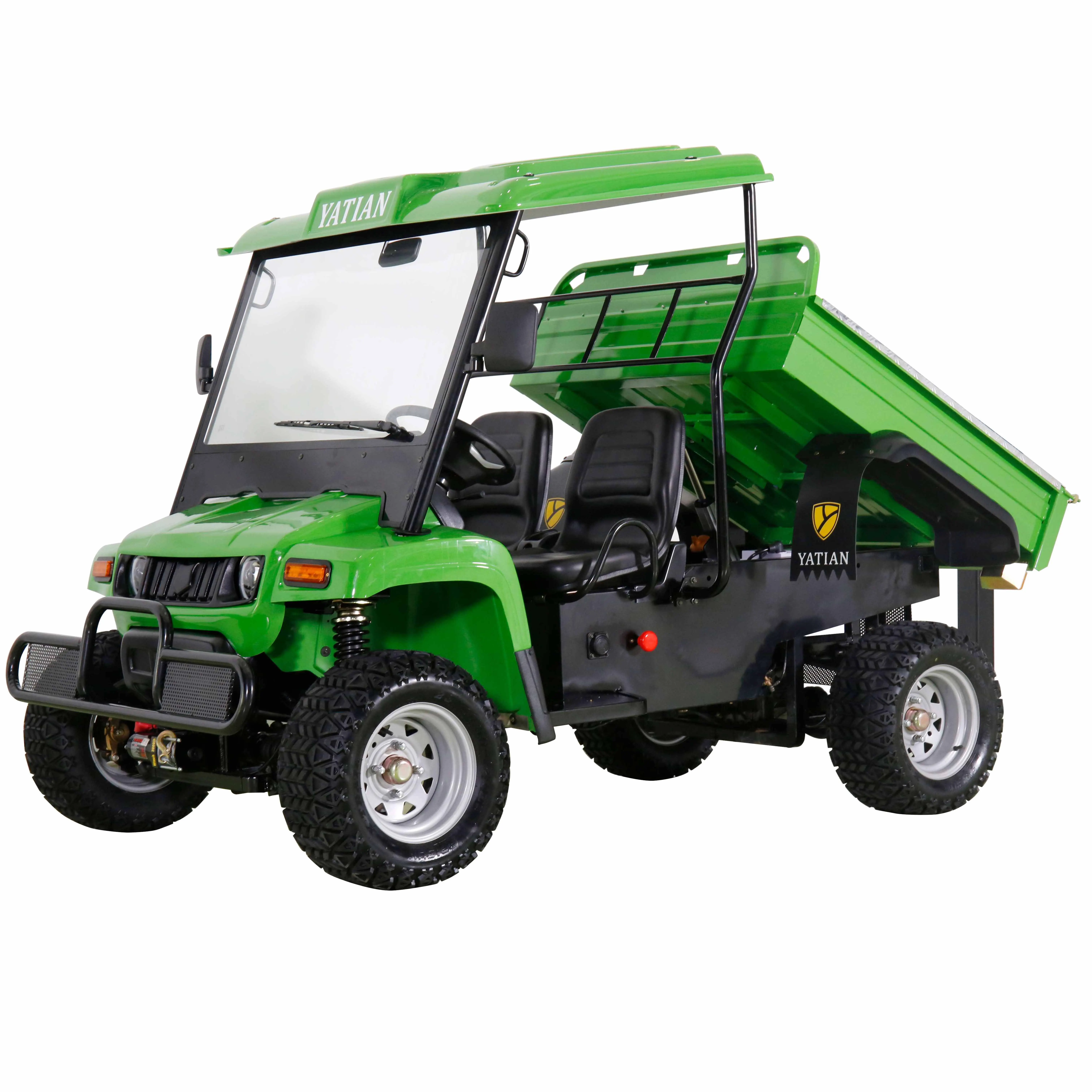

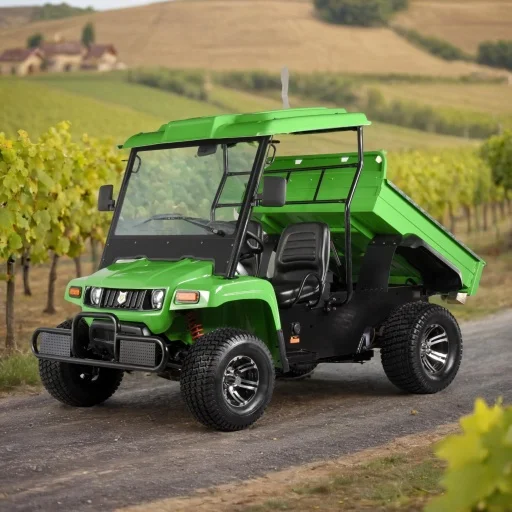

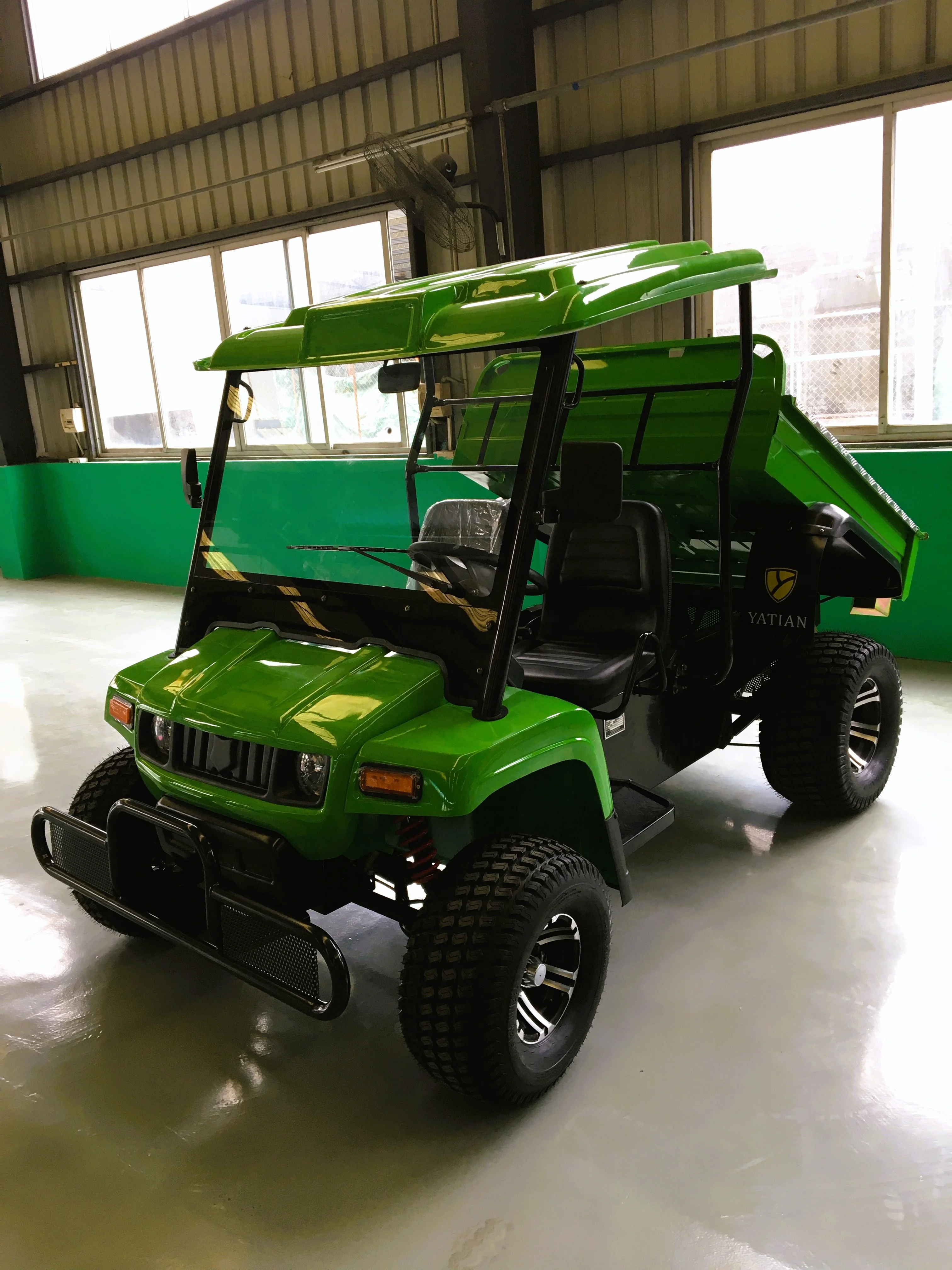

Электрический рабочий автомобиль с полным приводом 72 В 10 кВт Высокоэффективный двигатель Максимальная дальность движения ≥ 100 км грузоподъемность 1000 кг

Main Features and Technical Parameters

Electrical System

• Motor: 72V 10KW High-Efficiency High-Speed Permanent Magnet Synchronous Motor


• Battery: 9*8V Large Capacity Deep Cycle Traction Battery or Lithium Battery


• Charger: Fully Automatic High-Frequency Efficient Pulse Charger (Input Voltage: 110V/220V, 50Hz; Output DC 48V, 25A)


• Controller: CMOS Continuously Variable Transmission System with Automatic Anti-Slip Function and Downhill Speed Limit


• Accelerator: Original Inductive Non-Contact Variable Speed System

Chassis

• Structure: Frame-Type High-Strength Steel Structure with Hot-Dip Zinc and Surface Paint Dual Anti-Corrosion Treatment

Body Covering

• Material: High-Strength Impact-Resistant Composite Material (PT+PBT Alloy Injection Molded Front Cover), Impact Resistant, Long Service Life

Four-Wheel Drive System

• Rear and Front Drive with Main Reduction and Differential Gears, Supporting Rear Drive, Four-Wheel Drive, and Four-Wheel Drive with Front Differential Lock Switching

Braking System

• Dual-Circuit Four-Wheel Hydraulic Brake (Front Disc, Rear Drum) with Mechanical Parking Brake (Handbrake)

Suspension System

• Front Suspension: Single A-Arm with Coil Spring Shock Absorber


• Rear Suspension: Multi-Leaf Spring and Cylinder Hydraulic Non-Independent Suspension

Steering System

• Single-Stage Gear Rack Steering System with Automatic Return Function

Towing Mechanism

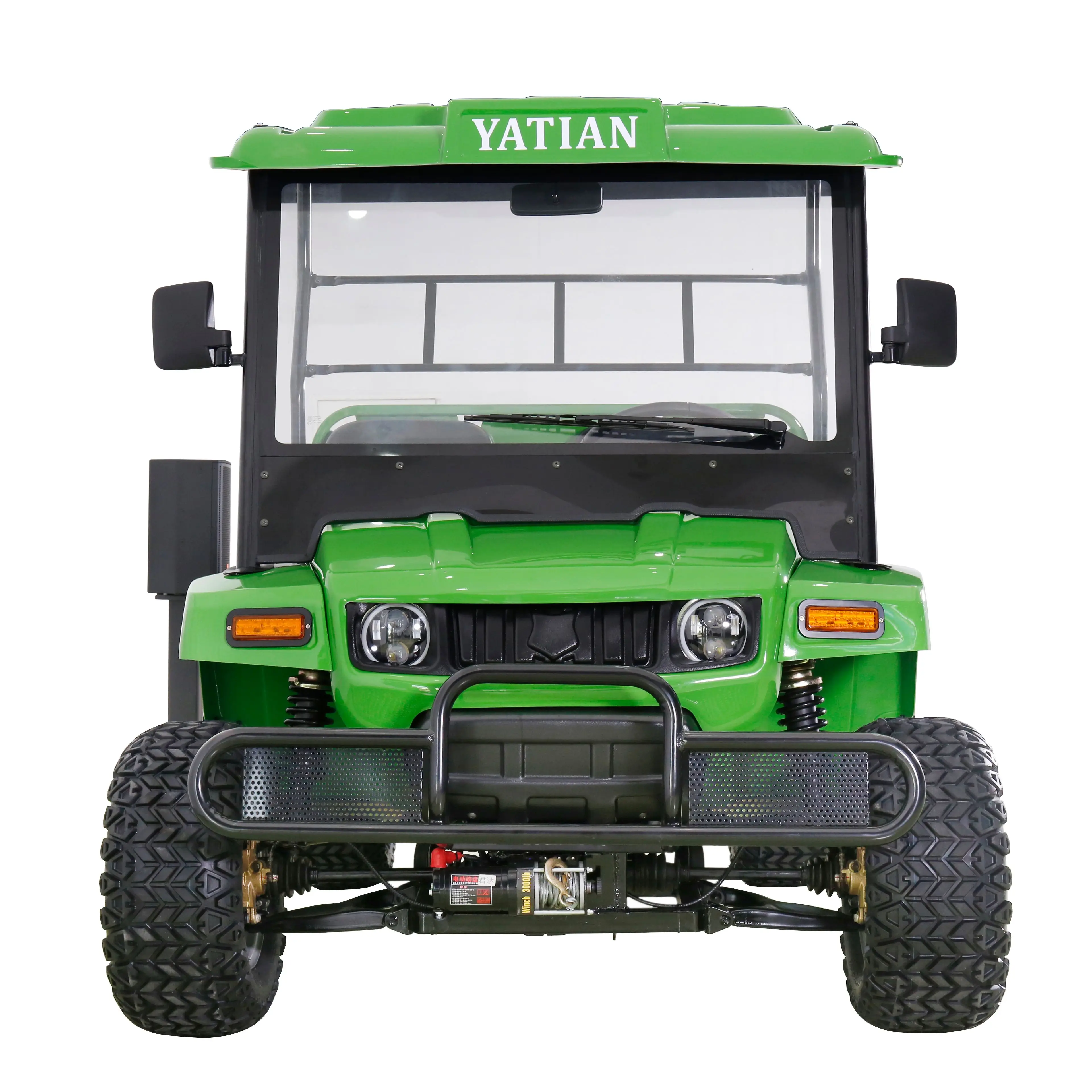

• Rear with Tow Hook, Front with Electric Winch, Excellent for Recovery and Towing

Lighting System

• Front Headlights, Brake Lights, Reversing Beeper, Electric Horn

Seating System

• Ergonomically Designed Adjustable Single Seat for Comfort

Tires

• Vacuum Radial Light Vehicle Tires (Specification: Front, Rear 23×11-12)

Dashboard

• Includes Ignition Switch, Battery Meter, Direction Selector Switch, Turn Signal Indicator, Hour Meter

Windshield

• Safety Tempered Glass

Roof

• Lightweight and Sturdy PP Injection Molding

Optional Accessories

• Rain Curtains, Cargo Box Protection Aluminum Plate, Highway Tires/Grass Tires/Off-Road Tires, Imported Batteries, Electric Power Steering

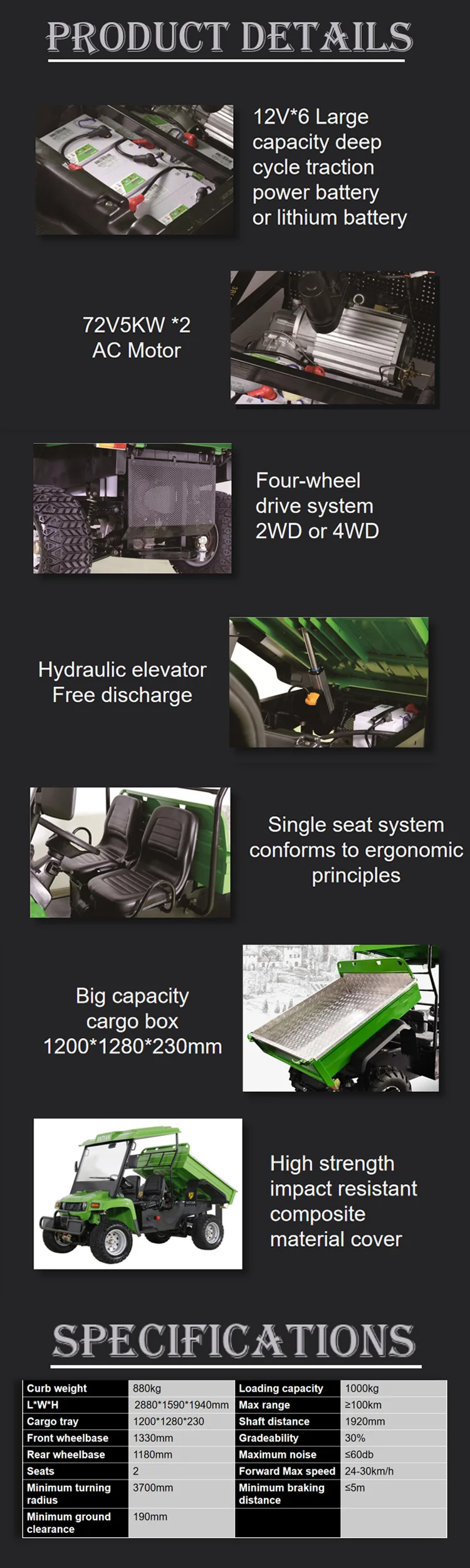

Main Technical Parameters

• Vehicle Weight: 880kg


• Dimensions (L×W×H): 2880×1590×1940mm


• Load Capacity: 1000kg (Including Driver, Passengers, and Cargo)

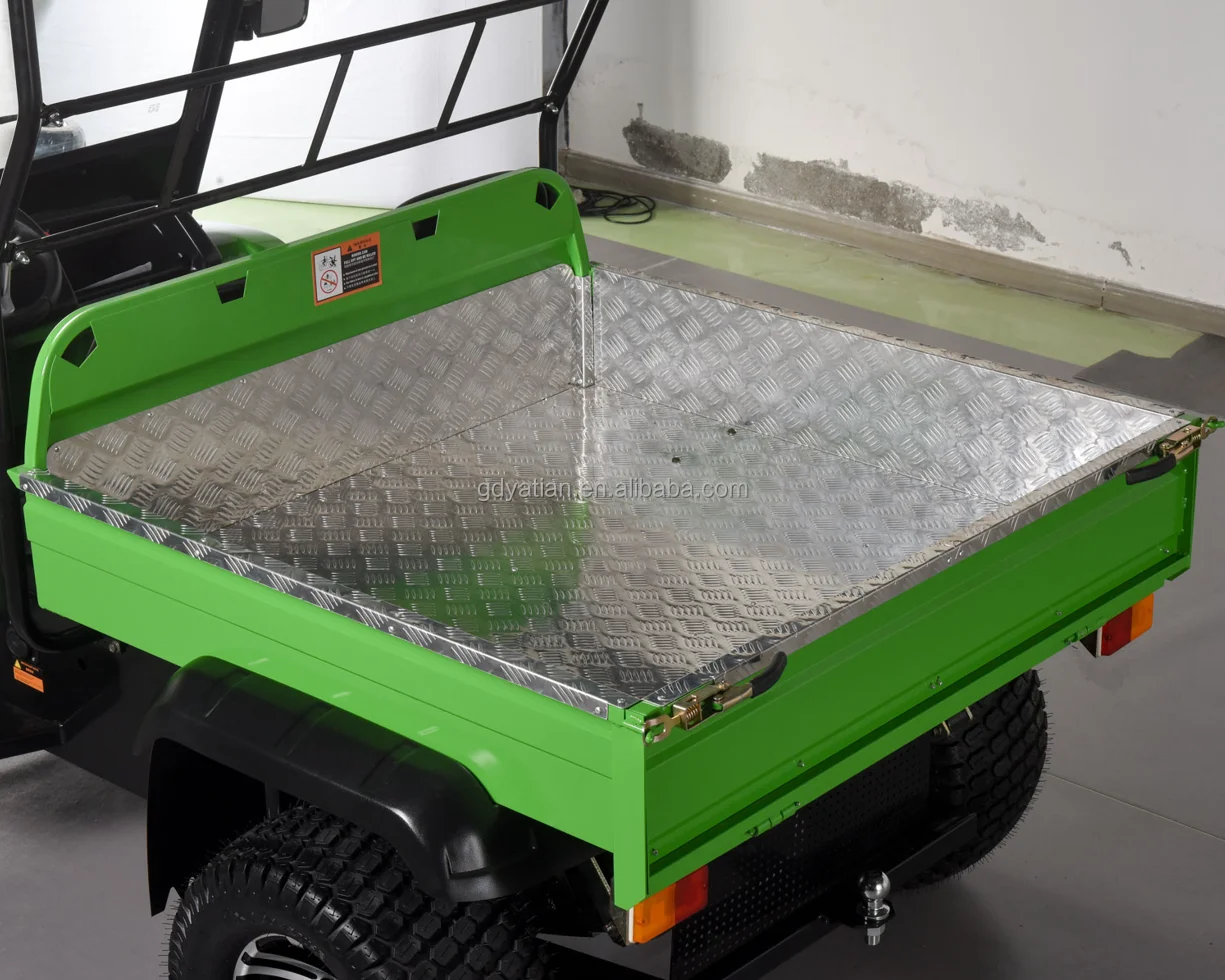

• Cargo Box Size: 1200×1280×230mm (Dumping Cargo Box)


• Maximum Driving Range: ≥100km


• Wheelbase: 1920mm


• Minimum Ground Clearance: 190mm


• Front Track Width: 1330mm


• Rear Track Width: 1180mm


• Minimum Turning Radius: 3700mm


• Maximum Noise Level: ≤60db


• Seating Capacity: 2 Seats


• Maximum Speed: 24-30km/h

Q1. What is your terms of packing?

A: Generally, we use steel frame covered by cartons to pack our goods . If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?

A: Generally, it will take 15-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. How long the battery need to charge?

A:Normally, 6-8 hours in full charge.

Q6. What is your after-sales service?

A:Premium quality and attentive service production process with one year guarantee

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
