Электродвигатель для электровелосипеда большой мощности 48 В-72 В 3000 Вт
12 609,57 ₽ - 14 144,65 ₽
Бесплатная доставка 12x3 5 дюймов 45H 4000W260 V1 для электровелосипеда бесщеточный электродвигатель постоянного тока QS мотор
- Категория: >>>
- Поставщик: Taizhou Tongshuo Trade Co. Ltd.
Сохранить в закладки 1601003313360:
Описание и отзывы
Характеристики
Products Description
12 inch 4000W 260 45H V1 Brushless DC Electric Scooter Motorcycle Hub Motor QS Motor Specification |
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle with 12inch moped rim (integrated)
Rim size:12x2.15inch(Narrow Tire as default), Matched tire:3.0-12,3.5-12 etc
12x3.5inch(Wide Tire)
Magnet Height: 45mm, 24 pole pairs
Stator: Aluminum Core
Rated Power: 4000W
Speed(customizable):
48v 30km/h~65km/h 300-900RPM
60v 30km/h~80km/h 300-1100RPM
72v 30km/h~80km/h 300-1100RPM
Max Torque approx 170N.m
KV: 14.79/18.13/18.86 (optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Single Halls with waterproof connectos(Can custom mad dual halls)
8mm² Phase Wire
Waterproof Grade: IP54
Color: Black (as default), Yellow or White/Luminous

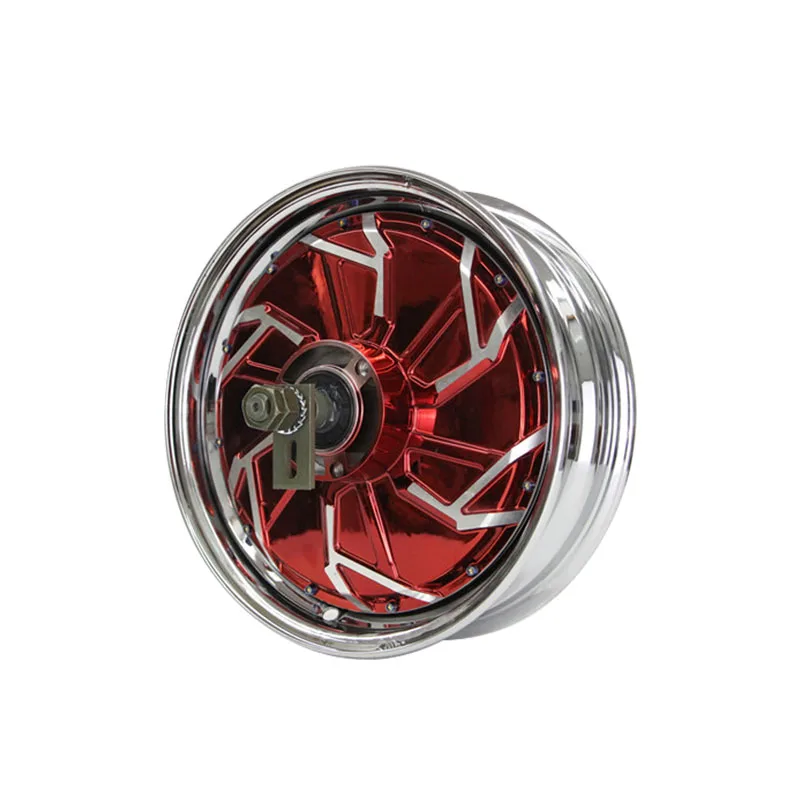

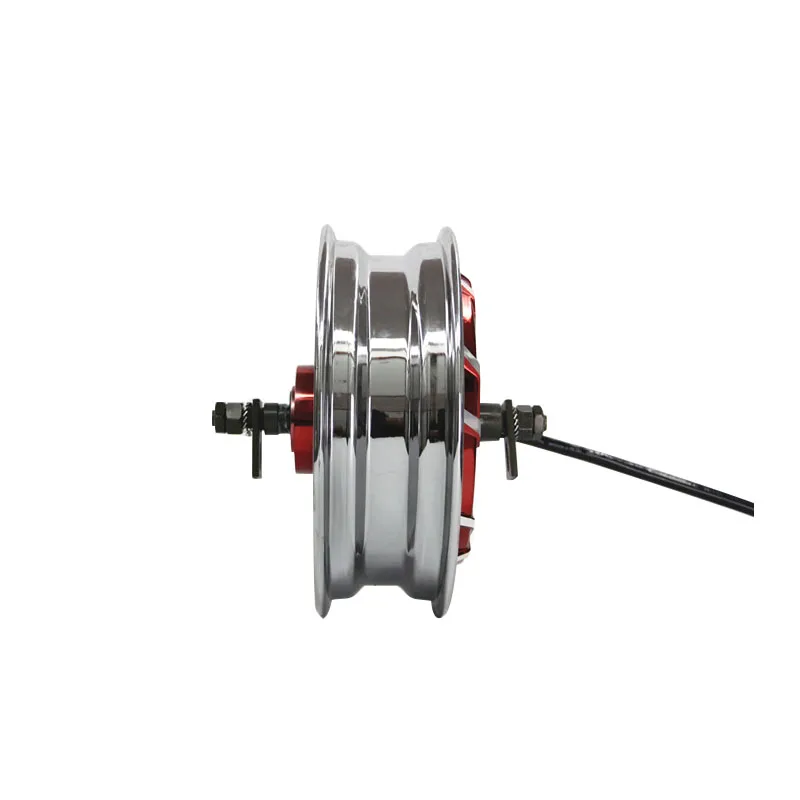

1.Pictures Show
Size 12*3.5inch
Brand: QS Motor,QSMOTOR
Motor Design: Double axle with 12inch moped rim (integrated)
Rim size:12x2.15inch(Narrow Tire as default), Matched tire:3.0-12,3.5-12 etc
12x3.5inch(Wide Tire)
Magnet Height: 45mm, 24 pole pairs
Stator: Aluminum Core
Rated Power: 4000W
Speed(customizable):
48v 30km/h~65km/h 300-900RPM
60v 30km/h~80km/h 300-1100RPM
72v 30km/h~80km/h 300-1100RPM
Max Torque approx 170N.m
KV: 14.79/18.13/18.86 (optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Single Halls with waterproof connectos(Can custom mad dual halls)
8mm² Phase Wire
Waterproof Grade: IP54
Color: Black (as default), Yellow or White/Luminous
1.Pictures Show
Size 12*3.5inch
2.Drawing
3.QS Motor 12inch 260 E-Scooter Hub Motor Price List
Note for 12X5.0inch 260 detachable wheel Motor(Electroplating design): Normal 12inch 260 Motor+ USD: 15.0/PCS.
Only electroplating wheel rim (not side cover).
Only electroplating wheel rim (not side cover).
4. How to find suitable hub motor
Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
More Products
Our Company
Certifications
Packing&Shipping
FAQ
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
Похожие товары
Сверхскоростной задний электровелосипед 3000w/5000w 205 50h v3 гидроизоляционный Электрический мотор для ступицы велосипеда
6 537,24 ₽ - 6 880,44 ₽

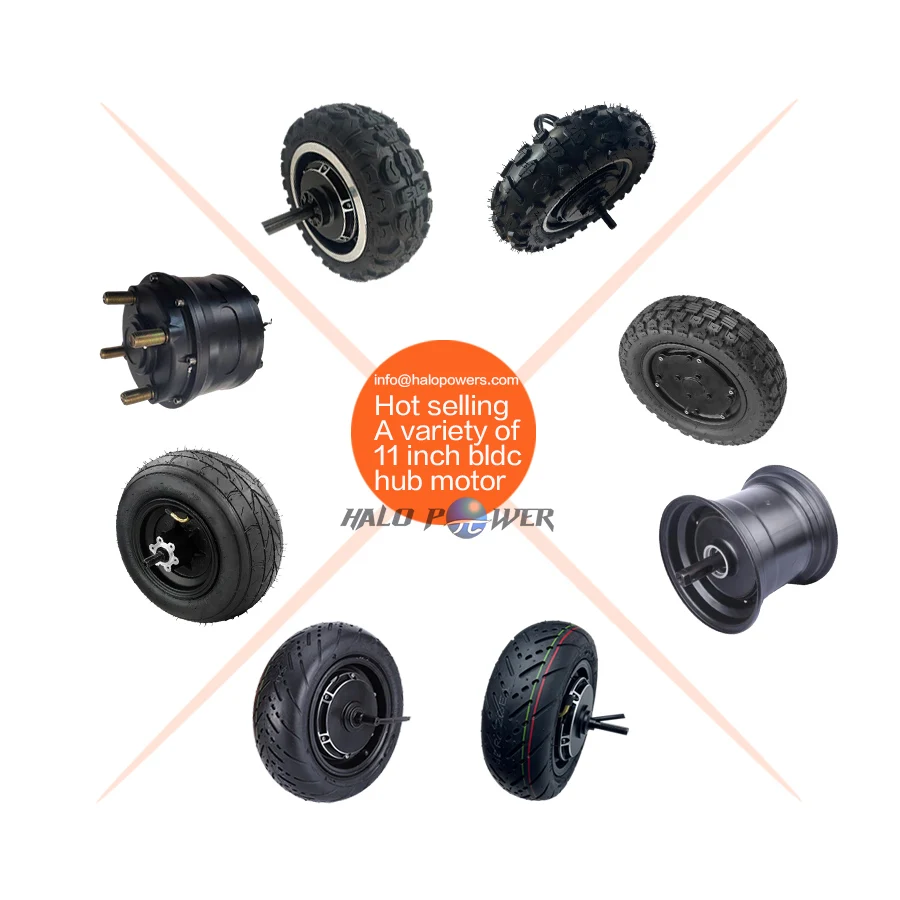

11 дюймов втулка мотор kit48v 60v 72v 1000w 2000w 3000w 6000w dc бесщеточный Электрический скутер мотоцикл citycoco Atv Utv
6 359,61 ₽ - 14 035,00 ₽

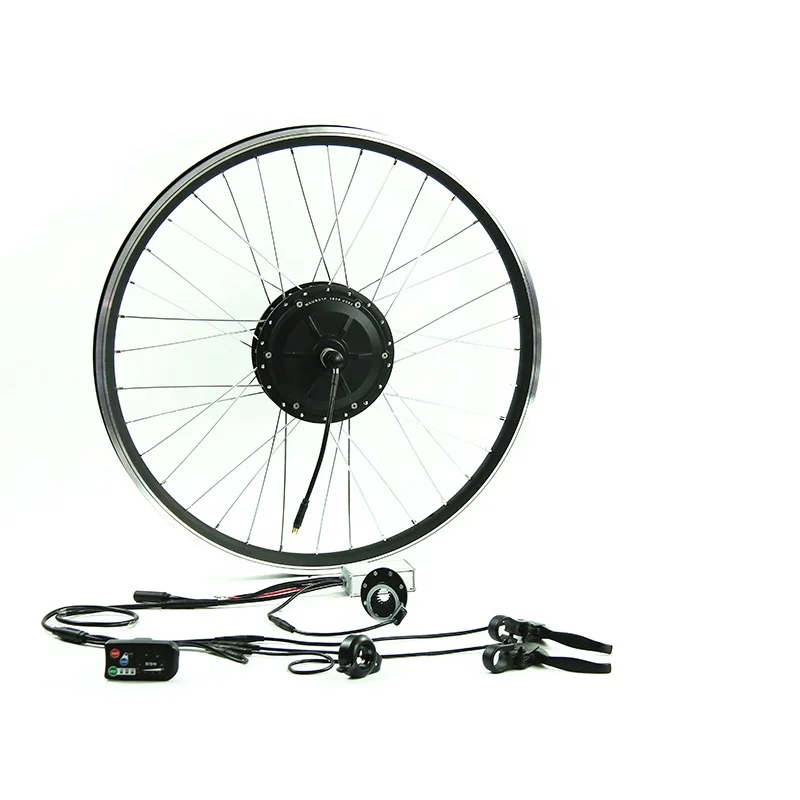

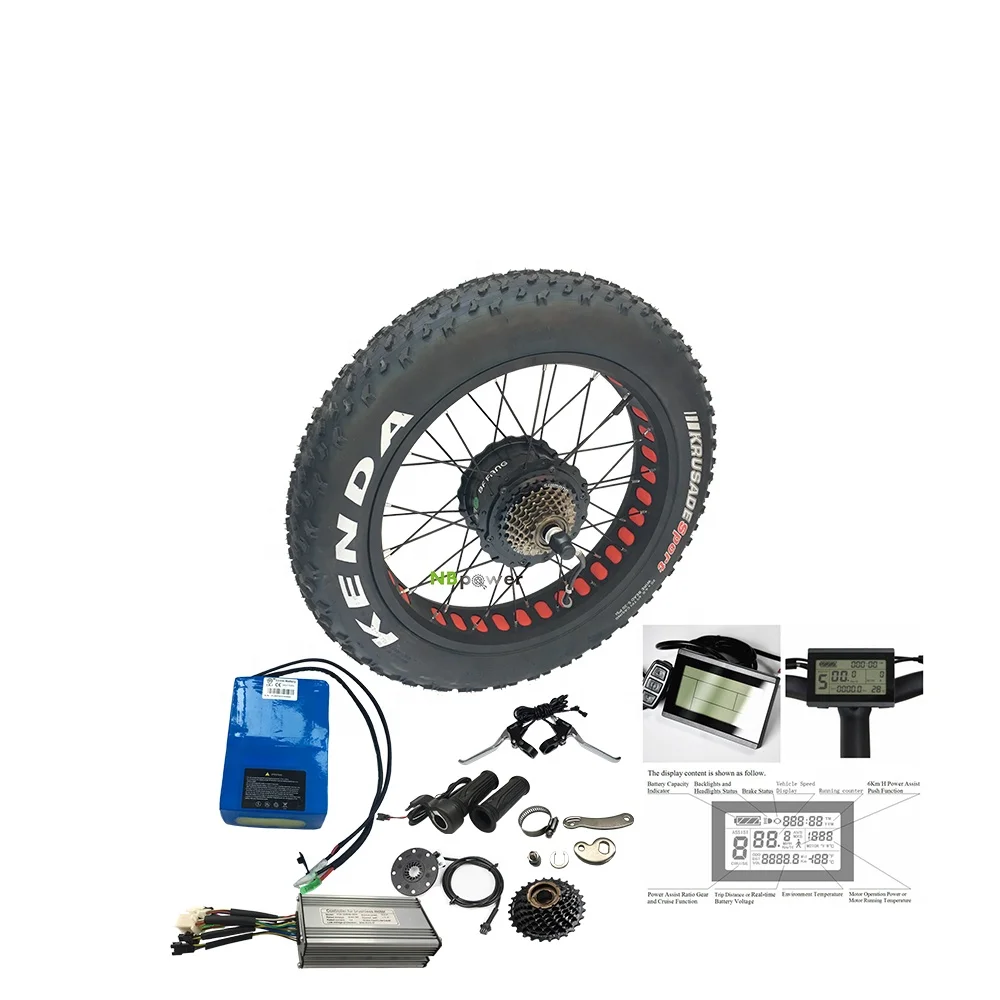

8FUN велосипедный комплект мотора bafang с толстыми шинами 750 вт задняя ступица колеса 26 дюймов
