Профессиональная техническая поддержка высокого качества частотный инвертор VFD 60HP/220V/380V 1/3 фазы/AC Регулятор скорости двигателя
- Категория: >>>
- Поставщик: Janson Controls Technologies (shenzhen) Co. Limited
Сохранить в закладки 1601004335866:
Описание и отзывы
Характеристики
Company Information
Product Description

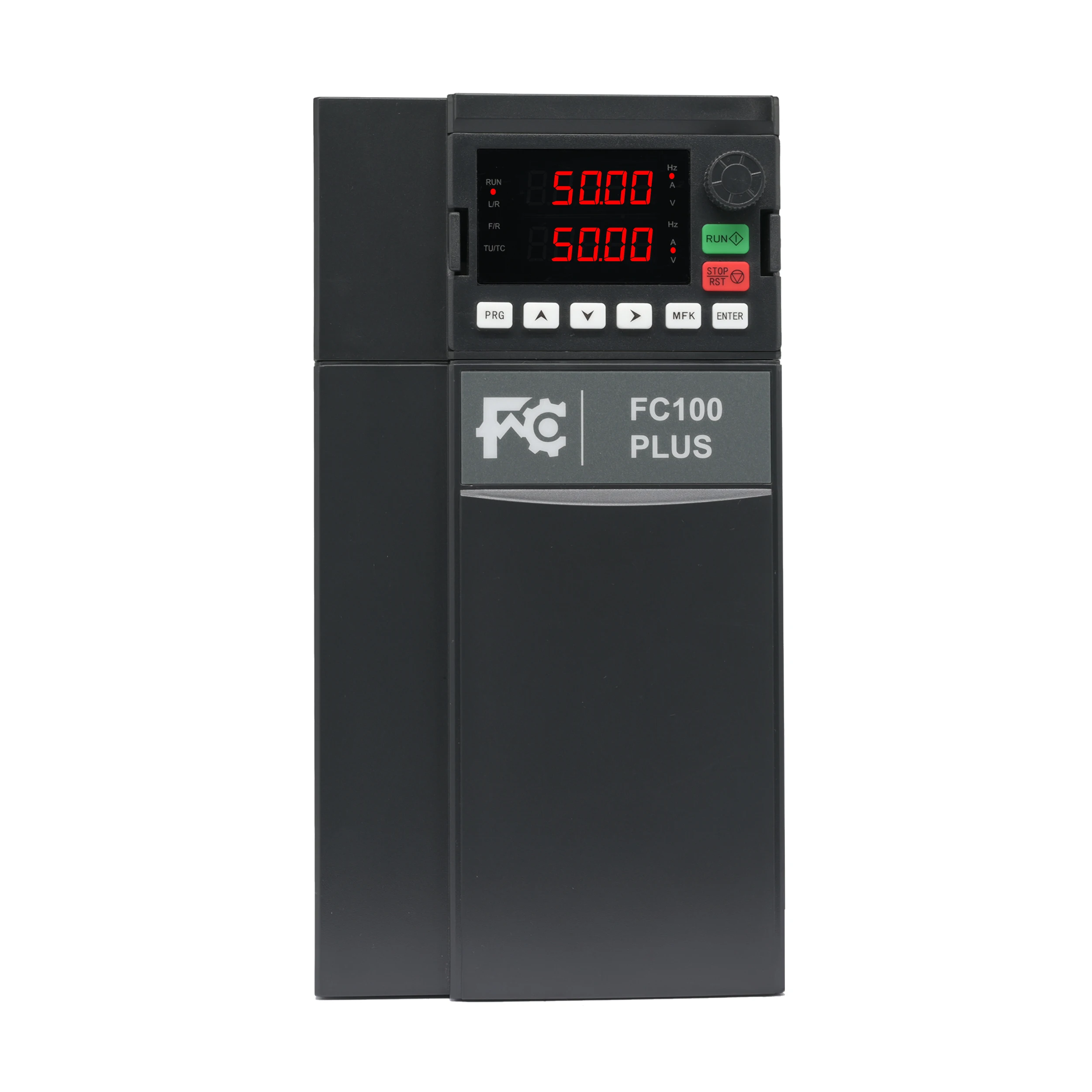

MODEL SIZE 1
FC100P-2S-0.4G~2T-2.2GB FC100P-4T-0.75GB~4T-4.0GB
Adaptable Motor 0.4kW~4.0kW
220V/380V 1/3 PHASE
SIZE 1 :89.6 * 197.2 * 139 (mm)
MODEL SIZE 2
FC100P-2S/T-4.0GB
FC100P-4T-5.5GB~4T-7.5GB
Adaptable Motor 4.0kW~7.5kW
220V/380V 1/3 PHASE
SIZE 2 :102 * 202 * 162 (mm)

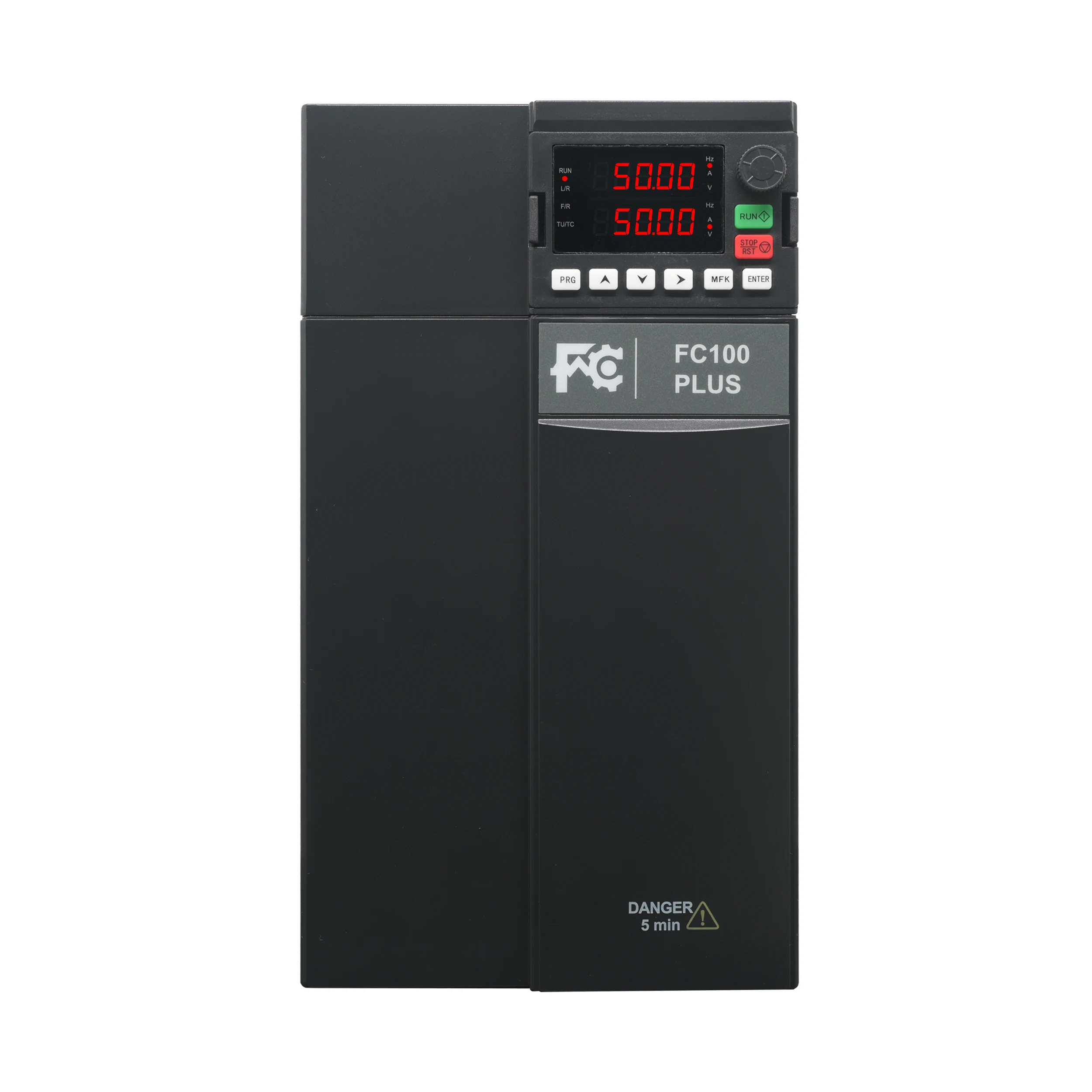

MODEL SIZE 3
FC100P-2S/T-5.5GB~2S/T-7.5GB
FC100P-4T-11GB~4T-15GB
FC100P-4T-11GB~4T-15GB
Adaptable Motor 5.5kW~15kW
220V/380V 1/3 PHASE
SIZE 3 :125 * 242.5 * 169.5 (mm)
SIZE 3 :125 * 242.5 * 169.5 (mm)
MODEL SIZE 4
FC100P-2S/T-11GB
FC100P-2S/T-11GB
FC100P-4T-18.5GB~4T-22GB
Adaptable Motor 11kW~22kW
220V/380V 1/3 PHASE
SIZE 4 :165 * 297 * 206.2 (mm)
220V/380V 1/3 PHASE
SIZE 4 :165 * 297 * 206.2 (mm)

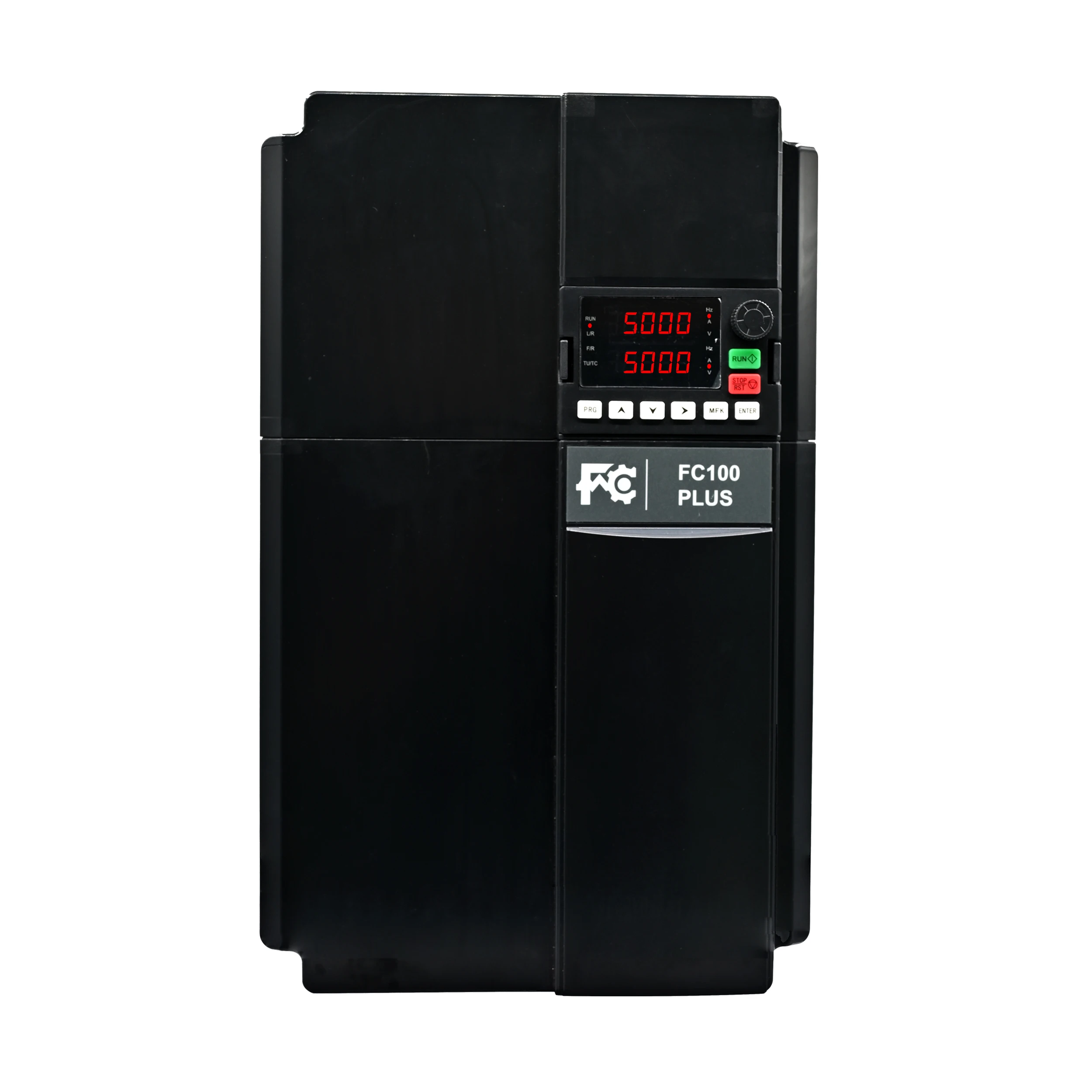

MODEL SIZE 5
FC100P-2S/T-15GB~2T-18.5G(-B)
FC100P-2S/T-15GB~2T-18.5G(-B)
FC100P-4T-30G~4T-37G
Adaptable Motor 18.5kW~37kW
220V/380V 3 PHASE
SIZE 5 :225 * 360 * 231.7 (mm)
220V/380V 3 PHASE
SIZE 5 :225 * 360 * 231.7 (mm)
MODEL SIZE 6
FC100P-2T-22G(-B)
FC100P-2T-22G(-B)
FC100P-4T-45G
Adaptable Motor 37kW~45kW
220V/380V 3 PHASE
SIZE 6:260 * 440 * 230 (mm)
SIZE 6:260 * 440 * 230 (mm)

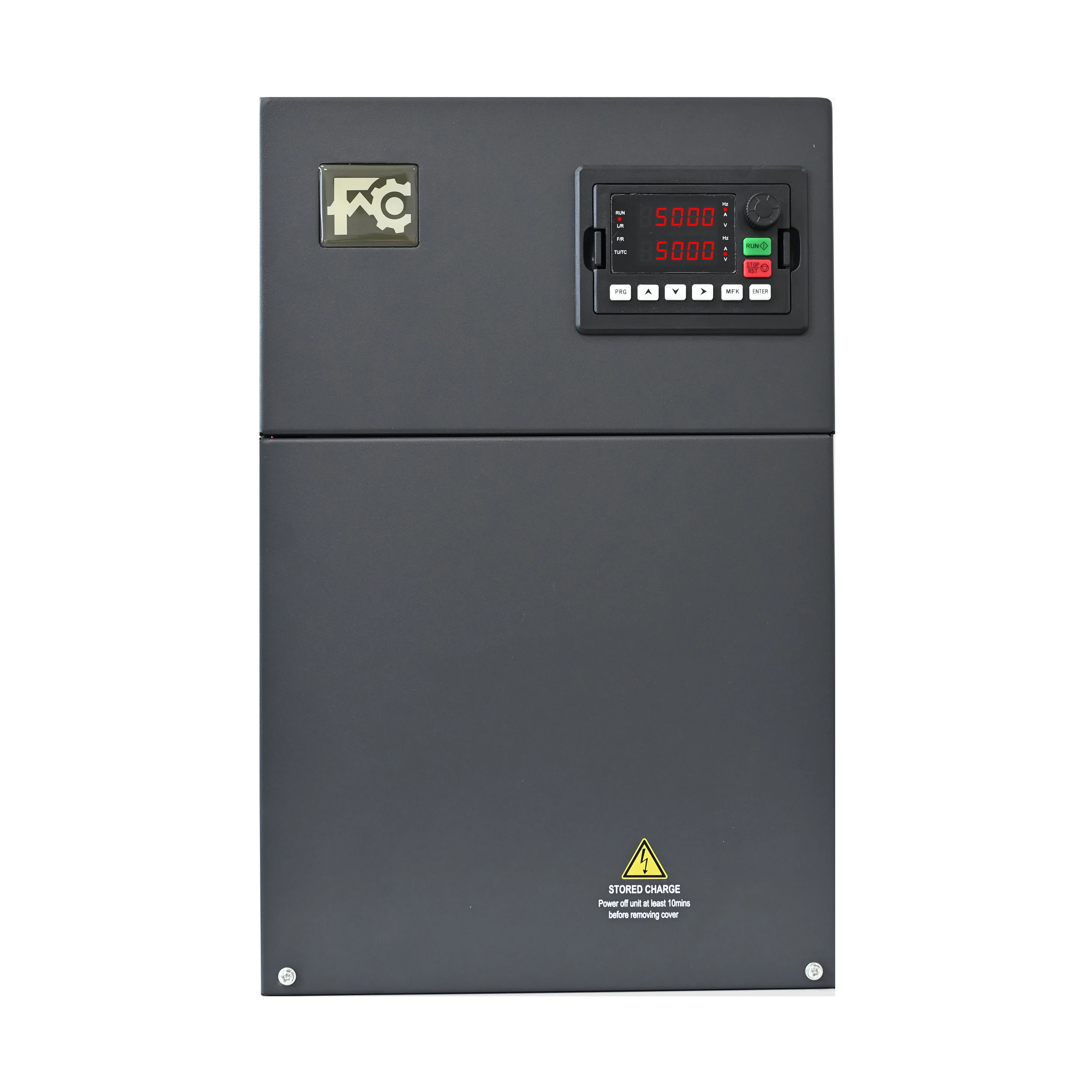

MODEL SIZE 7
FC100P-2T-30G(-B)
FC100P-2T-30G(-B)
FC100P-4T-55G(-B)~4T-75G(-B)
Adaptable Motor 55kW~75kW
380V 1/3 PHASE
SIZE 4 :300 * 555 * 270 (mm)
380V 1/3 PHASE
SIZE 4 :300 * 555 * 270 (mm)
MODEL SIZE 8
FC100P-4T-90G~4T-110G
FC100P-4T-90G~4T-110G
Adaptable Motor 90kW~110kW
380V 3 PHASE
SIZE 8 :338 * 580 * 315 (mm)
MODEL SIZE 9
FC100P-4T-132G~4T-160G
FC100P-4T-132G~4T-160G
Adaptable Motor 132kW~160kW
380V 3 PHASE
SIZE 9 :400 * 840 * 340 (mm)
SIZE 9 :400 * 840 * 340 (mm)
Specification
Item No. | W (MM) | H (MM) | D (MM) | Diameter (MM) | Rated Input/Output Current (A) | Power Capacity (KVA) | Adaptable Motor (kW) | |||||||
1/3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | ||||||||||||||
FC100P-2S-0.4GB | 89.60 | 197.20 | 139.00 | Ø5 | 6.5/2.1 | 0.7 | 0.4 | |||||||
FC100P-2S-0.75GB | 89.60 | 197.20 | 139.00 | Ø5 | 8.2/4.0 | 1.5 | 0.75 | |||||||
FC100P-2S-1.5GB | 89.60 | 197.20 | 139.00 | Ø5 | 14.0/7.0 | 3 | 1.5 | |||||||
FC100P-2S-2.2GB | 89.60 | 197.20 | 139.00 | Ø5 | 23.0/9.6 | 4 | 2.2 | |||||||
FC100P-2S/T-4.0GB | 102.00 | 202.00 | 162.00 | Ø5.6 | 39 &19/16.5 | 5.9 | 4 | |||||||
FC100P-2S/T-5.5GB | 125.00 | 242.50 | 169.50 | Ø6.3 | 60 & 28/25 | 8.5 | 5.5 | |||||||
FC100P-2S/T-7.5GB | 125.00 | 242.50 | 169.50 | Ø6.3 | 70 & 35/30 | 11 | 7.5 | |||||||
FC100P-2S/T-11GB | 165.00 | 297.00 | 206.20 | Ø7 | 100 & 47/45 | 16 | 11 | |||||||
FC100P-2S/T-15G | 225.00 | 360.00 | 231.70 | Ø7 | 130 & 62/55 | 21 | 15 | |||||||
3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance) | ||||||||||||||
FC100P-2T-18.5G(-B) | 225.00 | 360.00 | 231.70 | Ø7 | 77/70 | 24 | 18.5 | |||||||
FC100P-2T-22G(-B) | 260.00 | 440.00 | 230.00 | Ø7 | 92/80 | 30 | 22 | |||||||
FC100P-2T-30G(-B) | 300.00 | 555.00 | 270.00 | Ø8 | 113/110 | 39 | 30 | |||||||
3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance) | ||||||||||||||
FC100P-4T-0.75GB | 89.60 | 197.20 | 139.00 | Ø5 | 3.4/2.1 | 1.5 | 0.75 | |||||||
FC100P-4T-1.5GB | 89.60 | 197.20 | 139.00 | Ø5 | 5.0/3.8 | 3 | 1.5 | |||||||
FC100P-4T-2.2GB | 89.60 | 197.20 | 139.00 | Ø5 | 5.8/5.1 | 4 | 2.2 | |||||||
FC100P-4T-4.0GB | 89.60 | 197.20 | 139.00 | Ø5 | 10.5/9.0 | 5.9 | 4 | |||||||
FC100P-4T-5.5GB | 102.00 | 202.00 | 162.00 | Ø5.6 | 14.6/13.0 | 8.9 | 5.5 | |||||||
FC100P-4T-7.5GB | 102.00 | 202.00 | 162.00 | Ø5.6 | 19/17 | 11 | 7.5 | |||||||
FC100P-4T-11GB | 125.00 | 242.50 | 169.50 | Ø6.3 | 28/25 | 16 | 11 | |||||||
FC100P-4T-15GB | 125.00 | 242.50 | 169.50 | Ø6.3 | 35/32 | 21 | 15 | |||||||
FC100P-4T-18.5GB | 165.00 | 297.00 | 206.20 | Ø7 | 39/37 | 24 | 18.5 | |||||||
FC100P-4T-22GB | 165.00 | 297.00 | 206.20 | Ø7 | 47/45 | 30 | 22 | |||||||
FC100P-4T-30G(-B) | 225.00 | 360.00 | 231.70 | Ø7 | 62/60 | 39 | 30 | |||||||
FC100P-4T-37G(-B) | 225.00 | 360.00 | 231.70 | Ø7 | 77/75 | 49 | 37 | |||||||
FC100P-4T-45G(-B) | 260.00 | 440.00 | 230.00 | Ø8 | 92/90 | 59 | 45 | |||||||
FC100P-4T-55G(-B) | 300.00 | 555.00 | 270.00 | Ø10 | 113/110 | 72 | 55 | |||||||
FC100P-4T-75G(-B) | 300.00 | 555.00 | 270.00 | Ø10 | 156/152 | 100 | 75 | |||||||
FC100P-4T-90G | 338.00 | 580.00 | 315.00 | Ø10 | 180/176 | 116 | 90 | |||||||
FC100P-4T-110G | 338.00 | 580.00 | 315.00 | Ø10 | 214/210 | 138 | 110 | |||||||
FC100P-4T-132G | 400.00 | 840.00 | 340.00 | Ø10 | 256/253 | 167 | 132 | |||||||
FC100P-4T-160G | 400.00 | 840.00 | 340.00 | Ø10 | 307/304 | 200 | 160 | |||||||
