Мембранный вакуумный насос TXCE 838 с полностью химически стойким сенсорным экраном контроллер TVC301 автоматическая система управления
- Категория: >>>
- Поставщик: Xiamen Mibay Technology Co. Ltd.
Сохранить в закладки 1601004534106:
Описание и отзывы
Характеристики
Product Description

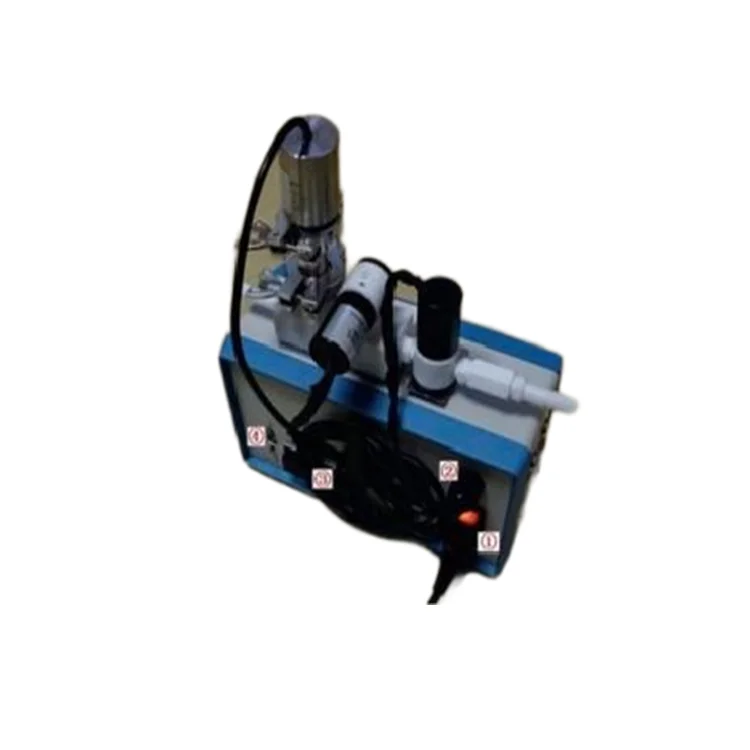

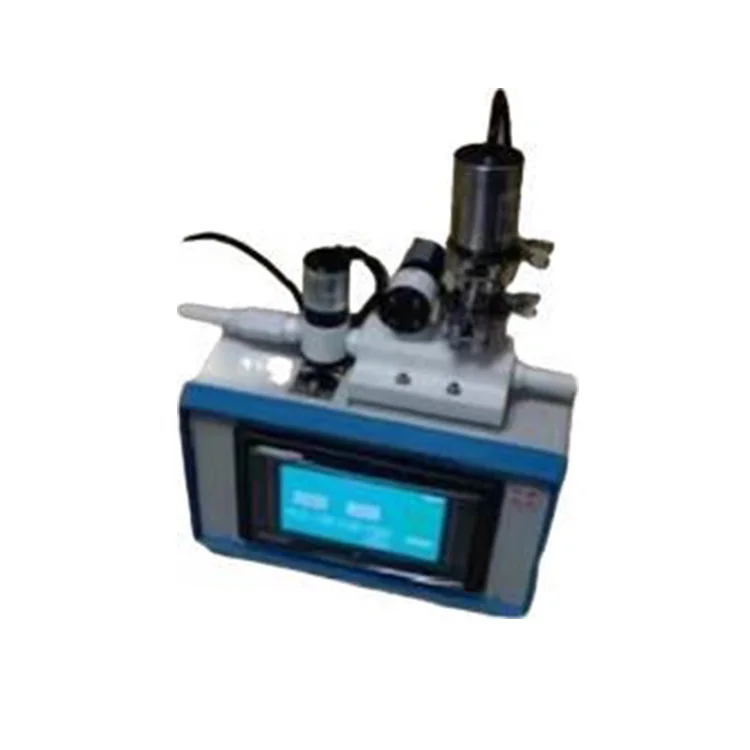

Touch screen vacuum controller TVC301 (fully chemically resistantCharacteristic:
1. The 5-inch large touch screen is very convenient to operate.
2. Use the opening / close of the 24V PTFE solenoid valve to control the vacuum degree of the system, from 1 mbar-atmospheric pressure.
3. Use 24V corrosion resistant capacitive film vacuum meter to measure the system vacuum to give the system signal,
The measurement range was 0.1-1080 mbar. The film in contact with the gas is corrosion-resistant ceramic alumina,
Can be used under acid and alkaline gas.
4. Use 24V PTFE vent valve to inflate the system for break the vacuum.
5. The material of overcurrent gas is super PTFE material, which is completely resistant to chemical corrosion.
6. Equipped with USB interface for remote control and firmware upgrade; equipped with security protection power plug.
7. The operating system has a section of program control editing and automation for distillation
1. The 5-inch large touch screen is very convenient to operate.
2. Use the opening / close of the 24V PTFE solenoid valve to control the vacuum degree of the system, from 1 mbar-atmospheric pressure.
3. Use 24V corrosion resistant capacitive film vacuum meter to measure the system vacuum to give the system signal,
The measurement range was 0.1-1080 mbar. The film in contact with the gas is corrosion-resistant ceramic alumina,
Can be used under acid and alkaline gas.
4. Use 24V PTFE vent valve to inflate the system for break the vacuum.
5. The material of overcurrent gas is super PTFE material, which is completely resistant to chemical corrosion.
6. Equipped with USB interface for remote control and firmware upgrade; equipped with security protection power plug.
7. The operating system has a section of program control editing and automation for distillation
The AUTO button to prevent boiling after finding the boiling point of the substance.
parameter:
model | Touch screen Vacuum controller T VC 301 (full chemical corrosion resistance) |
Touch screen size | 5 inches, standby is less than 3W |
Measure the vacuum gauge type | 24V corrosion-resistant capacitive film vacuum meter (ceramic alumina film, <± 0.2% FS) |
measuring range | 0.1.1080mba |
Vacuum control range | And 1 mbar-atmospheric pressure |
Vacuum control mode | The 24V PTFE solenoid opens / closes the air flow to control the vacuum degree |
Boiling mode | A PTFE vent valve of 24V |
power | 108W |
weight | 4.3Kg |
Only inch (length / width / height) | 280/120/320mm |

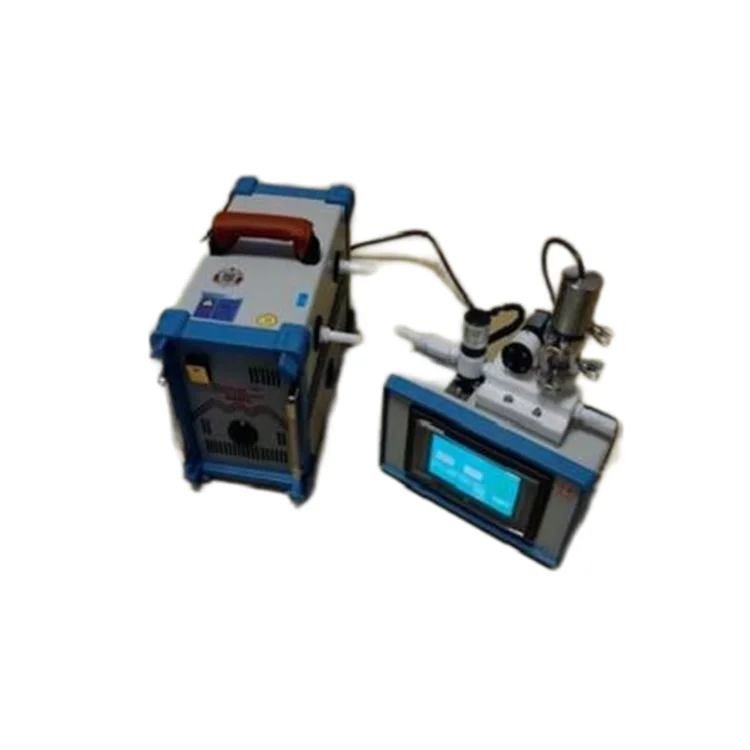

Chemically resistant diaphragm vacuum pump product features:
Box-type structure, safe operation, low noise
Dry operation to ensure no oil pollution, green and environmental protection
Durable and suitable for continuous operation
The motor has a 4UF capacitor with overtemperature protection
The safety plug protects the circuit part; The overcurrent material meets the requirements of ATEX II 2G IIB+ H2T3X explosion protection
The diaphragm is an umbrella-shaped thickened EPDM rubber coated with PTFE coating, and the contact parts are PTFE material and PTFE coating, which has very strong chemical corrosion resistance
The selection of low-temperature lifting motor, as well as the multi-ventilation holes of the box-type structure and the internal circulation of the brushless fan, ensure long-term stable use
Compared with the traditional laboratory circulating water pump (ultimate vacuum 30mbar, pumping speed 10L/min), the performance is significantly improved
Box-type structure, safe operation, low noise
Dry operation to ensure no oil pollution, green and environmental protection
Durable and suitable for continuous operation
The motor has a 4UF capacitor with overtemperature protection
The safety plug protects the circuit part; The overcurrent material meets the requirements of ATEX II 2G IIB+ H2T3X explosion protection
The diaphragm is an umbrella-shaped thickened EPDM rubber coated with PTFE coating, and the contact parts are PTFE material and PTFE coating, which has very strong chemical corrosion resistance
The selection of low-temperature lifting motor, as well as the multi-ventilation holes of the box-type structure and the internal circulation of the brushless fan, ensure long-term stable use
Compared with the traditional laboratory circulating water pump (ultimate vacuum 30mbar, pumping speed 10L/min), the performance is significantly improved
parameter:
model | TXCE 822 | TXCE 838 | TXCE 5025 | TXCE 5038 | TXCE 240 | TXCE 860 | TXCE 275 | TXCE 8110 | |||||||
edition | V3.0 | ||||||||||||||
Pump head form | two stage | two stage | two stage | two stage | three-level | two stage | three-level | two stage | |||||||
Two pump head | Two pump head | Two pump head | Two pump head | Four pump head | Four pump head | Four pump head | Four pump head | ||||||||
ultimate vacuum | < 8 mbar | < 8 mbar | < 50 mbar | < 50 mbar | < 2 mbar | < 8 mbar | < 2 mbar | < 8 mbar | |||||||
(800 Pa) | (800 Pa) | (5000 Pa) | (5000 Pa) | (200 Pa) | (800 Pa) | (200 Pa) | (800 Pa) | ||||||||
The suction speed | 22 L/min | 38 L/min | 25 L/min | 38 L/min | 40L/min | 60L/min | 75 L/min | 110 L/min | |||||||
Conventional application | Spinning evaporator | Draw filter, exhaust | Spinning evaporator | ||||||||||||
Centrifugation concentration | Centrifugation concentration | ||||||||||||||
vacuum drying | vacuum drying | ||||||||||||||
Draw filter, exhaust | Draw filter, exhaust | ||||||||||||||
Acid and alkali resistant corrosion | |||||||||||||||
Membrane size | diameter 68mm | diameter 106mm | diameter 68mm | diameter 106mm | diameter 68mm | diameter 68mm | diameter 106mm | diameter 106mm | |||||||
power | 100W | 130W | 100W | 130W | 205W | 205W | 265W | 265W | |||||||
(50Hz) | |||||||||||||||
noise | 47 dB(A) | 48 dB(A) | 47 dB(A) | 48 dB(A) | 49 dB(A) | 49 dB(A) | 50 dB(A) | 50 dB(A) | |||||||
weight | 9.5 kg | 10.5 kg | 9.5 kg | 10.5 kg | 18.5 kg | 18.5 kg | 19.5 kg | 19.5 kg | |||||||
joggle | NW 8-10mm (inner diameter 8 to 10mm tube) | ||||||||||||||
size | 320/175/205 | 380/190/260 | 320/175/205 | 380/190/260 | 380/480/260 | 380/480/260 | 380/480/260 | 380/480/260 | |||||||
(Wide, long and high) | mm | mm | mm | mm | mm | mm | mm | mm | |||||||
Structure chart：
Operating System Description:

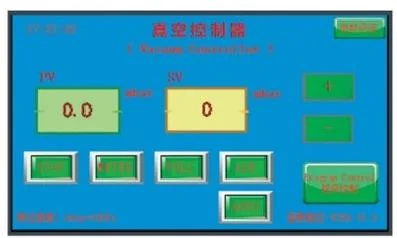

1. Main operating system interface
1. Main operating system interface
PV - Displays the measured vacuum value
SV - Setting the Vacuum Level Value (Touchable Input Value)
+/- Button - Add/subtract the set vacuum value in units of 1mbar
STOP key - Stops the operation
METER button - Start the operation according to the set vacuum level
FULL Button - The vacuum pump is pumped straight to the ultimate vacuum level
AIR Button - Inflates the system and breaks the vacuum
AUTO key - used to prevent detonation after automatically finding the boiling point of a substance in distillation operations
SV - Setting the Vacuum Level Value (Touchable Input Value)
+/- Button - Add/subtract the set vacuum value in units of 1mbar
STOP key - Stops the operation
METER button - Start the operation according to the set vacuum level
FULL Button - The vacuum pump is pumped straight to the ultimate vacuum level
AIR Button - Inflates the system and breaks the vacuum
AUTO key - used to prevent detonation after automatically finding the boiling point of a substance in distillation operations
Program Control key - Enter the program control editing settings screen
2. Program control editing and setting operation interface
PV - Displays the measured vacuum value
STOP key - Stops the operation
RUN button - start the operation according to the set program value (run at the set vacuum value for the set time)
Yellow box - set vacuum value (direct touch to set 1mbar - 1080mbar)
Timebox - The amount of time required to run at the vacuum value set in the previous yellow box
PV - Displays the measured vacuum value
STOP key - Stops the operation
RUN button - start the operation according to the set program value (run at the set vacuum value for the set time)
Yellow box - set vacuum value (direct touch to set 1mbar - 1080mbar)
Timebox - The amount of time required to run at the vacuum value set in the previous yellow box
