Product Description
SCS2332 Serial Bus Servo 4.5kg 6V High-precision Coreless All Metal Robot Servo
Description
Minimalist wiring / occupied port less / more precise control / feedback position, temperature, load, speed and voltage data /support TTL/485 protocol / interface / protocol development mode (multi support mode and servo motor mode) / double link easy wiring / bus connection group of chrysanthemum theory can be up to 253 ID / high precision metal gear group / baud rate up to 1M.
Customizable magnetic coding / high precision (4096 bit)
If the servo does not match your requirements , please do not hesitate to contact with us,
we have hundreds of servos for optional, and we are professional servo manufacturer since 2011,
customizing servo as per requirements is our advantage.
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.
3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
We offer customized services. Please let us know your requirements.
Contact us
Skype: Jenny-fitec
Whats App: 0086 13686413808
WeChat: 0086 13686413808
The advantage of Serial bus servo:
1.Beautiful wiring structure,
2.Easy to control signal,
3.real-time feedback of position,tempreture,speed,voltage,Current data,
4.Less occupied port.
5.Digital transmission signal is
Flexible, convenient, reliable and good compatibility
6.intercommunication;
Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.
Description
Minimalist wiring / occupied port less / more precise control / feedback position, temperature, load, speed and voltage data /support TTL/485 protocol / interface / protocol development mode (multi support mode and servo motor mode) / double link easy wiring / bus connection group of chrysanthemum theory can be up to 253 ID / high precision metal gear group / baud rate up to 1M.
Customizable magnetic coding / high precision (4096 bit)
If the servo does not match your requirements , please do not hesitate to contact with us,
we have hundreds of servos for optional, and we are professional servo manufacturer since 2011,
customizing servo as per requirements is our advantage.
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.
3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
We offer customized services. Please let us know your requirements.
Contact us
Skype: Jenny-fitec
Whats App: 0086 13686413808
WeChat: 0086 13686413808
The advantage of Serial bus servo:
1.Beautiful wiring structure,
2.Easy to control signal,
3.real-time feedback of position,tempreture,speed,voltage,Current data,
4.Less occupied port.
5.Digital transmission signal is
Flexible, convenient, reliable and good compatibility
6.intercommunication;
Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.
Feature:

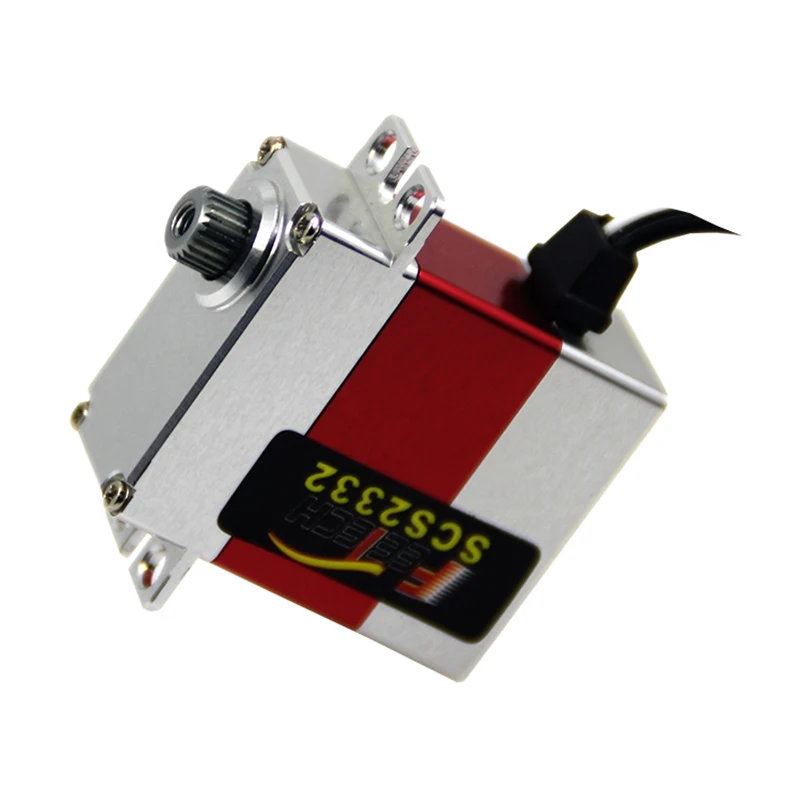

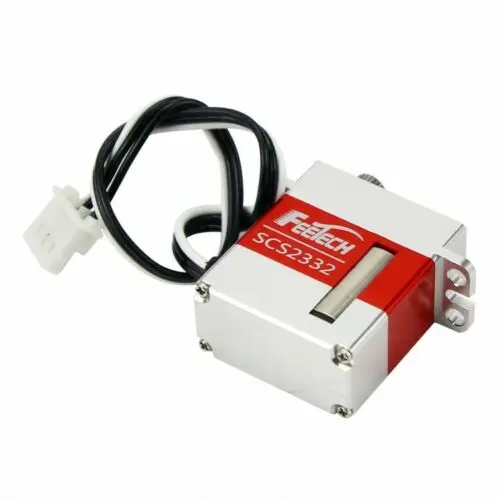

SCS2332 is 6V 4.5kg serial bus servo,adopt full aluminum alloy case,metal gearbox,coreless motor,
Feetech self researched and developed TTL control board, high quality potentiometer, 25T output shaft.
The stall torque is 4.5kg.cm, effective control angle is 300 °, with servo mode and continuous motor working mode, feedback,position, speed, voltage, temperature, load parameters, so as to achieve overload protection.
It is suitable for teaching, maker, robot joints and other small torque transmission applications.
Size:A:23.2mm B:12.1mm C:28.5mm
Product Name:6V 4.5kg.cm Serial Control BUS Servo
Storage Temperature Range:-30℃~80℃
Operating Temperature Range:-15℃~70℃
Weight:20g
Gear Type:Metal Gear
Limit angle:NO limit
Bearing:2 Ball bearings
Horn gear spline:25T(4.95mm)
Horn type:Plastic,POM
Case:aluminium alloy
Connector Wire:150mm ±5 mm
Motor:Coreless motor
Operating Voltage Range:4.8-6V
No Load Speed:0.09sec/60°@6V
Runnig current(at no load) :150 mA@6V
Peak Stall Torque:4.5kg.cm@6V
Rated torque:1.5kg.cm@6V
Stall Current:1200mA@6V
ID range:0-253
Communication Speed:38400bps ~ 1 Mbps
Command signal:Bus Packet Communication TTL level
Protocol Type:Half duplex Asynchronous Serial Communication
Feetech self researched and developed TTL control board, high quality potentiometer, 25T output shaft.
The stall torque is 4.5kg.cm, effective control angle is 300 °, with servo mode and continuous motor working mode, feedback,position, speed, voltage, temperature, load parameters, so as to achieve overload protection.
It is suitable for teaching, maker, robot joints and other small torque transmission applications.
Size:A:23.2mm B:12.1mm C:28.5mm
Product Name:6V 4.5kg.cm Serial Control BUS Servo
Storage Temperature Range:-30℃~80℃
Operating Temperature Range:-15℃~70℃
Weight:20g
Gear Type:Metal Gear
Limit angle:NO limit
Bearing:2 Ball bearings
Horn gear spline:25T(4.95mm)
Horn type:Plastic,POM
Case:aluminium alloy
Connector Wire:150mm ±5 mm
Motor:Coreless motor
Operating Voltage Range:4.8-6V
No Load Speed:0.09sec/60°@6V
Runnig current(at no load) :150 mA@6V
Peak Stall Torque:4.5kg.cm@6V
Rated torque:1.5kg.cm@6V
Stall Current:1200mA@6V
ID range:0-253
Communication Speed:38400bps ~ 1 Mbps
Command signal:Bus Packet Communication TTL level
Protocol Type:Half duplex Asynchronous Serial Communication
Specification
item | 4.5kg micro metal case multipurpose UART BUS robot servo |
Type | RC Servos |
Gender | Unisex |
Age Range | 14 Years & up |
Use | Vehicles & Remote Control Toys |
Place of Origin | China |
Guangdong | |
Brand Name | feetech |
Model Number | SCS2332 |
Size | 23.2*12.1*28.5mm |
type | Boston Dynamics Robot Dog |
DIY | Intelligent Robot Dog |
Motor type | Coreless motor |
Dead band width | 2usc |
Purpose | Built a Robot Dog and Made it Dance |
Function | remote control |
Description | 5kg serial Bus servo |
Product size | standard |
Feature | all metal case |
Gender | Unisex |
Packing & Delivery

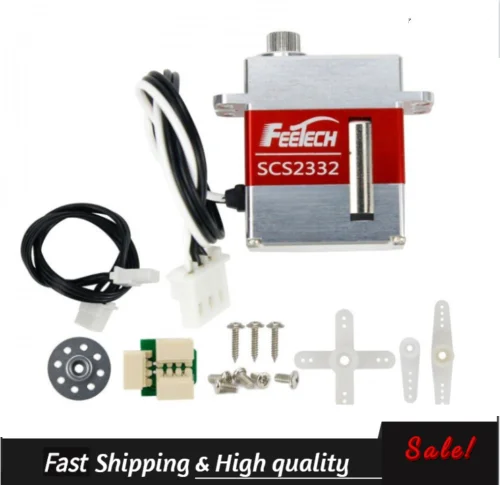

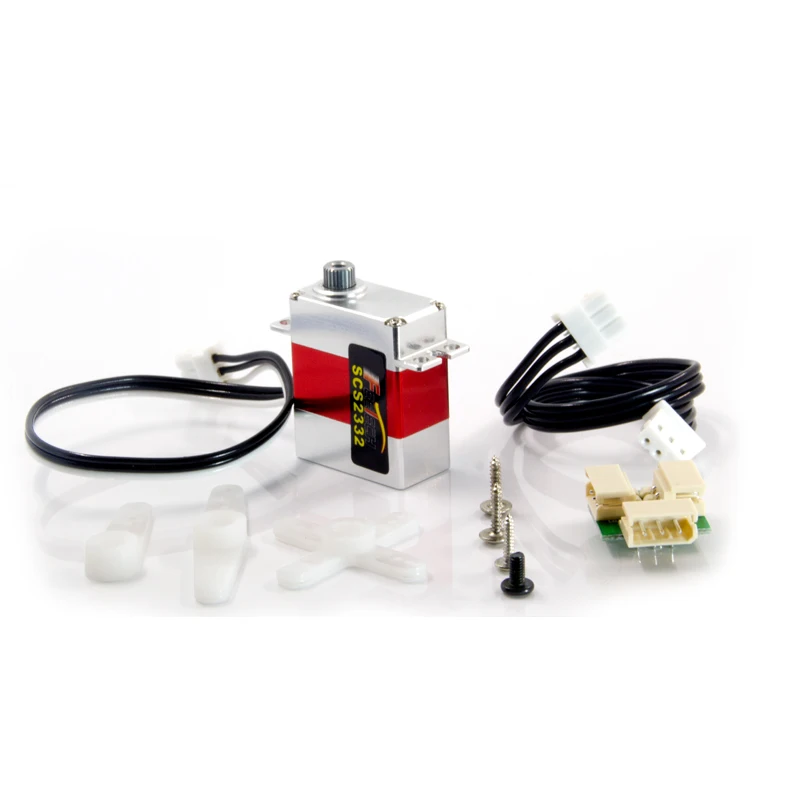

1.servo*1pcs 2.servo arm*1 bag 3.carton box
Company Profile
We are a professional manufacturer and exporter of R/C Hobby products and R/C Drone, such as R/C Drone, R/C Airplanes, R/C Cars, R/C Boats, R/C Toys, Gas R/C Airplanes, Gas R/C Helicopters, Gas R/C Engines, Gas R/C Cars, Remote Control Equipment, R/C Accessories/Tools and so on.
We export our products to the markets all over the world. Now we are enjoying a high reputation in the overseas markets. All of our products conform to international standards, and our products are popular among our customers. OEM and ODM orders are welcome. "Quality products, excellent service, reasonable price and timely delivery" is our persistent goal.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
We export our products to the markets all over the world. Now we are enjoying a high reputation in the overseas markets. All of our products conform to international standards, and our products are popular among our customers. OEM and ODM orders are welcome. "Quality products, excellent service, reasonable price and timely delivery" is our persistent goal.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southern Europe(8.33%),Northern Europe(8.33%),Central America(8.33%),Western Europe(8.33%),Eastern Asia(8.33%),Mid East(8.33%),Oceania(8.33%),Africa(8.33%),Southeast Asia(8.33%),Eastern Europe(8.33%),South America(8.33%),North America(8.33%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
RC Servo,Brushless Motor and ESC,RC Robot,RC Balancer Charger,RC Quad Copter FPV
4. why should you buy from us not from other suppliers?
We are one stop rc wholesale supplier over 10 years.We deal with various kinds of R/C hobbies and R/C toys. Such as R/C drone, R/C helicopter, R/C airplane, Gas airplane, R/C Robot, R/C car, R/C boat, RC access.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2011,sell to Southern Europe(8.33%),Northern Europe(8.33%),Central America(8.33%),Western Europe(8.33%),Eastern Asia(8.33%),Mid East(8.33%),Oceania(8.33%),Africa(8.33%),Southeast Asia(8.33%),Eastern Europe(8.33%),South America(8.33%),North America(8.33%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
RC Servo,Brushless Motor and ESC,RC Robot,RC Balancer Charger,RC Quad Copter FPV
4. why should you buy from us not from other suppliers?
We are one stop rc wholesale supplier over 10 years.We deal with various kinds of R/C hobbies and R/C toys. Such as R/C drone, R/C helicopter, R/C airplane, Gas airplane, R/C Robot, R/C car, R/C boat, RC access.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
JX CLS5830HV водонепроницаемый металлический Шестеренчатый цифровой сервопривод с 30 кг высоким крутящим моментом для радиоуправляемой машины лодки Робот Модель транспортного средства
26,00 $

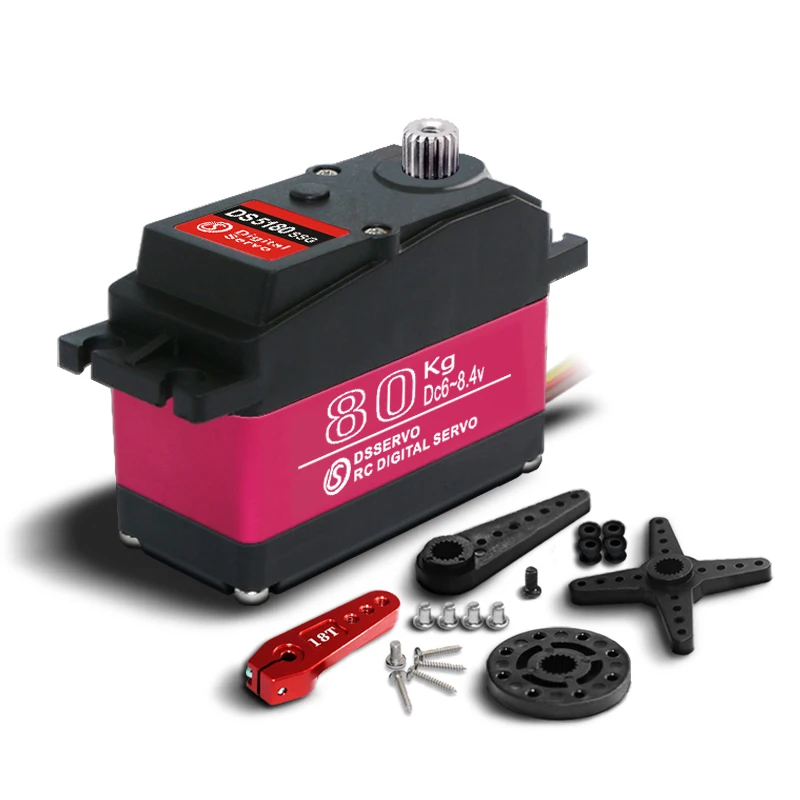

Dsservo DS5180 цифровой сервопривод 80 кг высокий крутящий момент RC полностью металлический механизм водонепроницаемый для автомобиля лодки
14,80-16,40 $

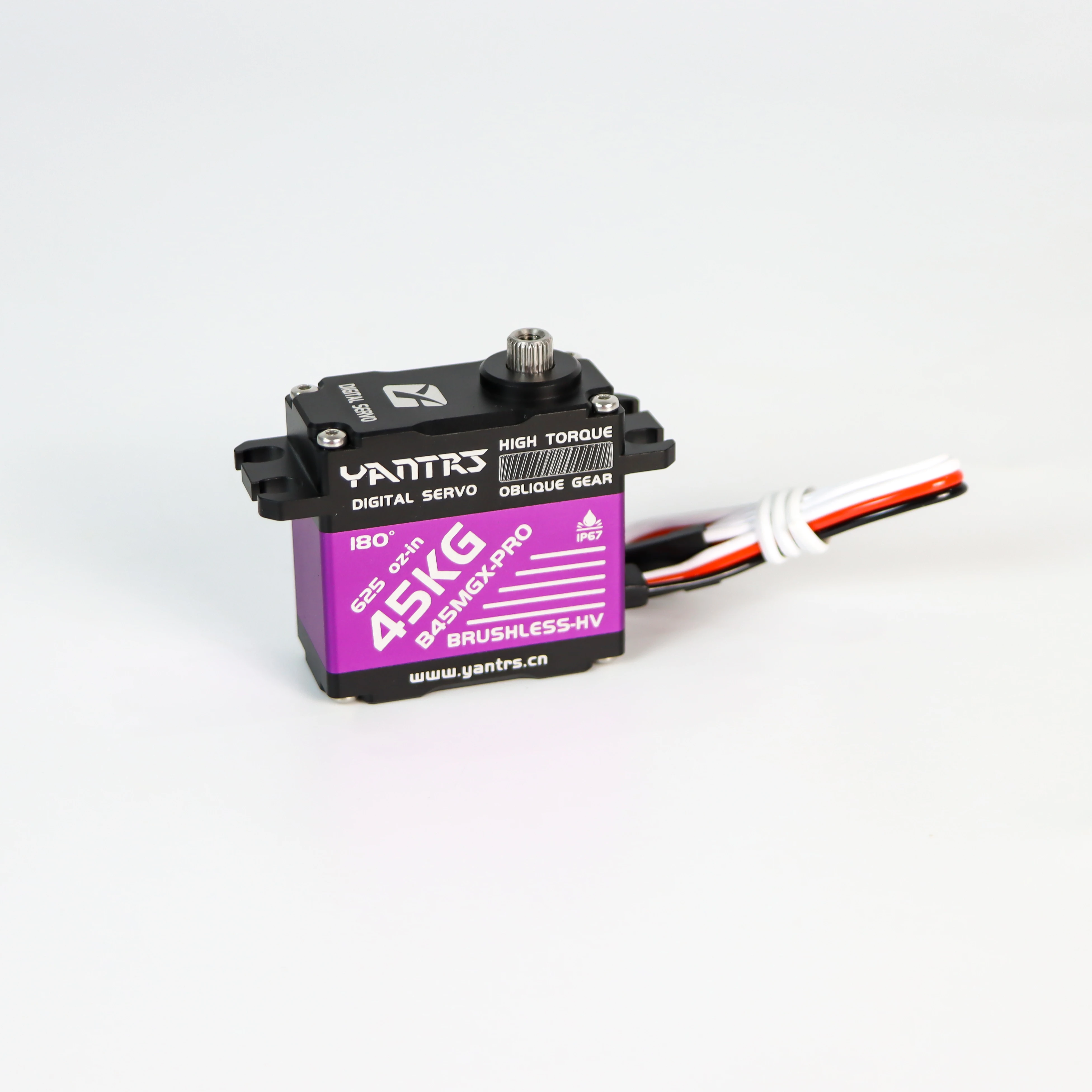

45 кг высокий крутящий момент водонепроницаемый цифровой сервопривод бесщеточный
49,00-69,00 $
Мужской гнездовой разъем для модели RC серворазъем модельный приемник батареи ESC соединение
1,16-1,26 $

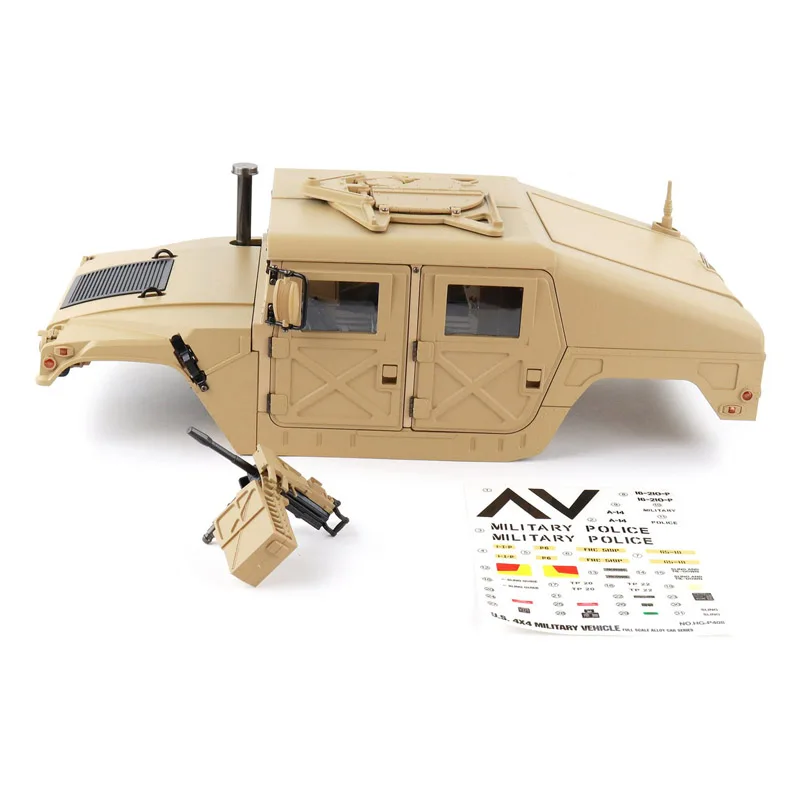

Hengguan/ Trasped запасные части 4ASS-PA060 военный грузовик HG-P408 корпус автомобиля в сборе желтый
99,00 $
ZD гонки Новое поступление отличной ценой 1/10 весы 4WD матовый Desert Buggy RTR (ракета DBX-10)
75,00-89,00 $

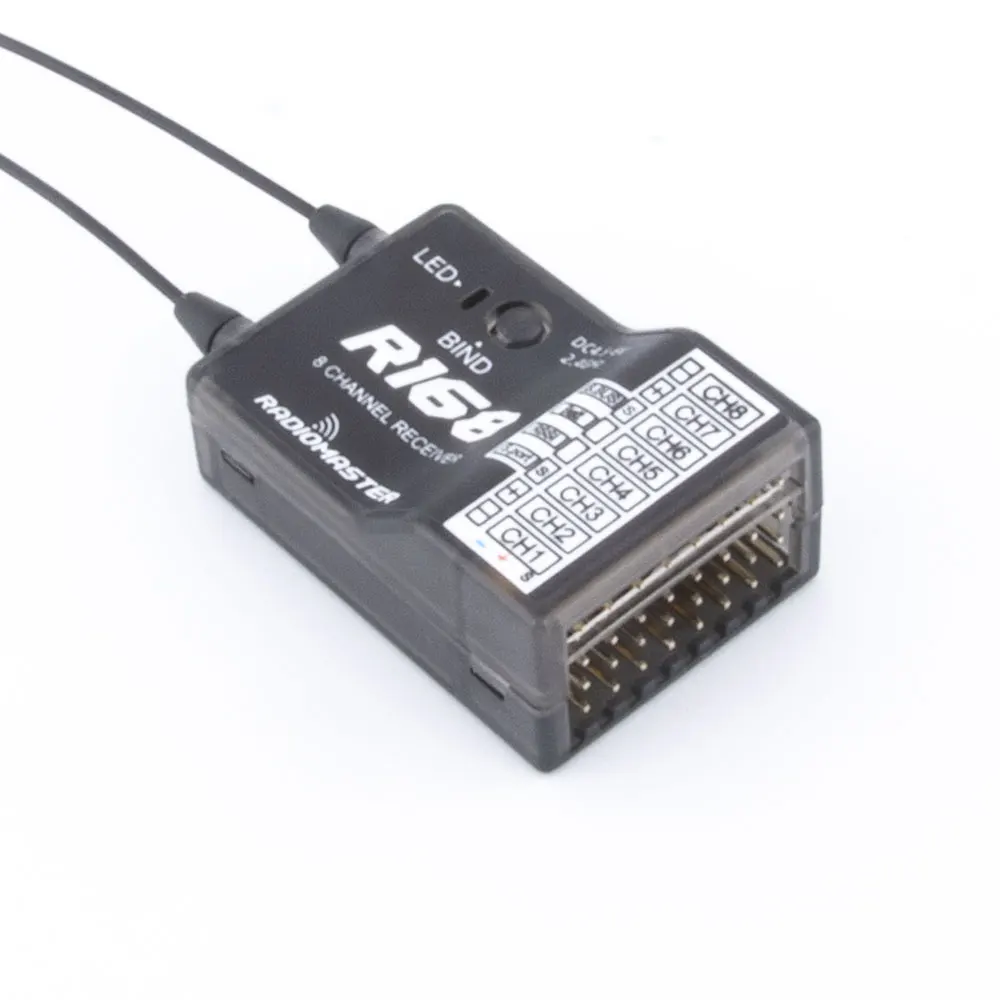

Радиопередатчики 2 4G R86 R86C 6CH R81 R168 8CH D8 16161 D16 Mini Nano приемник для Frsky X9D X-lite TX16S T18
