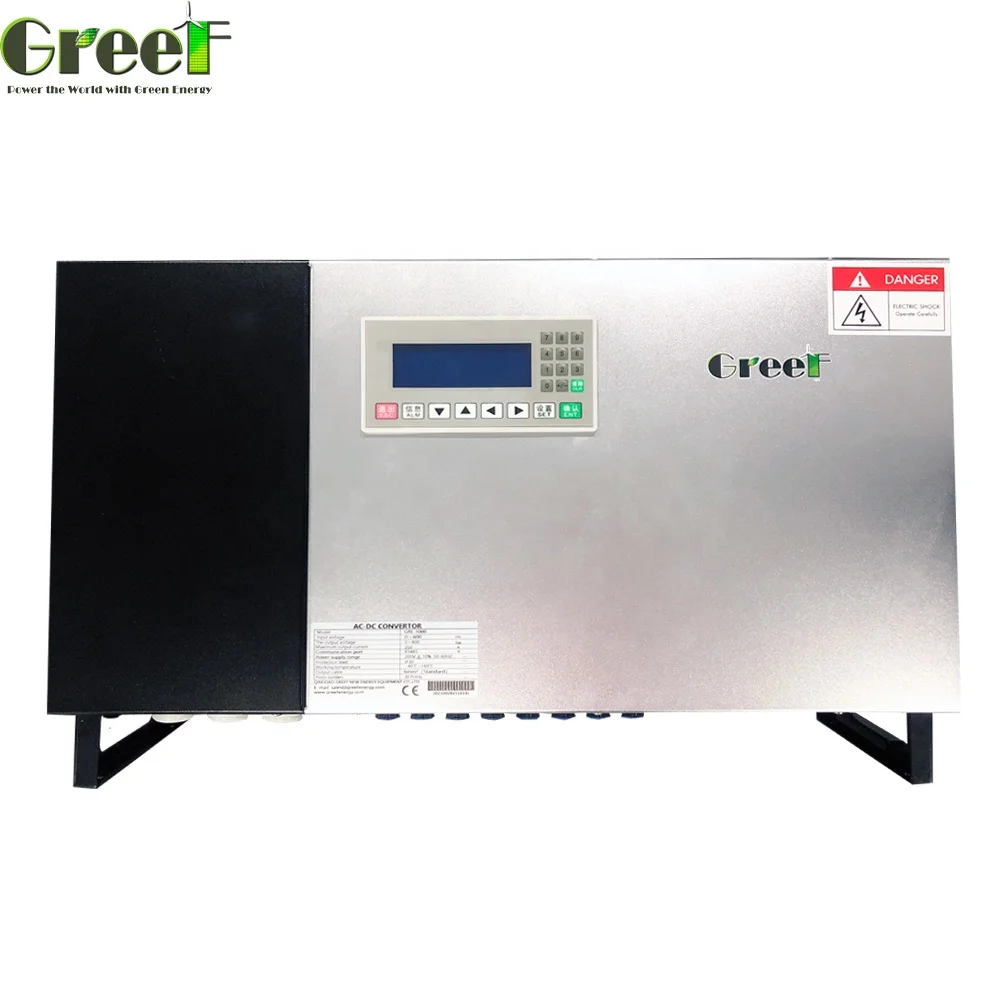

Индивидуальный преобразователь постоянного тока 30 кВт, Турбинный генератор для ветровой энергии для использования в возобновляемых источниках энергии
54 714,56 ₽
Высокоэффективный ветряной вентилятор с 6 лопастями 50 300 Вт 24 В 48 вертикальный генератор для домашнего использования
- Категория: >>>
- Поставщик: Linfen Kunyuan Science And Trade Co. Ltd.
Сохранить в закладки 1601004927096:
Описание и отзывы
Характеристики
Product Overview
Wind turbine
A wind turbine is a kind of electric power equipment that converts wind energy into mechanical work, which drives the rotor to rotate and ultimately outputs alternating current.
What are the components of a wind turbine?
Fan composition： Wind turbines are generally composed of wind turbines, generators (including devices), steering gear (tail wings), towers, speed limit safety mechanisms, and energy storage devices.
Characteristics of S-type wind turbine
Fan composition： Wind turbines are generally composed of wind turbines, generators (including devices), steering gear (tail wings), towers, speed limit safety mechanisms, and energy storage devices.
Details determine quality
2. Using high temperature Teflon wire, it is not easy to burn the wire when the generator is overloaded and heating
The groove of the hub and the blade are tightly matched to make the fit between the blade and the hub more accurate.
Wind turbine link diagram
Installation guide
1. The wind wheel is mounted in the double-hole groove of the wind hub, the groove on the wind blade is downward, and the stainless steel bolts penetrate into the hole from the front.
2.Tighten the stainless steel bolts (3 pairs, 6 pcs) with a wrench.
3. Install the 4 bolts on the flat washer and insert them into the corresponding holes of the wind turbine flange seat from top to bottom.
4. The three wires of the fan are connected with the transmission cable, and the length of each pair of wires is not less than 30 mm, and the connection end is 100 mm with tape.
5. Install the flange seat on the tower, set the flat washer and elastic washer, and tighten the nylon anti-loosening nut.
6. Put the nut into the hexagonal hole in the middle of the wind wheel hub and place it together on the generator spindle. Fix the wind wheel with your right hand and turn the bolt counterclockwise with your left hand to lock the nut.
7. Fasten the three gaps of the guide hood corresponding to each wind wheel piece on the wheel hub.
8, the wind generator cable is connected to the controller, the battery must be connected to the controller before wiring.
PRODUCT SPECIFICATIONS
6 blade parameters | ||||||||||||
Model | ZL-50S | ZL-80S | ZL-100S | ZL-150S | ZL-200S | ZL-300S | ||||||
Rated power | 50W | 80W | 100W | 150W | 200W | 300W | ||||||
Maximum power | 53W | 82W | 110W | 155W | 210W | 320W | ||||||
Rated voltage | 12V/24V/48V | 12V/24V/48V | 12V/24V/48V | 12V/24V/48V | 12V/24V/48V | 12V/24V/48V | ||||||
Starting wind speed | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | ||||||
Rated wind speed | 10m/s | 11.5m/s | 13m/s | 13m/s | 13m/s | 13m/s | ||||||
Safe wind speed | 55m/s | 55m/s | 50m/s | 50m/s | 50m/s | 50m/s | ||||||
Net weight of main engine | 6.3kg | 6.5kg | 6.7kg | 6.9kg | 7.1kg | 7.3kg | ||||||
Wheel diameter | 1.16m | 1.16m | 1.16m | 1.16m | 1.2m | 1.2m | ||||||
Number of blades | 6 | |||||||||||
electric generator | Three-phase AC permanent magnet generator/permanent magnet suspension generator | |||||||||||
Controller brake system | Overspeed three-phase short-circuit brake | |||||||||||
Blade material | Nylon fibre | |||||||||||
Recommend Products
SALES AND SERVICE NETWORK
Successful Project
Field power supply system
Installed next to the gas station
Wind and solar complementary monitoring system
Inner Mongolia Hohhot tower power supply system
Kunming wind-wind complementary street light
Company Profile
The company focuses on import and export business, and its business scope includes two categories of products: renewable energy and instrumentation.Renewable energy categories include household wind power generation, solar panels (foldable, flexible, aluminum frame), portable power supplies and batteries.
The company pays attention to product quality and service process management, and the team is experienced and can provide comprehensive and personalized solutions and quality services.All customers are cordially invited to order. Your satisfaction is our greatest pursuit.
The company pays attention to product quality and service process management, and the team is experienced and can provide comprehensive and personalized solutions and quality services.All customers are cordially invited to order. Your satisfaction is our greatest pursuit.
Product packaging
FAQ
First: Which is better for horizontal axis wind turbines and vertical axis wind turbines?
Answer: The horizontal axis is more efficient, and the vertical axis is easy to start. Foreign countries like the vertical axis, and domestic countries like the horizontal axis. It depends on personal preferences!Relatively speaking, the horizontal axis is widely used.
Second: Which one is suitable for home use?
Answer: Each one is suitable, first you need to tell me,.What electrical appliances do you have in your home?Which is the most powerful electrical appliance?Household electricity is 220VOR110VOR380V.We will configure the plan and quotation for you! We all have peripheral equipment for wind turbines, such as controllers, inverters, and towers.According to your own requirements, we can give you the corresponding configuration plan, or which you can purchase locally, and we provide parameters.
Third：
I have a farm and I want to install a wind turbine!
I am very interested in wind turbines!
Are there any recommended wind turbines?
Our country has very good wind resources. Can we install wind turbines?
The answer to the above question:
First of all, according to your own needs, you can ask me for a copy of the configuration of the wind turbine or according to the parameter requirements on my website, you can choose and choose your own wind turbine that suits you.
I need you to provide me with the following parameter table:
What electrical appliances do you have in your home?Which is the most powerful electrical appliance?Household electricity is 220VOR110VOR380V.We will configure the plan and quotation for you!We all have wind turbines, controllers, inverters, towers, and batteries. It depends on whether you want to configure them fully, or which ones you can purchase locally. We provide parameters.
Off-grid is to generate and store electricity by yourself, and grid-connected is to connect to the national grid. Which one do you have?
Fourth: I have now installed a solar power generation system. Can I connect to a wind turbine?
answer:Can be connected to wind turbines.
Question: How much power is the solar system?Off-grid or connected to the grid?How is off-grid photovoltaic connected in series and parallel?What is the voltage of the off-grid battery?？
If it is a grid-connected system, how big is it grid-connected?？Must be informed
We can join the wind turbine system, which does not conflict with the original system!！
Fifth: I buy a 10-kilowatt wind turbine system.
Off-grid is to generate and store electricity by yourself, and grid-connected is to connect to the national grid. Which one do you have?
Fourth: I have now installed a solar power generation system. Can I connect to a wind turbine?
answer:Can be connected to wind turbines.
Question: How much power is the solar system?Off-grid or connected to the grid?How is off-grid photovoltaic connected in series and parallel?What is the voltage of the off-grid battery?？
If it is a grid-connected system, how big is it grid-connected?？Must be informed
We can join the wind turbine system, which does not conflict with the original system!！
Fifth: I buy a 10-kilowatt wind turbine system.
Can it drive 10-kilowatt electrical appliances and household appliances?
Answer: It's not!The 10-kilowatt wind turbine is a model with 10 degrees of electricity per hour under normal conditions.It is the inverter that drives the household appliances, not the wind turbine.The inverter is divided into 220V and 380V, which one do you need to use!
Answer: It's not!The 10-kilowatt wind turbine is a model with 10 degrees of electricity per hour under normal conditions.It is the inverter that drives the household appliances, not the wind turbine.The inverter is divided into 220V and 380V, which one do you need to use!
Похожие товары

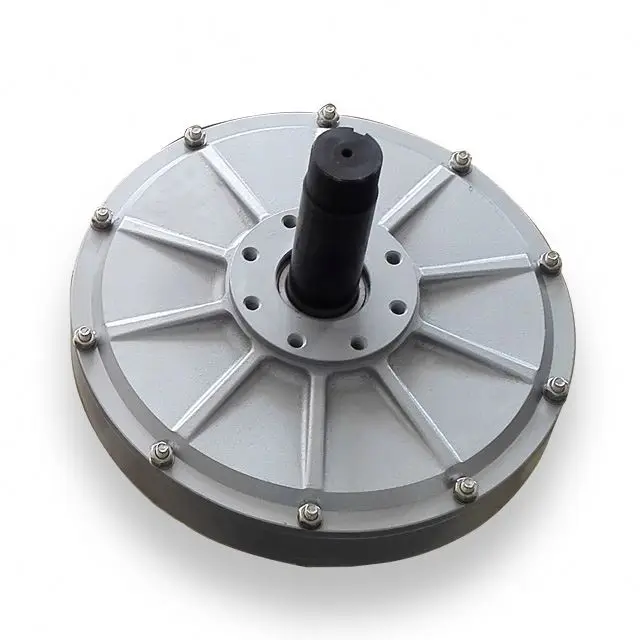

Тип диска генератора 3kw 250 об/мин, коррозийных свойствах, Maglev генератор ветровой турбины PMG 5kw Осевого Потока с постоянным магнитом, работающий от постоянного тока Генератор
Генератор, силовые турбины с солнечным напряжением переменного тока, 10 кВт, 220 В комплект, бытовые генераторы электроэнергии, 12 В, часть ветряной турбины
1 495,61 ₽ - 1 644,73 ₽
Инверторный генератор, 2 мегаватт, 400 В, 2 МВт, Мачтовый комплект, преобразователь, 500 кВт, стоимость ветряной мельницы и 20 кВт, осевая ветряная турбина на уровне земли
11 792,69 ₽ - 19 188,47 ₽
Домашняя ветровая турбина с/S4-100W /200 Вт,/300 Вт/400 Вт горизонтальная ветровая турбина, бесплатная доставка ветровой турбины

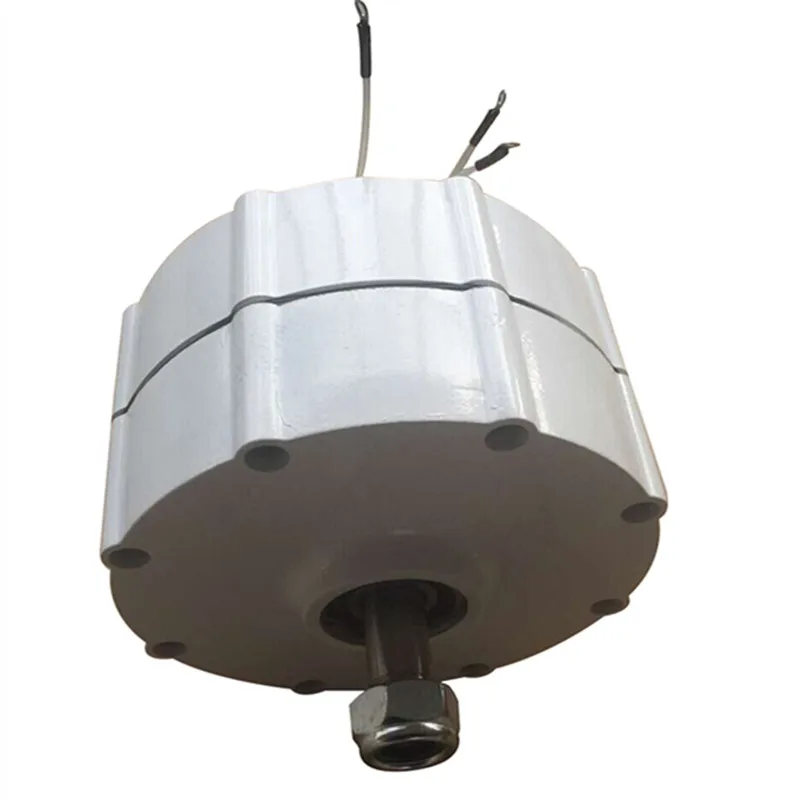

PMG-M редкоземельный генератор с постоянным магнитом для горизонтальной ветровой турбины, 400 Вт, 24 В
