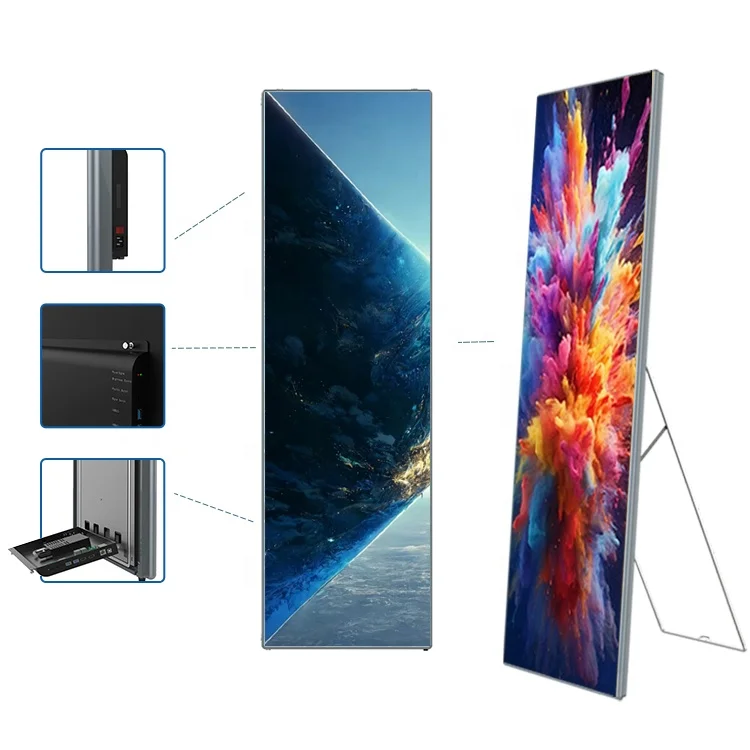

L серии новый дизайн широкий угол обзора Крытый p3.91 светодиодный экран для речи
14 476,20 ₽ - 15 918,40 ₽

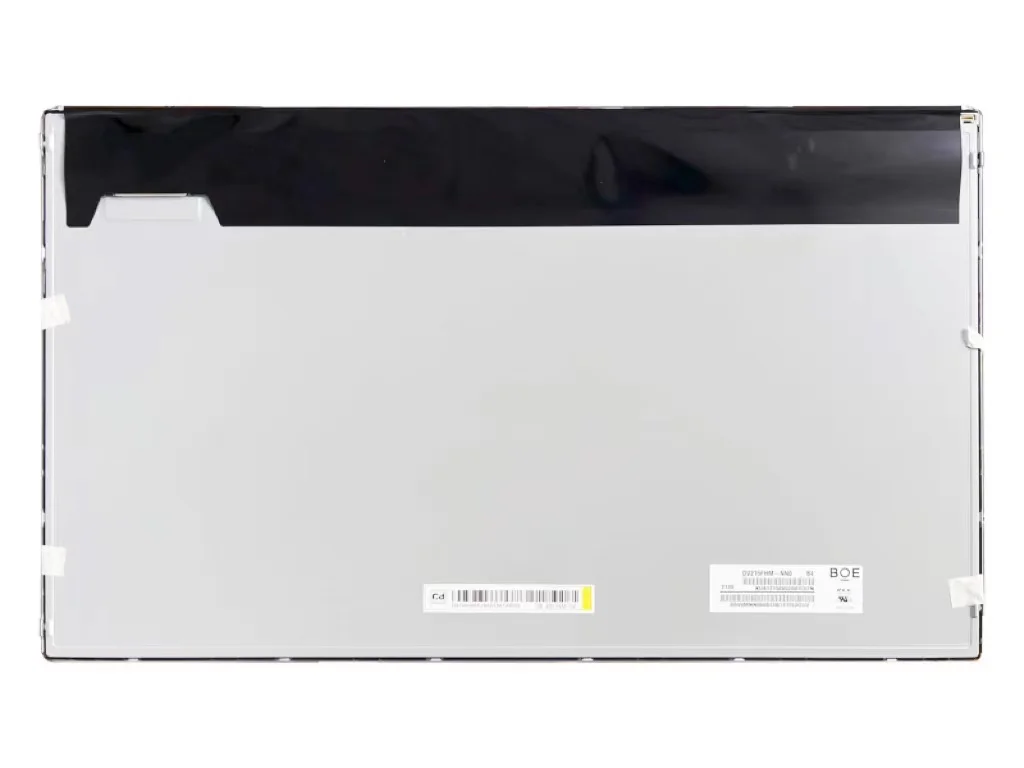

BOE 21 5 дюймовый высокояркий модуль дисплея Android DV215FHM NN0 с разрешением 1920*1080 ЖК дисплей цифровыми вывесками и дисплеем
- Категория: >>>
- Поставщик: Shenzhen Caison Technology Co. Ltd.
Сохранить в закладки 1601005333682:
Описание и отзывы
Характеристики
Specification

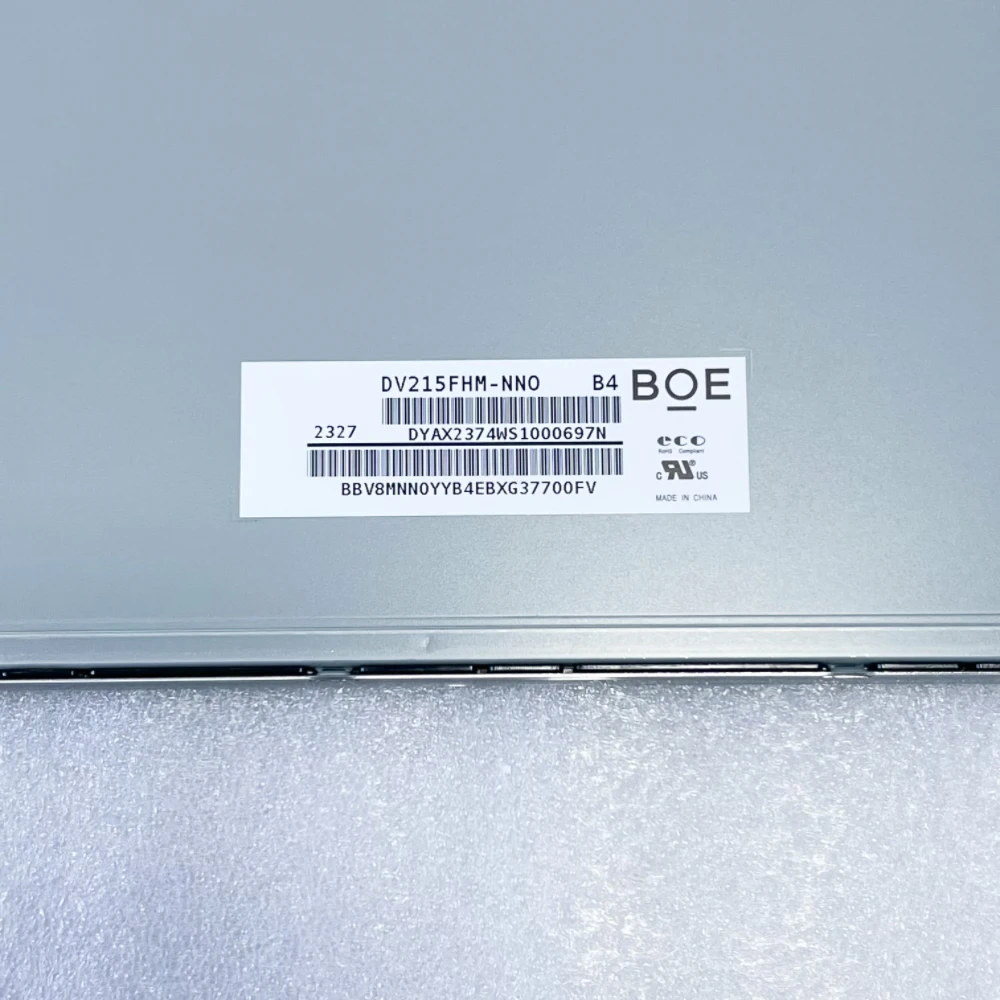

DV215FHM-NN0 21.5 inch resolution 1920*1080 lcd screen with ys-m8 android board input LVDS speaker output
Specification of the LCD panel | ||||||
Color Depth | 16.7M 73% NTSC | Panel Model | DV215FHM-NN0 | |||
Panel Size | 21.5 inch | Panel Type | a-Si TFT-LCD, LCM | |||
Resolution | 1920(RGB)×1080 | Pixel Format | RGB Vertical Stripe | |||
Active Area | 476.064(W)×267.786(H) mm | Outline Dim | 495.6(W)×292.2(H)×11.2(D) | |||
Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) | |||
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Response Time | 14 (Typ.)(G to G) ms | |||
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector | Power Supply | 5.0V (Typ.) | |||
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | |||||
Specification of the board | ||||||
Model No. | ys-m8 android board | Signal Interface | EDP Dual/Single 6/8bit LVDS | |||
Power for Board | 12V | Memory/storage | 2+8G/2+16G selectable | |||
Brightness Control | DC & PWM | Outline Dimention | 126mm(L)*87mm(W)*12mm(H) | |||
Speaker | 2 X 8Ω5W | Operating Temperature | -10℃ To +60℃ | |||
Product Description
LCD module diagram

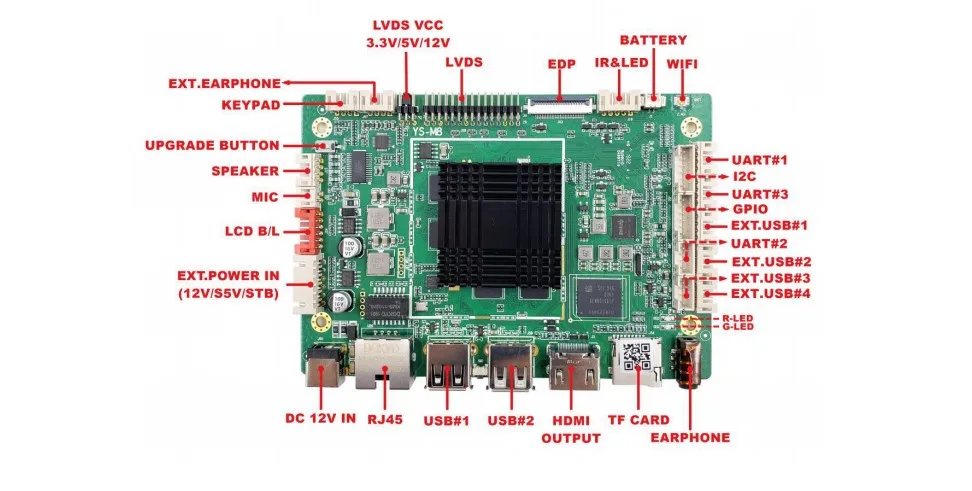

Board detail diagram
Related Products
Packing&Shipping
1.About the test
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
3.About the Shipping
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）
Transparent OLED display（30 inch/49 inch/55 inch）
Round LCD display
Square LCD display

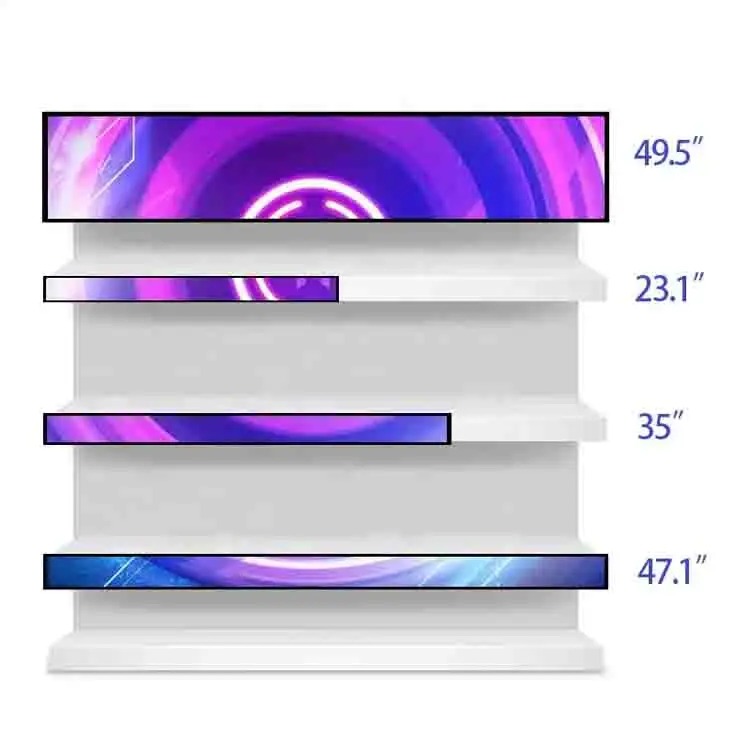

stretched Bar LCD display
LCD advertising machine (4.3 inch -110 inch )
LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)
High brightness panel(1000 -7000 brightness)
LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
Похожие товары
Сенсорный экран напольная подставка рекламный плеер ЖК-Бесплатные цифровые экраны видео мини обновление через Wi-Fi светодиодная уличная солнечная панель
Высокопроизводительный 500x500 бесшовный Сращивание Hd 4K Аренда Крытый наружный светодиодный настенный дисплей для событий
5 291,68 ₽
Креативный светодиодный экран динамика, экран динамика дерева, коммерческое искусство, отображает мощный визуальный опыт
2 927,77 ₽ - 3 469,95 ₽
Светодиодный настенный экран P1.875 P2.5
303 620,52 ₽ - 336 151,29 ₽

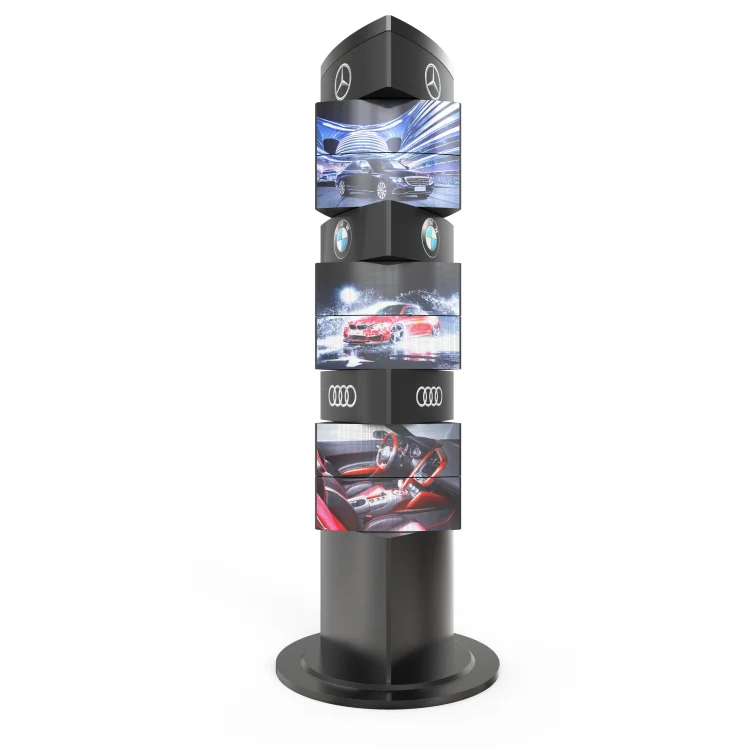

P3 гибкий светодиодный модуль Торговый центр Динамический светодиодный видео башня светодиодный дисплей вращающийся механический светодиодный дисплей
