Горячая Продажа Портативный азотный инфлятор генератор ISO 9001 сертифицированное специальное газовое оборудование
279 712,18-355 997,32 ₽
Криогенная установка для разделения воздуха кислородом поставщик жидкого кислорода и азота высокой чистоты производитель
- Категория: >>>
- Поставщик: Shenzhen Longer Industry Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601005355315:
Описание и отзывы
Характеристики
Products Description
Our Product Feature
1）The plant is skid mounted direct structure in whole, connected by high-pressure soft pipe，the user needn’t invest the connecting pipe and valves.\t2）Using liquid pump inner-compress flow, can produce high quality medical oxygen, completely accord with standard of medical oxygen, can sell to the hospital, and also use for industrial.\t
3）It have small volume, occupied small area.\t
4）The whole equipment without base installation, stable running, simple operation, easy maintenance。\t
5） The plant uses an internal compression process, liquid oxygen pump compression filling bottles, maximum reduce equipment maintenance costs, improve work efficiency.\t
6）All single unit adopt domestic most advanced technology, greatly reduce the energy consumption and save electricity\t
7）The cooling system of the equipment is air cooling type, users don't have to build the cooling pool, can save construction cost.\t
8）Equipment installation & commissioning period is short, about a month to finish all the work.\t
Product Type | Cryogenic Air Separation Plant | ||||
Available Product | Oxygen gas /liquid oxygen/Nitrogen gas/Liquid nitrogen | ||||
Applicable Industries: | Industrial fields and Medical | ||||
Oxygen Capacity | 100Nm3/h | ||||
Oxygen Purity | 99.6% | ||||
Outlet pressure | ≤15Mpa | ||||
Nitrogen Capacity | 100Nm3/h | ||||
Nitrogen Purity | 99.999% | ||||
Outlet pressure | ≤15Mpa | ||||
Warranty | 12 months | ||||
Type | Skid-mounted | ||||
Size | 100.95CBM(2*40 container) | ||||
Weight | ~23.8T | ||||
Packing | Nude/Wooden box | ||||
Product Paramenters
Oxygen Output | Oxygen purity | Power | Operation pressure |
100L | ≥99.6% | 380V/220V/50HZ/customized | 1.2Mpa |
1.Main air compressor
Air compressor is manufactured by world famous brand with Flexible and convenient operationstable operation and low energy consumption
Air compressor is manufactured by world famous brand with Flexible and convenient operationstable operation and low energy consumption
2. Air pre-cooling system
(1) Freon/air heat exchanging pre-cooling system, the unit is stable and very easy to maintain, high & low pressure and overheat self-protection function to make sure the operation is safer and more reliable.
(2) Skid closed structure with little area occupation
(2) Skid closed structure with little area occupation
3.Air purification system
(1) Remove dangerous impurities contained in the air before entering the cold box and brings complete safety for a long operating time without any necessary defrosting
(2) Use double layer system, very effectively protects the layer of the molecular sieve.
(3) High strength, large dynamic adsorption capacity, long service life.
(2) Use double layer system, very effectively protects the layer of the molecular sieve.
(3) High strength, large dynamic adsorption capacity, long service life.
4. Turbine expansion unit
(1) Adopt advanced design and processing software to achieve the best performance
(1) Adopt advanced design and processing software to achieve the best performance

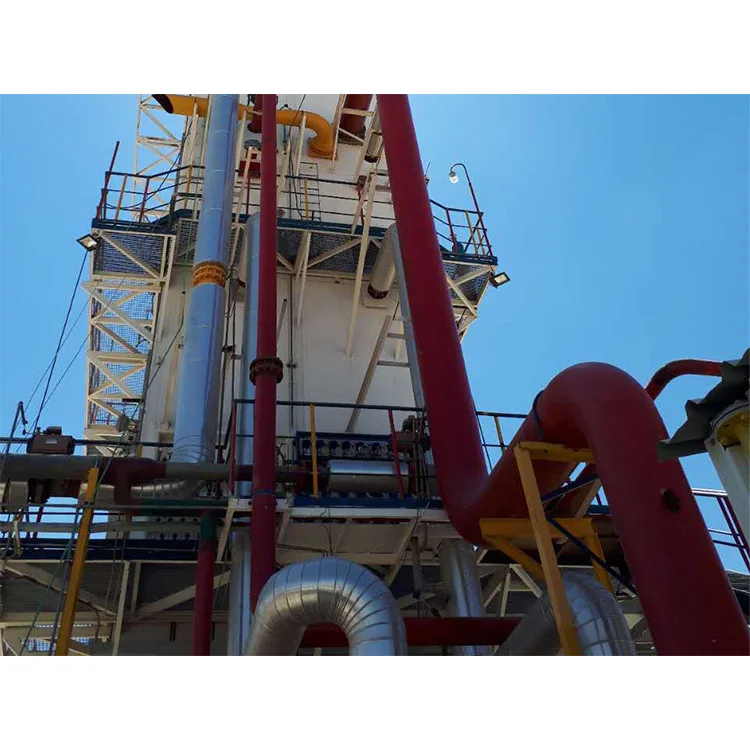

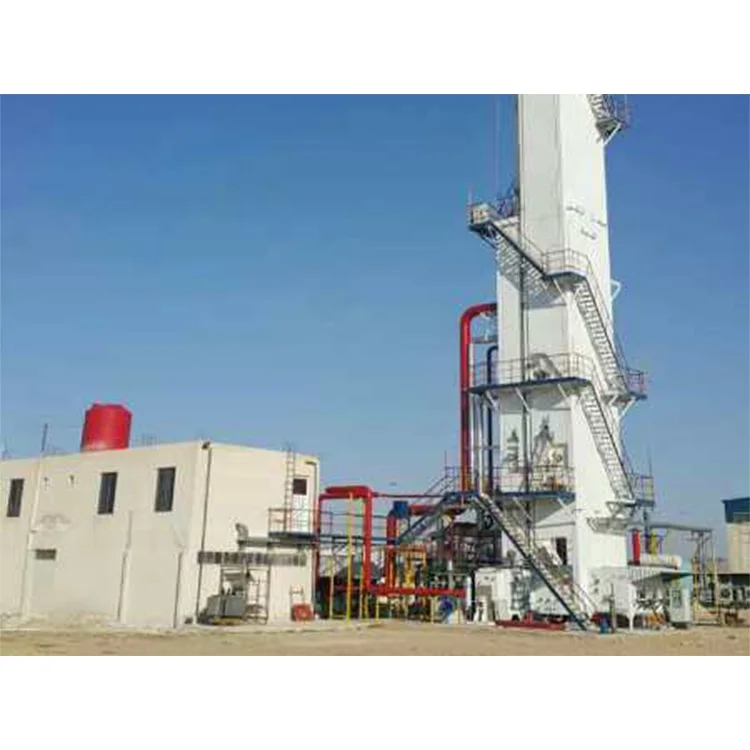

Installation in Iraq
Installation in Algeria
Installation in Turkey

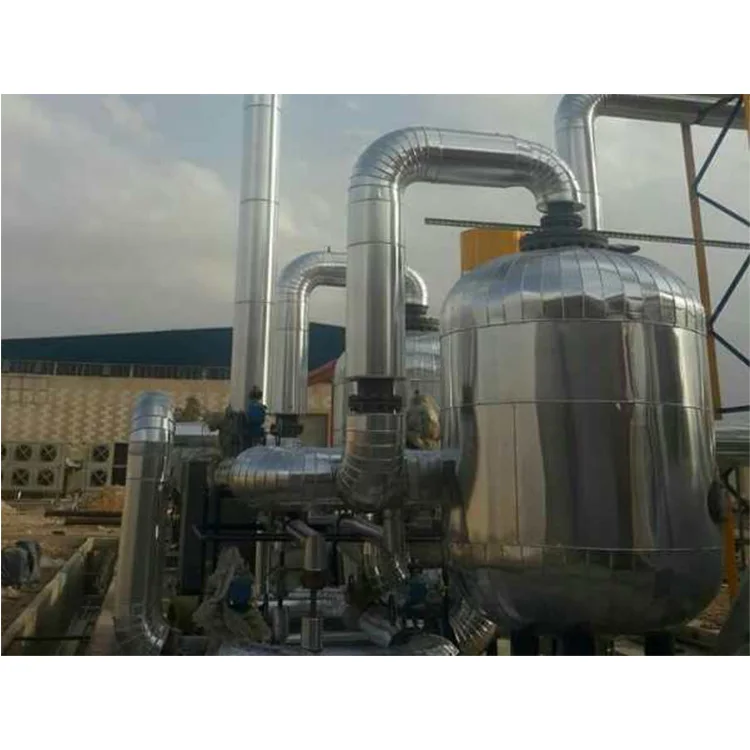

Successful case

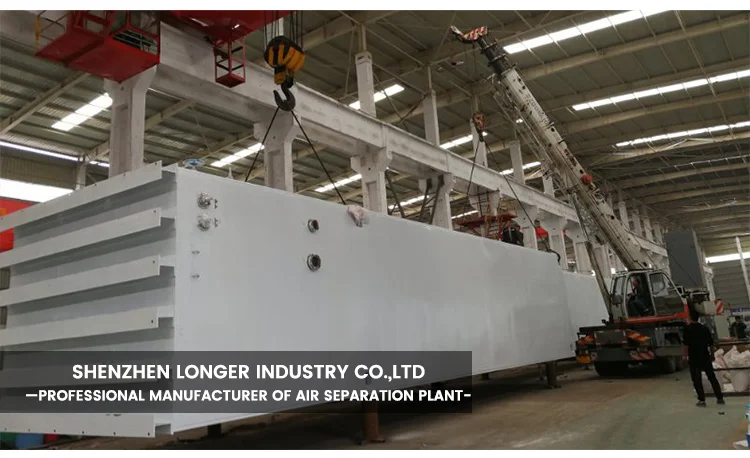

Company Profile
Shenzhen Longer Industry Co., Ltd is a specialized manufactory in air separation equipment. Our company has a complete system
including R&D, manufacturing and marketing.
including R&D, manufacturing and marketing.
Our main products include air separation plant and liquefaction equipment, all kinds of pressure vessel. Widely used in many industries, such as building materials; metallurgy; stone; electron; aviation; medical treatment; petrifaction, etc.
Our Products have been sold throughout the countries and regions with good quality, reasonable prices and excellent services. Especially, we cooperated with multinational gas company in the world, mostly promoted the research and development ability in products and also advance to diversification and large-scale. We will always be devoted to constant innovation and develop efficiently to provide customers much better products and service.
Certifications

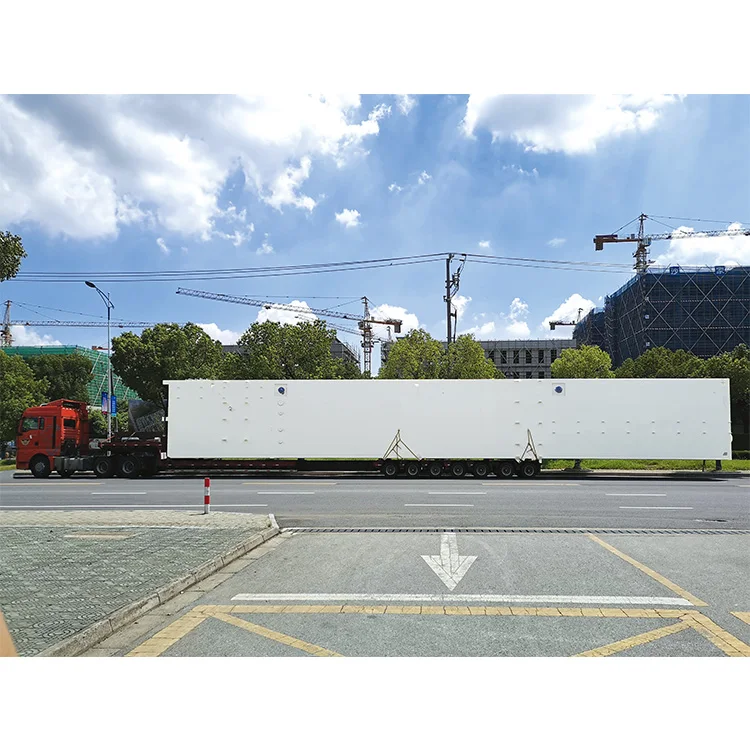

Logistics & Payment
FAQ
Q: Are you trading company or factory?
A: We are Air Separation Plant manufacturer, founded in 2003.Clients are very welcomed to visit our factory
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) O2/N2 Production capacity: ____Nm3/h
2) O2/N2 Purity: ____%
3) O2/N2 Discharge pressure: ____Bar
4) Local Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
Q: Can you provide oversea service?
A: Yes, our engineers are available for over sea services and they have very rich experience for overseas installation
Q: How long is your delivery time?
A: It depends on your order request, generally it is 75-120 working days
