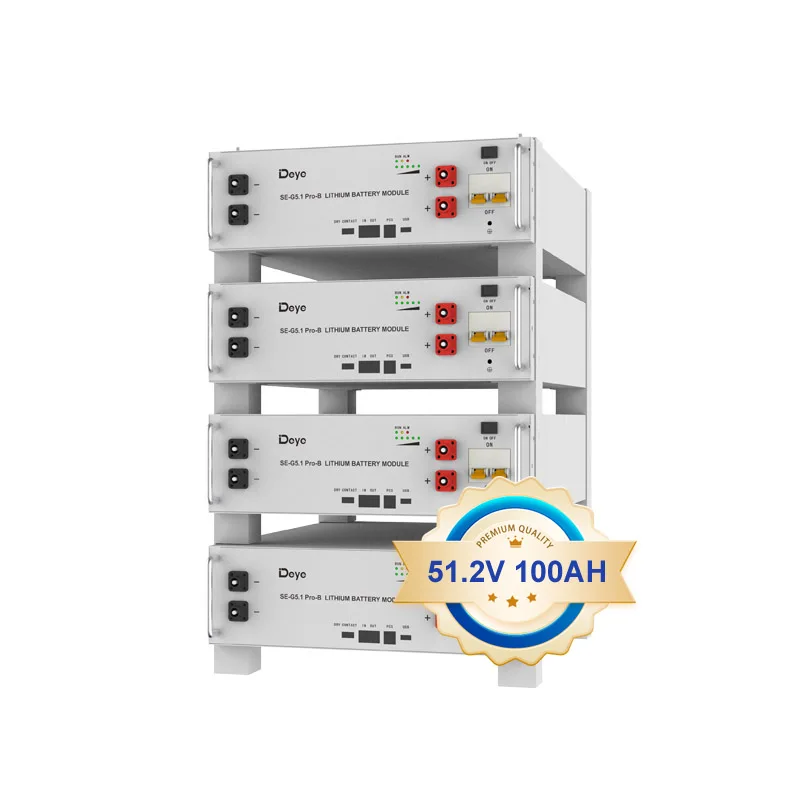

48 В 51 2 100ah 200ah 5kwh 10kwh 20kwh литиевая Штабелируемая батарея Lifepo4 для хранения энергии
41 953,37 ₽ - 46 369,52 ₽

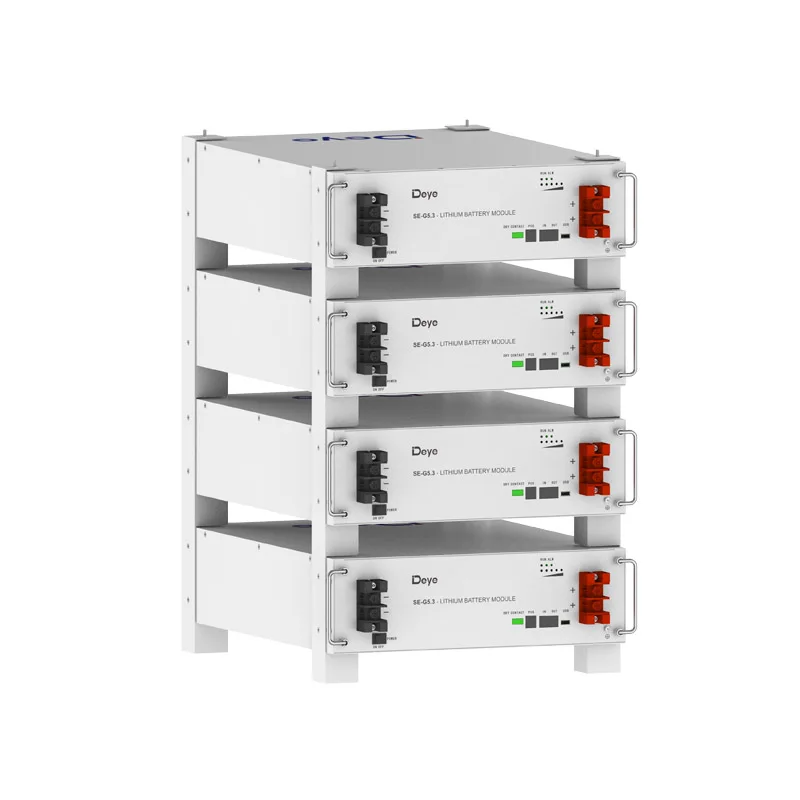

Deye 51 2 В 10kwh 15kwh 20kwh 30kwh Lifepo4 батарея для хранения солнечной энергии домашней системы
- Категория: >>>
- Поставщик: Anhui Minvic Import & Export Co. Ltd.
Сохранить в закладки 1601006277598:
Описание и отзывы
Характеристики
Products Description
Key Features
2. Support high discharge power. IP65, natural cooling, wide temperature range: -20℃ to 55℃.
3. Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 327kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
Model | SE-G5.3 | ||
Main Parameter | |||
Battery Chemistry | LiFePO4 | ||
Capacity (Ah) | 104 | ||
Scalability | Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup) | ||
Nominal Voltage (V) | 51.2 | ||
Operating Voltage(V) | 43.2~57.6 | ||
Energy (kWh) | 5.32 | ||
Usable Energy (kWh) [1] | 4.79 | ||
Charge/Discharge Current (A) | Recommend | 50 | |
Max. | 100 | ||
Peak | 150 | ||
Other Parameter | |||
Recommend Depth of Discharge | 90% | ||
Dimension (W/H/D, mm) | 445*133*430 | ||
System Weight (kg) | 44 | ||
Master LED Indicator | 5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting) | ||
IP Rating of Enclosure | IP20 | ||
Operating Temperature | Charge:0～55℃ / Discharge:-20℃～55℃ | ||
Storage Temperature | 0℃～35℃ | ||
Humidity | 5%~95% | ||
Altitude | ≤2000m | ||
Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,70%EOL) | ||
Installation | 19-inch standard cabinet, cabinet depth ≥600mm / with rack | ||
Communication Port | CAN2.0, RS485 | ||
Warranty Period[3] | 10 years | ||
Energy Throughput[3] | 16MWh@70%EOL | ||
Certification | IEC62619, CE, UK, VDE2510-50, CEI 0-21, UN38.3, CE-LVD, CEC | ||
Battery Pack Accessories
Model
3U-LBCable
3U-LRfe
3U-Bracket
3U-HRack
3U-LRack
3U-LPCable
Accessories Parts Description
Battery Parallel Cable
(Included)
Battery Rack Fixed Ears
(Included)
(Included)
Battery Brackets
(Optional)
(Optional)
Battery Rack
(Optional)
Battery Rack
(Optional)
Hybrid inverter Cable
(Optional)
Remark
Battery power and communication parallel connection cable
Used for battery fixing with 19inch rack or cabinet

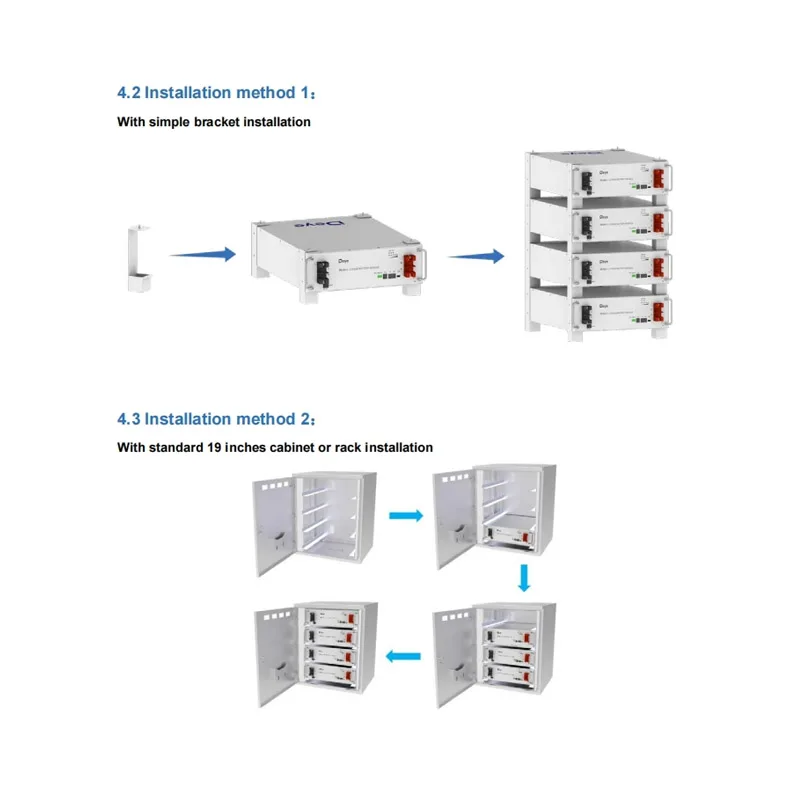

Simple stacking bracket, 1 unit including 4 pcs brackets, Max.stacking 4 floors
Special battery rack, can install 13 pcs batteries
Special battery rack, can install 9 pcs batteries
Battery power and communication cable connect with hybrid
inverter
inverter
Model: SE-G5.3-BCable
Model: 3U-LRfe-B
included 6 pcs M4 screws, 4 sets of M6 screws and buckle nuts.
Model: Battery Wall-Mounted Brackets
Model: SE-G5.3-PCable
communication cable connect with hybrid inverter. The cable length can be customized based on customer requirements, default length is 1500mm.
Model: 3U-Bracket-B
4 pcs brackets and 8 pcs M4 screws, Max. stacking 4 floors.
Manufacturing Technique
Product packaging
Recommend Products
Certificate
FAQ
1. Who are we?
We are based in Hefei, Anhui, China, established in 2018. We are proffesional Solar system and Products provider. For the past
years, we have rich experience and lots of successful projects all around the world. We have whole supply chain on PV products and
we have our own factory so we can provide OEM service for customer.
years, we have rich experience and lots of successful projects all around the world. We have whole supply chain on PV products and
we have our own factory so we can provide OEM service for customer.
2. How can we guarantee quality?
We have proffesional technical team who can help customer to do the product test and technical trainning.Also, before mass order,
we can have a sample order first.
we can have a sample order first.
3. What you can get from us?
Solar panels including the top brands and our own brand.Solar inverters including On-grid/Off-grid inverters and Hybrid inverters.
Solar energy storage system including the batteries, the BMS platform and the integrated system.
Solar energy storage system including the batteries, the BMS platform and the integrated system.
4. Why choose us?
We have more than 10 years experience in PV industry. Also we sell the solar products all around the world since 2018.A
proffesional team makes us having lots of successful projects during the past several years.
Proffesinal technical team can maintain our service on technical support and after-sale service.
Whole supply chain can maintain the requirments from customers.
proffesional team makes us having lots of successful projects during the past several years.
Proffesinal technical team can maintain our service on technical support and after-sale service.
Whole supply chain can maintain the requirments from customers.
5. Some features
Deliver Terms: EXW, FOB, CIF and etc.Payment Terms: T/T, L/C, MoneyGram, Paypal, WesternUnion and Cash.
Export Ports: Ningbo, Shanghai, Shenzhen and Hongkong
Export Ports: Ningbo, Shanghai, Shenzhen and Hongkong
Похожие товары

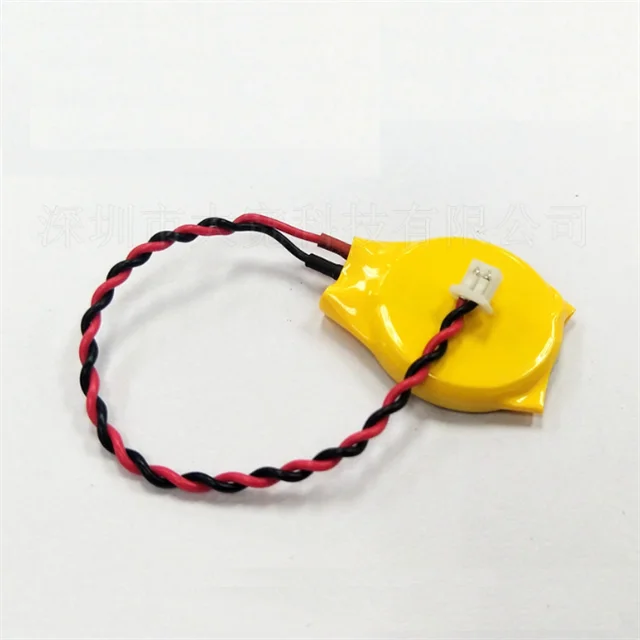

Литиевая батарея 3v ml2032 lir2032 с проводом и разъемом
30,92 ₽ - 93,85 ₽

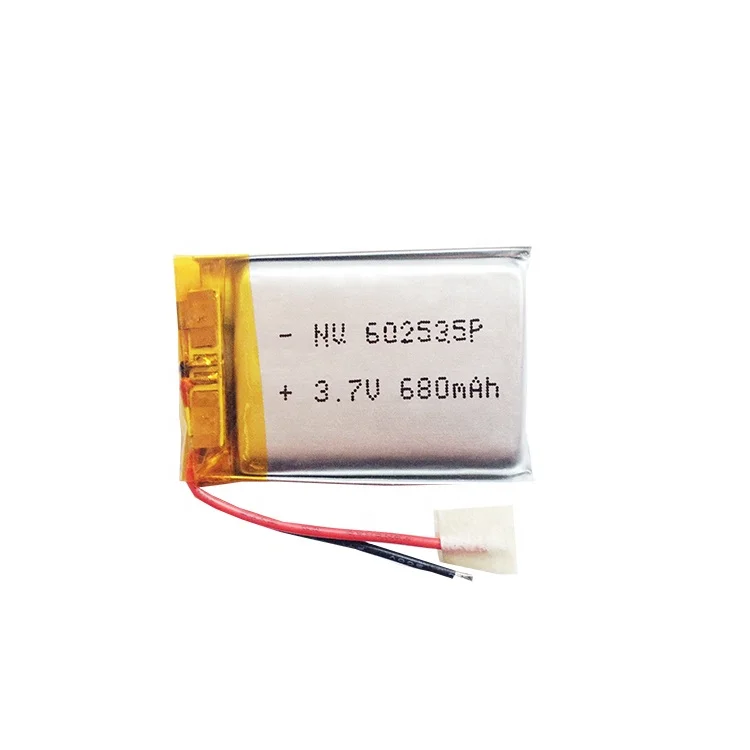

Подгонянная батарея lipo 3 7 v перезаряжаемая 602535 500mah 680mah литиевая
55,21 ₽ - 105,99 ₽

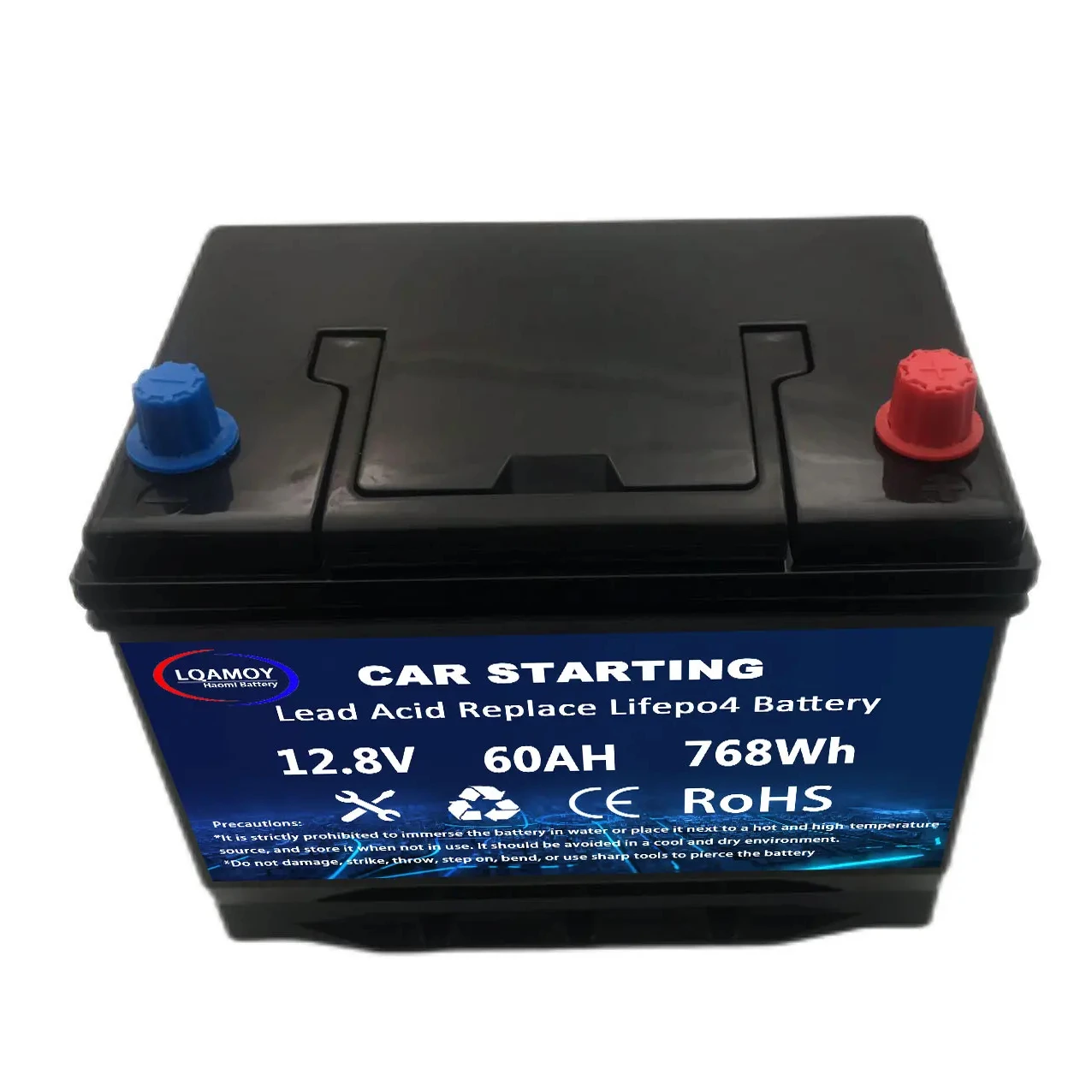

Оптовая цена Автомобильный Аккумулятор Lifepo4 для глубокого цикла 12 В 50ah 60ah 90ah 100ah автомобильный аккумулятор литий-фосфат железа
16 560,54 ₽ - 19 872,65 ₽

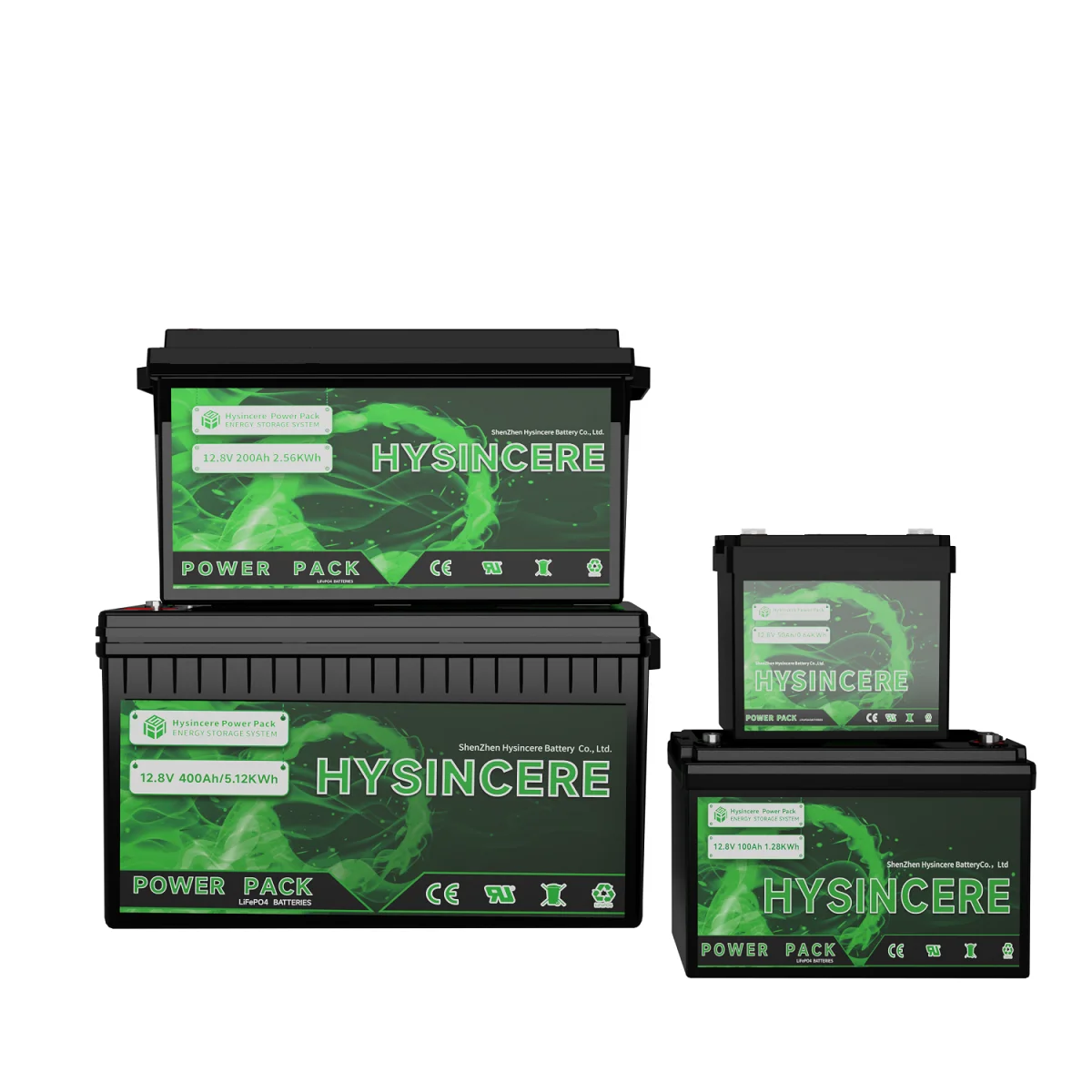

Заводская цена 24 В 25 6 100AH/150AH/200AH/250AH/300AH/500AH/700AH lifepo4 литиевая батарея для солнечного или электрического автомобиля

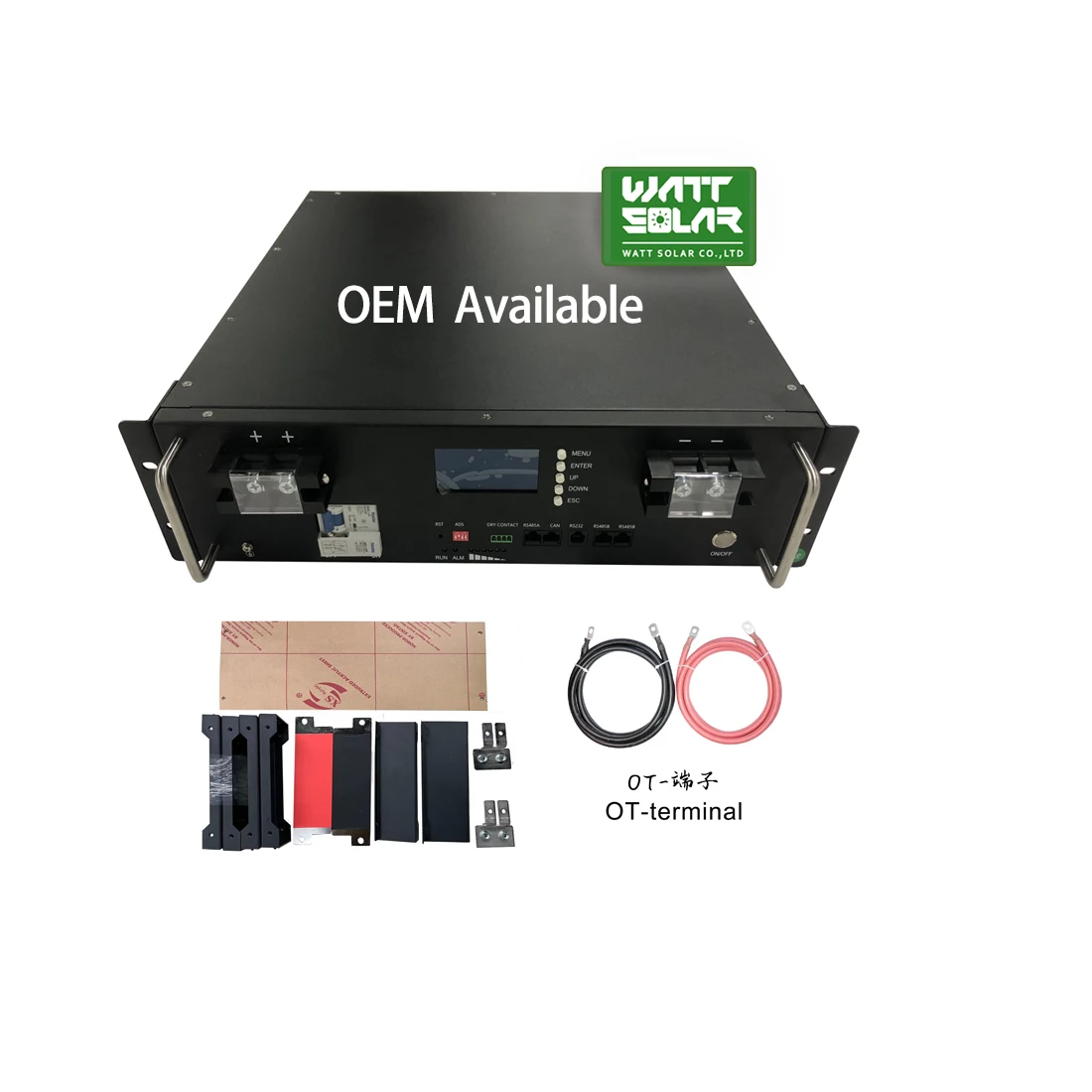

Оптовые цены 48 В 51 2 300AH 400AH 15KW 20KW Lifepo4 батарея для хранения солнечной энергии RV Гольф-автомобиль вилочный погрузчик

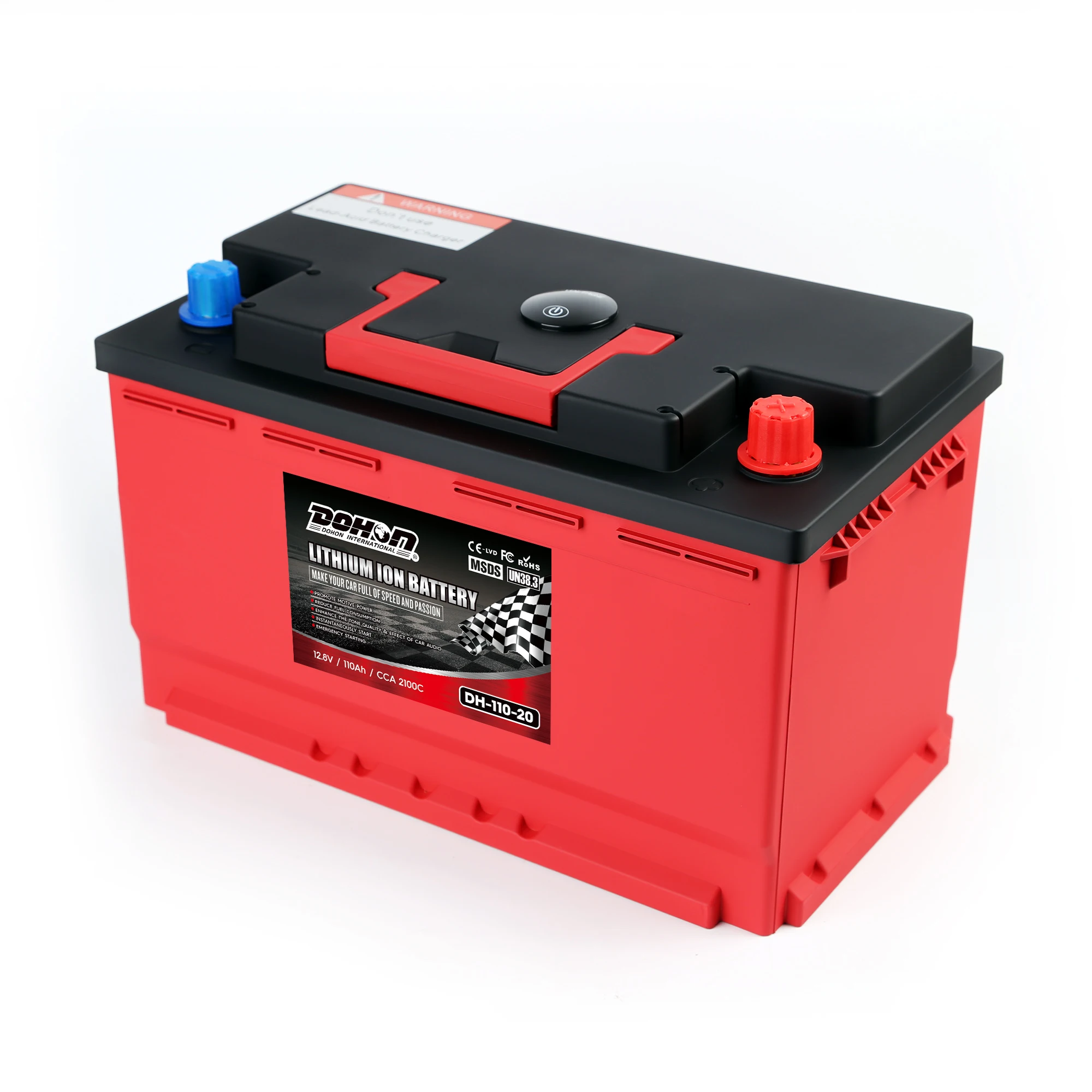

Цена на автомобильный литий-ионный аккумулятор 12 В универсальный старт-стоп для автомобиля 40 Ач литий-железо-фосфатный LiFePO
