2023 интеллектуальное прессовочное оборудование для прессования масла с контролируемой температурой коммерческого использования
116 008,01 ₽ - 131 358,79 ₽

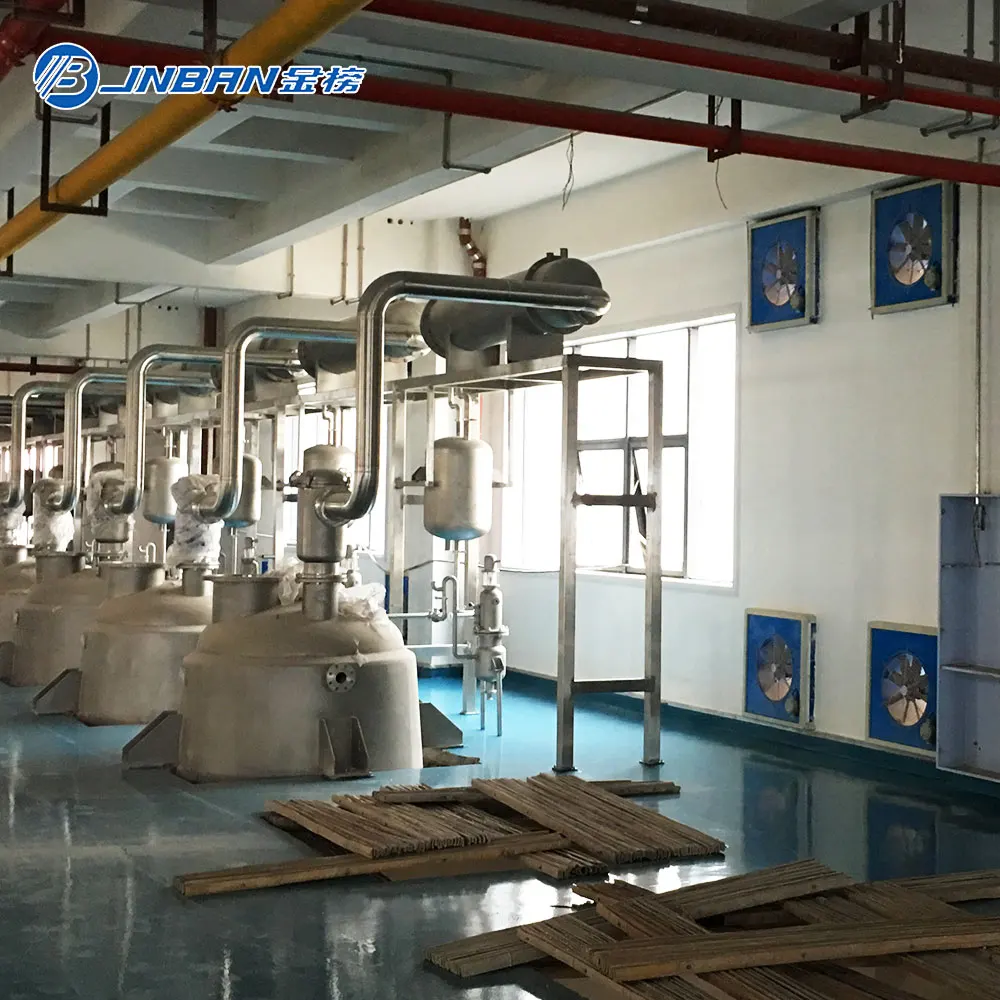

Качественное оборудование для удаления масла машина экстракции эфирного из агарового дерева дистилляции
- Категория: >>>
- Поставщик: Wenzhou Jinbang Light Ind Machinery Co. Ltd.
Сохранить в закладки 1601006294557:
Описание и отзывы
Характеристики
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Application
Quality destilation oil machinery comercial extraction machine agarwood essential oil distillation machine
Essential oils can be extracted from several plants with different parts by various extraction methods. The manufacturing of essential oils, and the method used for essential oil extraction are normally dependent on botanical material used. State and form of material is another factor used for consideration. Extraction method is one of prime factors that determine the quality of essential oil. Inappropriate extraction procedure can lead to the damage or alter action of chemical signature of essential oil.This results in the loss in bioactivity and natural characteristics. For severe case, discoloration, off-odor/flavor as well as physical change such as the increased viscosity can occur. Those changes in extracted essential oil must be avoided.
Steam distillation is the most widely used method for plant essential oil extraction. The proportion of essential oils extracted by steam distillation is 93% and the remaining 7% can be further extracted by other methods . Basically, the plant sample is placed in boiling water or heated by steam. The heat applied is the main cause of burst and break down of cell structure of plant material. As a consequence, the aromatic compounds or essential oils from plant material are released. The temperature of heating must be enough to break down the plant material and release aromatic compound or essential oil.
Steam distillation is the most widely used method for plant essential oil extraction. The proportion of essential oils extracted by steam distillation is 93% and the remaining 7% can be further extracted by other methods . Basically, the plant sample is placed in boiling water or heated by steam. The heat applied is the main cause of burst and break down of cell structure of plant material. As a consequence, the aromatic compounds or essential oils from plant material are released. The temperature of heating must be enough to break down the plant material and release aromatic compound or essential oil.
Extraction Machine Range of Application:
This commercial-scale Electric or Steam Distillation Extraction effectively captures and extracts volatile oil components out of plant material and collects various volatile fragrance compositions from the following plants:
* Conventional plant flowers and leaves such as rose, osmanthus, wild chrysanthemum, lavender, wormwood, rosemary, wintersweet,sophora japonica, primrose, mint, thyme, lemon balsam, chamomile, vetiver, lemongrass, agarwood, eucalyptus, thyme.
* Plant rhizome: aloes, ginger, aloe, clove.
* Fruits: passion fruit, prickly ash, castor bean, star anise, grape seeds, lemon.
* Conventional plant flowers and leaves such as rose, osmanthus, wild chrysanthemum, lavender, wormwood, rosemary, wintersweet,sophora japonica, primrose, mint, thyme, lemon balsam, chamomile, vetiver, lemongrass, agarwood, eucalyptus, thyme.
* Plant rhizome: aloes, ginger, aloe, clove.
* Fruits: passion fruit, prickly ash, castor bean, star anise, grape seeds, lemon.
Products Introduction
essential oil distiller extracting machine steam distillation equipment
The essential oil extracting machine uses distillation technology and chemical separation,which can extract plant componentsefficiently by steam distillation,and have good effect in collecting essential oil from plants,flowers,leaves,wood, such asrose,lavender,eucalyptus leaves,lemongrass citronella,sandalwood,etc. By steam distillation or water distillation, the steampasses through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser.After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
Product Structure:
1. The device consists of solvent extraction tank, demister, condensing tower, oil-water separator, double filter,
supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition.
2. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.
supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition.
2. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.
Main Features :
* Extraction Loading Capacity: 100– 5000 kg
* Completly 304 Sanitary Stainless Steel construction.
* Mirror-finish interior to fully comply with GMP and ASME requirements.
* Heating Method: Electric or Steam
* The main components of the essential oil extracting system include:
* Completly 304 Sanitary Stainless Steel construction.
* Mirror-finish interior to fully comply with GMP and ASME requirements.
* Heating Method: Electric or Steam
* The main components of the essential oil extracting system include:
*Heating Element
* Main Storage Vessel
* Stainless Steel Condenser
* Oil / Water Separator
* Glass Essential Oil Collection
* Control Panel
* Main Storage Vessel
* Stainless Steel Condenser
* Oil / Water Separator
* Glass Essential Oil Collection
* Control Panel
Products Description
Product Paramenters
Volume of distillation still | 1500L |
Heat transfer area of condenser | ≥5㎡ |
Volume of distillation basket | 1000L |
Volume of distilled liquid storage tank | 50L |
Power of aqua astricta set | 18KW |
Capacity | 3000L |
Series technical parametes | TQ-1 | TQ-2 | TQ-3 | TQ-4 | TQ-5 | TQ-6 |
Volume(L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
Tank design pressure (MPA) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
Compressed air pressure (MPA) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Feed port diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area (m²) | 3.0 | 4.7 | 6.0 | 7.5 | 9.5 | 12 |
Condensation area (m²) | 4 | 4 | 5 | 5 | 8 | 10 |
Coling area (m²) | 1 | 1 | 1 | 2 | 2 | 3 |
Filtration area (m²) | 3 | 3 | 3 | 5 | 5 | 6 |
Slag gate area (m²) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
Energy consumption (kg/h) | 245 | 325 | 345 | 645 | 720 | 850 |
Company Profile
Certifications
FAQ
Q1: who are we?
A1: We are a factory based in CN , Zhejiang , Wenzhou, No. 420 Binhai 23rd Road, Binhai Park, Economic Technological Development
Zone, We are always welcome your visit.
Q2: How can we guarantee quality?
A2: We can provide the whole production process to you by video or live stream, we also have International Certification like CE,
ISO9001, etc
Q3: What kind of products can extractor process?
A3: All kinds of liquid material.
Q4: How to ship extractor?
A4: Flat Rack+container
Q5: What is the delivery time?
A5: 45 days
Q6: What is the after-sales service type?
A6: Engineers onsite to guide installation, commissioning and training
Q7: What can you buy from us?
A7: Extractor, concentrator, evaporator, vacuum belt dryer and other stainless steel products.
We can customize this equipment to meet your required specifications. Do not hesitate to contact us with any questions.
A1: We are a factory based in CN , Zhejiang , Wenzhou, No. 420 Binhai 23rd Road, Binhai Park, Economic Technological Development
Zone, We are always welcome your visit.
Q2: How can we guarantee quality?
A2: We can provide the whole production process to you by video or live stream, we also have International Certification like CE,
ISO9001, etc
Q3: What kind of products can extractor process?
A3: All kinds of liquid material.
Q4: How to ship extractor?
A4: Flat Rack+container
Q5: What is the delivery time?
A5: 45 days
Q6: What is the after-sales service type?
A6: Engineers onsite to guide installation, commissioning and training
Q7: What can you buy from us?
A7: Extractor, concentrator, evaporator, vacuum belt dryer and other stainless steel products.
We can customize this equipment to meet your required specifications. Do not hesitate to contact us with any questions.
Похожие товары
Новый стиль лаванды эфирное масло дистиллятор паровой дистилляции оборудование машина
29 605,07 ₽ - 32 894,52 ₽

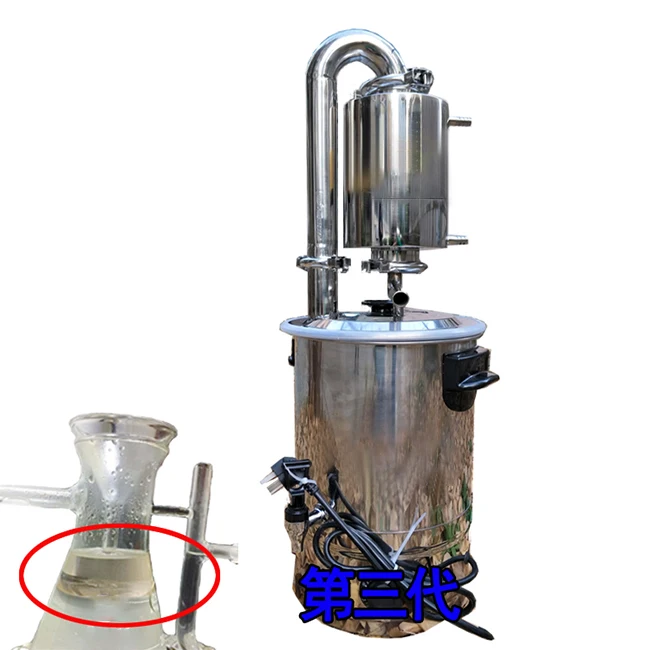

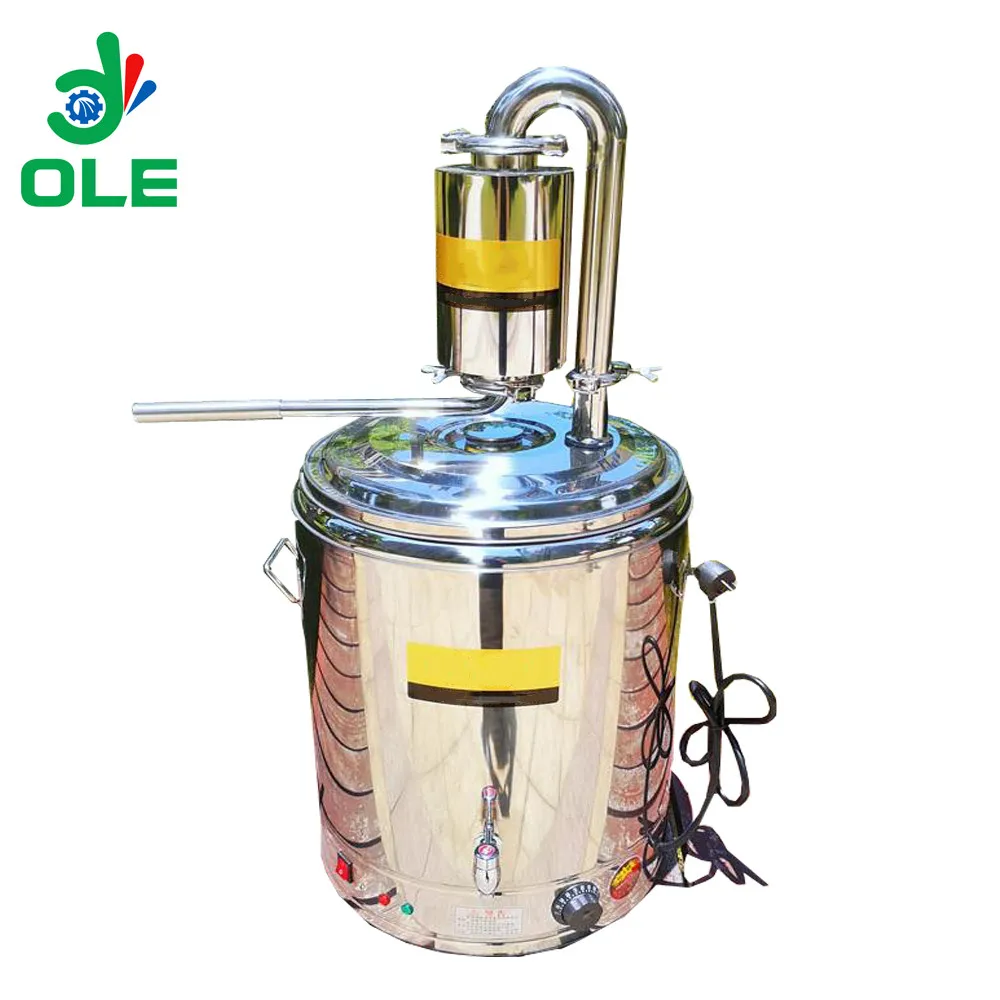

Машина для дистилляции эфирного масла из нержавеющей стали 55 л домашнего использования машина экстракции с сепаратором

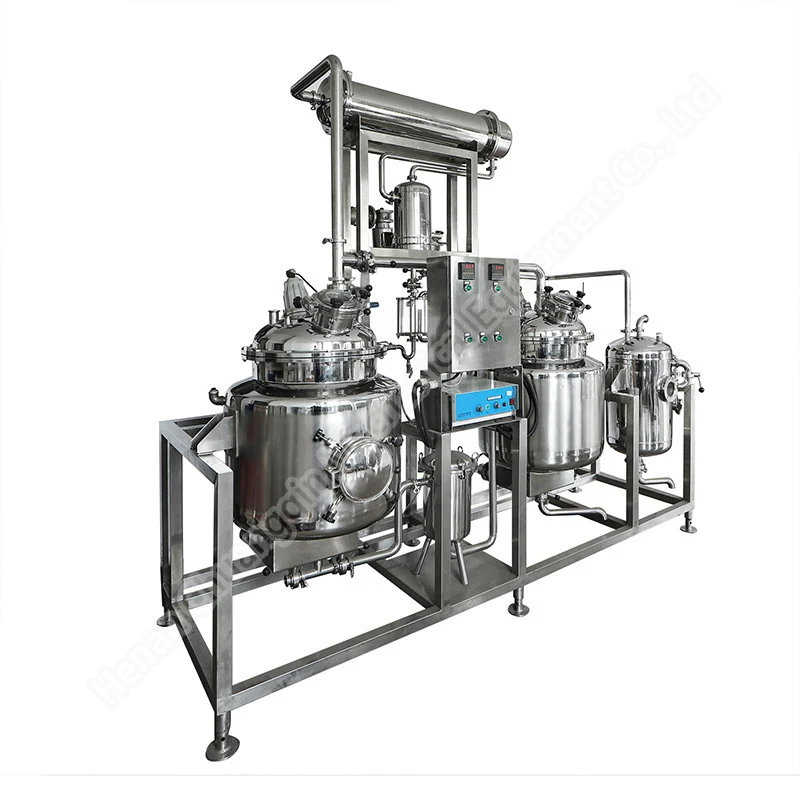

Экстрактор этанола гексан бутан растворитель экстракционная машина эфирное масло экстракционное оборудование
16 447 260,00 ₽

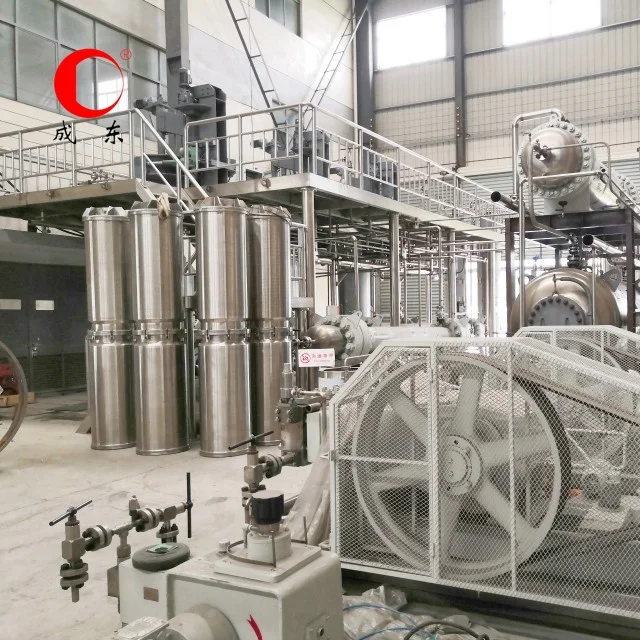

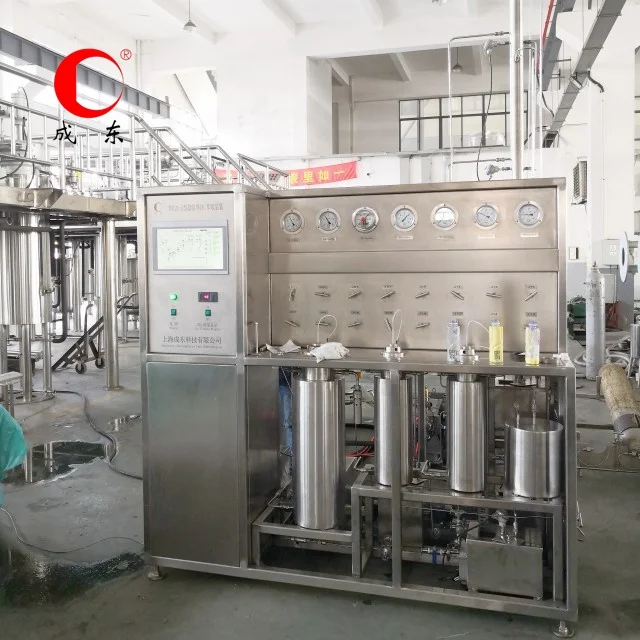

Высококачественная Сверхкритическая машина Co2 для экстракции эфирных масел по самой низкой цене
3 289 452,00 ₽
Машина для экстракции бутона растений/имбиря/лавандового масла Сверхкритическая машина жидкости СО2
3 289 452,00 ₽
Аппарат для экстракции эфирных масел в сверхкритическом состоянии
307 015,52 ₽ - 328 945,20 ₽

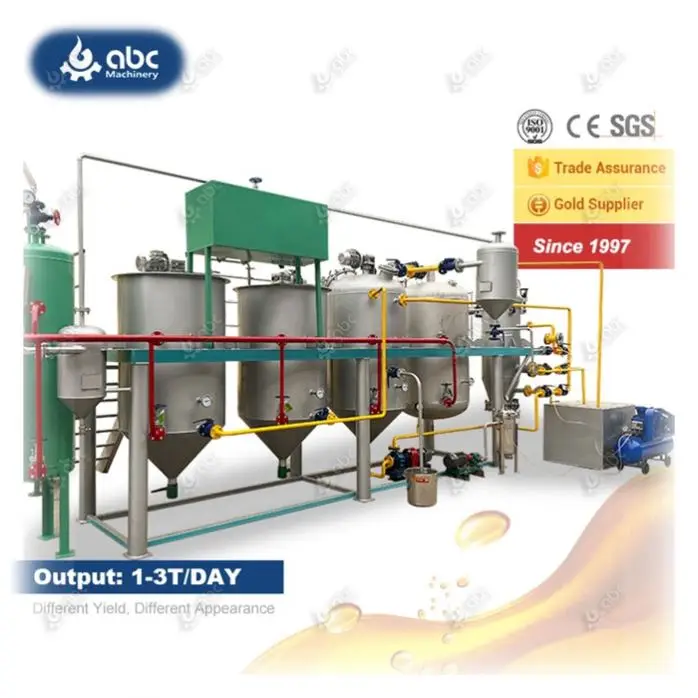

Небольшой мини сырое пальмовое соевое подсолнечное кунжутное масло для переработки/переработки кокосового горчичного арахисового масла
