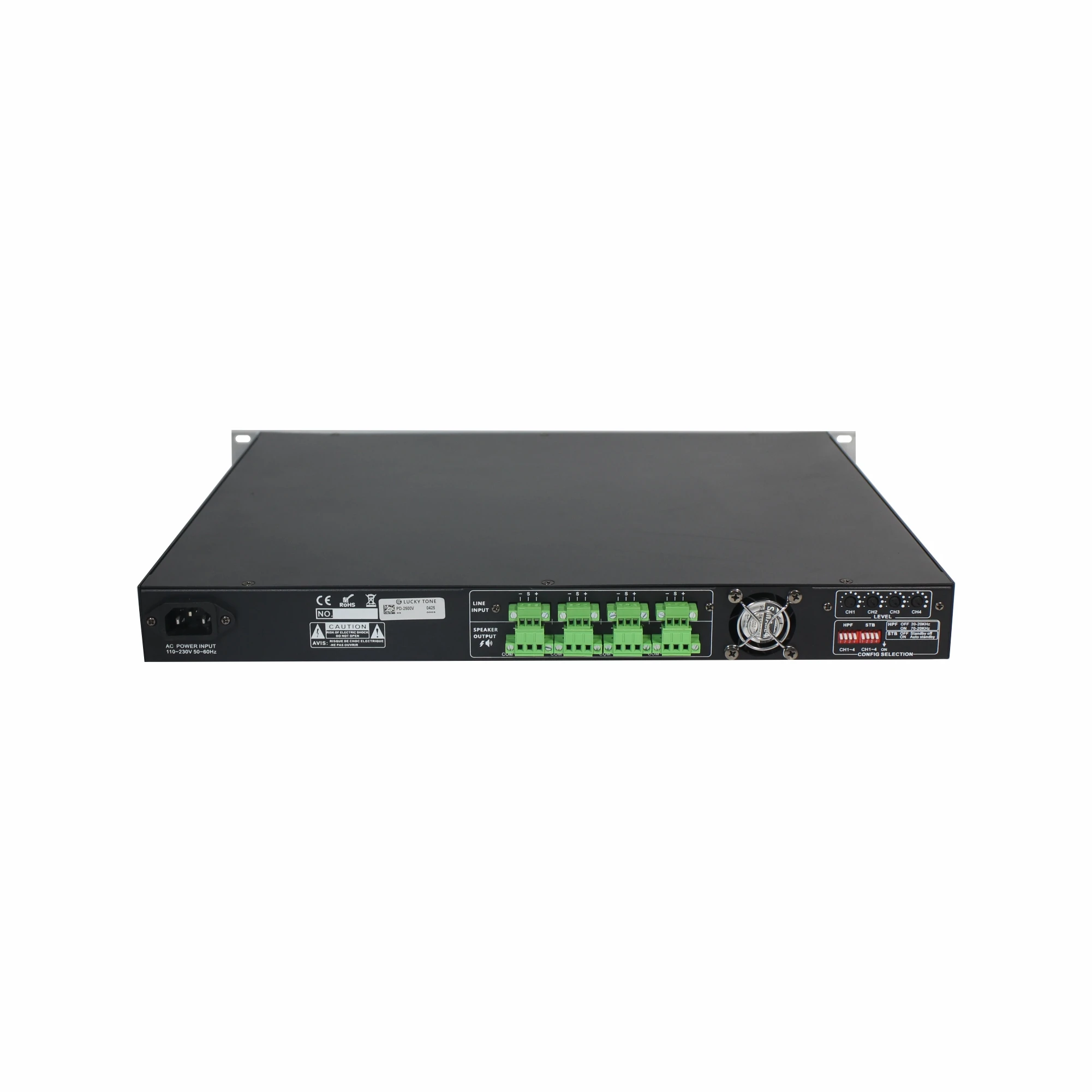

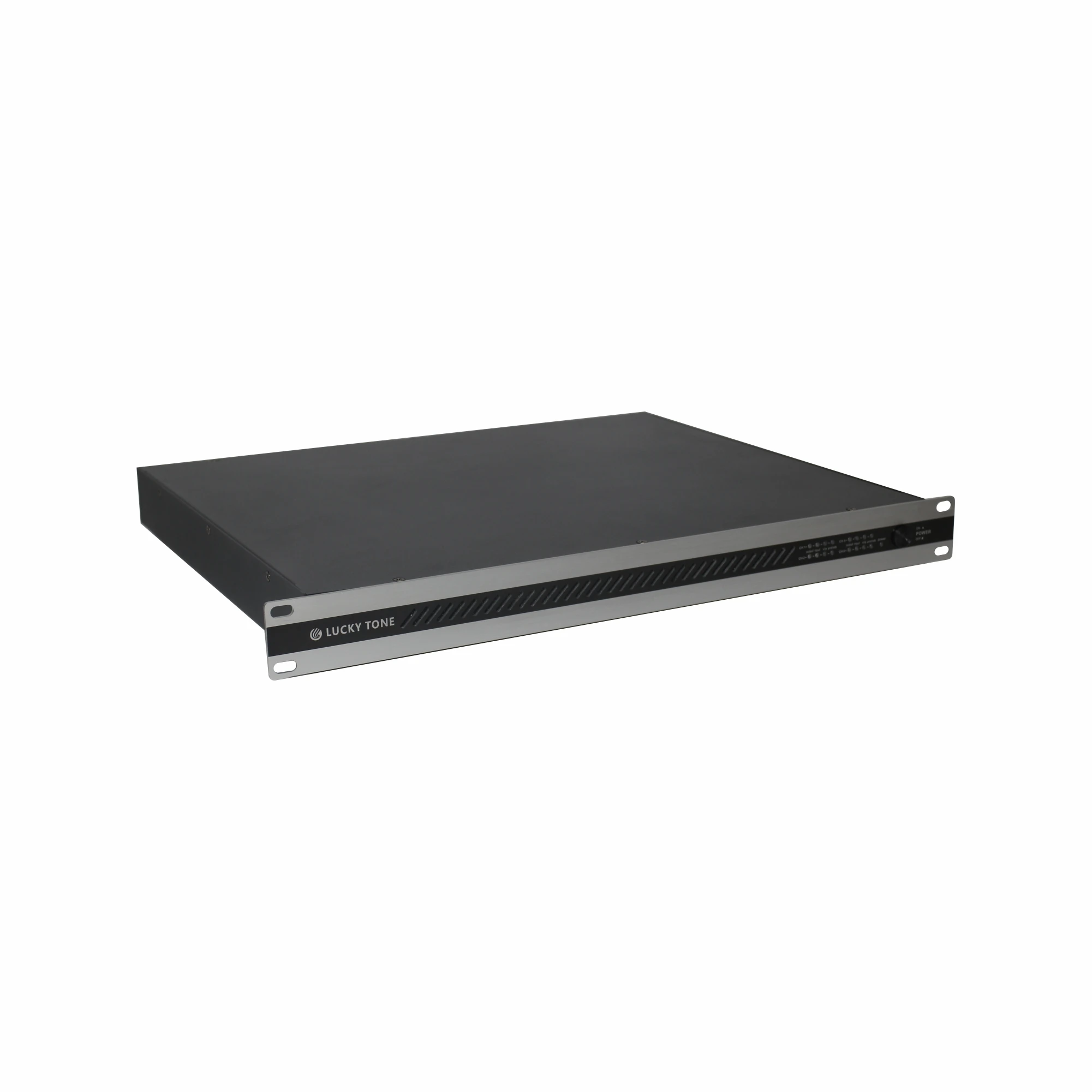

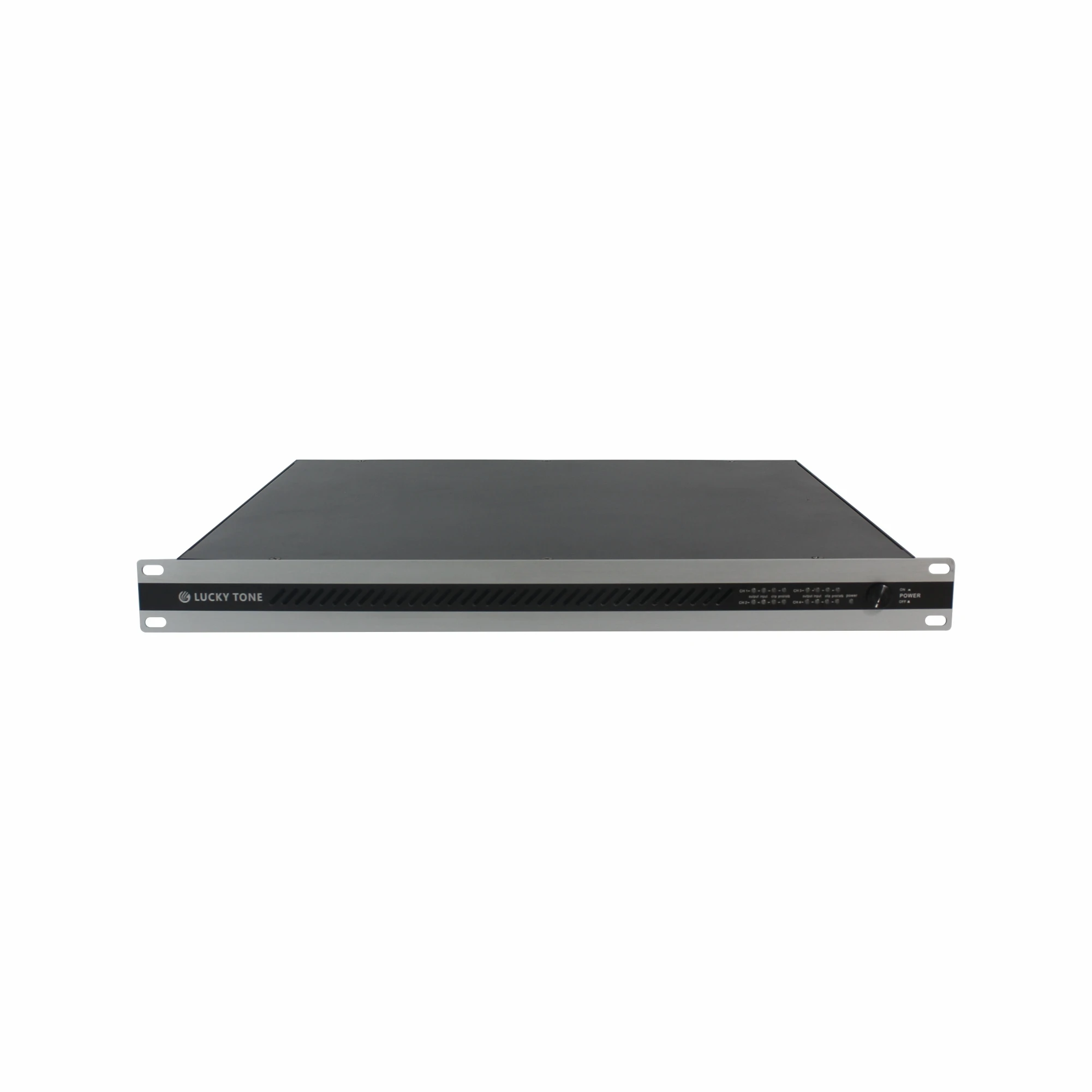

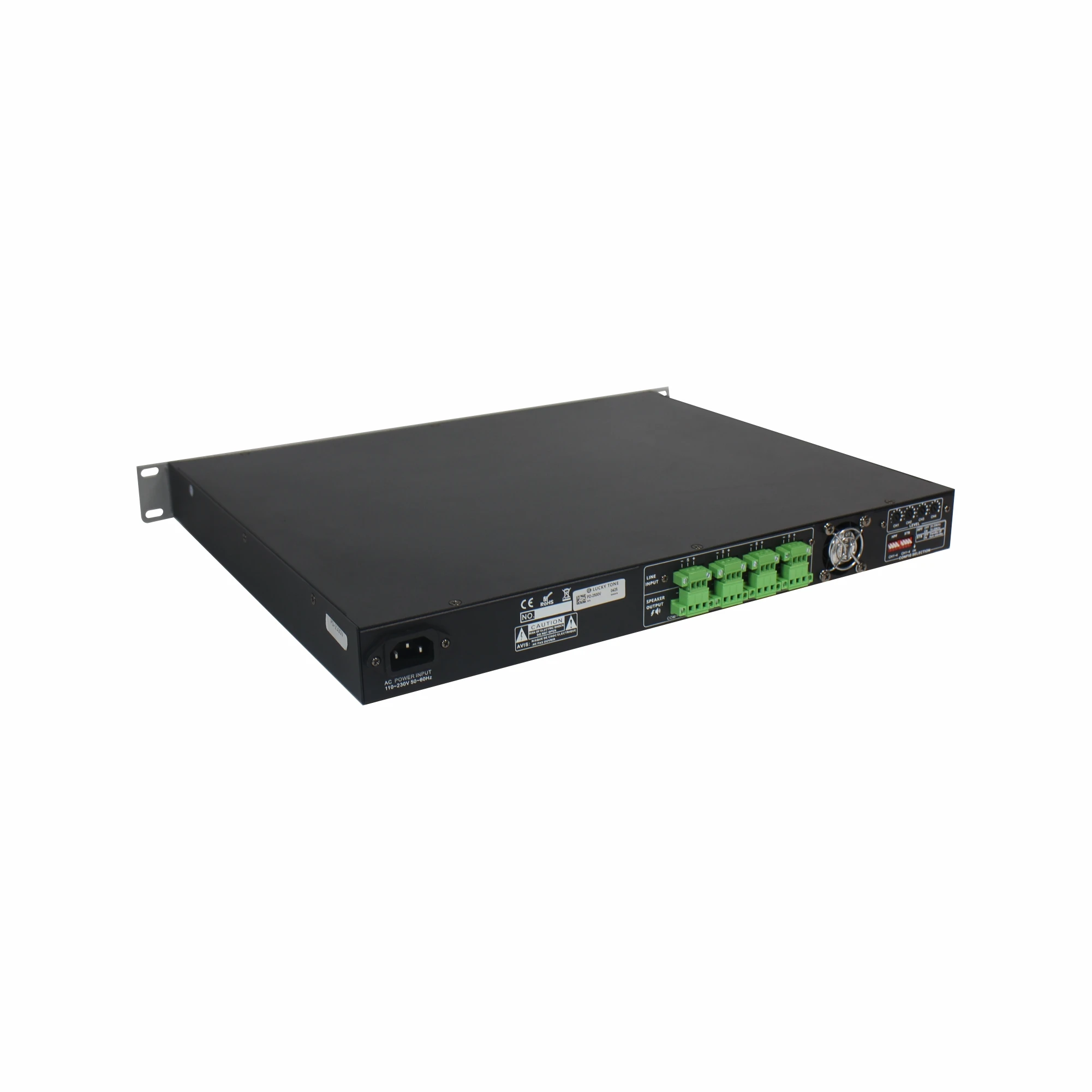

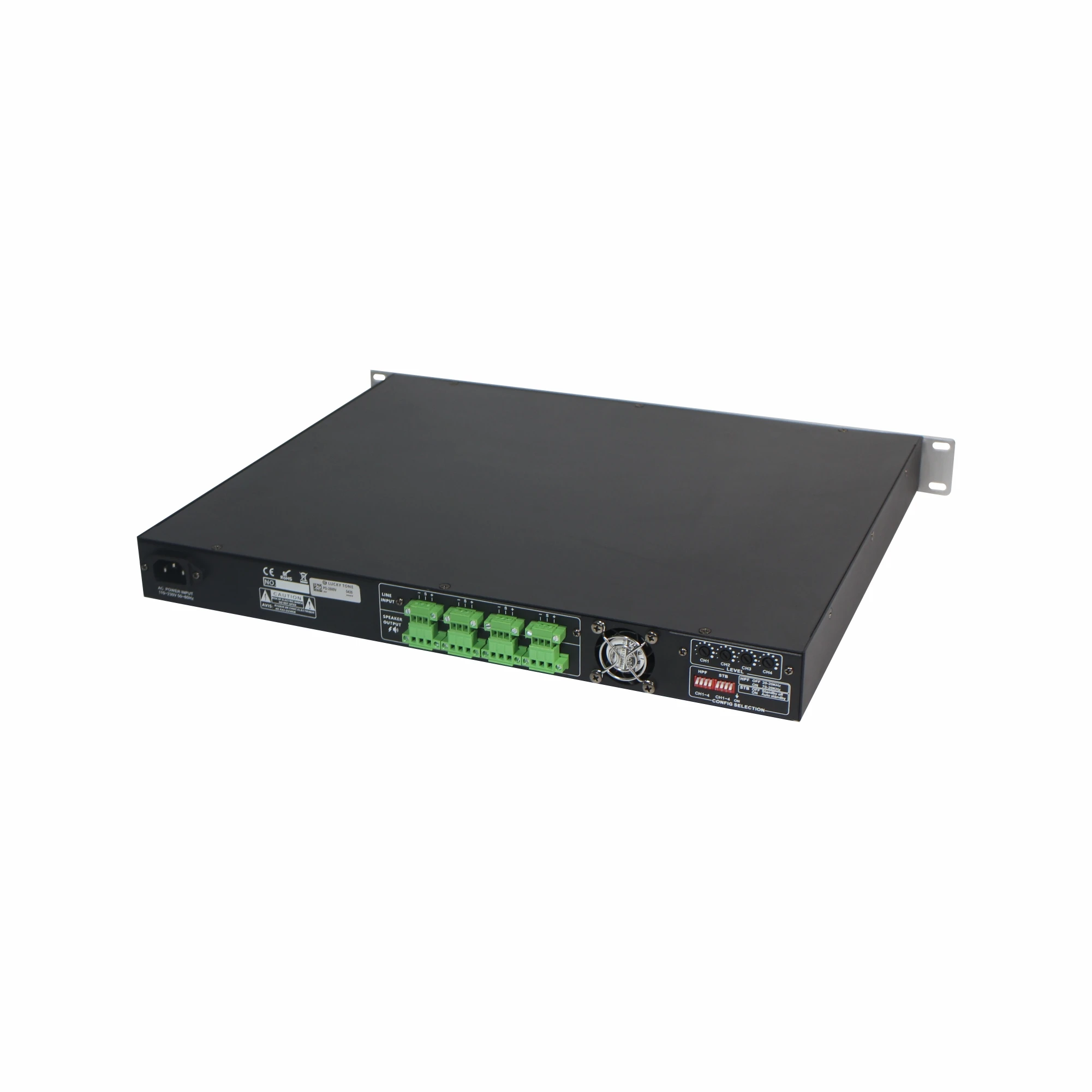

4 канальный усилитель мощности 240 Вт класс аудио усилителя 100 В/70 В линейные 1U Усилители класса D

Сохранить в закладки 1601006360397:


Цена:208,00-284,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Description:
Highly flexible class D amplifiers available at 60W, 120W, 240W, 350W and 500W RMS Power, 4 channels respectively, and equipped with phoenix inputs for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses and many more.
Cost effective high efficient with individual gain level control for each channel


Features:
*High efficient at 80 to 90% conversion rate
*Light weight and compact 1U design
*Grounding connection
*Reliability. High quality electronic components and each channel has separated isolation to ensure one fail will not affect others.
*Individual gain level control for each channel
*LED level meter
*Speaker output short circuit protection





Model
PD-260 V2
PD-460 V2
PD-2120 V2
PD-4120 V2
PD-2240 V2
PD-4240 V2
PD-2350V2
PD-4350V2
PD-2500V2
PD-4500V2
Description
2/4 Channel Class-D Power Amplifier
Rated Power at 100V
2/4x60W
2/4x120W
2/4x240W
2/4x350W
2/4x500W
Rated Power at 8 ohm
2/4x60W
2/4x120W
2/4x240W
2/4x320W
2/4x350W
Frequency Response
H Cut OFF 20Hz-20KHz (+1/-2dB)
H Cut ON 70Hz-20KHz (+1/-3dB)
Input
0.775V, 0dBu, balanced phoenix connector by four channels
Input Impedance
10Kohm
THD
<0.1% (1KHz/-3dBv, 100W)
S/N Ratio
>80dB
Crosstalk
>60dB, 1KHz, Max output
Power Consumption
160W/300W
280W /550W
520W /1100W
750W /1650W
1050W/2100W
Power Supply
AC 100-240V, 50-60Hz
Dimension
484x420x44 mm
Weight
8.8Kg/11.2kg
7.0kg /8.3kg
7.3kg /8.8kg
7.8kg /9.2kg
8.2kg/9.8kg
