Cymdin 20 футов 40 роскошные современные сборные стальные контейнерные дома складные бунгало интегрированные солнечные ветряные электростанции
514 259,89 ₽ - 1 090 195,47 ₽
Модель J контейнерный лагерь небольшое крошечное плоское бунгало
- Категория: >>>
- Поставщик: Foshan Max Prefab House Co. Ltd.
Сохранить в закладки 1601006565734:
Описание и отзывы
Характеристики
container camp small tiny flat pack bungalow
Product Paramenters
Dimension (mm) | Exterior size | L6058/5850*W2438*H2896mm | |
Inner size | L5820/5620*W2200*H2680mm | ||
Structural performance | Floor load | 2.0KN/m2 | |
Roof load | 0.4KN/m2 | ||
Snow load | 0.3KN/m2 | ||
Wind-Resistant | 11 grade (wind speed 32.6m/s) | ||
Seismic performance | 8 grade | ||
Stacking storey | ≤3 storeys >3 storeys(special strengthening method shall be taken) | ||
Flammability class B1 – Hardly combustible Smoke density class Q1 – Low smoke emission Wear resistance: T level | |||
Fire-proof performance | 1) Rock wool : A grade; 2) EPS: B2 grade ; 3) PU: B1/B2 grade. | ||
Insulation performance (R value) | Roof / Floor | 2.56 m2K/W | |
Wall | 1.5/1.8/2.8 m2K/W | ||
Container Loading Options | 4 sets as 1 bundle in bulk without shipping container (Put on top of sea vessel, Product Size: 6058(L)*2438(W)*2896(H)mm) | 6 sets loading inside 1X40'HQ shipping container (Product Size:5850(L)*2438(W)*2896(H)mm) | |
Life time | 20 Years | ||
Additional Options | Plumbing, toilet and bath, ceiling, flooring, kitchen, furniture, air conditioner, heater,etc. | ||
Product Description
1.Main materials are specified as below specification with photos.
2.Prefabrication extend:
A. All the windows are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
B. All the doors are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
C. The wiring are pre-embedded inside the wall panels by using PVC conduit, the bottom case of switch & socket are pre-installed in the wall panels which are connected with wiring already, buyer just need to connect the wiring connectors all together on site.
3. Furnitures,electric appliances, heating are optional items which are not included in this offer.
4. Interior partitions and interior doors are included in this offer if they are indicated from the drawings.
1.Main materials are specified as below specification with photos.
2.Prefabrication extend:
A. All the windows are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
B. All the doors are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
C. The wiring are pre-embedded inside the wall panels by using PVC conduit, the bottom case of switch & socket are pre-installed in the wall panels which are connected with wiring already, buyer just need to connect the wiring connectors all together on site.
3. Furnitures,electric appliances, heating are optional items which are not included in this offer.
4. Interior partitions and interior doors are included in this offer if they are indicated from the drawings.
2.Prefabrication extend:
A. All the windows are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
B. All the doors are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
C. The wiring are pre-embedded inside the wall panels by using PVC conduit, the bottom case of switch & socket are pre-installed in the wall panels which are connected with wiring already, buyer just need to connect the wiring connectors all together on site.
3. Furnitures,electric appliances, heating are optional items which are not included in this offer.
4. Interior partitions and interior doors are included in this offer if they are indicated from the drawings.
1.Main materials are specified as below specification with photos.
2.Prefabrication extend:
A. All the windows are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
B. All the doors are pre-installed in the wall panels at factory unless they are specially notified & confirmed by both sides.
C. The wiring are pre-embedded inside the wall panels by using PVC conduit, the bottom case of switch & socket are pre-installed in the wall panels which are connected with wiring already, buyer just need to connect the wiring connectors all together on site.
3. Furnitures,electric appliances, heating are optional items which are not included in this offer.
4. Interior partitions and interior doors are included in this offer if they are indicated from the drawings.
Specification
item | value |
Warranty | 1 Year |
After-sale Service | Online technical support |
Application | Villa |
Place of Origin | China |
Guangdong | |
Brand Name | Max Prefab |
Use | Hotel |
Product Type | Flat Pack Container |
Design Style | Modern |
Product name | container camp small tiny flat pack bungalow |
Model Number | Model J |
Keyword | Container House Used |
Installation Instructions
Easy to assemble and transport, foolproof installation can be done:
1. Hang the bottom on the place where you need it to be.
2. Install the four corner columns on the bottom, then fix it with M12 screw bolt.
3. Hang the top on the four corner columns, then fix it with M12 screw bolt.
4. Check with gradienter, make the four corner columns be vertical.
5. Insert the wall panel one by one from the short side clockwise.(14 pieces in total )
6. Install the prefabricated vertex angle and base angle which we call them PVC at the correct position. (Give a good push to it, very convenient.)
7. Then fixing,switch,socket,brushing glue, laying the ground are the last steps. (If the combined house is needed, the containerhouses should be connected with screw bolt and iron sheet before inserting the wall panel.)
1. Hang the bottom on the place where you need it to be.
2. Install the four corner columns on the bottom, then fix it with M12 screw bolt.
3. Hang the top on the four corner columns, then fix it with M12 screw bolt.
4. Check with gradienter, make the four corner columns be vertical.
5. Insert the wall panel one by one from the short side clockwise.(14 pieces in total )
6. Install the prefabricated vertex angle and base angle which we call them PVC at the correct position. (Give a good push to it, very convenient.)
7. Then fixing,switch,socket,brushing glue, laying the ground are the last steps. (If the combined house is needed, the containerhouses should be connected with screw bolt and iron sheet before inserting the wall panel.)
Packing & Delivery
Packaging Details
MAX PREFAB container homes are packed as below:
1.Steel angles are wrapped by bubble sheet
2.Windows will be packed by card board and bubble sheet
3.Accessories are packed by paper carton
4.During container loading,we use soft foam protection and ropes to protect the goods,Proper protection when container loading.
5.As per client
1.Steel angles are wrapped by bubble sheet
2.Windows will be packed by card board and bubble sheet
3.Accessories are packed by paper carton
4.During container loading,we use soft foam protection and ropes to protect the goods,Proper protection when container loading.
5.As per client
Our Advantages
STRENGTH:
• Low cost
• Fast construction and easy installation
• Long term service life: more than 50 years
• Other characteristics: environmental protection, stable structure, earthquake resistant, water proof, and energy efficient
• Customizable span requirement
• Customizable wind speed requirement-we can design and fabricate the warehouse structure that can withstand 250KPH
• Customizable height requirement
• Customizable wall and roof materials and size
• Customizable door materials and size
• Customizable window size and materials
• Can be assembled & disassembled. 99% of materials can be used on relocated site
• Can add accessories based on clients requirements
• Beautiful appearance, different colors for the wall, roof and steel structure which can create low cost home styles.
• 1000~1200mm high concrete foundation can meet the requirement of installation.
• It is mature product from Max Prefab and sold over 100 warehouses worldwide.
• Different Standard of wiring, electrical, lightings, plumbing, ceiling, doors, windows are available for client’s convenience.
• Low cost
• Fast construction and easy installation
• Long term service life: more than 50 years
• Other characteristics: environmental protection, stable structure, earthquake resistant, water proof, and energy efficient
• Customizable span requirement
• Customizable wind speed requirement-we can design and fabricate the warehouse structure that can withstand 250KPH
• Customizable height requirement
• Customizable wall and roof materials and size
• Customizable door materials and size
• Customizable window size and materials
• Can be assembled & disassembled. 99% of materials can be used on relocated site
• Can add accessories based on clients requirements
• Beautiful appearance, different colors for the wall, roof and steel structure which can create low cost home styles.
• 1000~1200mm high concrete foundation can meet the requirement of installation.
• It is mature product from Max Prefab and sold over 100 warehouses worldwide.
• Different Standard of wiring, electrical, lightings, plumbing, ceiling, doors, windows are available for client’s convenience.
1.Container house designed according to ISO 1161 for various purpose.I.e,hospital,dormitory,office,store room etc. Also are suitable for international container transport and stand in the remote area and nature neatly.
2.Save high labor cost, the main structure of container house ---- bottom frame, top frame and side wall panels to form a light weight structure, pre-made good self-drainage system, pre-made electrical, pre-made water-plumbing in factory, quick to fold out, assemble disassemble the components.
3.Flexibility combination, the construction enables compounding of individual container house in transverse or longitudinal directions without limits, and can also be stacked 2~4 stories, to enlarge the space and function. The top, bottom and around the container house used heat insulation, heat preservation materials, providing comfortable temperature for the internal living.
4.Easy transportation and saving high transportation cost, every four units will packed as a standard 20’ HC shipping container size. And each dimension is 6058*2438*720 which can be moved by forklift, but after four units packed as a standard 20’ HC shipping container size, the package can only be moved by crane.
5.All the materials used are green and recyclable.
6.Fast installation, 2 skilled workers can finish one container house in 3 hours.
7.Superior performance: Beautiful appearance, sturdy and durable, and also with good anti-corrosion, heatproof, windproof, earthquake proof, moisture proof, waterproof, and anti-creep functions.
8.Complete functions: With lights, socket, wirings, doors and windows and external power source configured inside the panels.
2.Save high labor cost, the main structure of container house ---- bottom frame, top frame and side wall panels to form a light weight structure, pre-made good self-drainage system, pre-made electrical, pre-made water-plumbing in factory, quick to fold out, assemble disassemble the components.
3.Flexibility combination, the construction enables compounding of individual container house in transverse or longitudinal directions without limits, and can also be stacked 2~4 stories, to enlarge the space and function. The top, bottom and around the container house used heat insulation, heat preservation materials, providing comfortable temperature for the internal living.
4.Easy transportation and saving high transportation cost, every four units will packed as a standard 20’ HC shipping container size. And each dimension is 6058*2438*720 which can be moved by forklift, but after four units packed as a standard 20’ HC shipping container size, the package can only be moved by crane.
5.All the materials used are green and recyclable.
6.Fast installation, 2 skilled workers can finish one container house in 3 hours.
7.Superior performance: Beautiful appearance, sturdy and durable, and also with good anti-corrosion, heatproof, windproof, earthquake proof, moisture proof, waterproof, and anti-creep functions.
8.Complete functions: With lights, socket, wirings, doors and windows and external power source configured inside the panels.
About Us

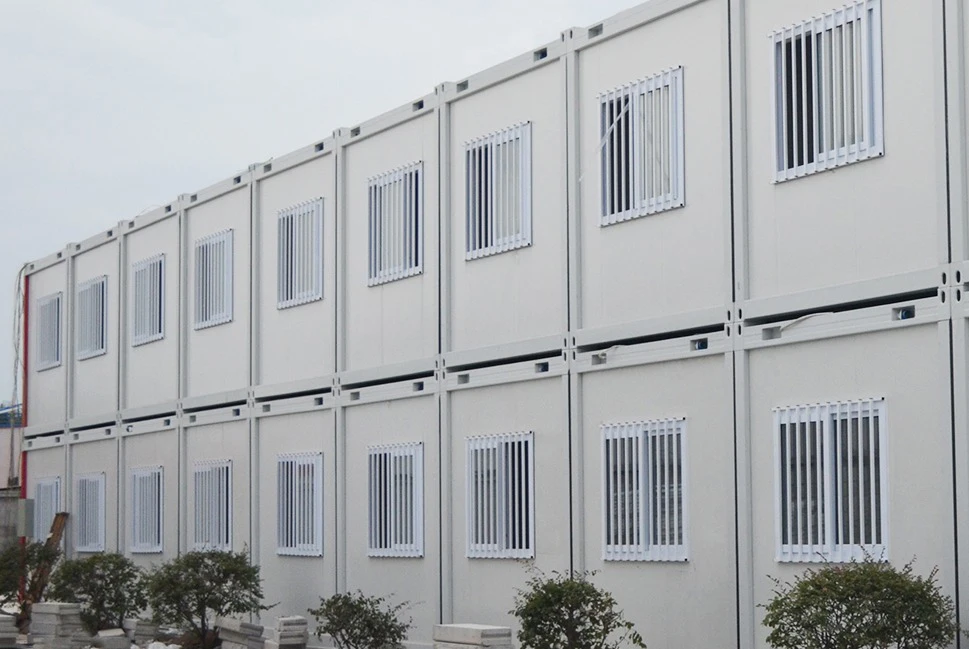

High wind resistant ability - They are used as houses for rent because they are sturdy,Max Prefab House Co.,Ltd is an innovative manufacturing company with great commitment, contribution heart, passion and responsibility.
We are specialized in designing, manufacturing and building high quality environmental prefabricated houses, container houses, foldable containers, portable homes, steel structure warehouses and architectural steel construction.
We are specialized in designing, manufacturing and building high quality environmental prefabricated houses, container houses, foldable containers, portable homes, steel structure warehouses and architectural steel construction.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Southeast Asia(20.00%),Oceania(20.00%),Africa(10.00%),South America(10.00%),Mid East(10.00%),Northern Europe(7.00%),Central America(5.00%),South Asia(3.00%),Southern Europe(3.00%),North America(3.00%),Eastern Europe(3.00%),Western Europe(3.00%),Eastern Asia(3.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
prefabricated house,container houses,steel structure,portable buildings,sandwich panel
4. why should you buy from us not from other suppliers?
25000m2 workshop
100+ workers
15 years of installation experience
20 person R&D team
Strict quality control work flow
Great reputation among 100+ loyal customers
Close to the loading ports
Trade Assurance by Alibaba Group
Your Best Partner
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2014,sell to Southeast Asia(20.00%),Oceania(20.00%),Africa(10.00%),South America(10.00%),Mid East(10.00%),Northern Europe(7.00%),Central America(5.00%),South Asia(3.00%),Southern Europe(3.00%),North America(3.00%),Eastern Europe(3.00%),Western Europe(3.00%),Eastern Asia(3.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
prefabricated house,container houses,steel structure,portable buildings,sandwich panel
4. why should you buy from us not from other suppliers?
25000m2 workshop
100+ workers
15 years of installation experience
20 person R&D team
Strict quality control work flow
Great reputation among 100+ loyal customers
Close to the loading ports
Trade Assurance by Alibaba Group
Your Best Partner
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
Contact Us
We offer customized solutions for you, Please feel free to contact us.
Office | (86) 757 8586 2891 |
Fax | (86) 757 8185 4839 |
E-mail | info@maxprefab.com |
Cell / Whatsapp | (86)18927758002 |
Website | www.maxprefabhouse.com |
Our Youtube Channel | https://www.youtube.com/channel/UCP_rNYOe1CmyOY bnV0bNGNA |
Address | 21-5A, Xinan Technology Industrial Park,Sanshui,Foshan, Guangdong, P.R.China |
Похожие товары

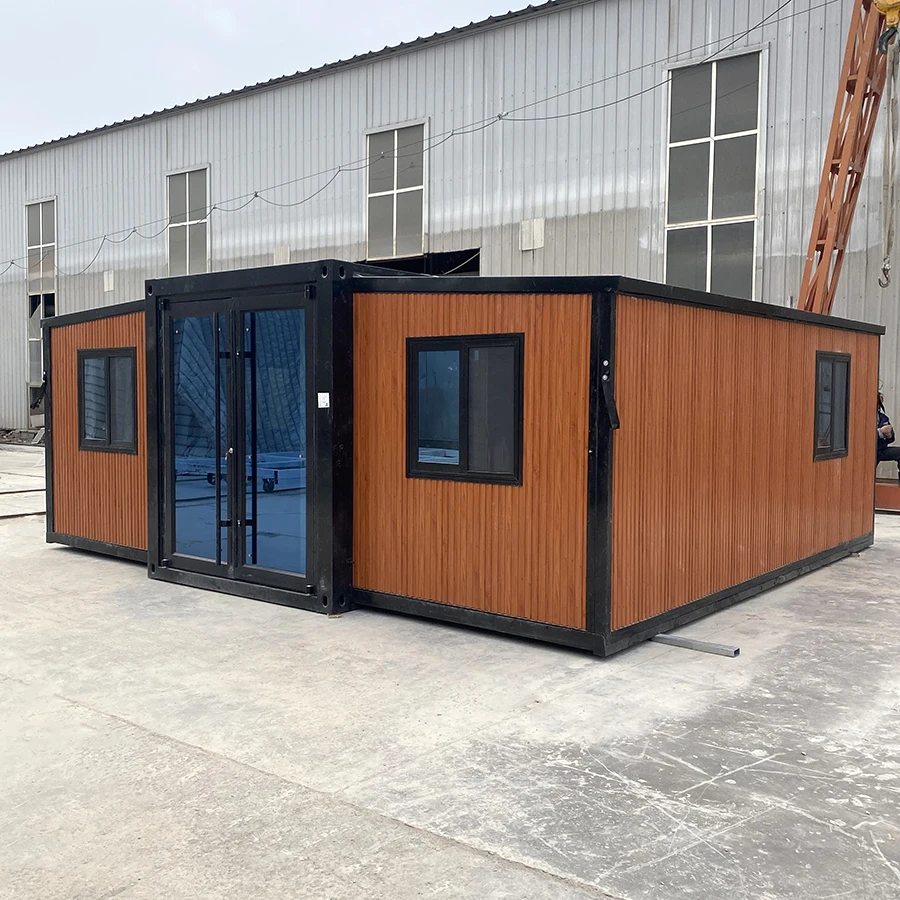

Сборный сборный дом бунгало с расширяемым контейнером
