1 35 т сочлененный компактный небольшой вилочный погрузчик телескопический мини-погрузчик колесный мини
554 315,44-1 527 195,60 ₽
Мини погрузчик COUGARS CG827 с бортовым бортом 4 в 1
- Категория: >>>
- Поставщик: Linyi Monashi Machinery Equipment Co. Ltd.Linyi Ltd.
Сохранить в закладки 1601006711971:
Описание и отзывы
Характеристики
Welcome to Linyi Monashi Machinery Equipment Co., Ltd.
Introducing the COUGARS CG827 Mini Skid Steer Loader - the perfect machine to help you make more money in your business faster,easier, and more efficiently! This compact yet powerful loader is designed to fit in tight spaces while still delivering top-notch performance. And the best part? It comes at a fair price!
Main Parameters
Item | Metric | Inch | |
Max working height | 2420 mm | 95.3 inch | |
Max pin height | 2099 mm | 82.7 inch | |
Max dump height | 1617 mm | 63.7 inch | |
The highest point discharge distance | 615 mm | 24.2 inch | |
Bucket swing angle | 79° | 79° | |
Bucket unloading angle | 36° | 36° | |
Opening-closing angle | 43° | 43° | |
Angle of departure | 30° | 30° | |
Total height | 1607 mm | 63.3 inch | |
The height from the ground | 300 mm | 11.8 inch | |
Wheelbase | 1065 mm | 41.9 inch | |
No bucket length | 2200 mm | 86.6 inch | |
Total width 1033 | 1033 mm | 40.7 inch | |
Bucket width | 1140 mm | 44.9inch | |
Total length（L）（with bucket） | 2752 mm | 108.4 inch | |
Turning radius (R) | 2198 mm | 86.5 inch | |
Engine | Model | D1105-EF02/403J-11 | |
Rated power | 18.2KW/25HP | ||
Rotating speed（rpm） | 3000 | ||
Noise（Db） | ≤95 | ||
Hydraulic System | Hydraulic pressure（Mpa） | 20 | ||||
Cycle time（s） | Raise | Dump | Lower | |||
3.89 | 1.6 | 3.35 | ||||
Performance parameters | Metric | inch | |
Load weight (kg) | 300 Kg | 667 Lb | |
Bucket capacity | 0.14 m3 | 4.95 ft3 | |
Max lifting power | 1258Kg | 2795.6 Lb | |
speed | 0-8Km/h | 0-4.972mlie/h | |
Operating weight | 1375kg | 3031lb |
Main pump | Qty: 2+1 |
Flow of main pump | 67.2L/min |
Valve | Qty :2 |
Products Description
Product Features:
* Compact and efficient design
* Easy to maneuver in tight spaces
* High-quality construction for durability
* Smooth operation for enhanced productivity
* Wide range of attachments available
* Easy to maneuver in tight spaces
* High-quality construction for durability
* Smooth operation for enhanced productivity
* Wide range of attachments available
Product Benefits:
* Increased efficiency and productivity on the job site
* Ability to tackle various tasks with ease
* Reliable performance for long-lasting use
* Improved maneuverability for better control
* Flexible options to meet your specific needs
* Ability to tackle various tasks with ease
* Reliable performance for long-lasting use
* Improved maneuverability for better control
* Flexible options to meet your specific needs
-4 in 1 Bucket – this allows your COUGARS CG827 to doze, dig, dump, carry, clamp, grab, optional teeth
-Lift Arm Float Control – this allows you to use your COUGARS CG827 to spread soil easily by back blading

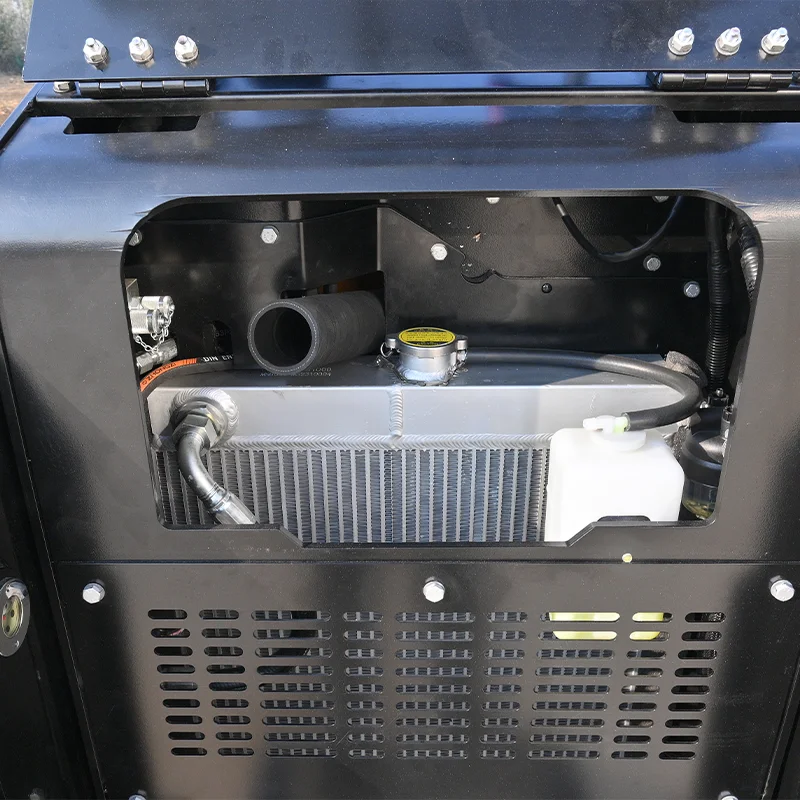

-Large Alloy Radiator with Cooling Fan – efficient cooling of engine and hydraulic oil

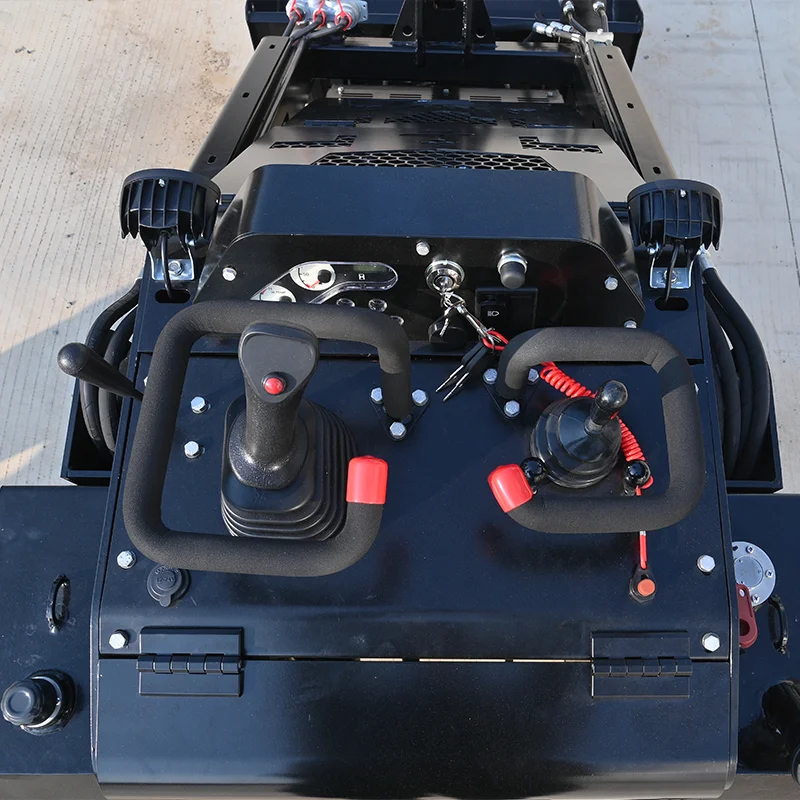

-Joystick Steering Control – manual controls means it’s easy to use and manage your COUGARS CG827
-Hydraulic Oil Cooler – this means it keeps oil temp lower allowing you to operate longer with no issues
-Triple Hydraulic Pump System – this means you have efficient separation of power to attachments, bucket controls, and wheels with your COUGARS CG827
-Auxiliary Hydraulic Outputs – this means you can add many options of external accessories to yourCOUGARS CG827
-Hose Quick Coupler Fittings – this means it eliminates the chance of dirt and other foreign objects getting into your COUGARS CG827
-Curved Lift Arms to Facilitate a Radial Lift Pattern – allows your COUGARS CG827 attachments to lift ‘up’ and ‘out’ increasing clearance to the front of the machine. Handy when using large augers
-CNC Manufacturing and Electrophoresis Paint Process – this gives you the unique COUGARS rust protection and excellent finish
-Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – you get longer working hours between services of your COUGARS CG827
-Muffler Insulation – this allows the engine to operate cooler allowing you to operate longer with yourCOUGARS CG827
-Hydrostatic Drive Train System – this allows you to do jobs with your COUGARS CG827 easily as the hydraulic power is doing the work for you
-Japanese NSK Bearings and Grade 60H Chains – your COUGARS CG827 designed to be unbreakable
-Standard Attachment Mounting Plate – you can buy attachments anywhere you like for yourCOUGARS CG827 or use ones you may have already
-Operator Platform Suspension – when you are working on your COUGARS CG827 your comfort is number 1 allowing you to work longer and easier day in, day out
-Gauges and Warning Lights – these gauges point out if there are any issues, meaning you can stop the machine and rectify before any damage is caused allowing yourCOUGARS CG827 machine a long and reliable service life.
-Service Kit and Tools – included free is a tool box and service kit so you wont have to go digging for tools if you need to service or adjust something on your COUGARS CG827
-Hose Protection Kevlar Sleeving – prevents burst in the hoses, once again extending the life of your COUGARS CG827
-Track Drive with Grease Tensioner and Heavy Duty Re-coil Spring – this COUGARS CG827 design gives you better traction and a lighter footprint meaning you can go anywhere with almost no trace
- Engine Access Panel Hinged and Lockable – this gives you easy access to all your components of your COUGARS CG827
-Heat-Treated Pins and Greaseable Bronze Bushes – this gives you longer life for your COUGARS CG827
-Tie Down Locations – safe security for transporting for your COUGARS CG827
-Emergency Stop Switch – quick and easy to hit in case of any issues while operating the machine; all standard on the COUGARS CG827
-Lift Arm Safety Support – this means you are safe when using your COUGARS CG827
-Lift Arm Float Control – this allows you to use your COUGARS CG827 to spread soil easily by back blading
-Large Alloy Radiator with Cooling Fan – efficient cooling of engine and hydraulic oil
-Joystick Steering Control – manual controls means it’s easy to use and manage your COUGARS CG827
-Hydraulic Oil Cooler – this means it keeps oil temp lower allowing you to operate longer with no issues
-Triple Hydraulic Pump System – this means you have efficient separation of power to attachments, bucket controls, and wheels with your COUGARS CG827
-Auxiliary Hydraulic Outputs – this means you can add many options of external accessories to yourCOUGARS CG827
-Hose Quick Coupler Fittings – this means it eliminates the chance of dirt and other foreign objects getting into your COUGARS CG827
-Curved Lift Arms to Facilitate a Radial Lift Pattern – allows your COUGARS CG827 attachments to lift ‘up’ and ‘out’ increasing clearance to the front of the machine. Handy when using large augers
-CNC Manufacturing and Electrophoresis Paint Process – this gives you the unique COUGARS rust protection and excellent finish
-Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – you get longer working hours between services of your COUGARS CG827
-Muffler Insulation – this allows the engine to operate cooler allowing you to operate longer with yourCOUGARS CG827
-Hydrostatic Drive Train System – this allows you to do jobs with your COUGARS CG827 easily as the hydraulic power is doing the work for you
-Japanese NSK Bearings and Grade 60H Chains – your COUGARS CG827 designed to be unbreakable
-Standard Attachment Mounting Plate – you can buy attachments anywhere you like for yourCOUGARS CG827 or use ones you may have already
-Operator Platform Suspension – when you are working on your COUGARS CG827 your comfort is number 1 allowing you to work longer and easier day in, day out
-Gauges and Warning Lights – these gauges point out if there are any issues, meaning you can stop the machine and rectify before any damage is caused allowing yourCOUGARS CG827 machine a long and reliable service life.
-Service Kit and Tools – included free is a tool box and service kit so you wont have to go digging for tools if you need to service or adjust something on your COUGARS CG827
-Hose Protection Kevlar Sleeving – prevents burst in the hoses, once again extending the life of your COUGARS CG827
-Track Drive with Grease Tensioner and Heavy Duty Re-coil Spring – this COUGARS CG827 design gives you better traction and a lighter footprint meaning you can go anywhere with almost no trace
- Engine Access Panel Hinged and Lockable – this gives you easy access to all your components of your COUGARS CG827
-Heat-Treated Pins and Greaseable Bronze Bushes – this gives you longer life for your COUGARS CG827
-Tie Down Locations – safe security for transporting for your COUGARS CG827
-Emergency Stop Switch – quick and easy to hit in case of any issues while operating the machine; all standard on the COUGARS CG827
- Lift Hook Locations – if you have to lift your machine on to a site via a crane etc it can be done easily without any risk to your COUGARS CG827
-Lift Arm Safety Support – this means you are safe when using your COUGARS CG827

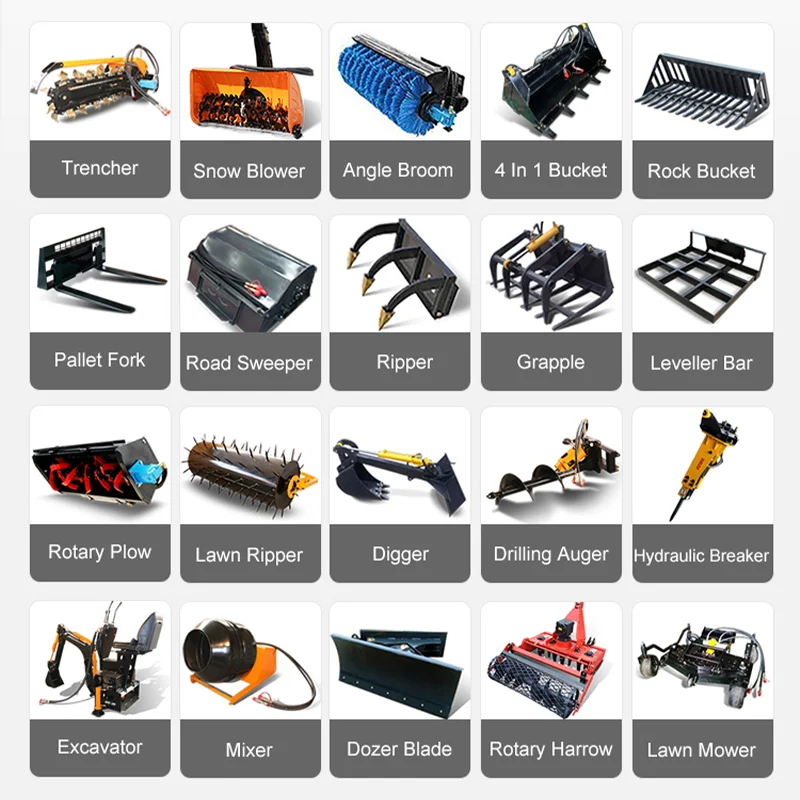

Attachments
Whether you need to doze, dig, dump, carry, clamp, or grab, the COUGARS CG827 with its standard bucket has got you covered. Optional Attachments: Trencher, Snow Blower, Anglebroom, 4 in 1 bucket, Rock bucket, Pallet fork, Sweeper, Ripper, Grapple, Leveller Bar, Rotary Tiller, Digger, Auger, Hydraulic Breaker, mixer etc.
Our Company
We are a comprehensive construction machinery production, sales enterprises, coversan area of 3,000 square meters, the company's products include excavators, loaders,graders and other types of construction machinery. Our products are widely recognizedby customers at home and abroad, and exported to Europe, America, Australia andRussia.
Since the establishment of the company, we have been adhering to the "quality first, customer first, reputation oriented" management principle, and always do our best to meet the potential needs of customers. All steel parts are manufactured in-house. There is complete supervision and control from raw material entry to production contention until final product exit testing. At the same time, by producing the entire machine in one place, we can save a lot of money, enabling us to manufacture high quality wheel loaders and construction machinery for our customers at the lowest price. The perfect production capacity and technology make us fully qualified for the special customized needs of customers in various regions, with the most competitive price to provide customers with the best quality products.
FAQ
Q1:Are you the manufacturer or the trading company?
We are the manufacturer of the COUGAR skid steer loader,mini loader,excavators ,and various attachments. And we have our ownedtrading company.
1)We can supply good service with professional international trade
2)Our price is much more competitive with good quality
Q2:Do you offer the OEM or ODM service?what's the MOQ?
Yes, we can make it , the MOQ is 1 unit!
Q3:What's the lead time? How long can i get the equipment after payment?
1)The lead time around 14 days if you wanna customized the machine.
2)The standard machine in stock ,could delivery ASAP after get your payment.
2)The standard machine in stock ,could delivery ASAP after get your payment.
Q4:What's the warranty?
1)Cause the COUGAR equipment's engine,hydraulic pump,value,motor... etc offer 3 years global warranty, so you can get the warranty from the local market.
2)We offer the online video support,free spare parts,video technical support,field maintenance and repair service,service for a whole life of cougar machine.
2)We offer the online video support,free spare parts,video technical support,field maintenance and repair service,service for a whole life of cougar machine.
Q5: How to pay for you?
30%T/T in advance as deposit,70% T/T before shipping.
- Please check that all Beneficiary and Bank details are correct when sending us a Bank Transfer.
- Under no circumstances should you send us a bank transfer to an account other than the one shown above.
- Our billing details will never be modified or changed.
Notice:
Products depicted in this literature are for demonstration purposes only.Actual products offered for sale may vary in use, design,required attachments and safety features.We reserve the right to improve our products and make changes in specifcations, designs and standard equipment without notice and without incuring obligation。
