Products Advantages
MACREAT Factory Supply Wood Sawdust Pellet Making Machine Grain Husk Biomass Straw Pellet Mill Waste Wood Pelletizer Machine
MACREAT pellet mill machine advantage
●Compared with the old machine, it absorbed the essence of horizontal ring die and flat die pellet machine ,solved the insufficient pressure ,die crack problems of horizontal ring die pellet machine, and overcame the small capacity ,high failure rate of flat die pellet machine.
● It adopt the large modulus hardened surface helical gearbox , main shaft reinforcement , Power output is strong , Good stability ，Low failure rate ,Low production cost, so it is the first choice machinery for biomass energy industry .
● Vertical Ring Die Pellet Machine is a new biomass fuel production machinery by processing scrap from forest and agricultural waste like eucalyptus, pine ,birch, poplar, fruit and agricultural straw, bamboo.
●Compared with the old machine, it absorbed the essence of horizontal ring die and flat die pellet machine ,solved the insufficient pressure ,die crack problems of horizontal ring die pellet machine, and overcame the small capacity ,high failure rate of flat die pellet machine.
● It adopt the large modulus hardened surface helical gearbox , main shaft reinforcement , Power output is strong , Good stability ，Low failure rate ,Low production cost, so it is the first choice machinery for biomass energy industry .

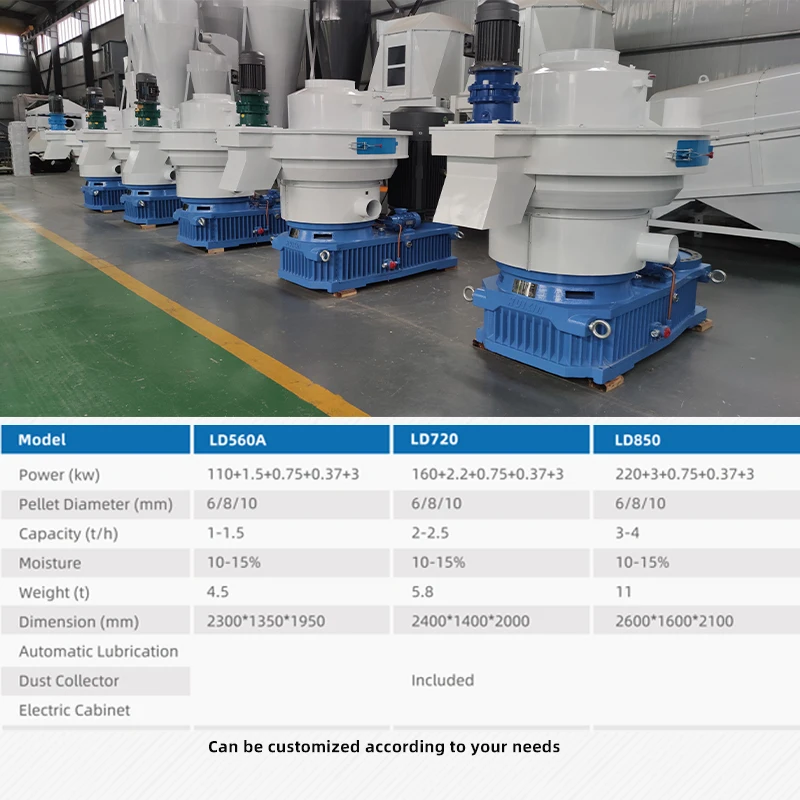

Model | LD560A | LD720 | |||||||
Power | 110+1.5+0.75+0.37kw | 160+2.2+0.75+0.37kw | |||||||
Capacity | 1-1.5t/h | 2-3t/h | |||||||
Pellet diameter | 6/8/10 mm | ||||||||
Measurement | 2300*1350*1950mm | 2400*1400*2000mm | |||||||
Weight | 5.3ton | 6.3ton | |||||||
Dust collecting system | Cyclone, dust collector,fan blower system | ||||||||
Deceleration model | Gear level 3 drive | ||||||||
Roller type | Sealed roller without lock | ||||||||
Die heat treatment hardness | HRC55-60 | ||||||||
Die material | Alloy steel or Stainless steel | ||||||||
Die lifetime | 800-1000 Hours(Alloy steel) | ||||||||
1000-1200 Hours(Stainless steel) | |||||||||
Product Details
Biomass Pellet Mill Characteristics:
(1) Big Gear Box
The gearbox adopts independent research and development big 3 level drive,module increased , gear strengths increased,carrying more and more ability.The service life increased 8-10 times than the traditional reducer,greatly increase the service life.
(2) Casting material of gearbox with high stabilityGearbox body is casted. Its advantages has strong,good heat dissipation,low heat deformation, high steady etc. Avoid disadvantages of the bad sealing for welding boby, easily deformation due to high heat,low steady in basis etc.
(3) Parallel vertical installation reduce energy consumption loss
The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.
The gearbox adopts independent research and development big 3 level drive,module increased , gear strengths increased,carrying more and more ability.The service life increased 8-10 times than the traditional reducer,greatly increase the service life.
(2) Casting material of gearbox with high stabilityGearbox body is casted. Its advantages has strong,good heat dissipation,low heat deformation, high steady etc. Avoid disadvantages of the bad sealing for welding boby, easily deformation due to high heat,low steady in basis etc.
(3) Parallel vertical installation reduce energy consumption loss
The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.
Biomass Pellet Mill Materials:Sawdust,Rice Husk,Wood Chips,Straw etc.
The biomass pellet machine is applied to the materials with low adhesiveness and low shaping rate such as the rice husk,sunflower seed husk,peanut shell and other fruit shell;branch,trunk,bark and other wood waste;a variety of corp straws,rubber,cement,ash and other chemical materials.This type of pellet mill is widely used in the biomass-energy fuels plant,wood processing plant,fertilizer plant,chemical plant etc,It is ideal pressing shaping equipment with low investment and high profit.
Biomass Pellet Mill Applications:Make Biomass Pellets,Biomass Industry,Burning,Making Wood Fuel etc.
Pellets are a solid biomass fuel, mainly produced from wood residues but also from agricultural by-products such as straw. They have a cylindrical form with a diameter of 6–12 mm. Applicable for:residential heating, power generation, and for heat generation in the manufacturing and energy sectors.
Pellets are a solid biomass fuel, mainly produced from wood residues but also from agricultural by-products such as straw. They have a cylindrical form with a diameter of 6–12 mm. Applicable for:residential heating, power generation, and for heat generation in the manufacturing and energy sectors.
Factory Show
Macreat (Shandong) Machinery Co., Ltd is located in Mingshui Economic Development Zone, Zhangqiu District, Jinan City, Shandong Province. It is a group enterprise specialized in R&D, manufacturing and sales of biomass energy equipment. The company, formerly known as Yantai Lida Woodworking Machinery Co., LTD, is located in Muping District, Yantai City, Shandong Province, with a total investment of more than ￥50 million and an area of 35,000 square meters. It has more than 100 employees and 60 years of machinery manufacturing experience and 30 years of export experience. The company's sales center is located in Jinan, the existing sales staff of more than 50 people, annual sales of more than $15 million.
Your trust is the beginning of our cooperation , we sincerely look forward to cooperating with you!
The company upholds the pursuit of intellgence , efficiency and safety , and aims at the perfection in product and technology .Mlacreat makes achiecement of customer's demands a top priority and considers the high quality of the products as origin of the company's life.Form the beginning of each process to the delivery of each product , we implement the quality tracking system and establish a perfect customer support scheme for each user We have already got ISO9001 certificate and EU CE certification.Reliable and stable product quality has won our company a good reputation . It also leads to high sales and top-ranked comprehensive economic indicators among domestic manufacturers . At present , the products have been sold all the country and expoeted to more than 90 countries and regions , such as Gny . Finland . Russia . NeyZealand , South Korea , Pakistan , India , Bangladesh ,Vietnam , Malaysia and Turkey.
Your trust is the beginning of our cooperation , we sincerely look forward to cooperating with you!
Macreat Exhibition

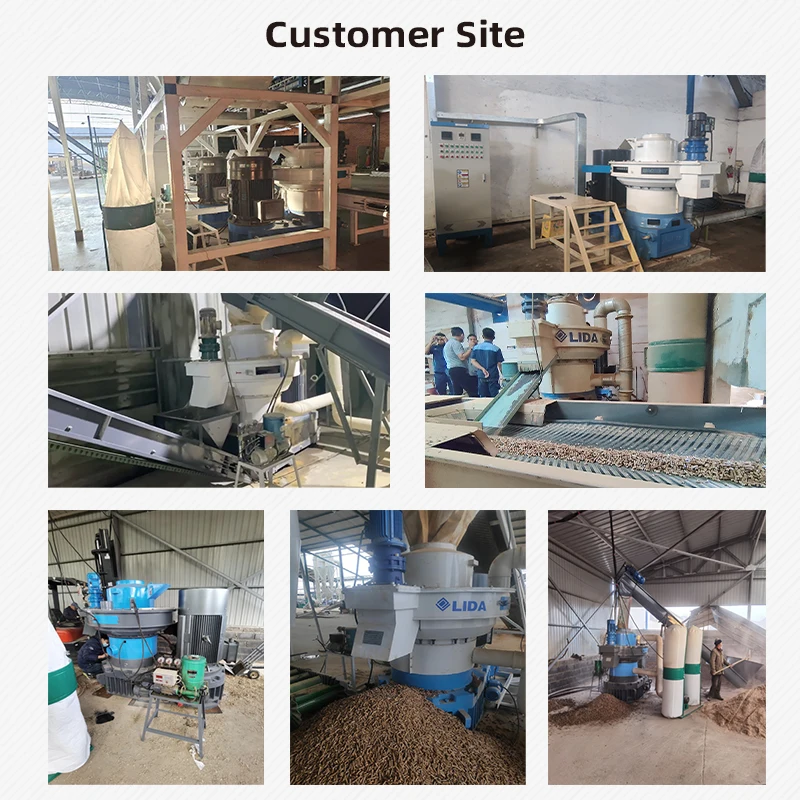

Customer Case
Certifications
Packing & Shipment
Delivery
A, By Express (DHL, TNT, FedEX, EMS)
B, For big orders, We will send you the goods by Sea to your close sea port.
A, By Express (DHL, TNT, FedEX, EMS)
B, For big orders, We will send you the goods by Sea to your close sea port.
FAQ
1.Q：HOW ABOUT THE QUALITY OF YOUR PRODUCTS?
A：Our products are strictly made by adopting advanced technology both at home and abroad.
Every aspect of our products is under strict quality control and we take a test on each equipment before delivery. We area manufacturer having over 50 years ‘experience in manufacturing all kinds of China-made woodworking machinery since 1960.You can also use Trade Assurance by Alibaba for product quality
protection， on-time shipment protection and payment protection.
2.Q：HOW LONG IS YOUR GUARANTEE?
A：One Year (Calculated from the equipment arrives the customer ‘s side).
3.Q：DO YOU PROVIDE AFTER-SALE SERVICE?
A：Yes. We provide one-year warranty to make sure your machine runs consistently. Besides, we always offer lifelong services and provide spare parts for a long term. And we repair main parts under correct using for free in two years.
4.Q：WILL YOU SEND ENGINEERS TO INSTALL THE PLANT?
A：yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
A：Our products are strictly made by adopting advanced technology both at home and abroad.
Every aspect of our products is under strict quality control and we take a test on each equipment before delivery. We area manufacturer having over 50 years ‘experience in manufacturing all kinds of China-made woodworking machinery since 1960.You can also use Trade Assurance by Alibaba for product quality
protection， on-time shipment protection and payment protection.
2.Q：HOW LONG IS YOUR GUARANTEE?
A：One Year (Calculated from the equipment arrives the customer ‘s side).
3.Q：DO YOU PROVIDE AFTER-SALE SERVICE?
A：Yes. We provide one-year warranty to make sure your machine runs consistently. Besides, we always offer lifelong services and provide spare parts for a long term. And we repair main parts under correct using for free in two years.
4.Q：WILL YOU SEND ENGINEERS TO INSTALL THE PLANT?
A：yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
