Автоматическая машина для резки торцовочной пилы с двойной головкой новая б/у оконная дверь ПВХ алюминиевые профили из НПВХ
7 500,00-8 100,00 $
ПВХ окна и двери делая машину Автоматическая угловая комбинированная производственная линия SKZJX 1000
- Категория: >>>
- Поставщик: Jinan Mag Group Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601007051717:
Описание и отзывы
Характеристики
Product Overview
CNC corner combining production line SKZJX
CNC corner combining production line is made of CNC corner combining machine ,feeding table,CNC hinge drill,conveying and assembling table , unloading platform.lt has the function of full automatic pre-tightening, and adopts themethod of controllinglthe torque output of servo motor to realizethe pre-tightening action of angle assembling head with controllablestrength and realize high-quality angle assembling processing.
FEATURES AT A GLANCE
safety frame
more supermatic
high accuracy
easy to operate

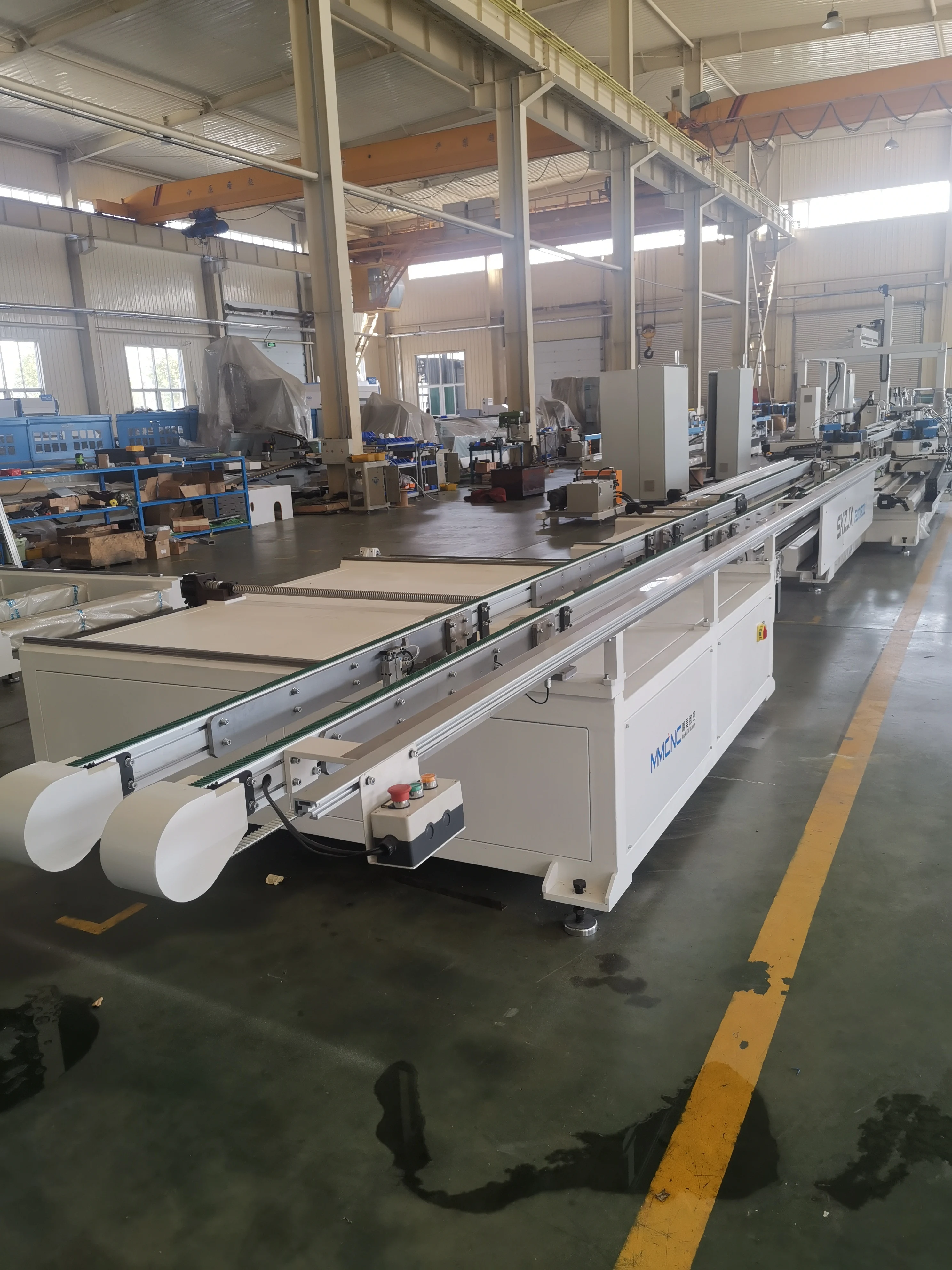

PRODUCTION LINE

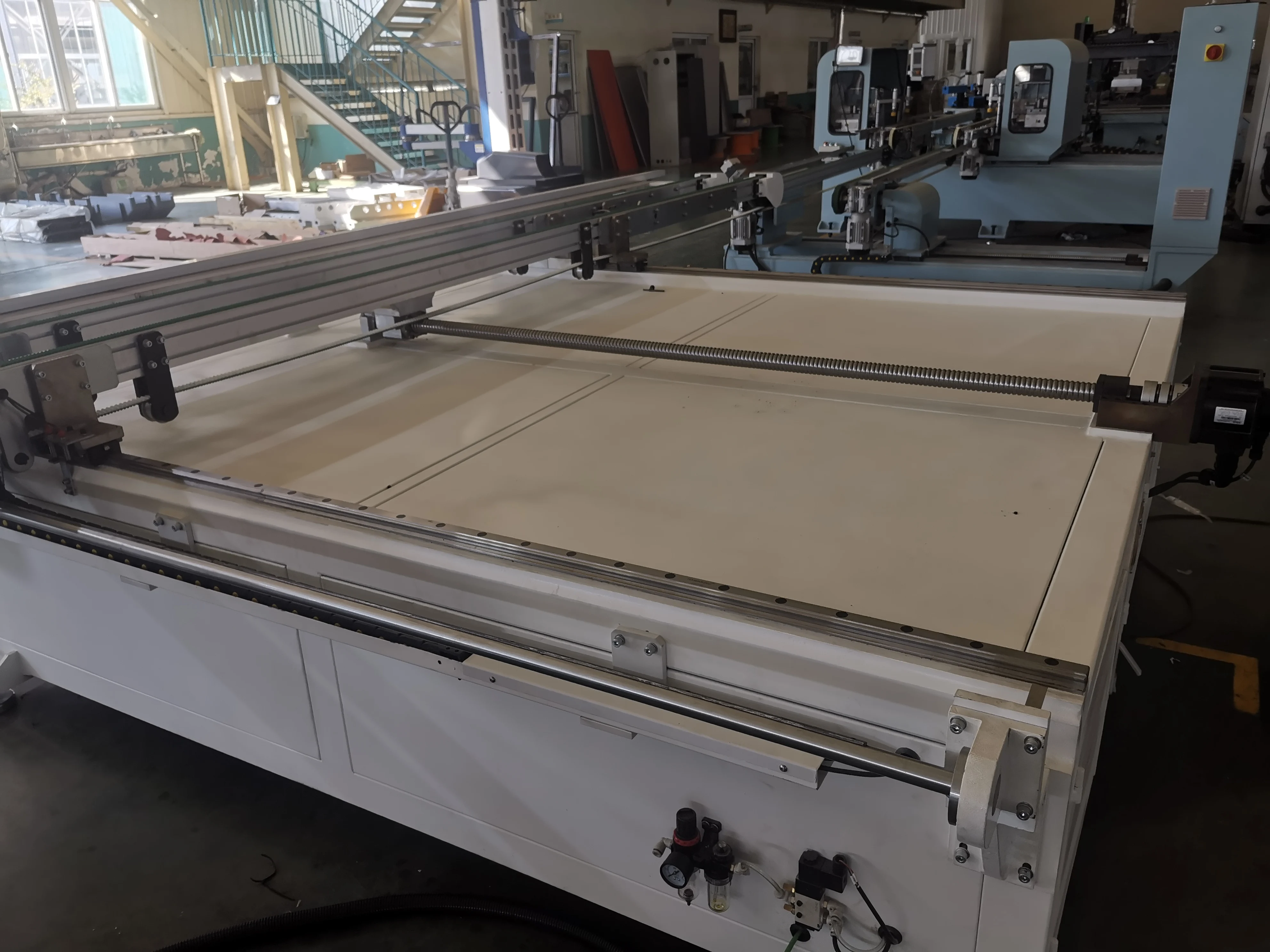

SLT-1800 Feeding Table
The loading table is used as te loading buffer area in the production line, which can buffer 4-8 at one time according to the
different sizes of processed materials, so that the production line can realize high-efficiency production without stopping.
The loading table is used as te loading buffer area in the production line, which can buffer 4-8 at one time according to the
different sizes of processed materials, so that the production line can realize high-efficiency production without stopping.
Brand Name | MMCNC |
Model | SLT-1800 |
Power Supply | 380V 50Hz or customers specifications |
Air pressure | 0.5-0.8M pa |
Window Frame dimension | 760-1800mm |
Overall dimension: (L x WxH) | 5410 x 2210 x 900mm |
Weight: | 800Kg |
SKZJX-100x1800 CNC Corner combining Machine
It has the function of full automatic pre-tightening, and adopts the method of controlling the torque output of servo motor to realize the pre-tightening action of angle assembling head with controllable strength and realize high-quality angle assembling processing.
It has the function of full automatic pre-tightening, and adopts the method of controlling the torque output of servo motor to realize the pre-tightening action of angle assembling head with controllable strength and realize high-quality angle assembling processing.
Brand Name | MMCNC |
Model | SKZJX-100x1800 |
Power Supply | 380V 50Hz or customers specifications |
Air pressure | 0.5-0.8M pa |
Max frame dimension of window | 1000x1800-2200x3000mm |
Min frame dimension of window | 460x760mm |
Oil pump motor power | 4kw |
Overall dimension: (L × W ×H) | 4700 x 3400 x 1650mm |
Weight: | 2500Kg |

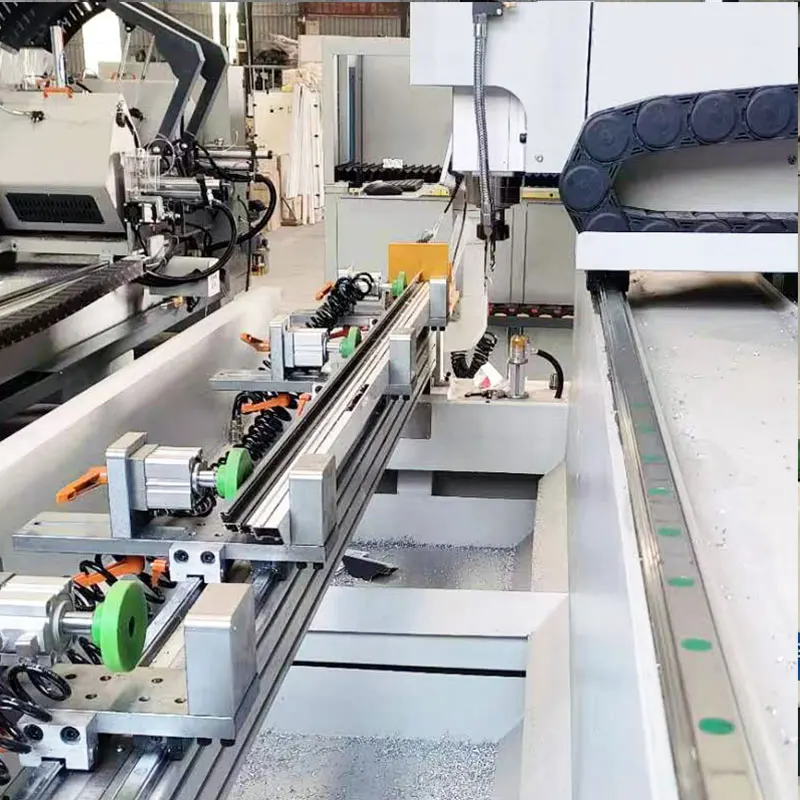

CNC Hinge Drill SKDK-1800
Seamless connection with the corner assembly part, full-automatic loading and unloading, and seamless switching of window sash with different sizes. Machining can be realized only by inputting the height and distance of hole position, without programming.
Seamless connection with the corner assembly part, full-automatic loading and unloading, and seamless switching of window sash with different sizes. Machining can be realized only by inputting the height and distance of hole position, without programming.
Brand Name | MMCNC |
Model | SKDK-1800 |
Power Supply | 380V 50Hz or customers specifications |
Air pressure | 0.5-0.8M pa |
Window frame dimension | 760-1800mm |
Spindle Motor | 2x3.5KW |
Spindle Chuck | ER25 |
Overall dimension: (L × W ×H) | 3080 x 3100 x 1500mm |
Weight: | 1400Kg |

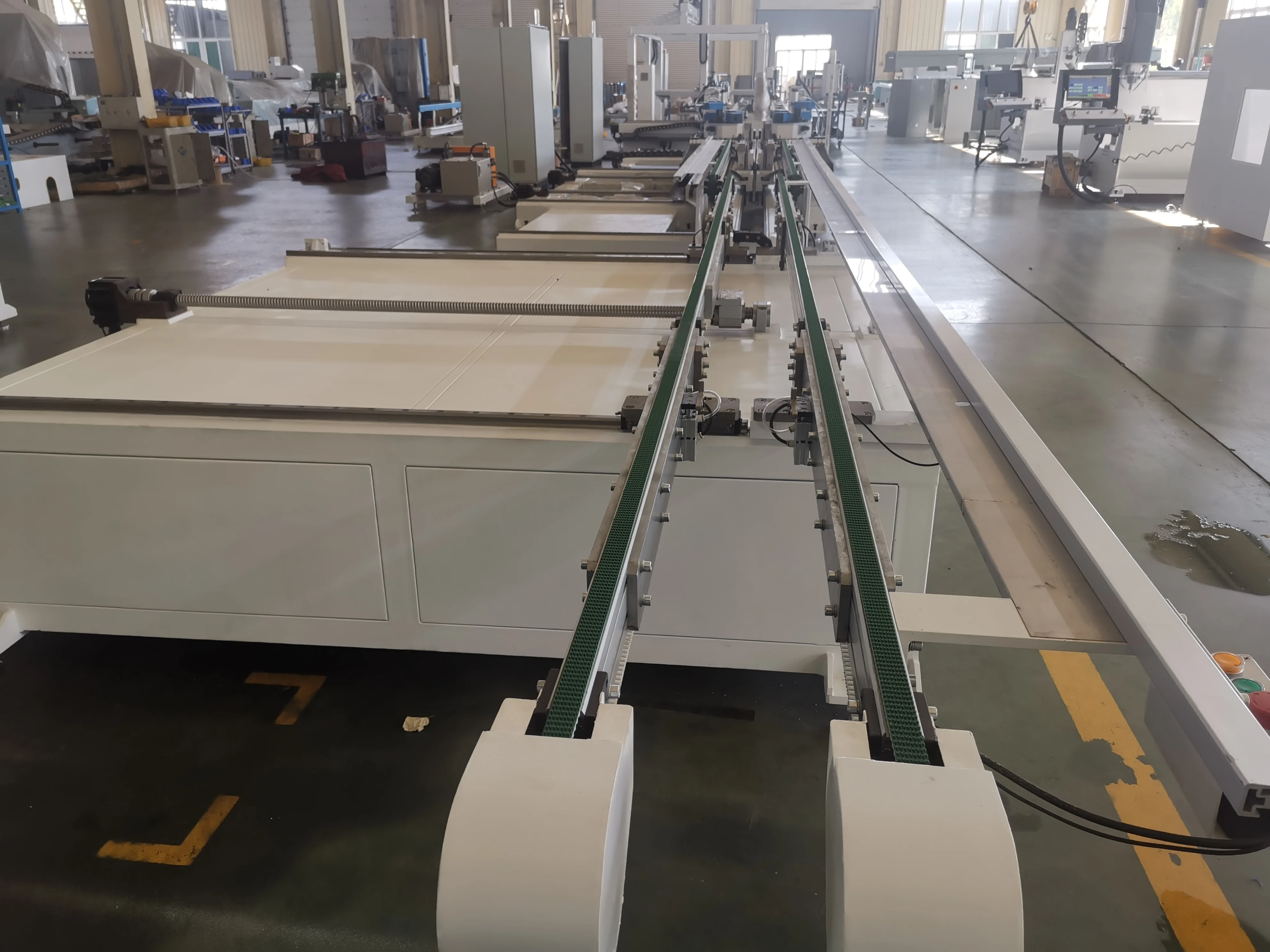

Conveying and Assembling Table ZZT-2190x2180
The mail function of the assembly station is to install other accessories for the window sash after the corner assembly is
completed, which can be seamlessly connected with the unloading station and directly transport the processed window sash to the assembly station.
The mail function of the assembly station is to install other accessories for the window sash after the corner assembly is
completed, which can be seamlessly connected with the unloading station and directly transport the processed window sash to the assembly station.
Brand Name | MMCNC |
Model | ZZT-2190x2180 |
Power Supply | 380V 50Hz or customers specifications |
Air pressure | 0.5-0.8M pa |
Overall dimension: (L × W ×H) | 2454x2650x800mm |
Weight: | 1000Kg |

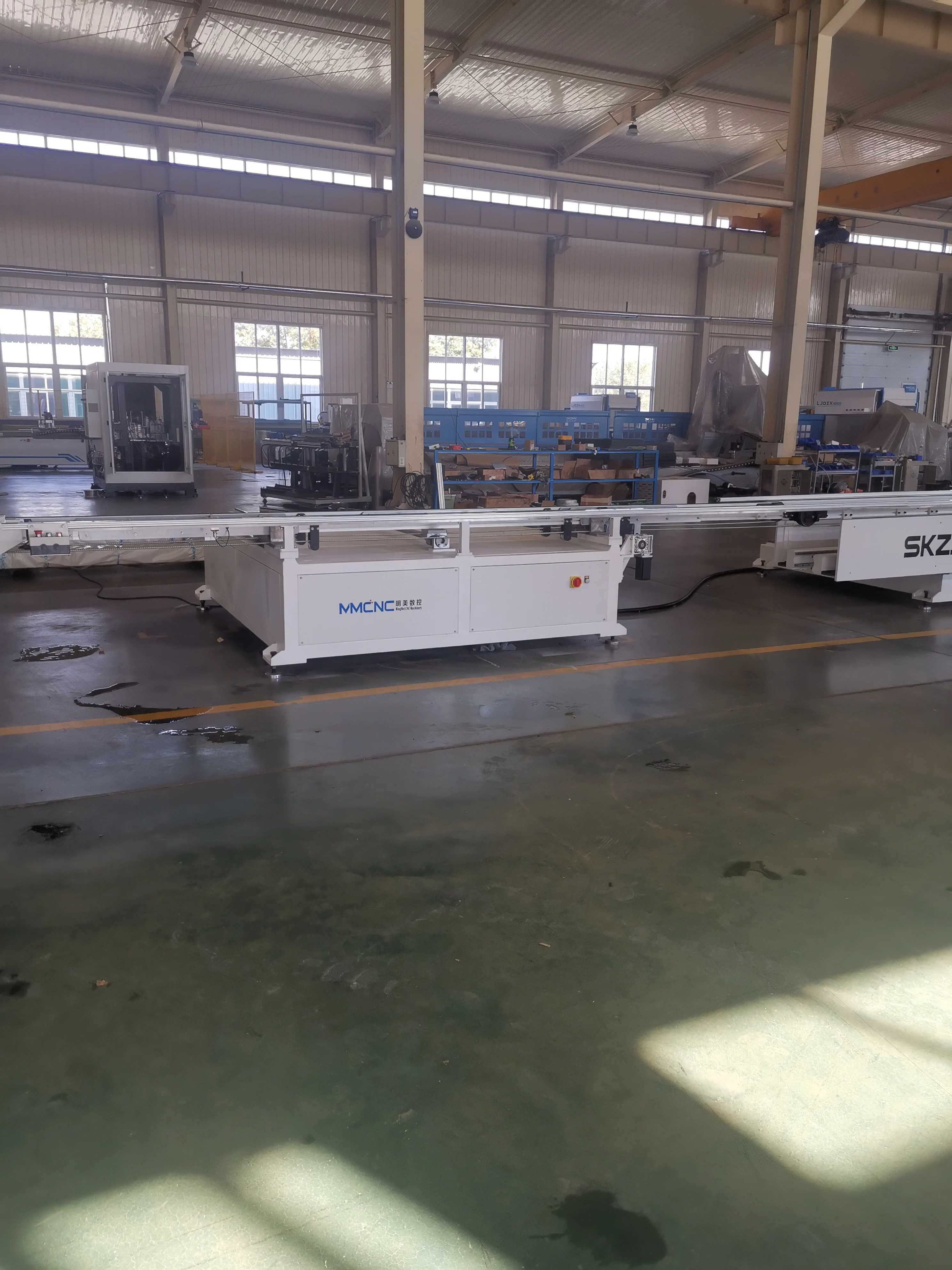

Unloading Platform XLT-1800
It can be used as a temporary blanking area when it is not connected with the mounting table. When machining with different sizes is changed, it will be linked with the main machine of the corner assembly part to automatically position to the corresponding size.
It can be used as a temporary blanking area when it is not connected with the mounting table. When machining with different sizes is changed, it will be linked with the main machine of the corner assembly part to automatically position to the corresponding size.
Brand Name | MMCNC |
Model | XLT-1800 |
Power Supply | 380V 50Hz or customers specifications |
Air pressure | 0.5-0.8M pa |
Window Height Range | 760-1800mm |
Overall dimension: (L × W ×H) | 2454x2650x800mm |
Weight: | 1000Kg |
DETAILS
CERTIFICATIONS
COMPANY PROFILE
PACKING AND DELIVERYING
FAQ
1. Are you a manufacturer
Yes,we have been in providing the professional products in this field more than 20 years.
2. how to install the machine ?
we can intrust the install the machine by vedio, email ,picture.....if large project ,
we can arrange the worker help you to install it in your country .
3. How you pack the products ?
Normally as the export standard packaging or as you required.
4. What is your available port of shipment?
Qingdao port,shanghai,tianjin,guangzhou etc.
5. Is customized available ?
Yes, according to your detailed drawings you provide
6. After Sale Service
24 hours technical support by phone, email or skype (email or skype) .
12 months warranty period.
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the customer start the business smoothly,
to realize win-win cooperation
7. Are you trading company or manufacturer ?
We are factory and welcome to visit us at any time.
8. How long is your delivery time?
Generally single tanks need 7-15 days, for whole plant need 15-30days.
9.Do you have CE and ISO certification?
Yes.
10.What is your terms of payment ?
Free contact for the most suitable machine
Free professional design for each customer especially.
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Yes,we have been in providing the professional products in this field more than 20 years.
2. how to install the machine ?
we can intrust the install the machine by vedio, email ,picture.....if large project ,
we can arrange the worker help you to install it in your country .
3. How you pack the products ?
Normally as the export standard packaging or as you required.
4. What is your available port of shipment?
Qingdao port,shanghai,tianjin,guangzhou etc.
5. Is customized available ?
Yes, according to your detailed drawings you provide
6. After Sale Service
24 hours technical support by phone, email or skype (email or skype) .
12 months warranty period.
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the customer start the business smoothly,
to realize win-win cooperation
7. Are you trading company or manufacturer ?
We are factory and welcome to visit us at any time.
8. How long is your delivery time?
Generally single tanks need 7-15 days, for whole plant need 15-30days.
9.Do you have CE and ISO certification?
Yes.
10.What is your terms of payment ?
Free contact for the most suitable machine
Free professional design for each customer especially.
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Похожие товары

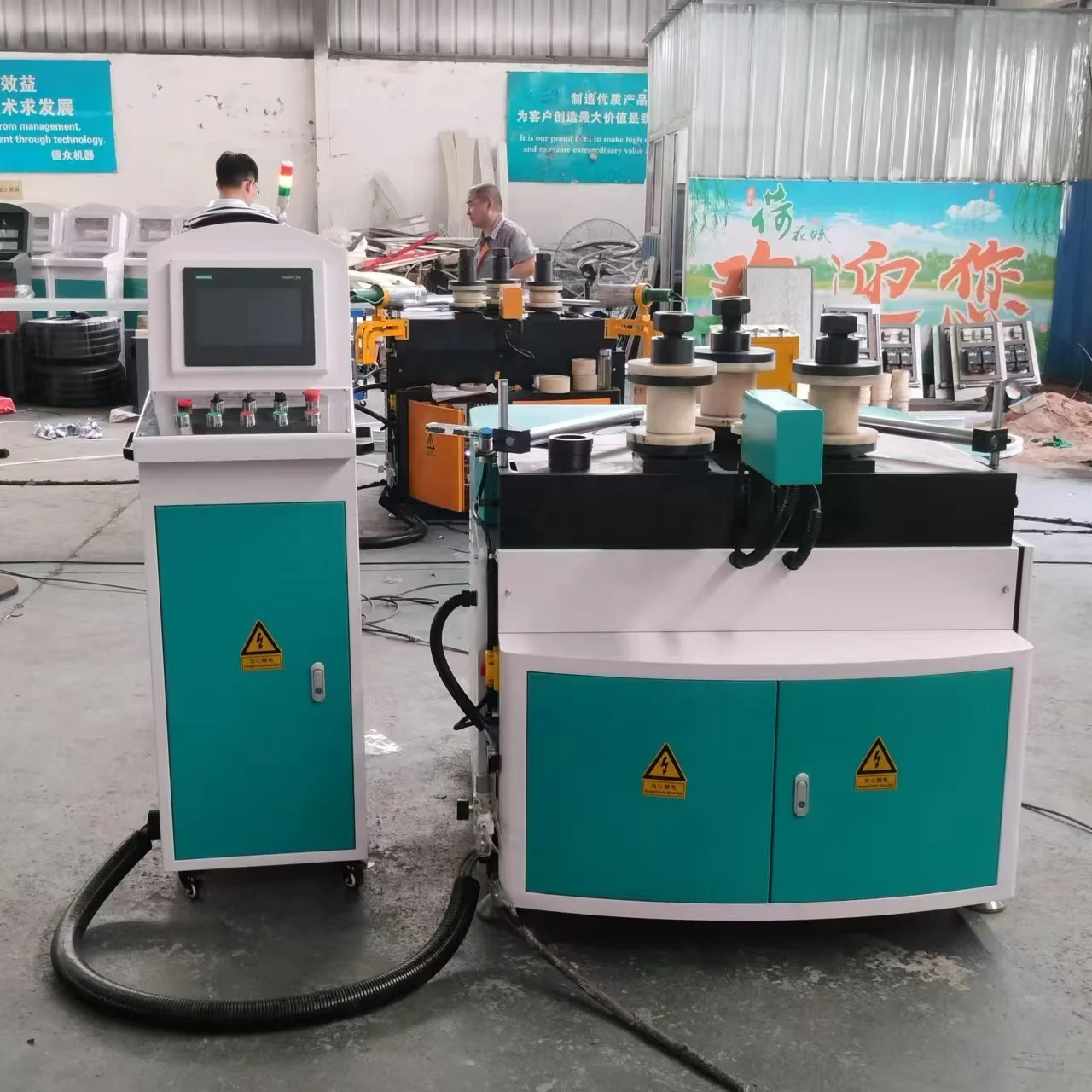

Полностью автоматическая гидравлическая металлическая лента трубчатая трубогибочная машина 3 ролика
7 800,00-8 000,00 $

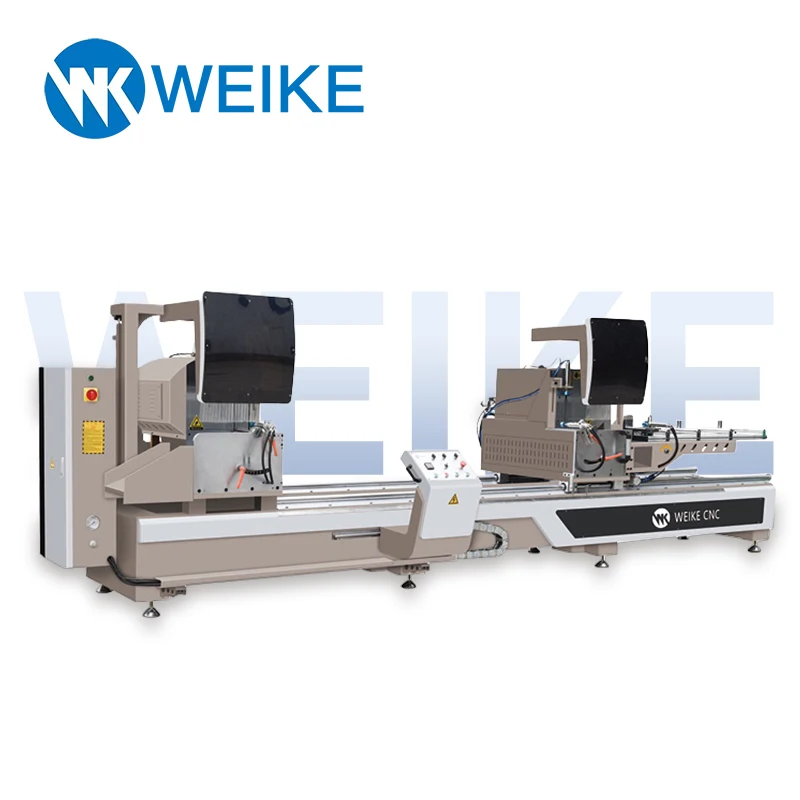

WEIKE ЧПУ цифровой дисплей прецизионная режущая пила для алюминиевого окна двери двойной Торцовочной Пилы
