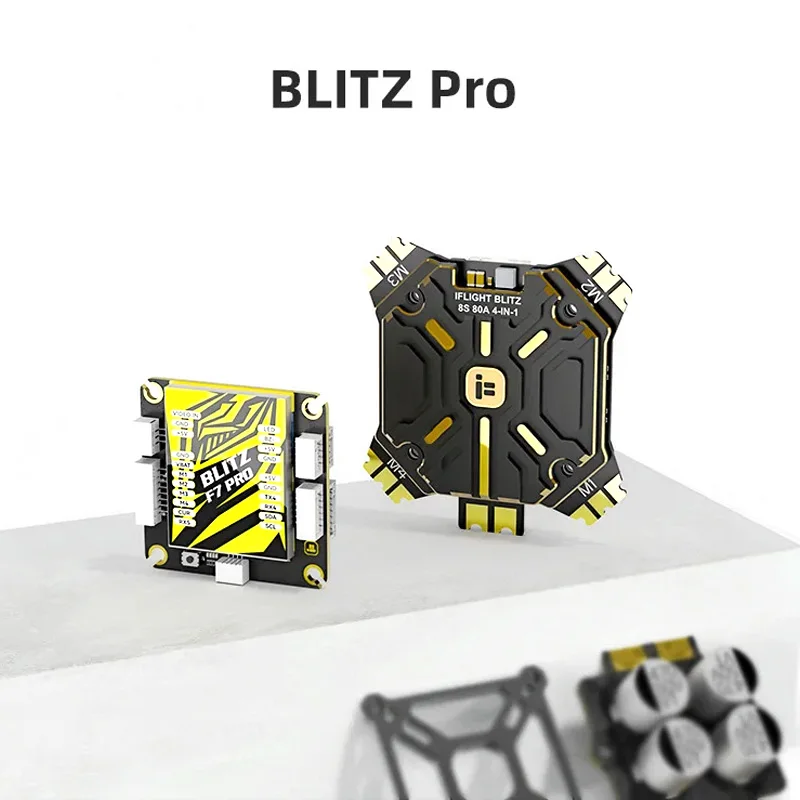

IFlight BLITZ F7 Pro комбо набор с блицем E80 одиночный ESC BlHeli32 Dshot600 для RC FPV гоночный Дрон

IFlight BLITZ F7 Pro комбо набор с блицем E80 одиночный ESC BlHeli32 Dshot600 для RC FPV гоночный Дрон

Категория: >>>
Поставщик: Shenzhen Uangel Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

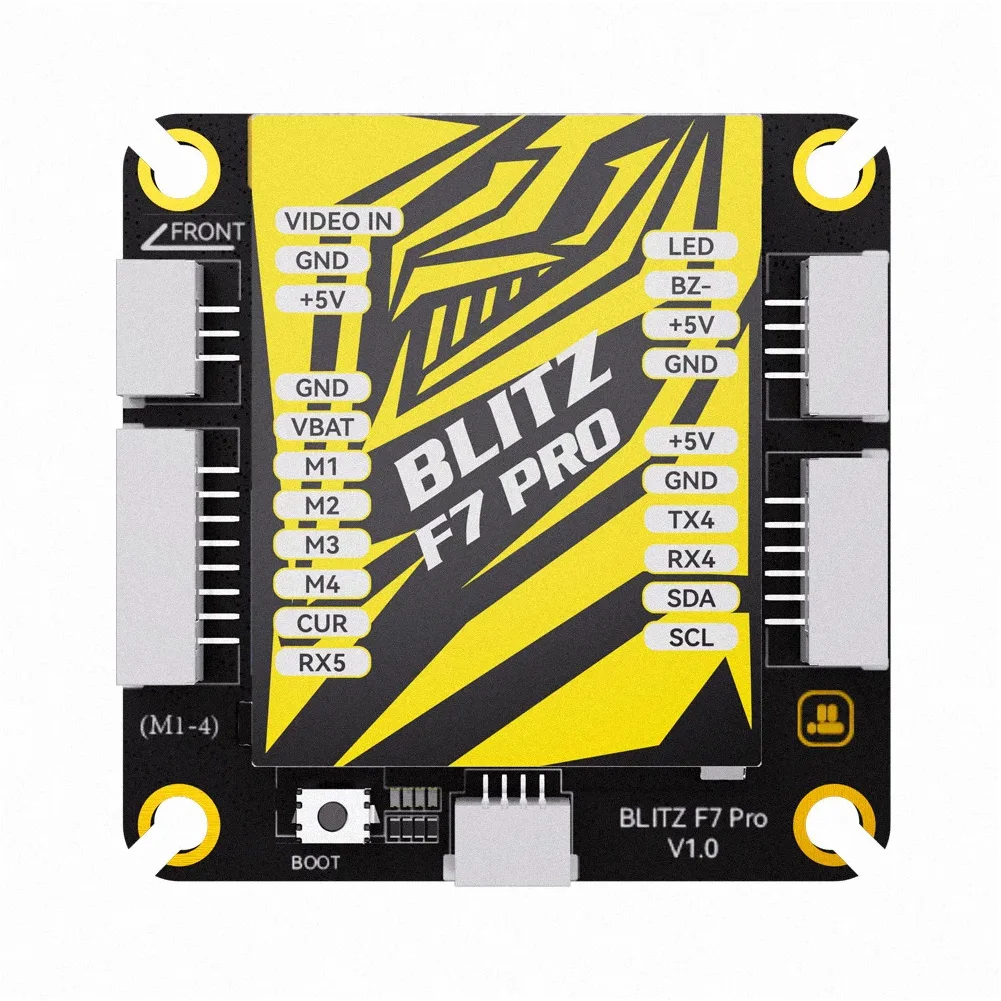

BLITZ F7 PRO FC Features:

Improved circuit design, better components, and lower electrical noise!

DJI HD VTX Connector (Plug-and-Play / No soldering required)

FC indicator LEDs for visual debugging

512MB BlackBox

With LC filter

Specifications

Mount pattern: 35*35mm/ 4mm PCB hole diameter

Smartaudio / IRC Tramp VTX protocol supported

Firmware target: IFLIGHT_BLITZ_F7_PRO

Input Voltage: 14.8V-34V (4S-8S LIPO)

Motor outputs: 4x (SH1.25 connector)

Flash: 512MB (Blackbox flash)

I2C serial: SDA / SLA pads

Dimensions: 41*41.5mm

Barometer: DPS310

OSD Chip: AT7456E

LED controller: Yes

MCU: STM32 F722

Weight: 17g (±2)

Beeper pad: Yes

Gyro: BMI270

UARTS: 4

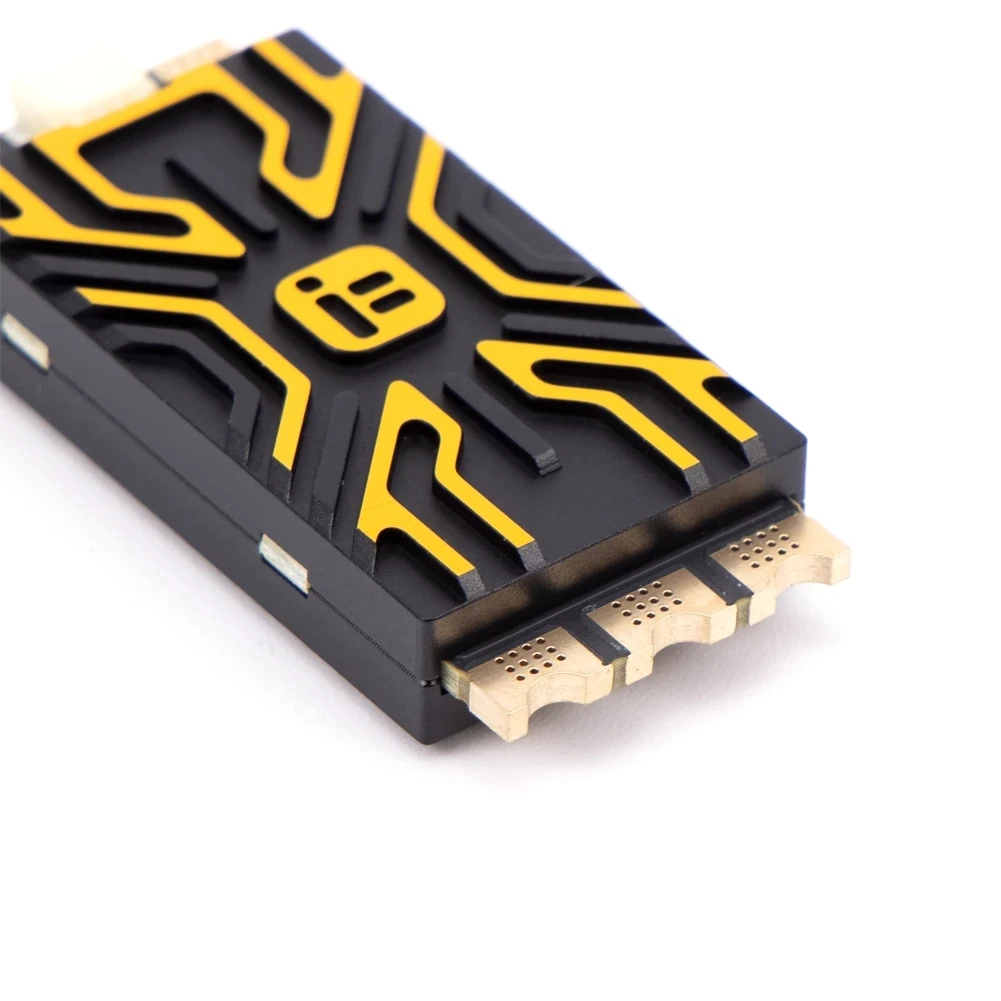

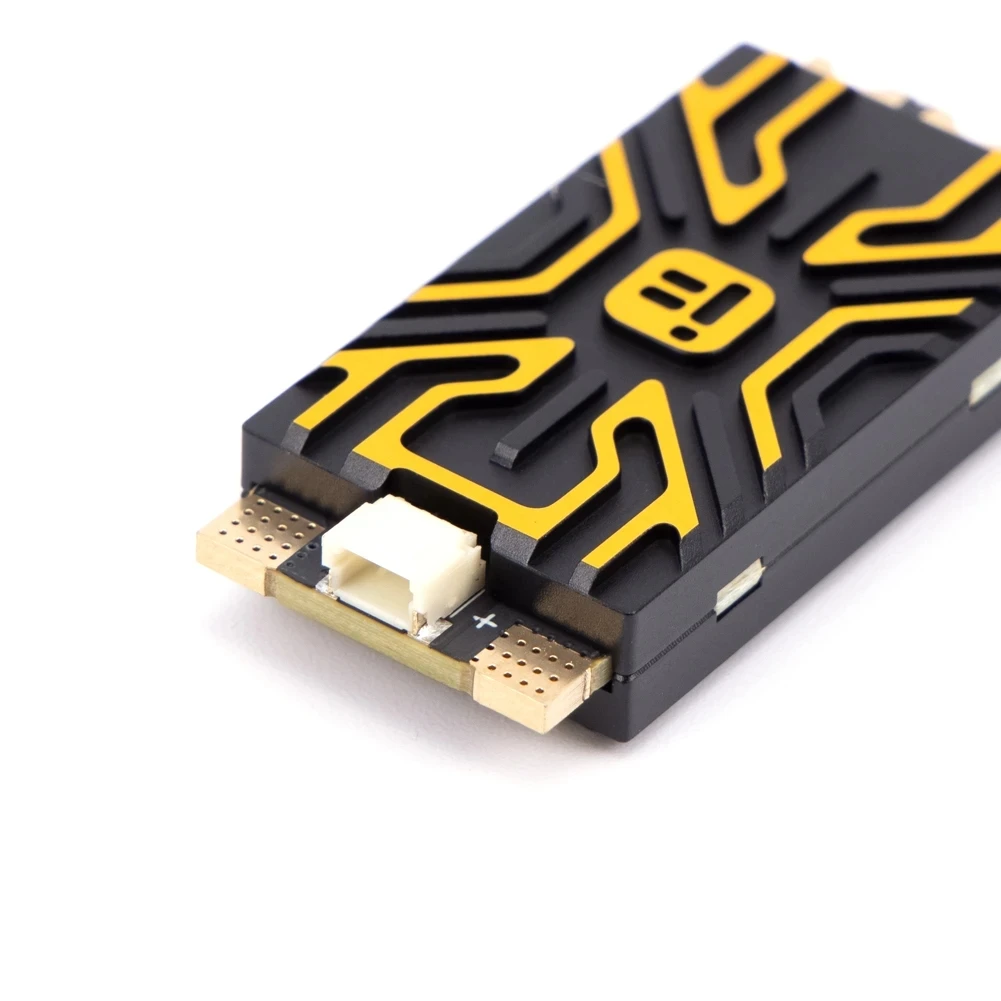

BLITZ E80 4-IN-1 ESC Description:

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

Features:

Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

G071 MCU, 48mHz maximum clock speed;

TDK MLCC Low ESR ceramic capacitors;

Top grade PSMN1R0-40YLD MOSFET;

8 layers double-sided PCB board

Specification:

Product Name: BLITZ E80 4-IN-1 ESC

Input Voltage: 2-8S

Max. Continuous Current: 80A

Max. Burst Current: 100A

MCU: G071

BEC: No

Firmware: BLHeli32

Current Sensor: Yes

Telemetry: Supported

Target: IFLIGHT_BLITZ_G2

Mounting Dimensions: 35x35mm/Φ4mm

Dimensions: 35x42mm

Weight: 65g(±10)

Protocal:Supports DShot DShot150/300/600/MultiShot/ OneShot etc

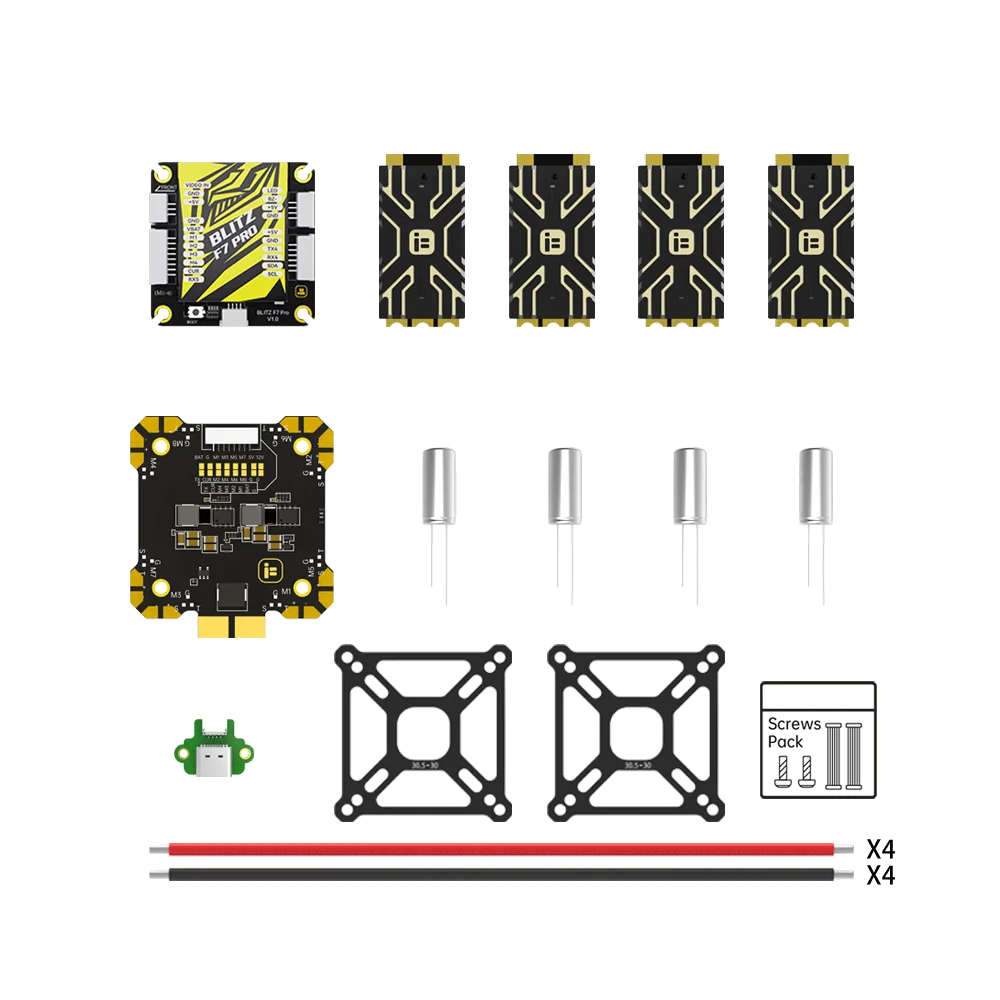

Package included:

1 x BLITZ F7 Pro Flight Controller

8 x BLITZ E80 Single ESC with CNC Alum Cover(optional)

8 x 50V 470UF capacitor(optional)

8 x Power cables & ESC signal wires(optional)

2 x BLITZ Pro PDB(optional)

4 x BLITZ E80 Single ESC with CNC Alum Cover(optional)

4 x 50V 470UF capacitor(optional)

4 x Power cables & ESC signal wires(optional)

1 x BLITZ Pro PDB

1 x Screws Pack

1 x USB Adapter Board
