Промышленный потолочный вентилятор с 6 лезвиями
- Категория: >>>
- Поставщик: Guangzhou Hengda Technology Co. Ltd.Guangzhou Ltd.
Сохранить в закладки 1601007651610:
Описание и отзывы
Характеристики
Permanent Magnet HVLS Ceiling Fan
HVLS Industrial Ceiling Fan is a scientific design with its bird wing blades making it high in air volume, low noise, and in line with fluid mechanical principle.
The fan has large diameter blades up to 7.3m allows effective coverage of 1000SQM. It consumes only 1.5KW electricity per hour, which can replace hundreds of pedestal fans or wall-mounted fans.
For products that require installation and use, we can provide online installation guidance and installation tools. A professional design team can design Cooling and Ventilation solutions for free. Respond to after-sales issues within 24 hours.
1. Ceiling Fan
2. 234000-798000 m³/h Big Airflow
Ceiling fan type HVLS industrial Fan.
9 different standard models with varying power/specifications are available for selection,
and we also offer customized products, including each parameter.
3. Can Cover Large AreaSingle unit YC-7.3 HVLS Ceiling Fan with 798000 m³/h airflow, suitable for 850-1000 sqm.
3. Can Cover Large Area
4. Fans with 5 / 6 / 8 / 10 blades can be customized as needed.
Product Parameters

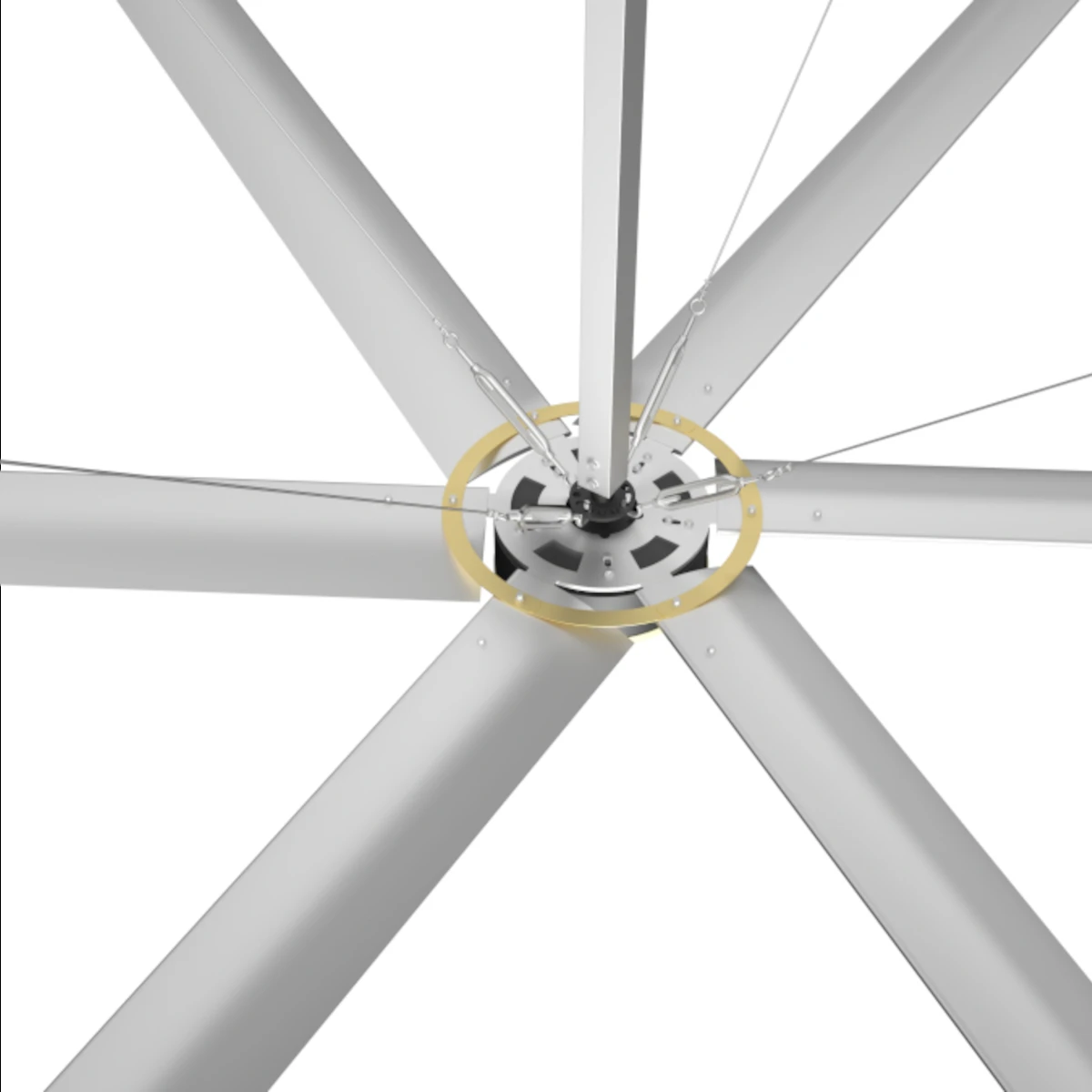

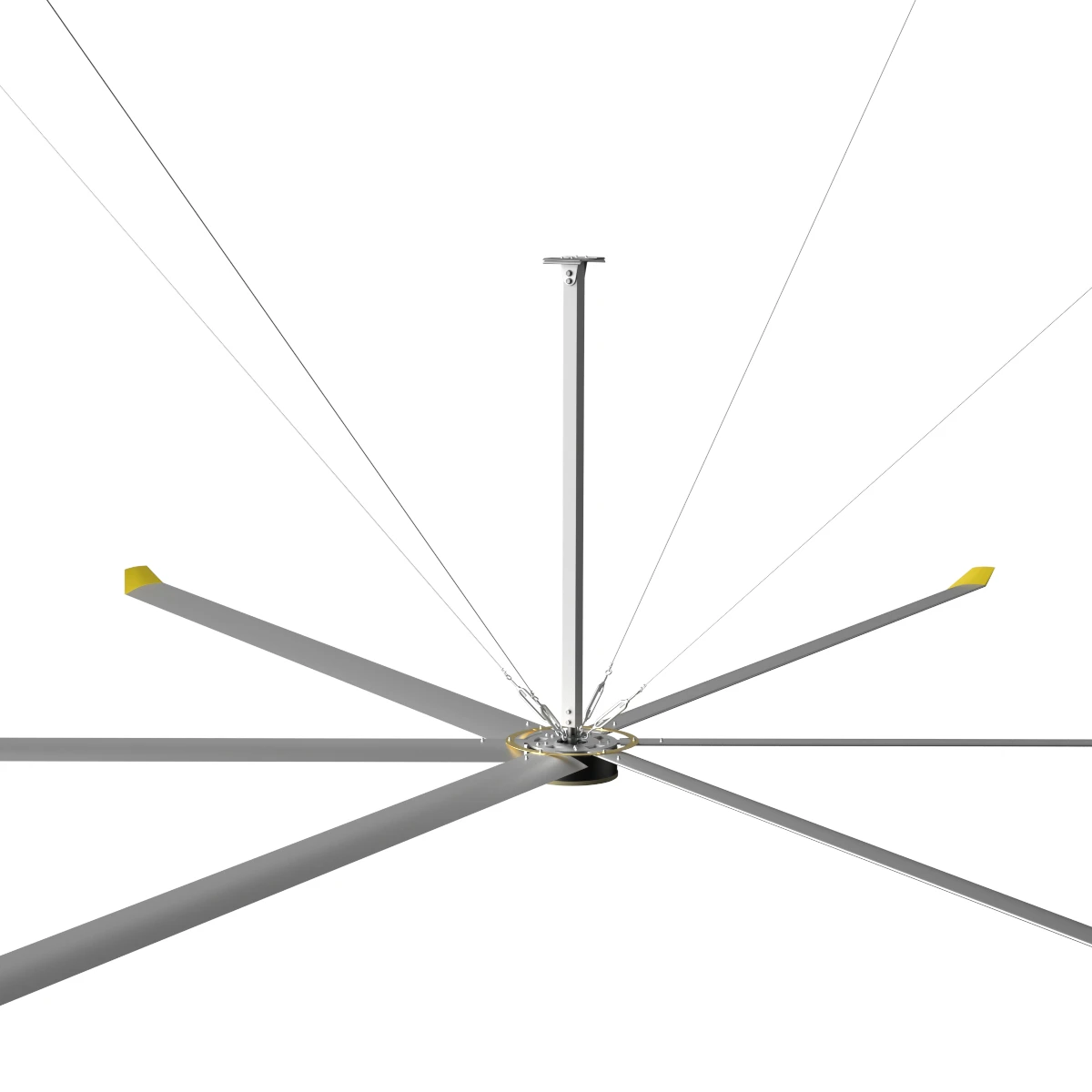

YC-7.3 Six-Blade 1.5 / 2.0KW

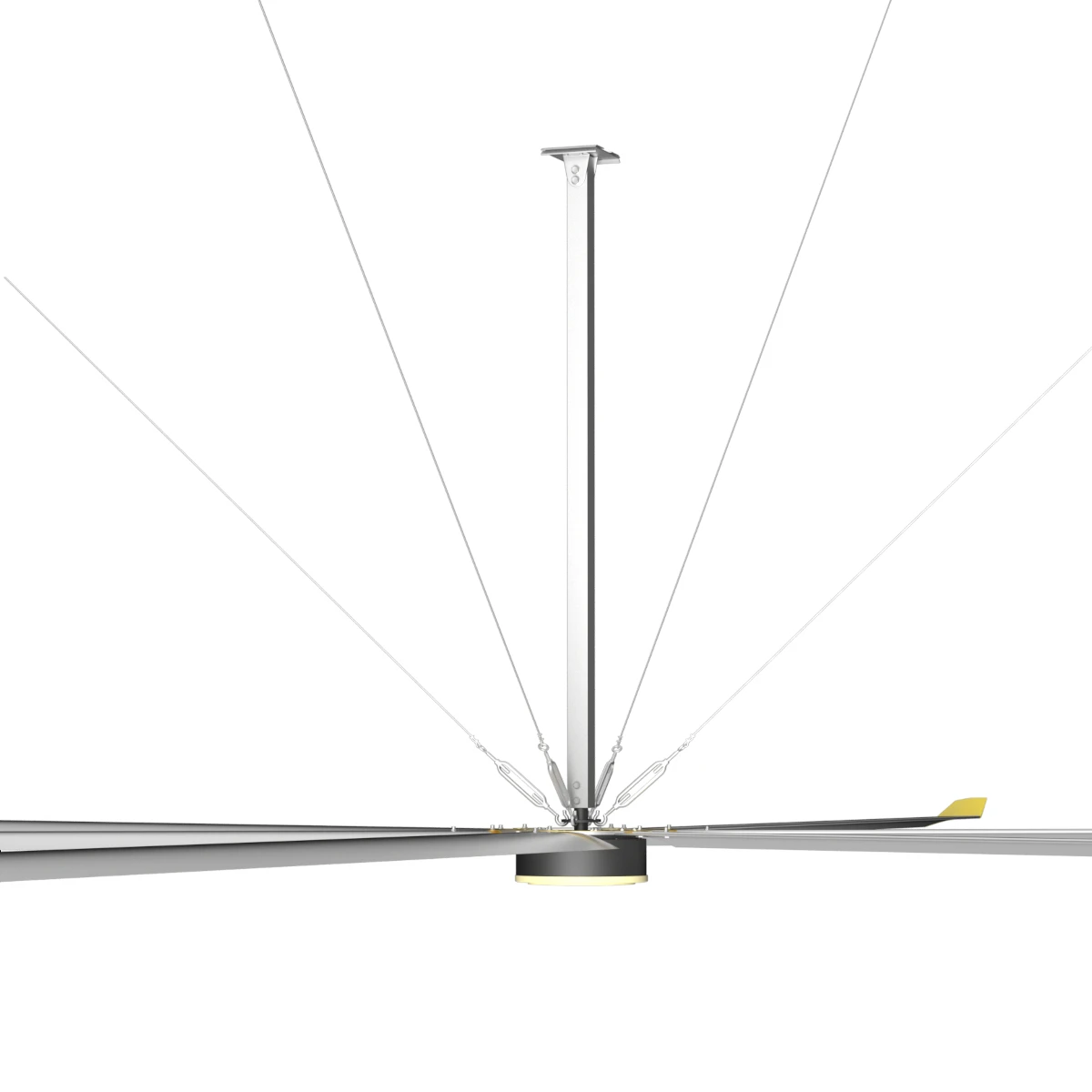

Front View
Model | Power (KW) | Blade Diameter (m) | Voltage (V) | Max Air Volume (m³/h) | RPM | Weight (kg) |
YC-7.3 | 1.5 | 7.3 (24') | 110-415 Customizable | 798000 | 55 | 108 |
YC-6.7 | 1.5 | 6.7 (22') | 110-415 Customizable | 741000 | 60 | 100 |
YC-6.1 | 1.1 | 6.1 (24') | 110-415 Customizable | 672000 | 70 | 85 |
YC-5.5 | 1.1 | 5.5 (18') | 110-415 Customizable | 631800 | 75 | 80 |
YC-4.9 | 0.75 | 4.9 (16') | 110-415 Customizable | 579600 | 70 | 75 |
YC-4.2 | 0.75 | 4.2 (13') | 110-415 Customizable | 547800 | 80 | 70 |
YC-3.6 | 0.55 | 3.6 (12') | 110-415 Customizable | 355800 | 80 | 42 |
YC-2.5 | 0.3 | 2.5 (8') | 110-415 Customizable | 271800 | 100 | 35 |
YC-2.0 | 0.2 | 2.0 (6') | 110-415 Customizable | 234000 | 120 | 32 |
Product Feature
Suitable for installation in tall and large spaces
Ceiling fans can effectively solve the problem of ventilation in tall and large spaces.
Installation Requirements
It needs to be firmly installed on structures such as steel beams or cement beams.
Details Images
Permanent Magnet Electric Fan Motor
Equipped with IE4 high-energy permanent magnet brushless synchronous motor. No maintenance required. IP54 Water Resistance Rating.
Hardened Aluminum Alloy Material Chassis
Hardened Aluminum Alloy / Precision High Pressure Casting. CNC Precision Processing.

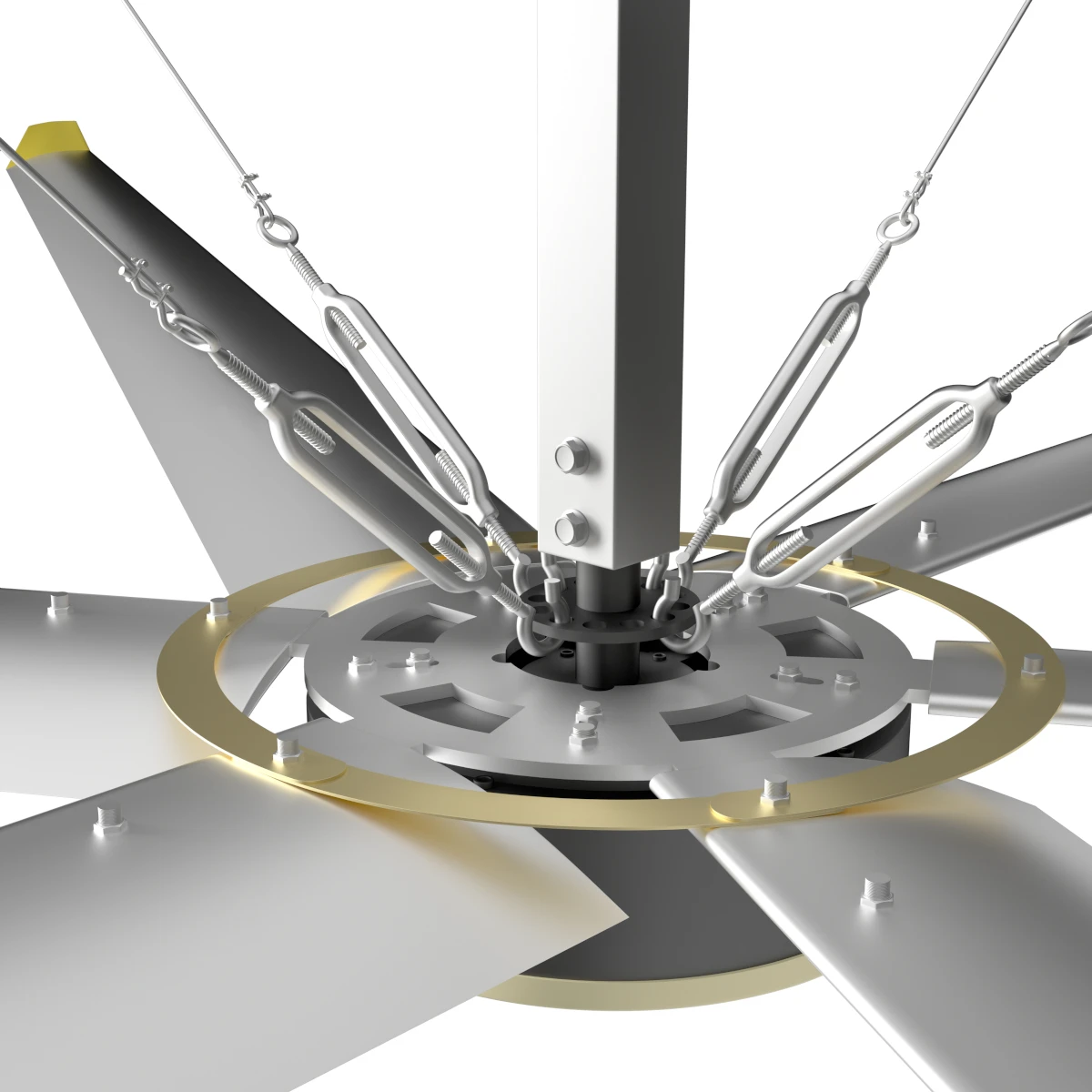

High-Strength Secure Ring
Designed to prevent falling, scattering, and shaking
High-Strength Suspension Structure
Adaptable to various installation environments and structures, such as K/O/C/L, and other types of installation structures.
Silent Wingtips
Eliminate the wingtip vortex that generates noise
Airfoil-Shaped Fan Blades
Wing-shaped fan blades ensure the fan's effectiveness.
Built-in reinforcement, split rib and full rib combination.
Wide Applications
INDUSTRIAL ENVIRONMENTS
Medium to large indoor spaces such as Large Factory Workshops, Warehouse, etc.
COMMERCIAL ENVIRONMENTS
Medium to large indoor spaces such as Supermarket or Mall, Office Buildings, Hotels and Resorts, Theaters and Cinemas, Airports and Train Stations, etc.
As long as the height of the workshop is more than 5 meters, H-beam structure, I-beam structure, reinforced concrete structure,
spherical column structure, angle iron structure or complex structure can be installed.
spherical column structure, angle iron structure or complex structure can be installed.
Installation Instructions
O-Shape Type
suitable for round pipe, square pipe and angle steel. Mounting the pipe using U shaped hoop.
K-Shape Type
suitable for H shaped and L shaped steel structure beam. 8-10mm thick anti sliding splint mounting the steel beam horizontally.
L-Shape Type
suitable for mounting on vertical concrete surface.
C-Shape Type
suitable for ordinary concrete beams.
Product Case
Company Profile
Hengshuangda (HSD) Technology Co., Ltd
Hengshuangda Technology Co., Ltd. is a ventilation and cooling solution technology company integrating product development, production and sales.
The plant covers an area of 13,000 square meters. Now it has more than 300 employees, administrative staffs and technicians.
With 20 years' experience in the market, we have become an industry leader in evaporative cooling technology and also an expert in big space ventilation and cooling. We have an annual sales of USD 30,000,000 and our products are widely sold within China and many countries in the world, mainly North America, Southeast Asia and Middle East.
Our products are widely used in factories, warehouses, animal husbandry, greenhouses, tall spaces, and workshops in many countries.
One-stop service provider for solving ventilation and cooling problems. We offer a full line of evaporative cooling and ventilation products.
Our advantages
1.We are professional manufacturer in industrial fans for more than 20 years. Our factory specialize in Industrial Ceiling fans, Air Cooler, Portable Air Cooler, Exhaust fans, Energy-Saving Air Condition, Portable Drum Fan etc.
2.Our warranty is 12 months.
3.We have passed many certifications: CCC ,CE, UL certified and more.
4.You can customize the fan according to your requirements.
5.We have a professional R&D team to satisfy your OEM&ODM requirements.
6.What you see is what you get. Standardized examination and inspection before shipping.
7.Excellent customer service. We have professional engineers and customer service team to provide one on one service online if you have any trouble.
FAQ
Q1: Are you manufacturer or trading company?
A1: We are manufacturer.
Q2: Do you accept OEM/ODM service?
A2: Yes, we can print your brand, your logo on the carton box, the goods, the label, but need some MOQ.
Q3: How long of the lead time?
A3: It will need about 7-10 days, normally, according to the order quantity and the season.
Q4: Failure rate?
A4: Failure rate is less then 0.3%
Q5: What is your shipment port?
A5:Huangpu,Guangzhou port.
