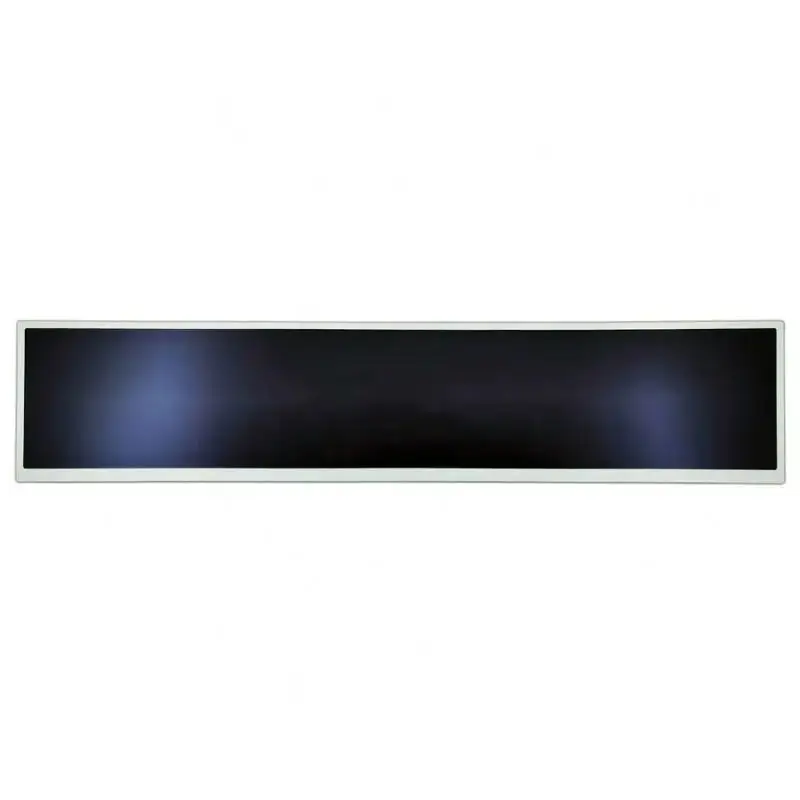

24 дюймовый DV240FBM NB0 MIPI TFT ЖК экран с платой водителя растянутая панель ЖК панель для супермаркета
- Категория: >>>
- Поставщик: Shenzhen Caison Technology Co. Ltd.
Сохранить в закладки 1601008219344:
Описание и отзывы
Характеристики
Product Description
24" FHD(1920*360) is a color active matrix TFT LCD module using amorphous silicon
TFT's (Thin Film Transistors) as an active switching devices. This module has a 24 inch
diagonally measured active area with WXGA resolutions (1920horizontal by 360 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.
TFT's (Thin Film Transistors) as an active switching devices. This module has a 24 inch
diagonally measured active area with WXGA resolutions (1920horizontal by 360 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.
1.Specification of the LCD panel

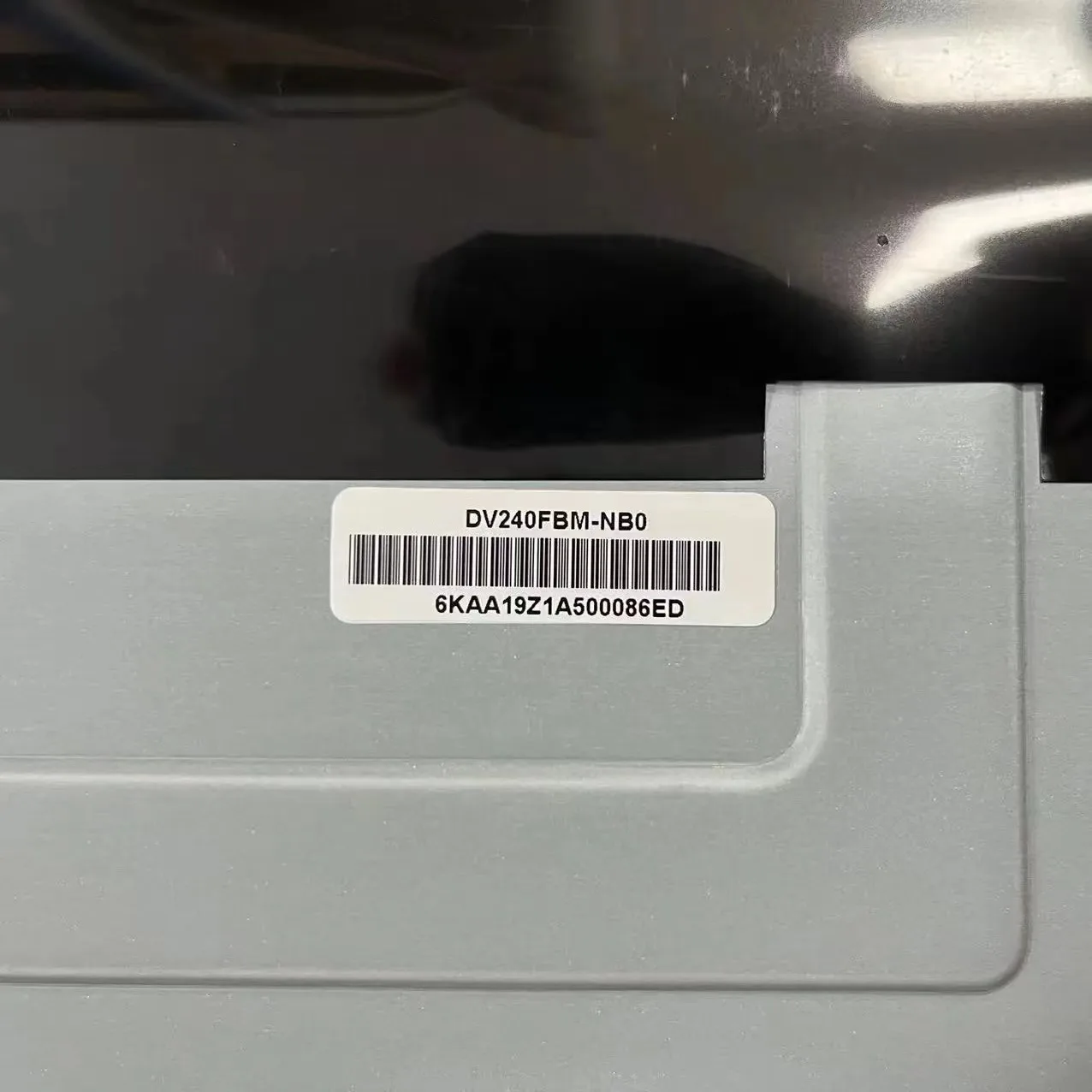

Brand | BOE | Model P/N | DV240FBM-NB0 | ||
Diagonal Size | 24.0" (1/3 cut of 27.0") | Panel Type | a-Si TFT-LCD, LCM | ||
Resolution | 1920(RGB)×360 81PPI | Pixel Format | RGB Vertical Stripe | ||
Active Area | 597.888(W)×112.104(H) mm | Bezel Opening | 612.7(W)×132.1(H)×12.8(D) mm | ||
Outline Size | 612.7(H)×132.1(V) ×12.8(D) mm | Surface | Antiglare (Haze 25%) | ||
Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (TM) | ||
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | ||
Best View on | Symmetry | Response Time | 30 (Typ.)(Tr+Td) | ||
Display Colors | 16.7M 72% NTSC | Lamp Type | WLED , 30K hours , W/O Driver | ||
Frequency | 60Hz | Touch Screen | Without | ||
Weight | 1.21Kgs (Typ.) | ||||
Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector | ||||
Input Voltage | 5.0V (Typ.) | ||||
Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C | ||||
Product Usage
Related Products
Packing&Shipping
1.About the test

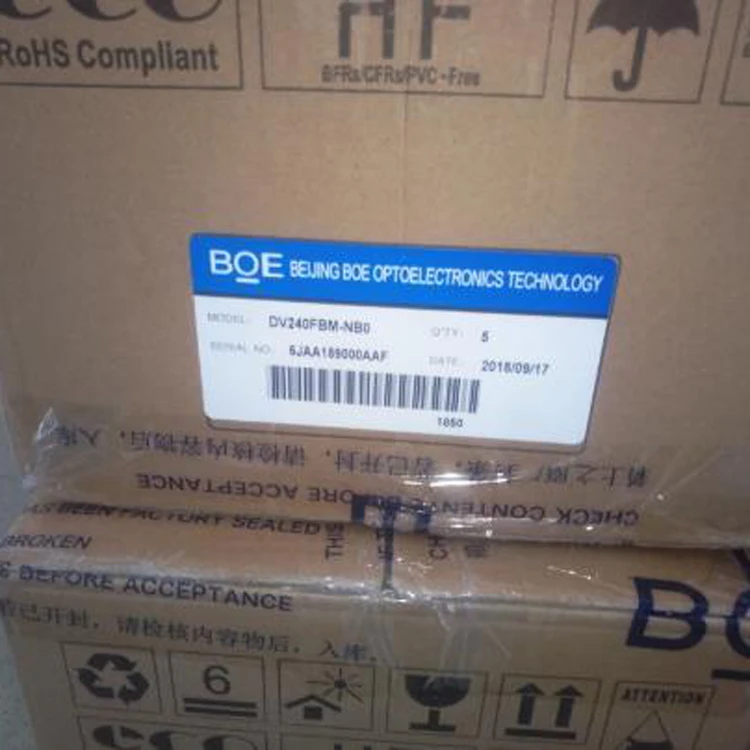

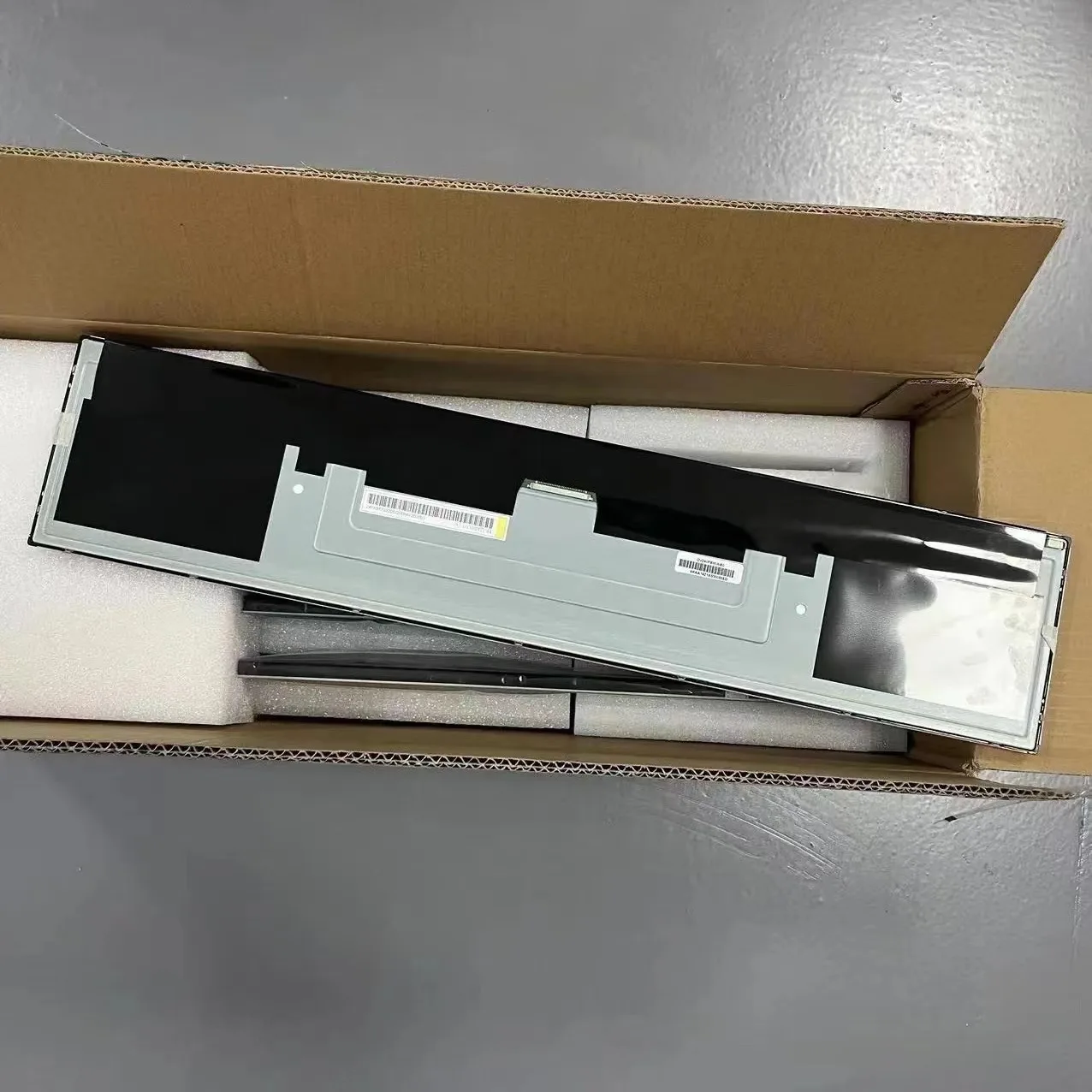

2.About the Packing
