50 м легкая гидравлическая буровая установка с сердечником небольшая геологоразведочная
154 056,00 ₽ - 176 064,00 ₽
Буровая установка для бурения скважин
- Категория: >>>
- Поставщик: Shandong Hongrun Heavy Machinery Co. Ltd.
Сохранить в закладки 1601008527140:
Описание и отзывы
Характеристики
Product Description

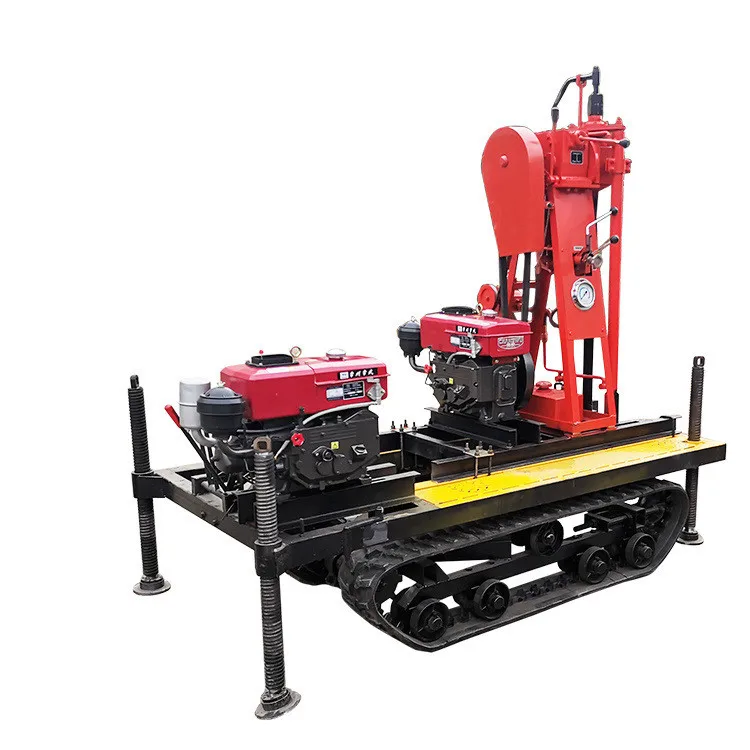

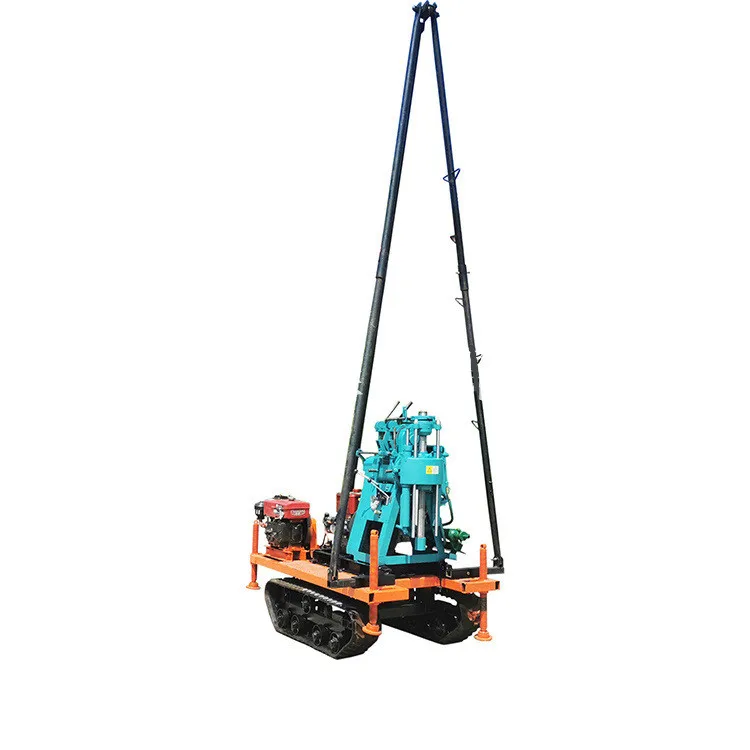

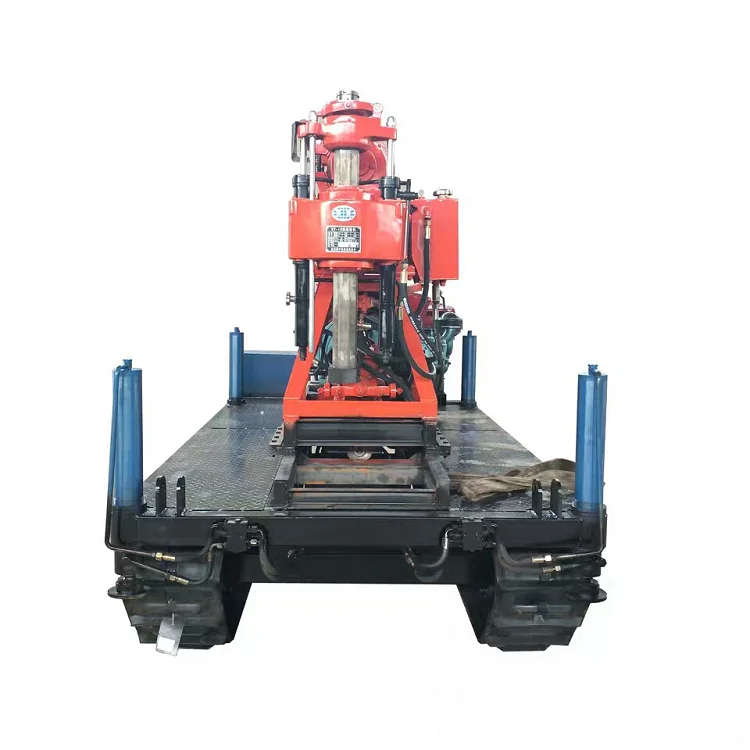

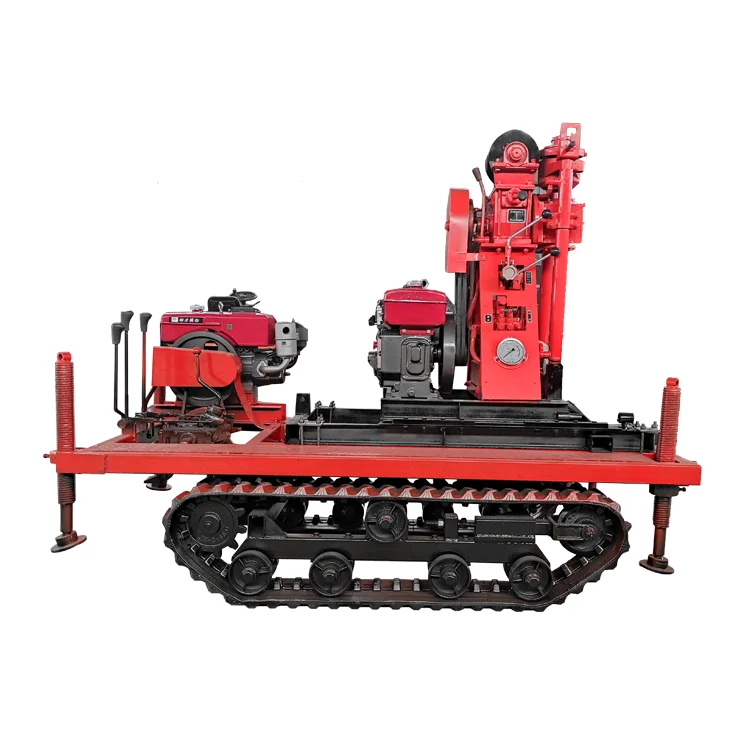

Introduction of Type 50 Hydraulic Portable Drilling Rig.
Model 50 hydraulic portable drilling rig is a small sampling drilling equipment suitable for plains, mountainous areas and areas with inconvenient transportation and energy sources.
Specification
Features of Type 50 Hydraulic Portable Drilling Rig.
1. Equipped with double-cylinder hydraulic feeding system, fast drilling speed and high work efficiency.
2. The drilling rig is equipped with a fixed clamping mechanism and an integrated main rod, no drilling tower is required, and the work is convenient.
3. Equipped with 4-speed transmission system. The operator can freely adjust the forward rotation speed through three gears, and is also equipped with a slow reverse gear, which is convenient for the operator to disassemble the drill pipe and drilling tool.
4. The handle is centralized, easy to operate, safe and feasible.
5. Equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to grasp the situation in the hole.
6. Compact structure and small footprint.
7. Strong decomposition ability, easy to relocate, suitable for complex terrain work such as hills and mountainous areas.
2. The drilling rig is equipped with a fixed clamping mechanism and an integrated main rod, no drilling tower is required, and the work is convenient.
3. Equipped with 4-speed transmission system. The operator can freely adjust the forward rotation speed through three gears, and is also equipped with a slow reverse gear, which is convenient for the operator to disassemble the drill pipe and drilling tool.
4. The handle is centralized, easy to operate, safe and feasible.
5. Equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to grasp the situation in the hole.
6. Compact structure and small footprint.
7. Strong decomposition ability, easy to relocate, suitable for complex terrain work such as hills and mountainous areas.
Item | Unit | Parameter |
Drilling diameter | mm | 75 |
Drilling depth | m | 50 |
Drill pipe | mm | 42 |
Vertical shaft speed | rpm | 70-650 (1-3 gear) |
Reverse speed | rpm | 50-130（R gear） |
Hoist pulling force | kg | 500 |
Cylinder stroke | mm | 600 |
Move itinerary | mm | 200 |
Host power | diesel engine | R180 |
Rig weight | kg | 340 |
Rig size | mm | 1400*950*1250 |
