Пульт дистанционного управления наземной станции
- Категория: >>>
- Поставщик: Shenzhen Xingkai Technology Co. Ltd.
Сохранить в закладки 1601008884587:
Описание и отзывы
Характеристики
Product Description
Product Name | XK-H10 |
Function | Smart Remote Controller for Drones |
Package | Packed in a Professional Shipping Box |

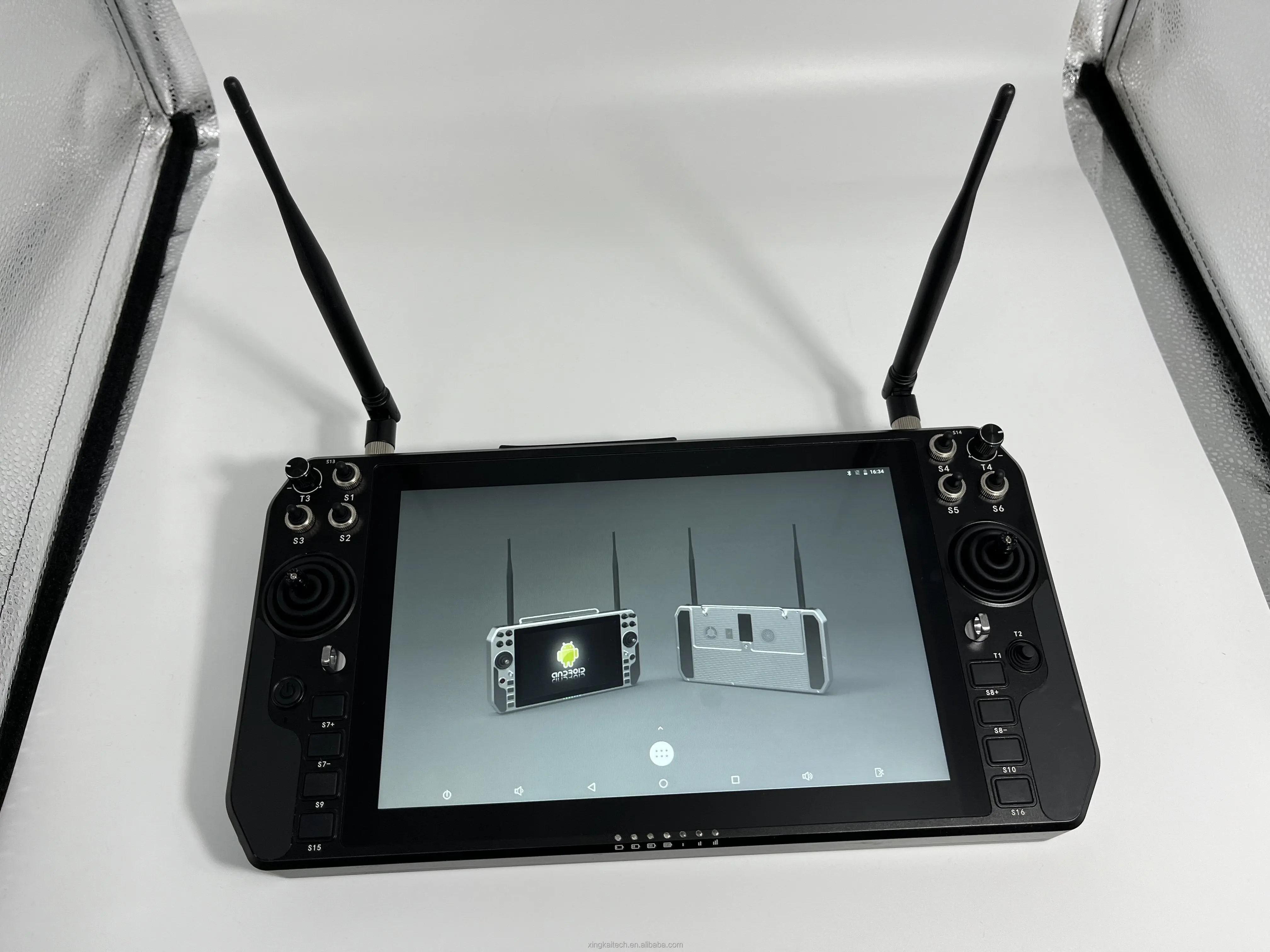

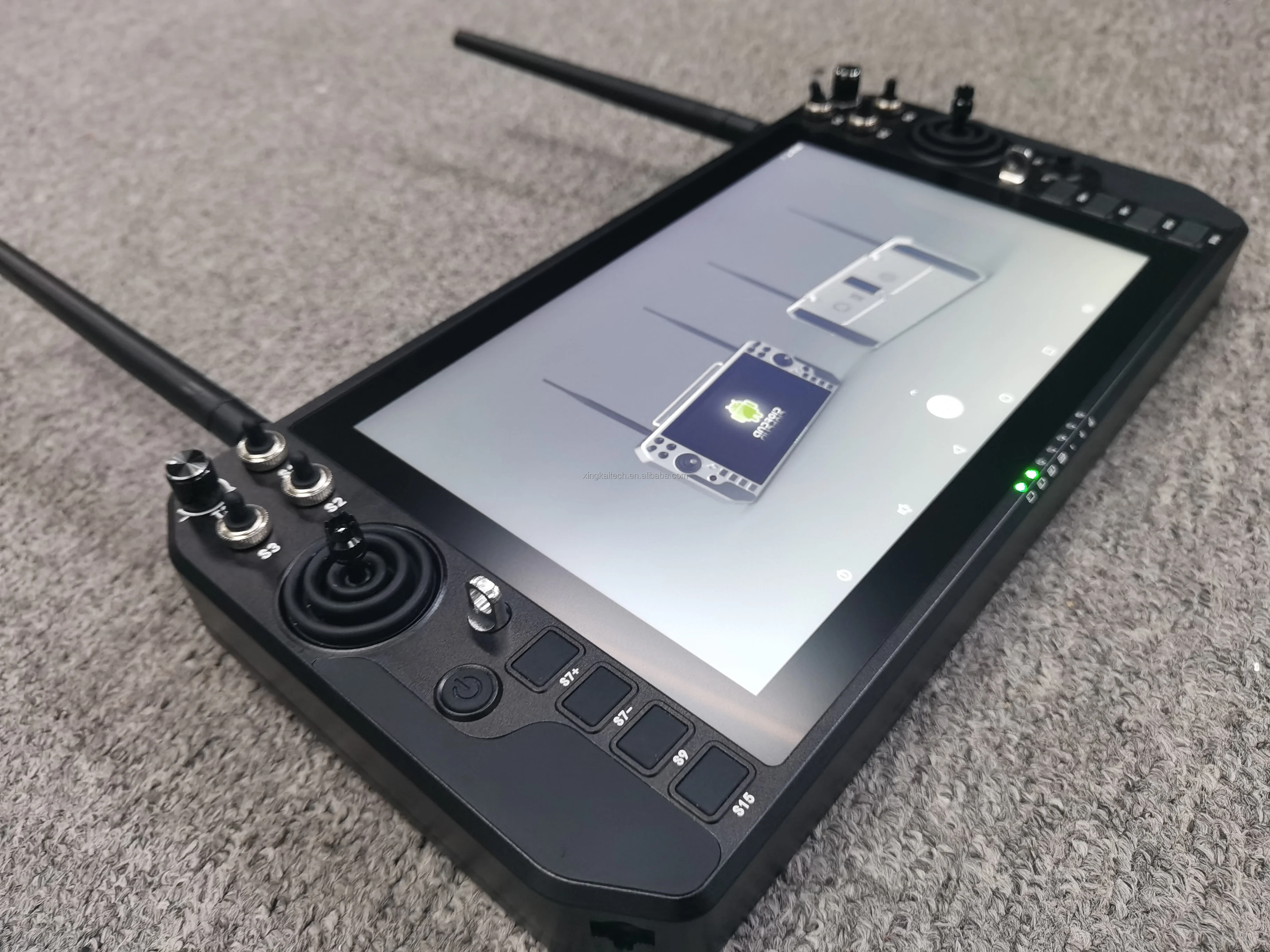

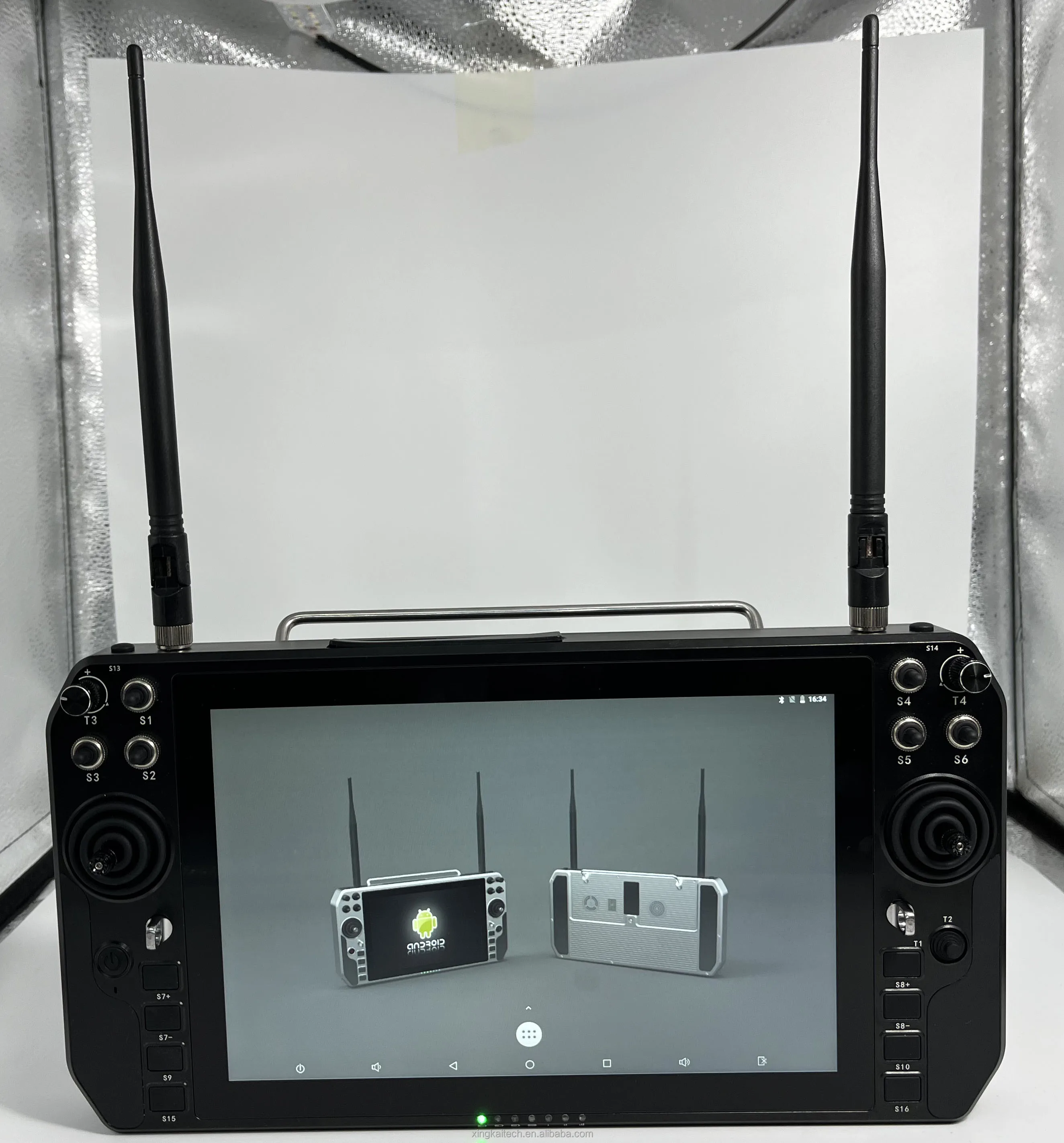

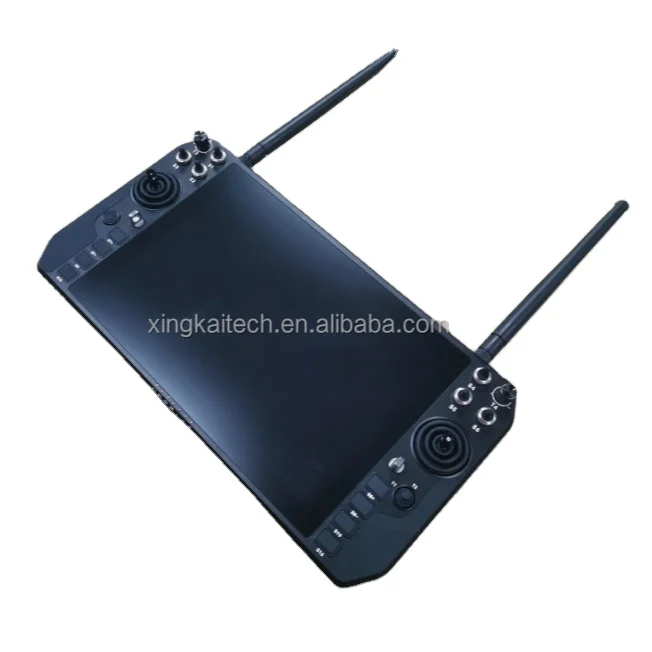

1. Product Description
Its body is made by CNC from aviation aluminum for a more sophisticated look and a better heat dissipation system. Channel and appearance customization is supported. There is a built-in 10KM/30KM image data transmission module, with 22 physical channels, which can also work with Sprintlink series.
The GCS comes with i3 / i5 / i7 processors. All common GCS software like MissionPlanner and QGroundControl Station can be installed on the system. Built-in video transmission system and data transmission system and radio control makes this system suitable to be used as a monitoring and control system for drones.
2. Product Specification
Computer Parameters | ||
Model No. | XK-H10 | |
CPU | Intel i3/i5/i7 Gen7(Default i5) | |
RAM | 4GB | |
GPU | Intel HD Graphics 620 | |
Hard Disk Maximum support | 2GB SSD (Default 128GB)Intel HD Graphics 620 | |
Ethernet | 1Gigabit RJ45 | |
OS | Windows7/10/Linux | |
Wifi | 2.4G/5.8G/Dual Wifi Bluetooth 4.0 | |
Screen Size | 10.1 | |
LCD Resolution | 1280x800 | |
Brightness | 1200ccd/m | |
Touch panel | 10 points touch screen | |
Battery | 16.8V 8000mAh | |
Charging Voltage | 19-24V | |
Battery indicator | OS and LED indicator | |
Battery life | 4-6 hours | |
Measurement | 335x184x40mm | |
N.W. | 1.6KG | |
Storage Temp. | -20~70C | |
Work Temp. | -20~60C | |
External Ports | 2x USB 3.0 1x LAN 1x HDMI | |
Remote Controller and Video Link Specifications | ||
Joystick | 2x joystick2x Roller switch 1x thumb stick | |
Switch | 6x 3 band toggle switch | |
potentiometer | 2x knob | |
Button | 6x buttons | |
Channels | 18 channels | |
Tuning Method | Windows Software | |
Video Input (GCS) | LAN RTSP Video Stream | |
Antenna Type | 2x SMA | |
Frequency | 800MHz/1.4GHz/2.4GHz | |
Bandwidth | 2.5MHz (upload), 10MHz (download) | |
Transmit Power | 0.5W | |
Transmission Distance | 10-15km | |
Air Video Input | LAN | |
Air Part Ports | LAN/UART/SBUS | |
Air Dimensions | 77.8×47.3×23.5mm | |
Air N.W. | 97g | |
Air rated voltage | 12V/1.2A | |
Antenna | 3dbi 19.5cm Antenna (Air) 3dbi 19.5cm Antenna (GCS) / 3-5km6dbi 49cm Antenna (GCS) / 10-15km | |
Related Products
Packing&Shipping
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
Company Introduction
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
Exhibitions
Testing Instruments
Certifications
Cooperative Partners
FAQ
Q1: Who we are?
A1: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
Q2: Could you support OEM&ODM ?
A2: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q3: How can you guarantee quality?
A3: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
Q4: How long is the delivery time ?
A4: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days.
Q5: What is your usual payment terms for orders?
A5: T/T, Western Union.
Q6: How do we make a business long term and good relationship with you?
A6: We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
A1: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
Q2: Could you support OEM&ODM ?
A2: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q3: How can you guarantee quality?
A3: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
Q4: How long is the delivery time ?
A4: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days.
Q5: What is your usual payment terms for orders?
A5: T/T, Western Union.
Q6: How do we make a business long term and good relationship with you?
A6: We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Contact Details
Похожие товары
Бесшовные Гольфы с логотипом на заказ, батут, носки для пилатеса, нескользящие носки для йоги Lulu, компрессионные хлопчатобумажные гольфы
0,80 $ - 1,00 $
Скульптура Быка в натуральную величину из бронзы и латуни для сада

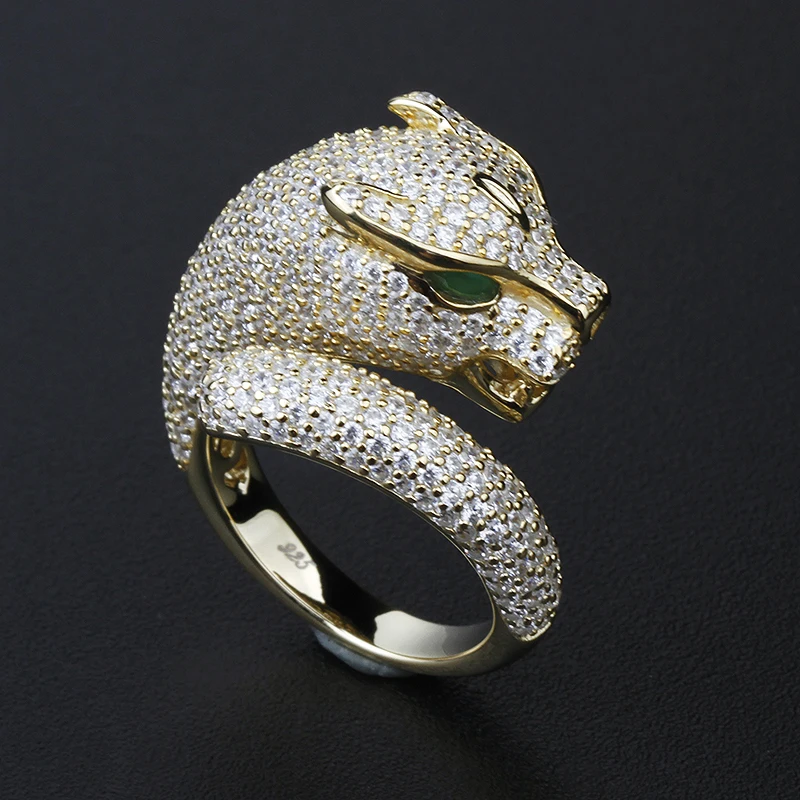

Готический 18k позолоченные 5a cz Роскошные кольцо обещание бренда леопардовой раскраски из меха пони с открытым anillos Циркон Тигр 925 Серебряные кольца для мужчин
17,72 $ - 20,06 $
Новинка 2021 брелок для ключей с большим глазом в виде быка милый слон силиконовый мультяшный животными подвеска
1,79 $ - 2,29 $
Компенсатор выхлопного коллектора 12340988 1234-0988 1234 0988 для TCG2016 газовый двигатель
185,00 $ - 228,00 $

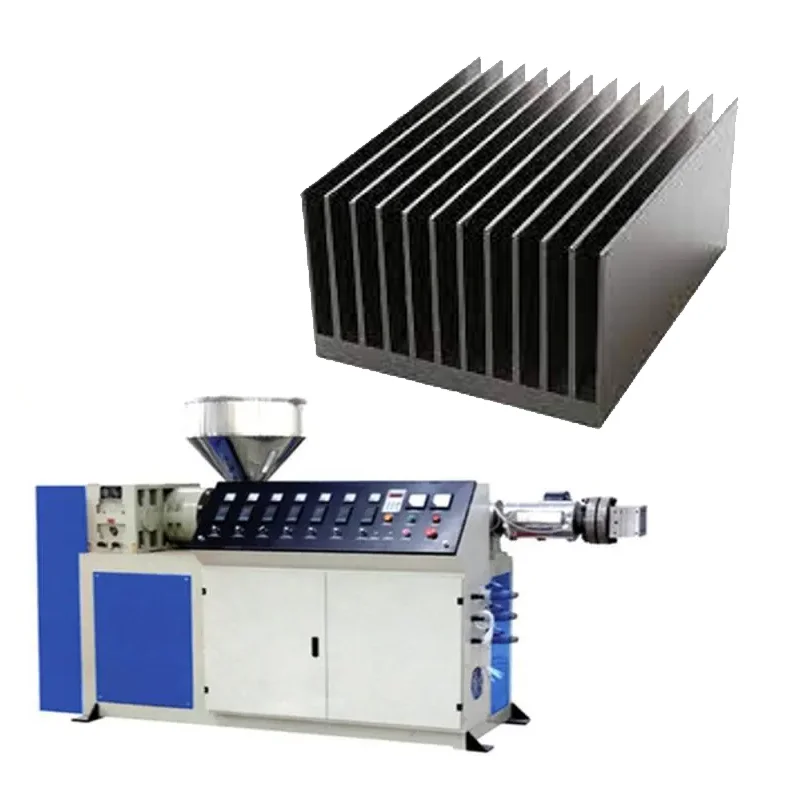

Формы для изготовления алюминиевых радиаторов, литье под давлением из цинкового сплава
3,09 $

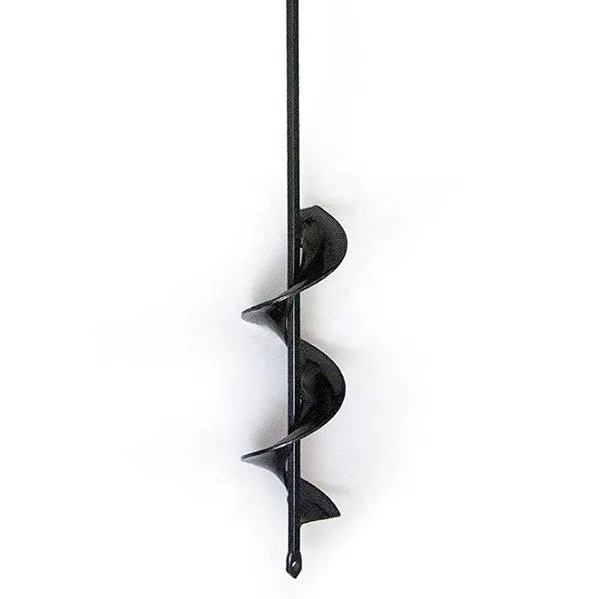

Цветочная лампочка для сверления, нескользящий-2,75 на 24 дюйма-лампочка и подстилка для растений
