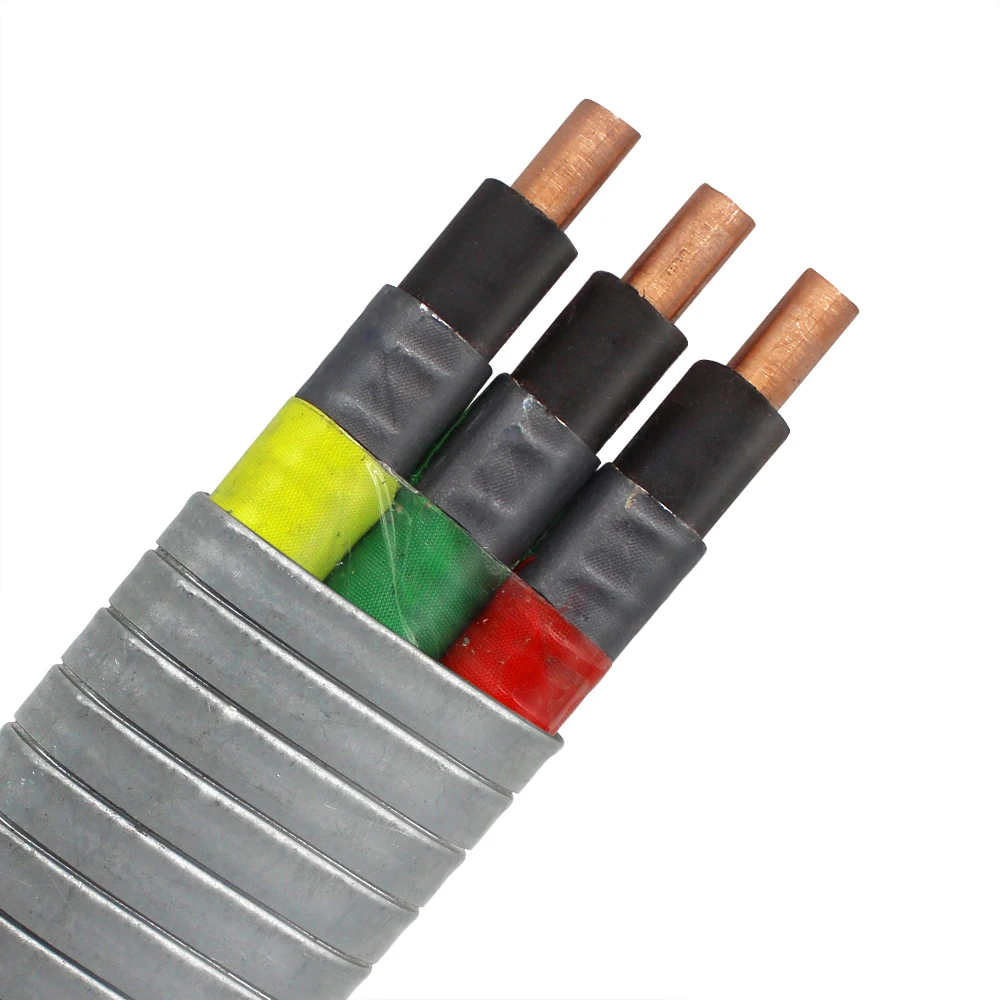

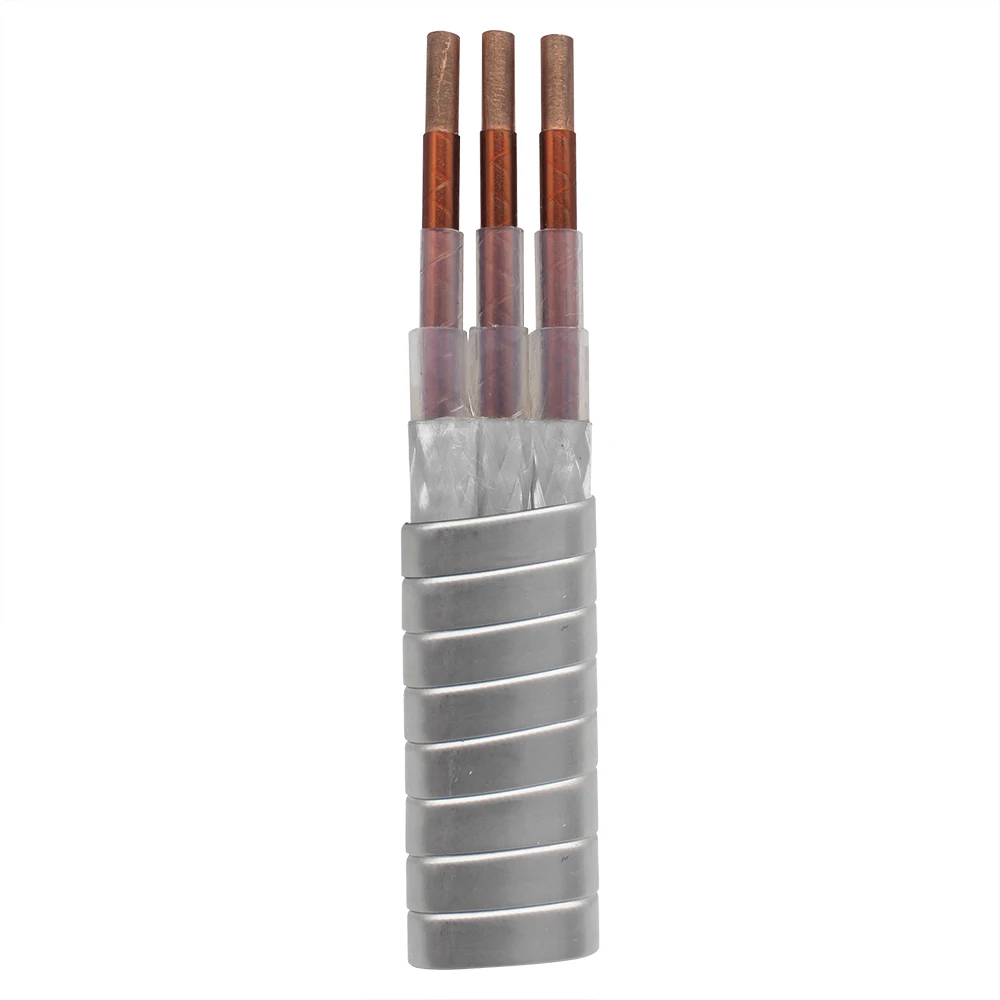

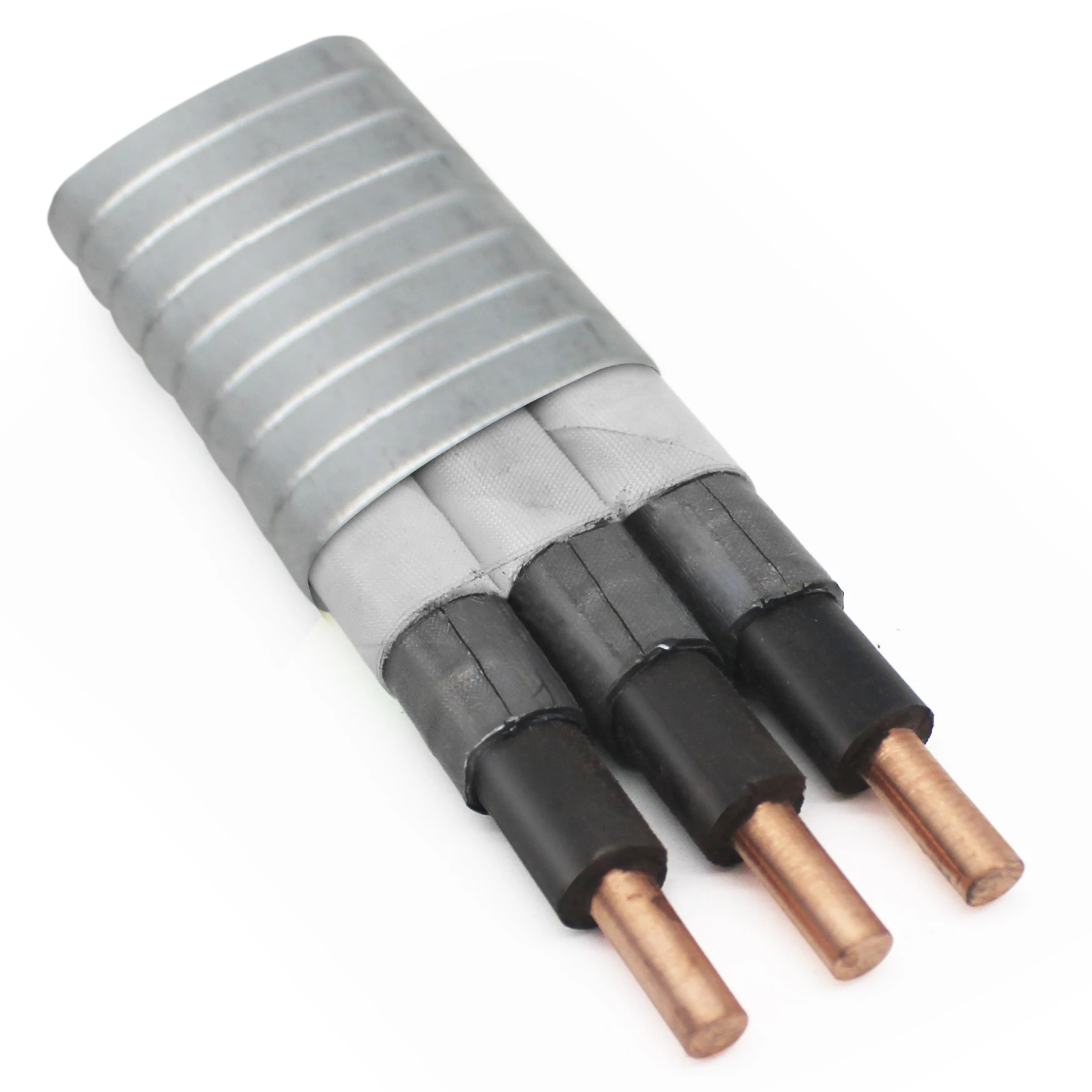

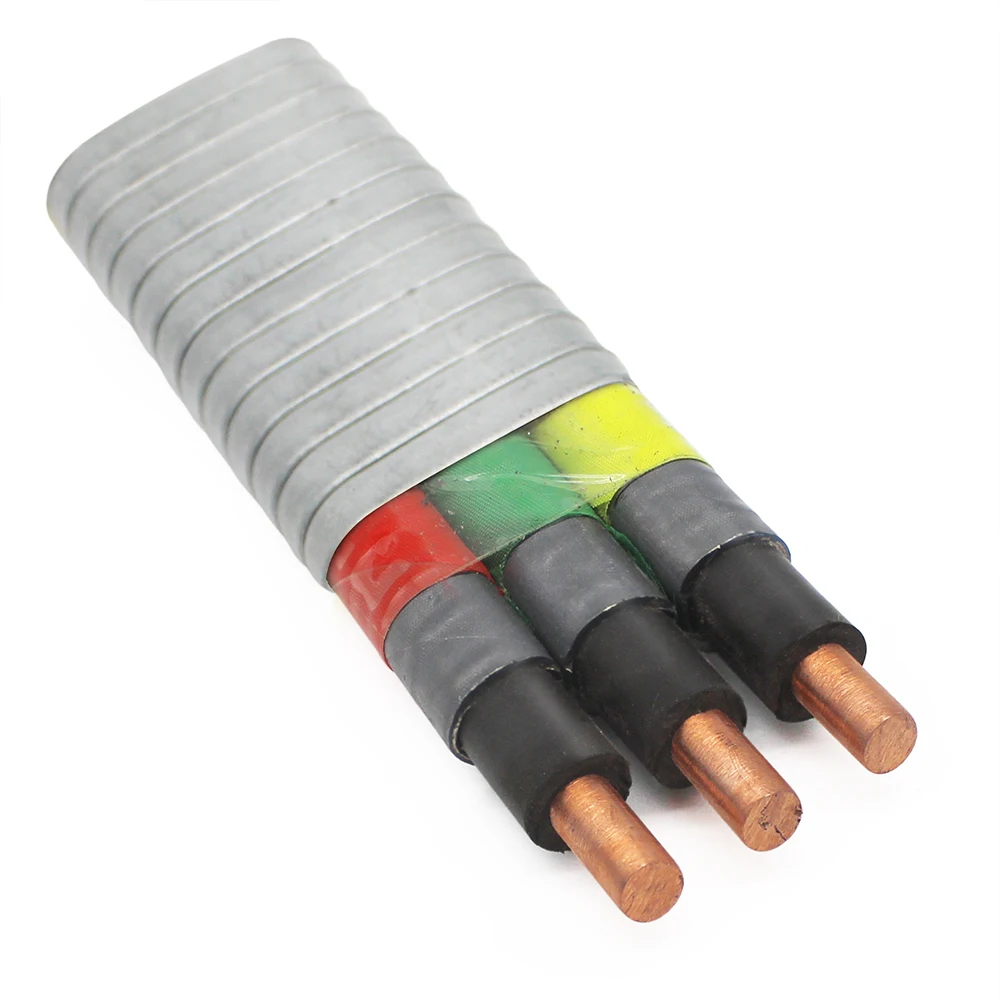

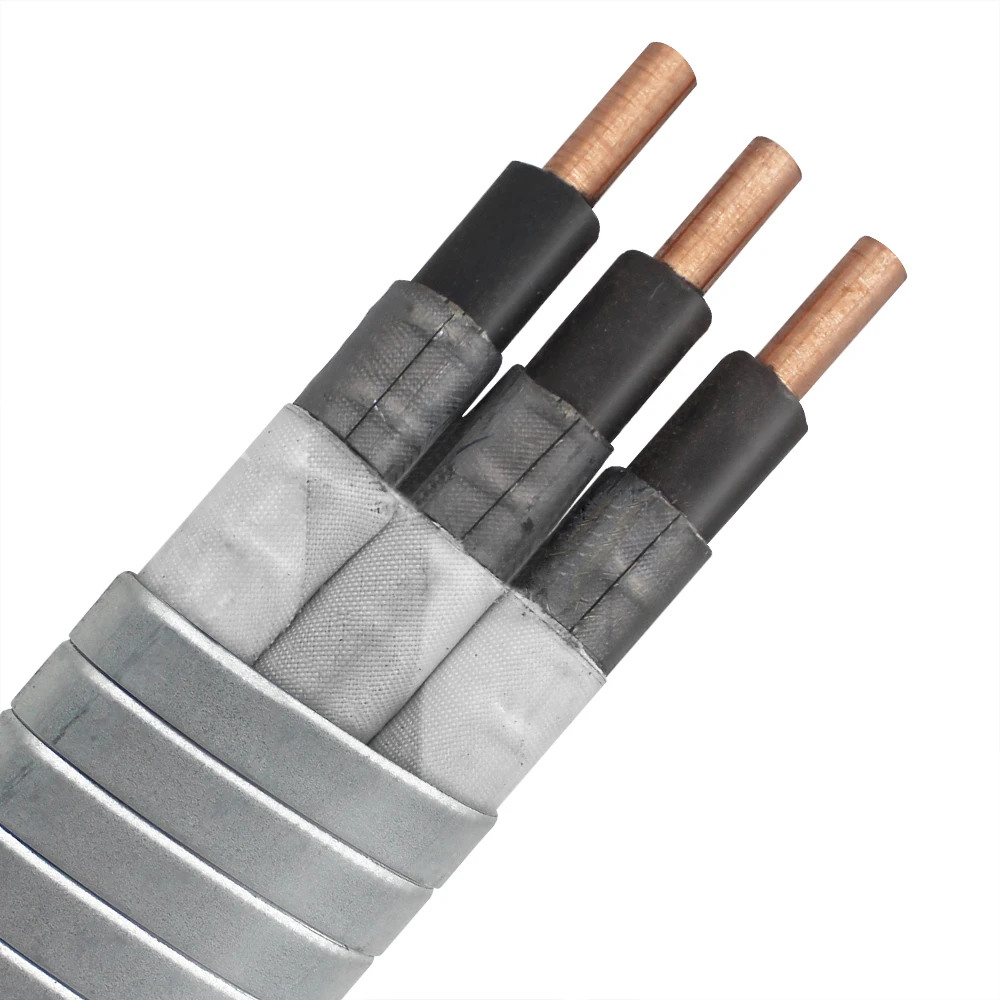

3KV 4KV 5KV MV EPDM Изолированный Плоский Круглый Электрический ESP погружной масляный скважинный насос силовой кабель
- Категория: >>>
- Поставщик: Zhengzhou Huadong Cable Co. Ltd.
Сохранить в закладки 1601008987409:
Описание и отзывы
Характеристики
Products Description

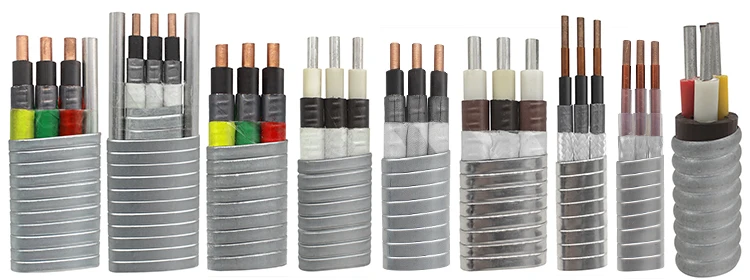

ESP Cables
INSULATION
A proprietary high quality EPDM compound is chemically bonded to the conductor. It is specially formulated to provide high dielectric and low swell characteristics in presence of oil.
BRAID
A synthetic braid, applied with full coverage over the lead sheath, provides additional mechanical reinforcement, hoop strength and armour bedding. A suitable overlapped tape can be used as an alternative.
ARMOUR
A 50% lapped, fully galvanized (4-sides) steel tape armour provides excellent mechanical protection with a high degree of flexibility and is available in thickness of 0.020” or 0.025”. Stainless steel or Monel 400 armour is available for use in highly corrosive well environments.
APPLICATION
Downhole extraction systems are critical for crude oil extraction. The reliability of the electrical power supply to an Electrical Submersible Pump (ESP) system depends on the performance and reliability of the power feed through to the wellhead, power cable, motor lead cable, pig tail connectors and related equipment such as the pump and motor. ESP cables offer an efficient, ugged and easy to handle solution that delivers reliable performance in a package that is straightforward to install and maintain.
Downhole extraction systems are critical for crude oil extraction. The reliability of the electrical power supply to an Electrical Submersible Pump (ESP) system depends on the performance and reliability of the power feed through to the wellhead, power cable, motor lead cable, pig tail connectors and related equipment such as the pump and motor. ESP cables offer an efficient, ugged and easy to handle solution that delivers reliable performance in a package that is straightforward to install and maintain.
CONDUCTOR
Solid or stranded plain (or tinned) copper conductors. A special sealing compound completely fills the interstitial spaces between the strands to prevent gas migration.
Solid or stranded plain (or tinned) copper conductors. A special sealing compound completely fills the interstitial spaces between the strands to prevent gas migration.
INSULATION
A proprietary high quality EPDM compound is chemically bonded to the conductor. It is specially formulated to provide high dielectric and low swell characteristics in presence of oil.
LEAD SHEATH
A continuous, impervious, fatigue and corrosion resistant lead sheath is extruded over the insulation to provide excellent protection against oil, chemicals and gases and insulation decompression.
A continuous, impervious, fatigue and corrosion resistant lead sheath is extruded over the insulation to provide excellent protection against oil, chemicals and gases and insulation decompression.
BRAID
A synthetic braid, applied with full coverage over the lead sheath, provides additional mechanical reinforcement, hoop strength and armour bedding. A suitable overlapped tape can be used as an alternative.
ARMOUR
A 50% lapped, fully galvanized (4-sides) steel tape armour provides excellent mechanical protection with a high degree of flexibility and is available in thickness of 0.020” or 0.025”. Stainless steel or Monel 400 armour is available for use in highly corrosive well environments.

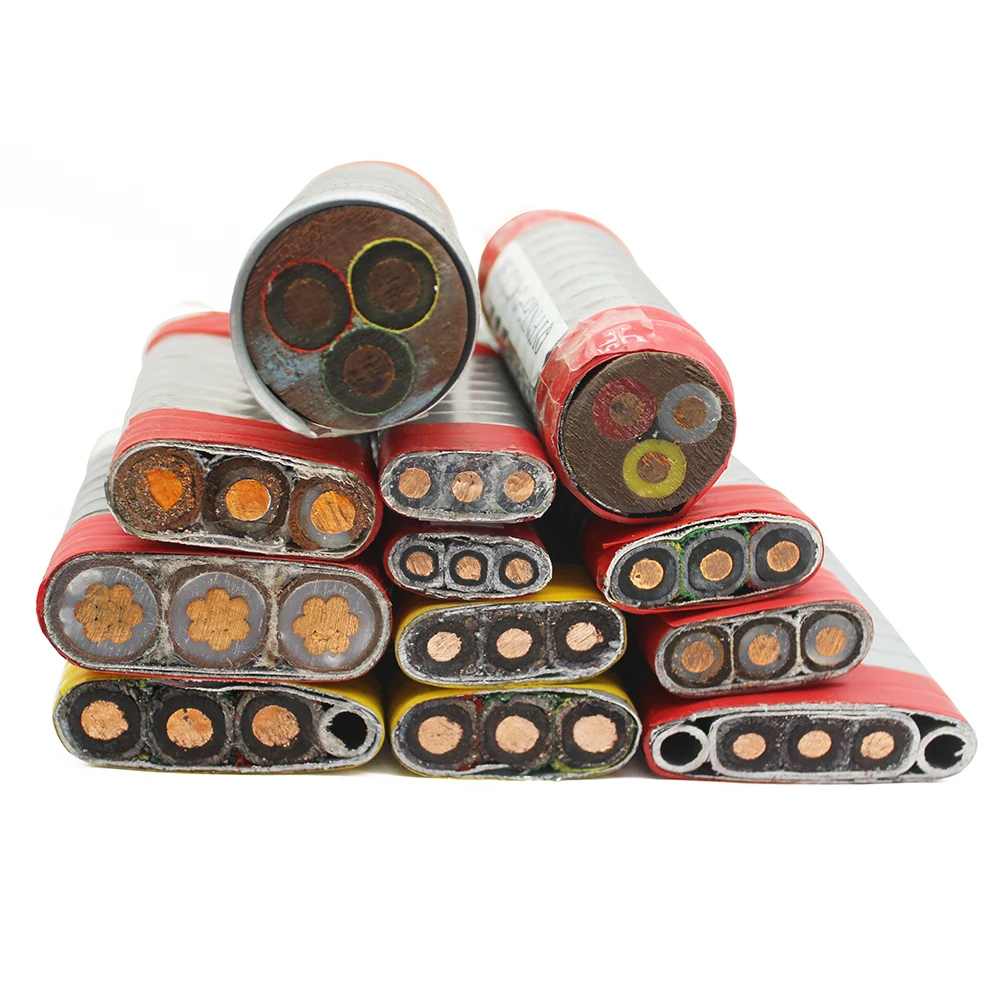

Cable type | Description | Max working temperature ºC | Product range (cross section) mm2 |
QYPN | PP insulated and NBR sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump | 96 | 10,13,16,20,33,42 |
QYPNY | PP insulated and NBR sheathed,galvanized steel tape interlocked armoring,round cable for submersible oil pump | 96 | 10,13,16,20,33,42 |
QYEN | EPR insulated and NBR sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump | 140 | 10,13,16,20,33,42 |
QYENY | EPR insulated and NBR sheathed,galvanized steel tape interlocked armoring,round cable for submersible oil pump | 140 | 10,13,16,20,33,42 |
QYEE | EPR insulated and sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump | 175 | 10,13,16,20,33,42 |
QYEEY | EPR insulated and sheathed,galvanized steel tape interlocked armoring,round cable for submersible oil pump | 175 | 10,13,16,20,33,42 |
QYEQ | EPR insulated and lead sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump | 204 | 10,13,16,20,33,42 |
QYYEQ | Polyimide-F46 composite film and EPR insulated, lead sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump | 232 | 10,13,16,20,33,42 |
QYYEEY | Polyimide-F46 composite film and EPR insulated,EPR sheathed, galvanized steel tape interlocked armoring,round cable for submersible oil pump | 204 | 10,13,16,20,33,42 |
Customer Project
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade company in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 150,000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC,0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC,BS, ICEA, ASTM, DIN, VDE and JIS standards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible.
Certifications
Company Profile
Cooperative Customer

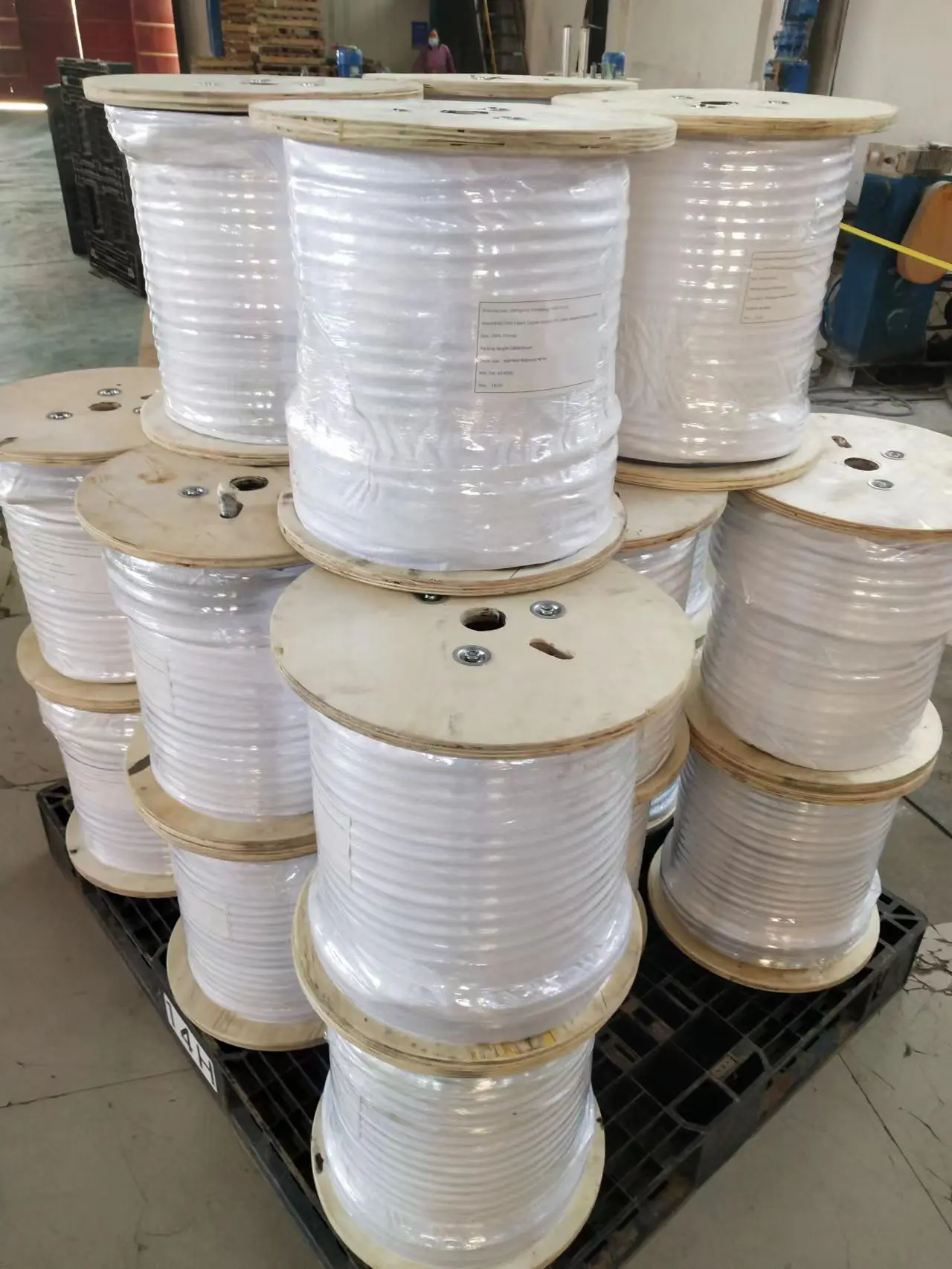

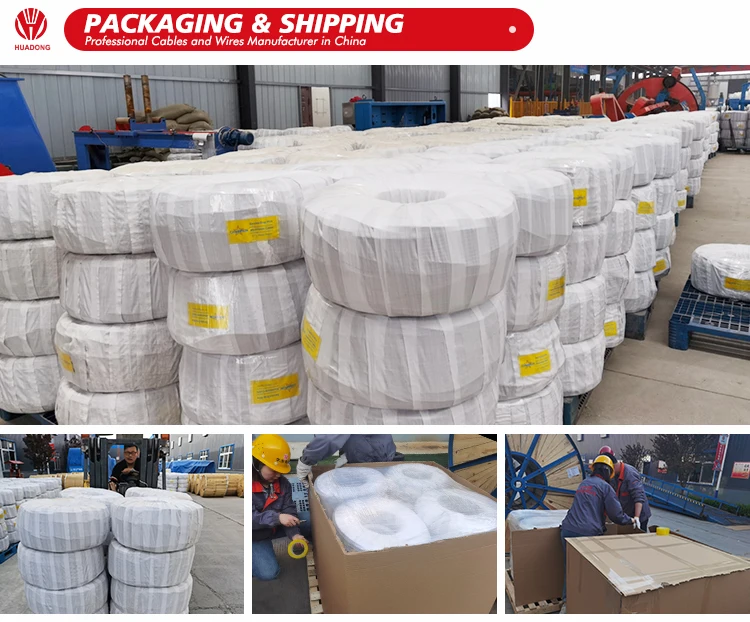

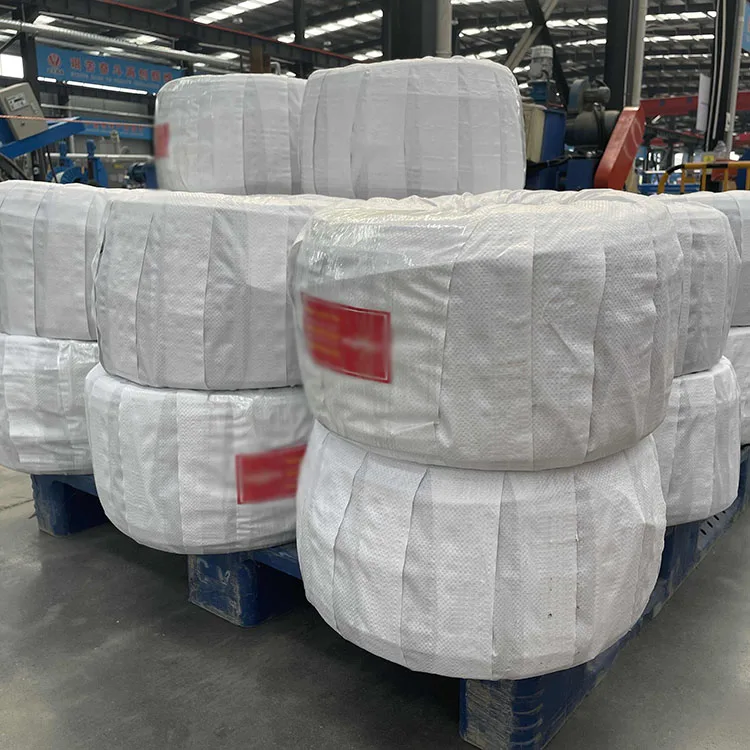

Product packaging
FAQ
1.what is our payment term?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time?
The lead time usually is 10 – 30 working days.

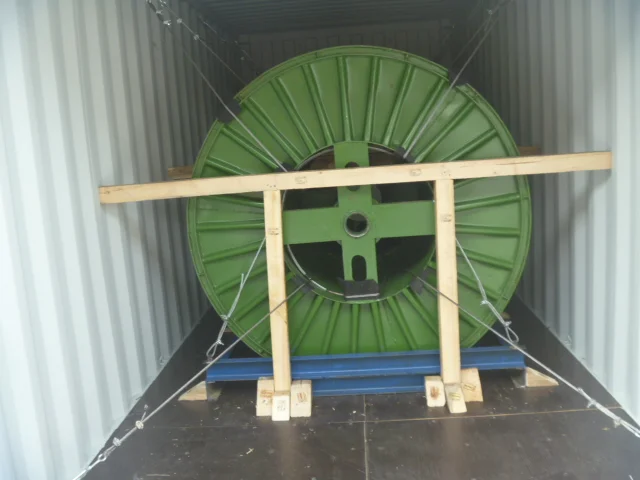

3.what is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
Похожие товары
Мебель foshan, черные лакированные ножки из цельного дерева с позолоченным латунным бархатным роскошным элегантным обеденным стулом
50,00 $ - 60,00 $
LPV-20/35/60/100 Вт водонепроницаемый светодиодный драйвер переменного тока 90-264 В до постоянного тока 5/12/15/24/36/48 В источник питания Meanwell lpv10024 постоянное напряжение
15,30 $ - 18,80 $

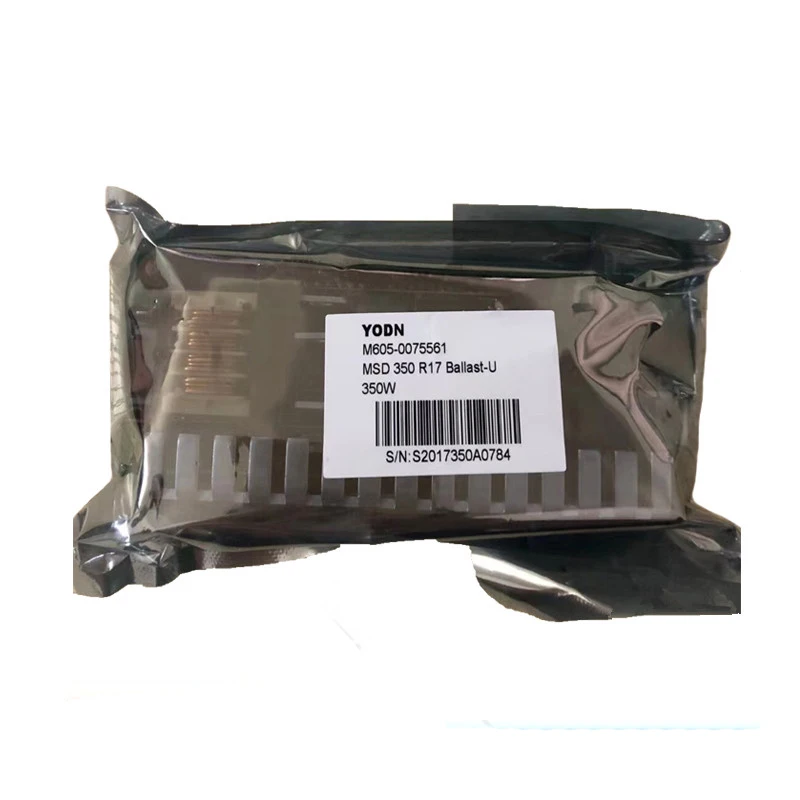

Сменный оригинальный балласт для фар YODN MSD 132 Вт R1 200 Вт R5 230 Вт R7 260 Вт R9 280 Вт R10 300 Вт R15 330 Вт R16 350 Вт R17 380 Вт R18
