Промышленная минеральная роторная машина для скрининга компостных удобрений
307 176,67 ₽
Крупномасштабная барабанная машина для просеивания песка без вала минеральное сито и гравия ротационное зерна
- Категория: >>>
- Поставщик: Xinxiang City Zhouchi Machinery Equipment Co. Ltd.
Сохранить в закладки 1601009154708:
Описание и отзывы
Характеристики
Product Description

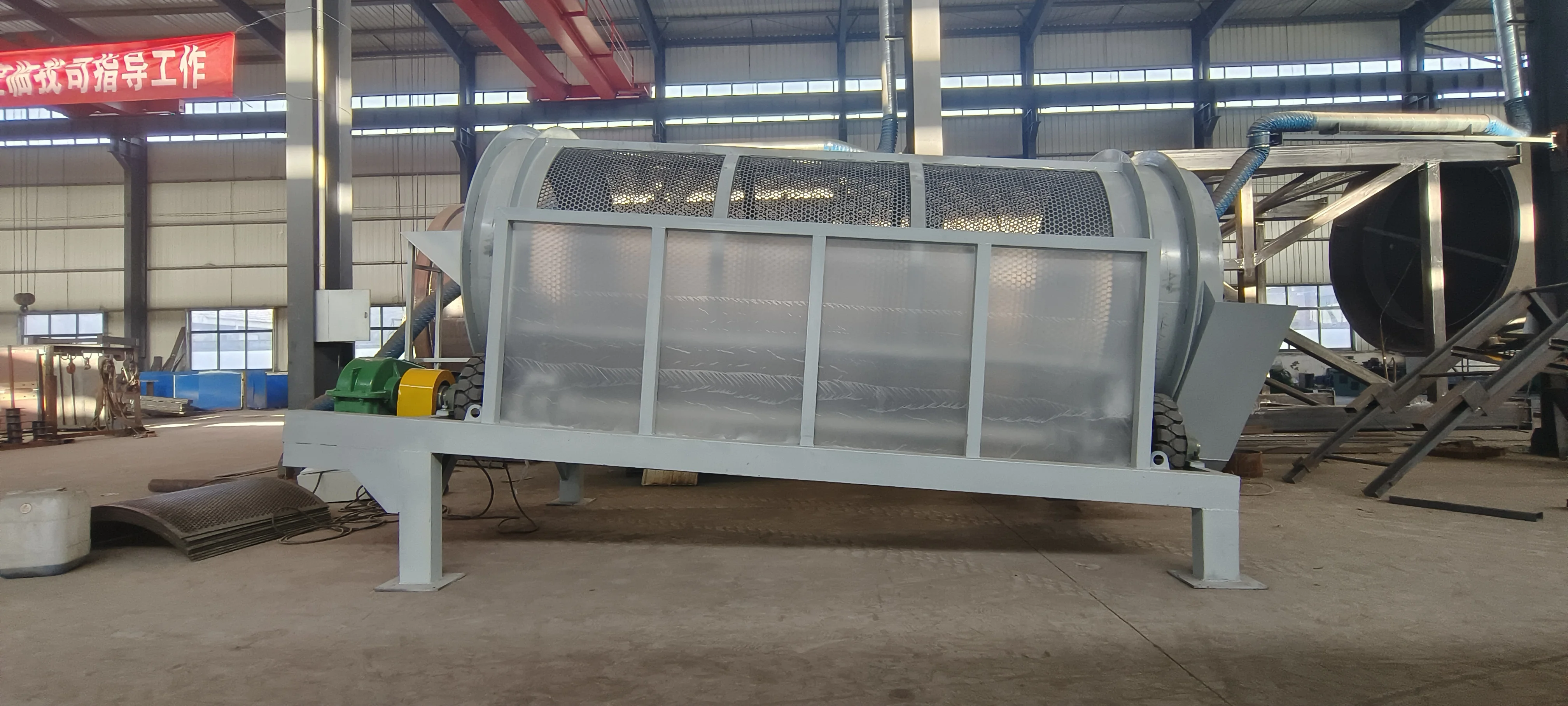

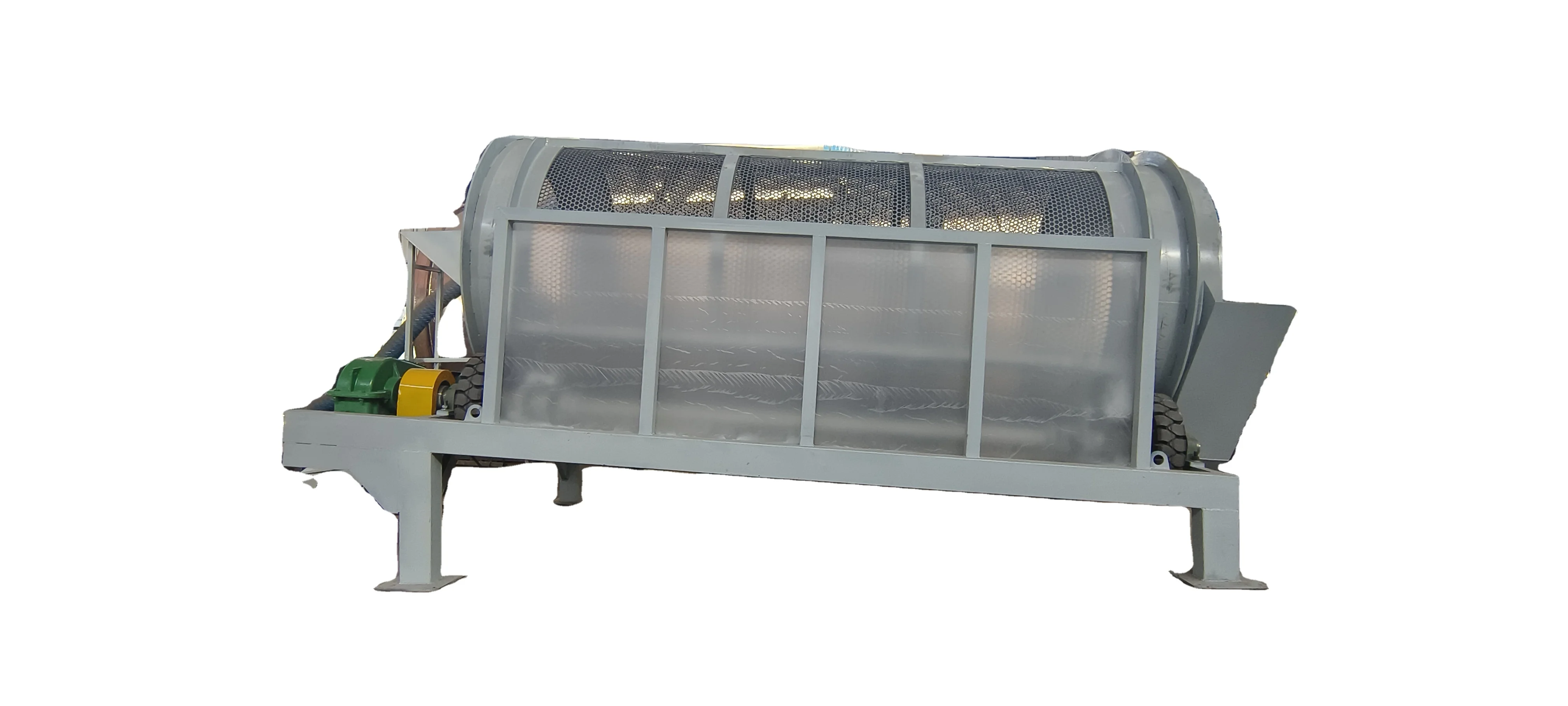

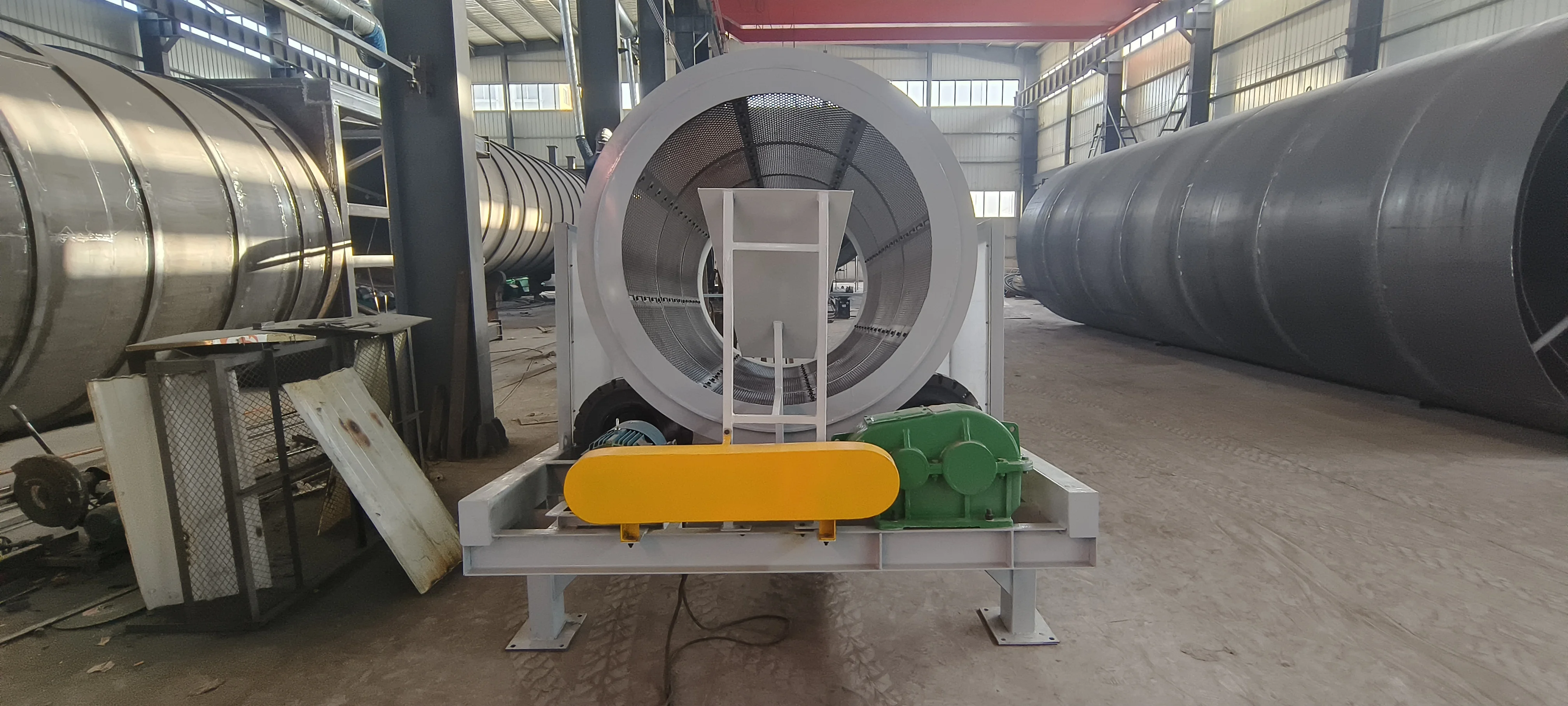

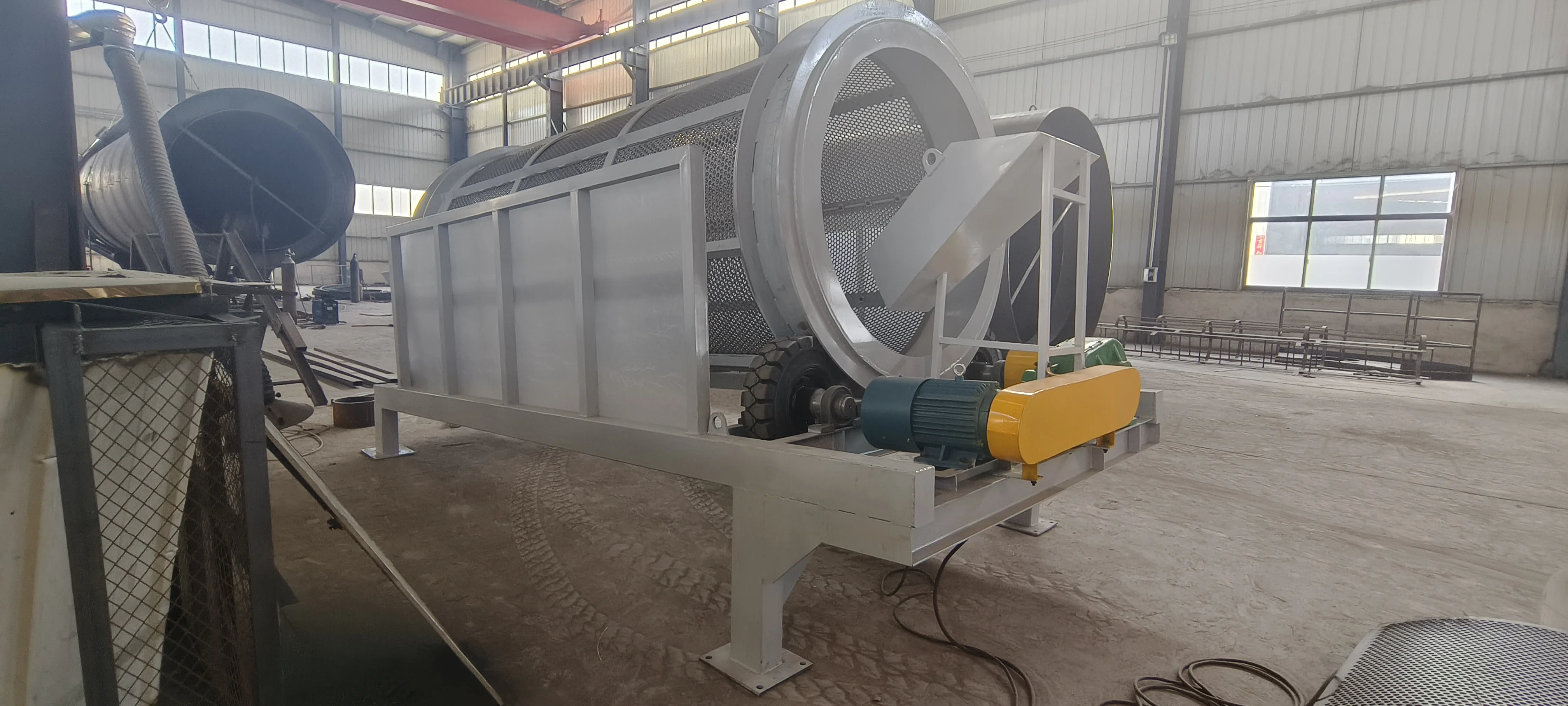

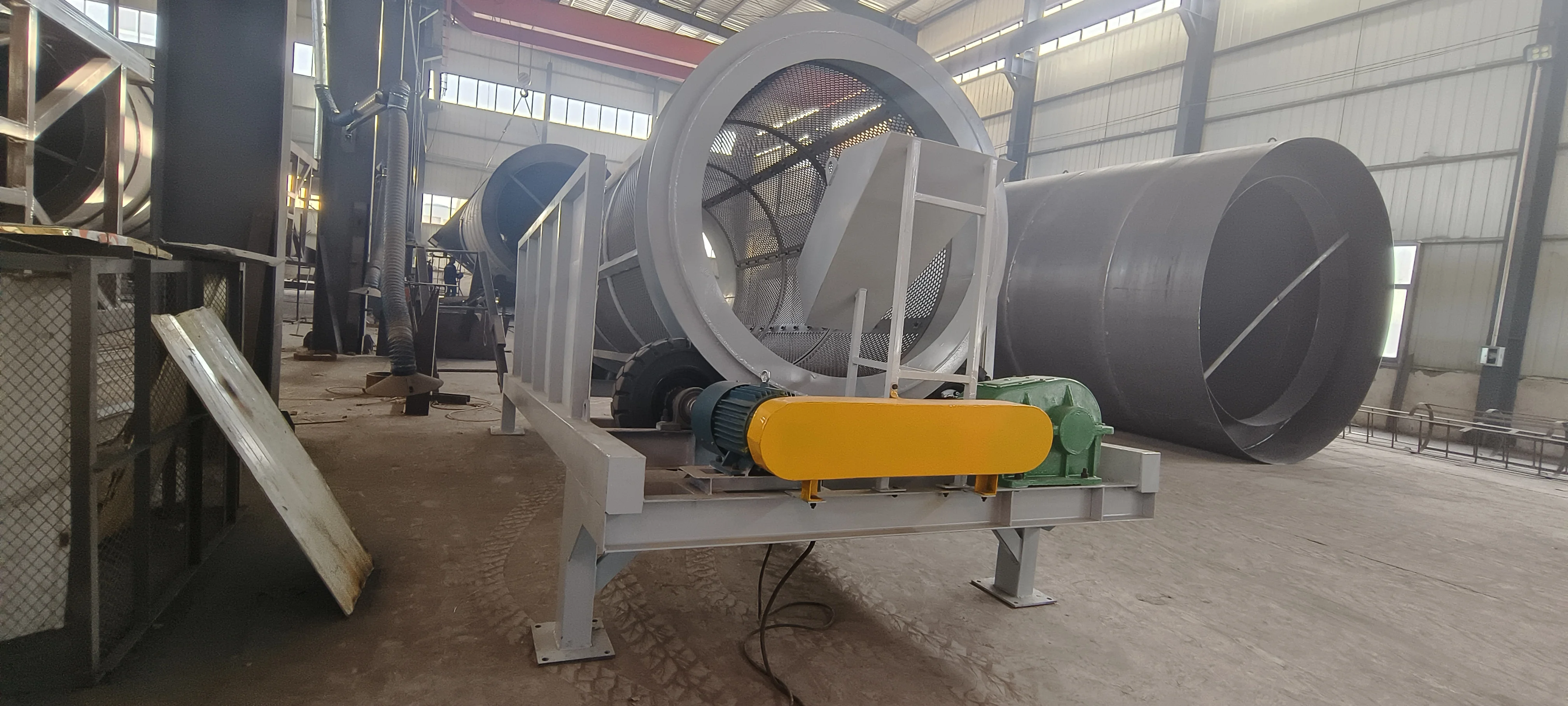

WGTS-1530 Shaftless drum screen
1. Introduction
Roller screen is also called stone screen machine, divided into shaftless roller screen and shaftless roller screen. The shaft drum screen is mainly composed of reducer and motor, spindle, drum, frame, dust removal port, screen, screen chute, chute, screen cover and other mechanisms. Shaftless drum screen is mainly composed of motor reducer, roller, supporting tire, transmission device, frame, dust removal port, screen, screen chute, screen chute, screen cover and other mechanisms.
It is widely used in construction, mineral processing, stone yard, chemical industry, waste treatment and other fields, more suitable for viscous materials or winding material screening. Because its characteristics are shaftless, that is, there is no cover in the roller, so its anti-clogging and anti-winding will be better. It overcomes the round vibrating screen and linear screen in the screening of wet materials when the screen plugging problem, improve the output and reliability of the screening system, is the ideal replacement of modern vibrating screen products.
Roller screen is also called stone screen machine, divided into shaftless roller screen and shaftless roller screen. The shaft drum screen is mainly composed of reducer and motor, spindle, drum, frame, dust removal port, screen, screen chute, chute, screen cover and other mechanisms. Shaftless drum screen is mainly composed of motor reducer, roller, supporting tire, transmission device, frame, dust removal port, screen, screen chute, screen chute, screen cover and other mechanisms.
It is widely used in construction, mineral processing, stone yard, chemical industry, waste treatment and other fields, more suitable for viscous materials or winding material screening. Because its characteristics are shaftless, that is, there is no cover in the roller, so its anti-clogging and anti-winding will be better. It overcomes the round vibrating screen and linear screen in the screening of wet materials when the screen plugging problem, improve the output and reliability of the screening system, is the ideal replacement of modern vibrating screen products.
2.Performance feature
WGTS-1530 roller screen is designed and manufactured for screening materials with high humidity, high viscosity, not easy to screen, screen plugging.
1, stable performance, large processing capacity
2, sieve hole is not blocked, high screening efficiency
3, no vibration, no pollution
4. Low installed capacity of the same production
5. Save energy
6, to overcome the circular vibrating screen and linear screen in the screening of wet materials when the problem of screen plugging and winding
2, sieve hole is not blocked, high screening efficiency
3, no vibration, no pollution
4. Low installed capacity of the same production
5. Save energy
6, to overcome the circular vibrating screen and linear screen in the screening of wet materials when the problem of screen plugging and winding
3.Product principle
The WGTS-1530 shaftless drum screen is composed of a reduction motor through a transmission device, which is matched with a small tire and drum to drive the drum to rotate. When the material enters the drum device, due to the rotation of the drum device, the qualified material is discharged through the sieve, and the unqualified material is discharged through the end of the drum.
The screen can be divided into manganese steel braided screen, punched screen, stainless steel screen plate (modular assembly),then and installation. The machine is fully sealed structure, when replacing the screen, just open the body sealing cover can be replaced, easy to operate and maintain.
The screen can be divided into manganese steel braided screen, punched screen, stainless steel screen plate (modular assembly),then and installation. The machine is fully sealed structure, when replacing the screen, just open the body sealing cover can be replaced, easy to operate and maintain.
Attribute name | Attribute data | Attribute name | Attribute data |
Place of origin | Xinxiang, Henan | Model | WGTS-1530 |
Material | Q235/304 | Screen size (mm*mm) | 2mm-50mm |
Application | Construction, mineral processing, stone yard, stone and soil or stone screening and separation, chemical industry, feed, garbage disposal | Number of screen layers | First stage Second stage Third stage |
Maximum feeding size | Below 100mm | Screen/screen plate | Stainless steel braided screen/manganese steel punching |
Processing capacity (t/h) | 50-200 | Application area | Construction, mineral processing, stone yard, coal, chemical industry, feed processing, waste treatment, etc |
Recommend Products

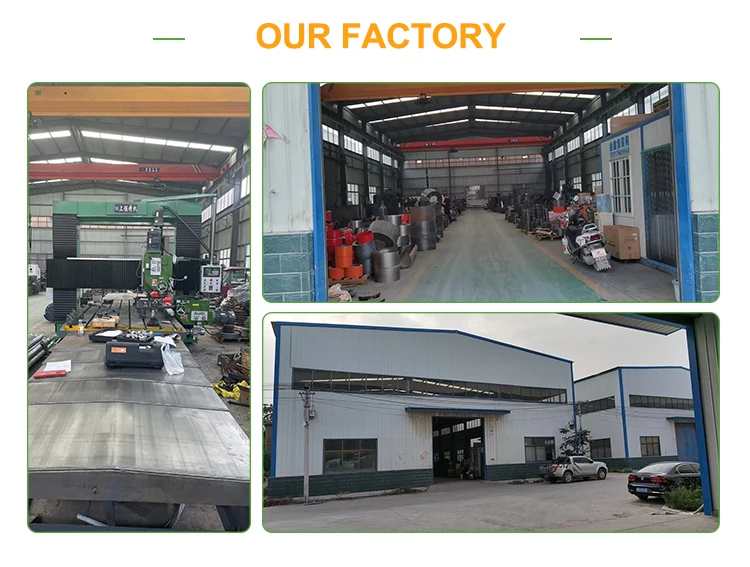

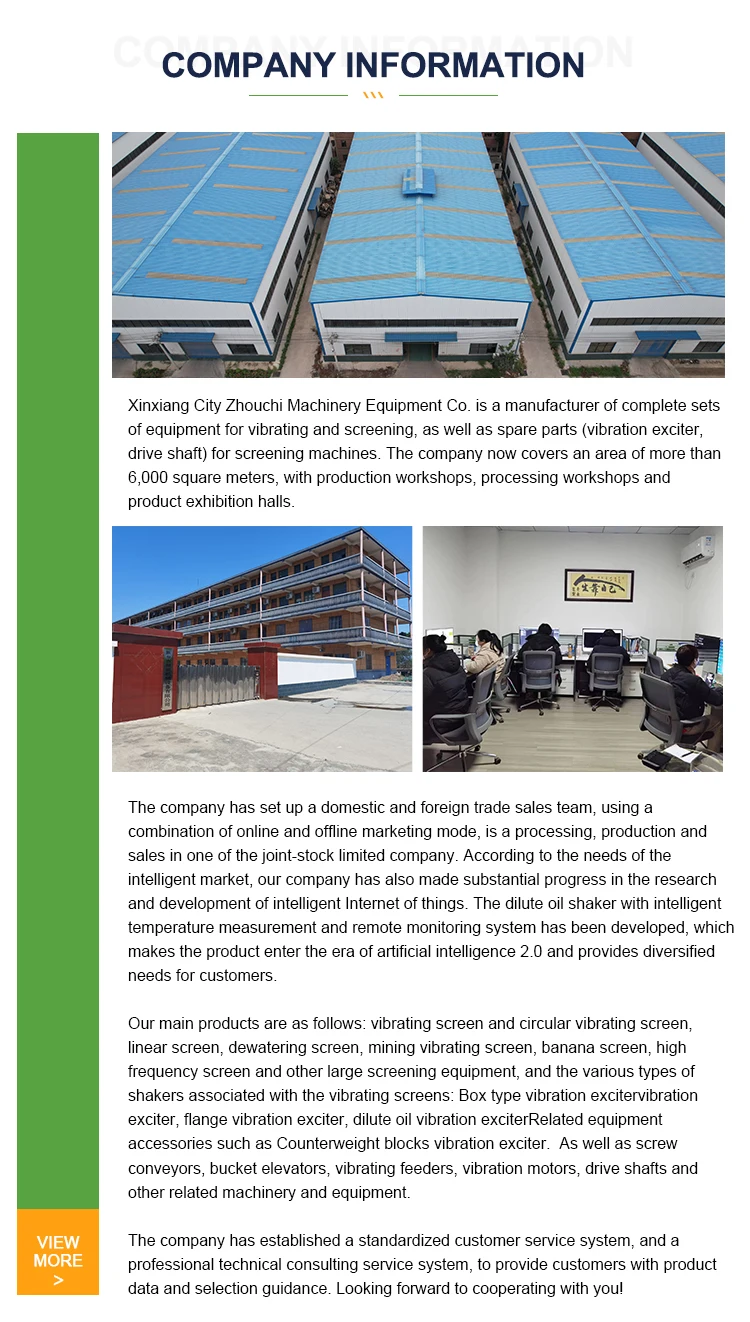

Company Profile
Certifications
Exhibition
Customer Photos
Product packaging
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are plastic film/custom wooden case, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need.
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are plastic film/custom wooden case, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need.
