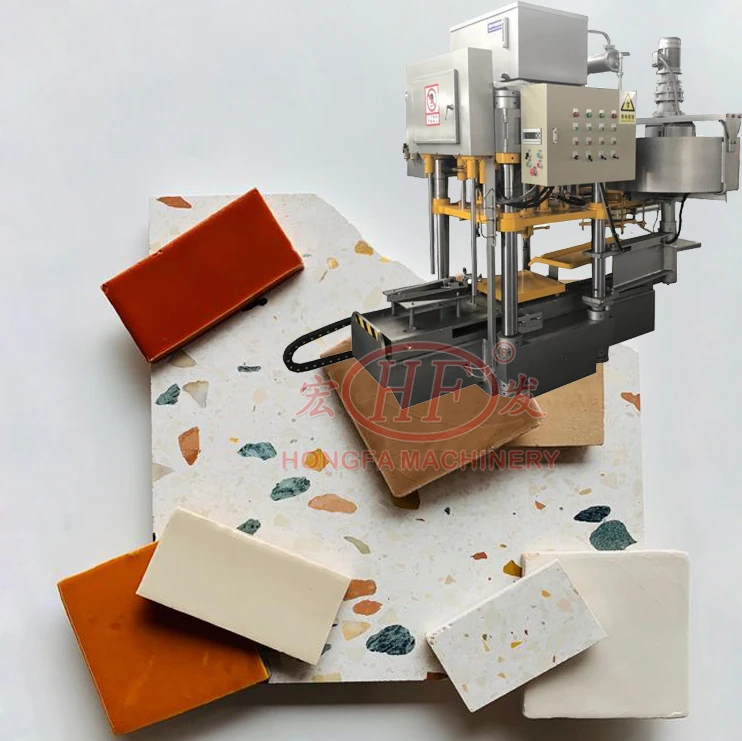

Высококачественная гидравлическая машина для производства цементной плитки полный комплект прессования кирпича терраццо
4 959 378,00 ₽
Оборудование для производства керамической напольной плитки
- Категория: >>>
- Поставщик: Henan Jane Machinery Co. Ltd.
Сохранить в закладки 1601009293634:
Описание и отзывы
Характеристики
Products Description

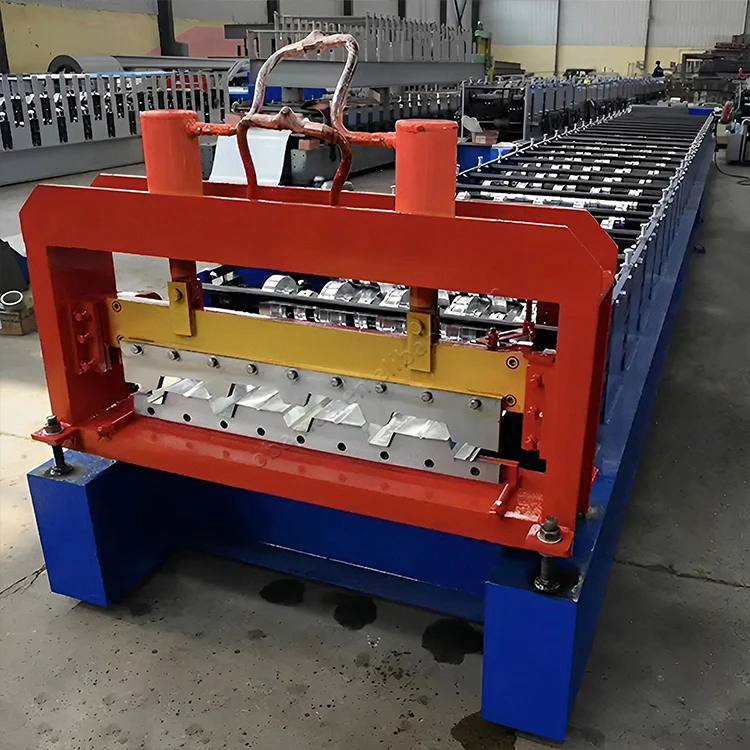

Floor Deck Roll Forming Machine
Floor Deck Panel Steel Decking Roll Forming Machine is mainly used to produce press-formed steel plate to support floor concrete，the floordeck which is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure plants, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, sports Steel structure buildings such as stadiums.This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is light in weight, good in shape, and not easily deformed.
Work processing
Specification
Floor Deck Roll Forming Machine | ||||||
SN | Part details | Item Name | Specification | |||
1 | Material | Raw material | PPGI/PPGL/GI/GL | |||
Thickness | 0.3mm-1mm | |||||
2 | Machine | Roller station | 25 or depend on customer' drawing | |||
Shaft diameter | 95 mm | |||||
Shaft material | 45# steel with 0.05mm chrome | |||||
Roller material hardness 30-40 HRC | GCr 15 | |||||
Machine size | About 8000*1200*1300mm | |||||
Machine weight | About 5 ton | |||||
Machine color | As customer' request | |||||
Working speed | 10-20 m/min | |||||
3 | Cutter | Hardness | 50-65 HRC | |||
Cutting tolerance | ± 1 mm | |||||
Material | Cr 12 | |||||
Operate | Hydraulic cutting | |||||
4 | Power | Driving way | Chain 2 inch | |||
Main power | 5 .5kw | |||||
Pump power | 4kw | |||||
Voltage | 380v/50HZ,3P or customize as customer' request | |||||
5 | Control system | PLC brand | Delta or customize as customer' request | |||
Screen | Touchable screen | |||||
Language | English or add language as customer need | |||||
6 | Decoiler | Operation | Manual | |||
Weight capicatity | 5 ton | |||||
Price | Free as gift | |||||
7 | Receiving table | Operation | Manual | |||
Length | 3 m | |||||
Price | Free as gift | |||||

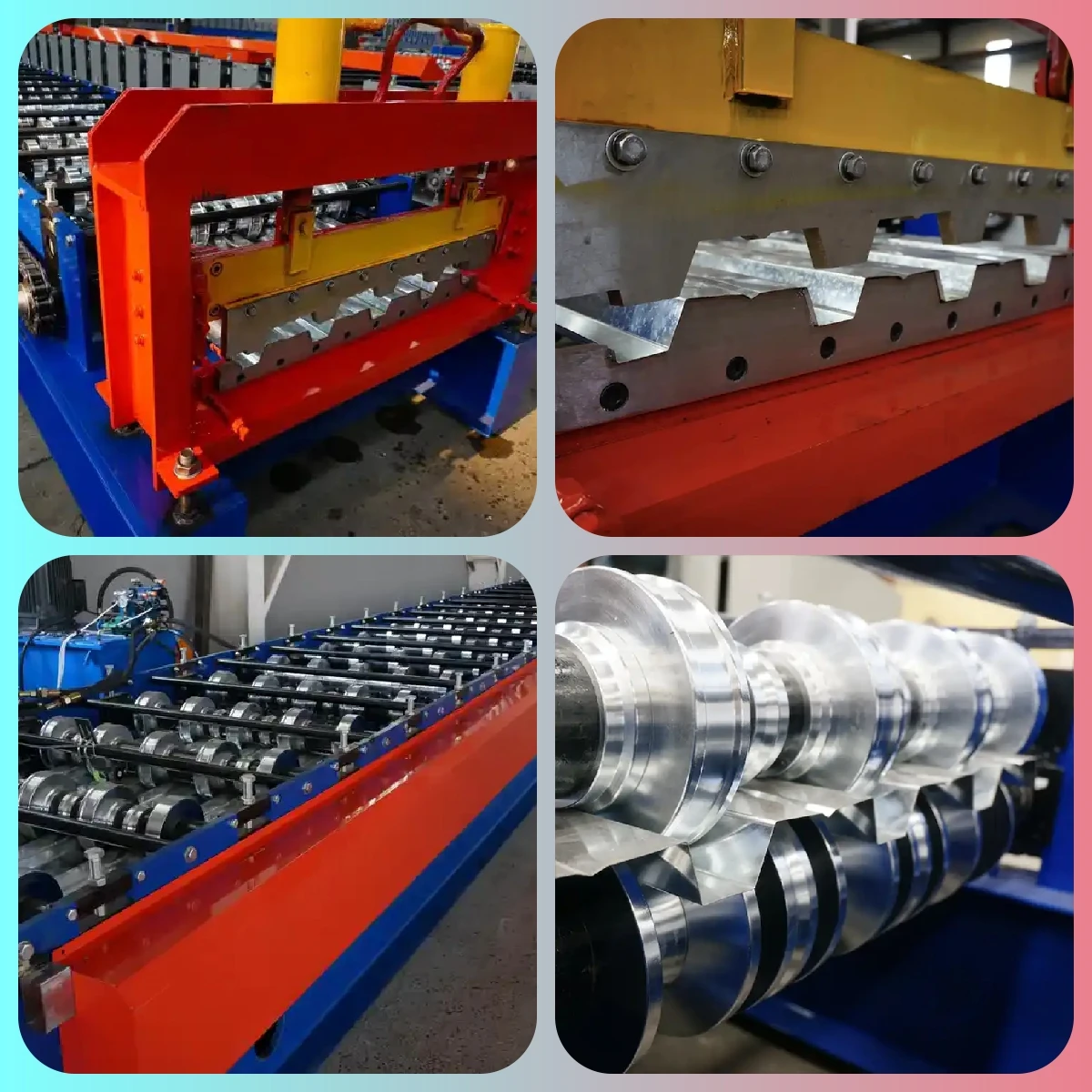

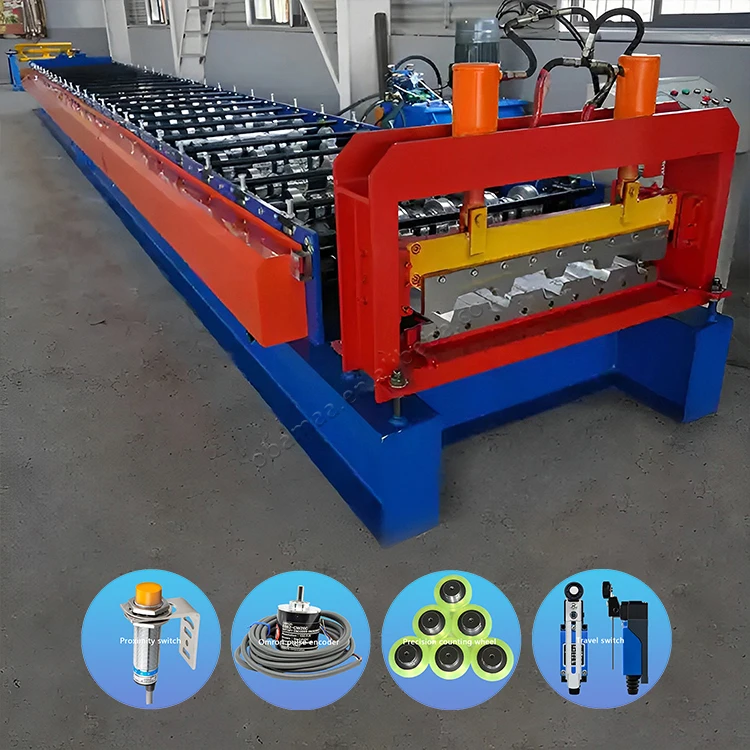

Product Details
Fully automatic computer operation, easy to use, convenient and responsive.
The frame structure is welded with carbon steel plates, which has a long service life.
Carefully selecting materials is the key to making good products.
On demand production, welcome to customize with pictures.
Low noise operation and short flattening time.
Good bearing capacity and easy operation.
Sample Room
Finished product effect for your reference.
The following are the products produced by our machine. Please check the rolling forming effect.
Meatl cold steel roll forming machine for steel floor deck details types

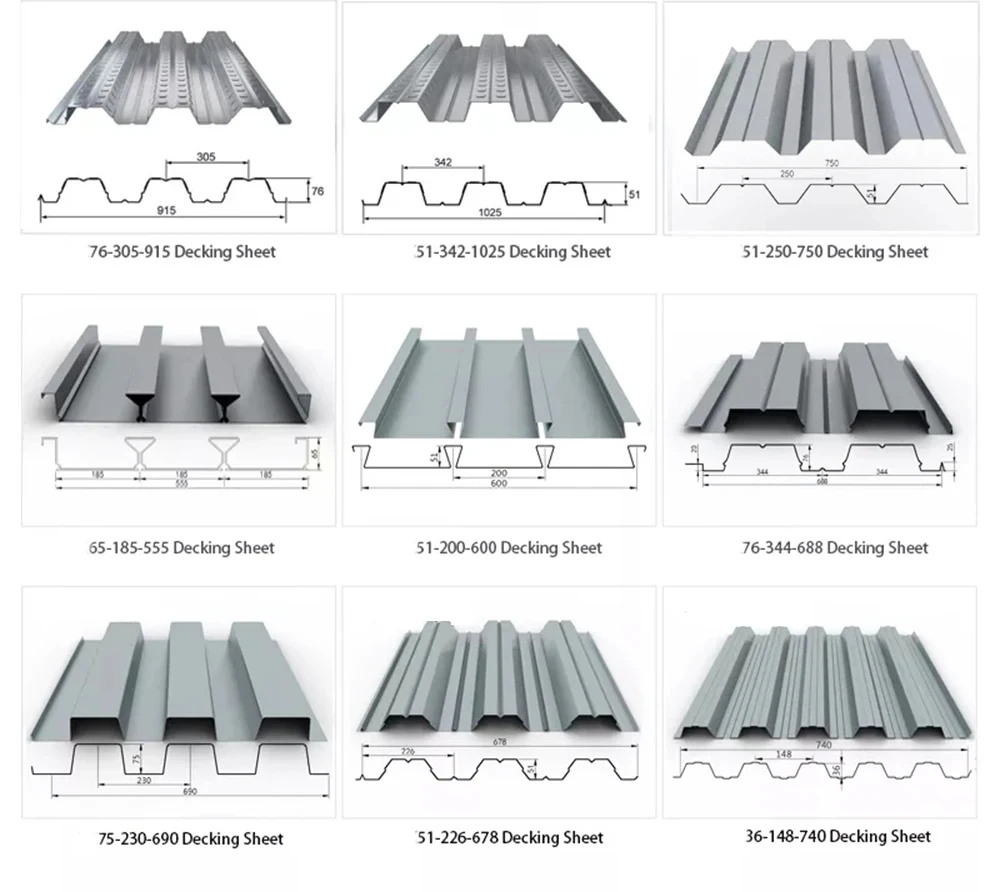

Related Plate Type
Glazed Tile Type Roll Forming Sheet
Corrugated Type Roll Forming Sheet
IBR Type Roll Forming Sheet
Other Product
Packing&Delivery
Company Profile
Henan Jane Machinery Co., Ltd. is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.
We specialized in manufacturing metal roofing roll forming machine, cz c z u purlin producing line,Glazed tile roll forming machine, floor tile making machine, rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, gutter machine,no beam roof tile machine, pipe welding machine.
We specialized in manufacturing metal roofing roll forming machine, cz c z u purlin producing line,Glazed tile roll forming machine, floor tile making machine, rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, gutter machine,no beam roof tile machine, pipe welding machine.
FAQ
Q1. How do I choose the right machine for me?
1. A machine doesn't just provide a few photos to prove what they can produce .
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Q2. You did not display the product I need. Can you produce it?
Our engineers have studied at well-known European companies and have significant advantages in mechanical design, research and development, and manufacturing.
Our engineers have studied at well-known European companies and have significant advantages in mechanical design, research and development, and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 20 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate,and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, to be a service company that you have the strength to guarantee.
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Generally speaking, the machine takes about 20 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate,and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, to be a service company that you have the strength to guarantee.
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Похожие товары
Высокоскоростная металлическая C-образная U-образная Шпилька машина для профилирования Омега изготовления металлических шпильков

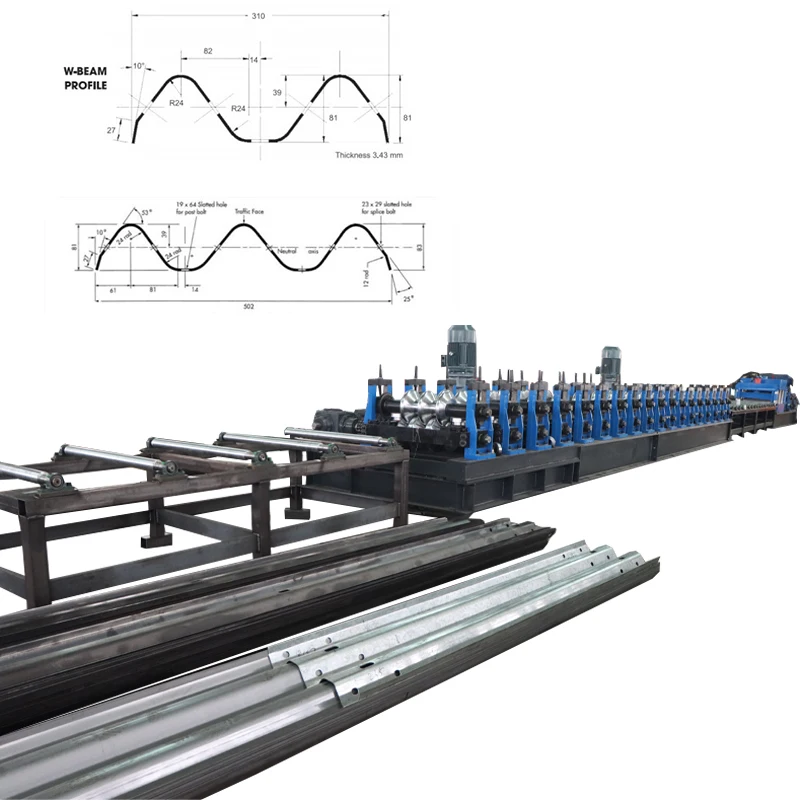

Станок для изготовления ограждений дорожного движения
