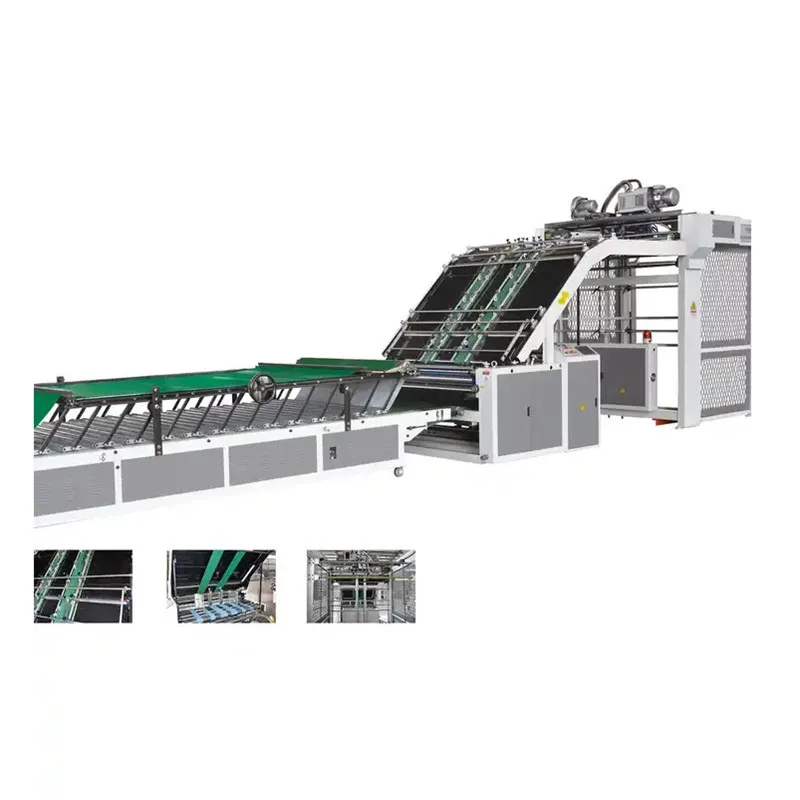

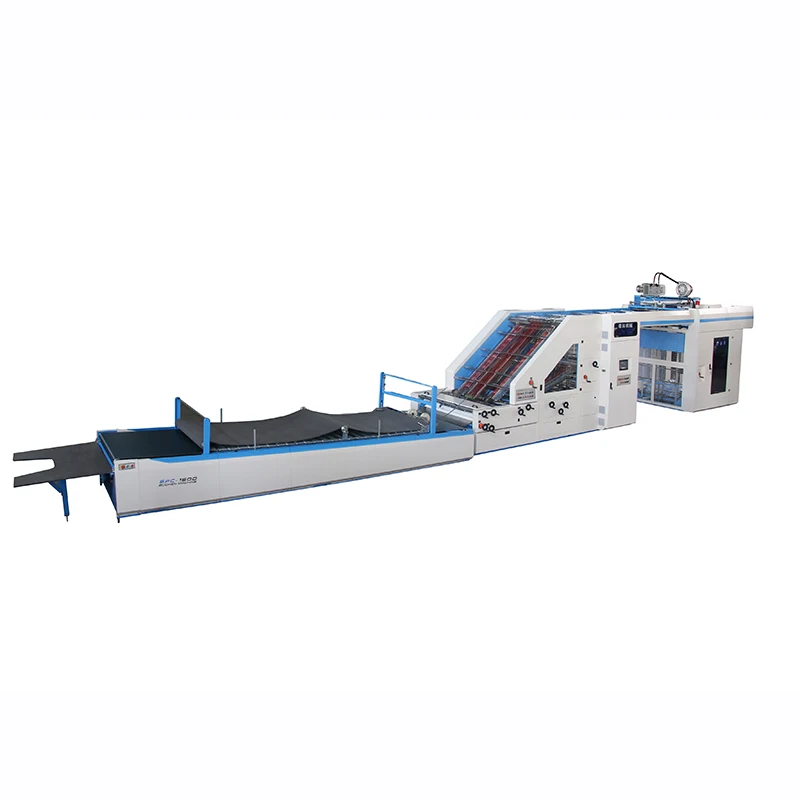

Оборудование для ламинирования гофрированного картона

Сохранить в закладки 1601009294564:


Цена:14 500,00-15 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


PARAMETERS


Model
YB-1310G
YB-1307G
Max Sheet size
1300*1000MM
1650*1450MM
Min Sheet size
500*350MM
500*500MM
Top sheet thickness
150-600GSM
175-700GSM
Bottom sheet thickness
300GSM-8MM
300GSM-8MM
Machine speed
7800 sheets/Hour
10000 sheets/Hour
Fitting precision
±0.75mm
±0.75mm
Power
20KW/380V
20KW/380V
Machine Length
11500MM
11500MM
Machine weight
6000KG
6500KG


MACHINE FEATURES:
1. To achieve high efficient and stable operation, main parts of equipment all imported
2. Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely
adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly
3. Top sheet lifting table: adopting large ratio of high strength turbine reducer to make sure the instant speed stability
4. Top sheet pilling table: Unique idea E-type with double gaps device design can allow sheet to be pushed directly by hand
forklift, shorten paper stacking time and improve the efficiency, and also can be installed the orbit type auxiliary pile board
5. Bottom paper drive: Use imported Servo motor electric controlling system to guarantee high sensitivity and high speed operation
6. Bottom paper feeding: Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation
7. Glue roller: Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly
8. Glue system: Automatic glue complement system, automatic replenishment of losses glue in the process of laminate, and also
equipped with glue recycling system
9. Front and back positioning: Unique creation of front gauge positioning system, take advantage of the speed difference of paper
feeding and front running, make sure the paper tracking the front gauge and accurately positioning
10. Side positioning: left and right side synchronous block complete the accurate positioning
11. Transmission: With imported belt drive, ensure the drive accurate, stable and low noisy.
12. Operating system: Using man-machine interface and PLC combination, display all the information, such as warning, error detect,
failures, and operating speed, etc on the screen at a glance
13. Electrical system: Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low
failure


DETAILS 1:
Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly

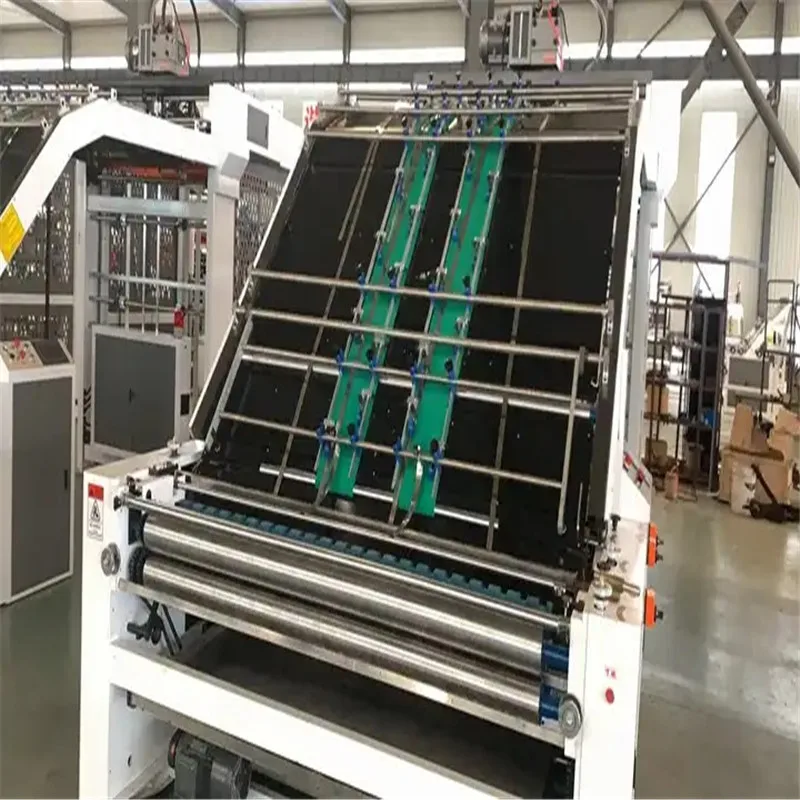

DETAILS 2:
Bottom paper feeding: Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation


DETAILS 3:
Front and back positioning: Paper adsorbed by the fan on the conveyor belt, take advantage of the speed difference of paper feeding and front running, make sure the paper tracking the front gauge and accurately positioning


DETAILS 4:
Side positioning: left and right side synchronous block complete the accurate positioning, both top sheet and bottom paper are equipped with accurate positioning device on left and right.


DETAILS 5:
Glue roller: Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.


DETAILS 6:
Transmission: With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy.


DETAILS 7:
Electrical system: Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance


DETAILS 8:
Mainframe: mainframe wallboard are all large-scale machining center once processed, the reasonable design of roller installation
position, convenient adjustment and maintenance, the host drive bearings are imported.


Specification


item
value
Applicable Industries
Food & Beverage Factory, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location
Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, South Korea, Colombia, Algeria
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC, Engine, Motor
Condition
New
Automatic Grade
Automatic
Place of Origin
China
Brand Name
CANGHAI
Voltage
\t208V/220V/380V/440V
Dimension(L*W*H)
8200*2400*2250mm
Weight
6000KG
Warranty
1 Year
Key Selling Points
High Productivity
Product name
Flute laminating machine
Laminate speed
7800Sheets/hour
Top sheet thickness
150-600GSM
Function
Cardboard flute laminating


Recommend Products




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile

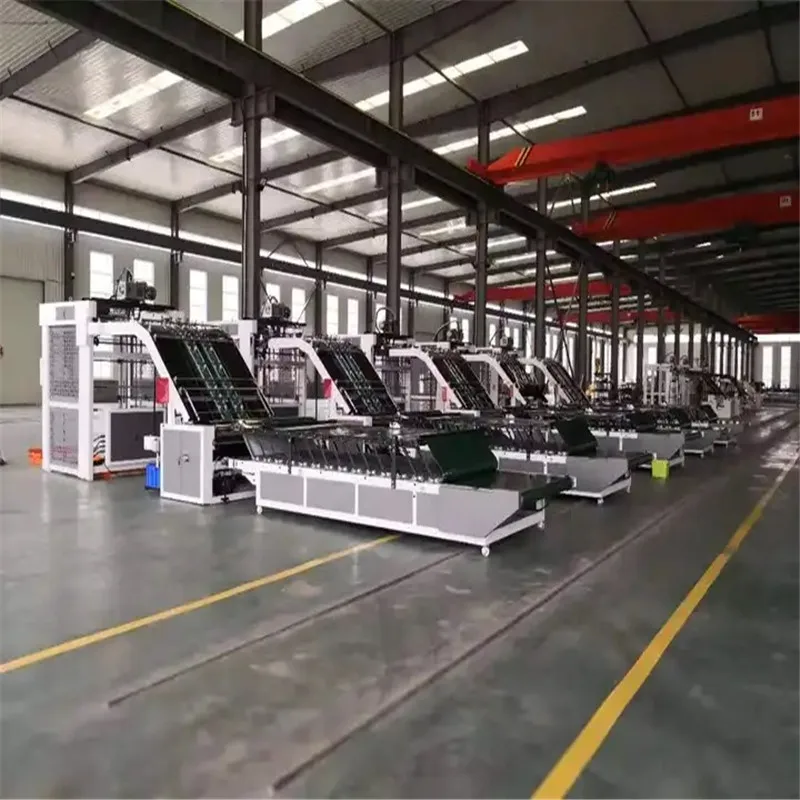

Founded in 1999 Dongguang County Canghai Packing Machine Co., Ltd. located in the major carton machinery production area of Dongguang County in North China's Hebei Province, with the major cities of Jinan to the south, Tianjin to the north and Shijiazhuang to the west. With our 65,000 square meter factory beside the Jing-Hu Highway, Jing-Hu Railway and No. 104 National Road, we have convenient access to major transportation networks.

With accumulated experience and rapid growth over the past 13years, we now boast sophisticated manufacturing equipment and a team of experienced managerial personnel. Producing low, middle and high-speed corrugated paperboard printing, pressing and slicing machines, our main units include pressure corner slicers, slitting machines, 3, 5 and 7-ply corrugated cardboard production lines, automatic and chained rotary die-cutters and rolling lines, single face corrugated cardboard machines, paper rolling lines, pasting machines, platform grinder slicers, stitching machines and other related products.

Boasting over twenty branch offices and maintenance stations around China, we have also exported our various products to Australia, Mongolia, India, Egypt, Mexico and Vietnam. As an ISO9001 certified entity that has been commended as a "Brilliant Star", "Star Enterprise" and "Unit Trusted by Consumers", we have meanwhile been awarded "Quality Trusted Product" titles in many cities, counties and provinces in China.

Adhering to the concept of "Honesty and Trustworthiness", we are striving to ensure that all customers receive high quality products and services. By shaking hands with us, both sides can go from one victory to another!








FAQ


1. who are we?
We are based in Hebei, China, start from 2004,sell to South Asia(33.00%),Southeast Asia(25.00%),South America(21.00%),Eastern Europe(21.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Making Machine, Automatic Flexo Printer Slotter Die Cutter Machine, Stitching Machine, Folder Gluer Machine, Printing slotting die cutting folding gluing strapping machine

4. why should you buy from us not from other suppliers?
We have a strongtechnical team of technicians,all technicians are trained in special training in assessment of the structure of the packaging printing machinery,repair and maintenance have a deep grasp.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Russian
