Б/у б 3/4 глубиной 500 м. 5/4.7/6.6 м башенный гусеничный гидравлический буровой станок Zhengyuan SL500

Б/у б 3/4 глубиной 500 м. 5/4.7/6.6 м башенный гусеничный гидравлический буровой станок Zhengyuan SL500

Категория: >>>
Поставщик: Shenyang ABT Drilling Equipment Co. Ltd.Shenyang Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

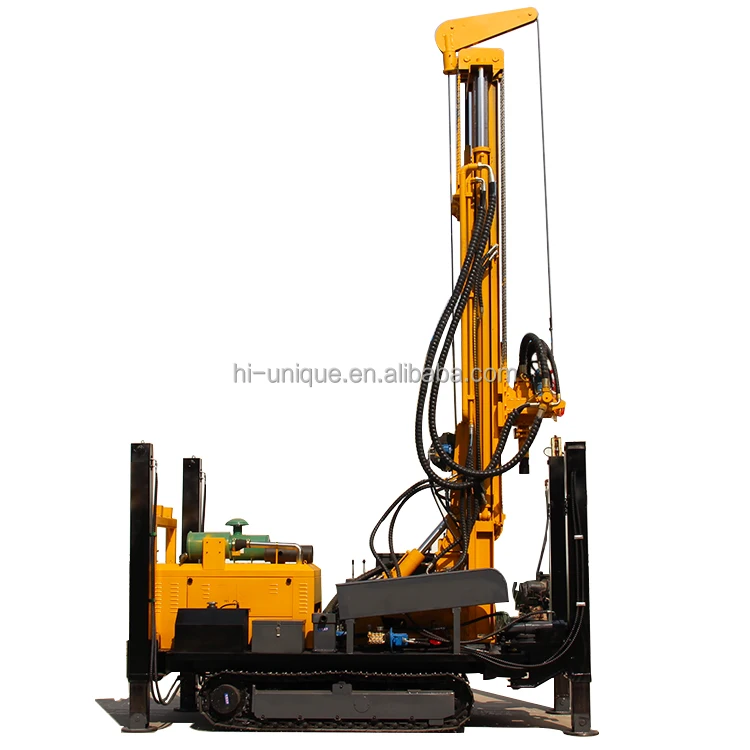

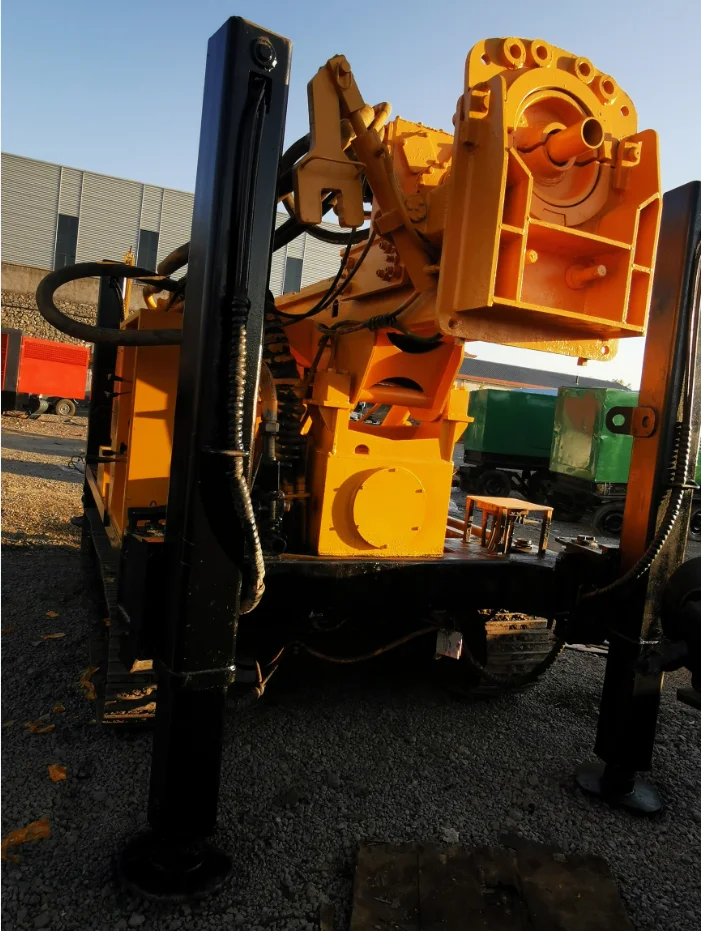

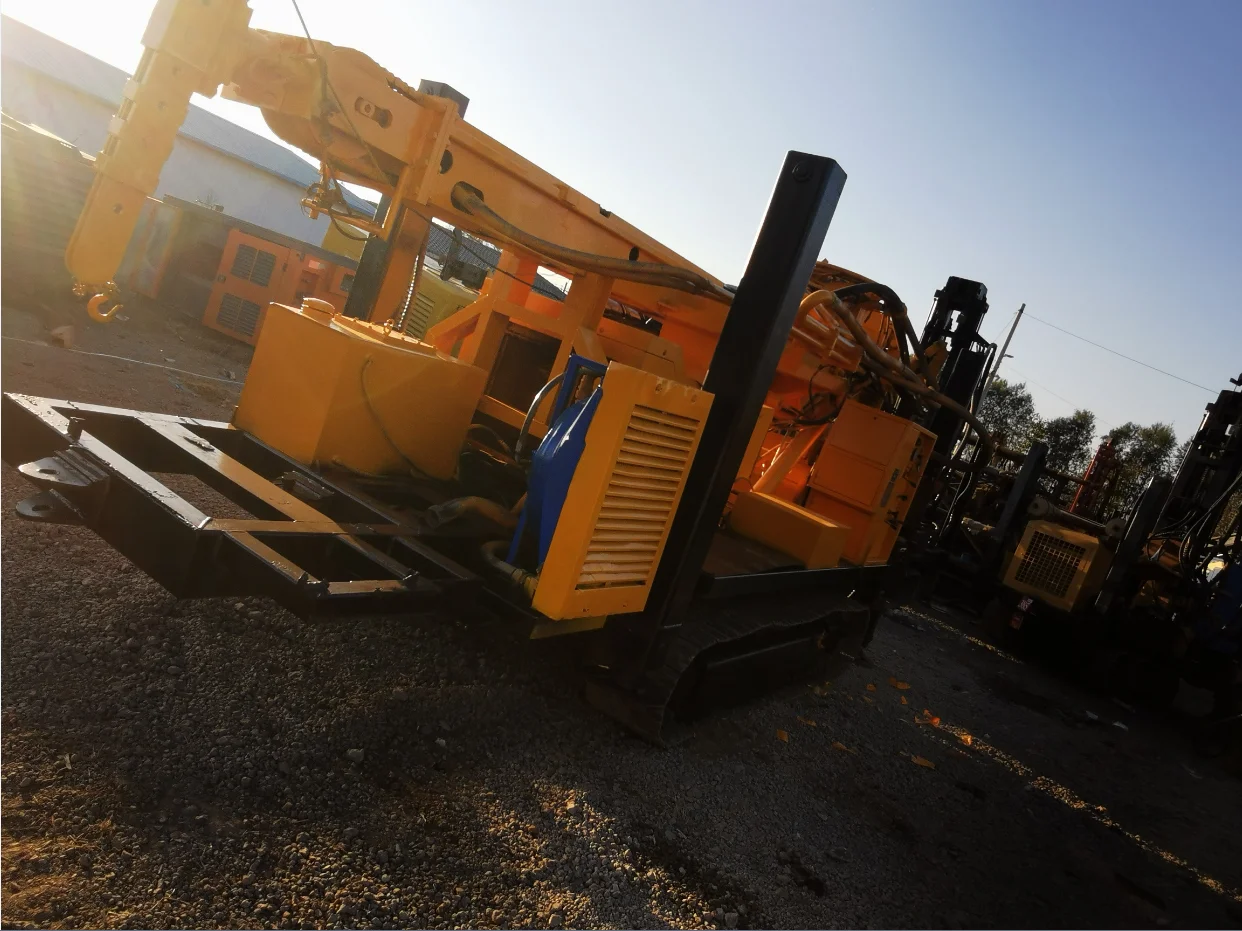

Second hand 500 m water well drill rig Zhengyuan SL500

Second hand, made in 2018-2019, still in good working condition, at more affordable price

φ89 mm drill pipe, steel crawler

3/4.5 m/4.7m/6.6 tower, can use up to 3/4.5 m/4.7m/6.6m drill pipe

Chinese reliable diesel engine Yuchai 110 kW/118 kW, Cummins 132 kW

500 m drill depth, 105-400 mm drill hole diameter

Locate in China, usually export from Qingdao Port

Five machines are available now. First to come, first to choose.

Specification

Air consumption	16-55 m3/min		572-1965cfm
Using air pressure	12-35bar	1.2-3.5MPa		174-508psi
Drill pipe diameter used by this second hand machine (mm)	Φ89
Drilling depth (m)	500
Drill hole diameter (mm)	105-400
Tower (m)	3/4.5/4.7/6.6
Lifting force (T)	28
Fast feeding speed (m/min)	48
Fast lifting speed (m/min)	29
Max rotary torque (Nm)	10000/5000
Max rotary speed (r/min)	75/150
Big auxiliary winch lifting force (T)	-
Small auxiliary winch lifting force (T)	1.5
Jacks stroke (m)	1.6
Drilling efficiency (m/h)	10-35
Driving speed (km/h)	3
Uphill angle	21°
Dimension (LWH) (m)	6.21.852.55
Weight (T)	10.5
Made in (year)	2018
