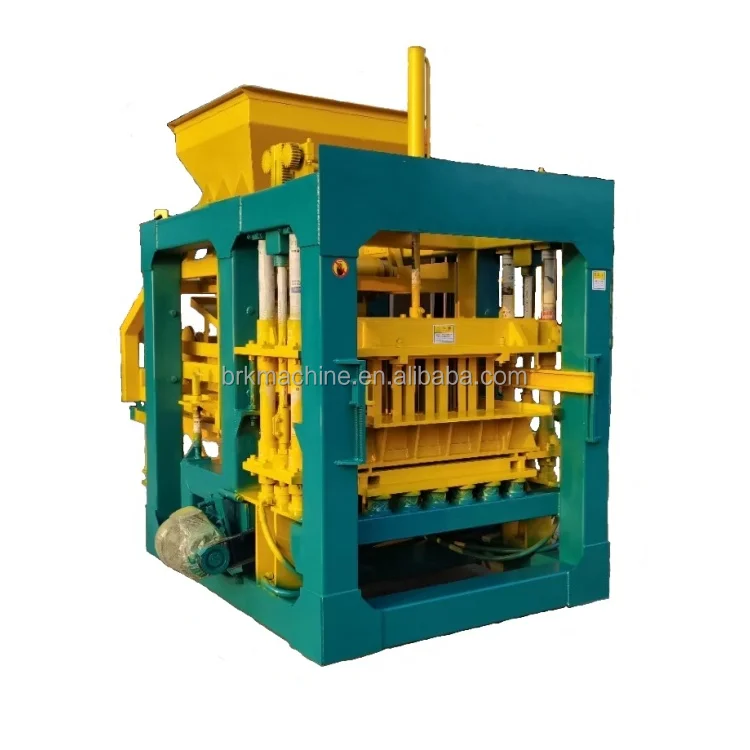

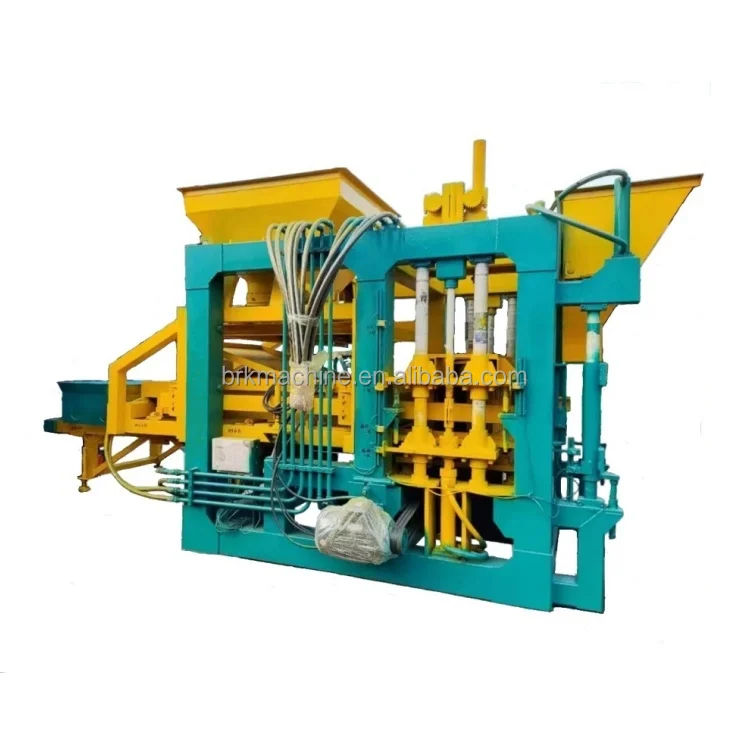

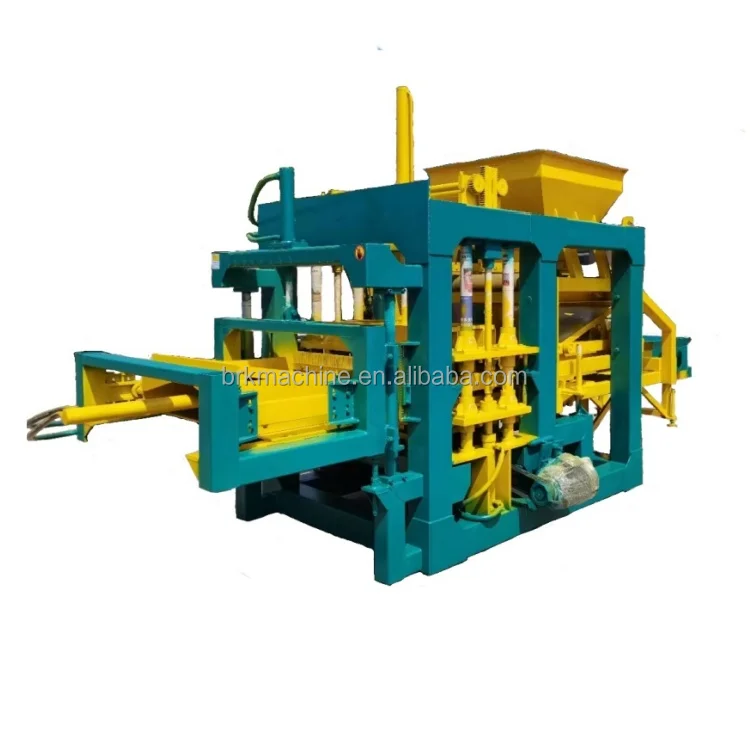

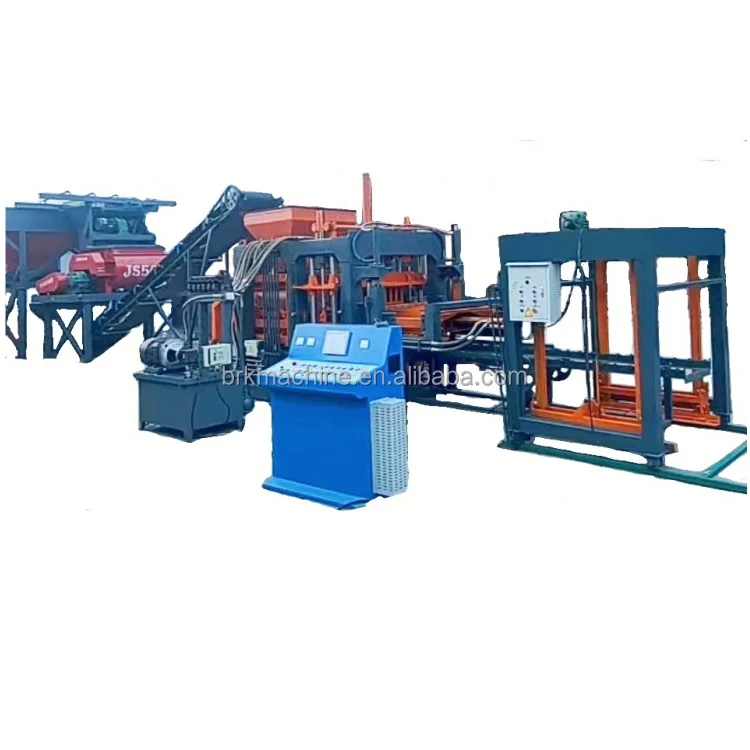

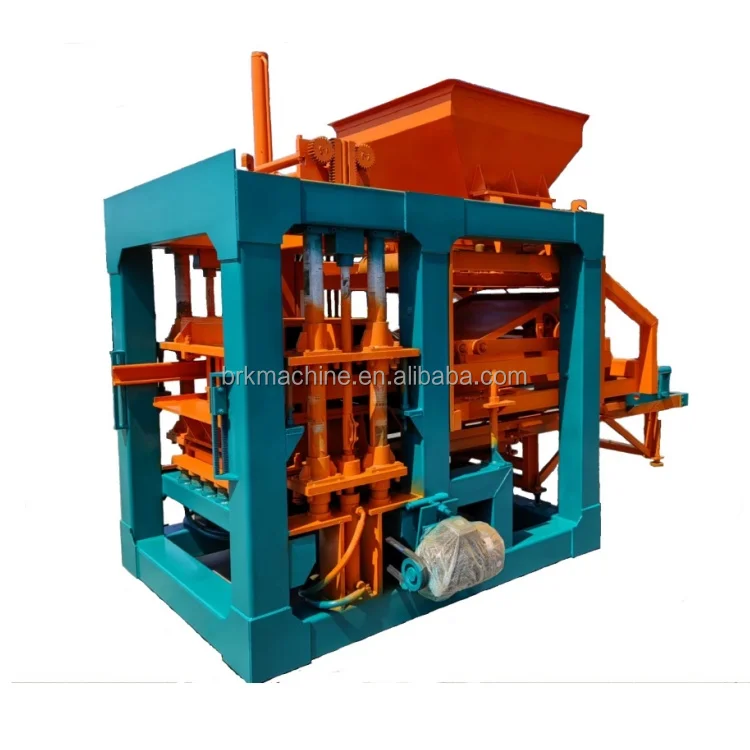

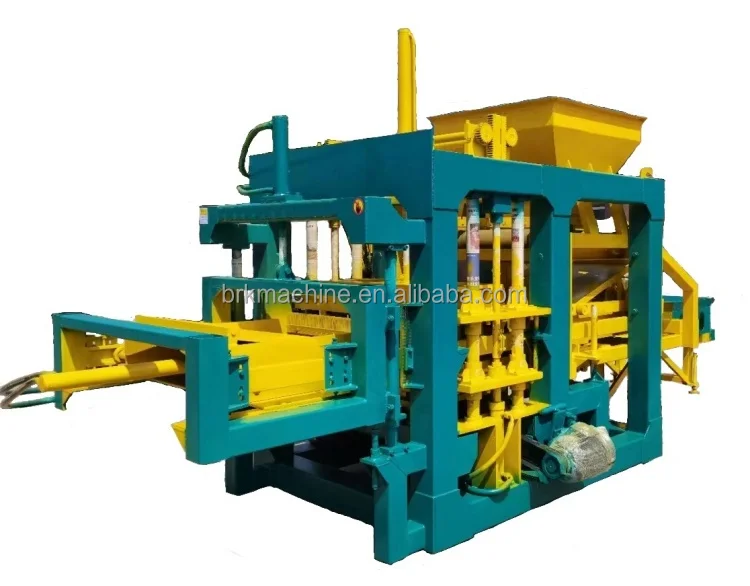

QT6-15 automatic cement block moulding machine QT6-15 pavement brick machine China factory

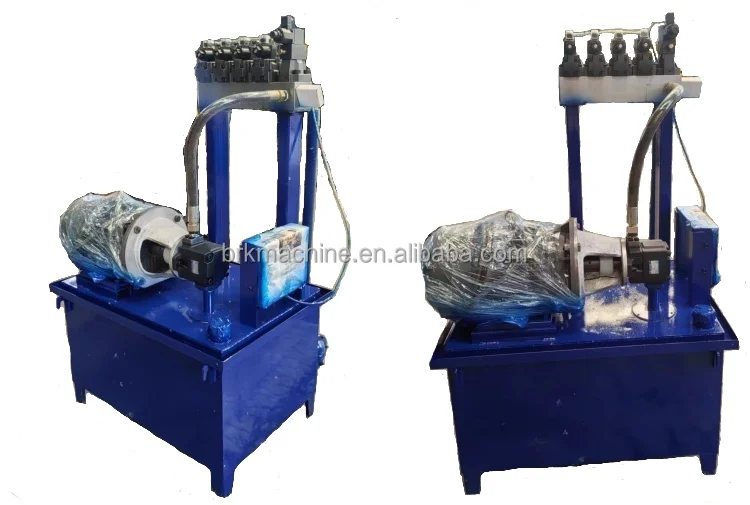

 QT6-15 automatic cement block moulding machine , it is full automatic can make all types of hollow blocks, solid blocks, curbstones, pavers and so on. adopts advanced hydraulic system and vibration system, can ensure the block quality good and the working noise
low. Blcok making machine with SCHNEIDER,SIEMENS, OMRON, CALYCA and so on to make sure our block making machine with high quality and keep our machine work more stable.

Main technical parameters:

Main Advantages:

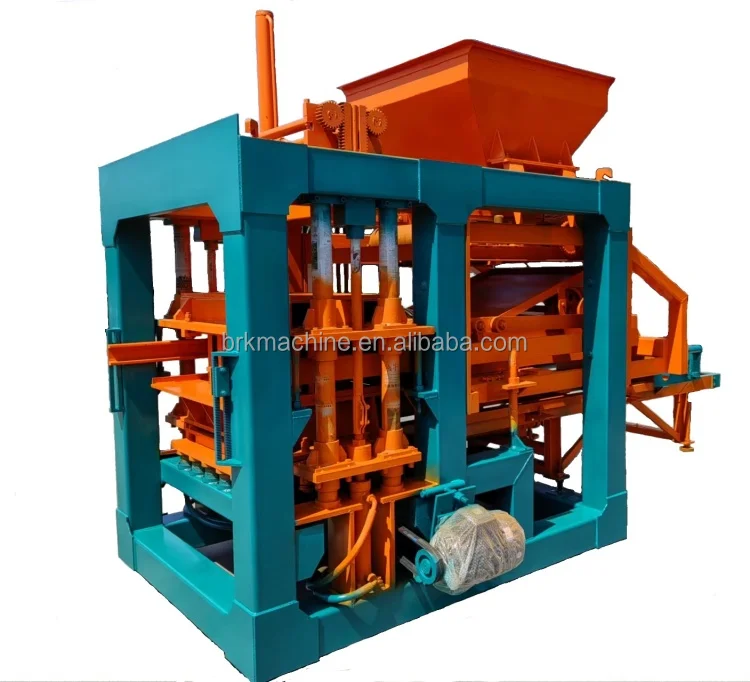

QT6-15 automatic cement block moulding machine

1. This model block making machine completely use PLC systems, human-computer interface and Chinese/English menu.Hydraulic integrated automatic control, simple and reliable operation

2. The electricity motor, in mixer and host machine, we use Germany Siemens motor.

3. The switches, we select the France Schneider brand, it could assure the working process smoothly.

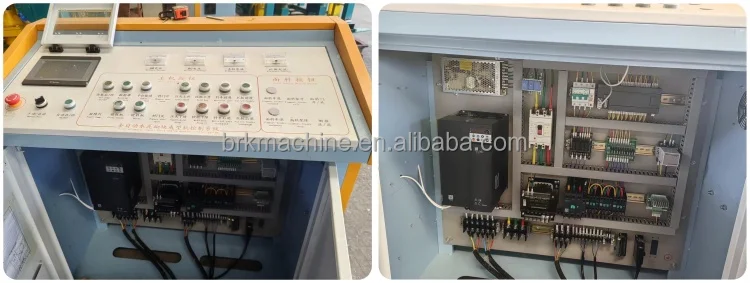

4.The control system use computer control and man-machine interface.Electrical equipment apply the well-known brands from Japan and Germany, like Japan Mitsubishi.

5. Mould can be changed quickly,The block mould use the newest high temperature carburizing heat treatment technology, in order to prolong the life of block mould.

6. Advanced press and vibration forming technology can completely liquefy and exhaust the concrete within 2-3 seconds to ensure the high density of the product. It is especially suitable for the production of high-strength standard bricks, which can be stacked after forming.

Production capacity:



	Block	Size/mm	Moulding Cycle	Qty/Mould	Qty/Hour	Qty/8Hours
Hollow Block		400x200x200	15-20s	6pcs	1080-1440pcs	8640-11520pcs
Hollow Block		400x150x200	15-20s	7pcs	1260-1680pcs	10080-13440pcs
Hollow Block		400x100x200	15-20s	11pcs	1980-2640pcs	15840-21120pcs
Hollow Block		400x150x200	15-20s	7pcs	1260-1680pcs	10080-13440pcs
Poroue Block		240x115x90	15-20s	15pcs	2700-3600pcs	21600-28800pcs
Solid Block		240x115x53	15-17s	30pcs	6300-7200pcs	50400-57600pcs
Paver		225x112.5x60	20-25s	15pcs	2160-2700pcs	17280-21600pcs

Main Features:
Fully automatic,hydraulic,Mitsubishi PLC control

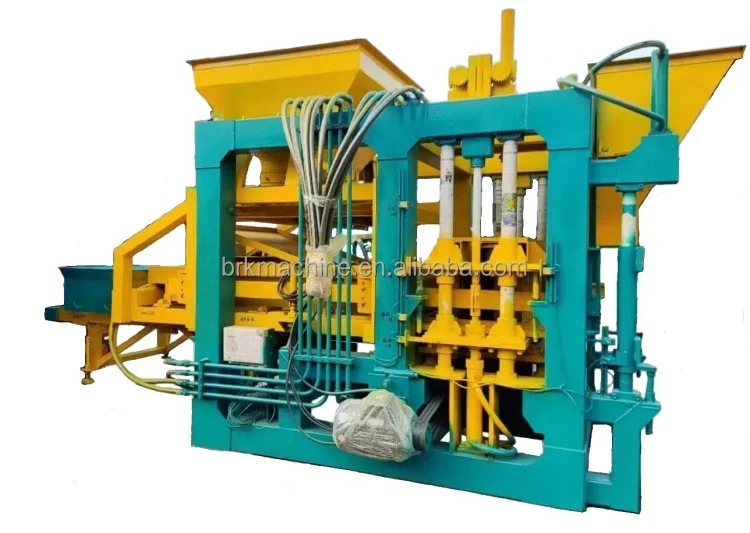

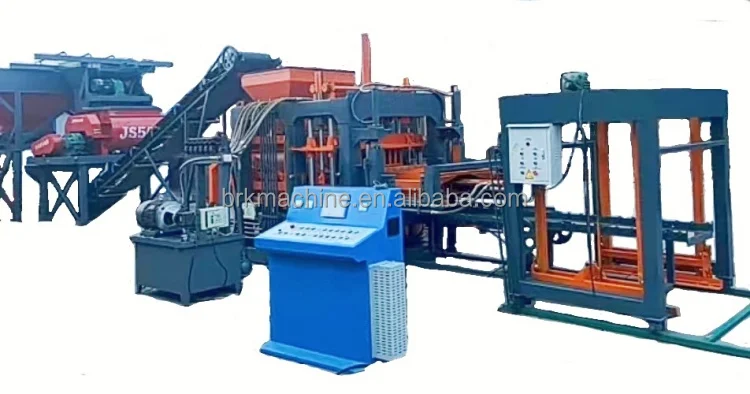

QT6-15 automatic cement block moulding machine QT6-15 pavement brick machine China factory

Raw materials are generally cement, sand, gravels, crushed stone powder, slags, fly ash, ect, depending on customers' choice.

A. 8-10% cement, 30-40% sand, 50-60% crushed stoneB. 8-10% cement, 30% flyash, 60% sand or stone powder The diameter of sand and stones need to be less than 15mm, if produce paver interlocking brick, need color iron.

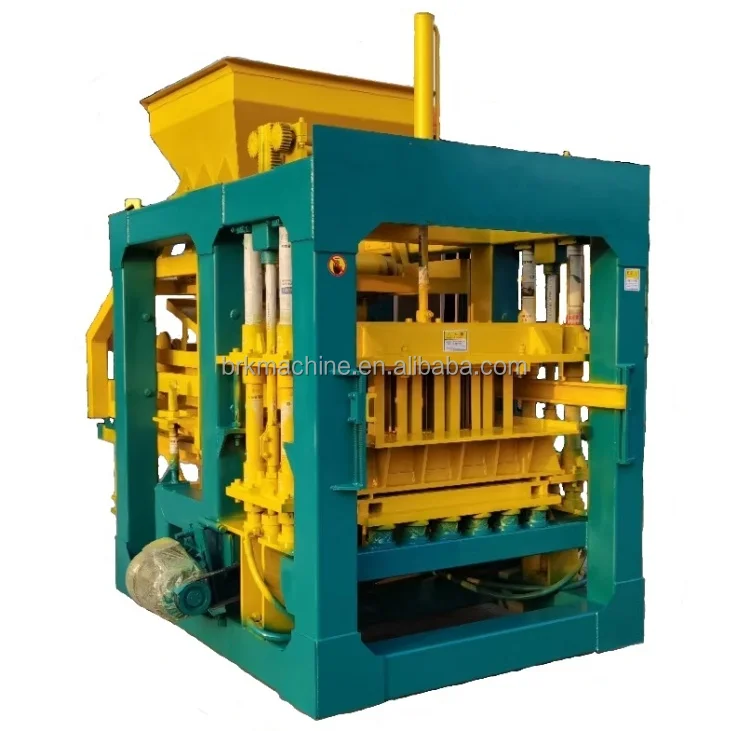

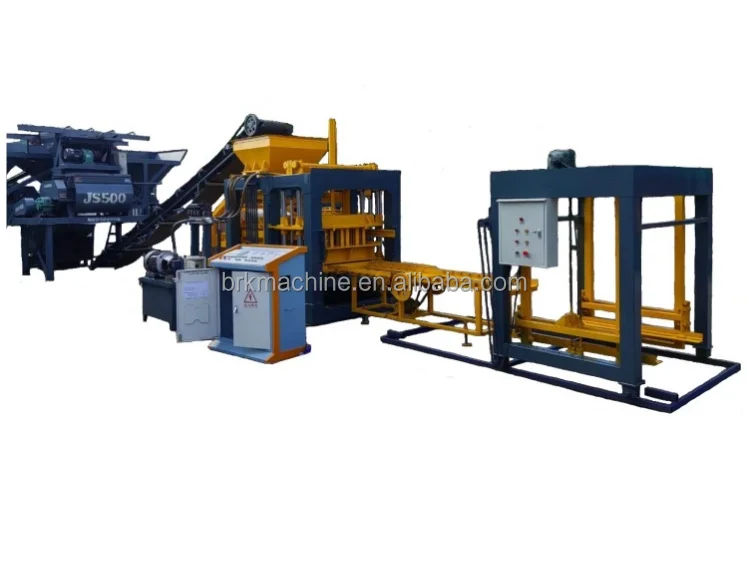

QT6-15 automatic cement block moulding machine QT6-15 pavement brick machine China factory

1.Intelligent PLC control, man-machine interface and automatic fault diagnosis are adopted. The vibration system is controlled by electro-hydraulic proportional valve to realize low-frequency feeding and high-frequency vibration molding.

2.The distribution system with multiple rows of mixing forks can quickly and evenly discharge materials into the mold.

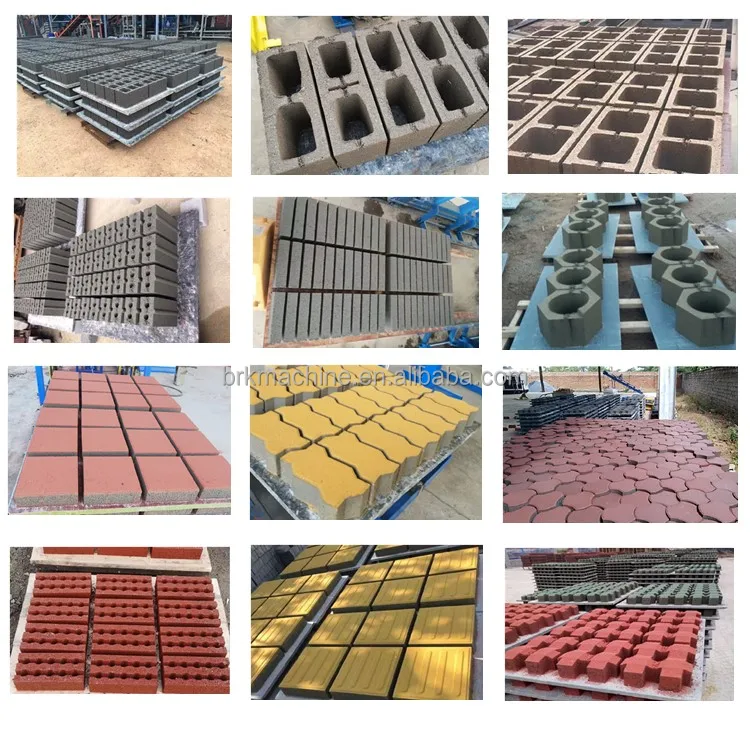

3.By changing the mold, we can produce all kinds of blocks, standard bricks, porous bricks, grass planting bricks, etc., with an annual output of 40000 cubic meters of standard bricks. It is an ideal equipment for the production of new wall materials.

4.Material storage and distribution device: the material supply is controlled by computer to avoid internal pressure caused by external factors and ensure uniform material supply. So that the product strength error is very small.

5.Using advanced electric control technology, reliable hydraulic system, integrated automatic control of machine, electricity and hydraulic pressure, simple operation and reliable operation.

In the form of compression, vibration and vibration, the concrete can be fully liquefied and vented in two to three seconds to ensure the high compactness of the product. It is especially suitable for the production of high-strength standard bricks

6.The unique forced feeding device can use various raw materials such as cement, river sand, gravel, slag, volcanic slag and ceramsite to produce standard bricks, blocks, porous bricks and floor tiles of various specifications by changing molds.

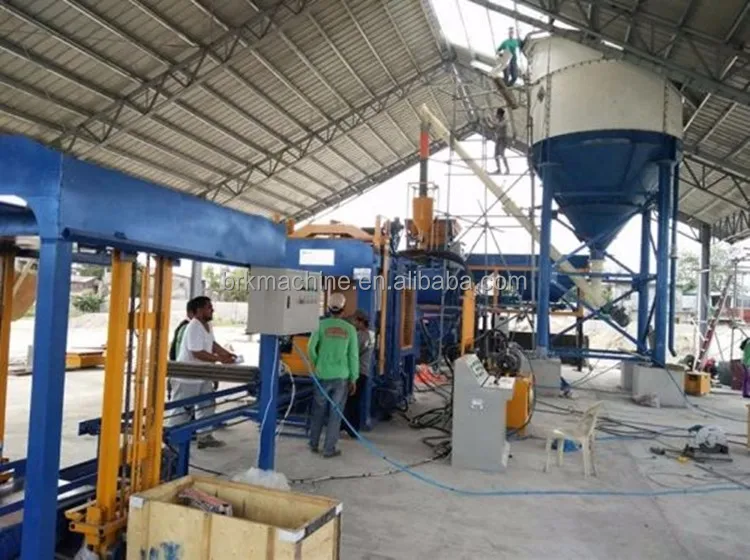

Customer Site:

Our service:

Pre-sale service
1.Professional advice on raw material and site selection.
2.Seletion of the most suitable machine.
3.24 hours online service.
4.Welcome to visit our factory at any time .

On sale service
1.Update the production scheduling in time
2.Quality supervision
3.Product acceptance and testing
4.Shipping on time

After sale service
1.Free online guidance and tutorials
2.Professional engineer training service
3.One year quality guarantee period.
4.Regular return visits to customer usage

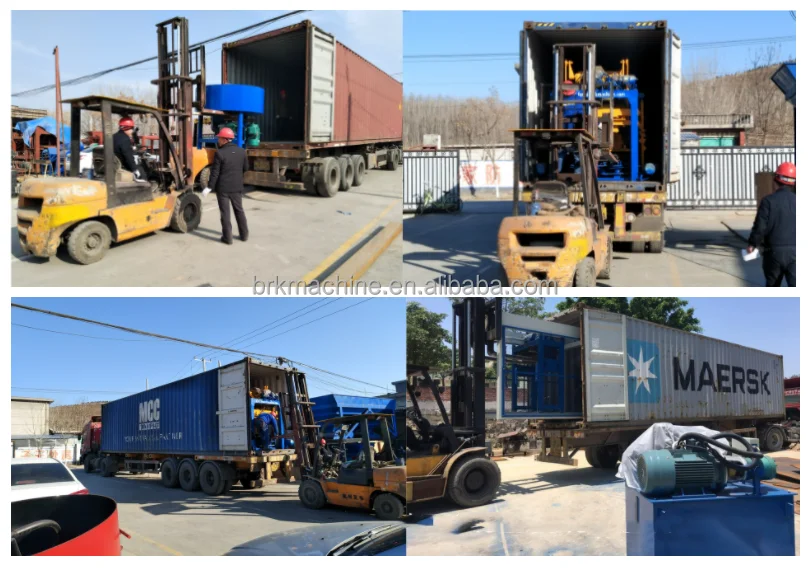

Packing and deliver :

Packing shall be wrapped with plastic film or according to the customer's require.

1. The whole brick machine production line is mainly full container shipping,

2. Wrap the whole brick machine with plastic film before shipment to prevent water or moisture,

3. Then load the brick machine into the container with a forklift,

4. During loading, tighten the machine with the reinforcing ring in the container to avoid damage caused by transportation bumps on the brick machine.

Shandong Brick Machinery Co., Ltd. is an enterprise specializing in the production and export of concrete block machinery. The factory was established in 1989,

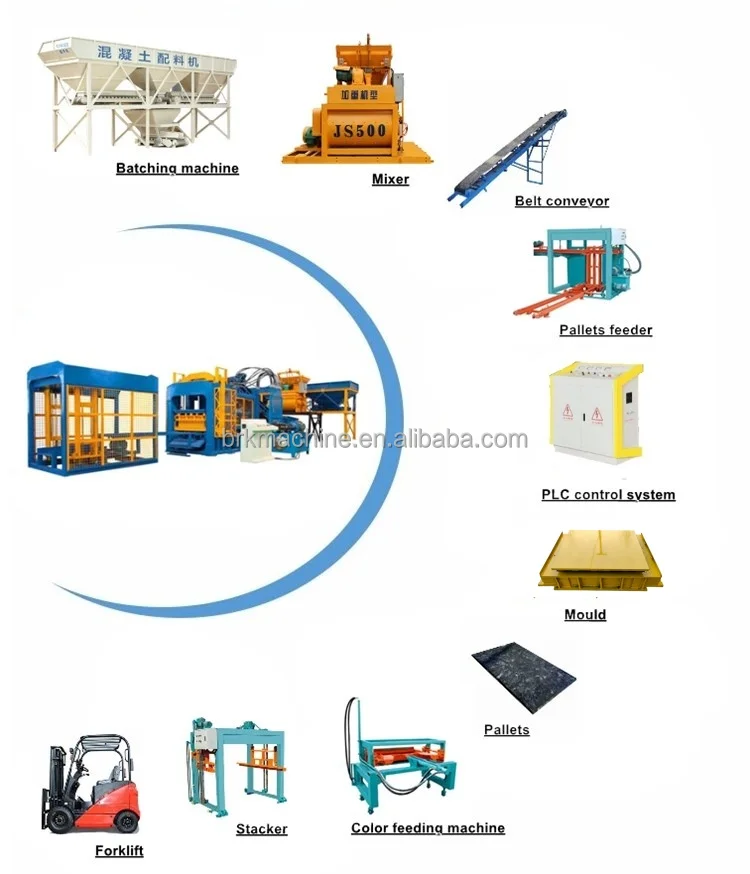

The products mainly include block machine and other related equipment, such as Mixer, Conveyor belt, Automatic pallet loader, Stacker, Cement silo, Cube, Batching machine, Forklift, Mold, Color material feeder, etc
The factory covers an area of 30000 square meters and has 290 experienced engineers and technicians. Different types of machines can be customized according to customer requirements.
Annual sales of all kinds of machinery 2000 sets, Provide customers with a complete production line of high-quality building components, and customers can enjoy benefits through our design, installation, layout planning and production guidance services.
We provide free machine installation, debugging and personnel training, and guarantee free warranty within half a year.
We have won the trust of customers with professional service, high-quality product quality and competitive price.
The products are exported to more than 116 countries and regions such as Mexico, Canada, the United States, Chile, South Africa, Russia, Nigeria, India, Austria, the Philippines and Brazil, and enjoy a high reputation among customers.
We hope to become your supplier as soon as possible and contribute to your career,
We warmly welcome customers from all over the world to visit our factory and negotiate long-term cooperation.
