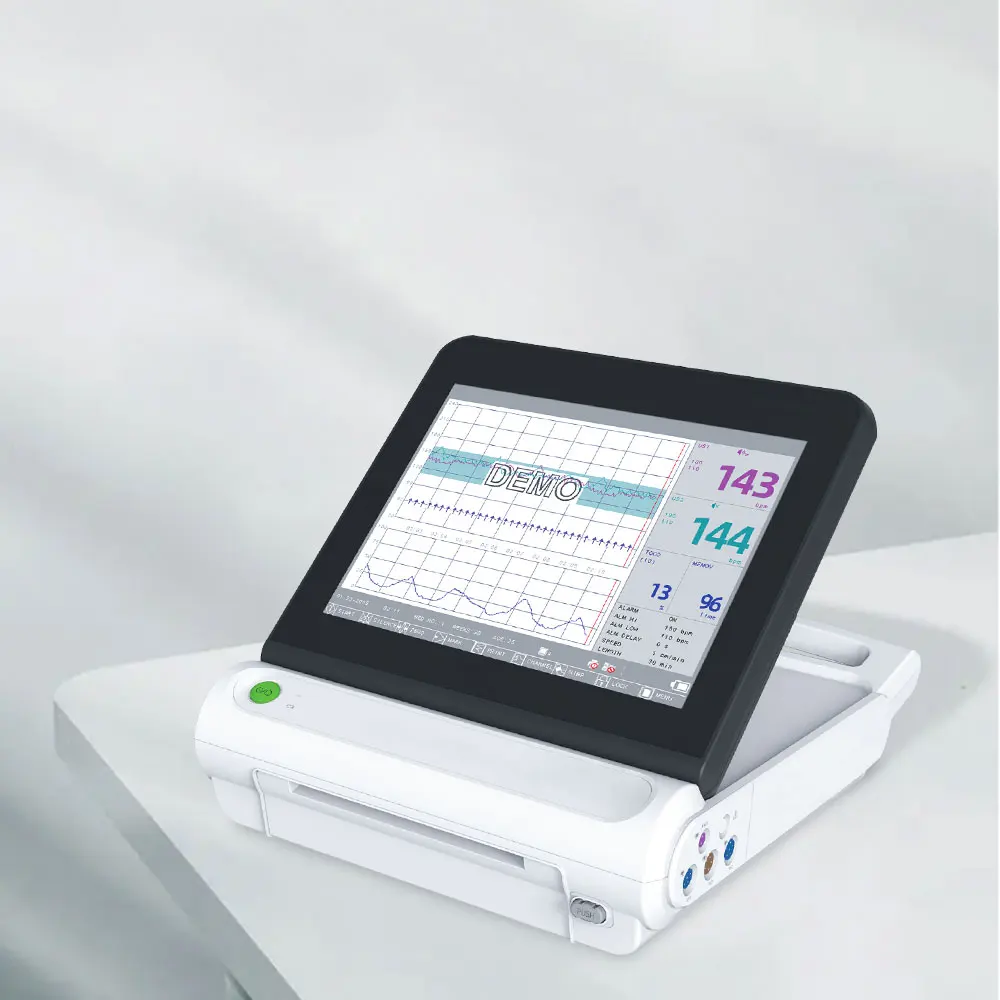

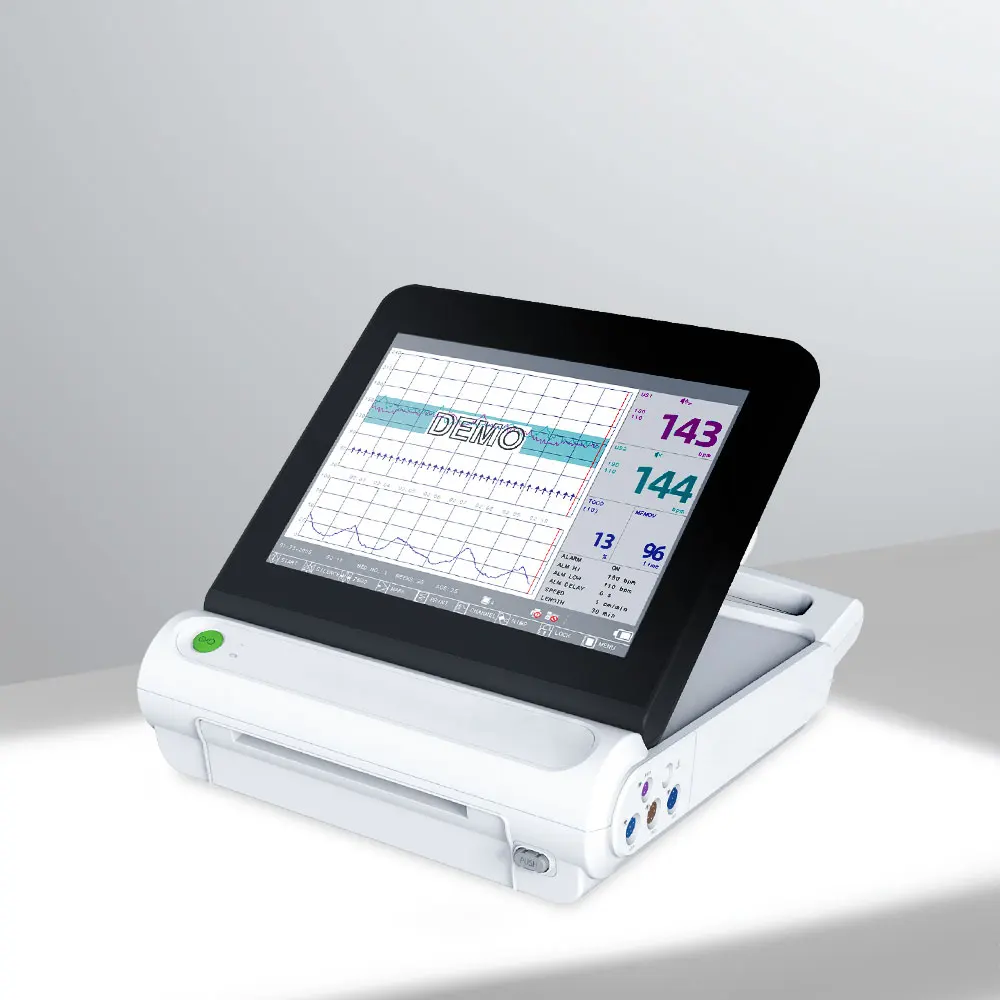

ЖК CMS800A Plus CONTEC CTG материнский фетальный монитор
- Категория: >>>
- Поставщик: Contec Medical Systems Co. Ltd.
Сохранить в закладки 1601010012782:
Описание и отзывы
Характеристики
Hello, welcome to visit us,
CONTEC is a professional manufacturer specializing in medical equipment.
27+ years experience in R&D manufacturing.
Professional overseas trading team is at your service for product solutions and market growth.
If you are looking for a long-term partner or looking for a first-hand price, we are your best choice.
27+ years experience in R&D manufacturing.
Professional overseas trading team is at your service for product solutions and market growth.
If you are looking for a long-term partner or looking for a first-hand price, we are your best choice.

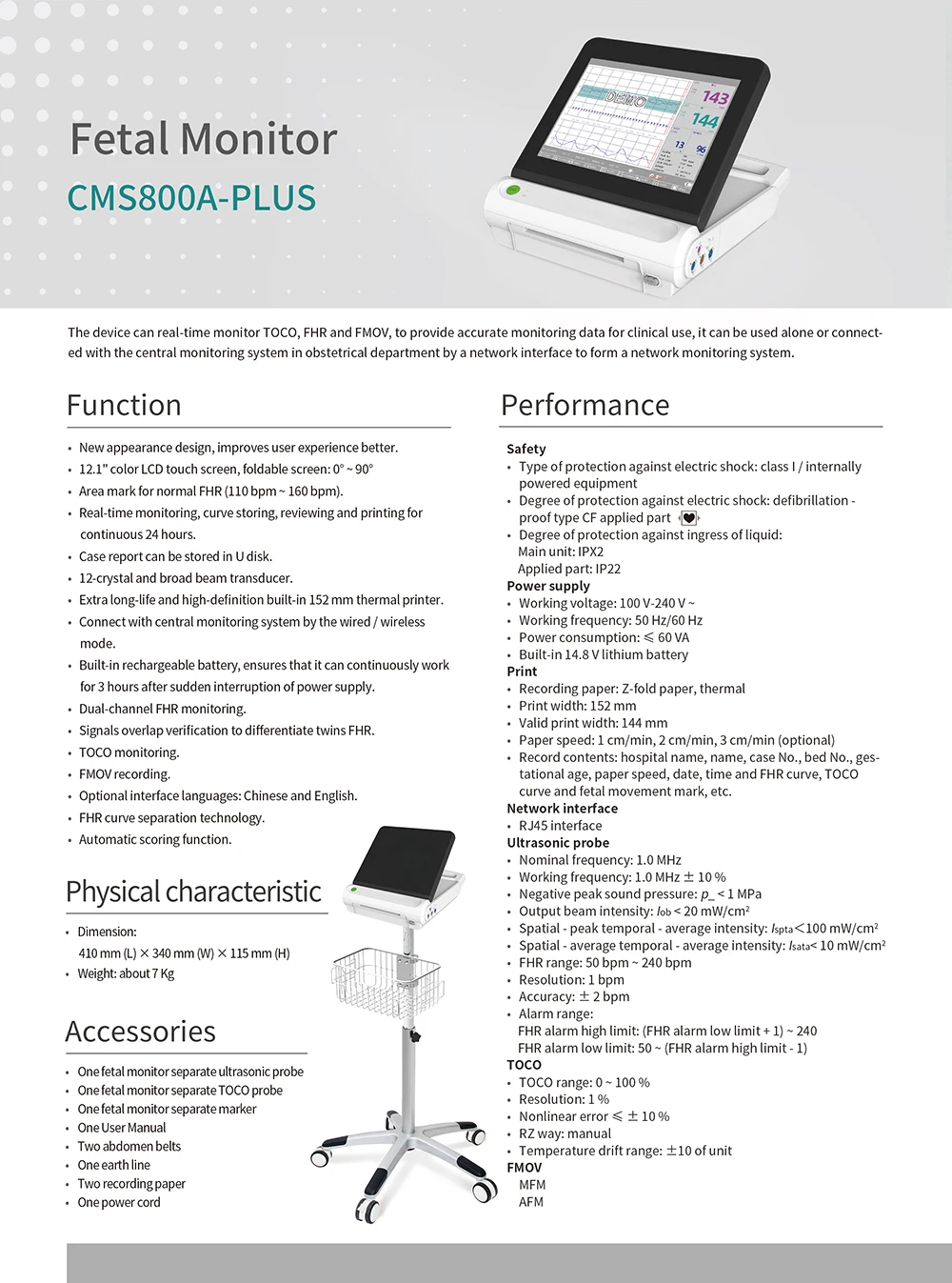

Product Description
Introduction
The device can real-time monitor TOCO, FHR and FMOV, to provide accurate monitoring data for clinical use, it can be used alone or
connected with the central monitoring system in obstetrical department by a network interface to form a network monitoring system.
Function
●New appearance design, improves user experience better.
●12.1" color LCD touch screen, foldable screen: 0° ~ 90°
●Area mark for normal FHR (110 bpm ~ 160 bpm).
●Dual-channel FHR monitoring.
●Signals overlap verification to differentiate twins FHR.
●TOCO monitoring.
●FMOV recording.
●Optional interface languages: Chinese and English.
●FHR curve separation technology.
●Automatic scoring function.
●Real-time monitoring, curve storing, reviewing and printing for continuous 24 hours.
●Case report can be stored in U disk.
●12-crystal and broad beam transducer.
●Extra long-life and high-definition built-in 152 mm thermal printer.
●Connect with central monitoring system by the wired / wireless mode.
●Built-in rechargeable battery, ensures that it can continuously work for 3 hours after sudden interruption of power supply.
Performance
Safety
●Type of protection against electric shock: class I / internally powered equipment
●Degree of protection against electric shock: defibrillation - proof type CF applied part
●Degree of protection against ingress of liquid:
Main unit: IPX2
Applied part: IP22
Power supply
●Working voltage: 100 V-240 V ~
●Working frequency: 50 Hz/60 Hz
●Power consumption: ≤ 60 VA
●Built-in 14.8 V lithium battery
Print
●Recording paper: Z-fold paper, thermal
●Print width: 152 mm
●Valid print width: 144 mm
●Paper speed: 1 cm/min, 2 cm/min, 3 cm/min (optional)
●Record contents: hospital name, name, case No., bed No., gestational age, paper speed, date, time and FHR curve, TOCO curve and
fetal movement mark, etc.
Network interface
●RJ45 interface
Ultrasonic probe
Nominal frequency: 1.0 MHz
Working frequency: 1.0 MHz ± 10 %
Negative peak sound pressure: p_ < 1 MPa
Output beam intensity: Iob < 20 mW/cm2
Spatial - peak temporal - average intensity: Ispta＜100 mW/cm2
Spatial - average temporal - average intensity: Isata < 10 mW/cm2
FHR range: 50 bpm ~ 240 bpm
Resolution: 1 bpm
Accuracy: ± 2 bpm
Alarm range:
FHR alarm high limit: (FHR alarm low limit + 1) ~ 240
FHR alarm low limit: 50 ~ (FHR alarm high limit - 1)
TOCO
●TOCO range: 0 ~ 100 %
●Resolution: 1 %
●Nonlinear error ≤ ± 10 %
●RZ way: manual
●Temperature drift range: ±10 of unit
FMOV
●MFM
●AMF
Accessories
One fetal monitor separate ultrasonic probe
One fetal monitor separate TOCO probe
One fetal monitor separate marker
One User Manual
Two abdomen belts
One earth line
Two recording paper
One power cord
Physical characteristic
Dimension: 410 mm (L) × 340 mm (W) × 115 mm (H)
Weight: about 7 Kg
The device can real-time monitor TOCO, FHR and FMOV, to provide accurate monitoring data for clinical use, it can be used alone or
connected with the central monitoring system in obstetrical department by a network interface to form a network monitoring system.
Function
●New appearance design, improves user experience better.
●12.1" color LCD touch screen, foldable screen: 0° ~ 90°
●Area mark for normal FHR (110 bpm ~ 160 bpm).
●Dual-channel FHR monitoring.
●Signals overlap verification to differentiate twins FHR.
●TOCO monitoring.
●FMOV recording.
●Optional interface languages: Chinese and English.
●FHR curve separation technology.
●Automatic scoring function.
●Real-time monitoring, curve storing, reviewing and printing for continuous 24 hours.
●Case report can be stored in U disk.
●12-crystal and broad beam transducer.
●Extra long-life and high-definition built-in 152 mm thermal printer.
●Connect with central monitoring system by the wired / wireless mode.
●Built-in rechargeable battery, ensures that it can continuously work for 3 hours after sudden interruption of power supply.
Performance
Safety
●Type of protection against electric shock: class I / internally powered equipment
●Degree of protection against electric shock: defibrillation - proof type CF applied part
●Degree of protection against ingress of liquid:
Main unit: IPX2
Applied part: IP22
Power supply
●Working voltage: 100 V-240 V ~
●Working frequency: 50 Hz/60 Hz
●Power consumption: ≤ 60 VA
●Built-in 14.8 V lithium battery
●Recording paper: Z-fold paper, thermal
●Print width: 152 mm
●Valid print width: 144 mm
●Paper speed: 1 cm/min, 2 cm/min, 3 cm/min (optional)
●Record contents: hospital name, name, case No., bed No., gestational age, paper speed, date, time and FHR curve, TOCO curve and
fetal movement mark, etc.
Network interface
●RJ45 interface
Ultrasonic probe
Nominal frequency: 1.0 MHz
Working frequency: 1.0 MHz ± 10 %
Negative peak sound pressure: p_ < 1 MPa
Output beam intensity: Iob < 20 mW/cm2
Spatial - peak temporal - average intensity: Ispta＜100 mW/cm2
Spatial - average temporal - average intensity: Isata < 10 mW/cm2
FHR range: 50 bpm ~ 240 bpm
Resolution: 1 bpm
Accuracy: ± 2 bpm
Alarm range:
FHR alarm high limit: (FHR alarm low limit + 1) ~ 240
FHR alarm low limit: 50 ~ (FHR alarm high limit - 1)
TOCO
●TOCO range: 0 ~ 100 %
●Resolution: 1 %
●Nonlinear error ≤ ± 10 %
●RZ way: manual
●Temperature drift range: ±10 of unit
FMOV
●MFM
●AMF
Accessories
One fetal monitor separate ultrasonic probe
One fetal monitor separate TOCO probe
One fetal monitor separate marker
One User Manual
Two abdomen belts
One earth line
Two recording paper
One power cord
Physical characteristic
Dimension: 410 mm (L) × 340 mm (W) × 115 mm (H)
Weight: about 7 Kg
Company Profile
FAQ
Q: Are you manufacturer or reseller?
A: We are manufacturer who has more than 28 year's experience on research & design, production and sale.
Q: Where your factory located in? How can I visit it?
A: Our factory located in Qinhuangdao city, Hebei Province, China, about 2 hours by train from Beijing. We warmly welcome for your
visiting!
Q: Do you support customization? such as provide box according to my design or print my logo on the gift box or device?
A: Of course, we support OEM/ODM service. we can help design box according to your requirement. Moreover, we can also make mould
to provide device with different appearance.
Q: How can I place an order?
A: We support Alibaba trade assurance order; you can place order directly or contact us to draft order and send you payment link;
we can also issue invoice for you to pay by TT/Paypal/LC/Western Union etc.
Q: How many days for shipping after payment done?
A: Sample order will be sent within 2 days after receiving sample fee. 3-20 days for general order according to the quantity.
Customized order need mutual negotiation.
A: We are manufacturer who has more than 28 year's experience on research & design, production and sale.
Q: Where your factory located in? How can I visit it?
A: Our factory located in Qinhuangdao city, Hebei Province, China, about 2 hours by train from Beijing. We warmly welcome for your
visiting!
Q: Do you support customization? such as provide box according to my design or print my logo on the gift box or device?
A: Of course, we support OEM/ODM service. we can help design box according to your requirement. Moreover, we can also make mould
to provide device with different appearance.
Q: How can I place an order?
A: We support Alibaba trade assurance order; you can place order directly or contact us to draft order and send you payment link;
we can also issue invoice for you to pay by TT/Paypal/LC/Western Union etc.
Q: How many days for shipping after payment done?
A: Sample order will be sent within 2 days after receiving sample fee. 3-20 days for general order according to the quantity.
Customized order need mutual negotiation.
Похожие товары

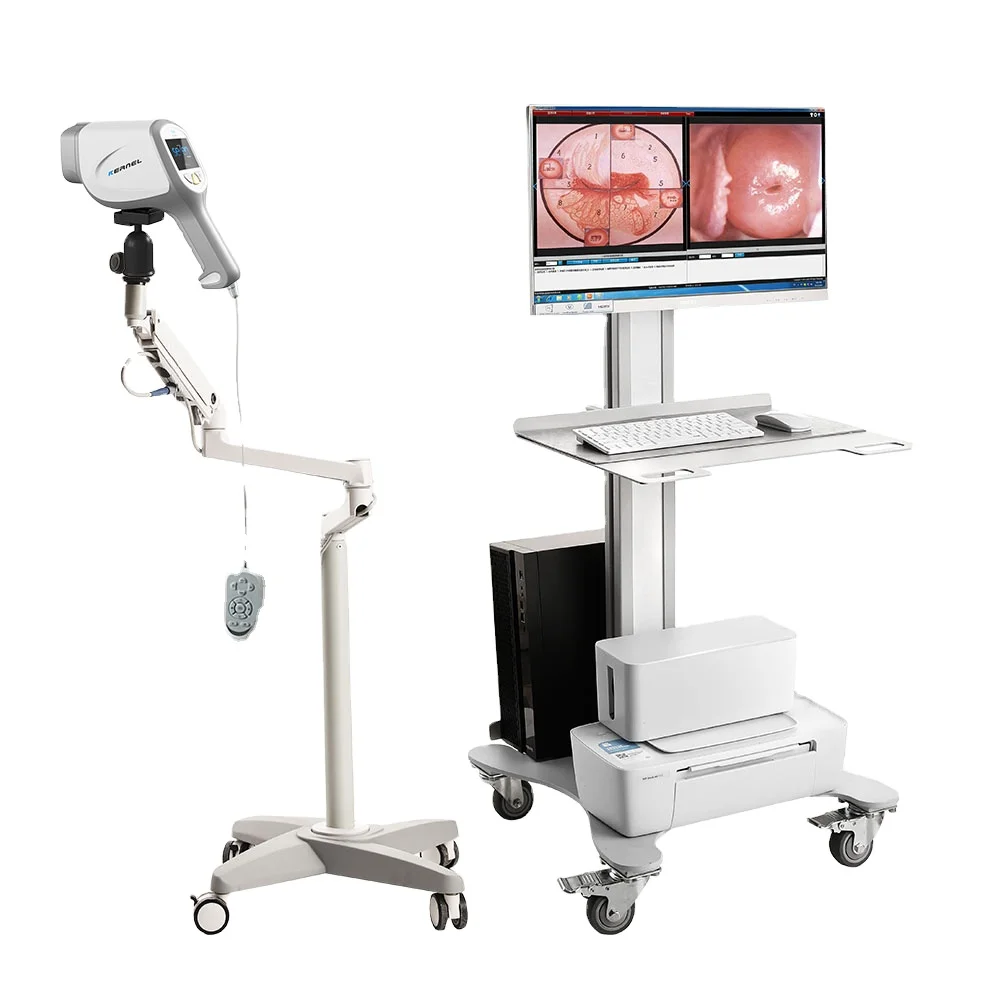

Медицинский цифровой гинекологический кольпоскоп HD видео вагинальная камера для гинекологии влагалища эндоскоп
176 333,44 ₽ - 275 521,00 ₽

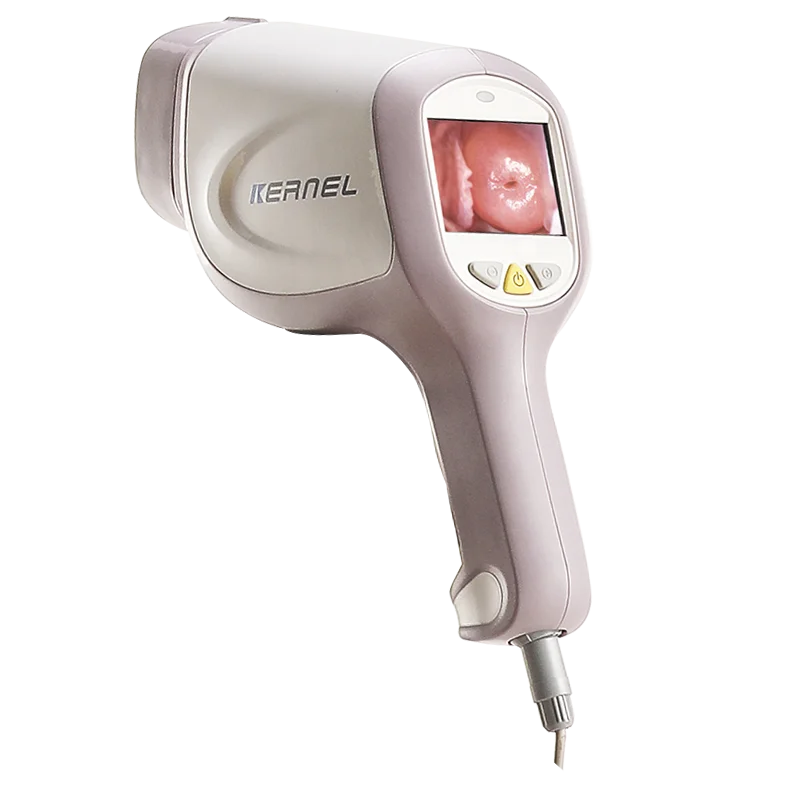

Цифровой портативный кольпоскоп HD видео вагинальная камера для гинекологического обследования KN-2200I(H)
253 479,32 ₽ - 385 729,40 ₽

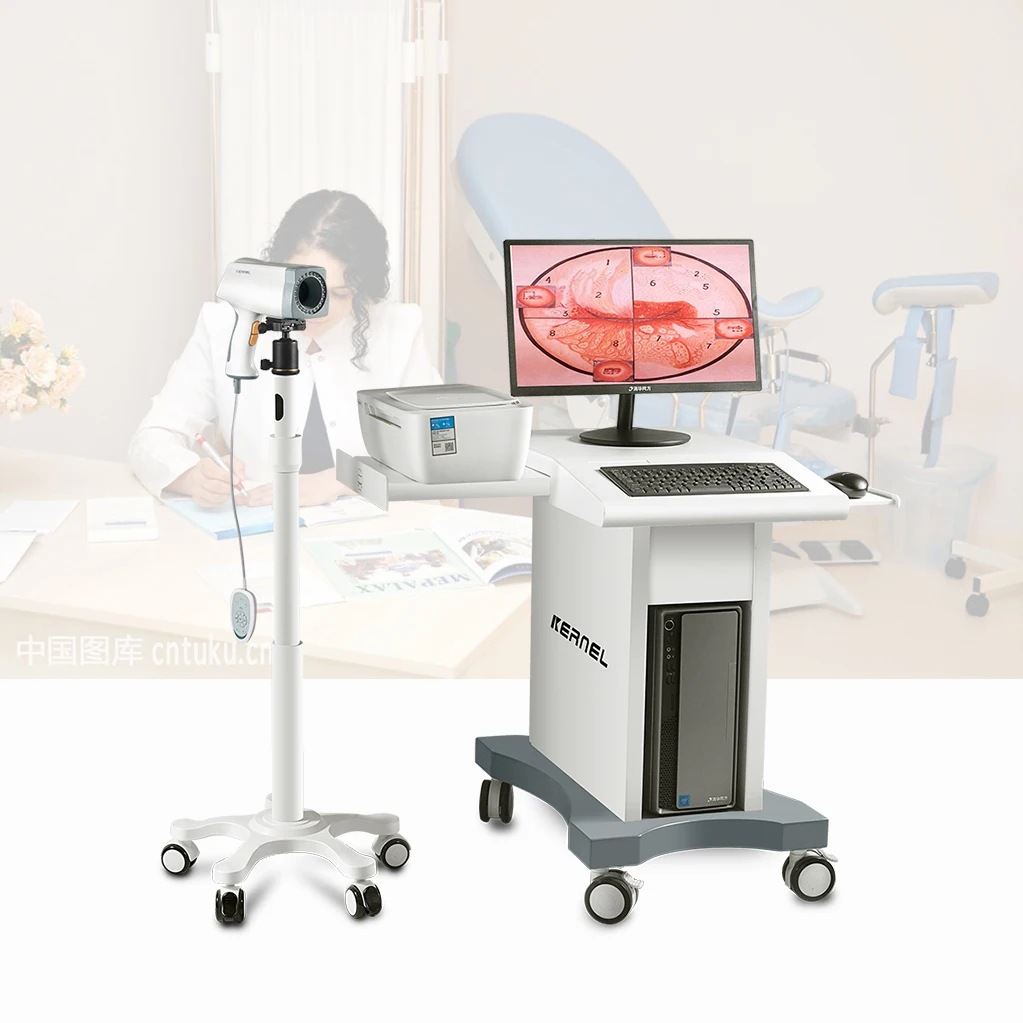

Видео кольпоскоп камера для кольпоскопии гинекологический KN-2200IH
253 479,32 ₽ - 385 729,40 ₽
Цифровой портативный кольпоскоп HD видео вагинальная камера для гинекологического обследования KN-2200I(H)
253 479,32 ₽ - 385 729,40 ₽

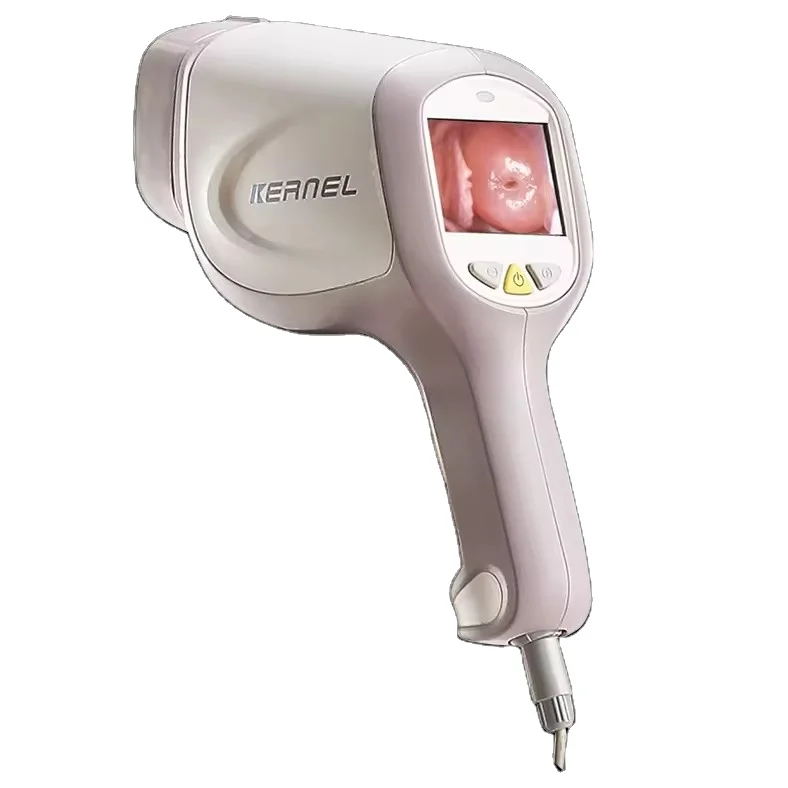

Медицинский портативный эндоскоп цифровой кольпоскоп для KN-2200I гинекологии
253 479,32 ₽ - 385 729,40 ₽
Медицинский цифровой гинекологический кольпоскоп HD видео вагинальная камера для гинекологии влагалища эндоскоп
176 333,44 ₽ - 275 521,00 ₽

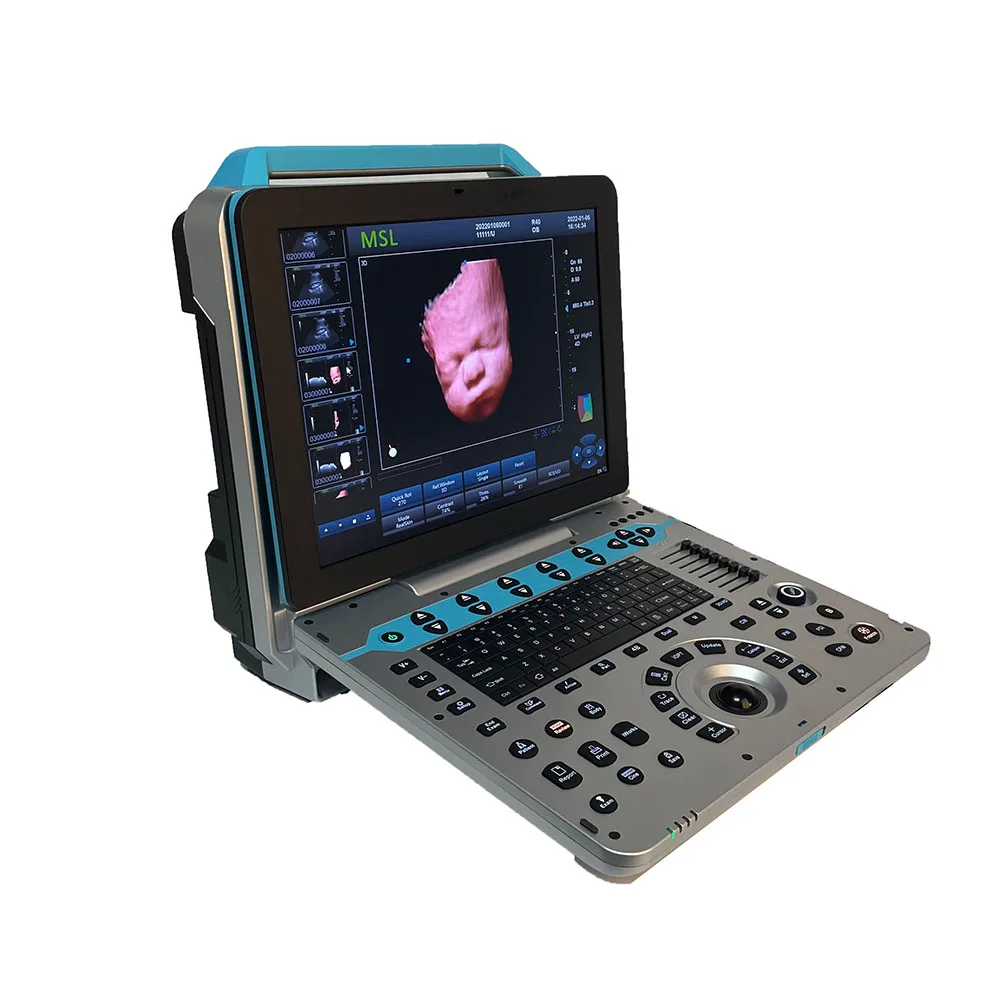

Давэй портативный медицинский ecografo 4D/5D Цветной Допплер DW-P5 ультразвуковой аппарат с зонд линейного массива
