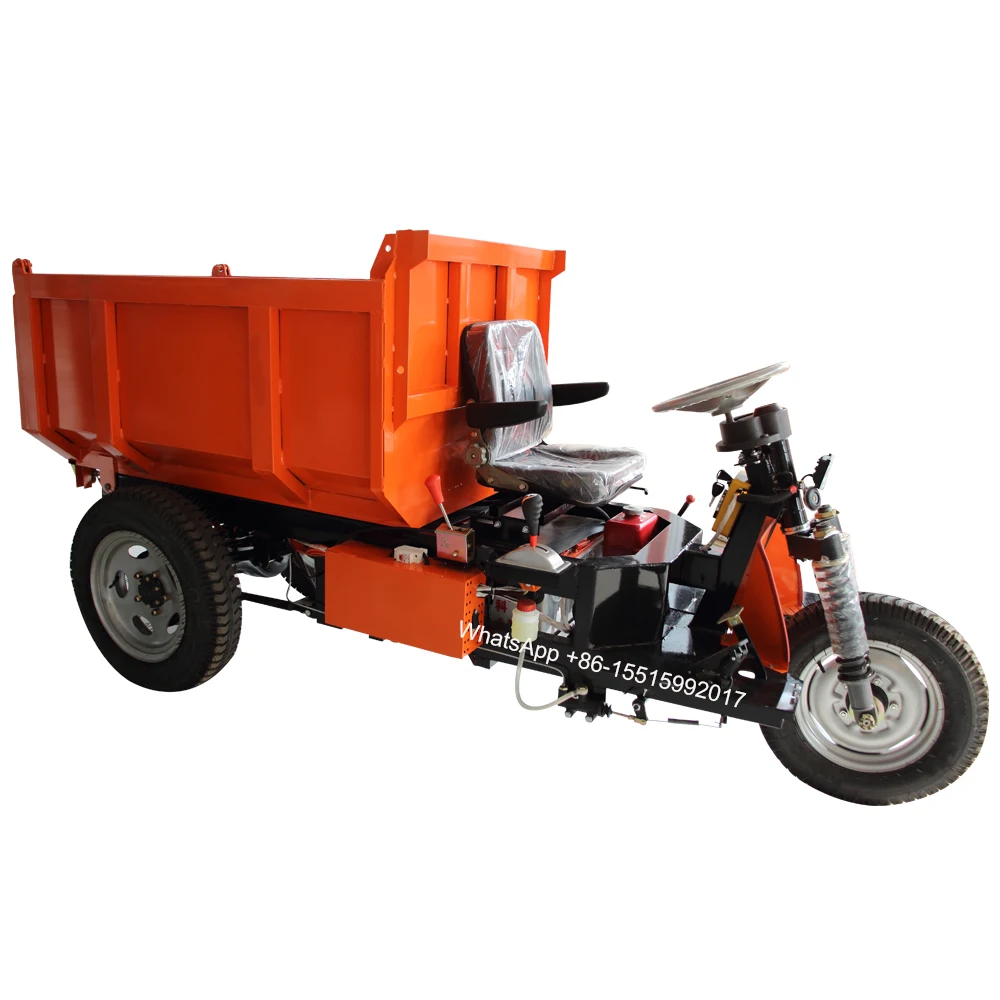

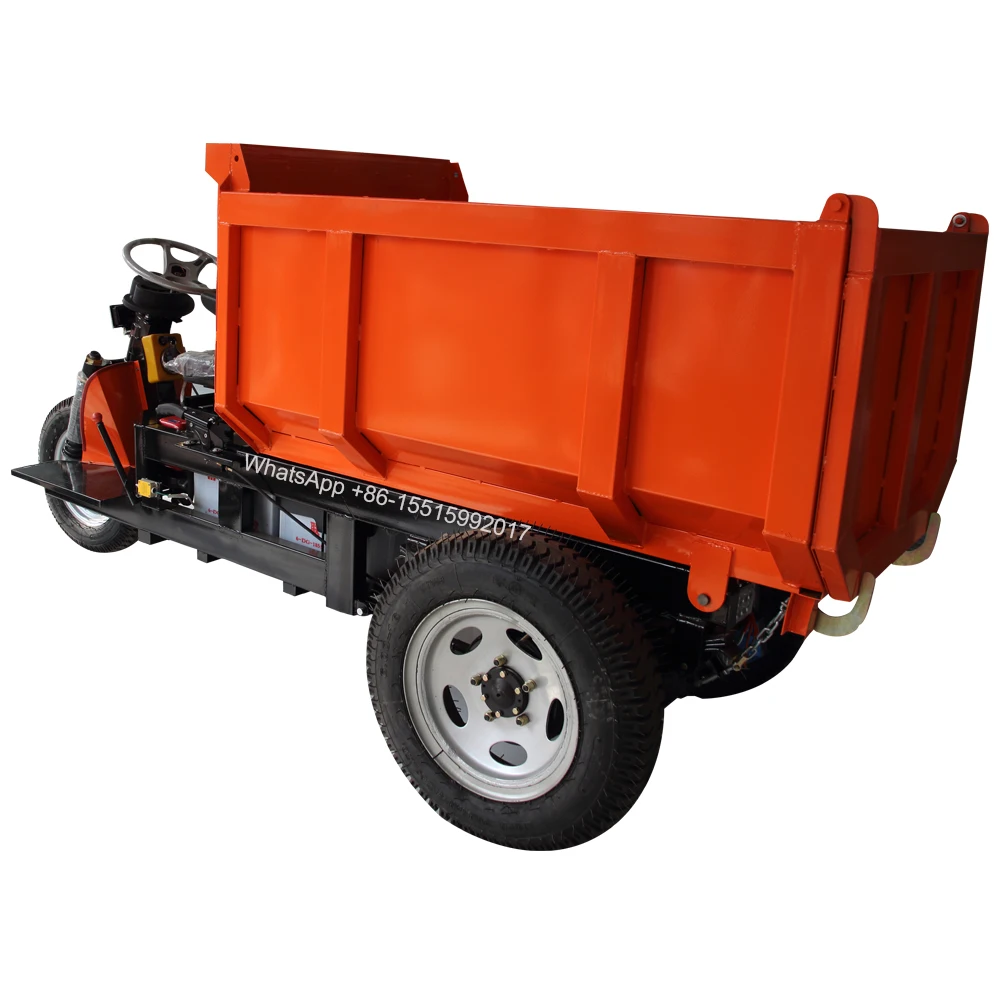

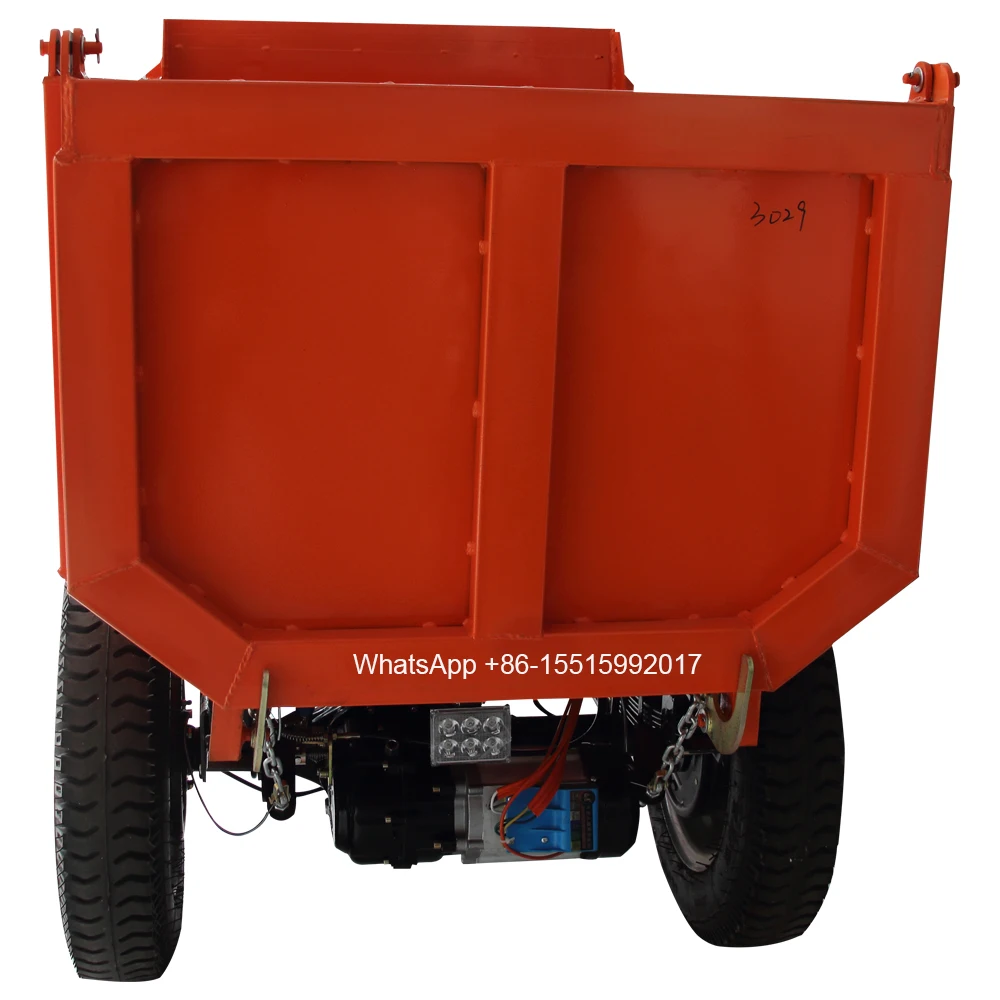

LK200 мини самосвал гидравлический самосвал Tata цена для Непала
- Категория: >>>
- Поставщик: Zhengzhou Lianke Machinery Manufacture Co. Ltd.
Сохранить в закладки 1601010220478:
Описание и отзывы
Характеристики
Product Descriptions
Good supplier electric mini dumper,lianke brand customized hydraulic mini dumper loader for agents

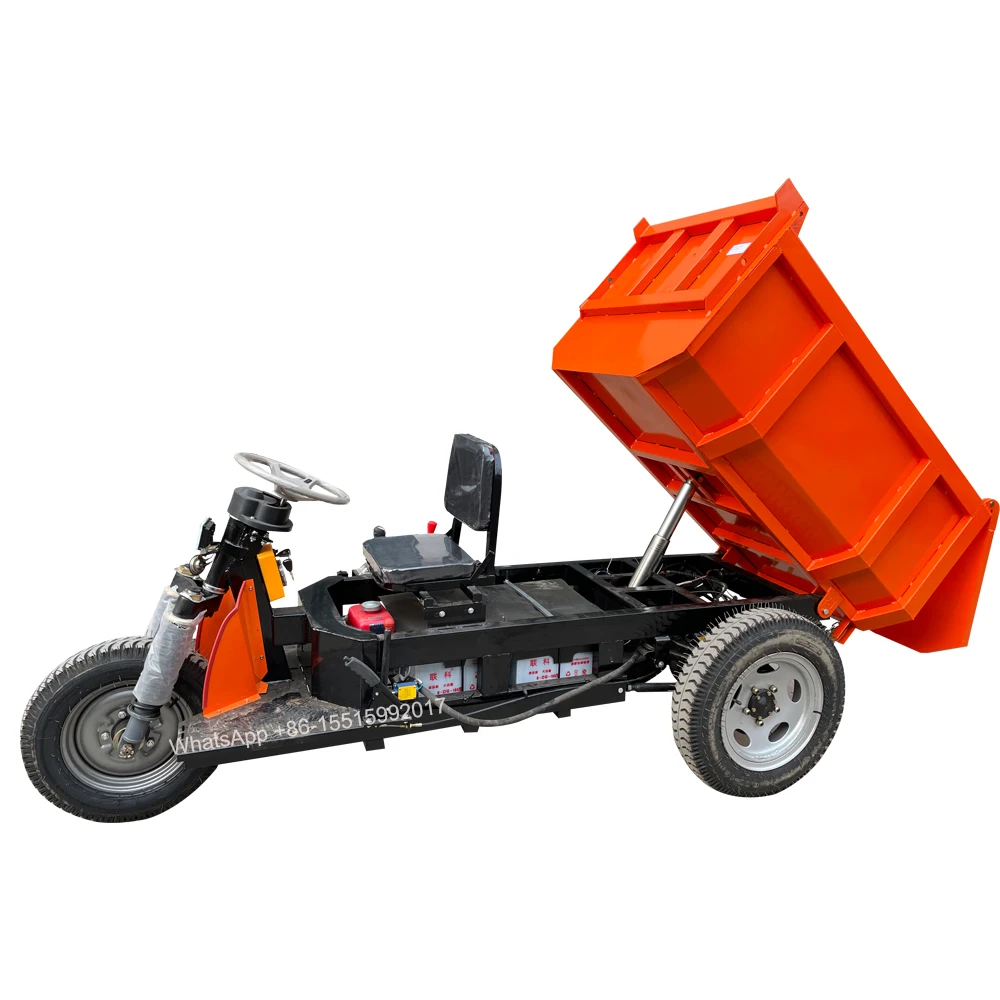

Our company is Zhengzhou Lianke Machinery Manufacturing Co., Ltd.,We are Alibaba's real -certified factory, The following vehicle is customized by customer. This LK200E electric dumper Equip with 72V4000W motor and use direct coupling way rear axle without chains
LK200E electric dumper load 2000kg | ||||||
Loading capacity | 2000kg | Overall size | 3100*1150*1500mm | |||
Hopper size | 1600*1150*600mm | Mining tire | 5.00-14/6.00-16 Brand：Huanyan | |||
Driving type | Direct coupling way rear axle without chains | Driving motor | 72V4000W (Brushless motor) | |||
Lifting motor | 72V1000W | Battery | Lead-acid (water) battery, 40kg/piece | |||
Battery quantity | 6pcc*12V=72V | Brake | Oil brake | |||
Hopper thickness | 5mm | Front shock absorption type | Single row large shock absorber(SHIFENG) | |||
Detailed Images

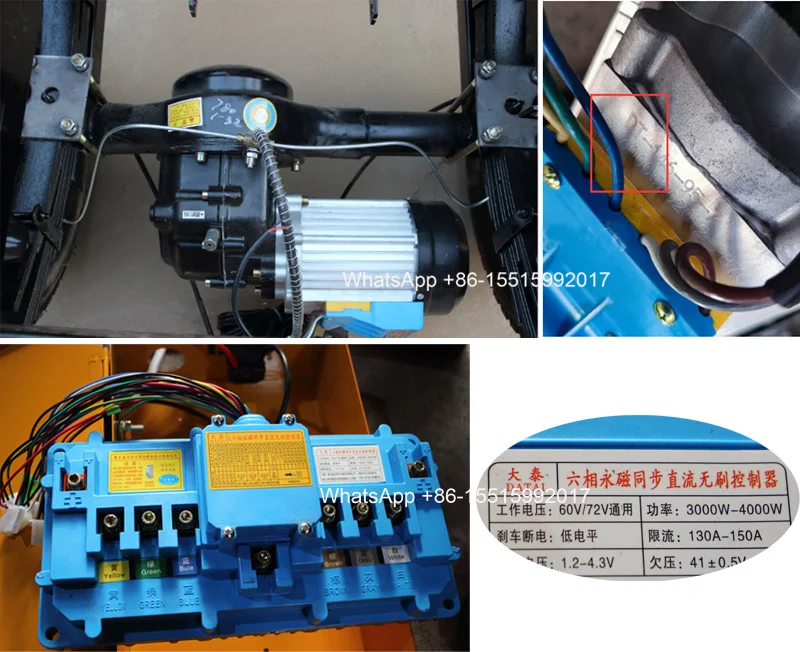

Direct coupling way rear axle and motor
The motor directly acts on the rear axle, without the friction of the chain, high speed, and configured high and low speed gear, strong climbing ability.
Configure 72V4000W brushless motor and controller ,more powerful.
Brand:DATAI

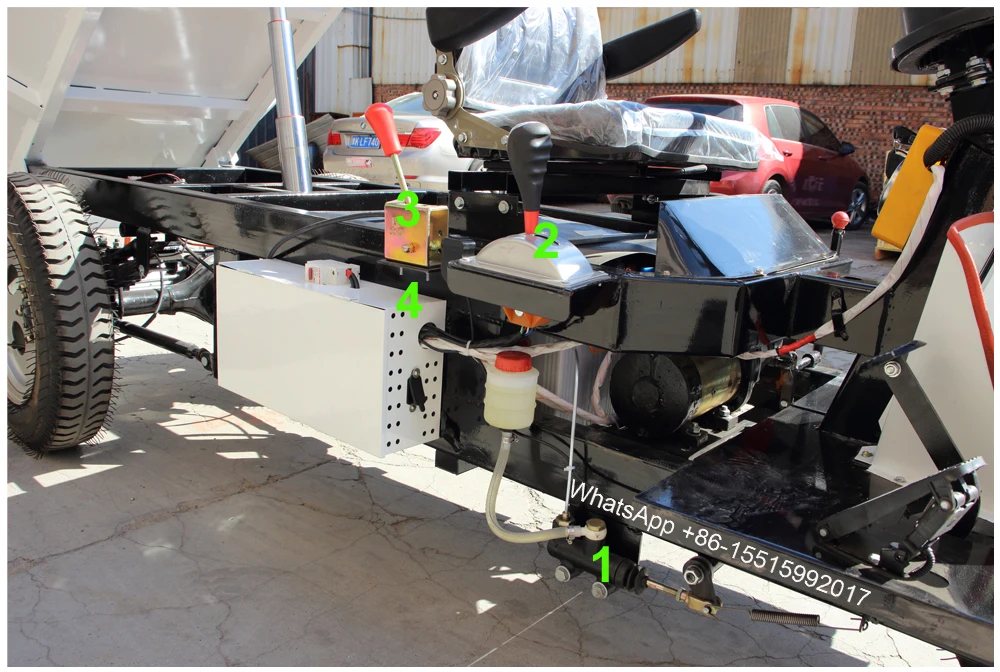

Brake and speed
1.Configure oil brake system，when the vehicle goes downhill, the braking ability is better
2.Configure brushless motor,use the chrome -plated rod
3.Configure direct coupling way rear axle, it has High speed, strong climbing ability
4.Point on the controller box is conducive to the controller heat dissipation
3.Configure direct coupling way rear axle, it has High speed, strong climbing ability
4.Point on the controller box is conducive to the controller heat dissipation

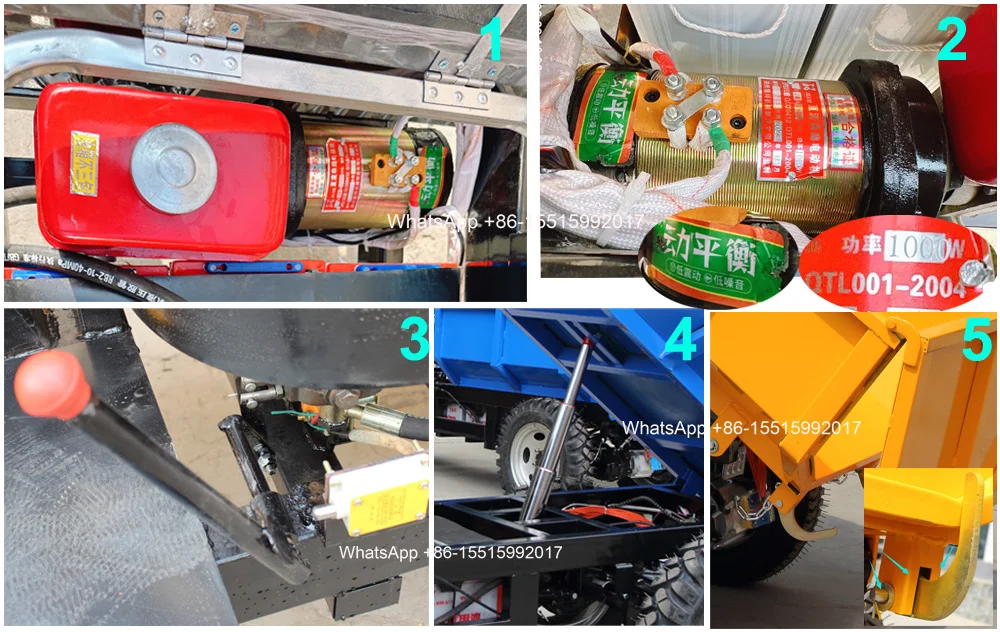

Hydraulic system
1.Hydraulic fuel tank and oil pump motor are installed under the seat.
2.Lifting Motor;1000W, we use dynamic balance （动平衡）motor, which makes the vehicle low noise and low vibration when unloading.
3.Lifting rod,A small ball is added on the lifting rod, it uses a two-section design, which is more comfortable and labor-saving when using.

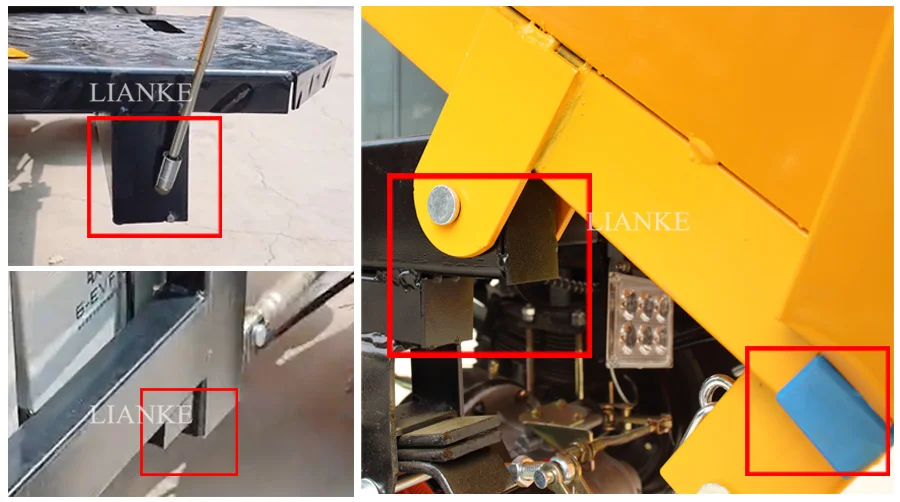

4 and 5,unloading goods.We use chrome-plated hydraulic oil cylinder to make the lifting more smoother.Both the divergence hooks are fixed to prevent anti -hooks
2.Lifting Motor;1000W, we use dynamic balance （动平衡）motor, which makes the vehicle low noise and low vibration when unloading.
3.Lifting rod,A small ball is added on the lifting rod, it uses a two-section design, which is more comfortable and labor-saving when using.
4 and 5,unloading goods.We use chrome-plated hydraulic oil cylinder to make the lifting more smoother.Both the divergence hooks are fixed to prevent anti -hooks

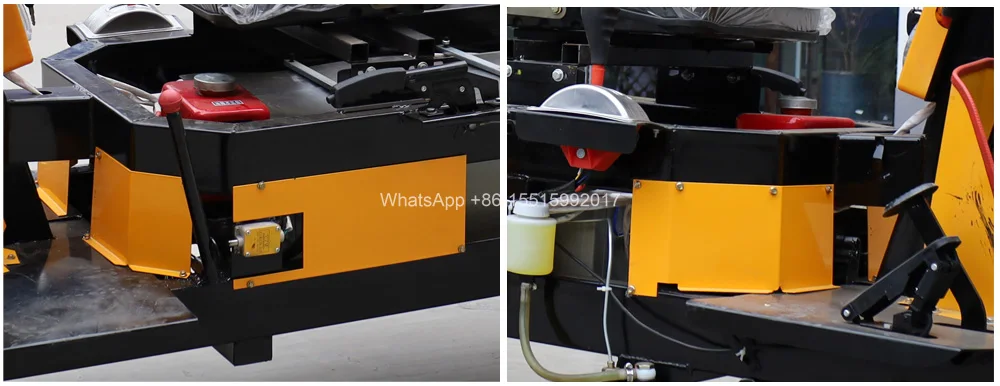

Oil pump for closed processing
Some customers reported that there is a lot of dust and humidity in the mining area, which often adheres to the outer surface of the oil pump, so that the dumper looks dirty. in 2023 ,we start to make improvement.please check the picture below.

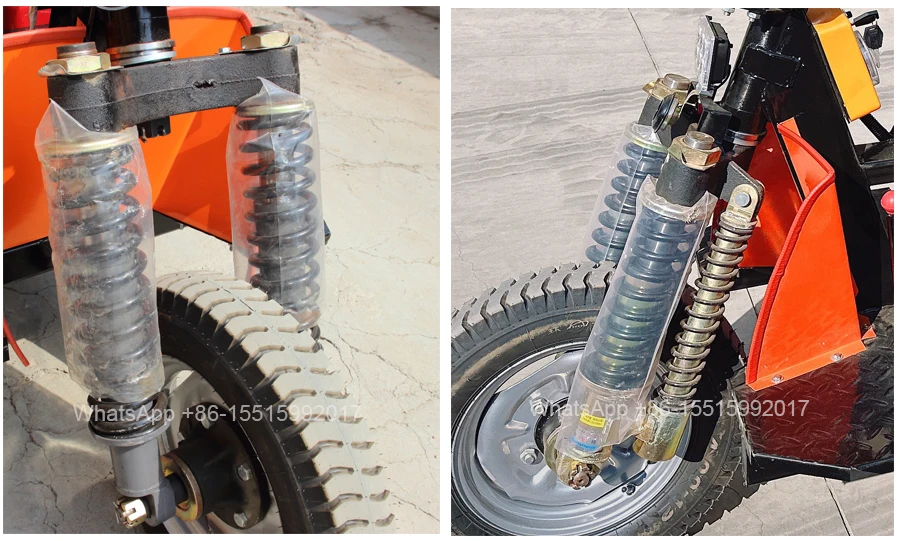

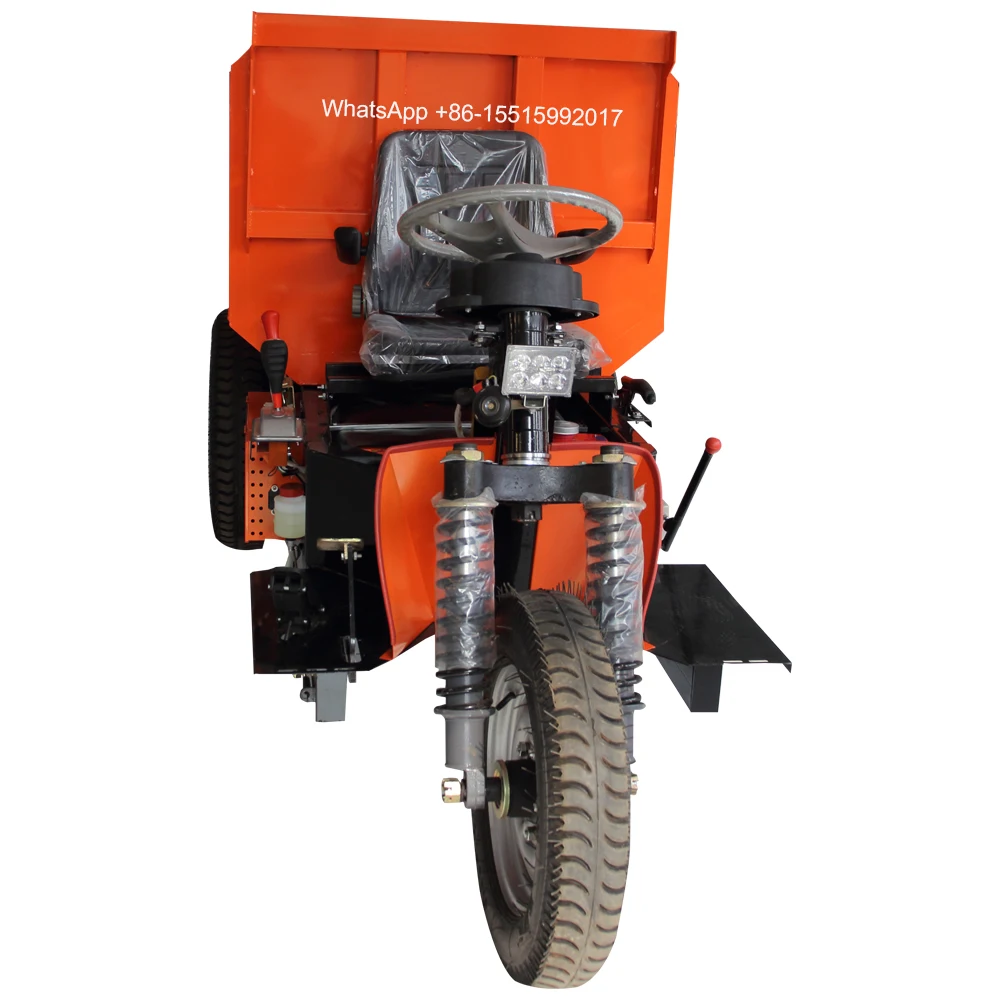

Front shock absorption
On the left is the standard configuration of the LK200E electric dumper, which uses a single row of large shock absorbers.
On the right are optional configurations that use dual row shock absorbers.

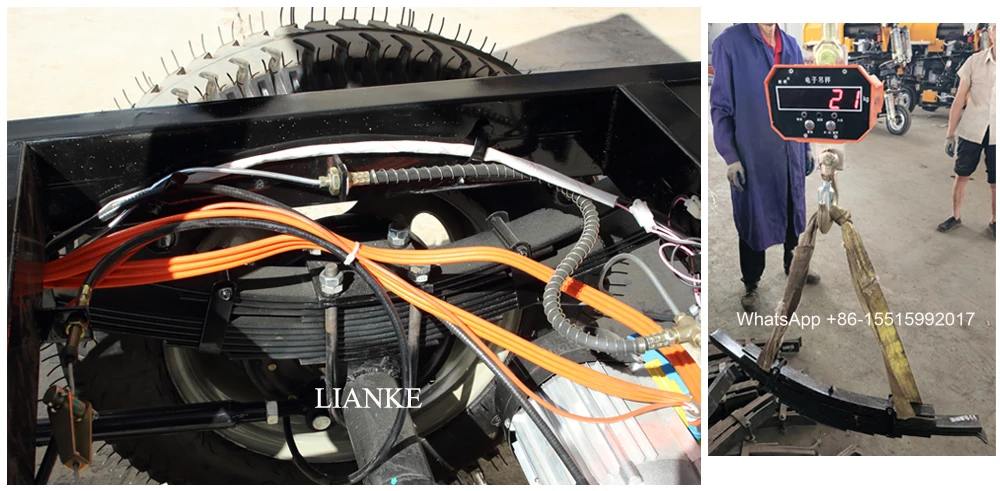

Spring steel plate updated to 21kg
We use thickened and width spring Spring Steel Plate, and the weight is 21kg, The Bearing Capacity is Stronger, it is not easy to be crushed, and the shock action is better.

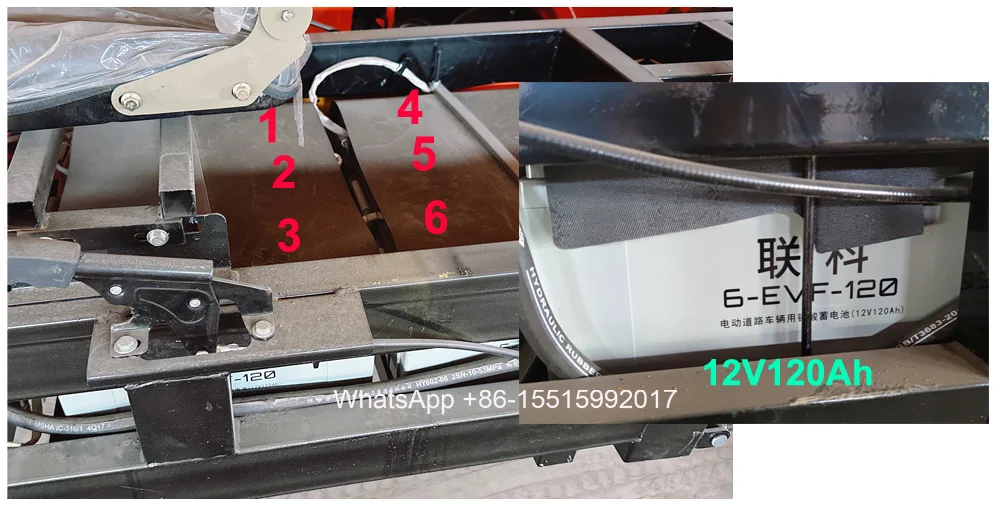

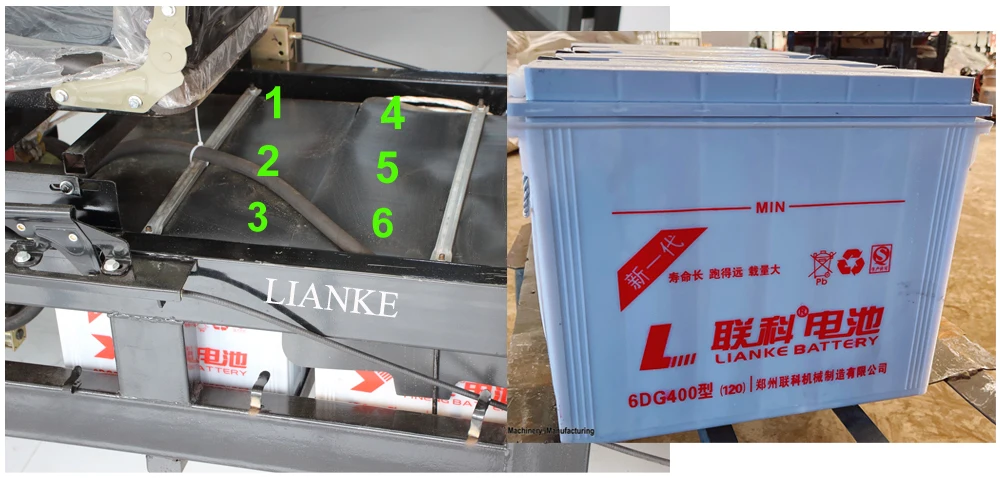

Battery
Standard battery: Lead-acid batteries(Water battery/Liquid battery) ,one piece weight is 40kg ,and 6 pieces batteries are used,total is 72V.
Optional battery:Dry battery,Suitable for high -altitude or cold areas,the dry battery we have 12V80AH ,12V100Ah and 12V120Ah,and the price are different.

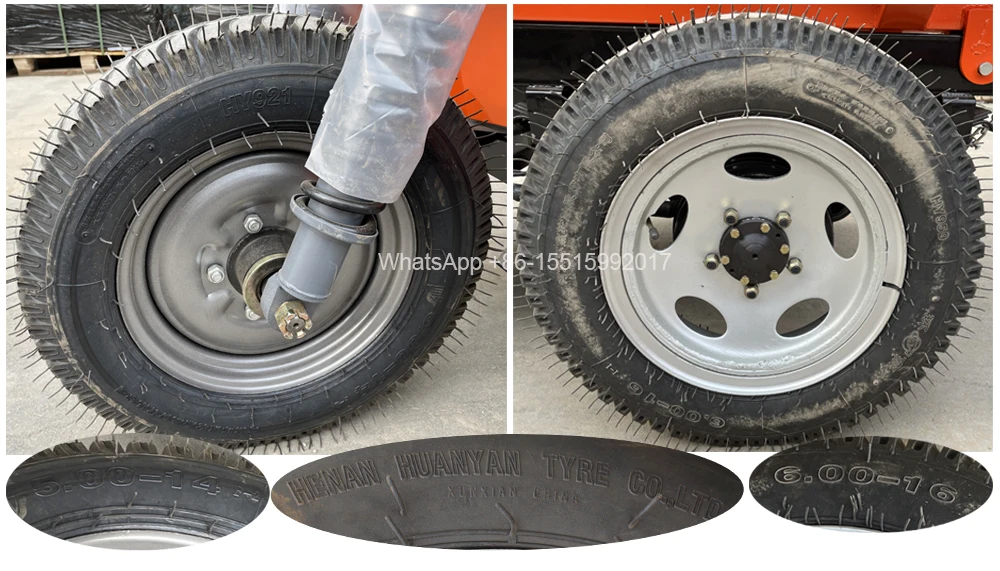

Mining tire
Front tire:5.00-14
Rear tire:6.00-16 .large tires can be customized ,such as 6.50-16.7.00-16
Brand:HUANYAN

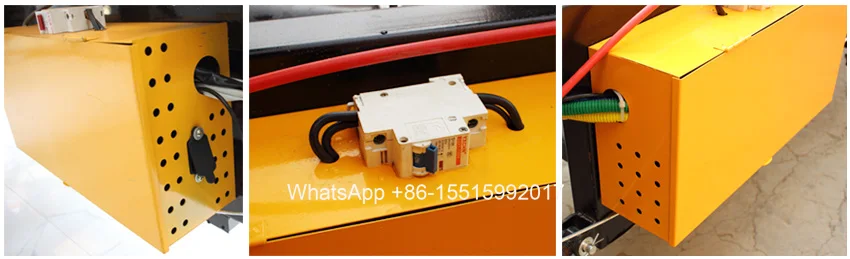

Controller box and Air Switch
We have drilled holes in the controller box to prevent the controller from heating up,Air switches are used on vehicles, and when the vehicle is overused, the power supply will automatically disconnect to avoid damage to electrical components on the vehicle.

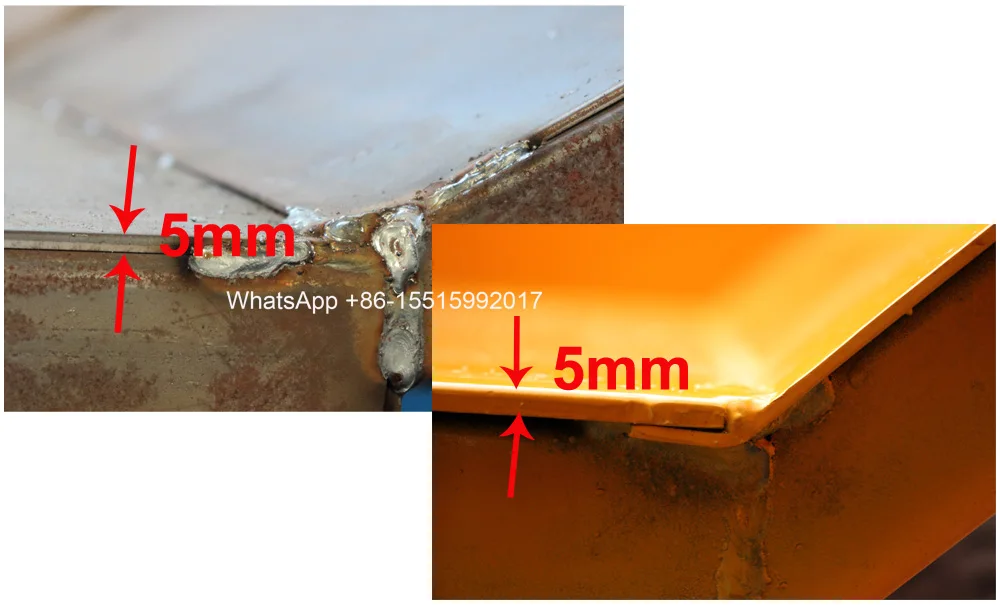

The thickness of the bottom plate hopper
The standard thickness of the bottom plate is 5mm,it is enough for using in the mine ,But if your dump truck needs to be transferred large, the sharp stones or materials are dropped into the vehicle's hopper from the high place, you can also customize the thicker bottom plate

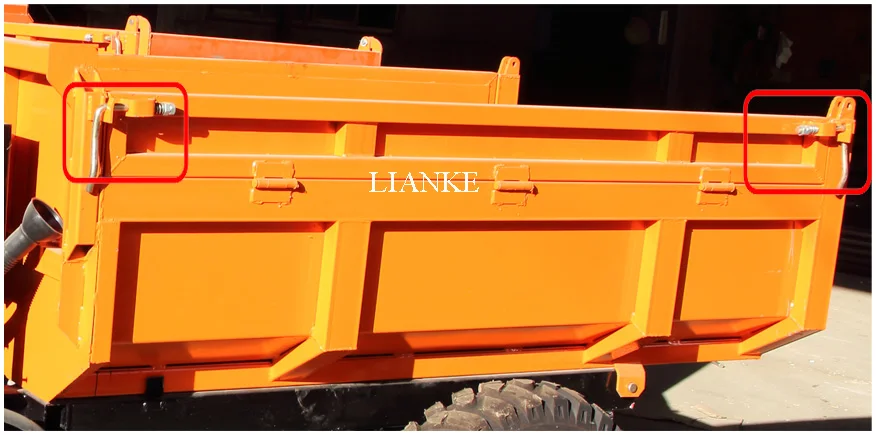

Hoppers of LK200 and LK270 can be used with hinges.
Both the hopper of the LK200 and the LK270 can be used with the union, so that when using the artificial material, the harm can be opened, the hopper height is reduced can save manpower.
This is a customized configuration, which requires additional costs.
This is a customized configuration, which requires additional costs.

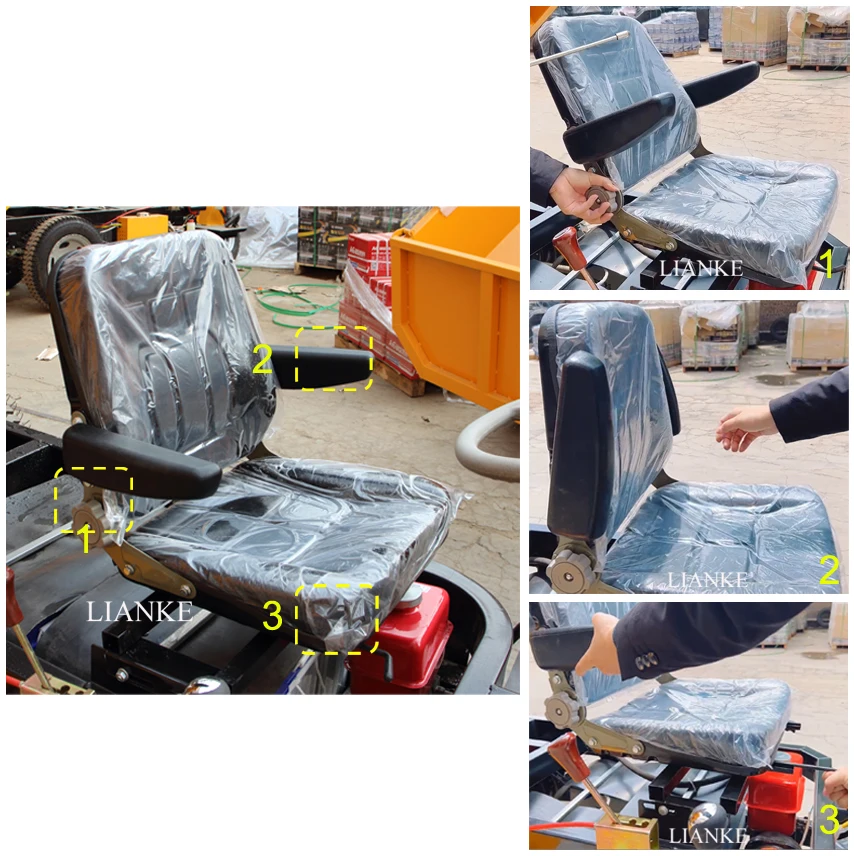

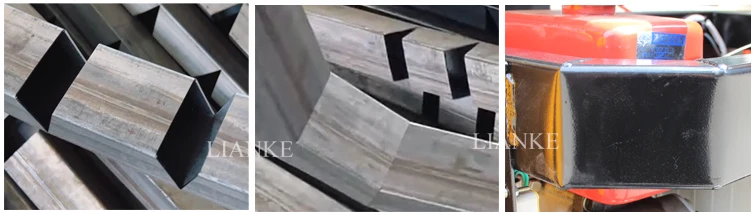

Equip with Luxury seats and The tail of the frame is sealed
The position of the seat, the backrest of the seat, and the handle of the seat can all be adjusted.
The tail of the frame is sealed, used in a humid environment, it is not easy to rust
Related Product

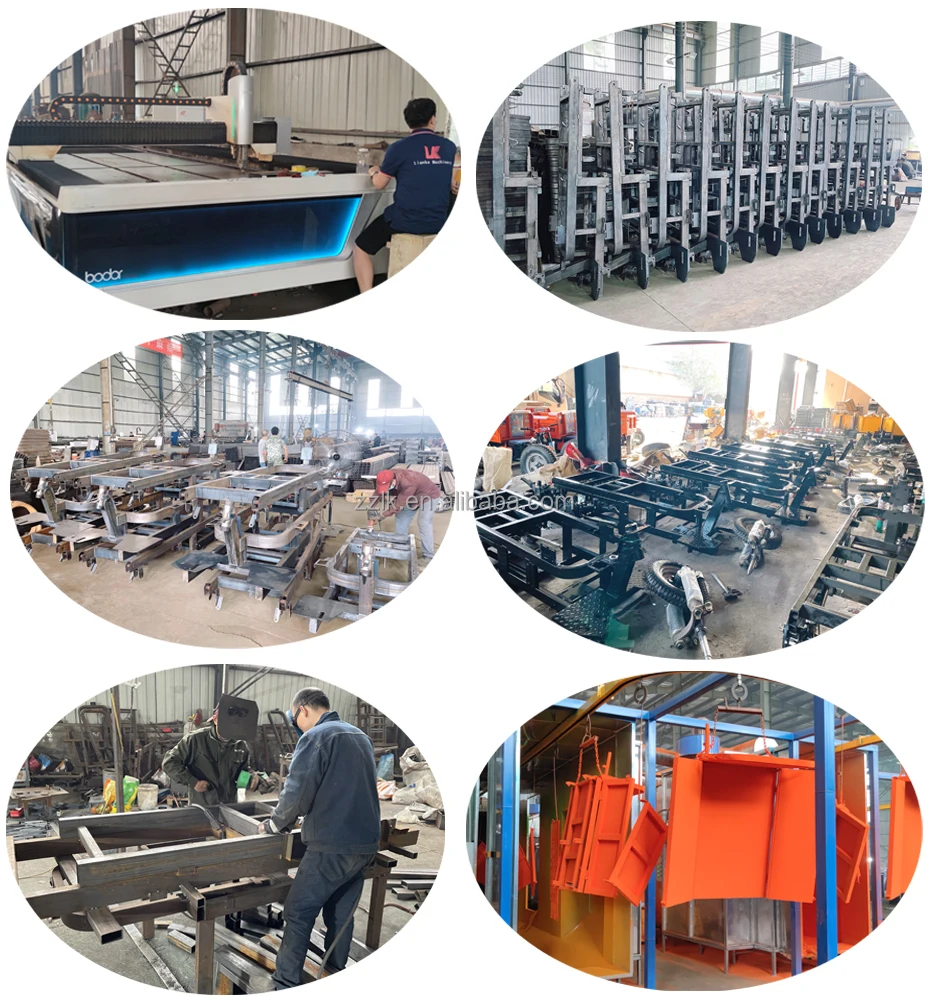

Workshop show

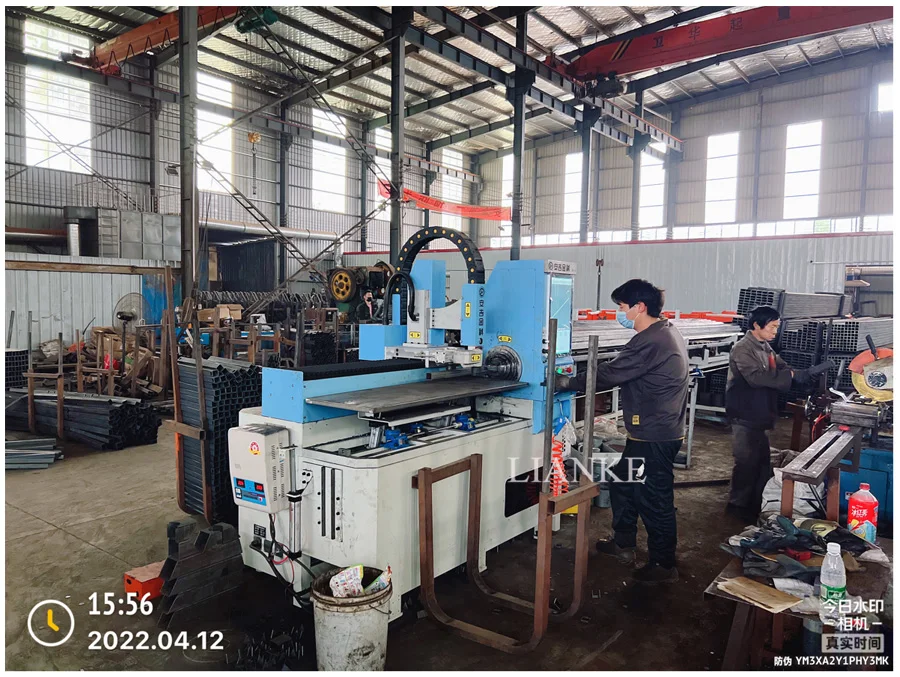

1.Laser cutting machine and CNC cutting machine production line
Laser cutting is more precise, and each frame will be produced exactly the same without any errors. Different frames and bodies of the same model can be used with each other.

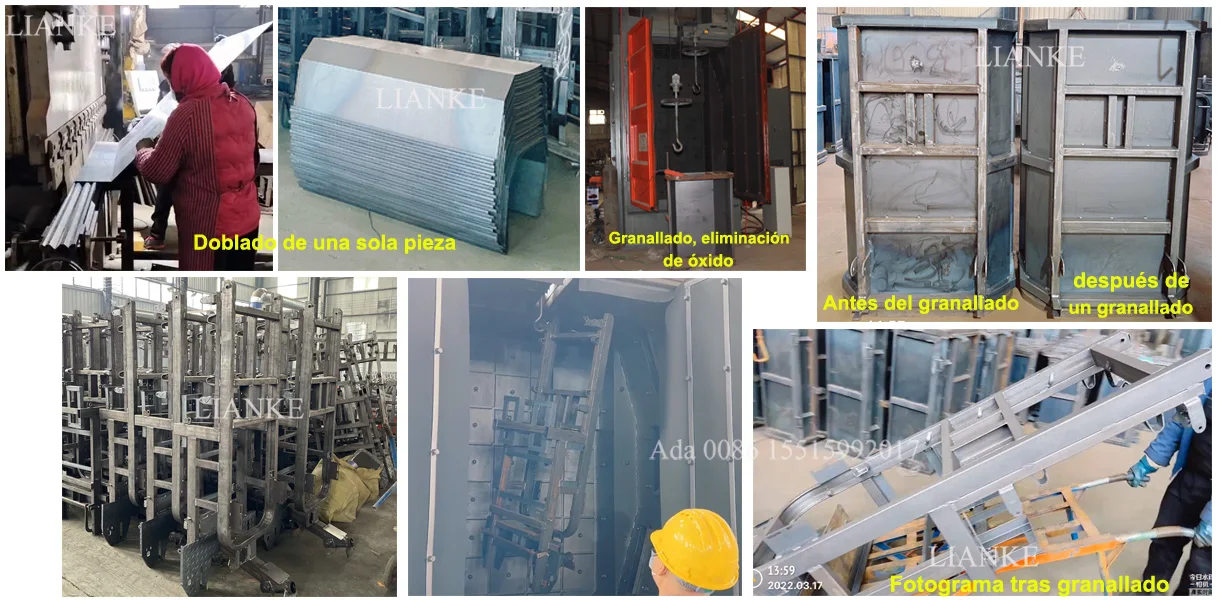

2.Integrated bending machine and shot blasting machine production
One-piece bending cargo box.
The cargo box and the produced frame enter the shot blasting machine for rust removal.
The cargo box and the produced frame enter the shot blasting machine for rust removal.

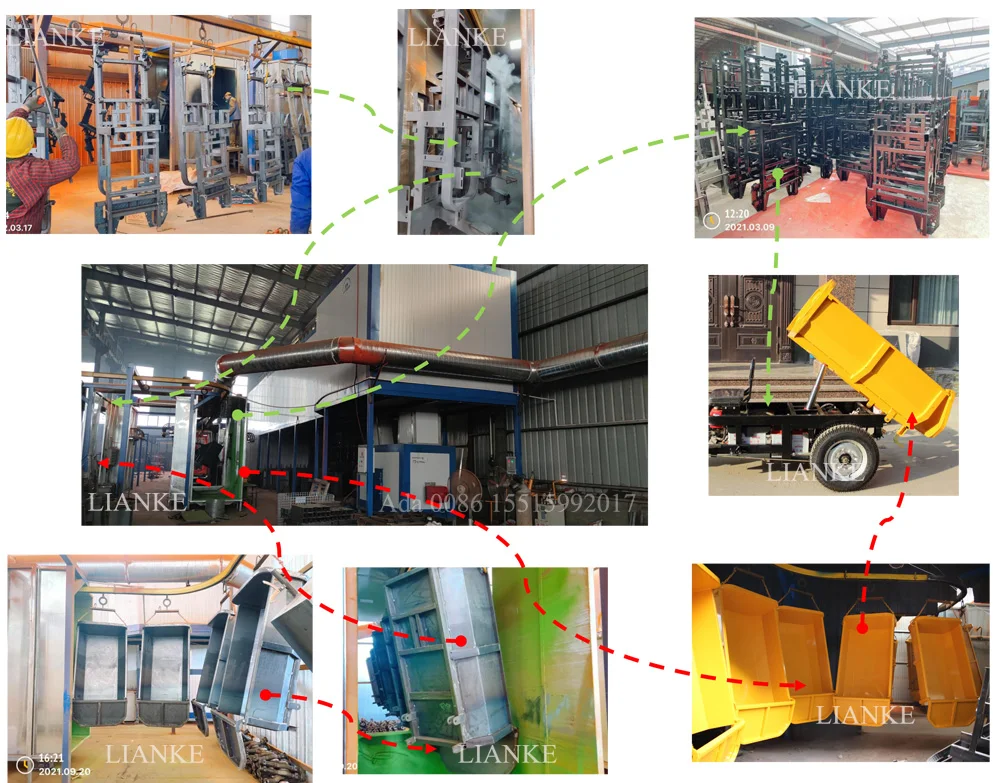

3.Spray and paint production line
The frame and cargo box after being derusted by the shot blasting machine will enter the plastic spraying production line.
Different from the traditional spray painting, the workers will spray a layer of paint powder on the surface of the box board first, and then enter the paint baking room on the automatic line. At a high temperature of 200 degrees, the paint powder will melt , and then it will be very evenly attached to the box board and the frame, the paint surface is not easy to fall off, and it is very beautiful.
Different from the traditional spray painting, the workers will spray a layer of paint powder on the surface of the box board first, and then enter the paint baking room on the automatic line. At a high temperature of 200 degrees, the paint powder will melt , and then it will be very evenly attached to the box board and the frame, the paint surface is not easy to fall off, and it is very beautiful.

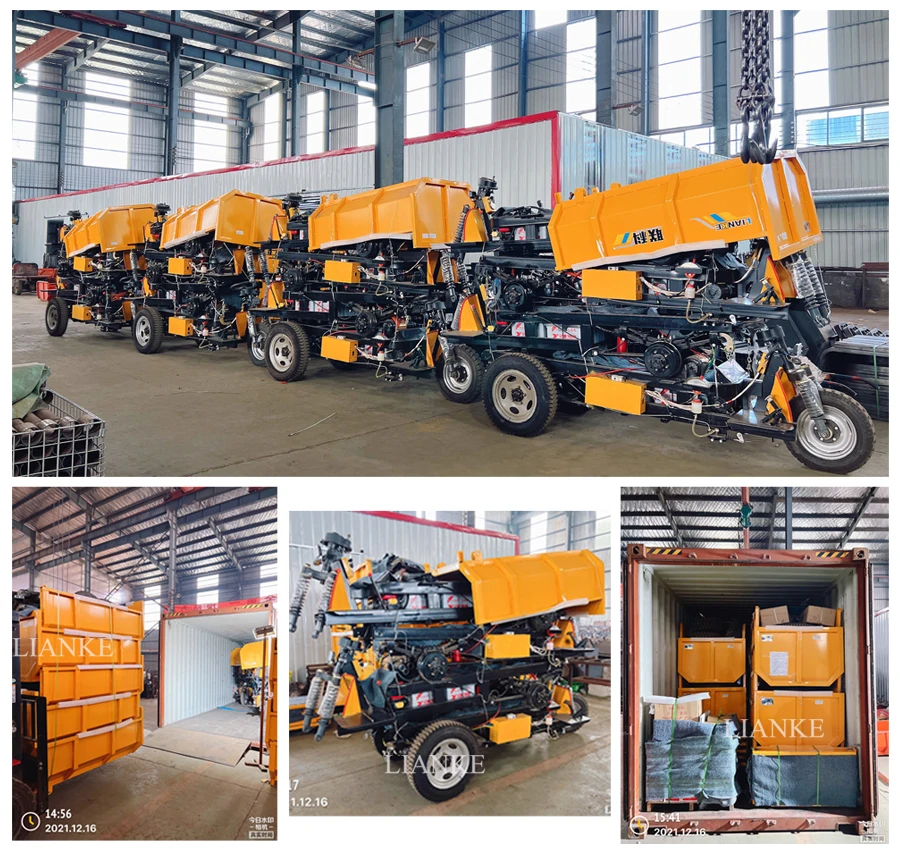

Packing & Delivery
LCL delivery
if it less than the container order , we will put it into the wooden box and deliver it to the destination port
FCL delivery
if it is container order ,electric truck dump will be loaded into containers naked and secured with wire ropes and rolling straps.a 40'HC can hold 20 units LK270 electric dumpers
if it less than the container order , we will put it into the wooden box and deliver it to the destination port
FCL delivery
if it is container order ,electric truck dump will be loaded into containers naked and secured with wire ropes and rolling straps.a 40'HC can hold 20 units LK270 electric dumpers
Our Company
Company and warranty
Zhengzhou lianke machinery manufacture .,LTD is a professional production and trade enterprise integrating development and production of slag scrapers and small dump trucks. Our products are exported to many countries in the world. Our wide range of mini dumpers, high quality, affordable price and stylish design, are widely used in mining and agriculture
Zhengzhou lianke machinery manufacture .,LTD is a professional production and trade enterprise integrating development and production of slag scrapers and small dump trucks. Our products are exported to many countries in the world. Our wide range of mini dumpers, high quality, affordable price and stylish design, are widely used in mining and agriculture
Warranty
(1)15 months' warranty, Calculated after the goods arrive at the destination port.(Warranty parts will be sent to you when your next order's container is shipped)For the dumper which is damaged under warranty (Non-human damage), Must provide dumper's VIN plate photos, and photos/videos of damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
(2)We will try our best effort to solve, whenever customers have a problem.
Contact Info
Ada Chen
Sales Rep. | Sales DepartmentWhatsApp/WeChat ID:
+86 15515992017
Alibaba Trade Manager ID: cn1511903408
If you are interested in the product, pls feel free to contact me.
Похожие товары
Китайский завод, строительный бульдозер, малогабаритный погрузчик, с заменой различных вспомогательных инструментов
290 608,22 ₽ - 420 731,30 ₽

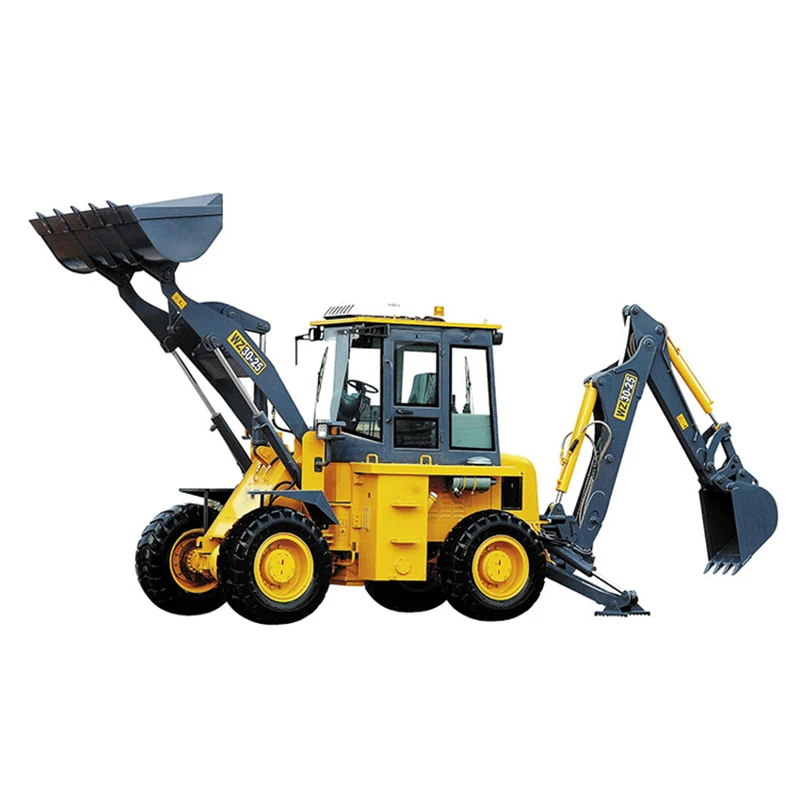

Прямые продажи по заводской цене мини-экскаватор-погрузчик 9,5 тонн WZ30-25 с профессиональным дизайном
