50HP 4 колеса новый экскаватор и погрузчик для продажи
10 500,00-10 900,00 $
Новый 1 тонный th10 50 мини экскаватор погрузчик Maxtone 4x4 буксируемый wz3025 экскаватор экскаватор погрузчик 4cx с двигателем epa
- Категория: >>>
- Поставщик: Qingzhou Maxwell Machinery Co. Ltd.Qingzhou Ltd.
Сохранить в закладки 1601010795819:
Описание и отзывы
Характеристики
Products Description
Maxtone new 1 ton th10-50 mini backhoe loader 4x4 towable wz3025 backhoe excavator loader 4cx with epa engine
Our Advantages
Maxtone wz40-30 euro 5 4wd 388h hydraulic breaker excavator backhoe loader with auger
1.who are we? Shandong Qingzhou Maxtone achinery Co.,LTD is a modern international company engaged in construction machinery.
Maxtone has developed rapidly by advanced technology and modern management.CE and ISO certificates areavailable.The strict quality control system and high quality production lines have developed the high quality products and fast delivery service. We have built one professional after-sales team that can server the customer well at the first time.
2.What are the advantages of our backhoe loader?
Maxtone has developed rapidly by advanced technology and modern management.CE and ISO certificates areavailable.The strict quality control system and high quality production lines have developed the high quality products and fast delivery service. We have built one professional after-sales team that can server the customer well at the first time.
2.What are the advantages of our backhoe loader?
MAXTONE Advantages of backhoe loader: support for continuous and long-term safe engineering activities, all-terrain off-road, multi-function operations, quick attachment of accessories, excavation, crushing,trench clearing, drilling, and bulldozing. Warranty period: within two year after delivery / 3000 working hours, if there is any quality problem, we will provide you with accessories for free.
Provide customized services, your exclusive shopping agent,personalized purchase, you are born different from others!Product advantages:HUAYA Compact backhoe loader/JCB small backhoe excavator loader /shanmon wheel loaders/shantui backhoe loader/caterpillar front loader/lovol Towable loader backhoe/saao 4x4 wheel loader /AoLiTE Back loader/ RIPPA backhoe loader excavator if you have any requests pls ask me
Details Images
R4-CX customized 3cx 4cx compact garden backhoe loader 2.5ton backhoe loader with Hydraulic Hammer | ||
Product Name | Backhoe wheel loader | |
Model | R4-CX BACKHOE LOADER | |
The total length of the entire machine (with the bucket placed on the ground) | 6420 ± 80mm | |
The total width of the entire machine (at the support feet) is | 2360 ± 20mm | |
Bucket width | 2220mm | |
Overall height (to the top of the cab) | 3100 ± 10mm | |
Overall height (to the top of the excavation arm) | 3800 ± 20mm | |
Wheelbase | 2335 ± 10 mm | |
Track width | 2139 ± 10mm | |
Backhoe Loader performance | ||
Rated bucket capacity | 1m ³ | |
Rated load capacity | 2500KG | |
Operating weight | 9120kg | |
Maximum Digging Depth | 4050 ± 20 mm | |
Maximum unloading height (45 ° discharge angle) | 3100 ± 50 mm | |
Unloading distance | 900 ± 20 mm | |
Mining main technical parameters | ||
Rated excavation bucket capacity | 0.3m ³ | |
Maximum excavation depth | 4050 ± 20 mm | |
Maximum excavation radius | 5467 ± 20mm | |
Maximum loading height | 3640 ± 20mm | |
Maximum excavation force | 5100kGf | |
Maximum excavation height | 5540 ± 20mm | |
Lifting force at maximum excavation radius | 1220kg | |
Total cycling time | 5 s | |
Diesel Engine | ||
Model | WC4A105Z-T20 | |
Cooling form | water cooling | |
Rated power | 75 (kW) | |
Exhaust volume | 4.8 (L) | |
Maximum torque | 400 (N.M) | |
Manufacturer | Yuchai Machinery Co., Ltd | |
drive system | ||
Hydraulic torque converter | model 290 | |
Cooling method | pressure oil circulation | |
Transmission | model 15 | |
Formal | mechanical control hydraulic synchronous gear shifting | |
Bridge | I model WZL100 | |
Transmission gears | ||
4 F, 4 R, front four, rear four | ||
Speed (F/R) km/h | Forward 1st gear 6 | |
Forward 2nd gear 12 | ||
Forward 3rd gear 17 | ||
Forward 4th gear 33 | ||
Reverse 1st gear 6 | ||
Reverse 2nd gear 12 | ||
Reverse 3rd gear 17 | ||
Reverse 4th gear 33 | ||
Tyre Types | ||
Model | 16.9-28 | |
hydraulic system | ||
1. Working pump displacement | 63ml/r | |
2 working pump pressure | 20Mpa | |
3. Steering gear model | BZZ5-250 | |
Excavation equipment (crushing hammer) | ||
1. Drill rod diameter | mm 68-70 | |
2 working pressure | Mpa 11-14 | |
3. Impact frequency | 500-900 | |
4 flow range L/min | 25-45 | |
5 kinetic energy KN | 49 | |
Fuel tank capacity | ||
1 Hydraulic oil tank | 125 | |
2 Diesel Tanks | 125 | |
Our backhoe loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to:
- General Construction.
- Demolitions and Excavations.
- Landscaping.
- Breaking Asphalt and Paving.
- Demolitions and Excavations.
- Landscaping.
- Breaking Asphalt and Paving.
1.newest cabin and also can install roof for road off environment
2.newest hinge let the machine have small turning radius
3. hydraulic control let the machine more comfortable to operate it
4.different color can be customized if you have any requests
5. the machine can use the brand engine for different market
6.engine can reach europe 3 and europe 5 and Epa4 Emission
7.the AC can be installed inside of the cabin and install heater at the side of the cabin 8.automatic zf gear box technical be
designed by this machine
9.E4 light and tire can reach different function
2.newest hinge let the machine have small turning radius
3. hydraulic control let the machine more comfortable to operate it
4.different color can be customized if you have any requests
5. the machine can use the brand engine for different market
6.engine can reach europe 3 and europe 5 and Epa4 Emission
7.the AC can be installed inside of the cabin and install heater at the side of the cabin 8.automatic zf gear box technical be
designed by this machine
9.E4 light and tire can reach different function
Attachment
Certifications
Company Profile
After sale service
MAXTONE always treat after-sale service as important as sale. Nowadays more than 40 agents and 10 after sales center around the world All the product of MAXTONE supplied with 1 year or 1000 working hours (which occursfirst) period quality warranty. Detail clauses and policies please check product certificate.
Why Choose Us
Why choose MAXTONE?
1) MAXTONE: an experienced loader manufacturer with over 14 years.
2) MAXTONE TEAM: customers-focused,you'll get reply within 5-10 minutes.
3) MAXTONE: premium quality with reasonable price.
4) MAXTONE: CE,BV,SGS,TUV ,EAC,ISO9001,varified.
Q:What is MAXTONE warranty?
1) MAXTONE after-sales: life-long, meantime offer one year and one month warranty.
2) MAXTONE proposal: order some wearing parts with machine for easy maintenance.
Q:What about MAXTONE delivery term?
15-20 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
Похожие товары
Многофункциональный Электрический погрузчик 400 кг 600
1 500,00 $
Погрузчик с бортовым поворотом высокого качества сделано в Китае мини-погрузчик HY380 23HP погрузчик на продажу
5 500,00-6 000,00 $

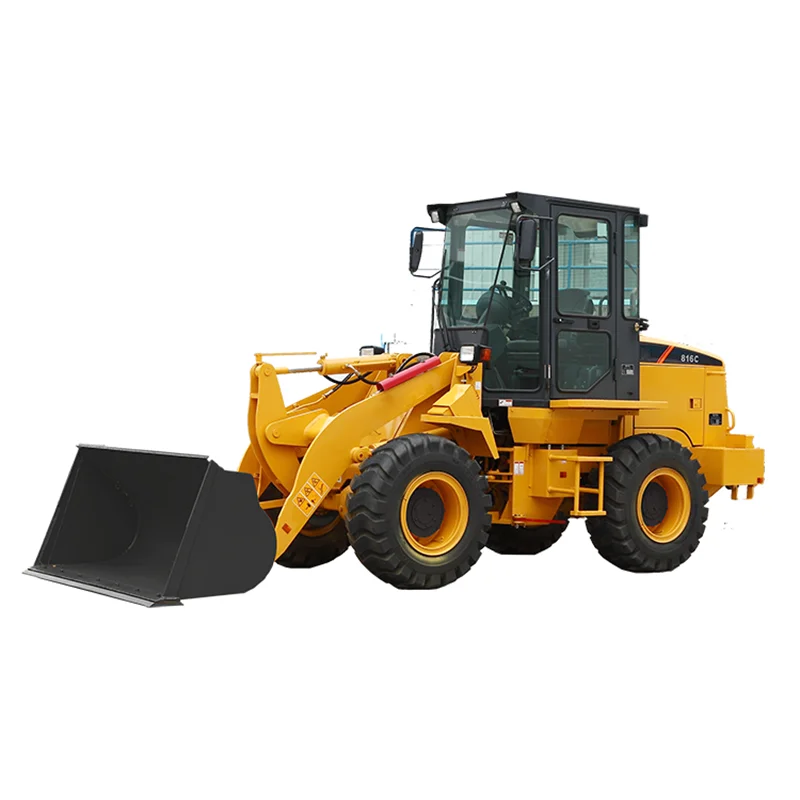

3 8 t 4 0.8cbm колесный погрузчик 816C высокая нагрузка момент
19 400,00-20 400,00 $
Инженерная техника погрузчик Shanzhong завод 30 типа 3ton колесный по хорошей цене
19 000,00-19 800,00 $
90% новый Гусеничный мини-Погрузчик Liugong с фронтальным погрузчиком телескопические погрузчики сделано в Китае
12 160,00-16 500,00 $

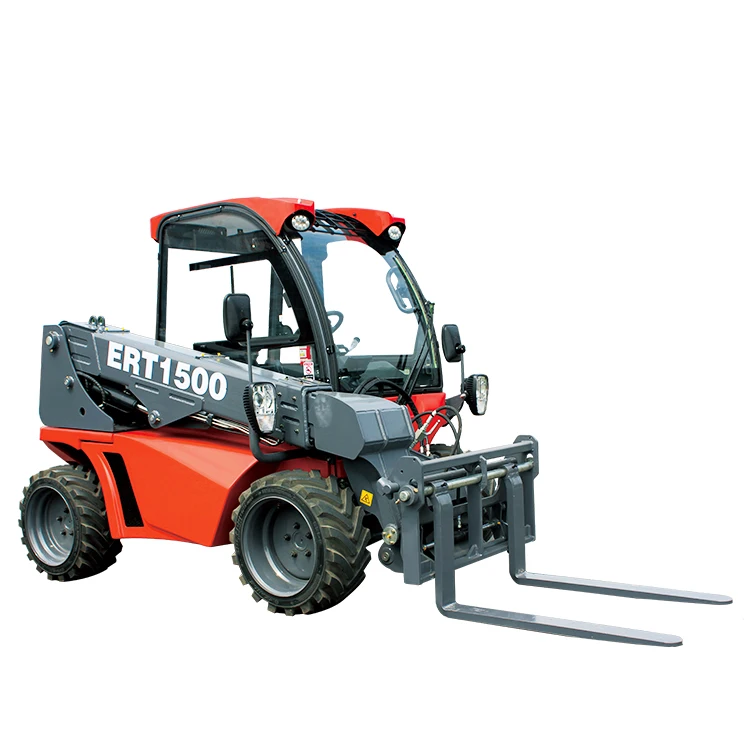

Компактный Телескопический фронтальный погрузчик Everun ERT1500 CE
