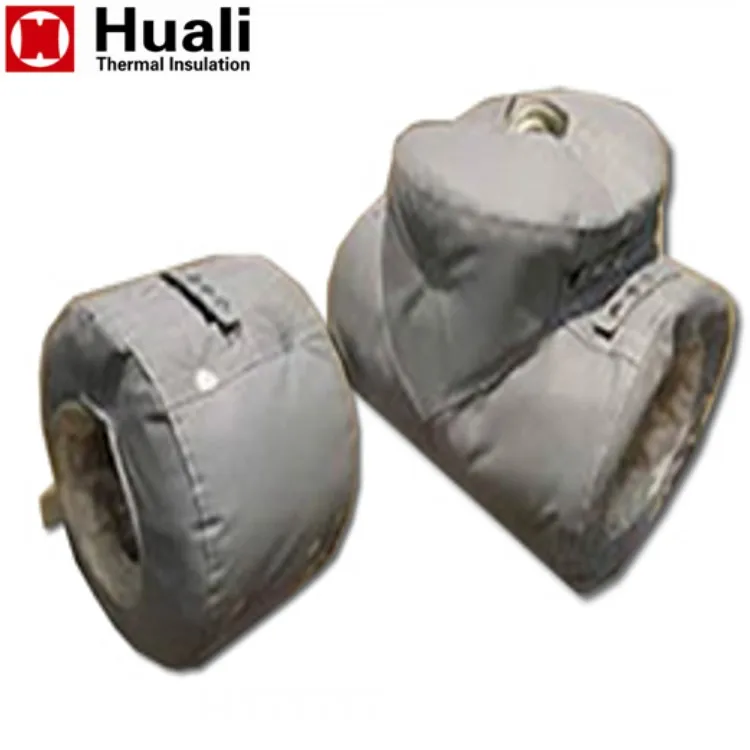

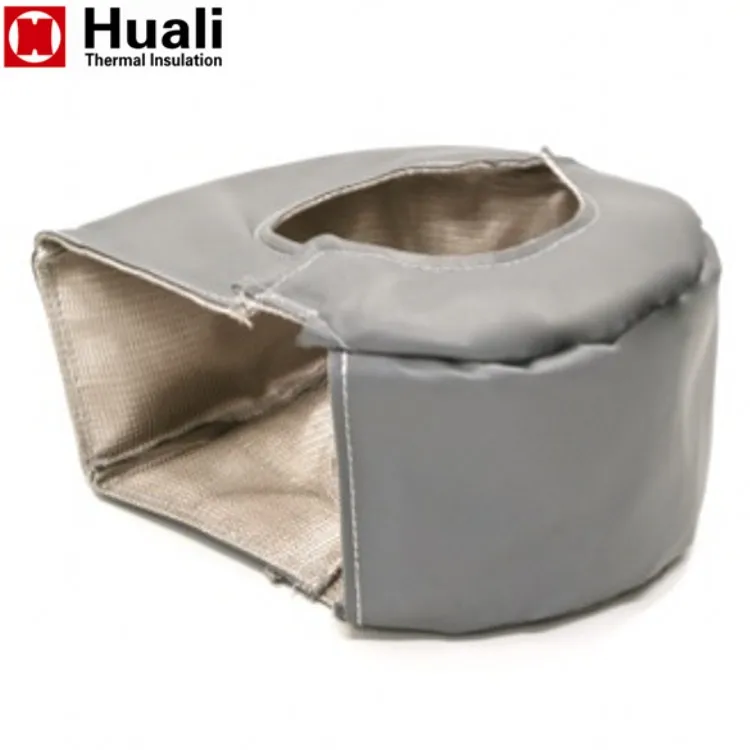

Гибкая Стекловолоконная изоляционная куртка 90 градусов локоть тройник изоляция уличная труба

Huali removable insulation cover is the most effective and converient wa to prevent heat loss from valve, flange and other pipe components.

Benefits                                                                           Features
»» Proven to save energy and lower costs                              »» One-piece design is easy to remove and reinstall by hand
»» Investment provides quick payback                                   »» Sturdy construction is a long lasting, reusable solution
»» Protects personnel and allows easy access to equipment    »»Custom solutions are tailored to specific conditions
»» Prevents heat loss and unnecessary emissions                     »»Easy to installe and removable, save manpower

Type 1:  HLBIII ≤160℃

Inner layer: two side-coated silica gel cloth

Insulation layer: fiberglass needle felt (thickness  15mm/30mm)

Outer layer: two side-coated silica gel cloth

Type 2:  HLB IV≤650℃

Inner layer: aluminum silicate fiber cloth

Insulation layer: aluminum silicate fiber blanker (thickness 40-100mm)

Outer layer: two side-coated silica gel cloth

Type 3: HLB V≤1000℃

Inner layer: high SiO2 fiber cloth

Insulation layer: aluminum silicate fiber blanket (thickness 40-100mm)

Outer layer: teo side-coated silica gel cloth

Traditional Insulation system                                   Removable insulation system

Structure: Rockwool+Metal cladding                                                  Structure: one-piece component

1. Hard to remove, lower work efficience                                           1. Easy to remove, increase work efficience

2. Cannot secondary usage once removed                                          2. Repeatedly used if removed

3. Easy to lost heat efficience                                                              3. Prevent heat loss

4. Lower production cost but waste manpower cost                           4. Higher production cost but save manpower cost

Step 1: place the cove to right position                         Step 2: wrap the cover to pipe fitting      Step3: fix the cover

»» Valves                  »» Flanges                                    »» Fittings                  »» Strainers
»» Pipes                    »» Filters & regulators                  »» Pumps                  »»Manifolds
»» Sight glasses          »» DeSuper heaters                     »» Heaters                 »» Steam Traps

Huali is established in 1995 and headquater is located in Tianjin of China, with registered capital of 100 million RMB, 8 branches, more than 500 employee. We are not only a insulation manufacturer but also engineering company for installation service, insulation solutions as EPC insulation contractor. Since 2013, Huali developed into the LNG market and successfully finish several international projects of Ichthys, Yamal, KIPIC, and now is specilized in GCGV modules built, future Canada LNG and Arctic 2 etc. If you want to know more inforamtion about us or cooperate with Huali, you can search our web-site: www. hualiinsulation. com or contact us directly.

Q: Are you a manufacturer or a trading company ?
A: We are a manufacturer founded in 1995, located in Tianjin China, with 8 branches

Q: Can you accept neutral packing & OEM ?
A: Normally, our packing is carton with Huali logo , but we can accept the neutral packing and OEM. However, custom should pay the OEM packing charge.

Q: Can you provide the sample for free ?
A: We provide some samples for free, but the express charge should be bore by customer.

Q: What's the lead time?

A: 7-15 days after receipt of advanced payment

Q: What's the payment term?

A: 30% advanced payment and 70% paid prior to load by TT. and large amount can be paid by LC.

Q: How to contact you?

A: Contact us via email sales4@hualibw.com, or wechat / whatsapp +86 13102032697
