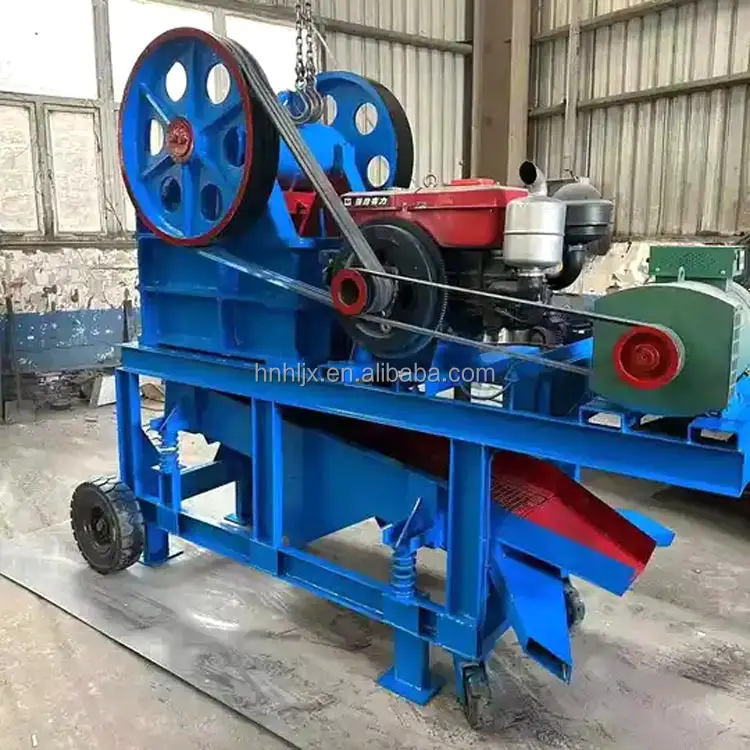

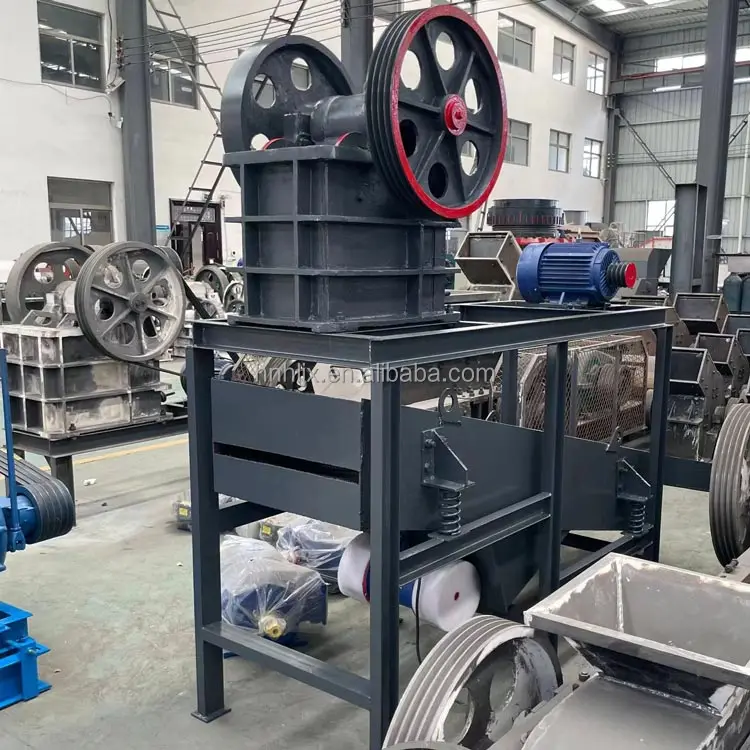

Высокоэффективная дизельная мобильная щековая дробилка

Высокоэффективная дизельная мобильная щековая дробилка

Категория: >>>
Поставщик: Henan Haolu Machinery Equipment Co. Ltd.

Цена:311 771,19 ₽ - 322 710,53 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

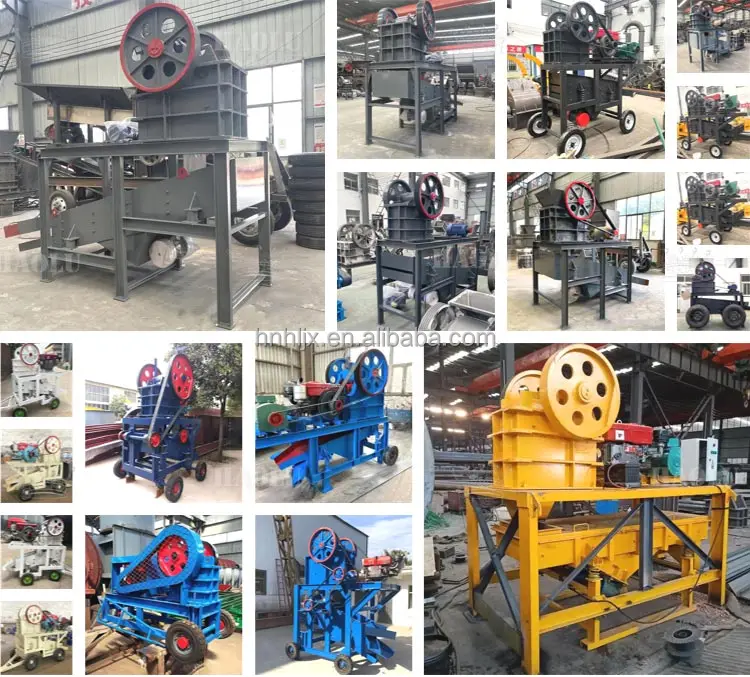

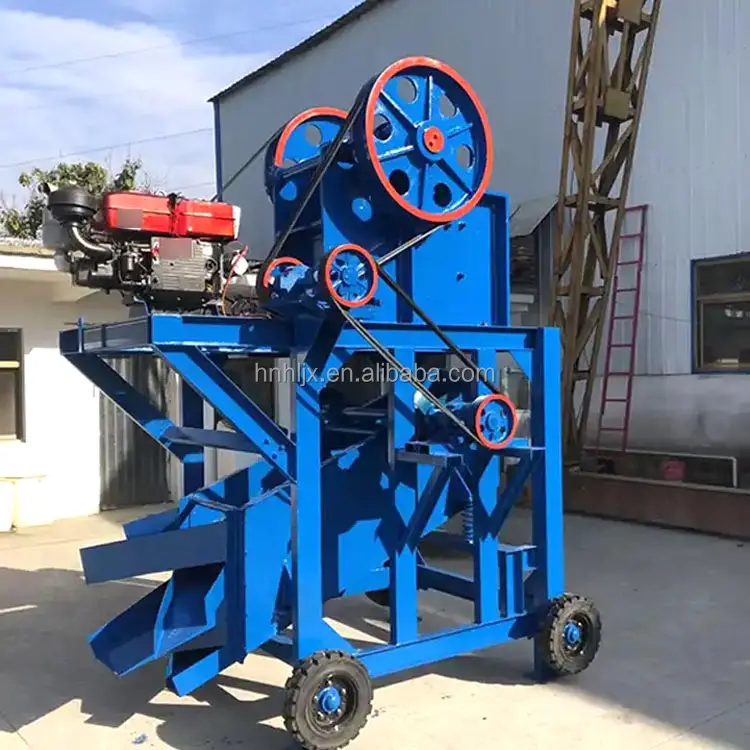

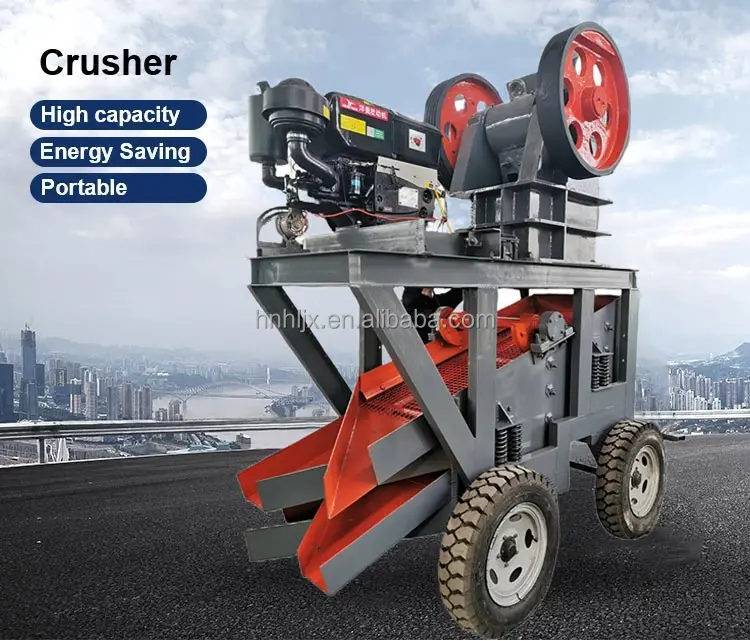

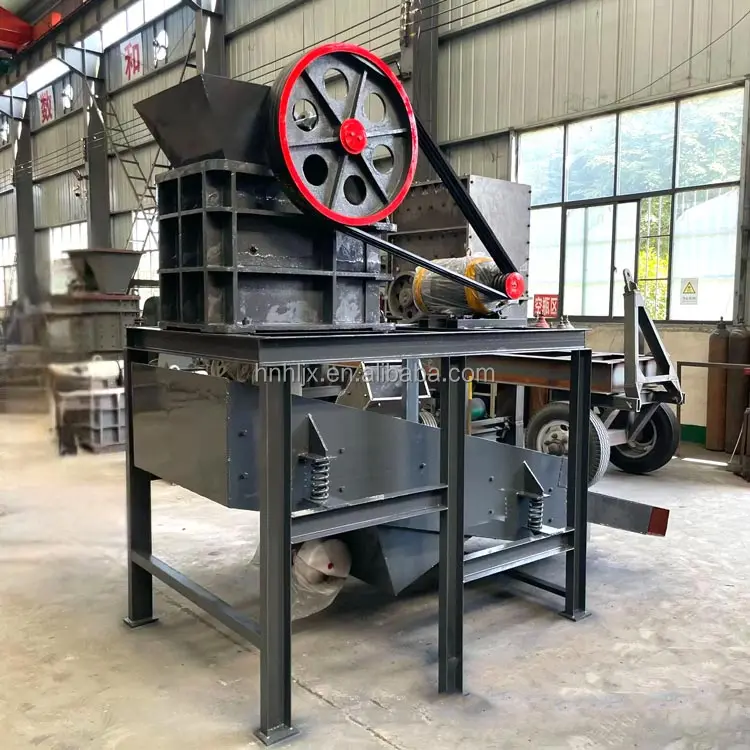

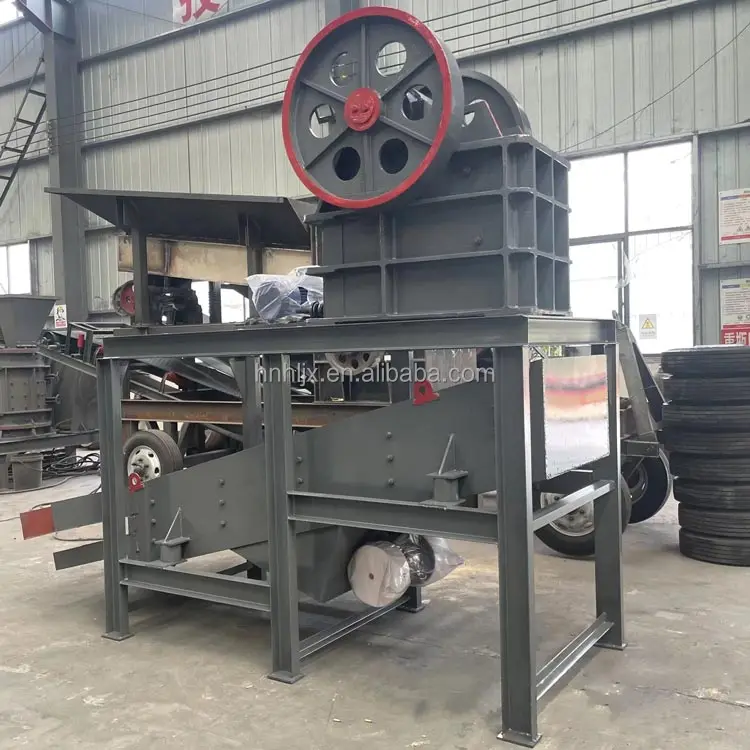

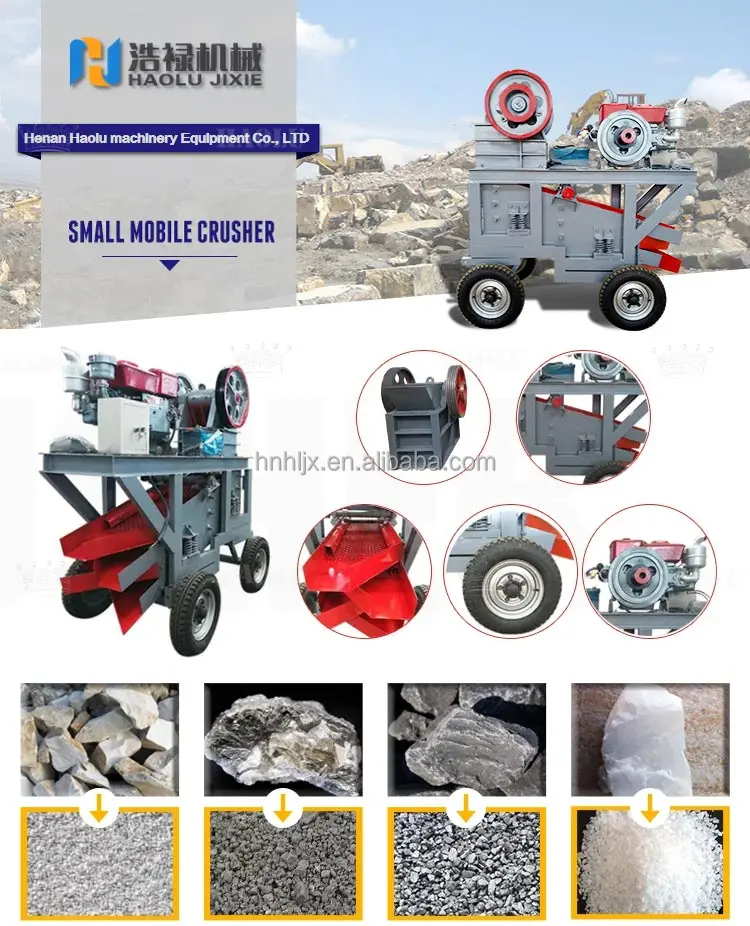

Mobile jaw crusher with vibrating screen can be equipped with diesel engine or electric, can choose the host model according to the output, through the type of material, finished product size selection of vibrating screen model. When the material is broken by the main machine, the following three layers of screening machine can screen different sizes of stones and sand, which can meet your needs for a variety of stones and sand. First crushing and then screening, using innovative modular design, easy to operate, easy to move.

Model	Feed opening size (mm)	Max feed size (mm)	Adjustable range (mm)	Capacity(t/h)	Eccentric shaft rotary speed (r/min)	Motor power(kw)	Total weight (t)	Overall dimensions *(LWH)(mm)*
PE- 150x250	150x250	125	10-40	1-3	250	5.5	0.8	720x660x850
PE- 200x300	200x300	180	15-50	2-6	260	7.5	1.2	910x750x990
PE- 200x350	200x350	180	18-70	3-10	260	11	1.5	1000x870x990
PE- 250x400	250x400	210	20-60	5-20	300	15	2.8	1300x1090x1270
PE- 400x600	400x600	340	40-100	16-60	275	30	7	1730x1730x1630
PE- 500x750	500x750	425	50-100	40-110	275	55	12	1980x2080x1870
PE- 600x750	600x750	500	150-200	80-240	275	55	15.8	2070x2000x1920
PE- 600x900	600x900	500	65-160	50-180	250	55	17	2190x2206x2300
PE-750x1060	750x1060	630	80-140	110-320	250	90-110	29	2660x2430x2800
*PE-8001060**	800x1060	640	160-220	130-330	250	110	29.8	2710x2430x2800
PE-830x1060	830x1060	650	160-220	150-336	250	110	30.7	2740x2430x2800
PE-870x1060	870x1060	660	200-260	190-336	250	110	31.5	2810x2430x2800
PE-900x1060	900x1060	685	230-290	230-390	250	110	33	2870x2420x2940
PE-900x1200	900x1200	750	95-165	220-450	200	110	52	3380x2870x3330
PE-1000x1200	1000x1200	850	195-265	315-500	200	110	55	3480x2876x3330
PE-1200x1500	1200x1500	1020	150-300	400-800	180	160	100.9	4200x3300x3500
PEX-150x750	150x750	120	18-48	8-25	320	15	3.8	1200x1530x1060
PEX-250x750	250x750	210	25-60	13-35	330	30	5.5	1380x1750x1540
PEX-250x1000	250x1000	210	25-60	16-52	330	30	7	1560x1950x1390
PEX-250x1200	250x1200	210	25-60	20-61	330	37	9.7	2140x1660x1500
PEX-300x1300	300x1300	250	20-90	16-105	300	55	15.6	2720x1950x1600

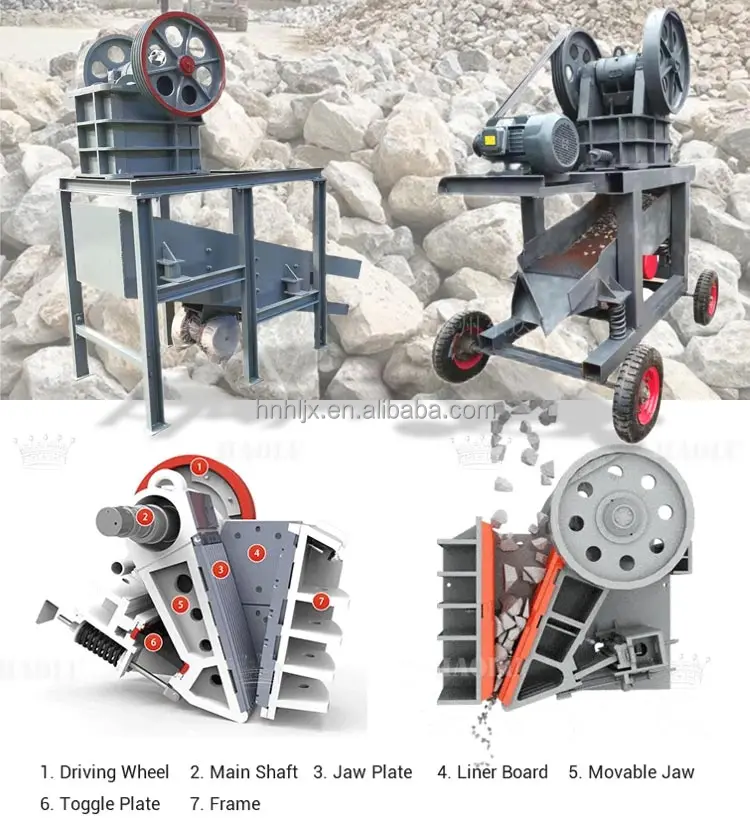

The working mode of this series crusher is driven extrusion type, diesel engine power drive, through the eccentric shaft to make the moving jaw up and down, when the moving jaw rises, the Angle between the elbow plate and the moving jaw becomes larger, so as to push the moving jaw plate to the fixed jaw plate close, at the same time the material is crushed or split, to achieve the purpose of crushing; When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor, the crusher jaw does periodic movement to crush and discharge materials to achieve mass production.

Jaw crusher is one of the main equipment for crushing ore or rock in rough and medium. It has the advantages of simple structure, reliable performance, easy operation, convenient maintenance and safe use. Adopting innovative modular design, weldless frame structure, high quality alloy steel castings and rolling bearings, it greatly improves the fatigue resistance and operational reliability of the equipment, and fully ensures the high productivity, high efficiency and low cost of crushing operation; A variety of flexible installation methods to meet different application choices.

Haoluo Jaw Crusher advantages

1. The crushing chamber is deep and has no dead zone, which improves the feeding capacity and output;
2. Its crushing ratio is large, and the product particle size is uniform;
3. Gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of the equipment;
4. Low noise, less dust.Simple structure, reliable work, low operating costs.
5. Equipment energy saving: single-machine energy saving 15%~30%, system energy saving more than double;
7. The adjustment range of discharge port is large, which can meet the requirements of different users;

FAQ

Q: What information should I provide when I ask about the product?

A: The more specific the information, the better service we can provide.
1. Tell us what you need broken. Such as: basalt, pebbles, iron ore, limestone, granite, quartz stone, shale, sand, river pebbles, bluestone, gypsum, construction waste and so on
2. Tell us what powers the crusher. Such as: electric, diesel.
3. Tell us what model you need each time. For example: RE150*250 PE200*300 PE200*350 PE250*400 PE400*600 PE500*700 PE600*750 PE600*900 PE750*1060 PE800*1060 etc.

Q: Are you trading company or manufacturer?

A: We are a factory that can process and customize according to needs

Q: What are the terms of payment in your formal trade?

A:Normally we can work on T/T term ,L/C term and Alibaba Trade Assurance Order Online .
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.

Q: What’s your after-sale service?

A:12 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.

Q:What’s your delivery time?

A:The goods will be delivered in 30-45 days after the 30% of the total amout is paid as deposit, and maybe a little longer if busy in the factory.
B: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
