Products Description

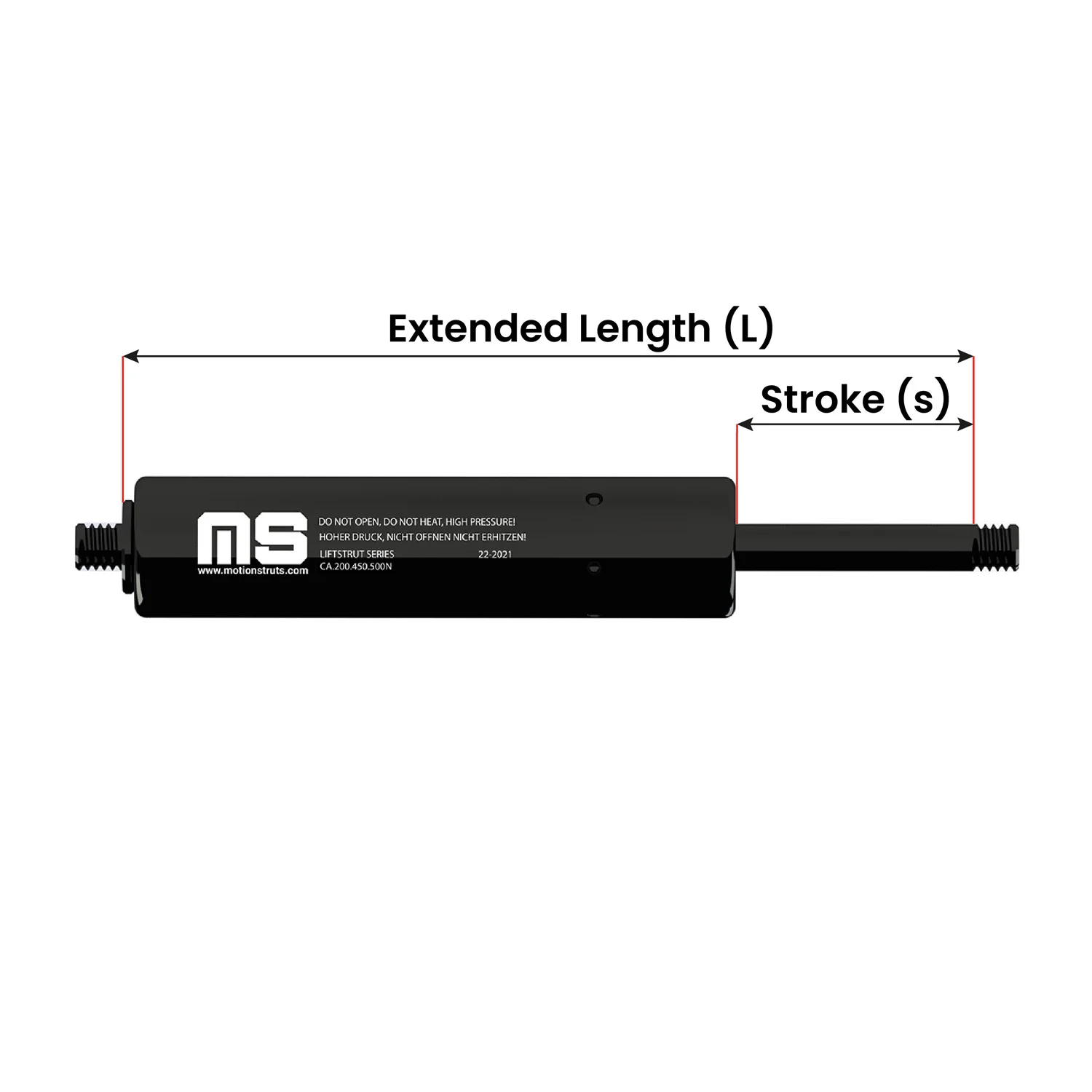

ITEM CODE | STROKE | EXTENDED LENGTH |
LS14AA-50-170-F1 | 50 (1.97) | 170 (6.69) |
LS14AA-57-173-F1 | 57 (2.24) | 173 (6.81) |
LS14AA-70-218-F1 | 70 (2.75) | 218 (8.58) |
LS14AA-100-266-F1 | 100 (3.94) | 266 (10.47) |
LS14AA-100-262-F1 | 100 (3.94) | 262 (10.31) |
LS14AA-100-270-F1 | 100 (3.94) | 270 (10.63) |
LS14AA-100-280-F1 | 100 (3.94) | 280 (11.02) |
LS14AA-100-247-F1 | 100 (3.94) | 247 (9.72) |
LS14AA-100-295-F1 | 100 (3.94) | 295 (11.61) |
LS14AA-150-348-F1 | 150 (5.90) | 348 (13.70) |
LS14AA-150-362-F1 | 150 (5.90) | 362 (14.25) |
LS14AA-150-366-F1 | 150 (5.90) | 366 (14.41) |
LS14AA-150-370-F1 | 150 (5.90) | 370 (14.57) |
LS14AA-150-396-F1 | 150 (5.90) | 396 (15.59) |
LS14AA-200-447-F1 | 200 (7.87) | 447 (17.60) |
LS14AA-200-462-F1 | 200 (7.87) | 462 (18.19) |
LS14AA-200-466-F1 | 200 (7.87) | 466 (18.35) |
LS14AA-200-470-F1 | 200 (7.87) | 470 (18.50) |
LS14AA-200-480-F1 | 200 (7.87) | 480 (18.90) |
LS14AA-200-495-F1 | 200 (7.87) | 495 (19.49) |
LS14AA-250-547-F1 | 250 (9.84) | 547 (21.53) |
LS14AA-250-562-F1 | 250 (9.84) | 562 (22.12) |
LS14AA-250-566-F1 | 250 (9.84) | 566 (22.28) |
LS14AA-250-570-F1 | 250 (9.84) | 570 (22.44) |
LS14AA-250-595-F1 | 250 (9.84) | 595 (23.42) |
LS14AA-300-647-F1 | 300 (11.81) | 647 (25.47) |
LS14AA-300-662-F1 | 300 (11.81) | 662 (26.06) |
LS14AA-300-666-F1 | 300 (11.81) | 666 (26.22) |
LS14AA-300-670-F1 | 300 (11.81) | 670 (26.38) |
LS14AA-300-679-F1 | 300 (11.81) | 679 (26.73) |
LS14AA-300-695-F1 | 300 (11.81) | 695 (27.36) |
LS14AA-350-748-F1 | 350 (13.78) | 748 (29.45) |
LS14AA-350-762-F1 | 350 (13.78) | 762 (30) |
LS14AA-350-766-F1 | 350 (13.78) | 766 (30.16) |
LS14AA-350-770-F1 | 350 (13.78) | 770 (30.31) |
LS14AA-350-796-F1 | 350 (13.78) | 796 (31.34) |
LS14AA-400-848-F1 | 400 (15.75) | 848 (33.38) |
LS14AA-400-862-F1 | 400 (15.75) | 862 (33.94) |
LS14AA-400-866-F1 | 400 (15.75) | 866 (34.09) |
LS14AA-400-870-F1 | 400 (15.75) | 870 (34.25) |
LS14AA-400-884-F1 | 400 (15.75) | 884 (34.80) |
LS14AA-400-896-F1 | 400 (15.75) | 896 (35.27) |
LS14AA-450-947-F1 | 450 (17.71) | 947 (37.28) |
LS14AA-450-963-F1 | 450 (17.71) | 963 (37.91) |
LS14AA-450-970-F1 | 450 (17.71) | 970 (38.19) |
LS14AA-450-995-F1 | 450 (17.71) | 995 (39.17) |
LS14AA-500-1048-F1 | 500 (19.68) | 1048 (41.26) |
LS14AA-500-1066-F1 | 500 (19.68) | 1066 (41.97) |
LS14AA-500-1062-F1 | 500 (19.68) | 1062 (41.81) |
LS14AA-500-1070-F1 | 500 (19.68) | 1070 (42.12) |
LS14AA-500-1087-F1 | 500 (19.68) | 1087 (42.79) |

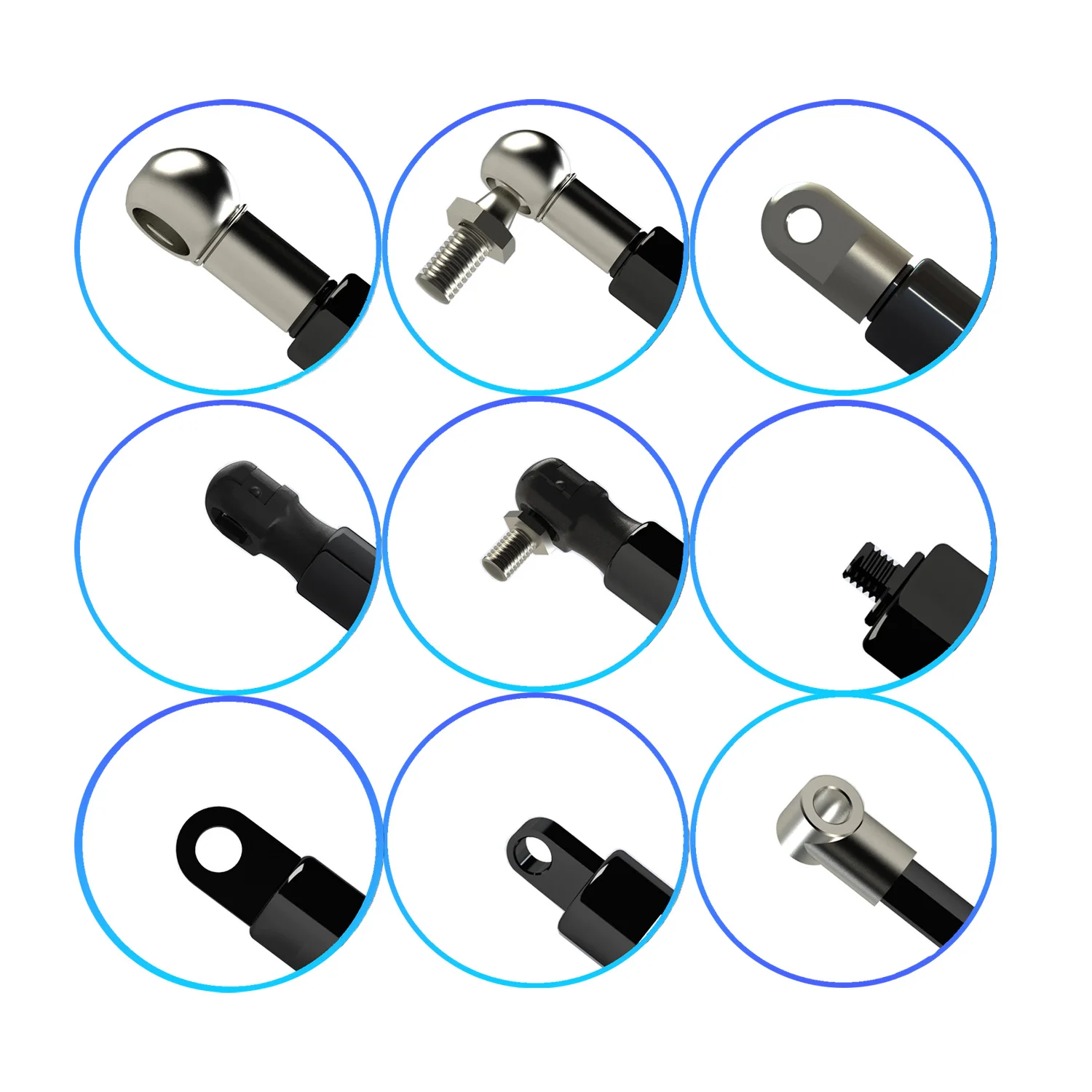

End Fitting Options
*Click to open End Fitting Collection on new tab

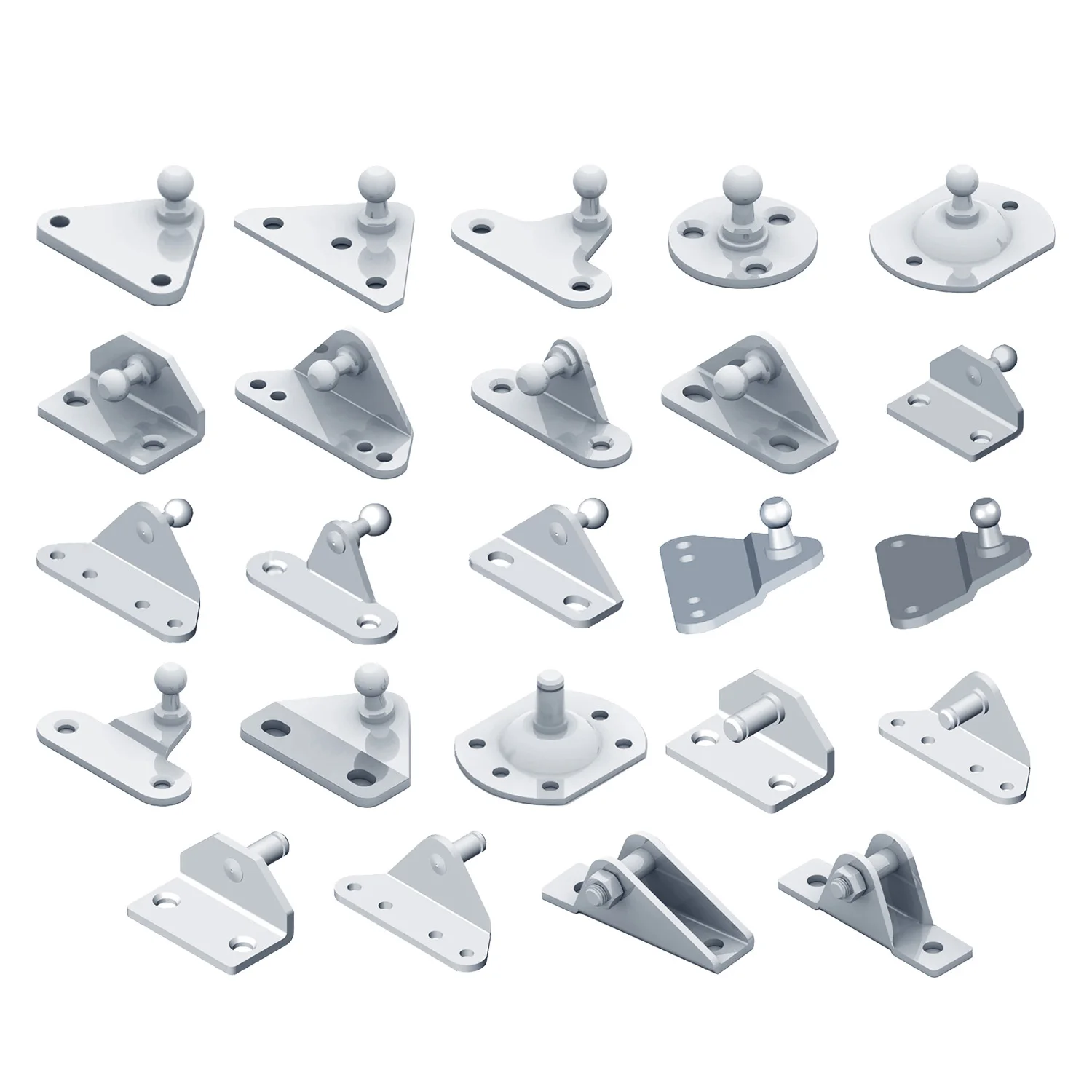

Bracket Options
*Click to open Bracket Collection on new tab
Ordering
We offer a wide variety of gas springs as a standard range on our website. You can easily filter parameters and download the data to use in your design. If you cannot find the required parameters in our product range, simply send us the details. We will provide you with a 2D drawing or STEP file if we are able to produce it. Once the items and quantities are defined, we will provide you with an order confirmation form, which includes prices, lead time, delivery, and payment conditions.
Our preferred payment method is Bank Transfer. However, for smaller shipments, we can provide you with a credit card payment link, allowing you to make payments via VISA, AMEX, or Mastercard with total safety.
Production
All our products are produced in Turkey using reliable raw materials and components in accordance with EU regulations. Our skilled engineers oversee processes such as steel processing, stoning, nitriding, gas filling, painting, and assembly within our indoor facilities. We provide periodic training for workplace safety and aim to minimize production faults. To ensure sustainability in deliveries and quality, we consistently monitor contract manufacturers.
Quality Control
All our products are designed, manufactured, and delivered according to the strictest quality standards. Our experienced and specially trained employees monitor adherence to our quality criteria at every phase of the production process. Motionstruts are manufactured with the highest quality, environmentally friendly materials, which comply with the REACH and RoHS directives.
We are certified in accordance with DIN ISO 9001:2015. Our quality program begins with implementing strict quality controls on our purchase transactions. Permanent quality assurance is guaranteed through uncompromising monitoring of raw materials, an extensive testing program, and redundant quality control throughout the production process.
Motionstruts undergo continuous testing to ensure reliability, longevity, and overall product safety to achieve your highest satisfaction. Utilizing our test and development laboratory, products and technology are continuously improved. The following tests are conducted either by our in-house testing equipment or officially registered laboratories:
* Damping measurements
* Extension speed measurements
* Extension force measurements
* Leakage tests
* Salt spray tests
* Life cycle tests
* Mechanical strength tests
* Tests of actual application
* Metallographic inspections: material, hardness, microstructure.
To provide traceable service, we share final control reports of each shipment on MS Connect for our registered customers.
Packaging
Complications such as crushing, overturning, and wetting are always possible during the transportation process. To prevent such failures, we meticulously attend to the packaging process at every stage. MS Motion boasts a professional packaging and logistics team fully capable of safely delivering your orders worldwide. Whether it's 2 pieces or 20,000 pieces, we utilize the best packaging materials available.
Documentation
Customs require a set of documents according to the state or region to complete the import process in the destination country. Our experienced operations team and broker partners comply with the certification processes and necessary documentation requirements of your country. Prepared documents are shared with you via email, or you can simply visit your page on MS Connect to access the documents for each shipment that has been sent.
* Commercial Invoice
* Packing List
* Export Declaration
* A.TR or EUR1 Certificates
* Certificate of Origin
* Consignment
Delivery
We have contracts with the best logistic and courier companies that provide worldwide door-to-door delivery and insurance according to your requirements, whether express or budget. MS Connect users may trace shipment status online, which is updated daily.
In addition to packaging and documentation, MS Motion provides an optimum delivery solution for our business partners via air, land, or sea options. We ensure that your goods are delivered on time and safely, regardless of whether it's 2 pieces or 20,000 pieces.
Company Profile
MS MOTION A.S.
MS Motion A.S. based in Bursa-Turkey aimed to design and produce optimum gas spring and mounting solutions for industries such as machinery, furniture, marine, aerospace, automotive and defence.
Our team has more than decade experience in design, product development, custom production, logistics and quality control.
Our gas spring production offers from 30N to 5000N as standard product range with several different functions and material options.
Besides, our end fitting, mounting, bracket, protection and safety components collection offers a wide solution for your specific demands.
